OPTEX FA SA-80 SERIES M18 원통형 온도센서
가격문의(상세정보 참조)
OPTEX FA SA-80 SERIES M18 원통형 온도센서

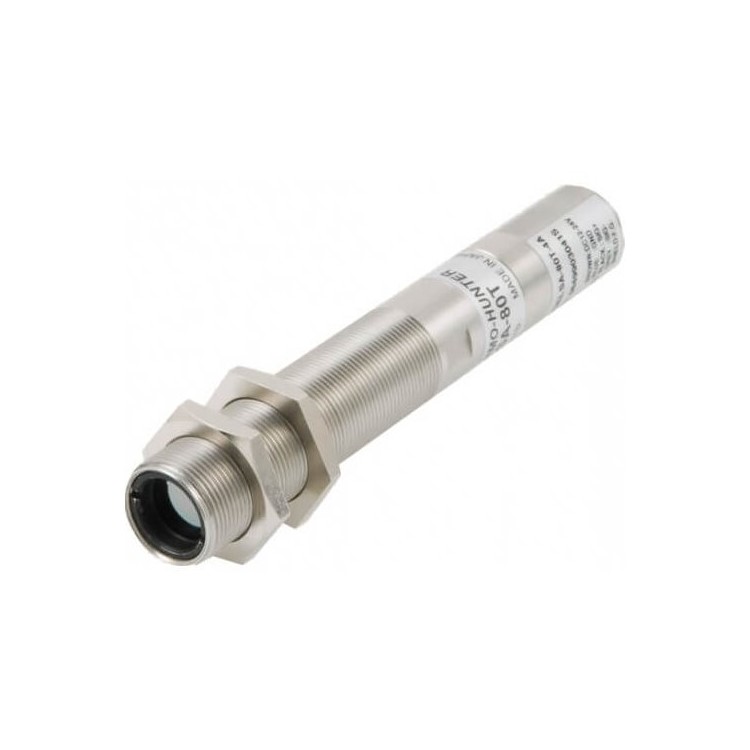

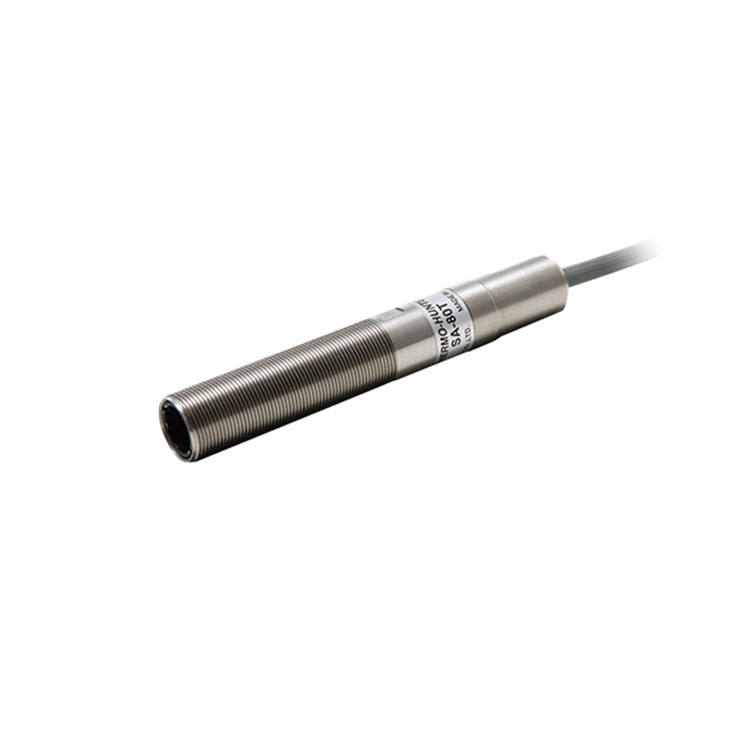

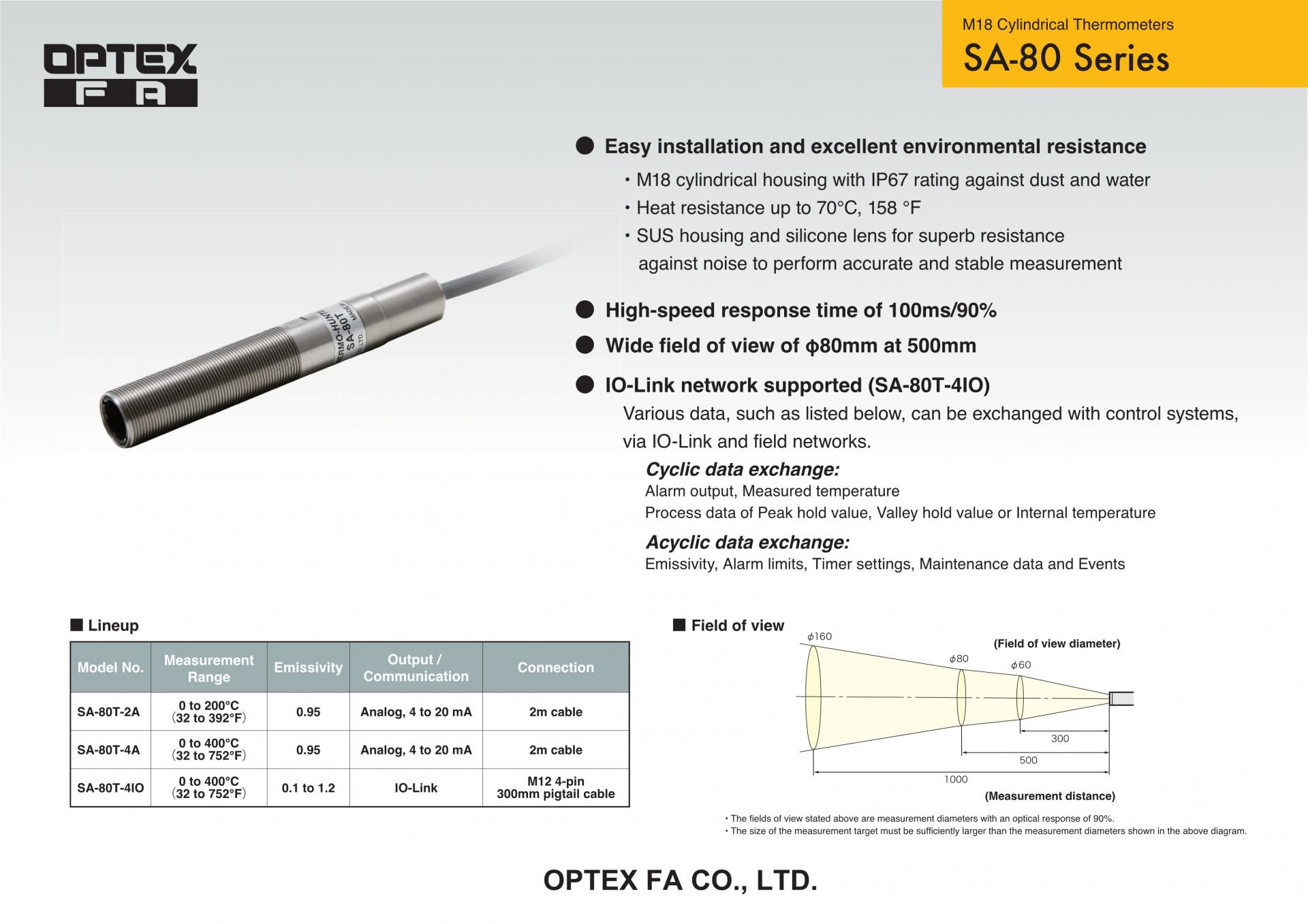

OPTEX FA SA-80 SERIES M18 Cylindrical Thermometers
Measurement temperature range: 0 to 200℃ / 0 to +400℃
- Easy installation and excellent environmental resistance
- High-speed response time of 100ms/90%
- IO-Link network supported (SA-80T-4IO)
- Wide field of view of φ80mm at 500mm
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
SA-80
M18 원통형 온도센서
SA-80 SERIES M18 Cylindrical Thermometers
- M18 cylindrical housing with IP67 rating against dust and water - Heat resistance up to 70°C, 158 °F - SUS housing and silicone lens for superb resistance against noise to perform accurate and stable measurement |
Achieves a response time of 100 ms/90% for quick measurement. |
 | |
Various data, such as listed below, can be exchanged with control systems,via IO-Link and field networks. Cyclic data exchange: Alarm output, Measured temperature Process data of Peak hold value, Valley hold value or Internal temperature Acyclic data exchange: Emissivity, Alarm limits, Timer settings, Maintenance data and Events |
Noise-resistant analog output: 4-20 mA. |
Settings can be configured for a wide focus with an area diameter of 80 mm at a distance of 500 mm. | |
