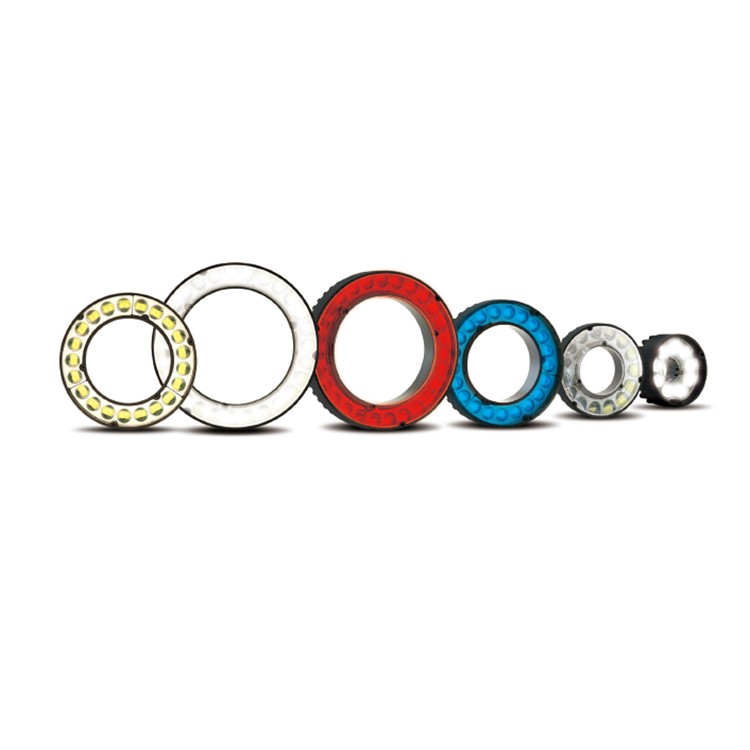

OPTEX FA OPR SERIES 감지형 LED 링 조명
가격문의(상세정보 참조)
OPTEX FA OPR SERIES 감지형 LED 링 조명

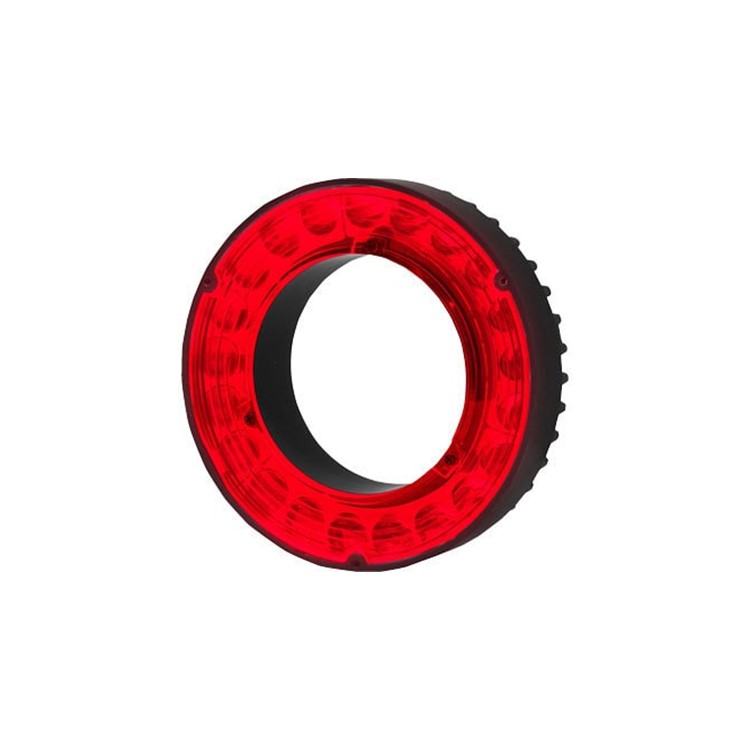

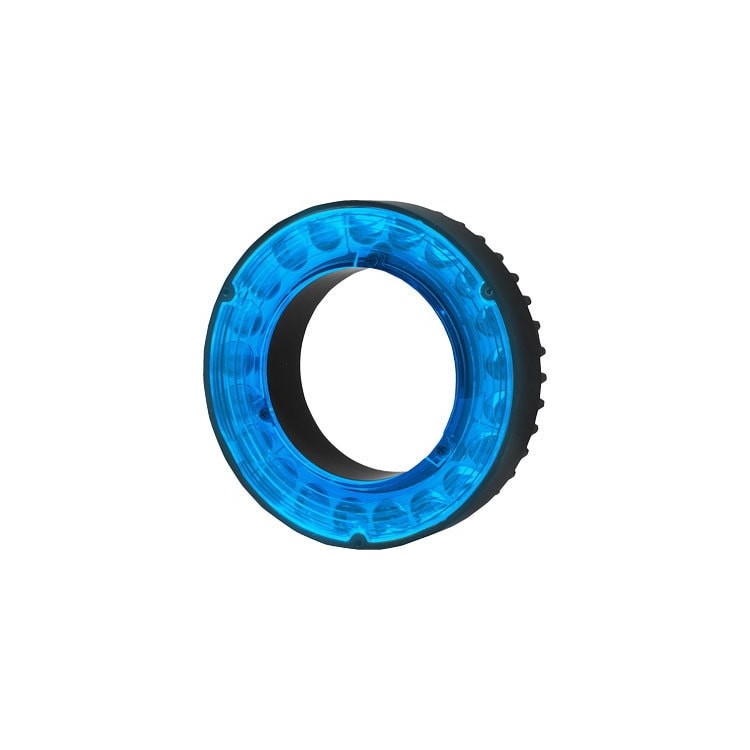

OPTEX FA OPR SERIES Sensing LED Ring Lighting

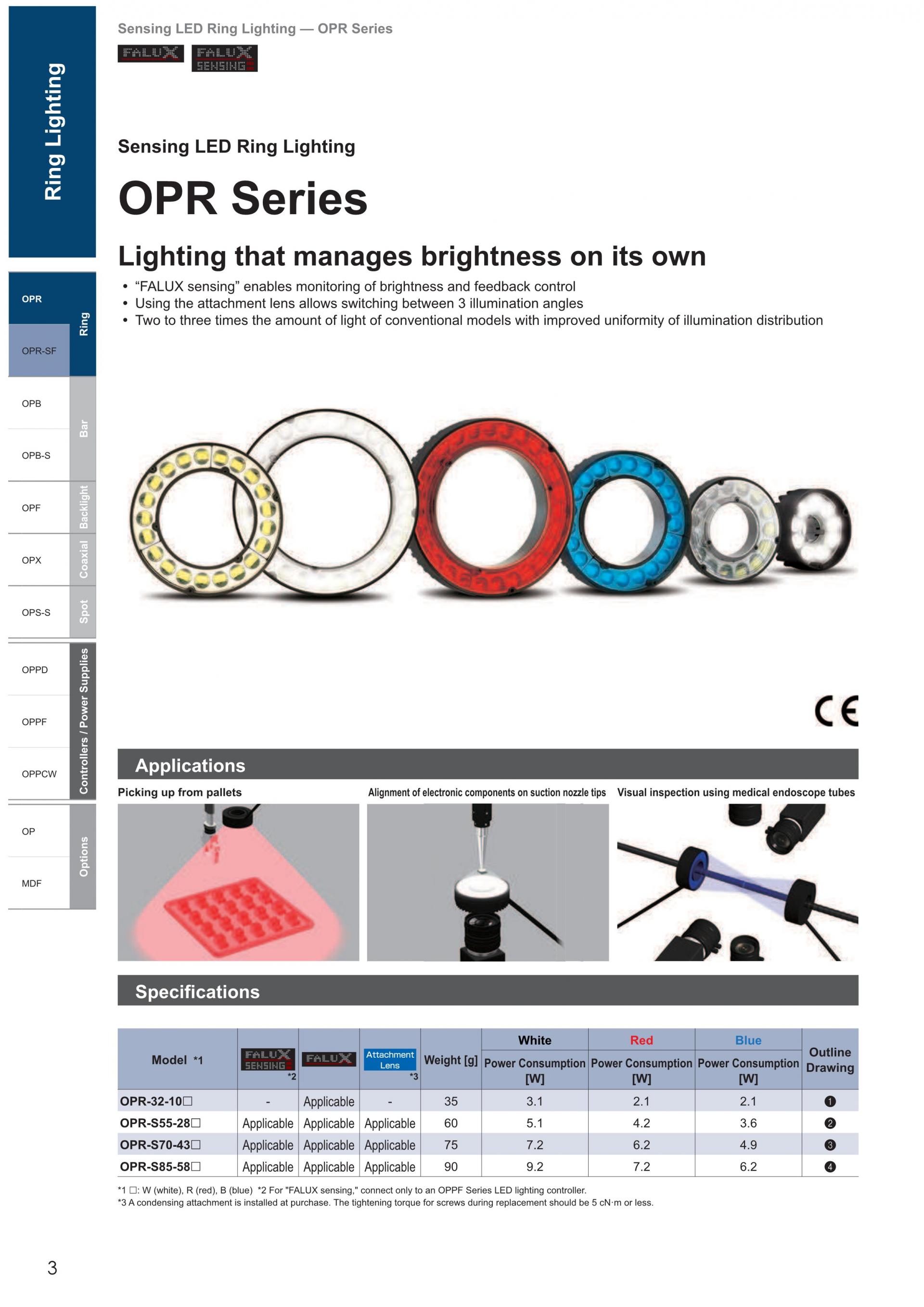

“FALUX sensing” enables monitoring of brightness and feedback control
- Using the attachment lens allows switching between 3 illumination angles
- Two to three times the amount of light of conventional models with improved uniformity of illumination distribution
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
OPR SERIES
감지형 LED 링 조명
OPR SERIES Sensing LED Ring Lighting

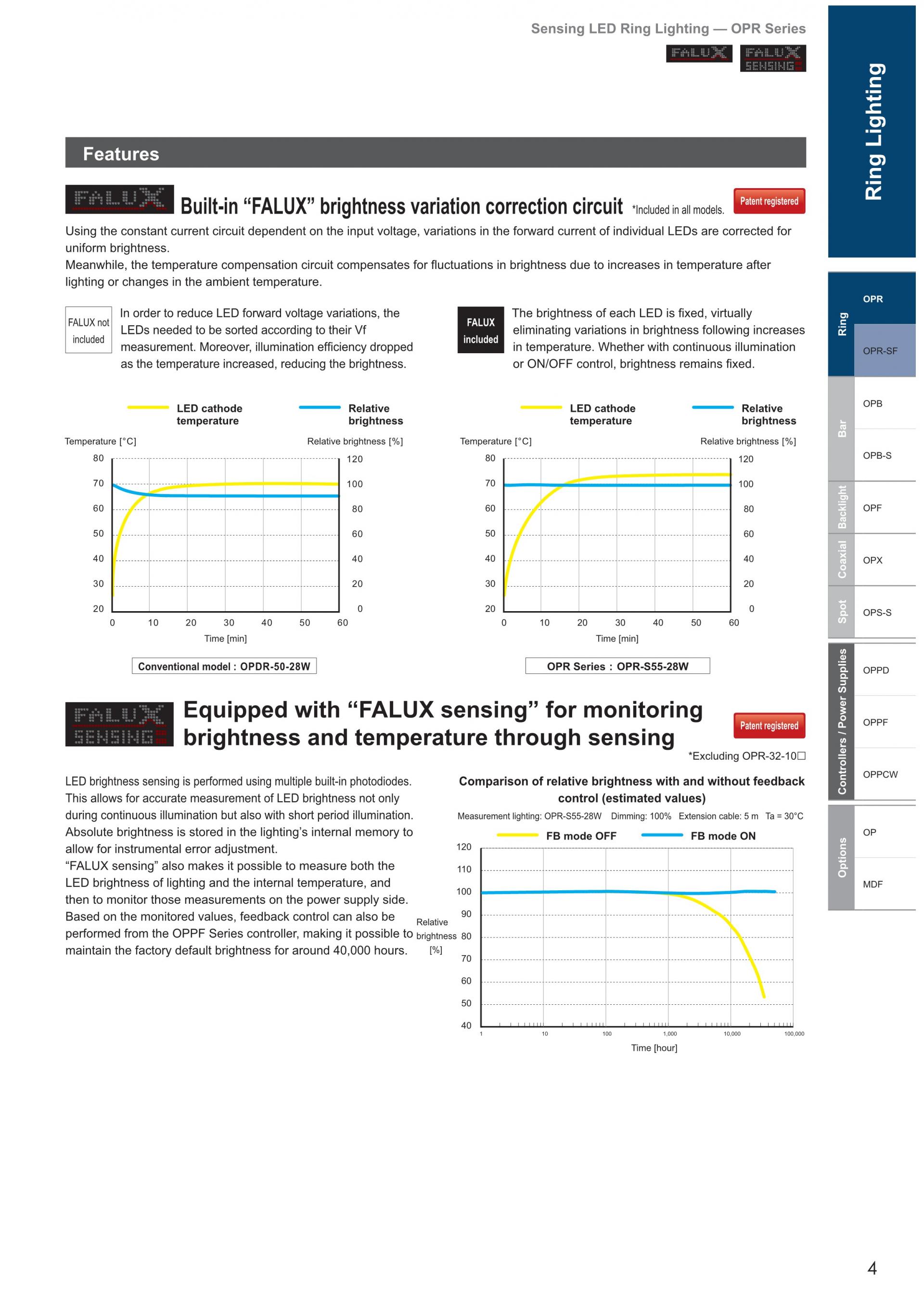

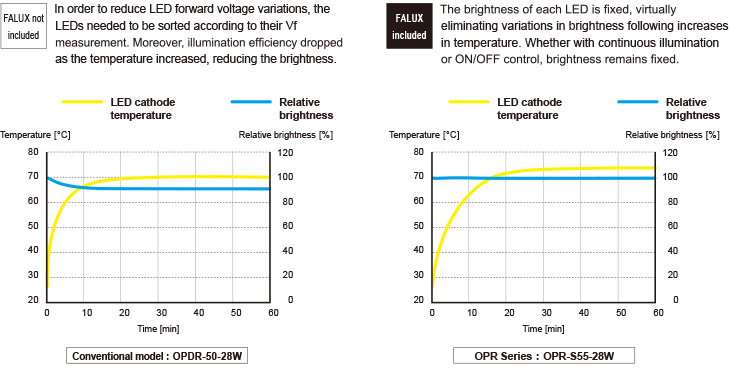

- Built-in “FALUX” brightness variation correction circuit *Included in all models.
Using the constant current circuit dependent on the input voltage, variations in the forward current of individual LEDs are corrected for uniform brightness. Meanwhile, the temperature compensation circuit compensates for fluctuations in brightness due to increases in temperature after lighting or changes in the ambient temperature.
- Equipped with “FALUX sensing” for monitoring brightness and temperature through sensing *Excluding OPR-32-10☐

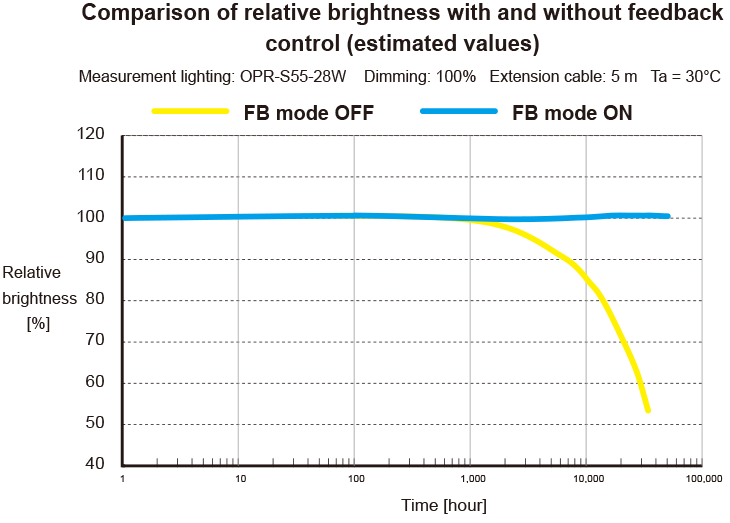

LED brightness sensing is performed using multiple built-in photodiodes. This allows for accurate measurement of LED brightness not only during continuous illumination but also with short period illumination. Absolute brightness is stored in the lighting’s internal memory to allow for instrumental error adjustment. “FALUX sensing” also makes it possible to measure both the LED brightness of lighting and the internal temperature, and then to monitor those measurements on the power supply side. Based on the monitored values, feedback control can also be performed from the OPPF Series controller, making it possible to maintain the factory default brightness for around 40,000 hours. |  |

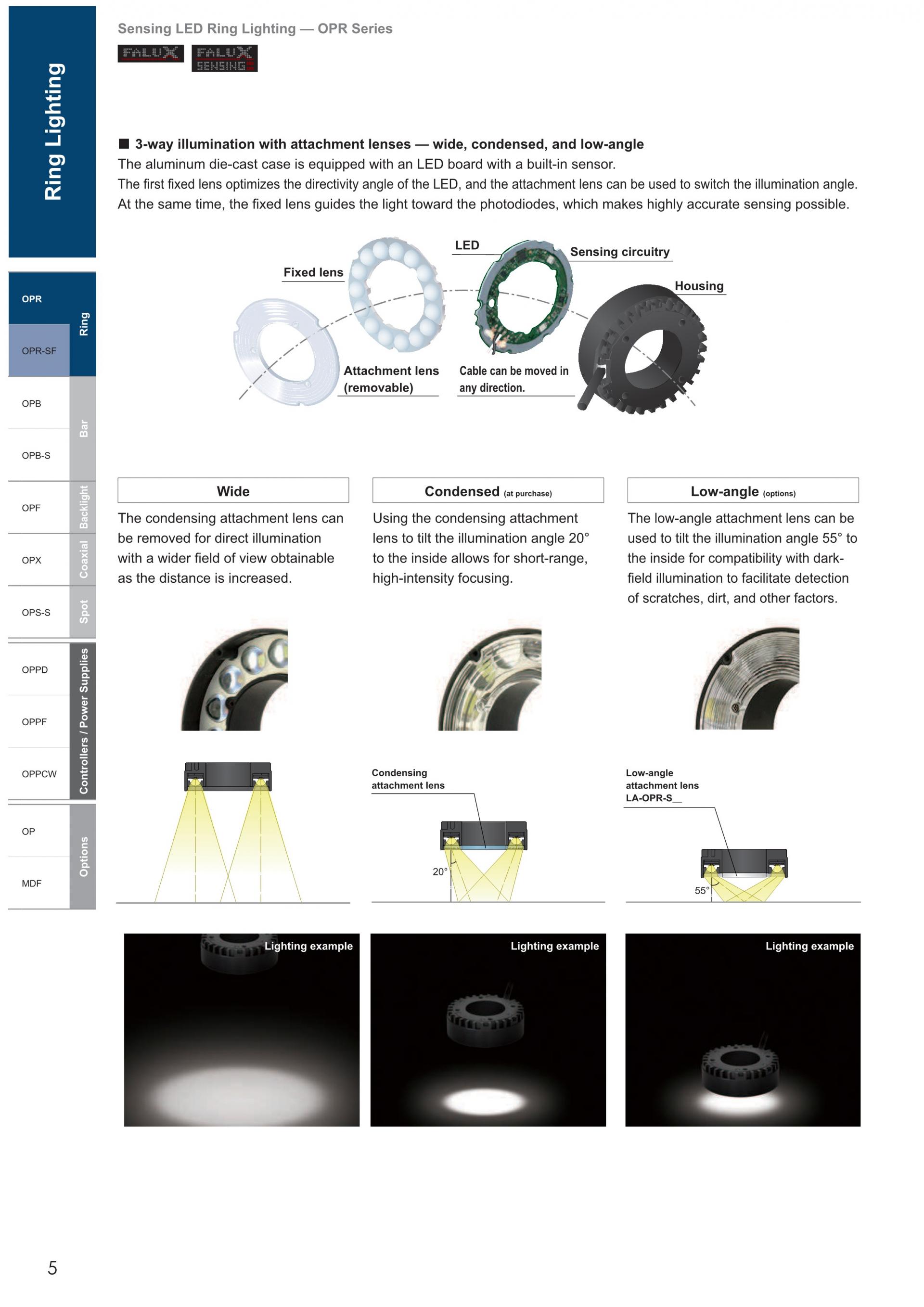

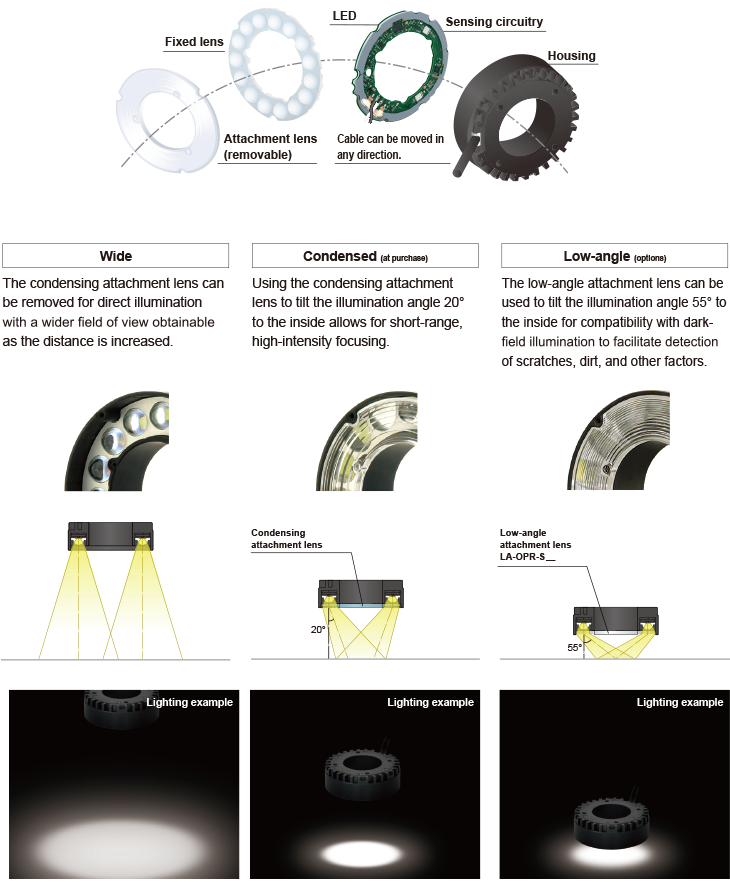

- 3-way illumination with attachment lenses ? wide, condensed, and low-angle

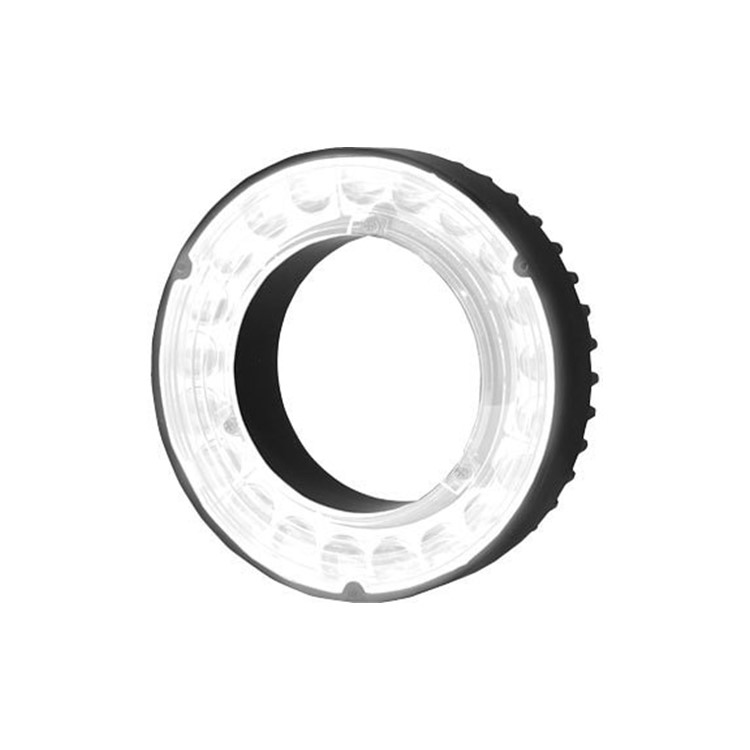

The aluminum die-cast case is equipped with an LED board with a built-in sensor. The first fixed lens optimizes the directivity angle of the LED, and the attachment lens can be used to switch the illumination angle. At the same time, the fixed lens guides the light toward the photodiodes, which makes highly accurate sensing possible.

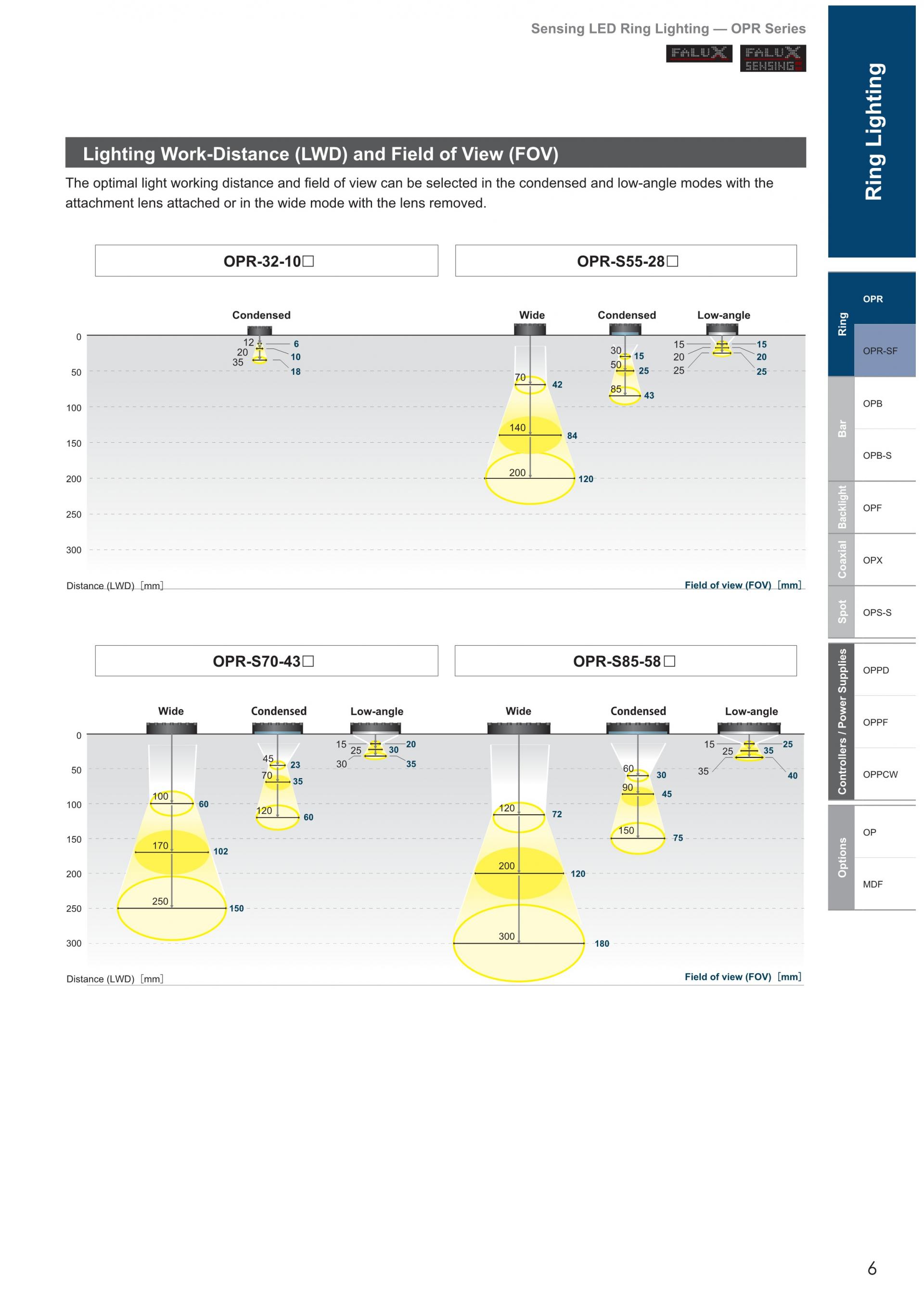

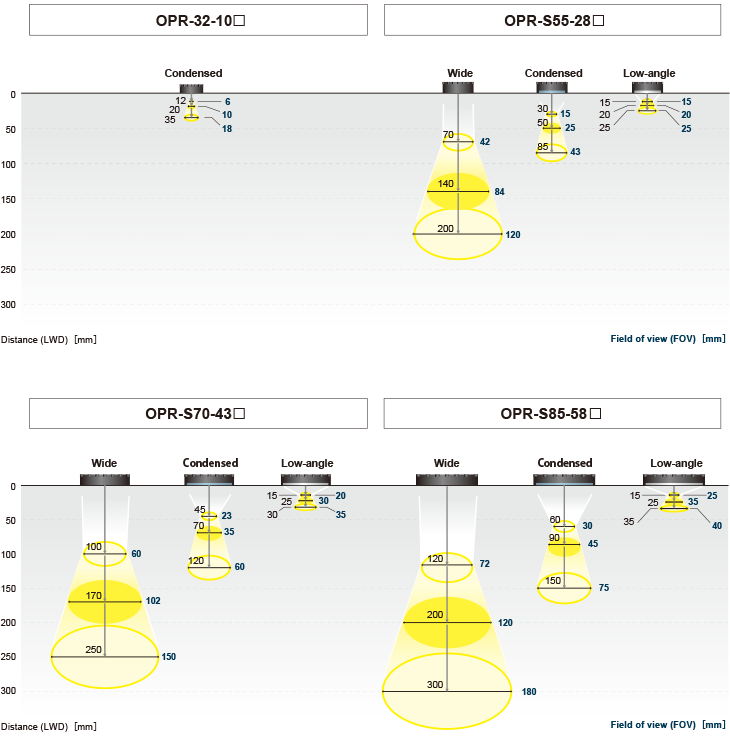

- Lighting Work-Distance (LWD) and Field of View (FOV)
The optimal light working distance and field of view can be selected in the condensed and low-angle modes with the attachment lens attached or in the wide mode with the lens removed.
OPR-32-10W OPR-S55-28W OPR-S70-43W OPR-S85-58W OPR-32-10R OPR-S55-28R OPR-S70-43R OPR-S85-58R OPR-32-10B OPR-S55-28B OPR-S70-43B OPR-S85-58B OPR 32-10W OPR S55-28W OPR S70-43W OPR S85-58W OPR 32-10R OPR S55-28R OPR S70-43R OPR S85-58R OPR 32-10B OPR S55-28B OPR S70-43B OPR S85-58B OPR 32 10W OPR S55 28W OPR S70 43W OPR S85 58W OPR 32 10R OPR S55 28R OPR S70 43R OPR S85 58R OPR 32 10B OPR S55 28B OPR S70 43B OPR S85 58B OPR-32 10W OPR-S55 28W OPR-S70 43W OPR-S85 58W OPR-32 10R OPR-S55 28R OPR-S70 43R OPR-S85 58R OPR-32 10B OPR-S55 28B OPR-S70 43B OPR-S85 58B OPR OPTEX FA OPR OPTEX OPR FASTUS OPR 옵텍스 FA OPR 옵텍스 OPR OPR OPTEX FA OPR OPTEX OPR FASTUS OPR 옵텍스 FA OPR 옵텍스
