OPTEX FA CD33 SERIES 소형 레이저 변위센서
OPTEX FA CD33 SERIES Small Laser Displacement Sensors

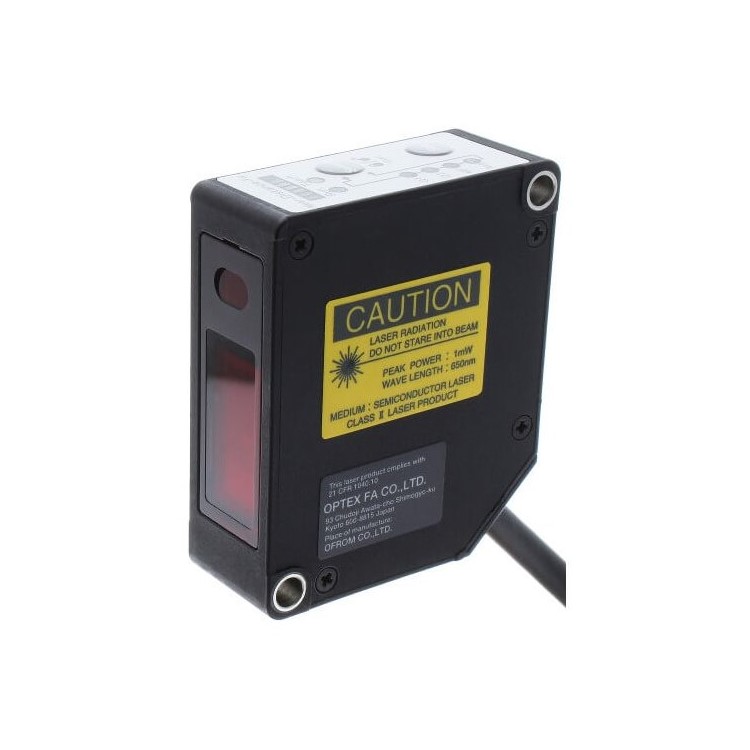

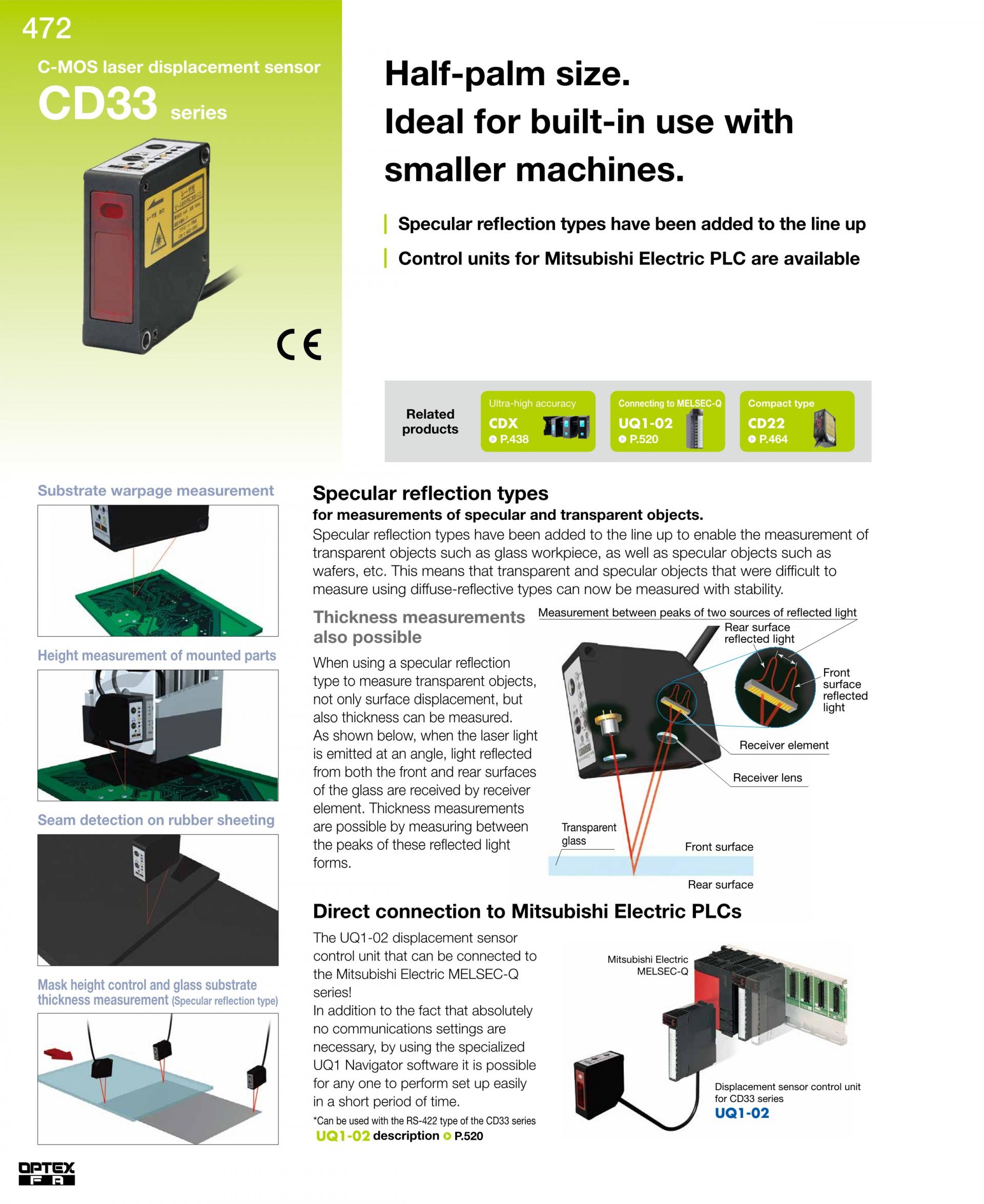

Half-palm size. Ideal for built-in use with smaller machines.
- Specular reflection types have been added to the line up
- Control units for Mitsubishi Electric PLC are available
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA

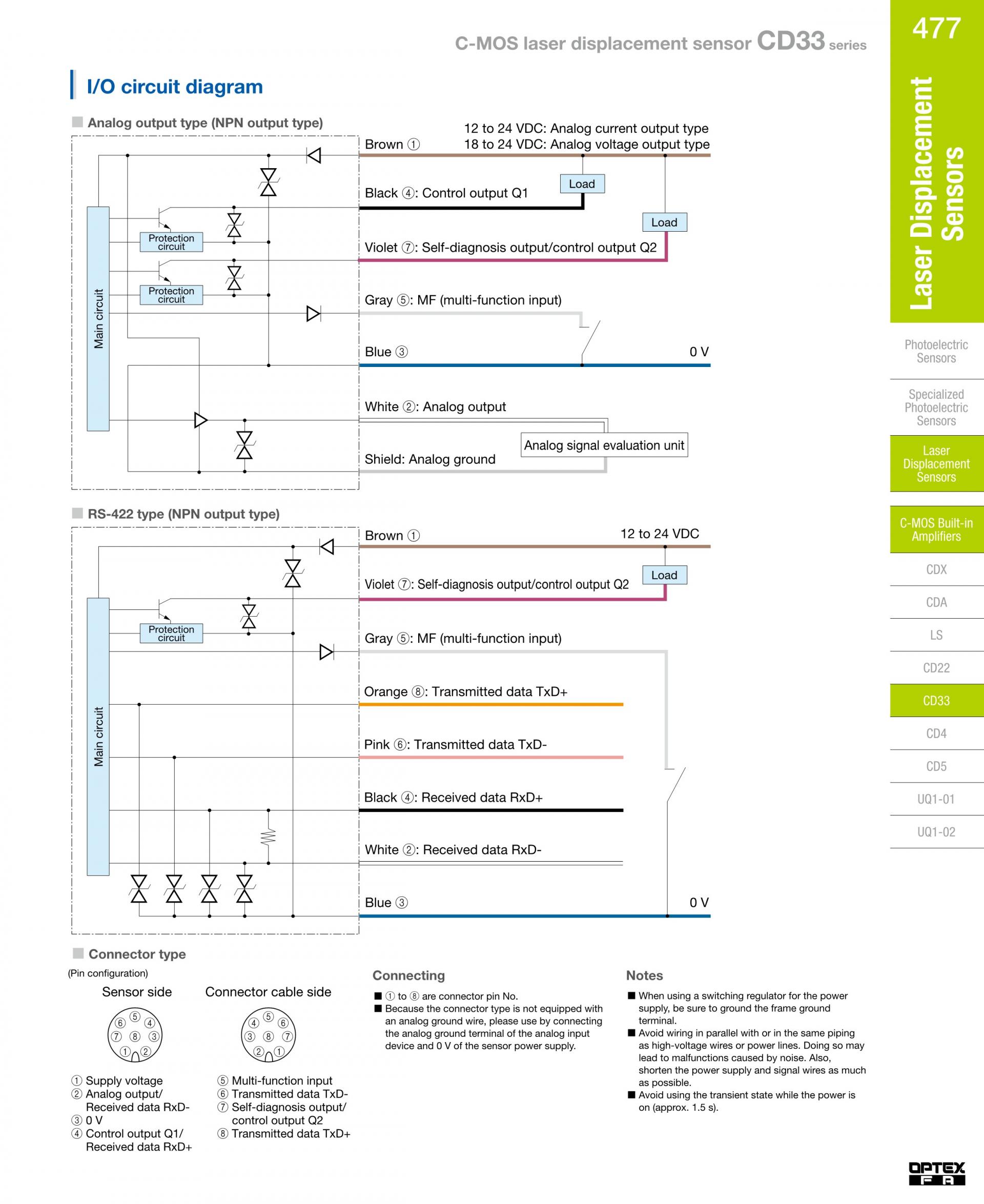

CD33 SERIES
소형 레이저 변위센서
CD33 SERIES Small Laser Displacement Sensors

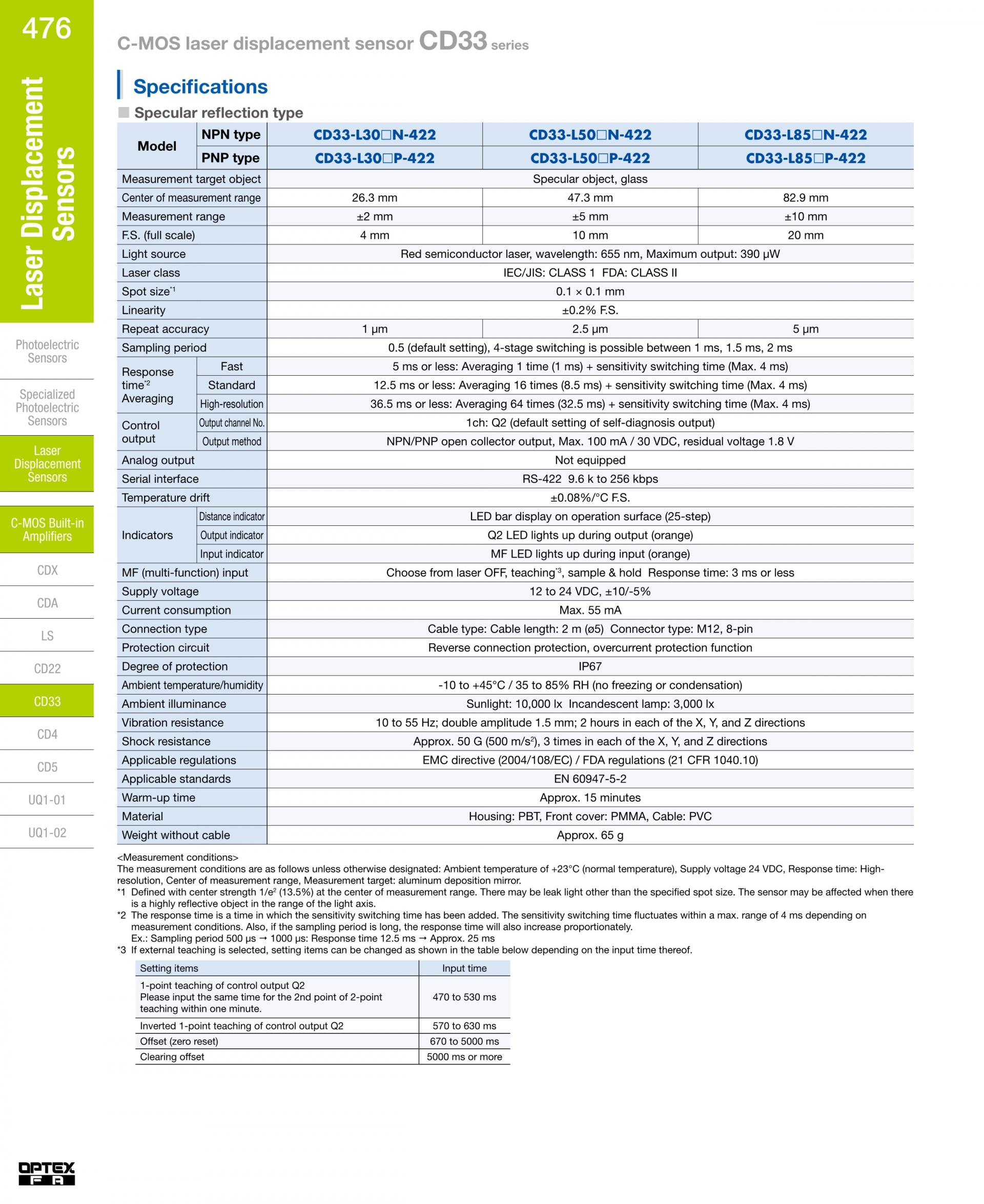

- Specular reflection types
for measurements of specular and transparent objects.
Specular reflection types have been added to the line up to enable the measurement of transparent objects such as glass workpiece, as well as specular objects such as wafers, etc. This means that transparent and specular objects that were diffi cult to measure using diffuse-refl ective types can now be measured with stability.

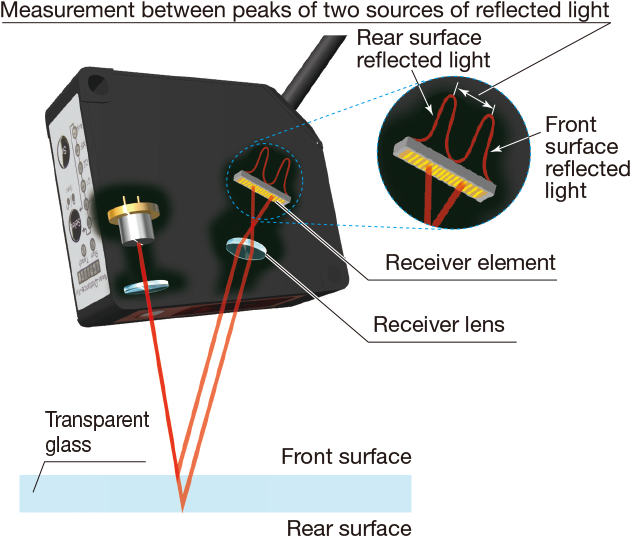

When using a specular reflection type to measure transparent objects, not only surface displacement, but also thickness can be measured. As shown below, when the laser light is emitted at an angle, light reflected from both the front and rear surfaces of the glass are received by receiver element. Thickness measurements are possible by measuring between the peaks of these reflected light forms. |  |

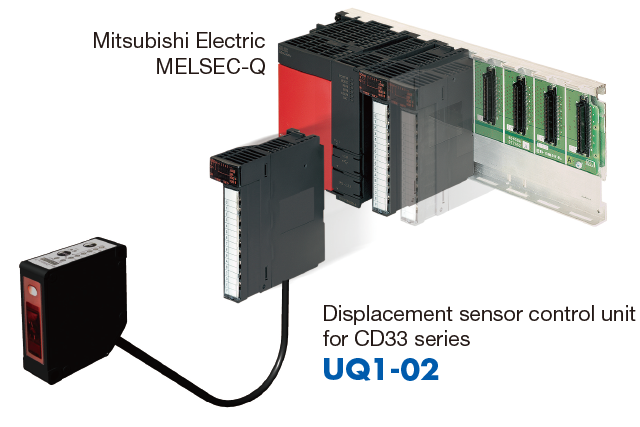

The UQ1-02 displacement sensor control unit that can be connected to the Mitsubishi Electric MELSEC-Q series! In addition to the fact that absolutely no communications settings are necessary, by using the specialized UQ1 Navigator software it is possible for any one to perform set up easily in a short period of time. *Can be used with the RS-422 type of the CD33 series |  |

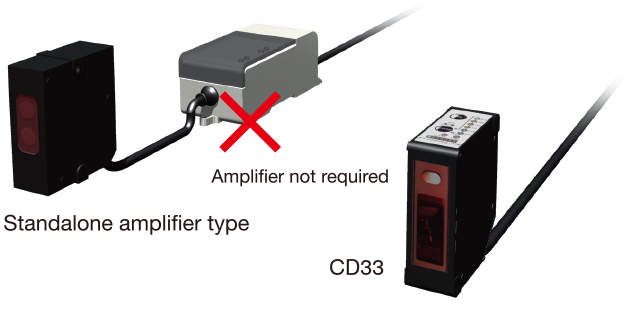

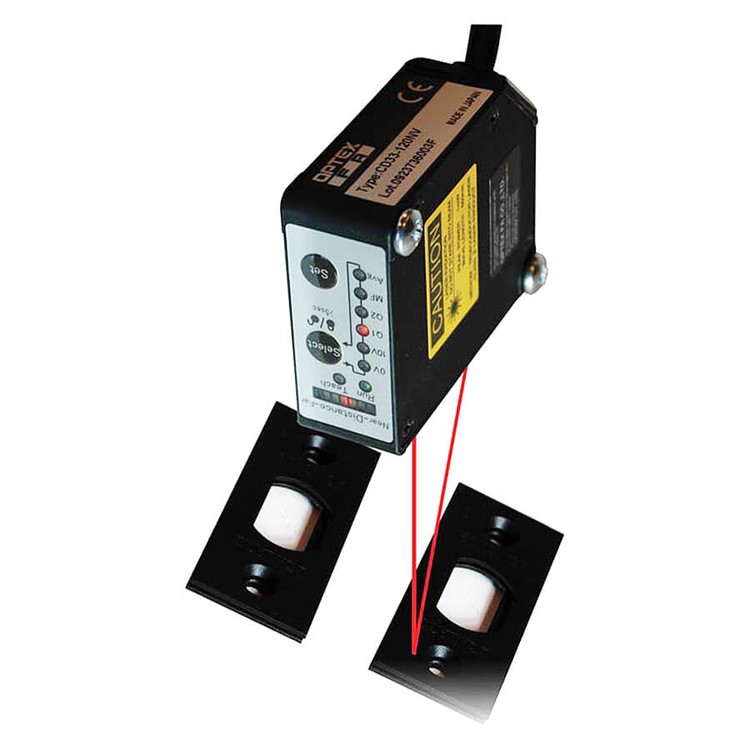

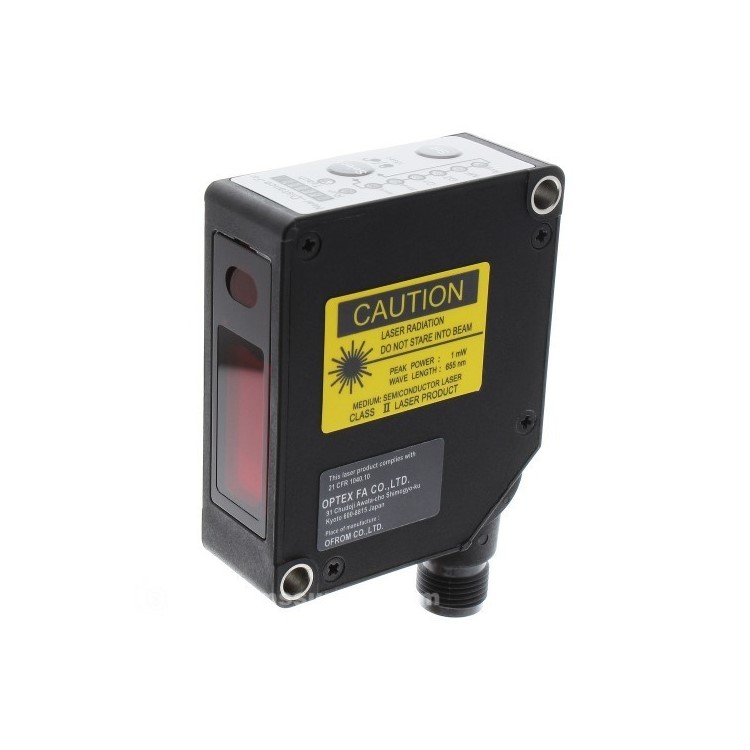

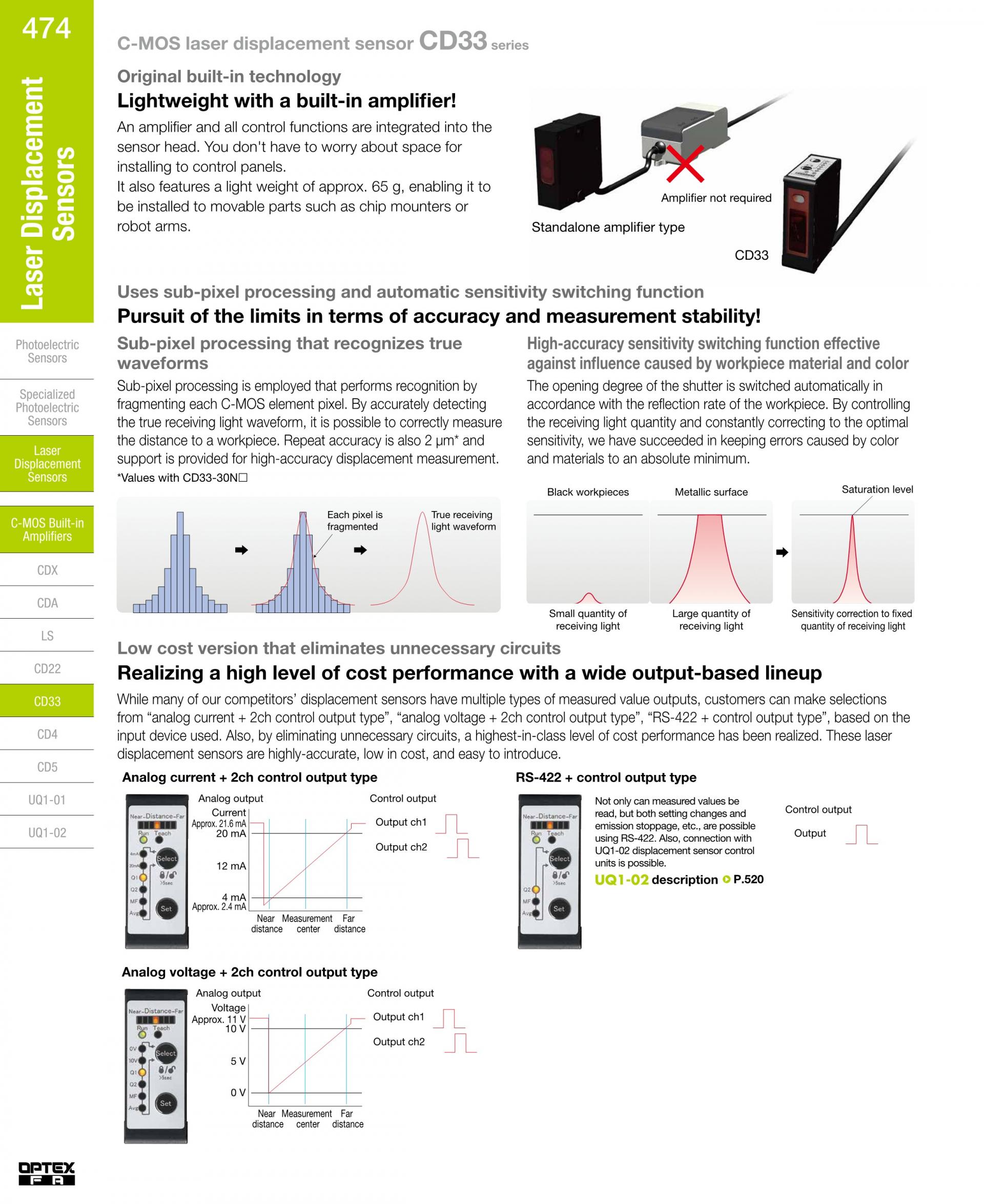

Lightweight with a built-in amplifier! An amplifier and all control functions are integrated into the sensor head. You don't have to worry about space for installing to control panels. It also features a light weight of approx. 65 g, enabling it to be installed to movable parts such as chip mounters or robot arms. |  |
- Uses sub-pixel processing and automatic sensitivity switching function
Pursuit of the limits in terms of accuracy and measurement stability!

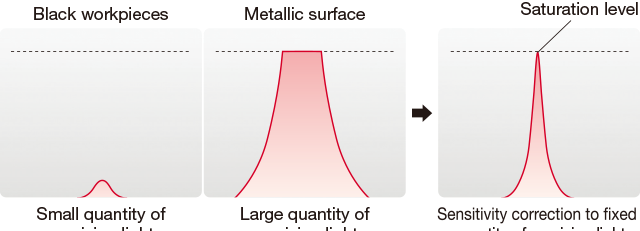

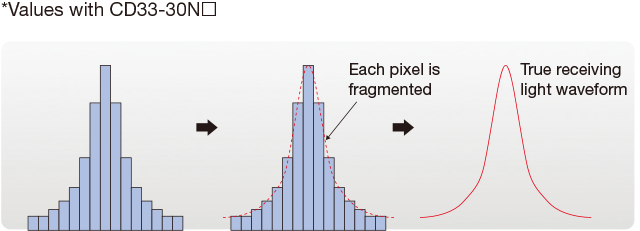

Sub-pixel processing that recognizes true waveforms Sub-pixel processing is employed that performs recognition by fragmenting each C-MOS element pixel. By accurately detecting the true receiving light waveform, it is possible to correctly measure the distance to a workpiece. Repeat accuracy is also 2 μm* and support is provided for high-accuracy displacement measurement. *Values with CD33-30N☐  | High-accuracy sensitivity switching function effective against influence caused by workpiece material and color The opening degree of the shutter is switched automatically in accordance with the reflection rate of the workpiece. By controlling the receiving light quantity and constantly correcting to the optimal sensitivity, we have succeeded in keeping errors caused by color and materials to an absolute minimum.  |
- Low cost version that eliminates unnecessary circuits
Realizing a high level of cost performance with a wide output-based lineup

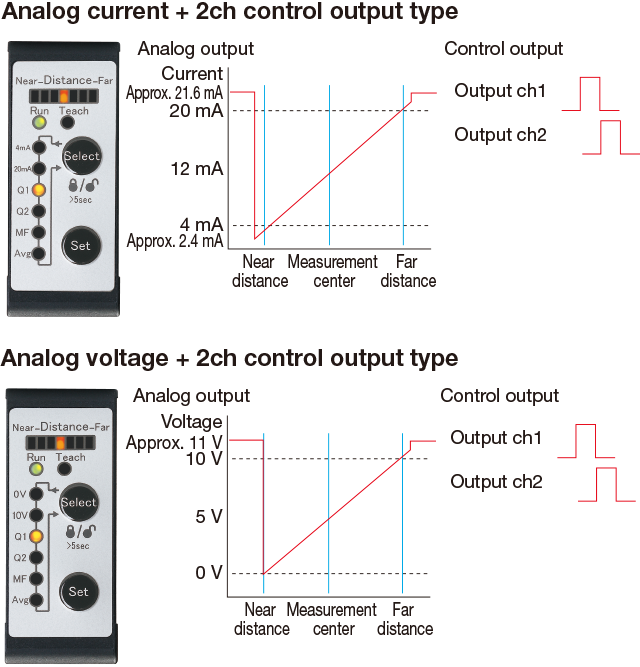

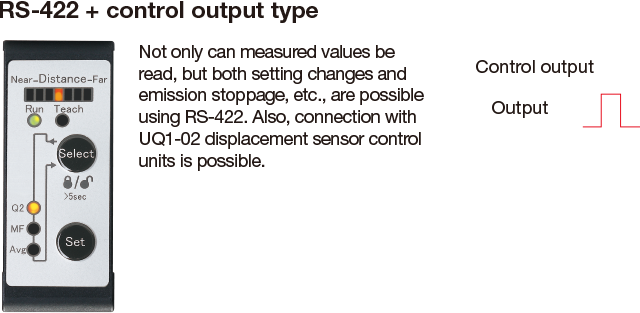

While many of our competitors’ displacement sensors have multiple types of measured value outputs, customers can make selections from “analog current + 2ch control output type”, “analog voltage + 2ch control output type”, “RS-422 + control output type”, based on the input device used. Also, by eliminating unnecessary circuits, a highest-in-class level of cost performance has been realized. These laser displacement sensors are highly-accurate, low in cost, and easy to introduce.
 |  |

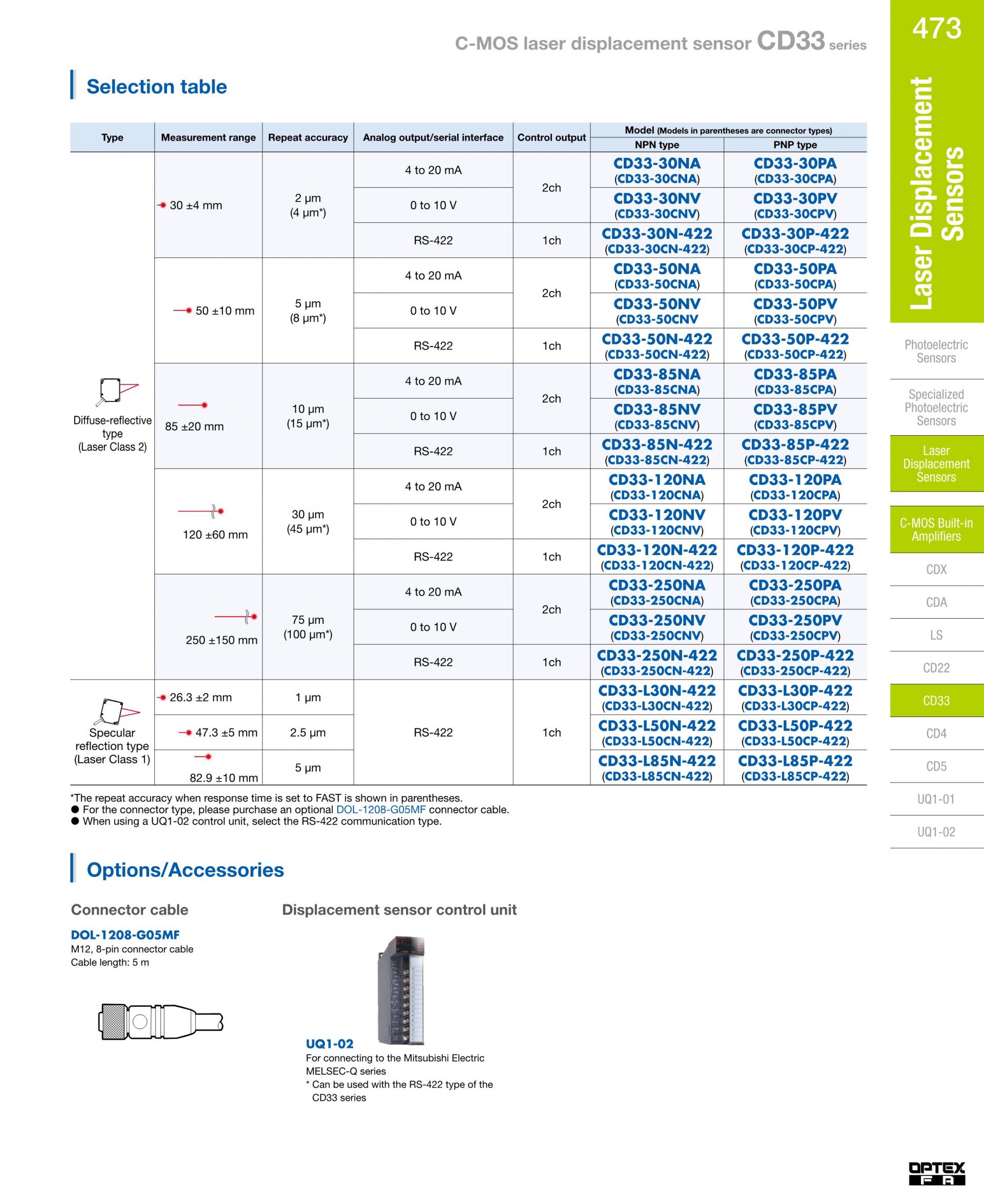

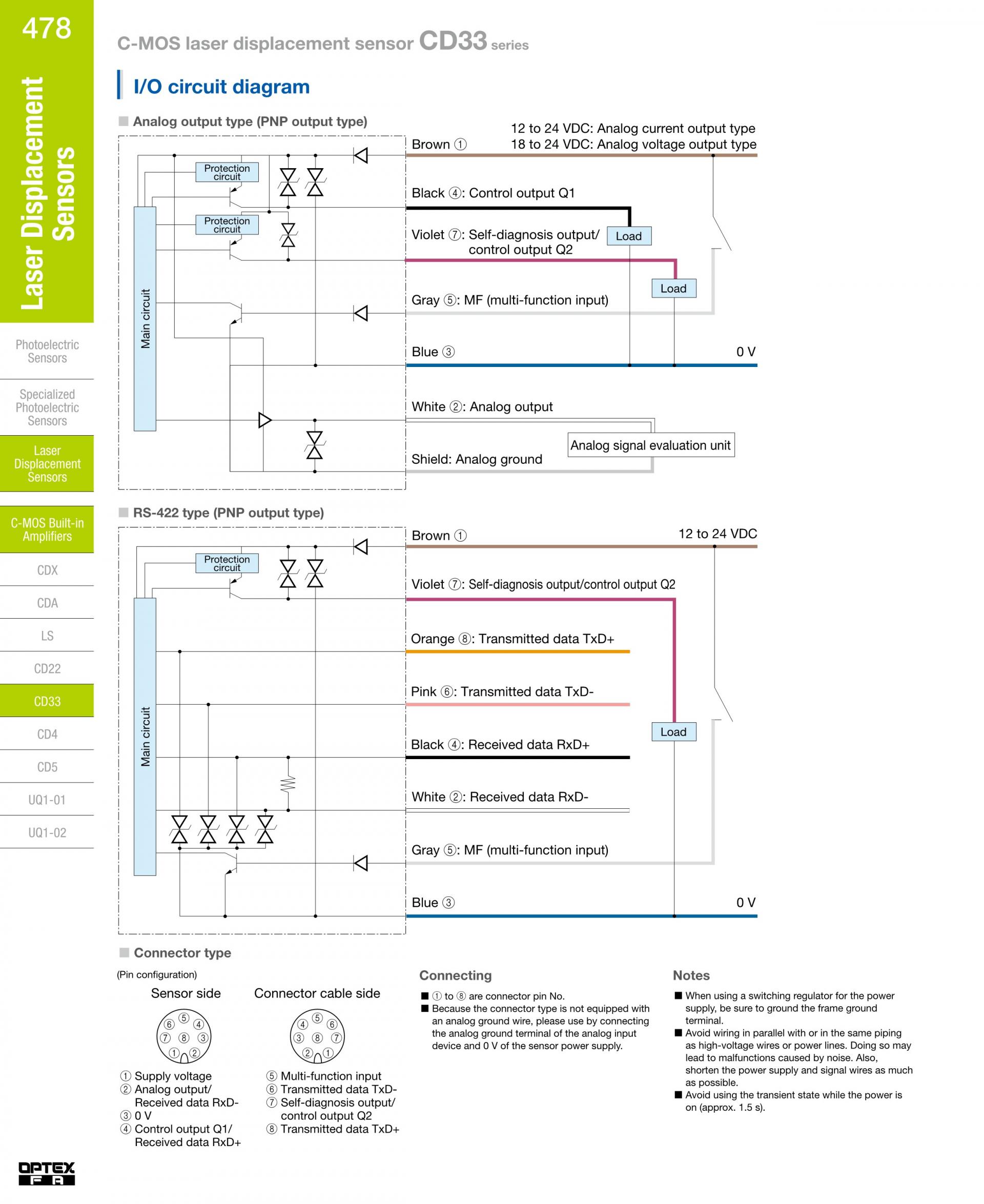

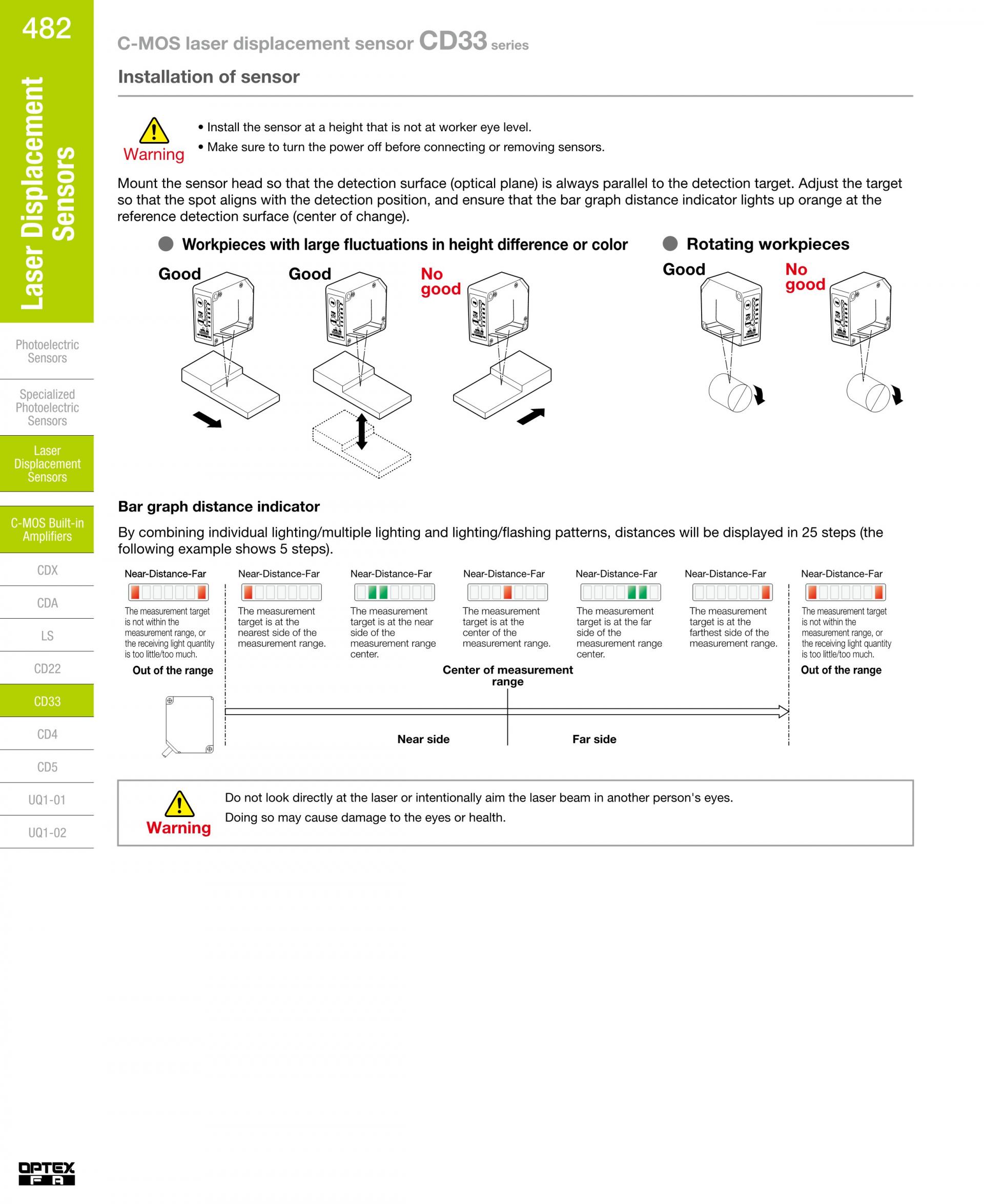

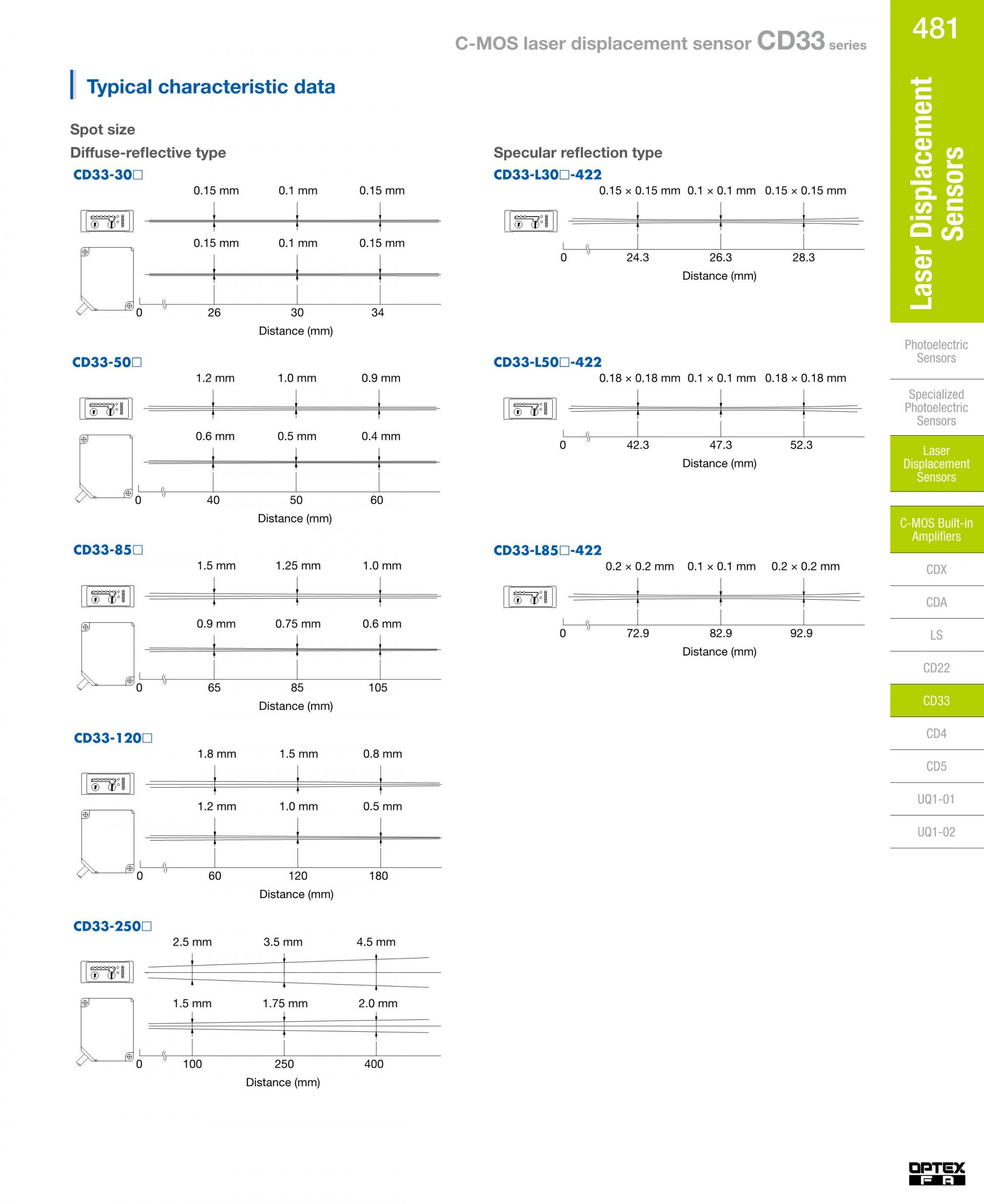

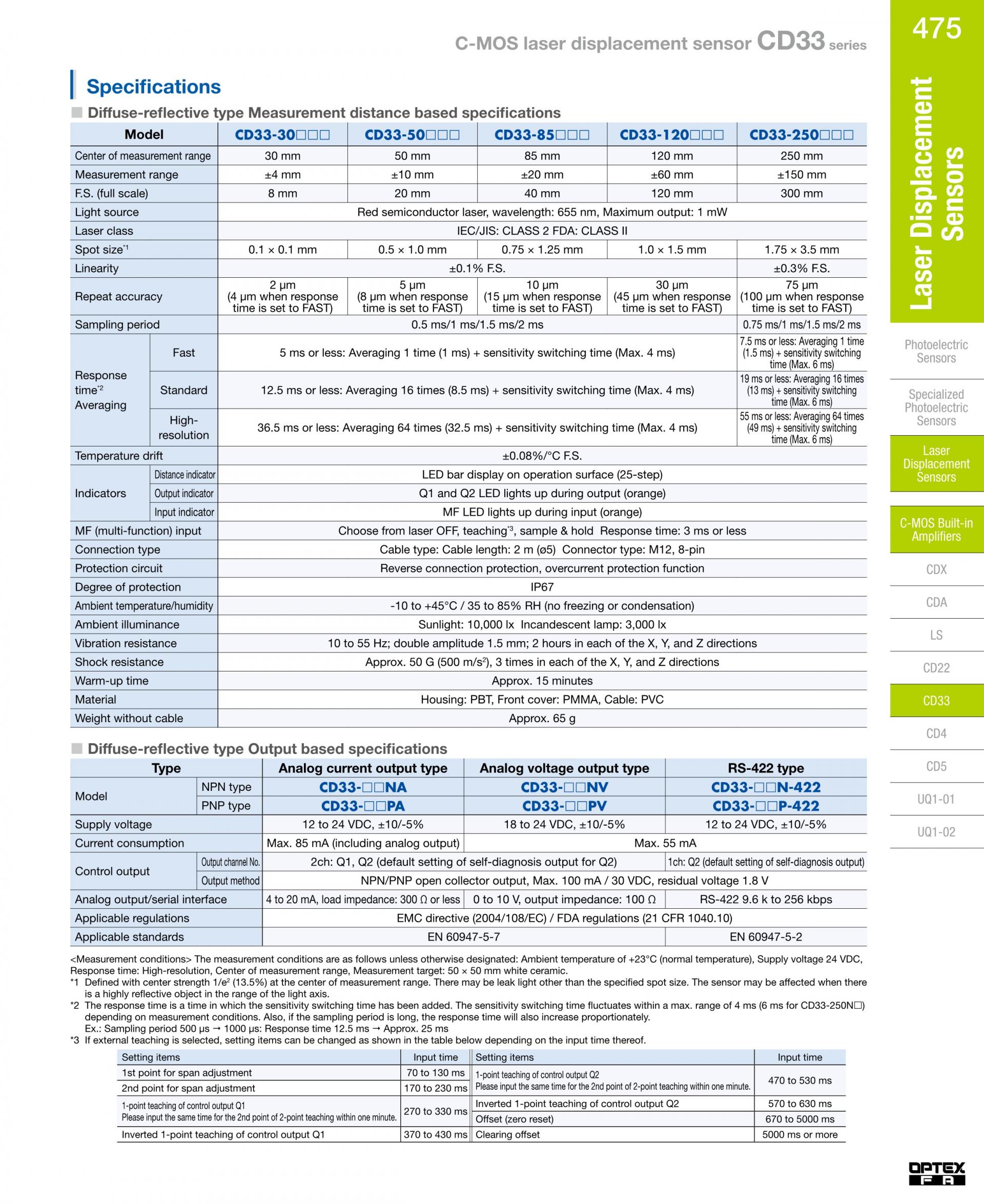

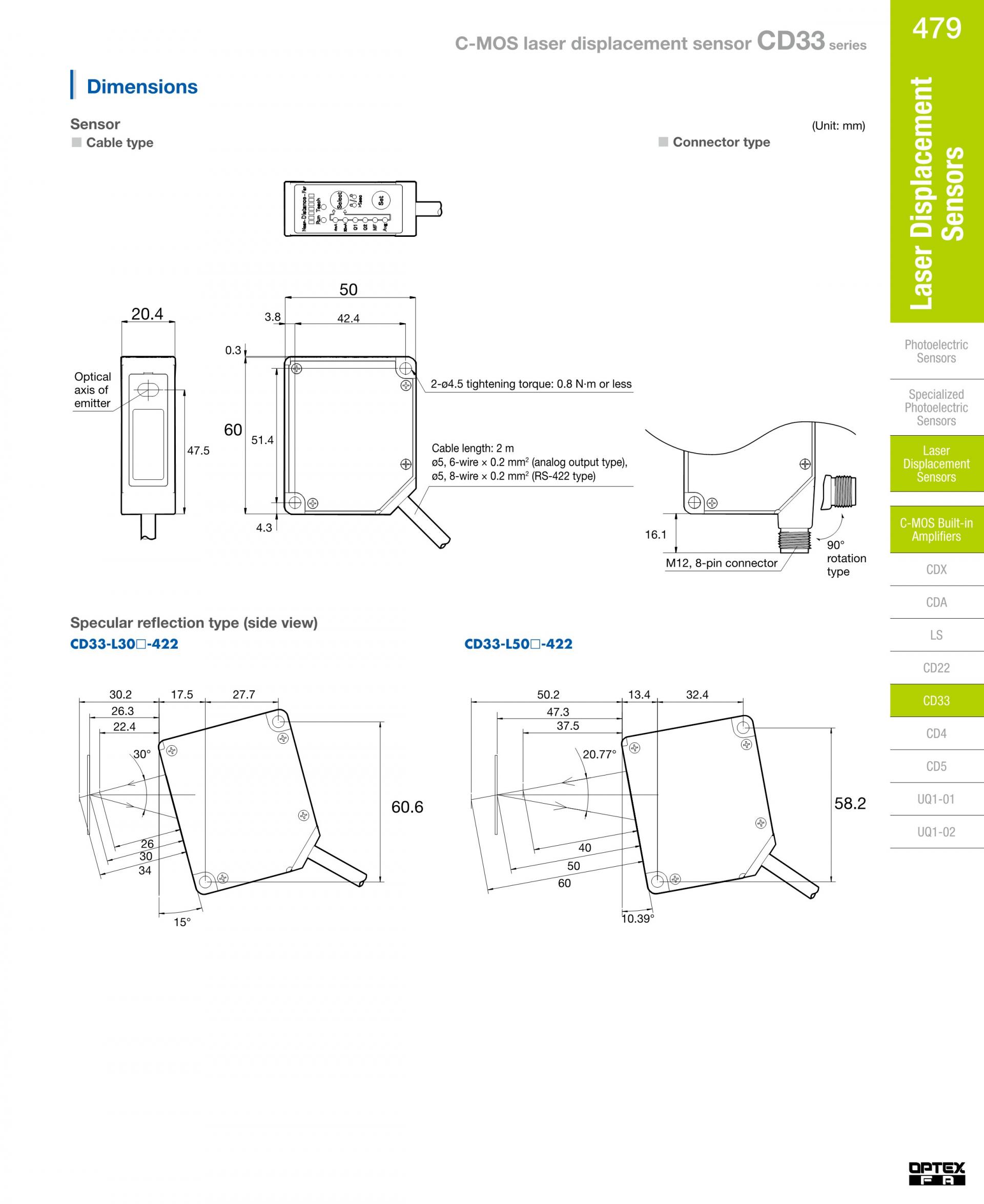

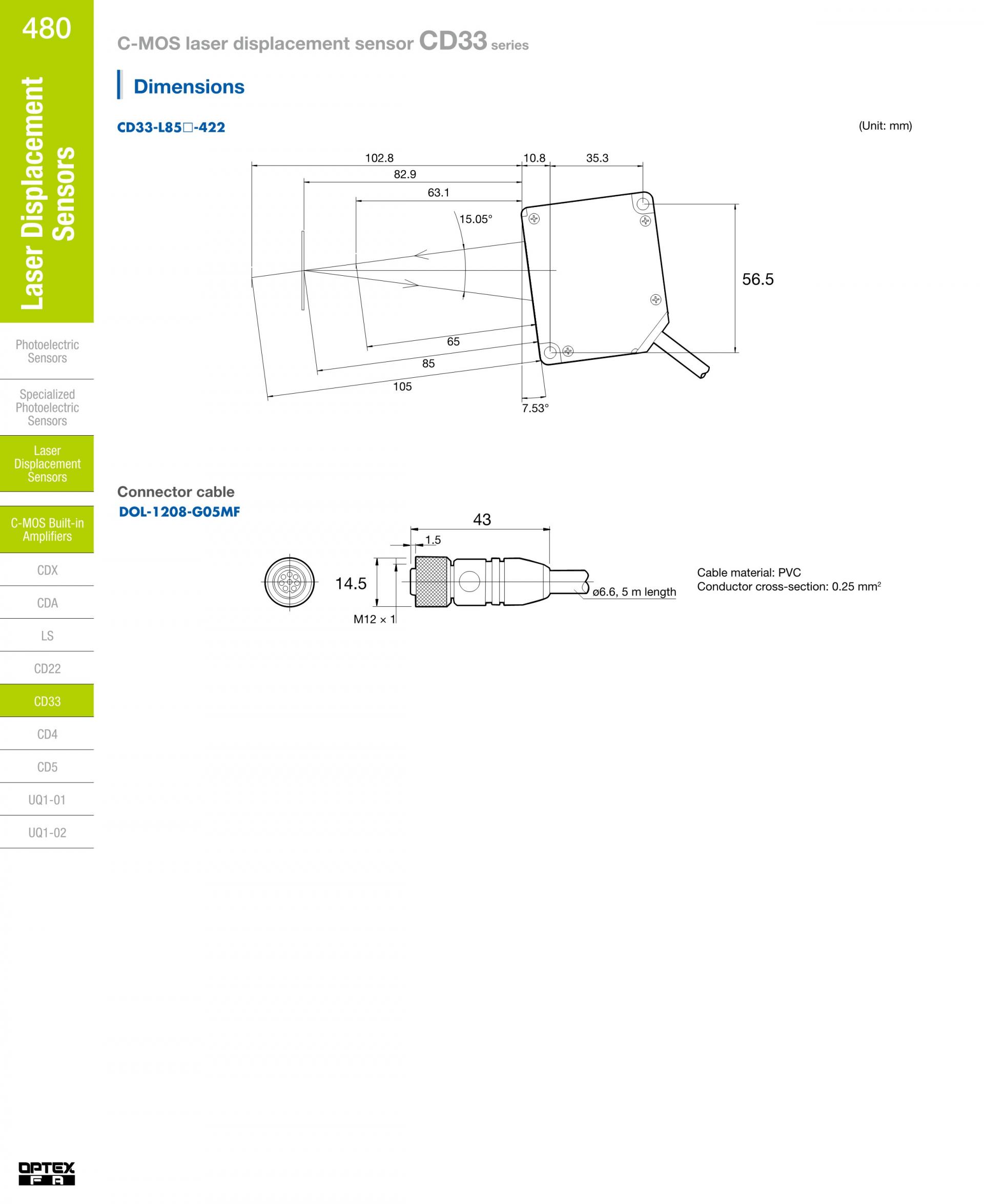

CD33-30NA CD33-30CNA CD33-30PA CD33-30CPA CD33-30NV CD33-30CNV CD33-30PV CD33-30CPV CD33-30N-422 CD33-30CN-422 CD33-30P-422 CD33-30CP-422 CD33-50NA CD33-50CNA CD33-50PA CD33-50CPA CD33-50NV CD33-50CNV CD33-50PV CD33-50CPV CD33-50N-422 CD33-50CN-422 CD33-50P-422 CD33-50CP-422 CD33-85NA CD33-85CNA CD33-85PA CD33-85CPA CD33-85NV CD33-85CNV CD33-85PV CD33-85CPV CD33-85N-422 CD33-85CN-422 CD33-85P-422 CD33-85CP-422 CD33-120NA CD33-120CNA CD33-120PA CD33-120CPA CD33-120NV CD33-120CNV CD33-120PV CD33-120CPV CD33-120N-422 CD33-120CN-422 CD33-120P-422 CD33-120CP-422 CD33-250NA CD33-250CNA CD33-250PA CD33-250CPA CD33-250NV CD33-250CNV CD33-250PV CD33-250CPV CD33-250N-422 CD33-250CN-422 CD33-250P-422 CD33-250CP-422 CD33-L30N-422 CD33-L30CN-422 CD33-L30P-422 CD33-L30CP-422 CD33-L50N-422 CD33-L50CN-422 CD33-L50P-422 CD33-L50CP-422 CD33-L85N-422 CD33-L85CN-422 CD33-L85P-422 CD33-L85CP-422 CD33 30NA CD33 30CNA CD33 30PA CD33 30CPA CD33 30NV CD33 30CNV CD33 30PV CD33 30CPV CD33 30N-422 CD33 30CN-422 CD33 30P-422 CD33 30CP-422 CD33 50NA CD33 50CNA CD33 50PA CD33 50CPA CD33 50NV CD33 50CNV CD33 50PV CD33 50CPV CD33 50N-422 CD33 50CN-422 CD33 50P-422 CD33 50CP-422 CD33 85NA CD33 85CNA CD33 85PA CD33 85CPA CD33 85NV CD33 85CNV CD33 85PV CD33 85CPV CD33 85N-422 CD33 85CN-422 CD33 85P-422 CD33 85CP-422 CD33 120NA CD33 120CNA CD33 120PA CD33 120CPA CD33 120NV CD33 120CNV CD33 120PV CD33 120CPV CD33 120N-422 CD33 120CN-422 CD33 120P-422 CD33 120CP-422 CD33 250NA CD33 250CNA CD33 250PA CD33 250CPA CD33 250NV CD33 250CNV CD33 250PV CD33 250CPV CD33 250N-422 CD33 250CN-422 CD33 250P-422 CD33 250CP-422 CD33 L30N-422 CD33 L30CN-422 CD33 L30P-422 CD33 L30CP-422 CD33 L50N-422 CD33 L50CN-422 CD33 L50P-422 CD33 L50CP-422 CD33 L85N-422 CD33 L85CN-422 CD33 L85P-422 CD33 L85CP-422 CD33 30N 422 CD33 30CN 422 CD33 30P 422 CD33 30CP 422 CD33 50N 422 CD33 50CN 422 CD33 50P 422 CD33 50CP 422 CD33 85N 422 CD33 85CN 422 CD33 85P 422 CD33 85CP 422 CD33 120N 422 CD33 120CN 422 CD33 120P 422 CD33 120CP 422 CD33 250N 422 CD33 250CN 422 CD33 250P 422 CD33 250CP 422 CD33 L30N 422 CD33 L30CN 422 CD33 L30P 422 CD33 L30CP 422 CD33 L50N 422 CD33 L50CN 422 CD33 L50P 422 CD33 L50CP 422 CD33 L85N 422 CD33 L85CN 422 CD33 L85P 422 CD33 L85CP 422 OPTEX FA CD33 OPTEX CD33 FASTUS CD33 옵텍스 FA CD33 옵텍스 CD33 CD33 OPTEX FA CD33 OPTEX CD33 FASTUS CD33 옵텍스 FA CD33 옵텍스
