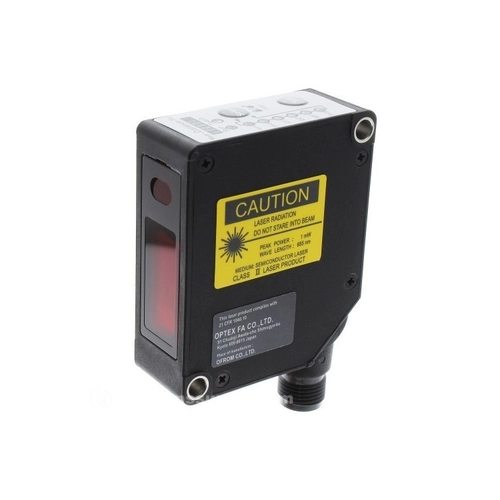

OPTEX FA CD5 고성능 다중유닛 레이저 변위 센서
가격문의(상세정보 참조)
OPTEX FA CD5 고성능 다중유닛 레이저 변위 센서

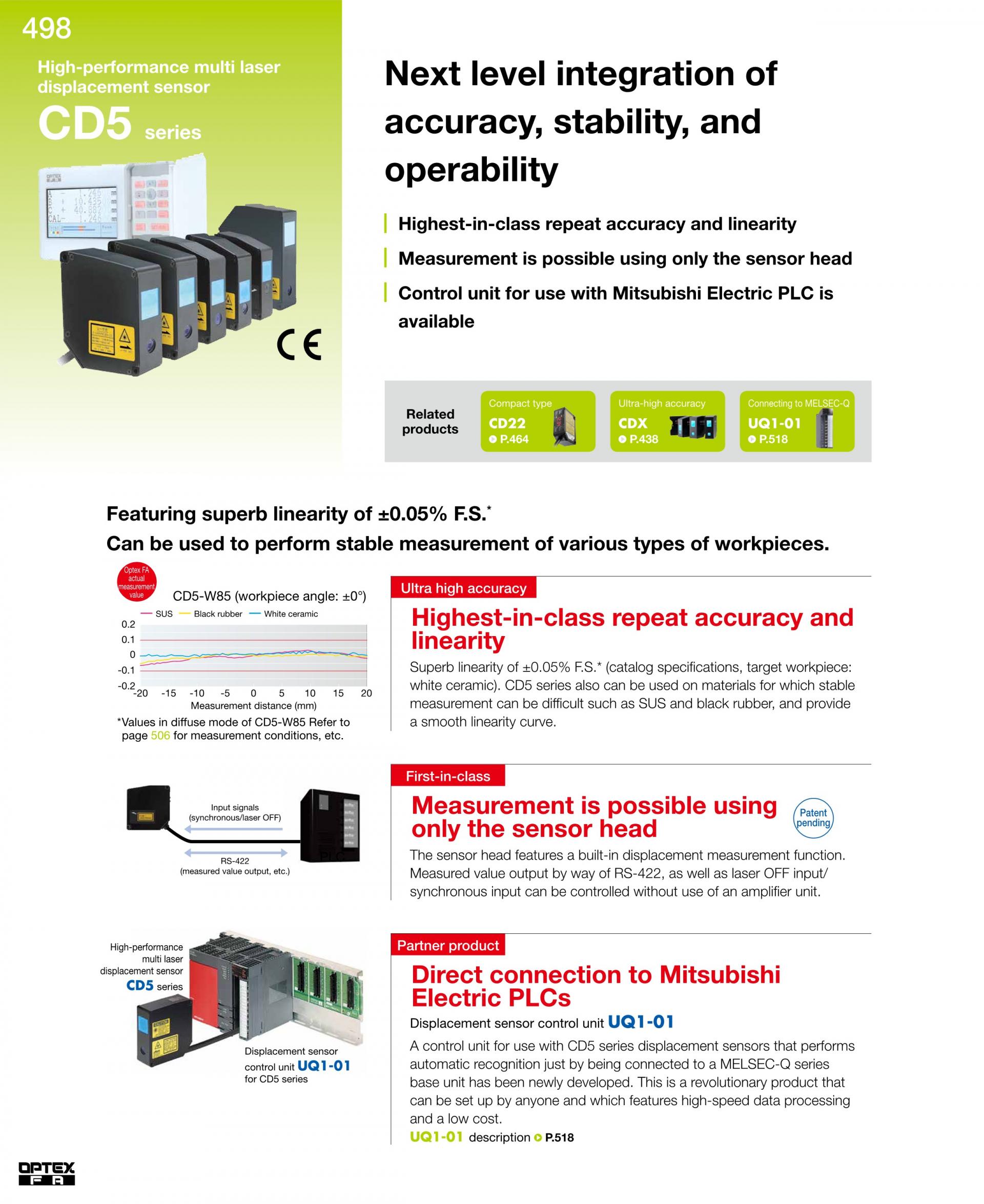

OPTEX FA CD5 High-performance Multi-unit Laser Displacement Sensors
Next level integration of accuracy, stability, and operability
- Highest-in-class repeat accuracy and linearity
- Measurement is possible using only the sensor head
- Control unit for use with Mitsubishi Electric PLC is available
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
CD5
고성능 다중유닛 레이저 변위 센서
CD5 High-performance Multi-unit Laser Displacement Sensors

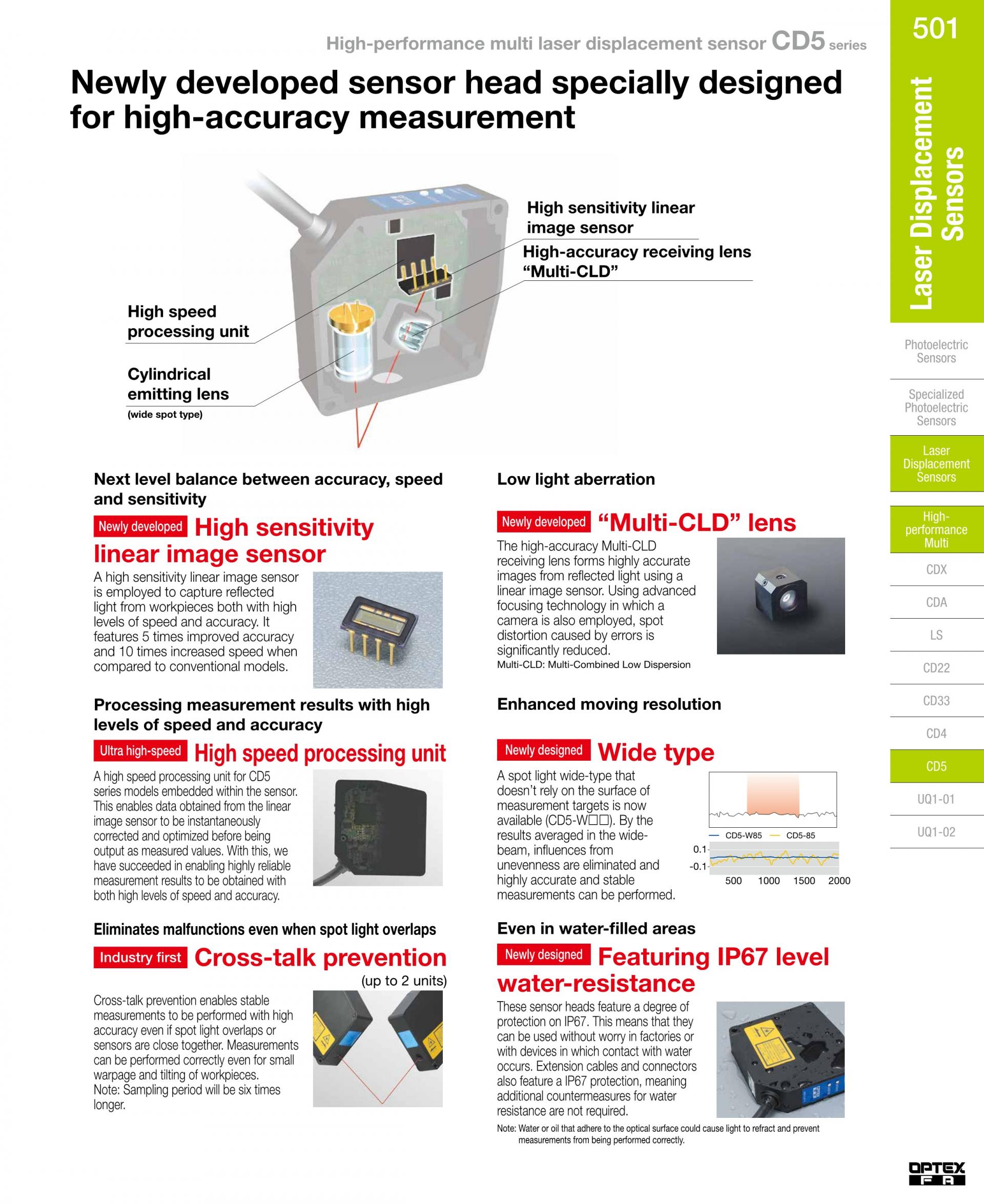

- Featuring superb linearity of ±0.05% F.S.*
Can be used to perform stable measurement of various types of workpieces.

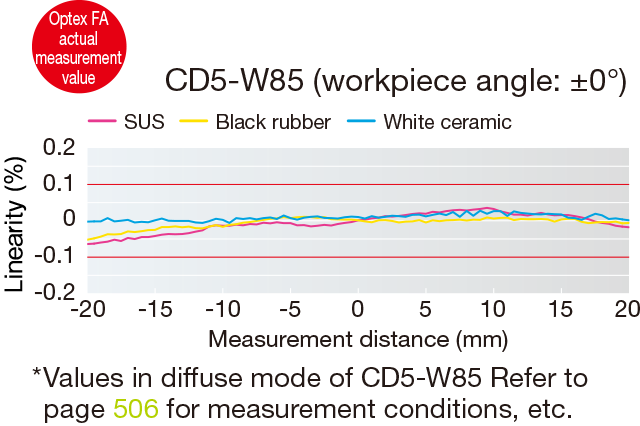

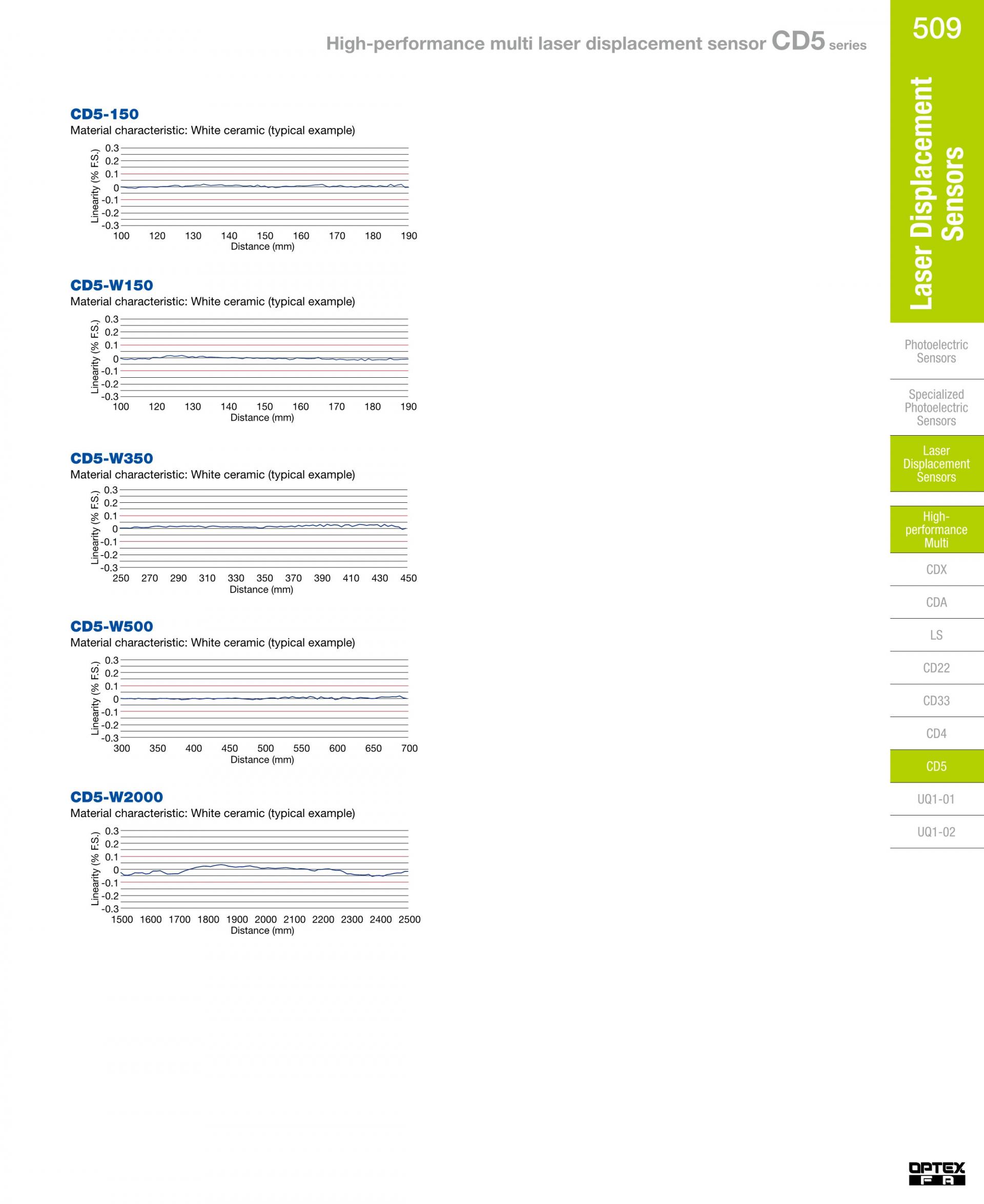

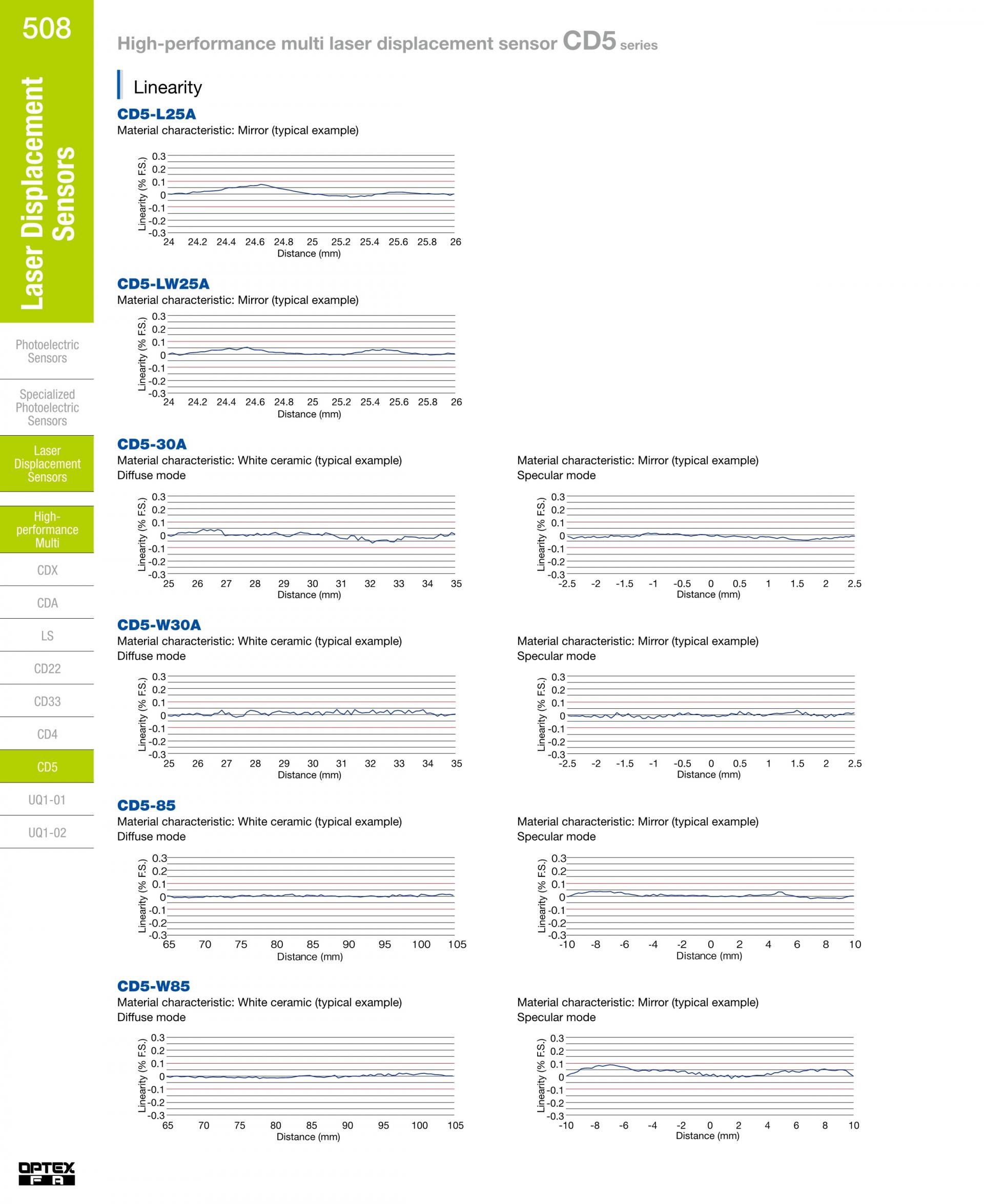

Superb linearity of ±0.05% F.S.* (catalog specifi cations, target workpiece: white ceramic). CD5 series also can be used on materials for which stable measurement can be diffi cult such as SUS and black rubber, and provide a smooth linearity curve. |  |

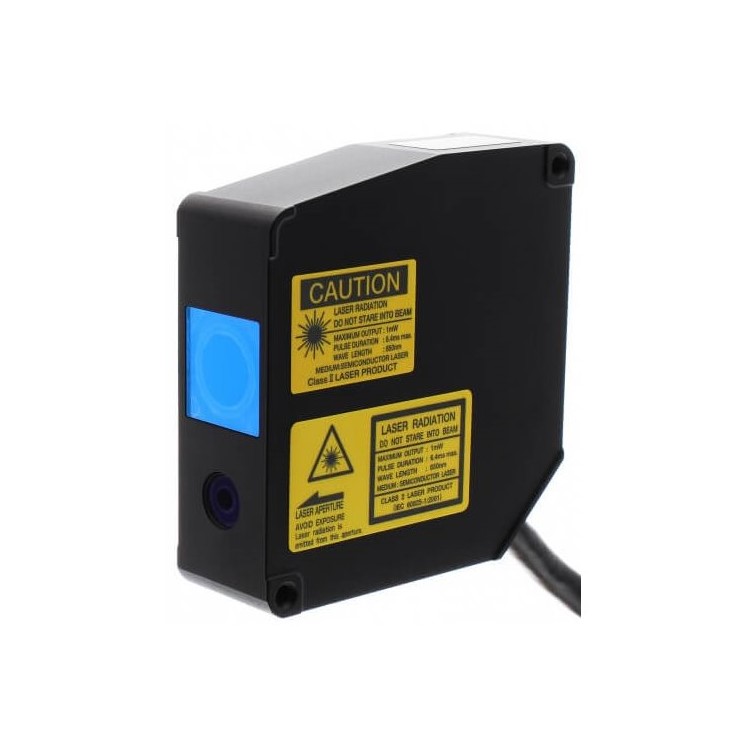

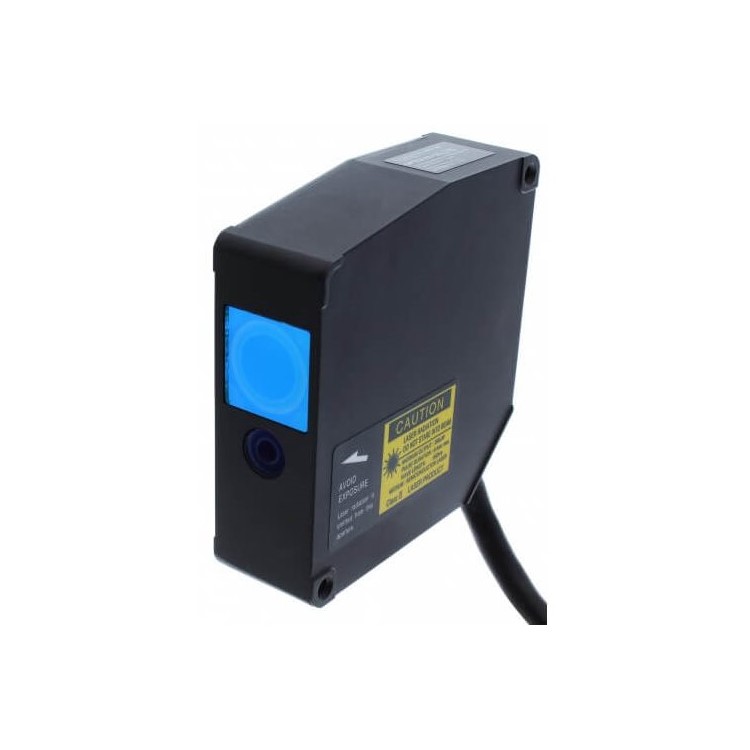

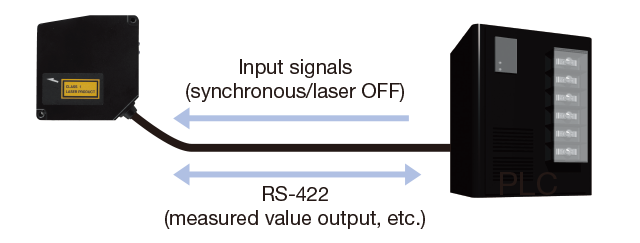

The sensor head features a built-in displacement measurement function. Measured value output by way of RS-422, as well as laser OFF input/ synchronous input can be controlled without use of an amplifier unit. |  |

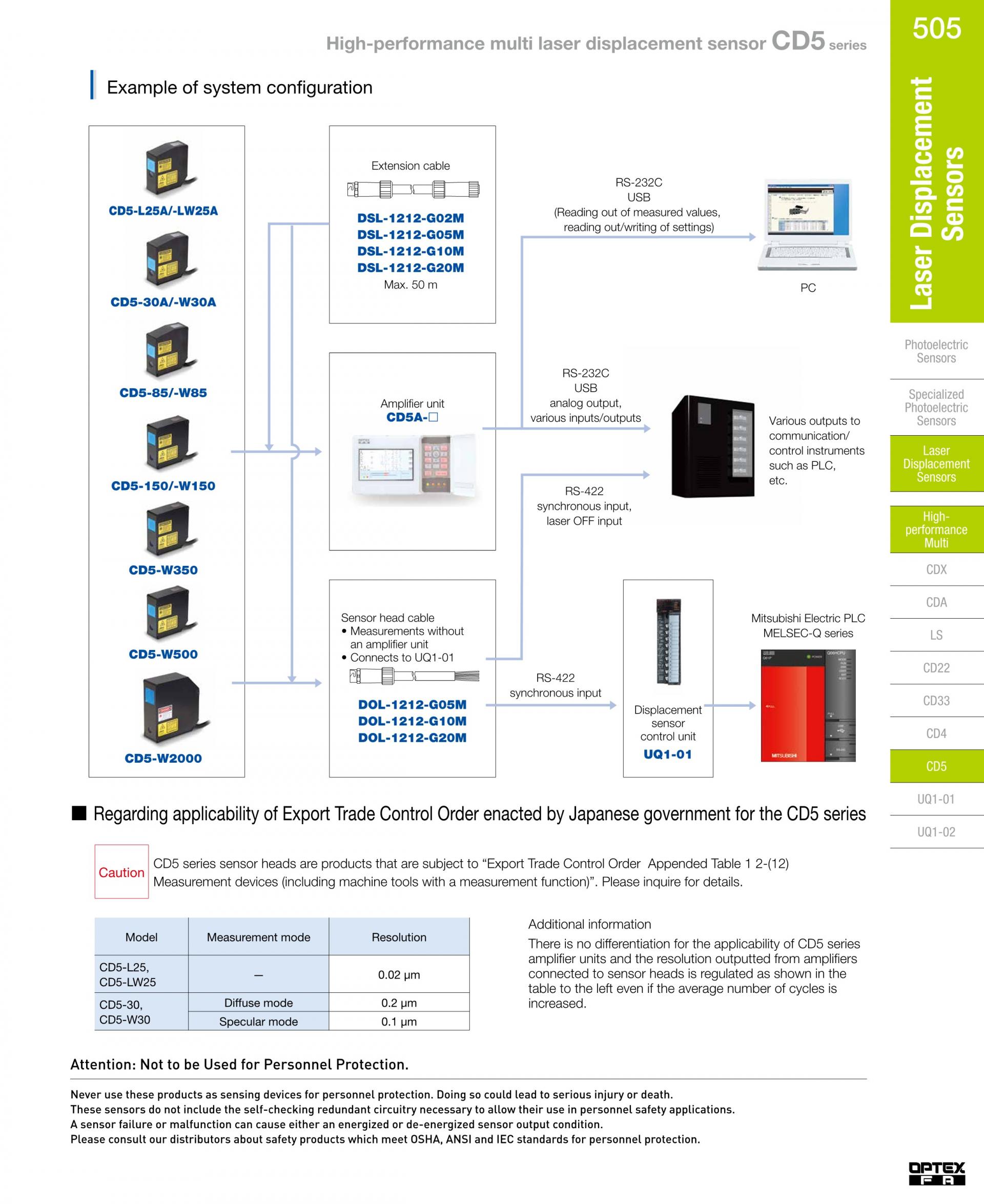

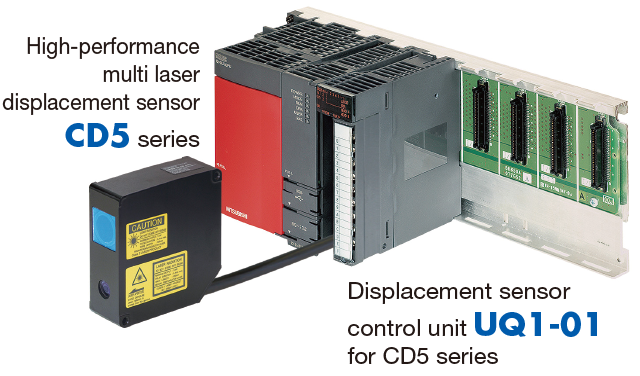

Displacement sensor control unit UQ1-01 A control unit for use with CD5 series displacement sensors that performs automatic recognition just by being connected to a MELSEC-Q series base unit has been newly developed. This is a revolutionary product that can be set up by anyone and which features high-speed data processing and a low cost. |  |

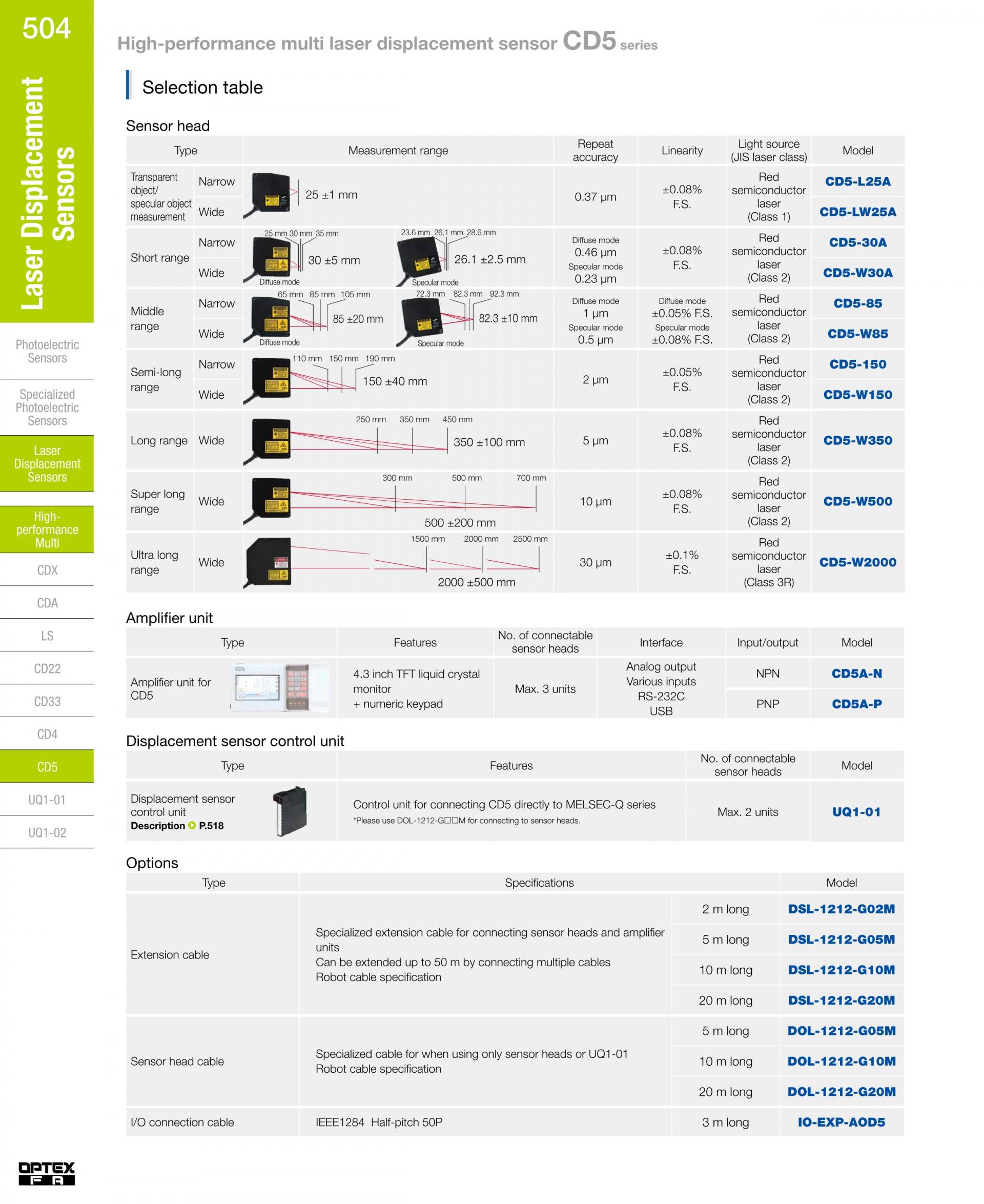

CD5-L25A CD5-LW25A CD5-30A CD5-W30A CD5-85 CD5-W85 CD5-150 CD5-W150 CD5-W350 CD5-W500 CD5-W2000 CD5A-N CD5A-P UQ1-01 DSL-1212-G02M DSL-1212-G05M DSL-1212-G10M DSL-1212-G20M DOL-1212-G05M DOL-1212-G10M DOL-1212-G20M IO-EXP-AOD5 CD5 L25A CD5 LW25A CD5 30A CD5 W30A CD5 85 CD5 W85 CD5 150 CD5 W150 CD5 W350 CD5 W500 CD5 W2000 CD5A N CD5A P UQ1 01 DSL 1212-G02M DSL 1212-G05M DSL 1212-G10M DSL 1212-G20M DOL 1212-G05M DOL 1212-G10M DOL 1212-G20M IO EXP-AOD5 DSL 1212 G02M DSL 1212 G05M DSL 1212 G10M DSL 1212 G20M DOL 1212 G05M DOL 1212 G10M DOL 1212 G20M IO EXP AOD5 CD5 OPTEX FA CD5 OPTEX CD5 FASTUS CD5 옵텍스 FA CD5 옵텍스 CD5 CD5 OPTEX FA CD5 OPTEX CD5 FASTUS CD5 옵텍스 FA CD5 옵텍스
