OPTEX FA CD22 SERIES Compact Laser Displacement Sensors
Smallest displacement sensor in class
- * Among devices equipped with displays in the 1 μm repeat accuracy class. Optex FA examination performed November 2015.
- Newly added amplifier unit that can be connected with CC-Link communication units
- Built-in amplifier & digital 4-digit display
- Featuring high performance functionality like high-end models
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
CD22 SERIES
소형 레이저 변위센서
CD22 SERIES Compact Laser Displacement Sensors

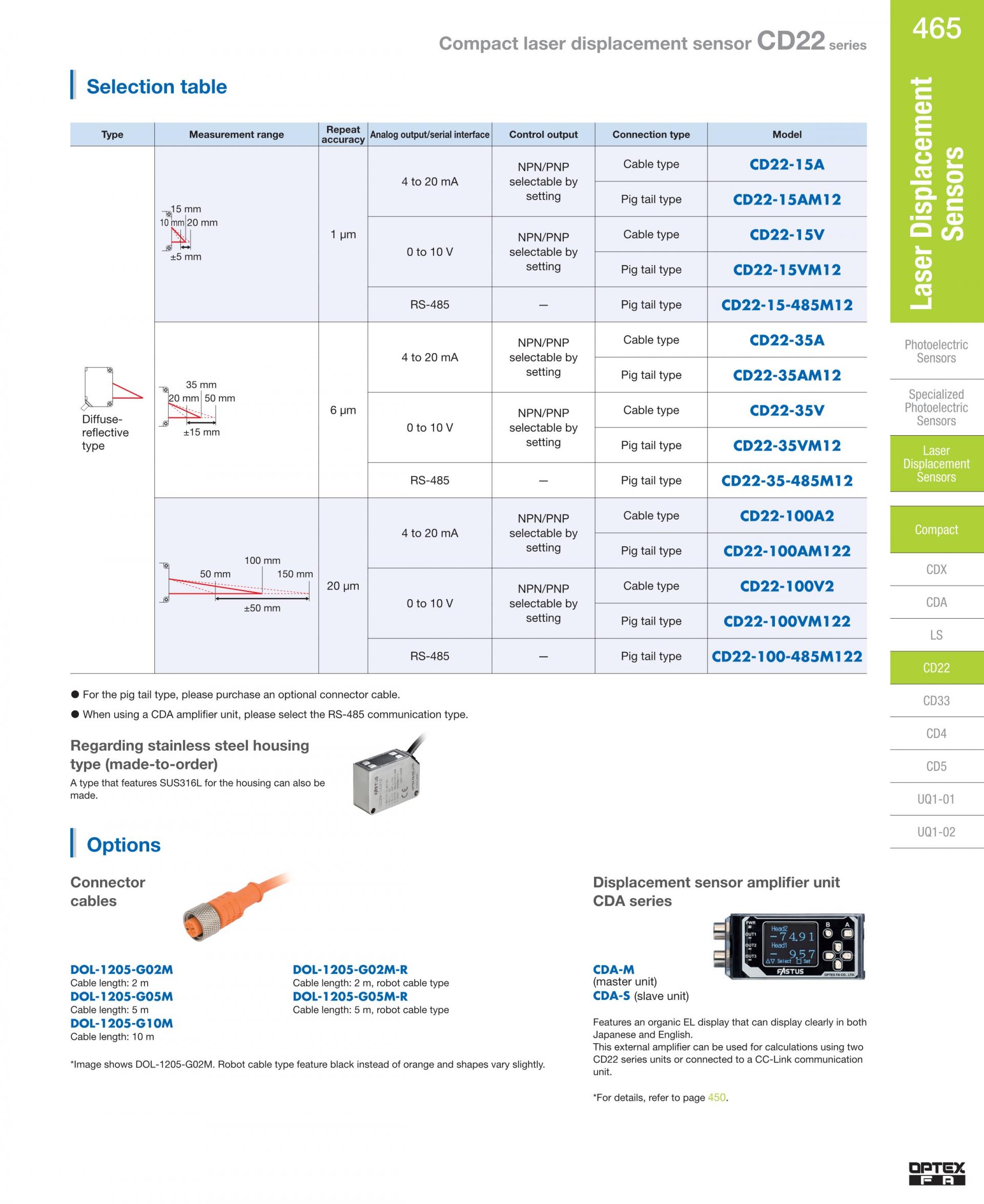

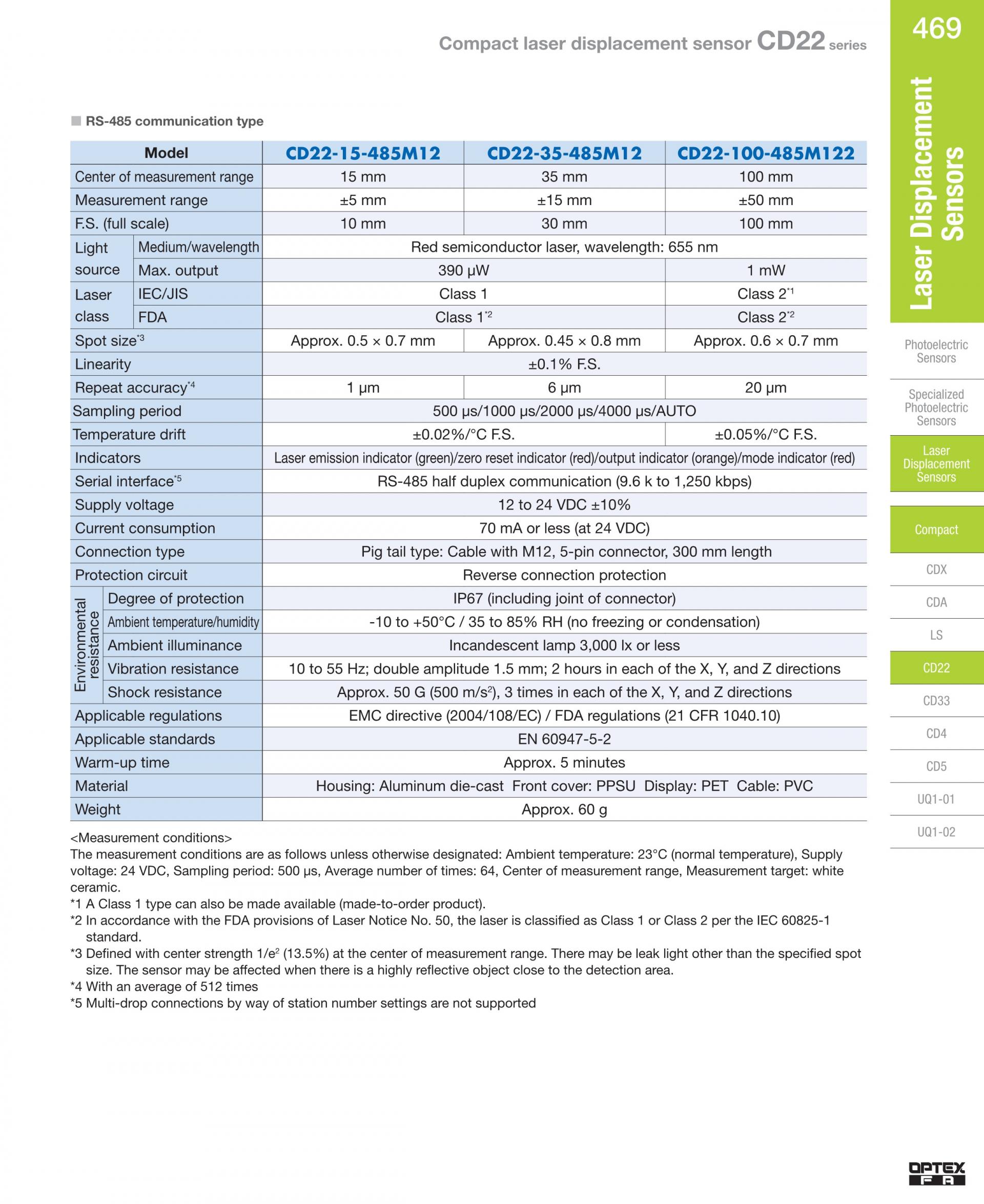

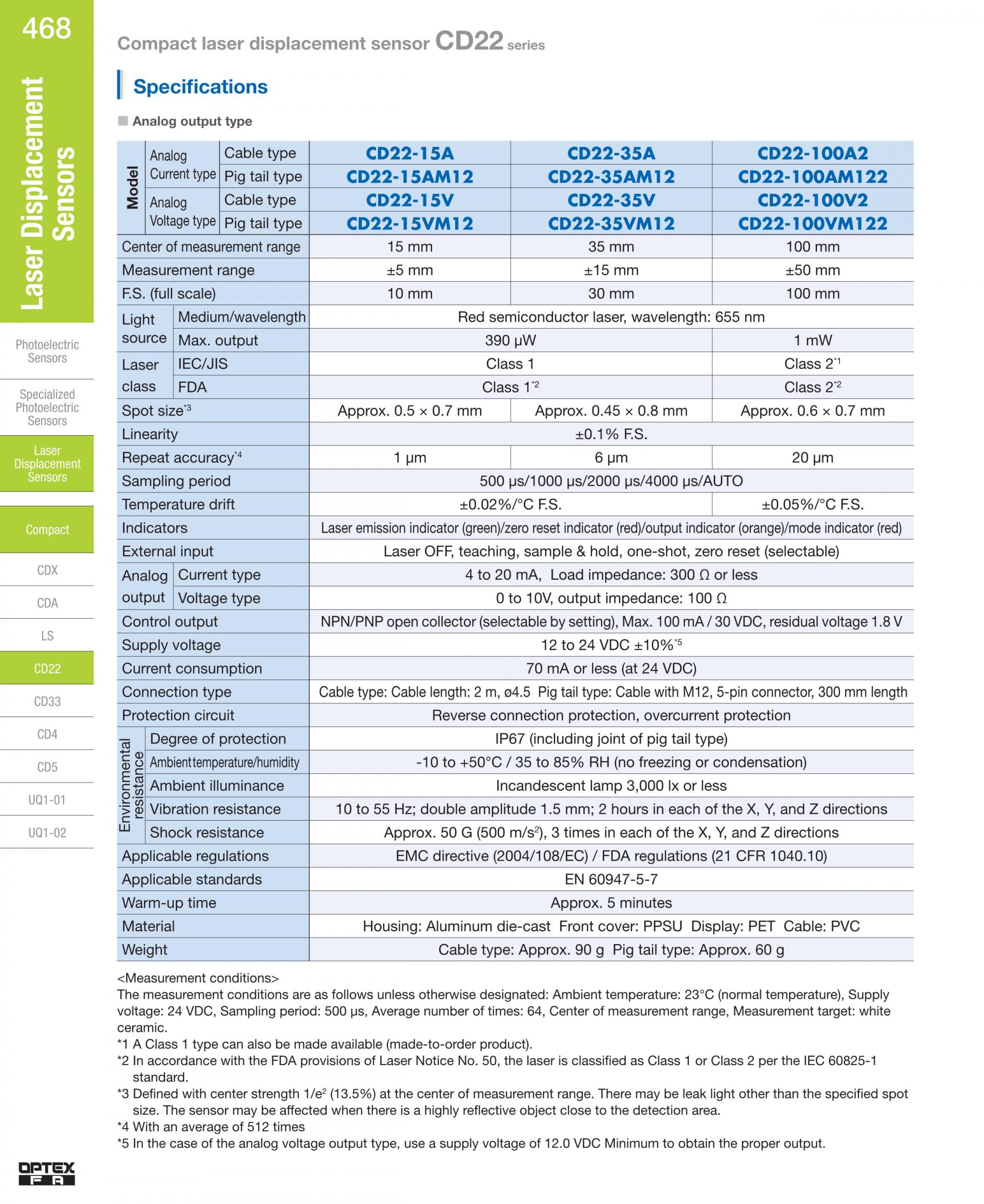

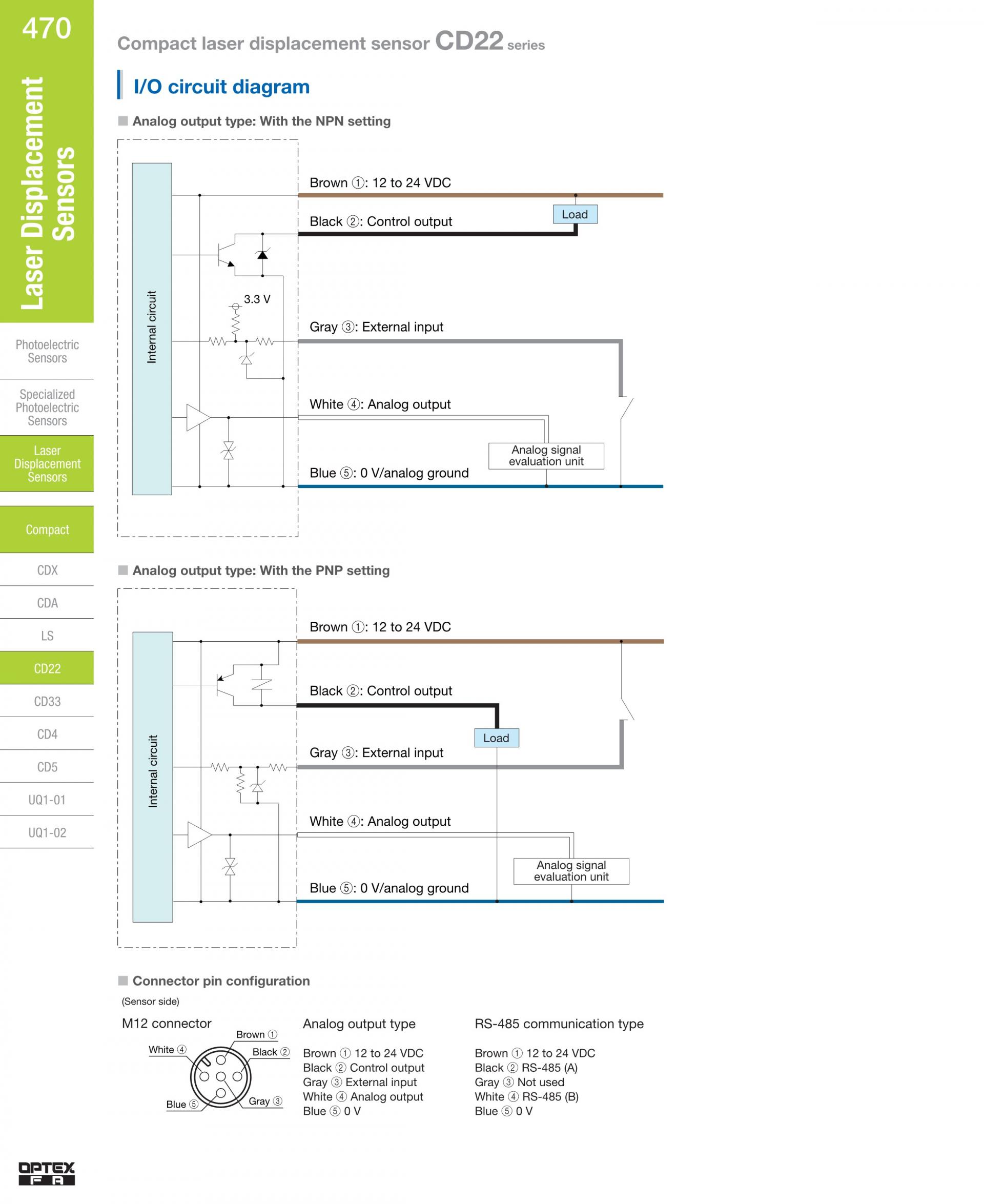

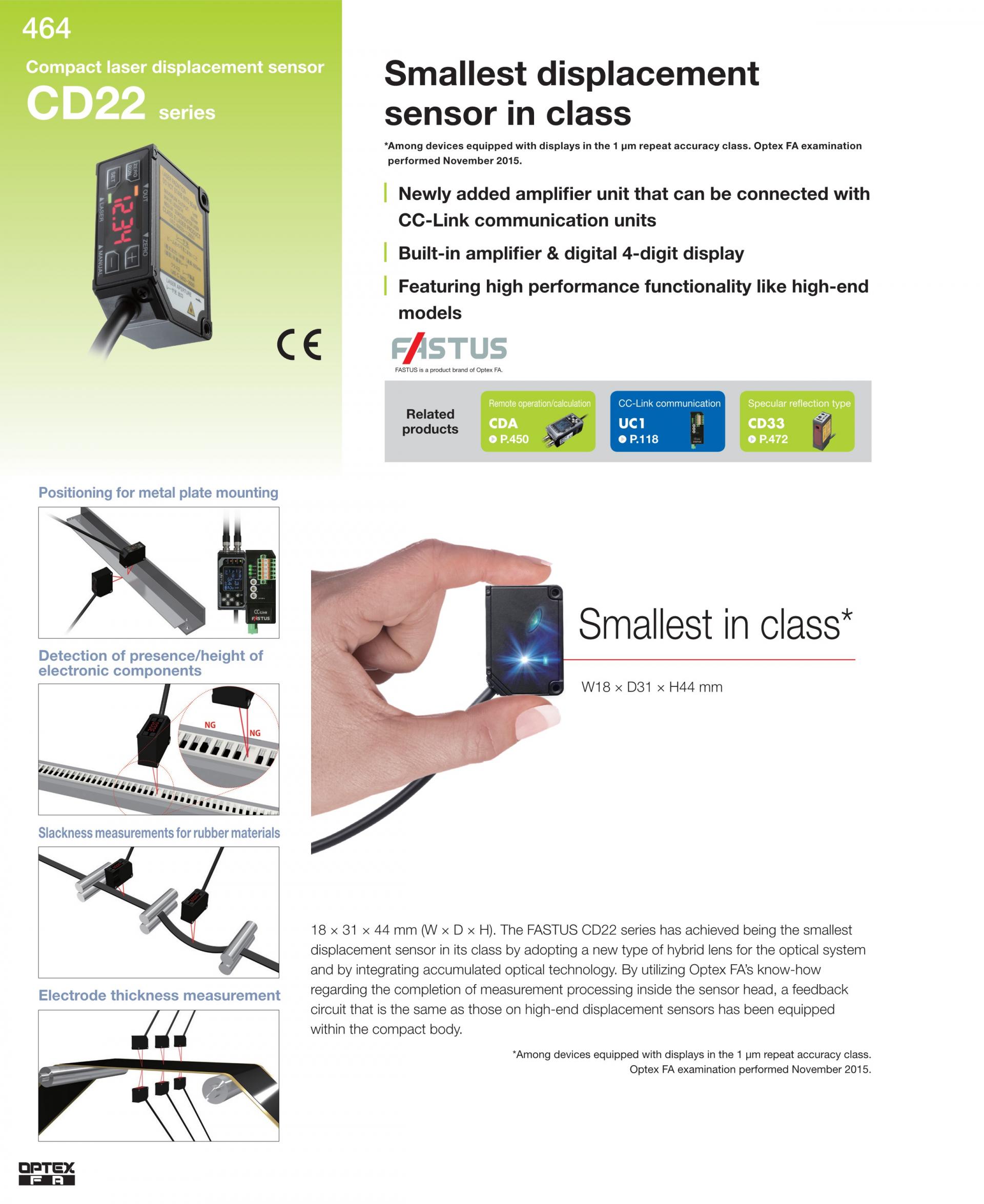

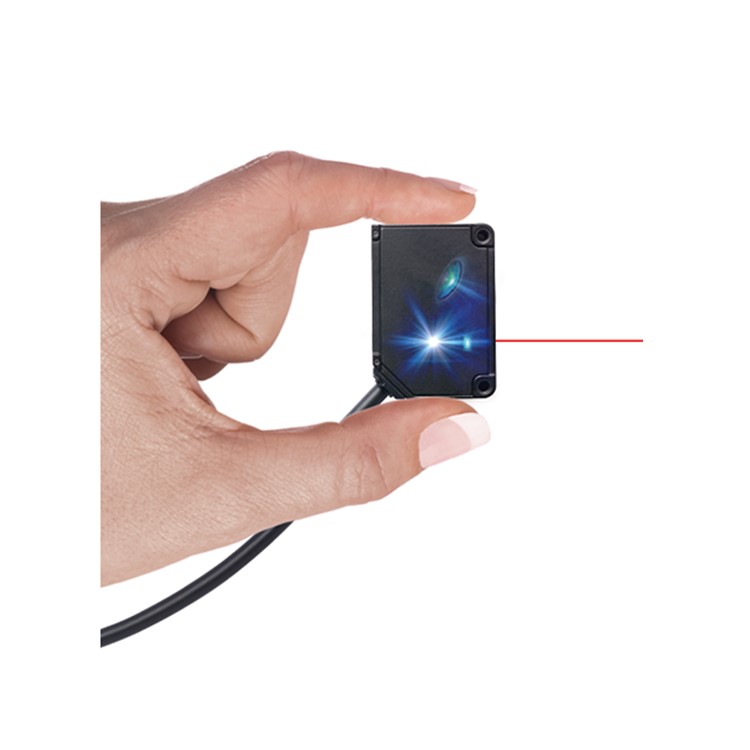

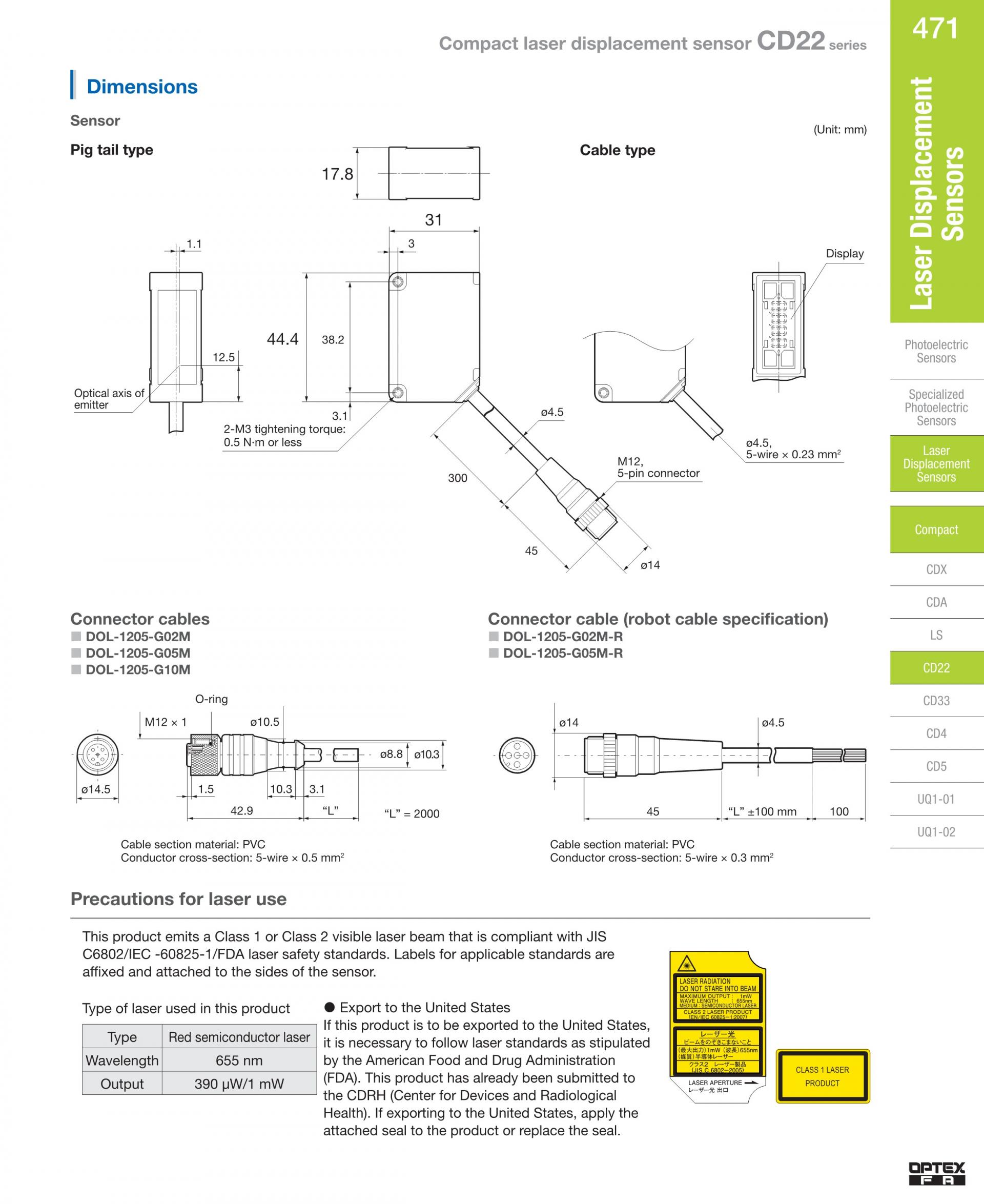

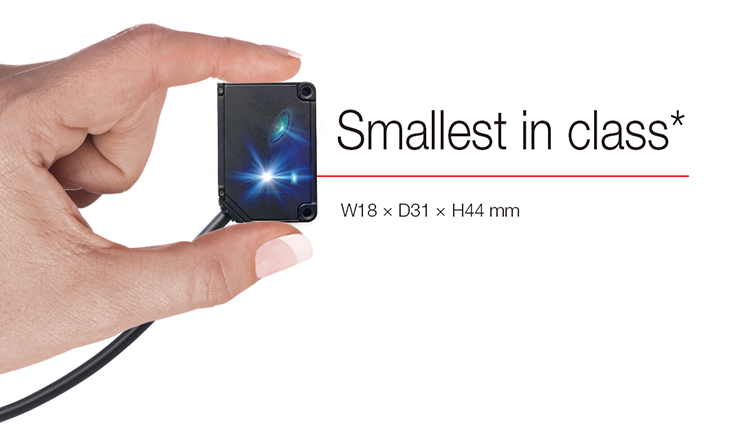

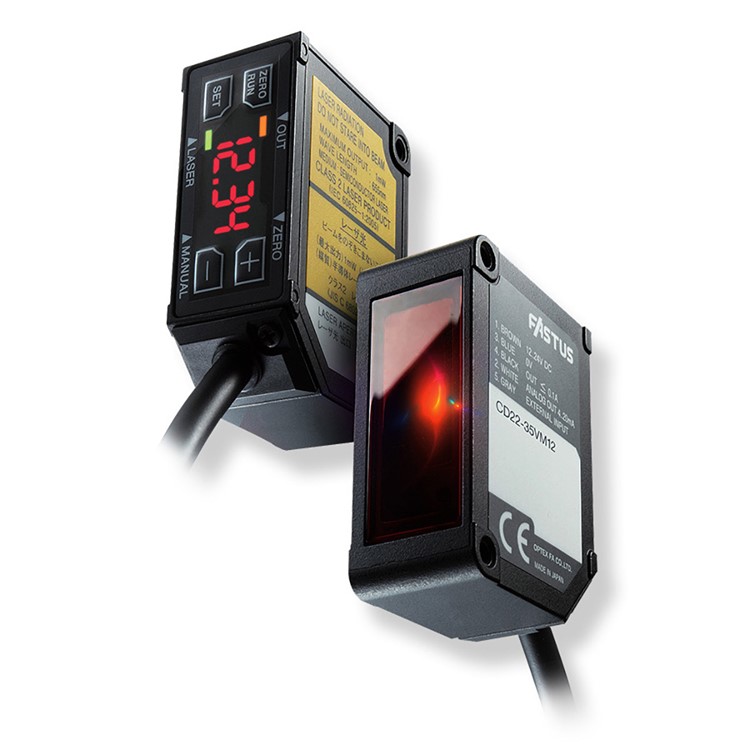

18 × 31 × 44 mm (W × D × H). The FASTUS CD22 series has achieved being the smallest displacement sensor in its class by adopting a new type of hybrid lens for the optical system and by integrating accumulated optical technology. By utilizing Optex FA’s know-how regarding the completion of measurement processing inside the sensor head, a feedback circuit that is the same as those on high-end displacement sensors has been equipped within the compact body.
*Among devices equipped with displays in the 1 μm repeat accuracy class.
Optex FA examination performed November 2015.
- High-accuracy

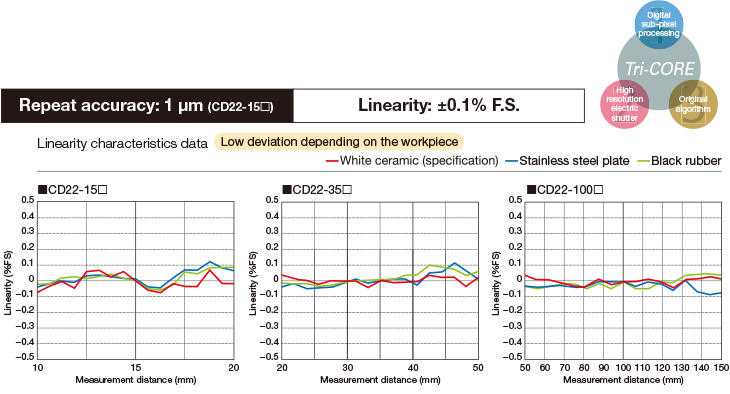

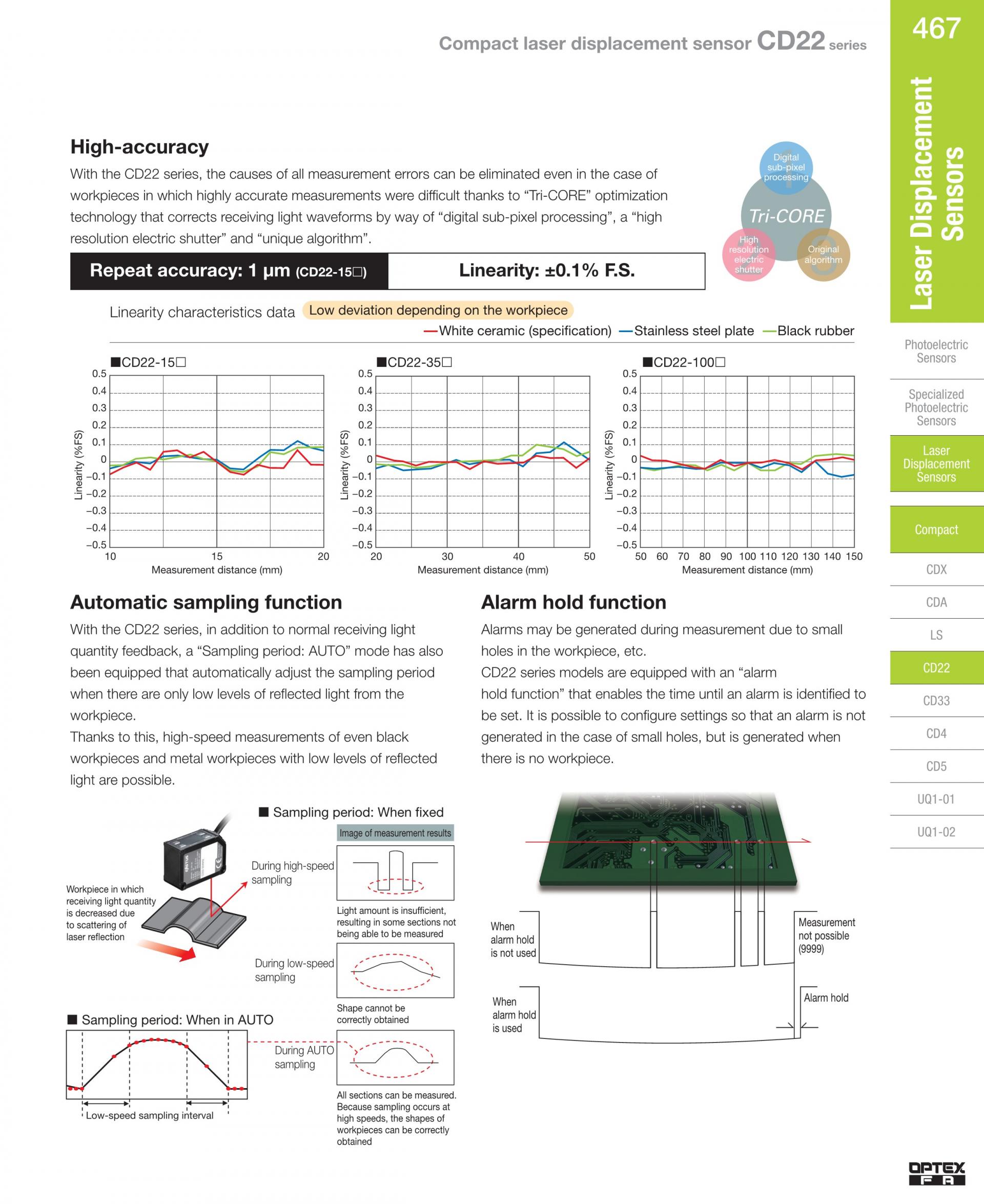

With the CD22 series, the causes of all measurement errors can be eliminated even in the case of workpieces in which highly accurate measurements were diffi cult thanks to “Tri-CORE” optimization technology that corrects receiving light waveforms by way of “digital sub-pixel processing”, a “high resolution electric shutter” and “unique algorithm”.

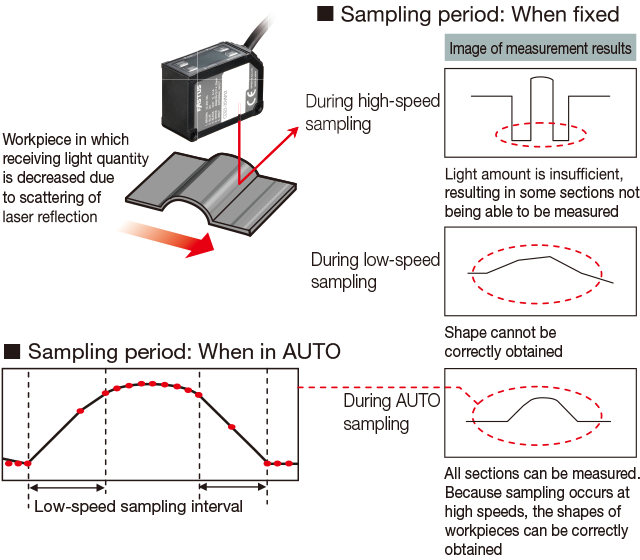

With the CD22 series, in addition to normal receiving light quantity feedback, a “Sampling period: AUTO” mode has also been equipped that automatically adjust the sampling period when there are only low levels of reflected light from the workpiece. Thanks to this, high-speed measurements of even black workpieces and metal workpieces with low levels of reflected light are possible.  |

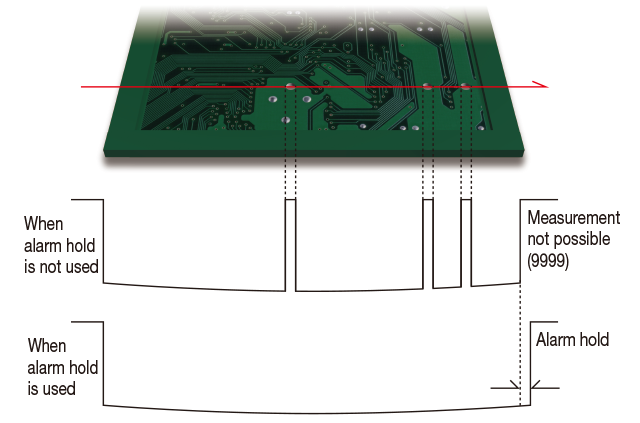

Alarms may be generated during measurement due to small holes in the workpiece, etc.  |

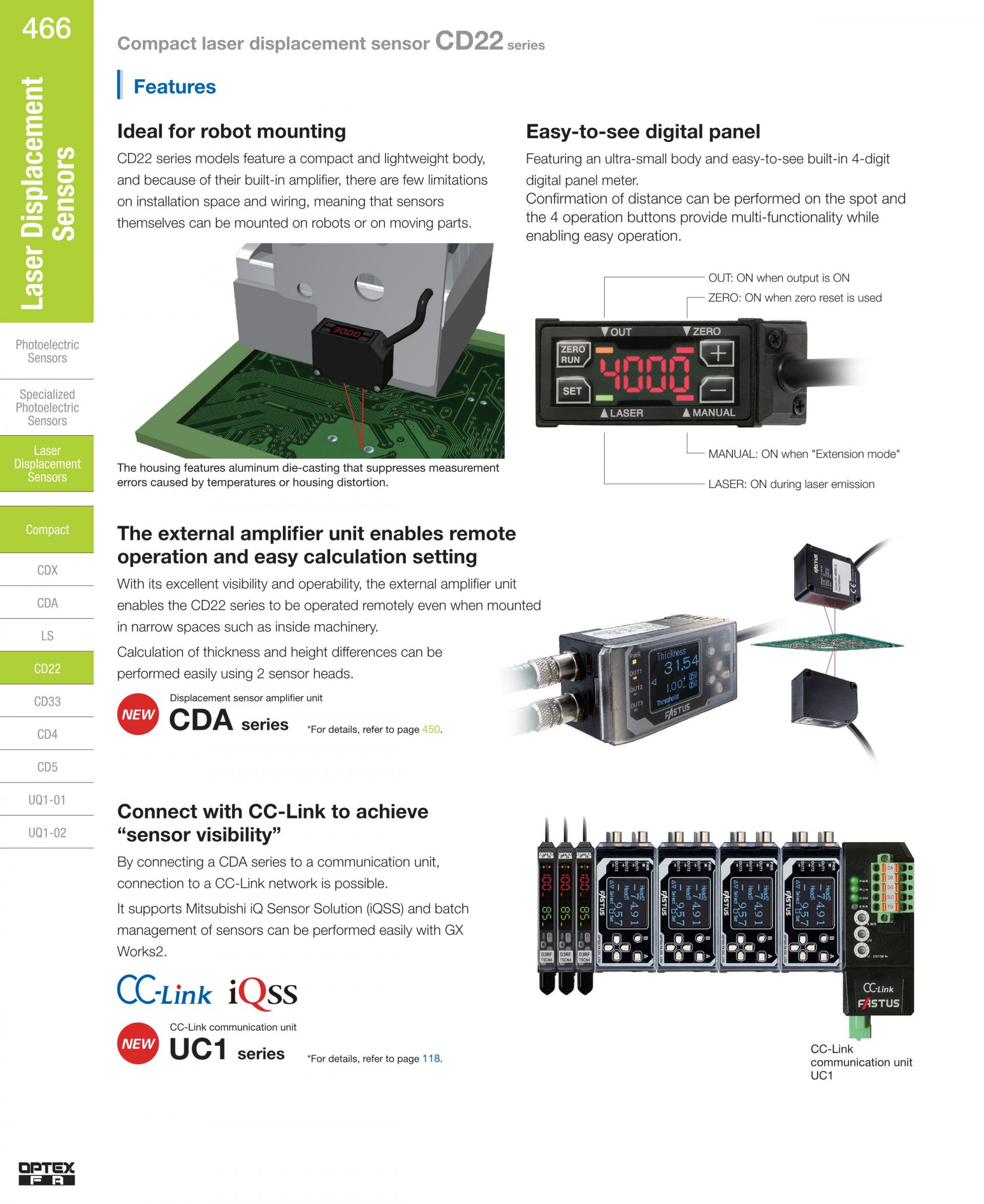

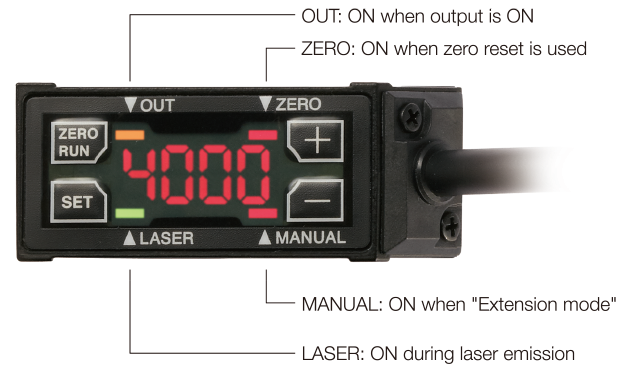

Featuring an ultra-small body and easy-to-see built-in 4-digit digital panel meter. Confirmation of distance can be performed on the spot and the 4 operation buttons provide multi-functionality while enabling easy operation.  |

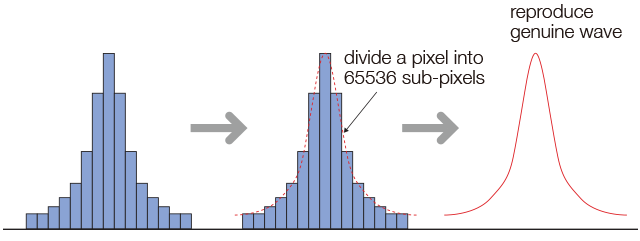

Accurate profile reproduction The linearity has been improved to more than twice that of a conventional product by digital sub-pixel processing. This divides one pixel into 65536 subpixels.  |

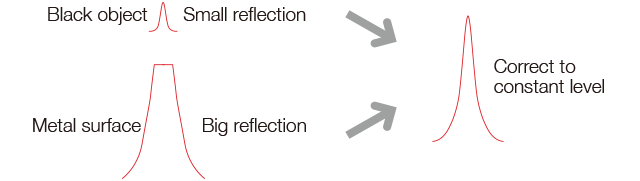

Automatic level correction A high resolution electric shutter that can be controlled to 1/485th of the sampling period helps to insure stable peak level detection even when unstable surface conditions exist.  |

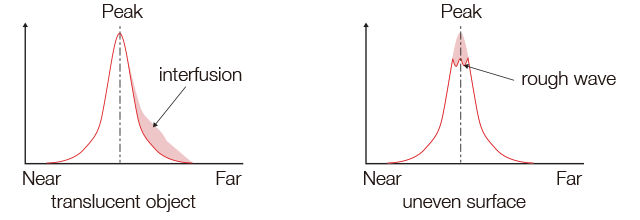

For uneven and varied luster object Even if the object is translucent or its surface is uneven, it can detect the position of the true peak thanks to the original OPTEX FA designed algorithm.  |
