OPTEX FA DM SERIES 디지털 컬러/마크 감지센서
가격문의(상세정보 참조)
OPTEX FA DM SERIES 디지털 컬러/마크 감지센서
OPTEX FA DM SERIES Digital Color/Mark Detection Type

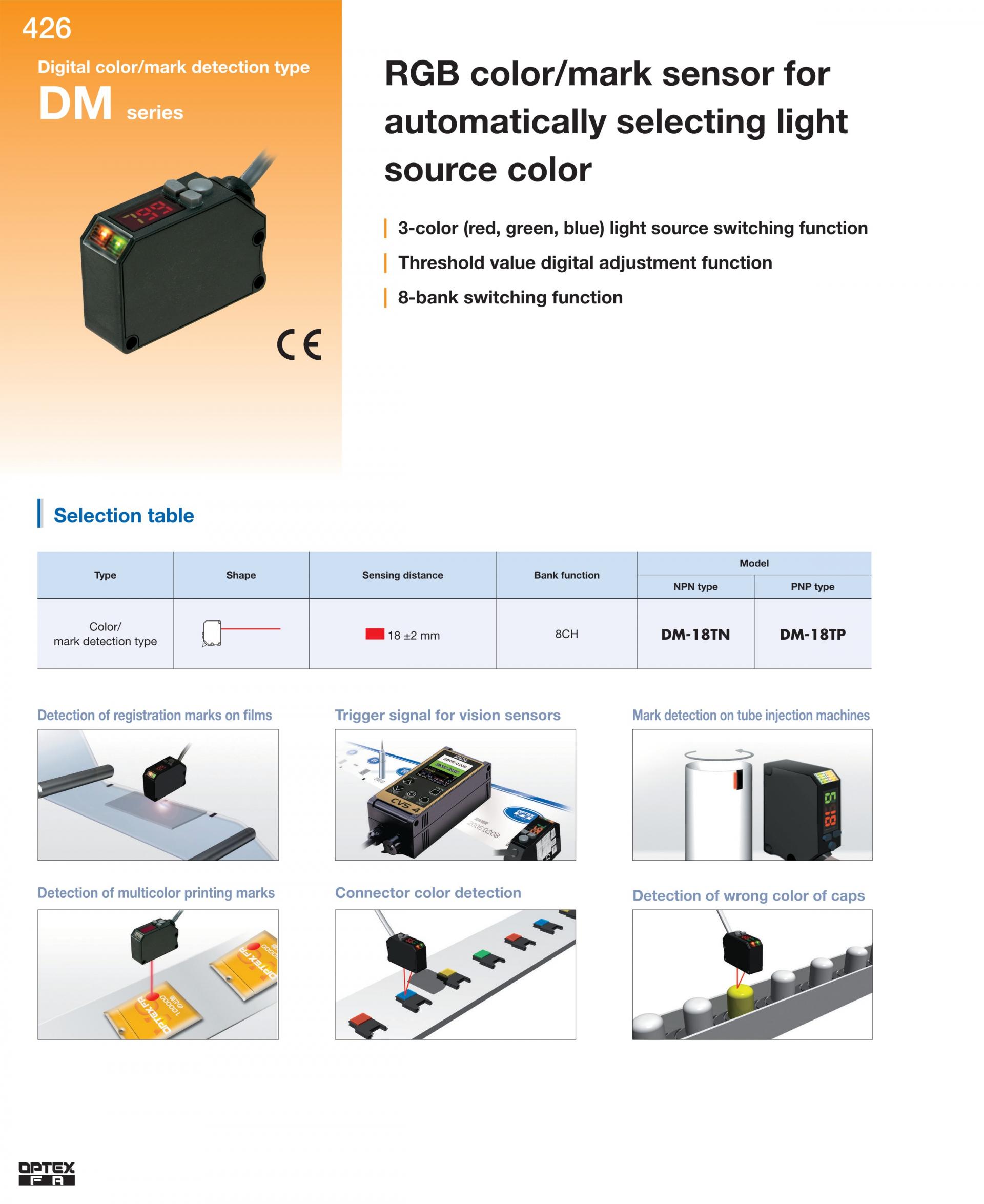

RGB color/mark sensor for automatically selecting light source color

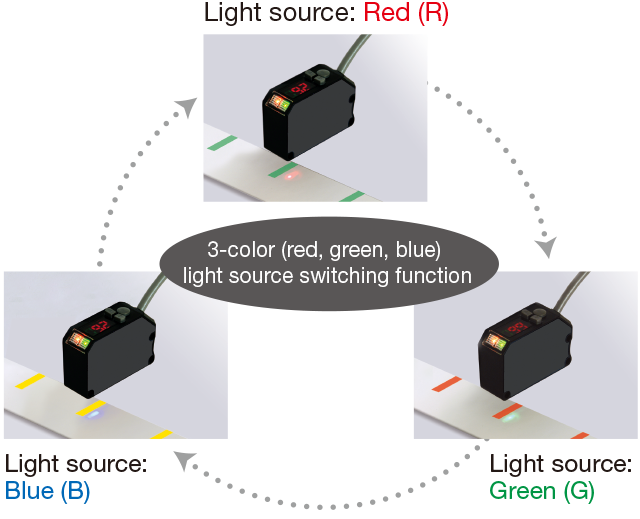

- 3-color (red, green, blue) light source switching function
- Threshold value digital adjustment function
- 8-bank switching function
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
DM SERIES
디지털 컬러/마크 감지센서
DM SERIES Digital Color/Mark Detection Type

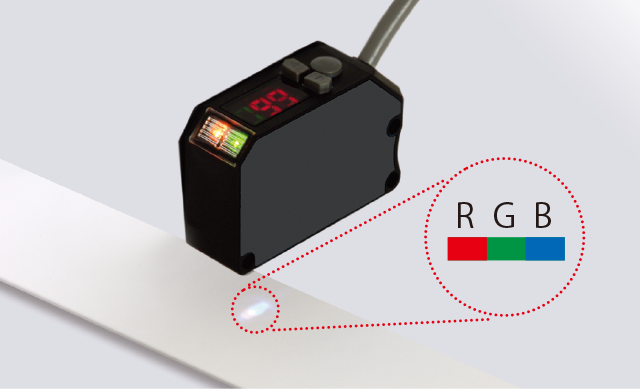

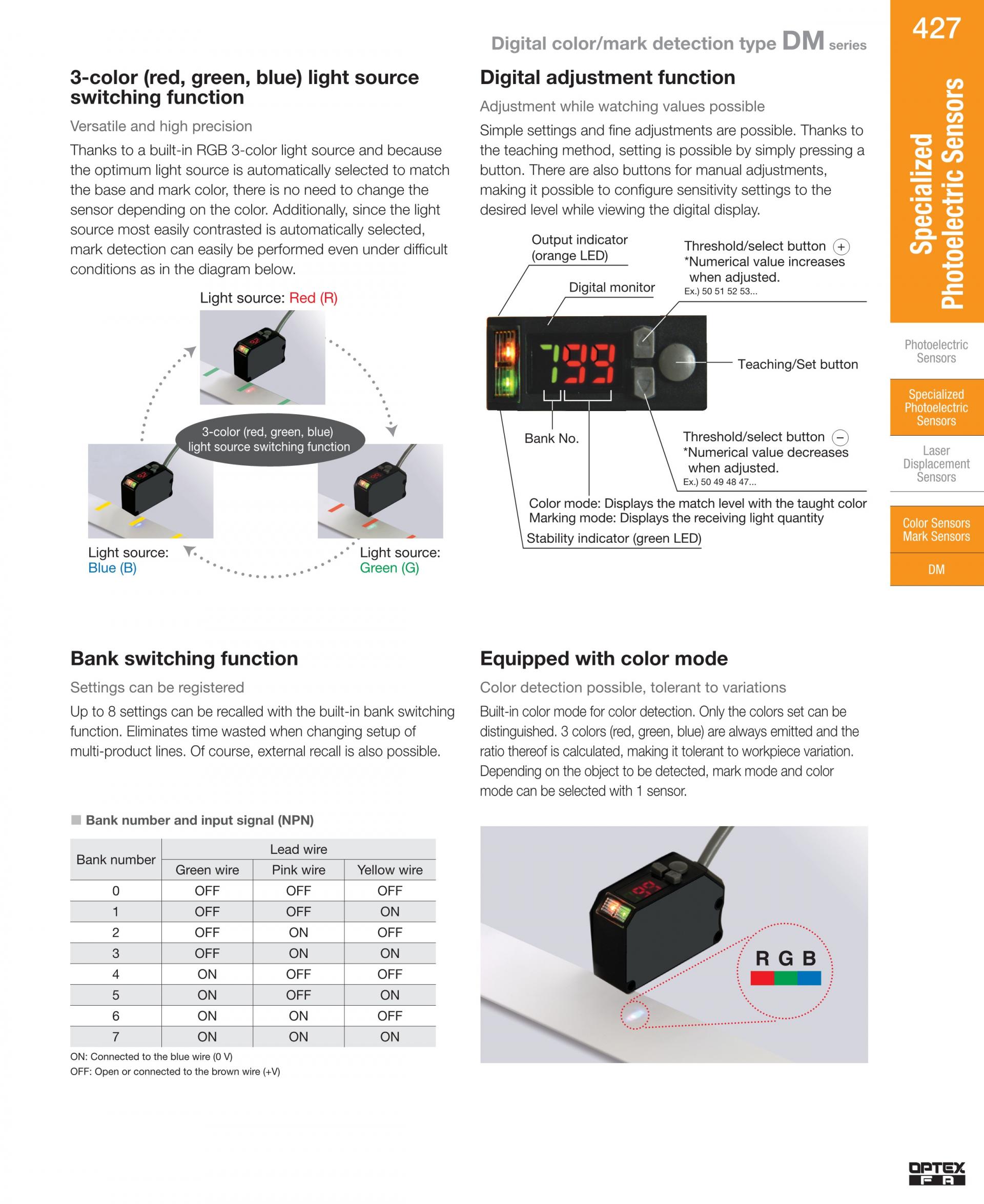

Versatile and high precision Thanks to a built-in RGB 3-color light source and because the optimum light source is automatically selected to match the base and mark color, there is no need to change the sensor depending on the color. Additionally, since the light source most easily contrasted is automatically selected, mark detection can easily be performed even under difficult conditions as in the diagram below.  |

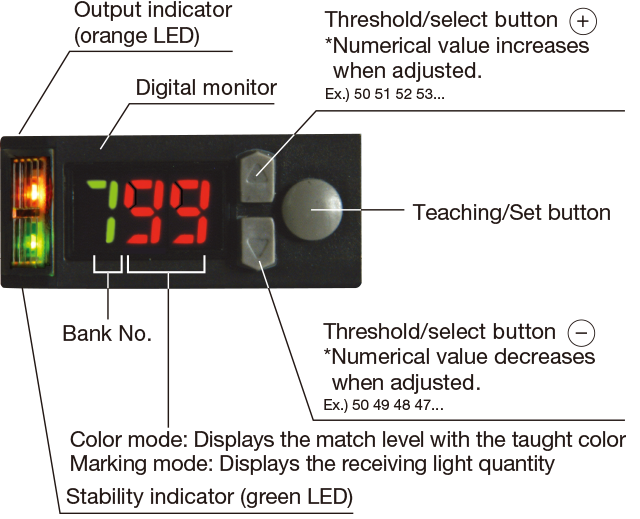

Adjustment while watching values possible Simple settings and fine adjustments are possible. Thanks to the teaching method, setting is possible by simply pressing a button. There are also buttons for manual adjustments, making it possible to configure sensitivity settings to the desired level while viewing the digital display.  |
Settings can be registered Up to 8 settings can be recalled with the built-in bank switching function. Eliminates time wasted when changing setup of multi-product lines. Of course, external recall is also possible.  |

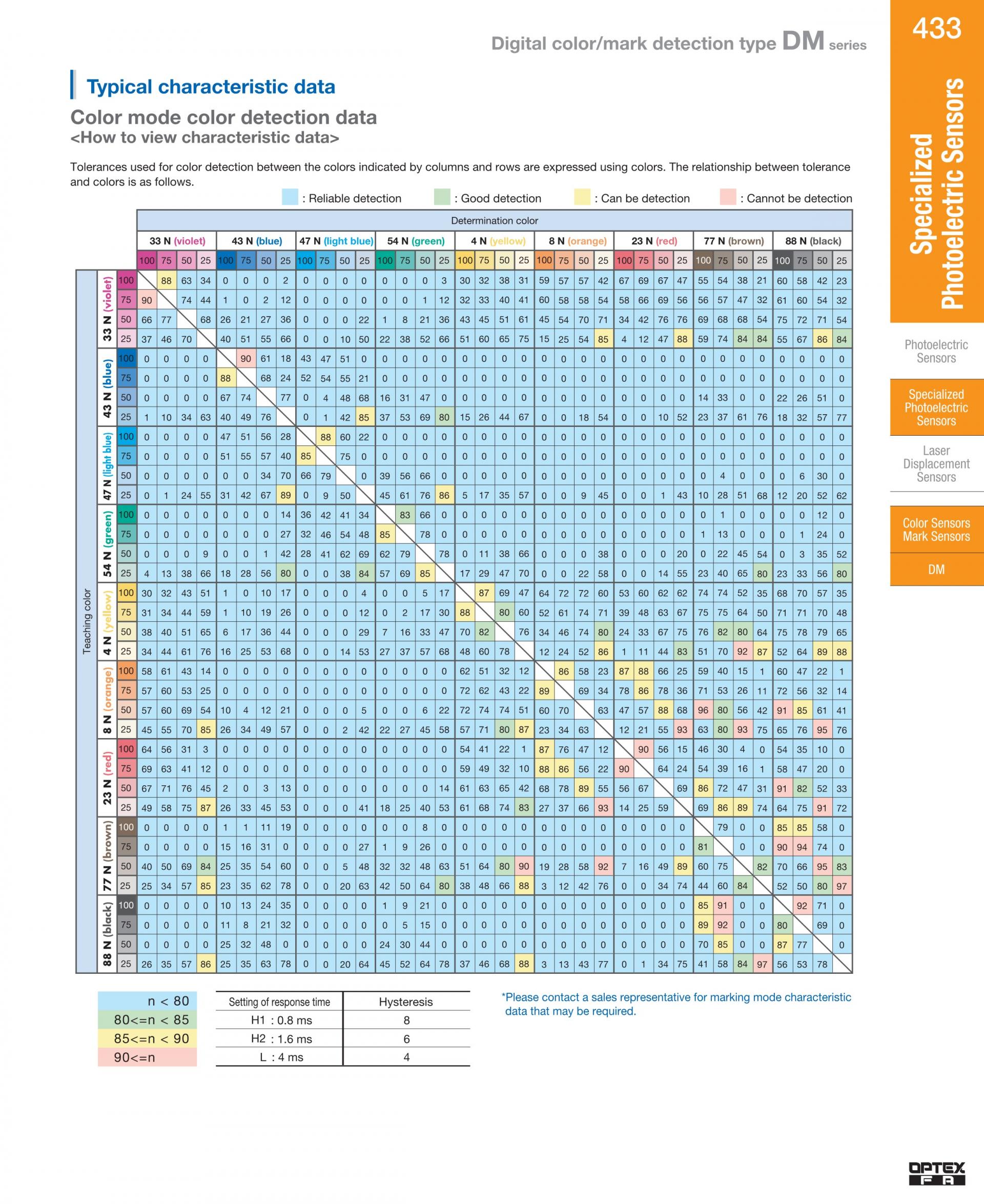

Color detection possible, tolerant to variations Built-in color mode for color detection. Only the colors set can be distinguished. 3 colors (red, green, blue) are always emitted and the ratio thereof is calculated, making it tolerant to workpiece variation. Depending on the object to be detected, mark mode and color mode can be selected with 1 sensor.
|
