OPTEX FA KR-Q & SR-Q SERIES 스테인리스 프로텍터 소형 LED 투명체감지센서
OPTEX FA KR-Q & SR-Q SERIES SUS Protector and Small LED Sensors

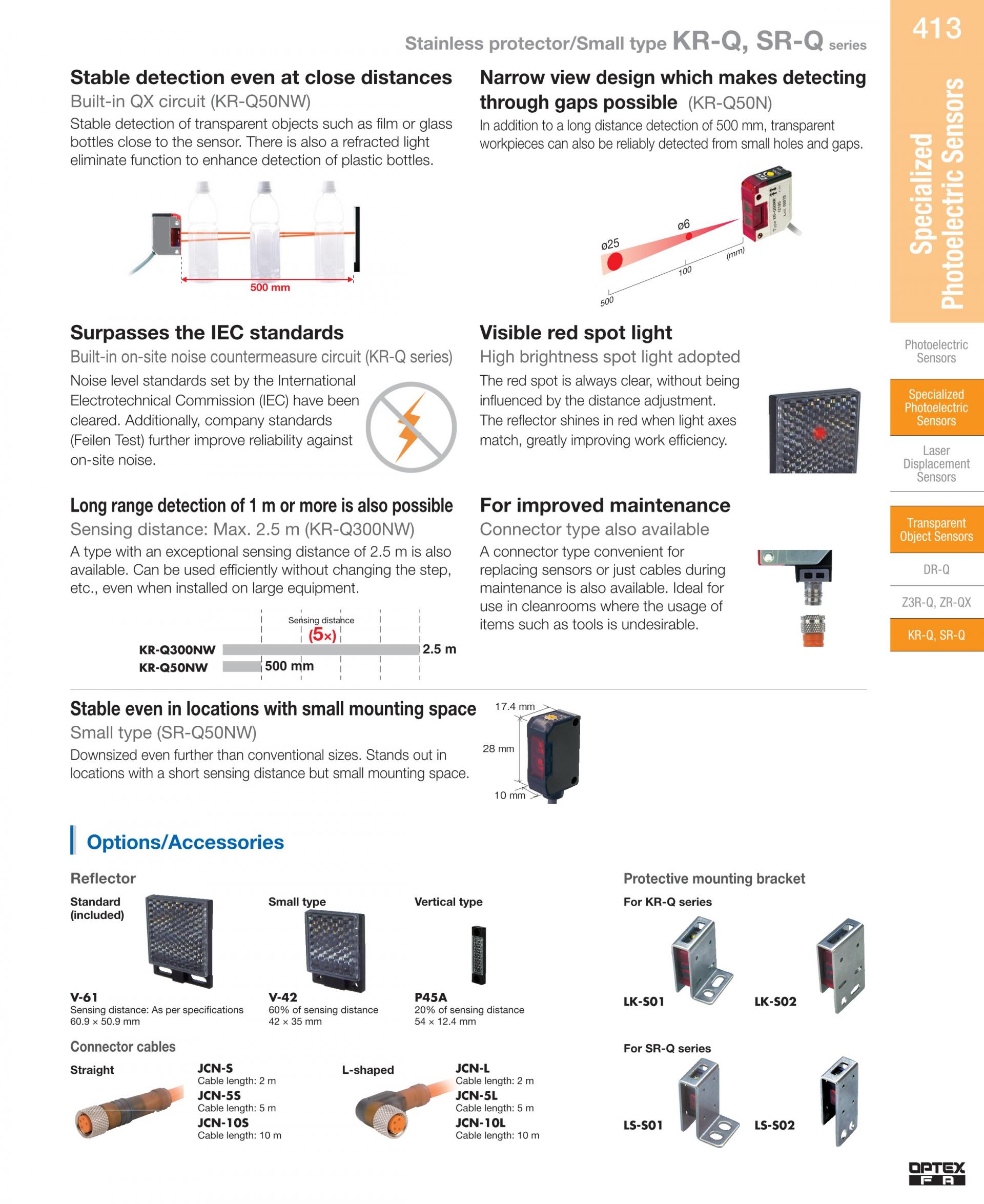

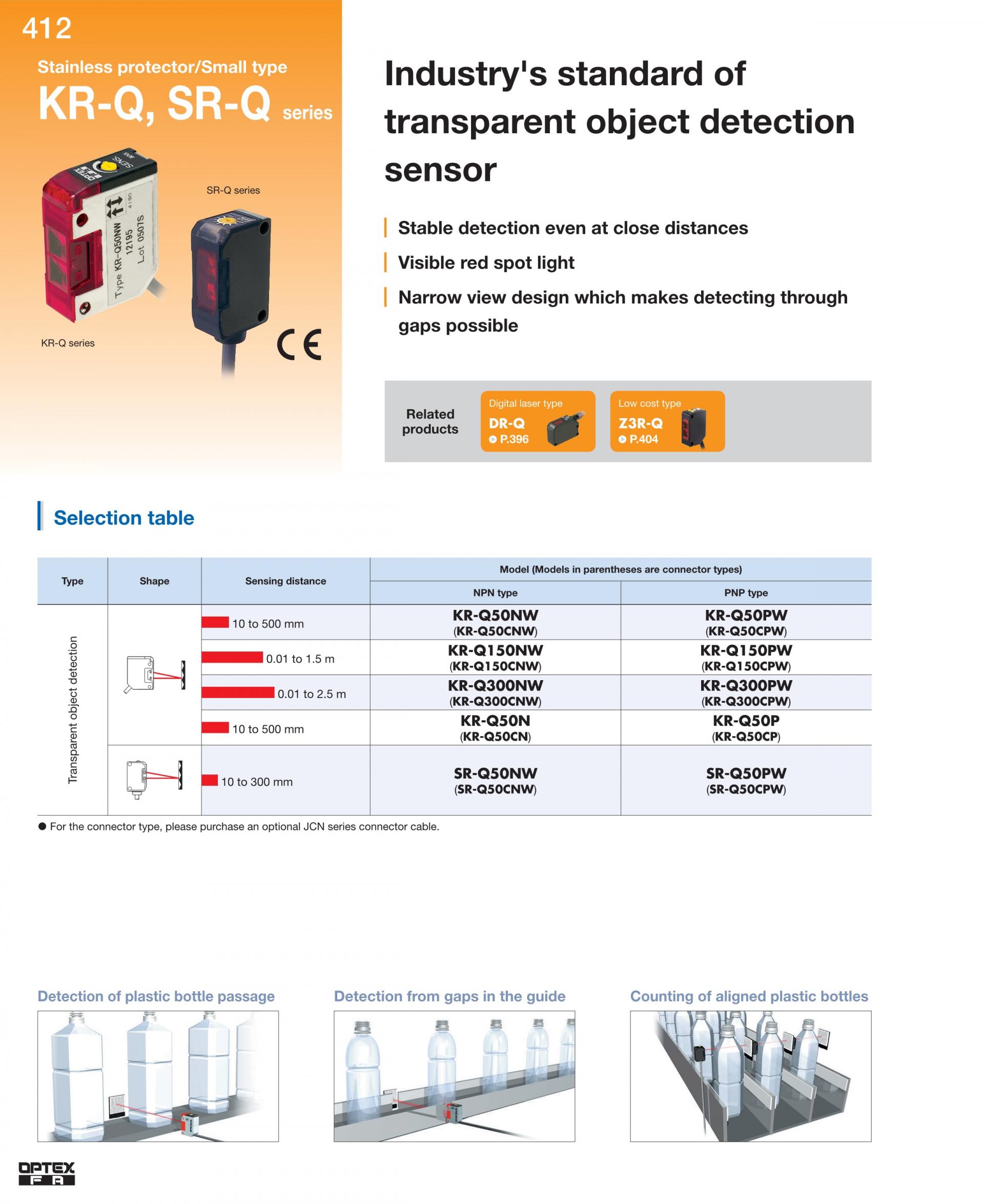

Industry's standard of transparent object detection sensor
- Stable detection even at close distances
- Visible red spot light
- Narrow view design which makes detecting through gaps possible
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
KR-Q & SR-Q SERIES
스테인리스 프로텍터 소형 LED 투명체감지센서
KR-Q & SR-Q SERIES SUS Protector and Small LED Sensors
Built-in QX circuit (KR-Q50NW) Stable detection of transparent objects such as film or glass bottles close to the sensor. There is also a refracted light eliminate function to enhance detection of plastic bottles.  |

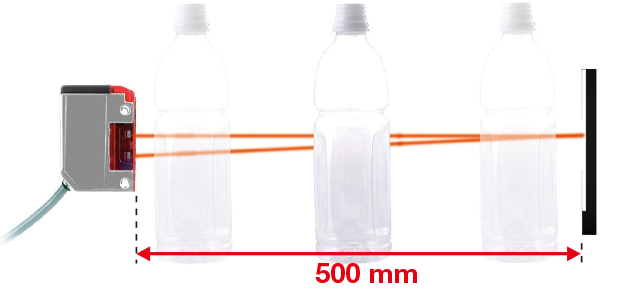

(KR-Q50N) In addition to a long distance detection of 500 mm, transparent workpieces can also be reliably detected from small holes and gaps.  |
Built-in on-site noise countermeasure circuit (KR-Q series) Noise level standards set by the International Electrotechnical Commission (IEC) have been cleared. Additionally, company standards (Feilen Test) further improve reliability against on-site noise. |

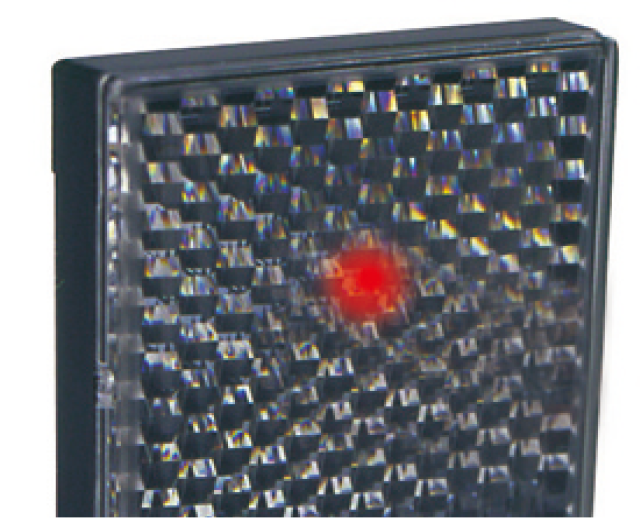

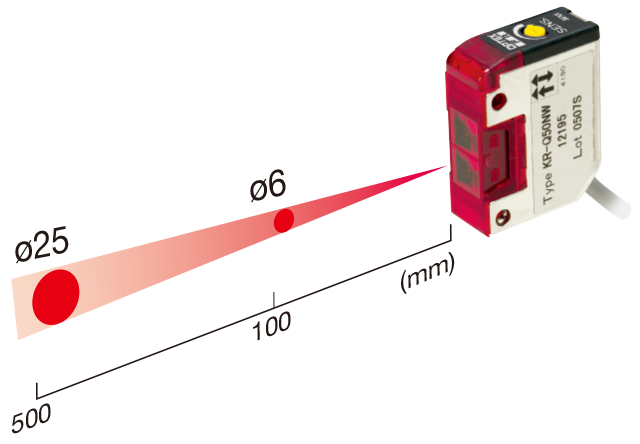

High brightness spot light adopted The red spot is always clear, without being influenced by the distance adjustment. The reflector shines in red when light axes match, greatly improving work efficiency.  |

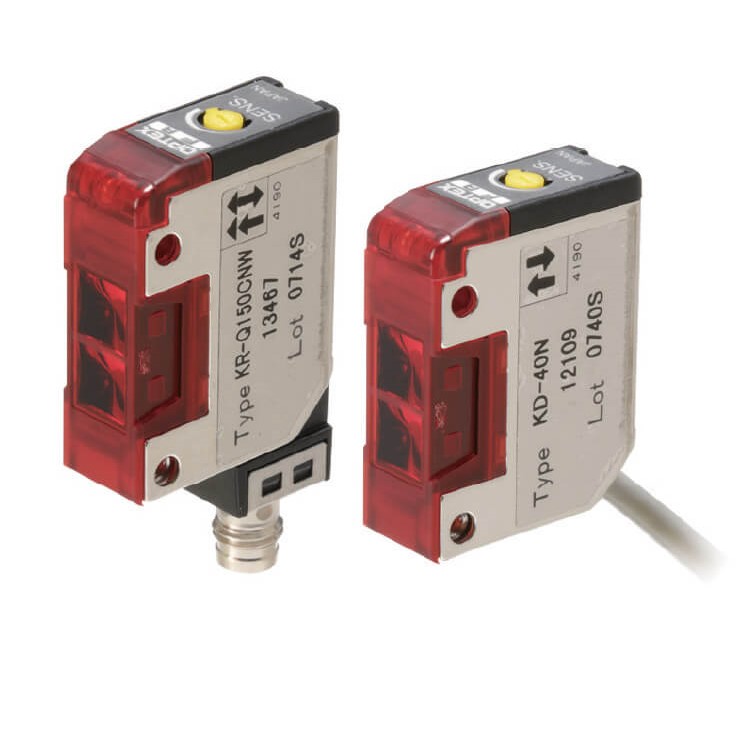

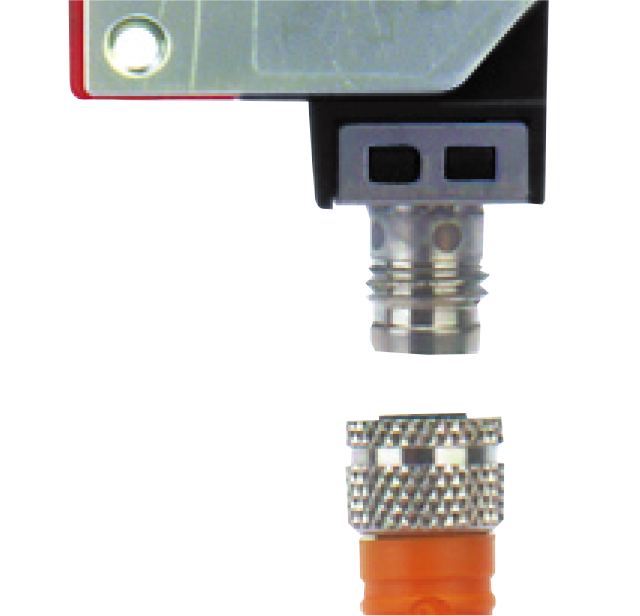

Connector type also available A connector type convenient for replacing sensors or just cables during maintenance is also available. Ideal for use in cleanrooms where the usage of items such as tools is undesirable.  |

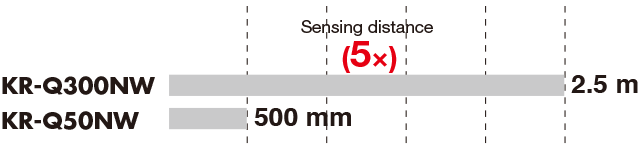

Sensing distance: Max. 2.5 m (KR-Q300NW) A type with an exceptional sensing distance of 2.5 m is also available. Can be used efficiently without changing the step, etc., even when installed on large equipment.  |

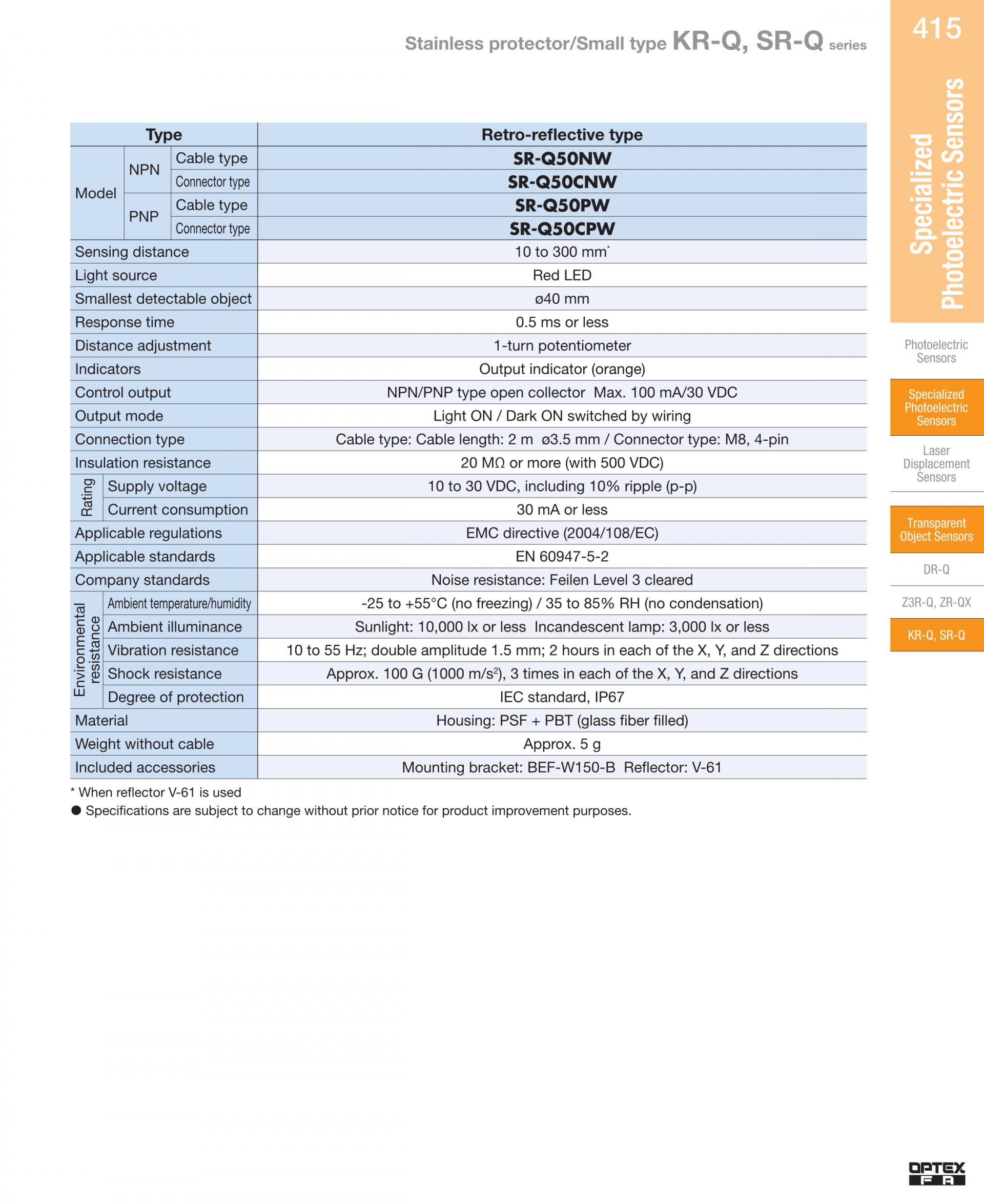

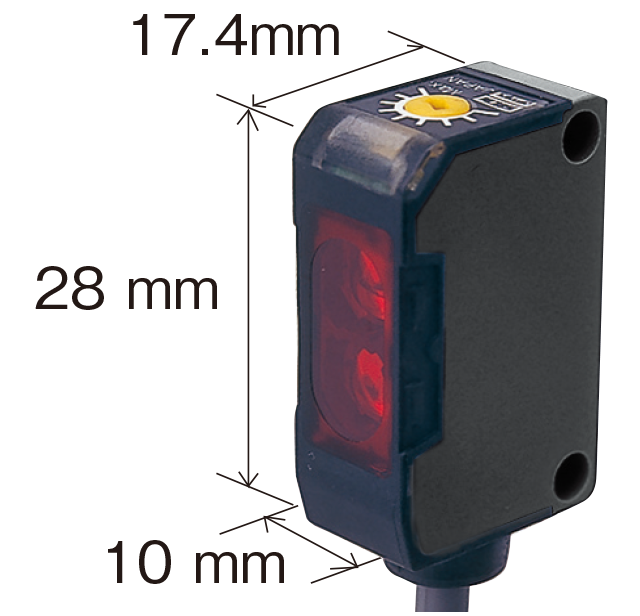

Small type (SR-Q50NW) Downsized even further than conventional sizes. Stands out in locations with a short sensing distance but small mounting space. |  |
KR-Q50NW KR-Q50CNW KR-Q50PW KR-Q50CPW KR-Q150NW KR-Q150CNW KR-Q150PW KR-Q150CPW KR-Q300NW KR-Q300CNW KR-Q300PW KR-Q300CPW KR-Q50N KR-Q50CN KR-Q50P KR-Q50CP SR-Q50NW SR-Q50CNW SR-Q50PW SR-Q50CPW KR Q50NW KR Q50CNW KR Q50W KR Q50CPW KR Q150NW KR Q150CNW KR Q150PW KR Q150CPW KR Q300NW KR Q300CNW KR Q300PW KR Q300CPW KR Q50N KR Q50CN KR Q50P KR Q50CP SR Q50NW SR Q50CNW SR Q50PW SR Q50CPW KR-Q SR-Q KR Q SR Q OPTEX FA KR-Q OPTEX KR-Q FASTUS KR-Q 옵텍스 FA KR-Q 옵텍스 KR-Q KR-Q OPTEX FA KR-Q OPTEX KR-Q FASTUS KR-Q 옵텍스 FA KR-Q 옵텍스 OPTEX FA SR-Q OPTEX SR-Q FASTUS SR-Q 옵텍스 FA SR-Q 옵텍스 SR-Q SR-Q OPTEX FA SR-Q OPTEX SR-Q FASTUS SR-Q 옵텍스 FA SR-Q 옵텍스 OPTEX FA KR Q OPTEX KR Q FASTUS KR Q 옵텍스 FA KR Q 옵텍스 KR Q KR Q OPTEX FA KR Q OPTEX KR Q FASTUS KR Q 옵텍스 FA KR Q 옵텍스 OPTEX FA SR Q OPTEX SR Q FASTUS SR Q 옵텍스 FA SR Q 옵텍스 SR Q SR Q OPTEX FA SR Q OPTEX SR Q FASTUS SR Q 옵텍스 FA SR Q 옵텍스
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
KR-Q & SR-Q SERIES
스테인리스 프로텍터 소형 LED 투명체감지센서
KR-Q & SR-Q SERIES SUS Protector and Small LED Sensors
Built-in QX circuit (KR-Q50NW) Stable detection of transparent objects such as film or glass bottles close to the sensor. There is also a refracted light eliminate function to enhance detection of plastic bottles. |
(KR-Q50N) In addition to a long distance detection of 500 mm, transparent workpieces can also be reliably detected from small holes and gaps. |
Built-in on-site noise countermeasure circuit (KR-Q series) Noise level standards set by the International Electrotechnical Commission (IEC) have been cleared. Additionally, company standards (Feilen Test) further improve reliability against on-site noise. |
High brightness spot light adopted The red spot is always clear, without being influenced by the distance adjustment. The reflector shines in red when light axes match, greatly improving work efficiency. |
Connector type also available A connector type convenient for replacing sensors or just cables during maintenance is also available. Ideal for use in cleanrooms where the usage of items such as tools is undesirable. |
Sensing distance: Max. 2.5 m (KR-Q300NW) A type with an exceptional sensing distance of 2.5 m is also available. Can be used efficiently without changing the step, etc., even when installed on large equipment. |

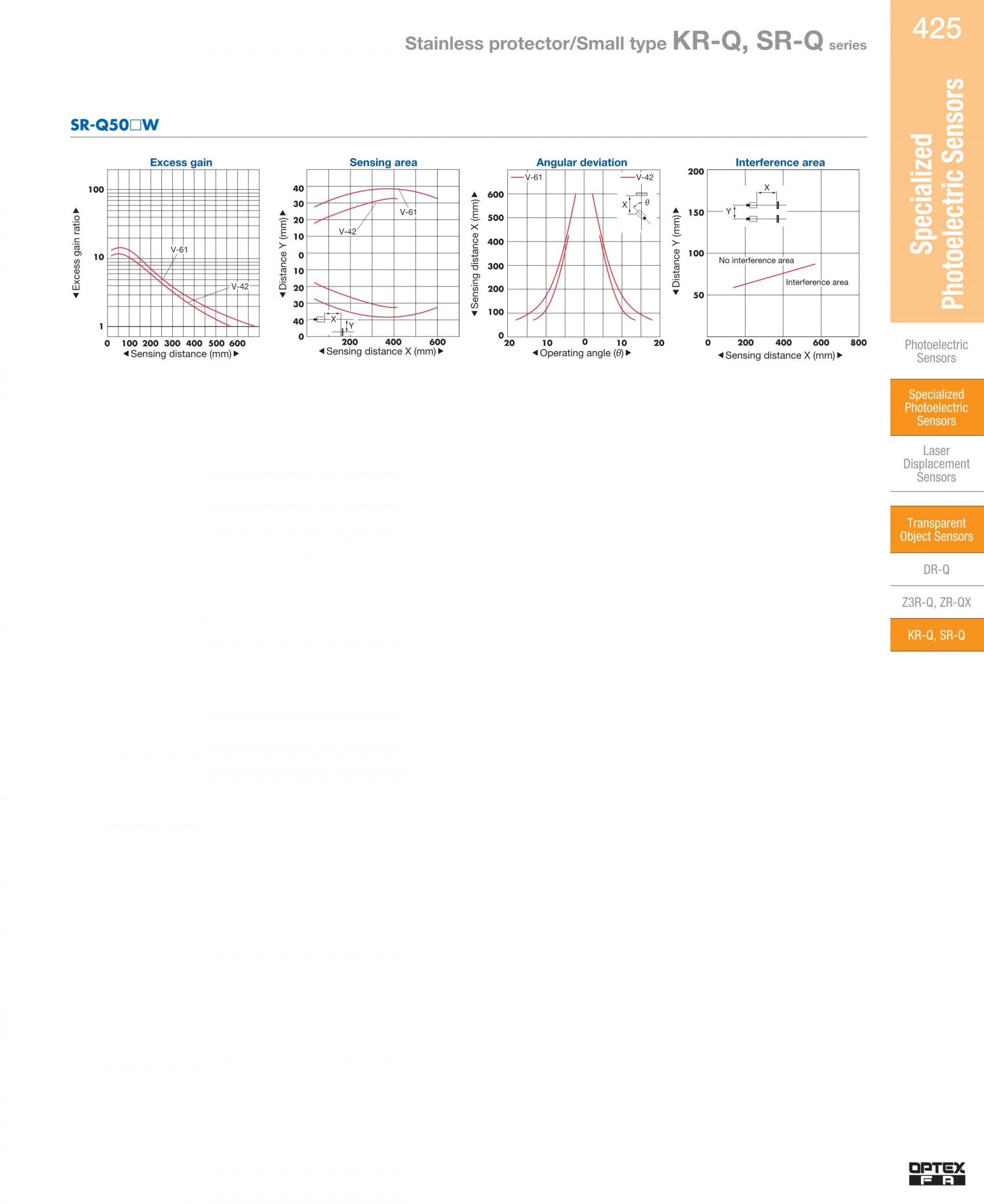

Small type (SR-Q50NW) Downsized even further than conventional sizes. Stands out in locations with a short sensing distance but small mounting space. | |
