OPTEX FA DR-Q SERIES 디지털 레이저 투명체감지센서
가격문의(상세정보 참조)
OPTEX FA DR-Q SERIES 디지털 레이저 투명체감지센서

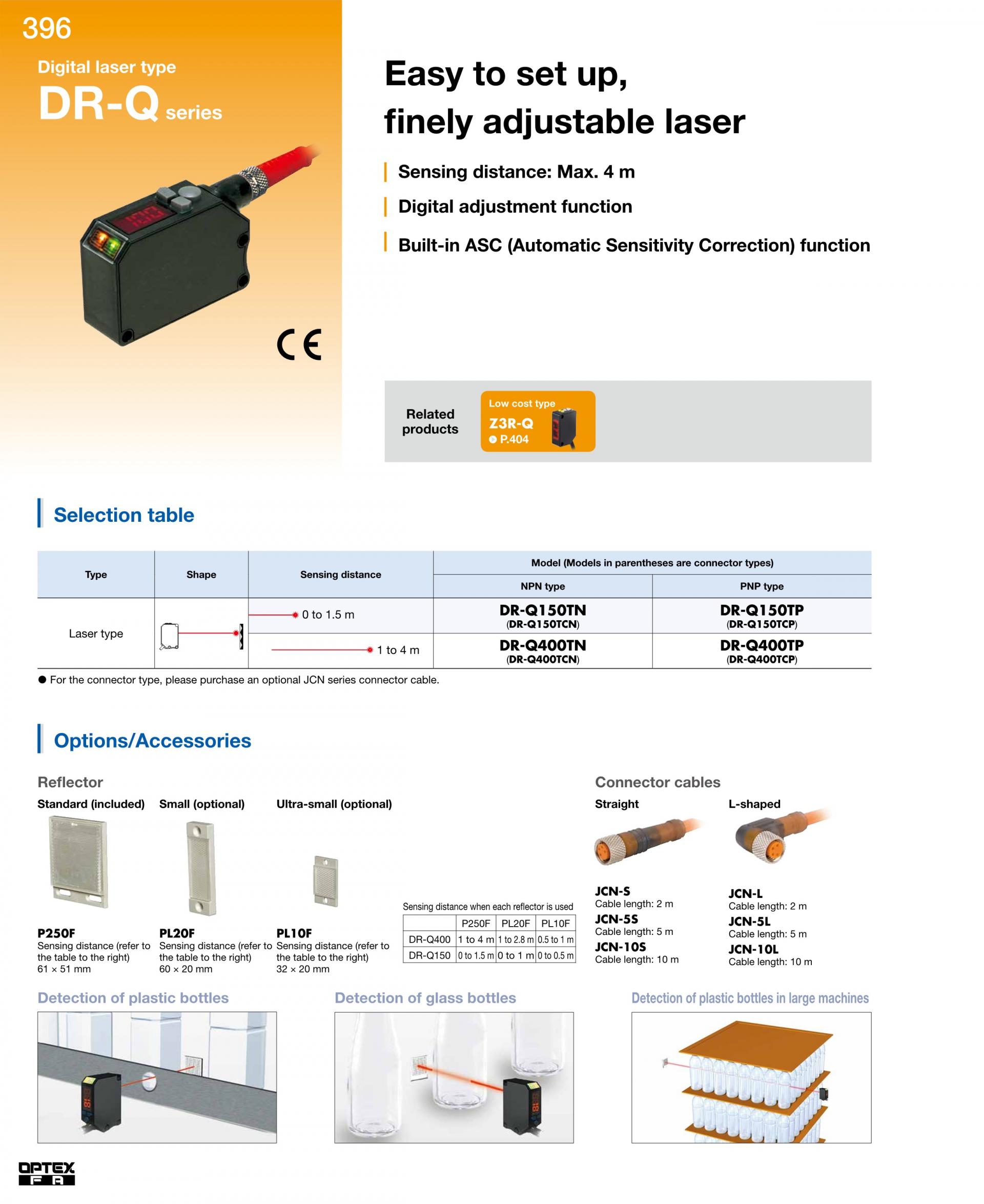

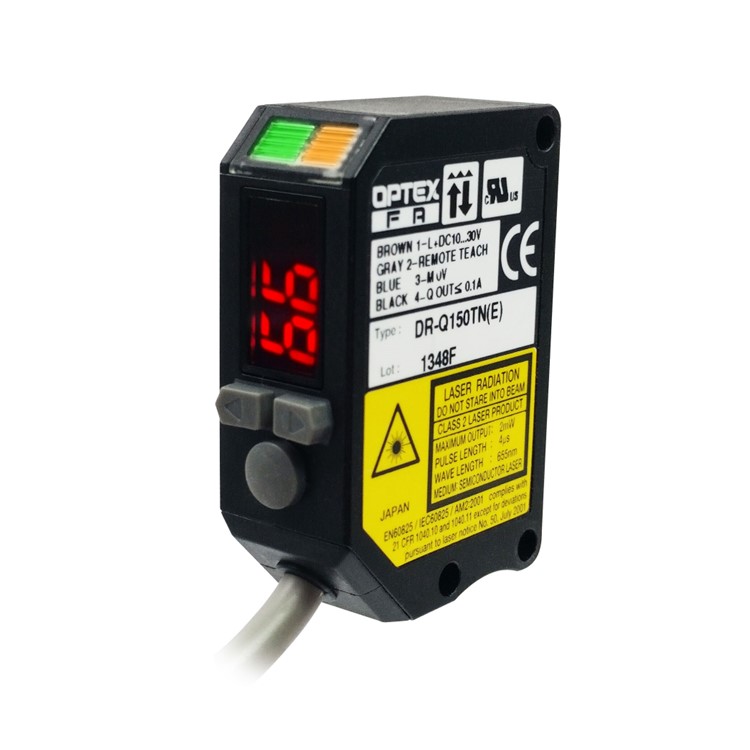

OPTEX FA DR-Q SERIES Laser Sensors with Display
Easy to set up, finely adjustable laser
- Sensing distance: Max. 4 m
- Digital adjustment function
- Built-in ASC (Automatic Sensitivity Correction) function
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
DR-Q SERIES
디지털 레이저 투명체감지센서
DR-Q SERIES Laser Sensors with Display

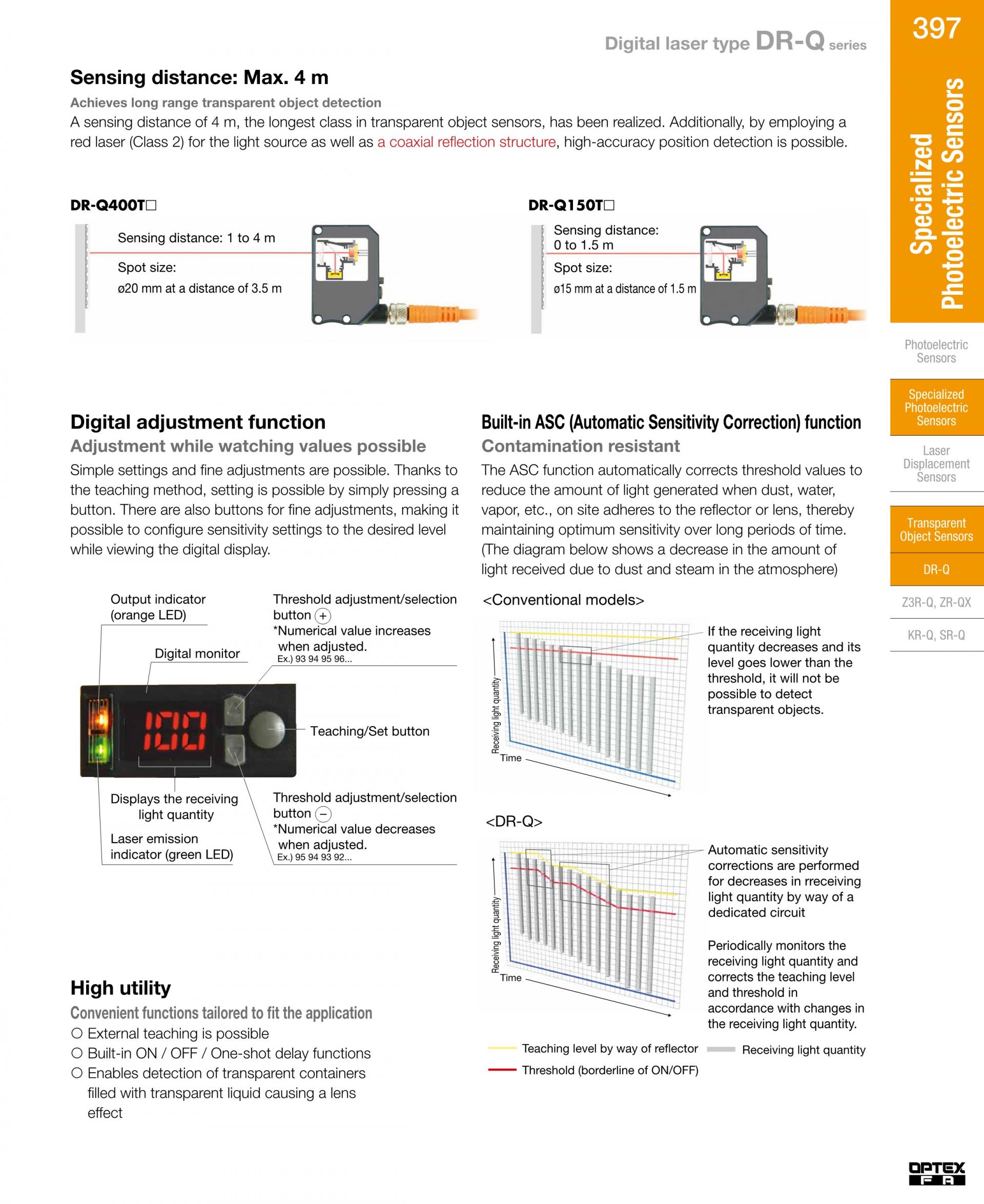

- Sensing distance: Max. 4 m

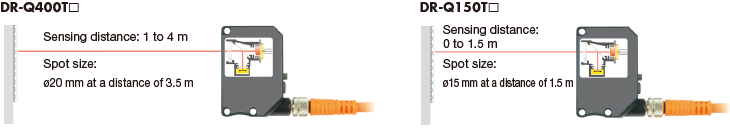

Achieves long range transparent object detection

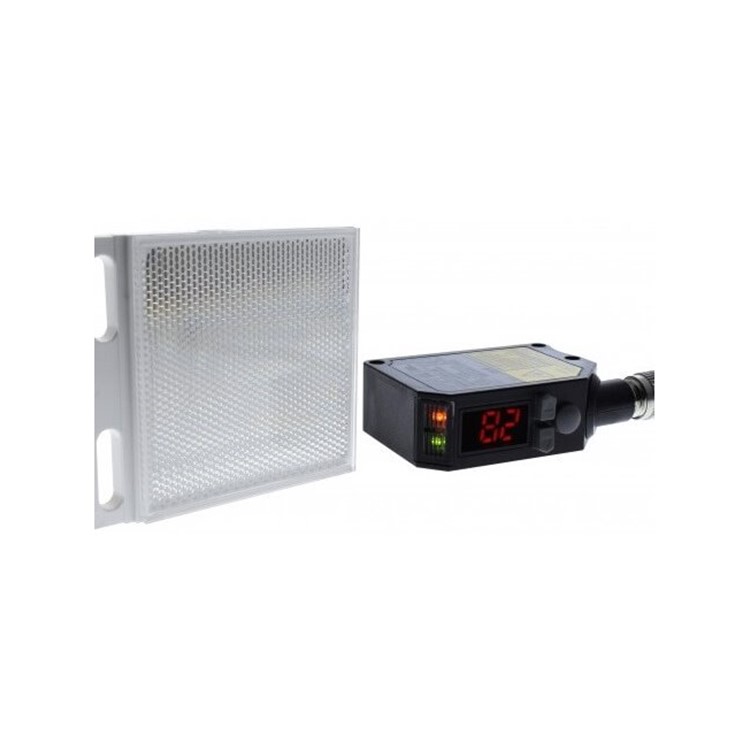

A sensing distance of 4 m, the longest class in transparent object sensors, has been realized. Additionally, by employing a red laser (Class 2) for the light source as well as a coaxial reflection structure, high-accuracy position detection is possible.

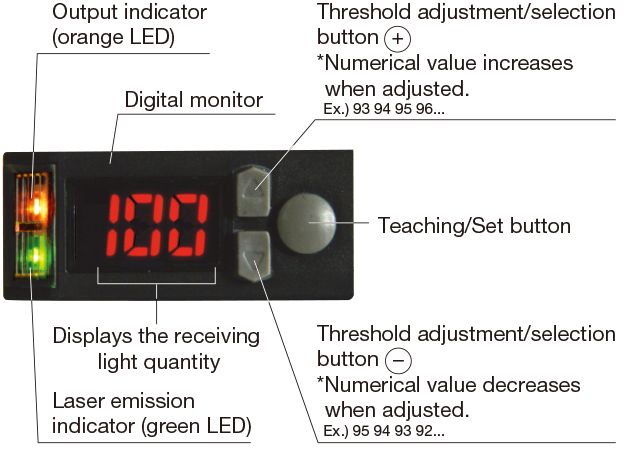

Adjustment while watching values possible Simple settings and fine adjustments are possible. Thanks to the teaching method, setting is possible by simply pressing a button. There are also buttons for fine adjustments, making it possible to configure sensitivity settings to the desired level while viewing the digital display.
Convenient functions tailored to fit the application - External teaching is possible - Built-in ON / OFF / One-shot delay functions - Enables detection of transparent containers filled with transparent liquid causing a lens effect |

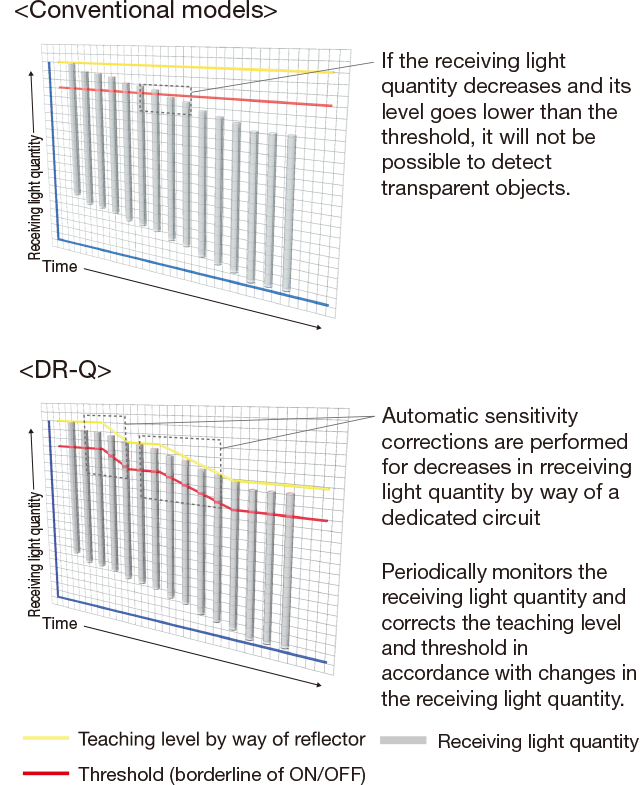

Contamination resistant The ASC function automatically corrects threshold values to reduce the amount of light generated when dust, water, vapor, etc., on site adheres to the reflector or lens, thereby maintaining optimum sensitivity over long periods of time. (The diagram below shows a decrease in the amount of light received due to dust and steam in the atmosphere)  |
