OPTEX FA Z3R-Q & ZR-QX SERIES 저비용 동축타입 표준사이즈 LED 투명체감지센서
가격문의(상세정보 참조)
OPTEX FA Z3R-Q & ZR-QX SERIES 저비용 동축타입 표준사이즈 LED 광전센서
OPTEX FA Z3R-Q & ZR-QX SERIES Standard-sized LED Sensors
Low cost type and coaxial type transparent object detection sensor
- Long range detection at 2 m
- Uses red LED for simple light axis adjustment
- Industry standard size
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
Z3R-Q & ZR-QX SERIES
저비용 동축타입 표준사이즈 LED 광전센서
Z3R-Q & ZR-QX SERIES Standard-sized LED Sensors

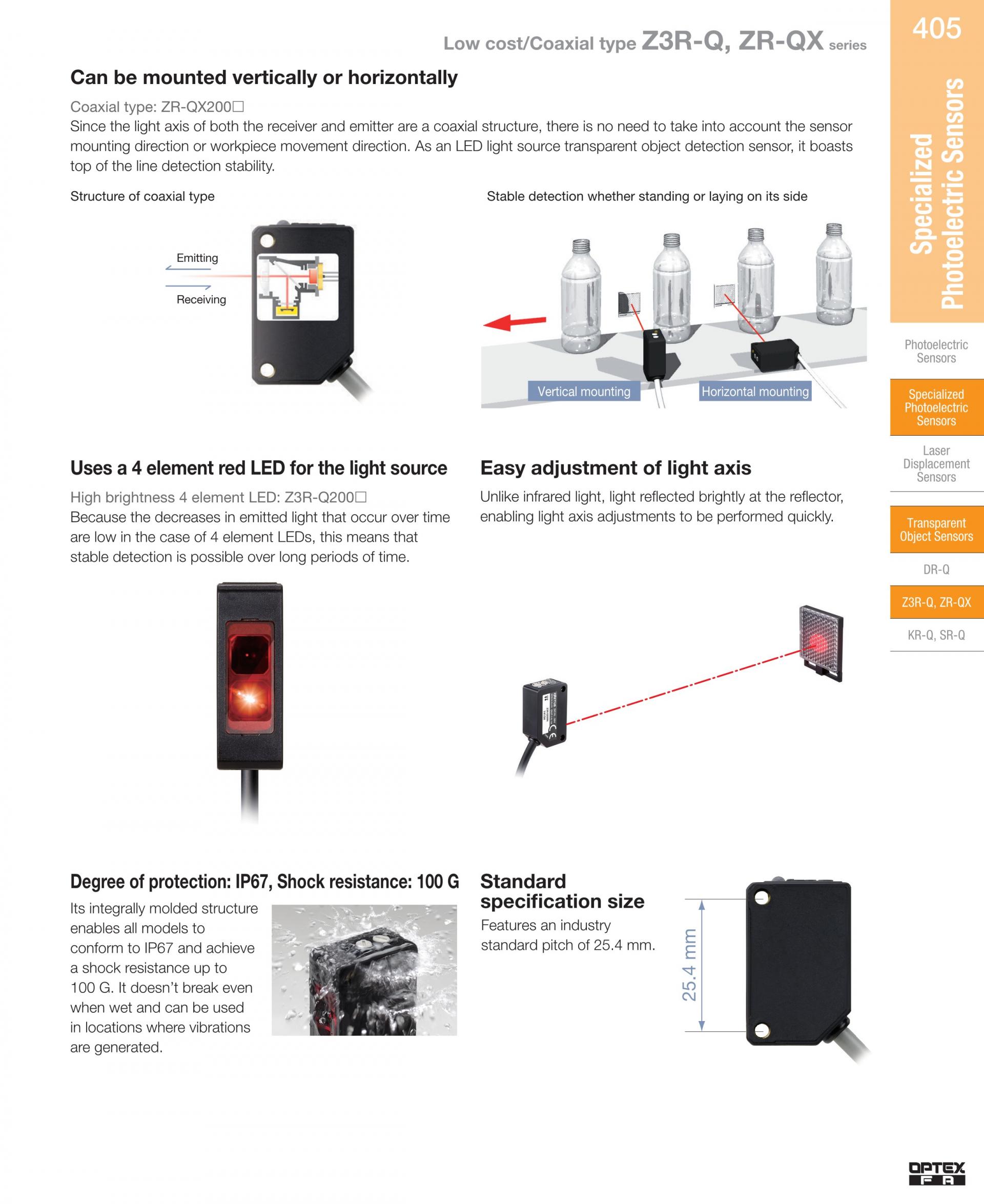

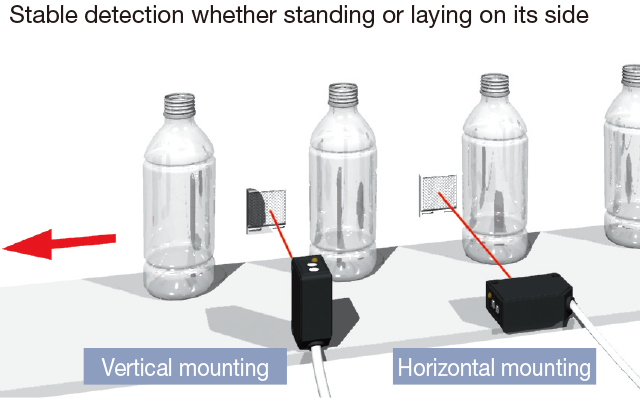

- Can be mounted vertically or horizontally

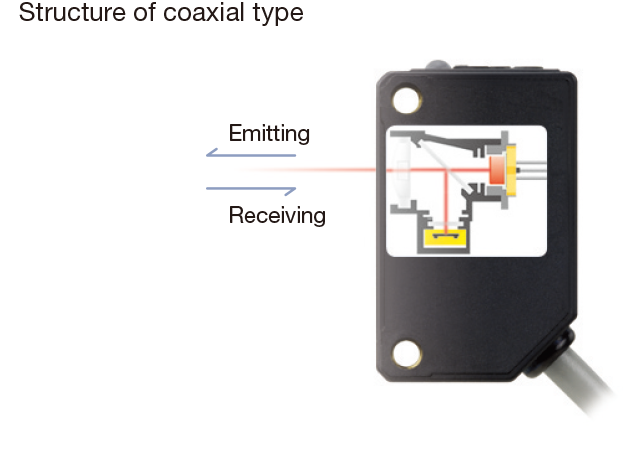

Coaxial type: ZR-QX200☐
Since the light axis of both the receiver and emitter are a coaxial structure, there is no need to take into account the sensor mounting direction or workpiece movement direction. As an LED light source transparent object detection sensor, it boasts top of the line detection stability.
 |  |

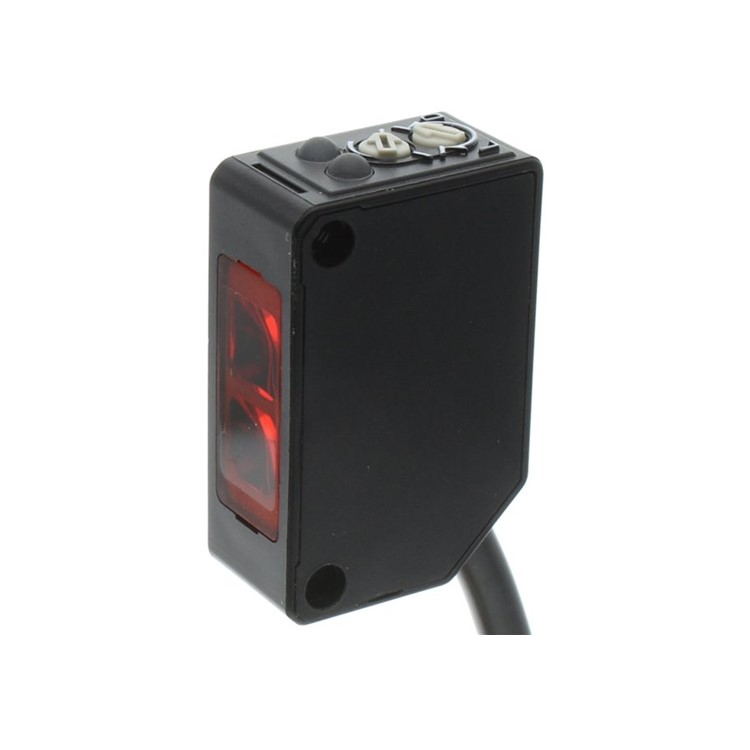

High brightness 4 element LED: Z3R-Q200☐ Because the decreases in emitted light that occur over time are low in the case of 4 element LEDs, this means that stable detection is possible over long periods of time.  |

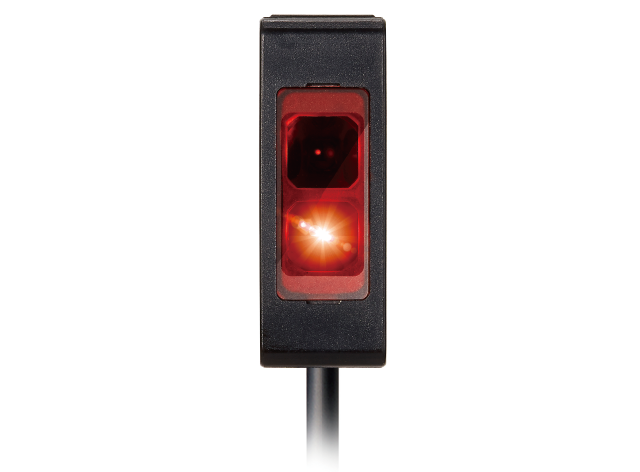

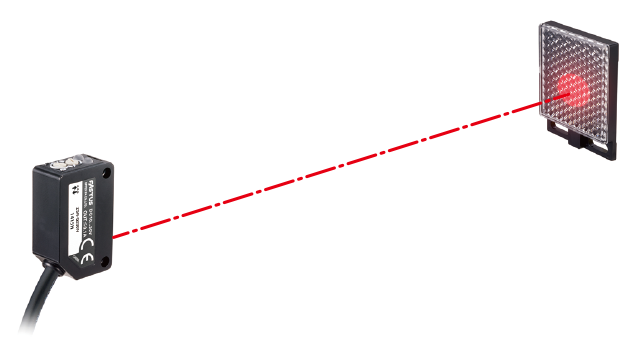

Unlike infrared light, light reflected brightly at the reflector, enabling light axis adjustments to be performed quickly.  |

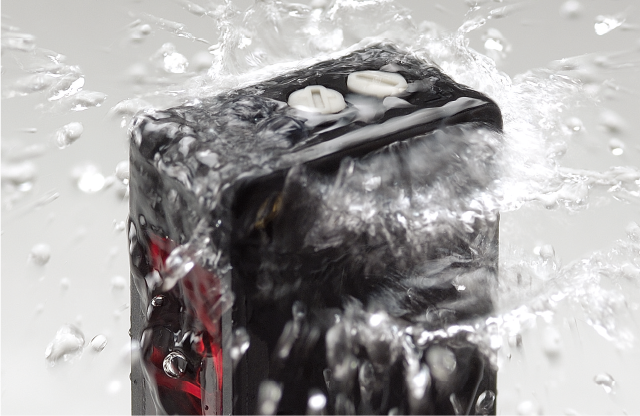

Shock resistance: 100 G Its integrally molded structure enables all models to conform to IP67 and achieve a shock resistance up to 100 G. It doesn’t break even when wet and can be used in locations where vibrations are generated.  |

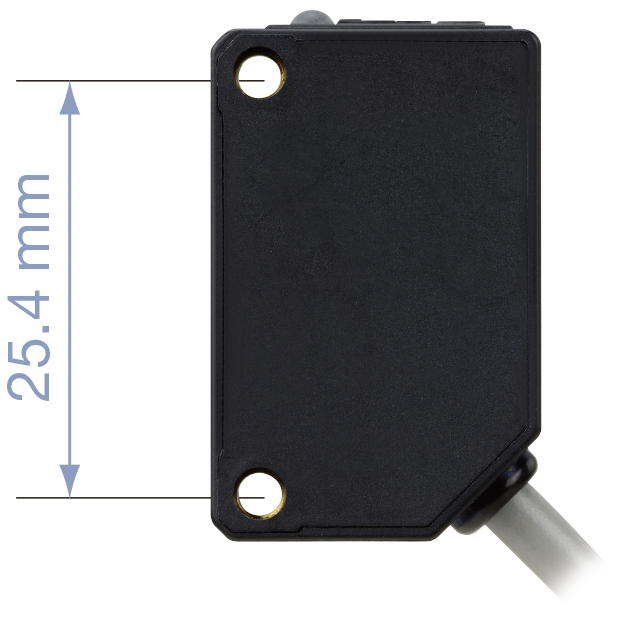

Features an industry standard pitch of 25.4 mm  |
