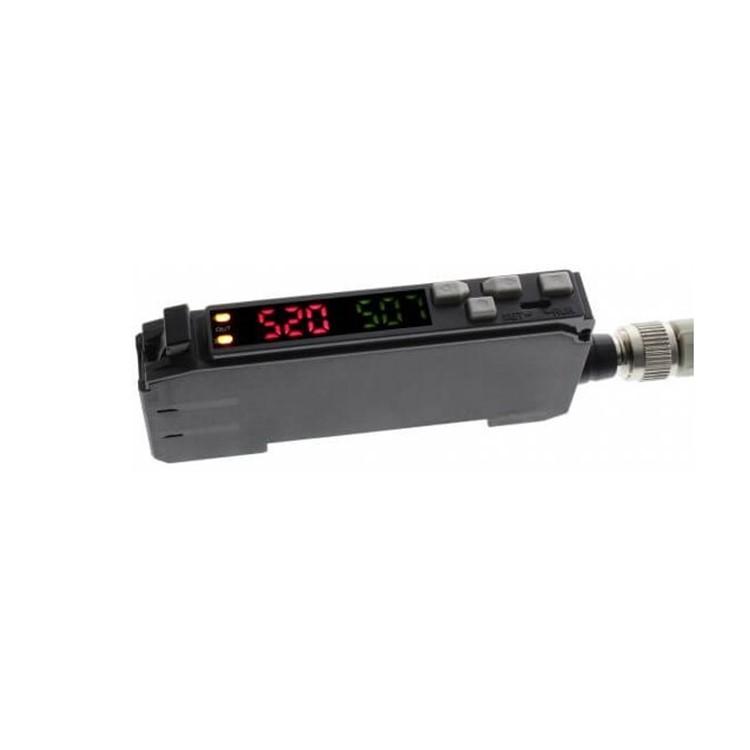

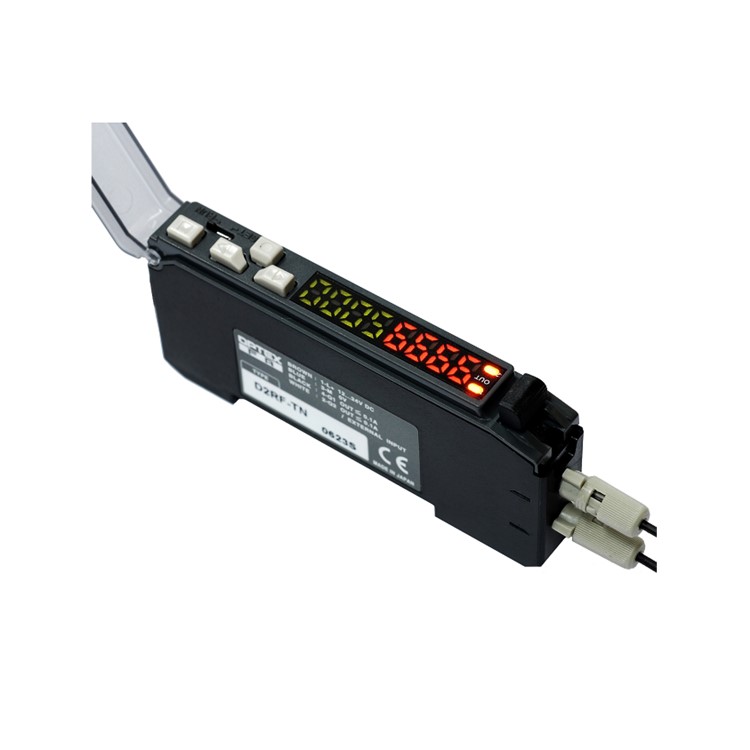

OPTEX FA D2RF & D2GF SERIES 디지털 화이버센서
OPTEX FA D2RF & D2GF SERIES Digital Fiber Sensor
Fiber amplifiers featuring dual outputs, dual displays, and dual sensitivity correction functions
- Enables detection for any application
- Water resistant types (IP66) and models with analog outputs are also available
- Adapts to usage environments with its numerous functions
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
D2RF & D2GF SERIES
디지털 화이버센서
D2RF & D2GF SERIES Digital Fiber Sensor

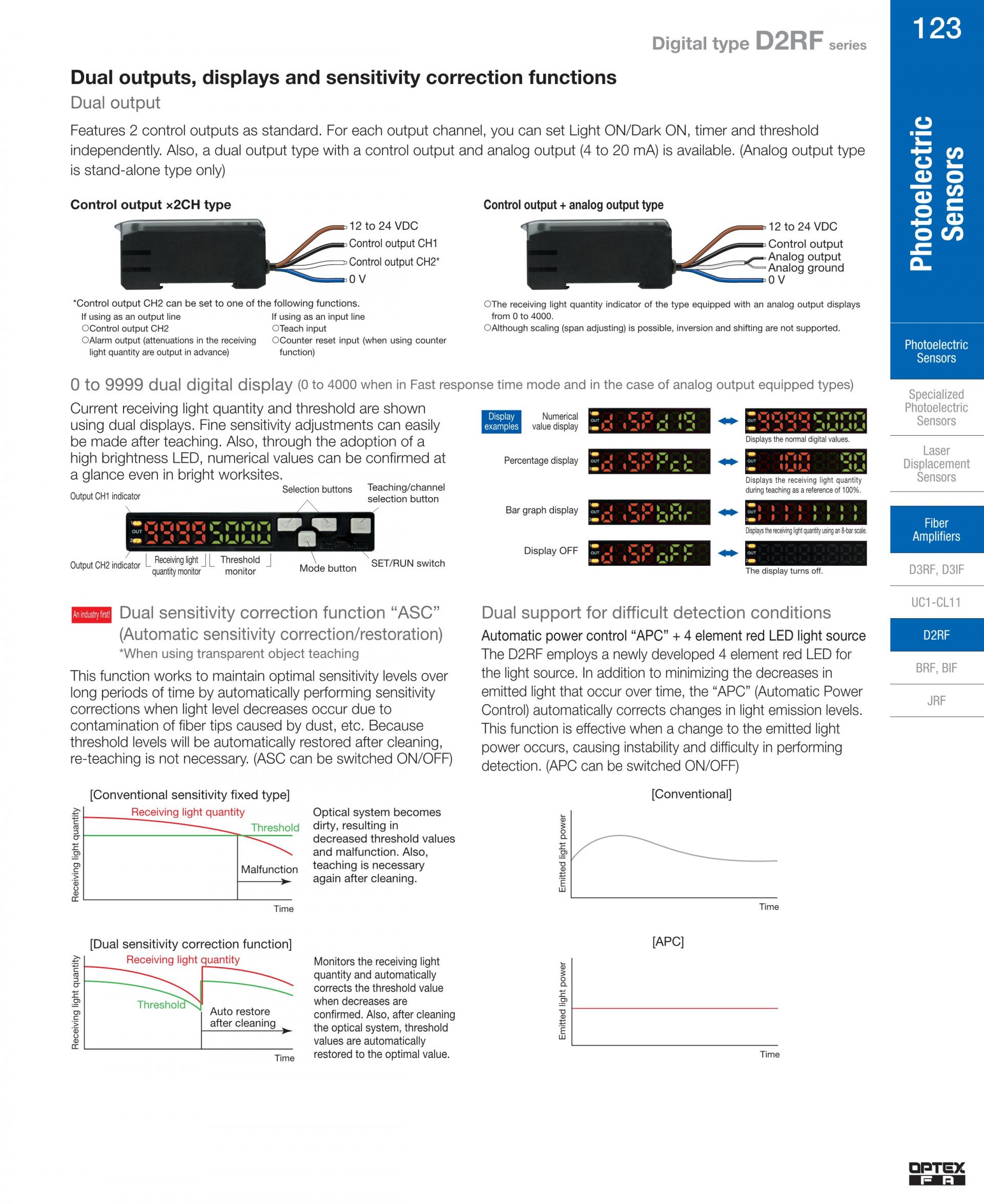

- Dual outputs, displays and sensitivity correction functions
Dual output
Features 2 control outputs as standard. For each output channel, you can set Light ON/Dark ON, timer and threshold independently. Also, a dual output type with a control output and analog output (4 to 20 mA) is available. (Analog output type is stand-alone type only)
- 0 to 9999 dual digital display (0 to 4000 when in Fast response time mode and in the case of analog output equipped types)
Current receiving light quantity and threshold are shown using dual displays. Fine sensitivity adjustments can easily be made after teaching. Also, through the adoption of a high brightness LED, numerical values can be confirmed at a glance even in bright worksites.
- Dual sensitivity correction function “ASC” (Automatic sensitivity correction/restoration)
*When using transparent object teaching
This function works to maintain optimal sensitivity levels over long periods of time by automatically performing sensitivity corrections when light level decreases occur due to contamination of fiber tips caused by dust, etc. Because threshold levels will be automatically restored after cleaning, re-teaching is not necessary. (ASC can be switched ON/OFF)
- Dual support for difficult detection conditions
Automatic power control “APC” + 4 element red LED light source The D2RF employs a newly developed 4 element red LED for the light source. In addition to minimizing the decreases in emitted light that occur over time, the “APC” (Automatic Power Control) automatically corrects changes in light emission levels. This function is effective when a change to the emitted light power occurs, causing instability and difficulty in performing detection. (APC can be switched ON/OFF)

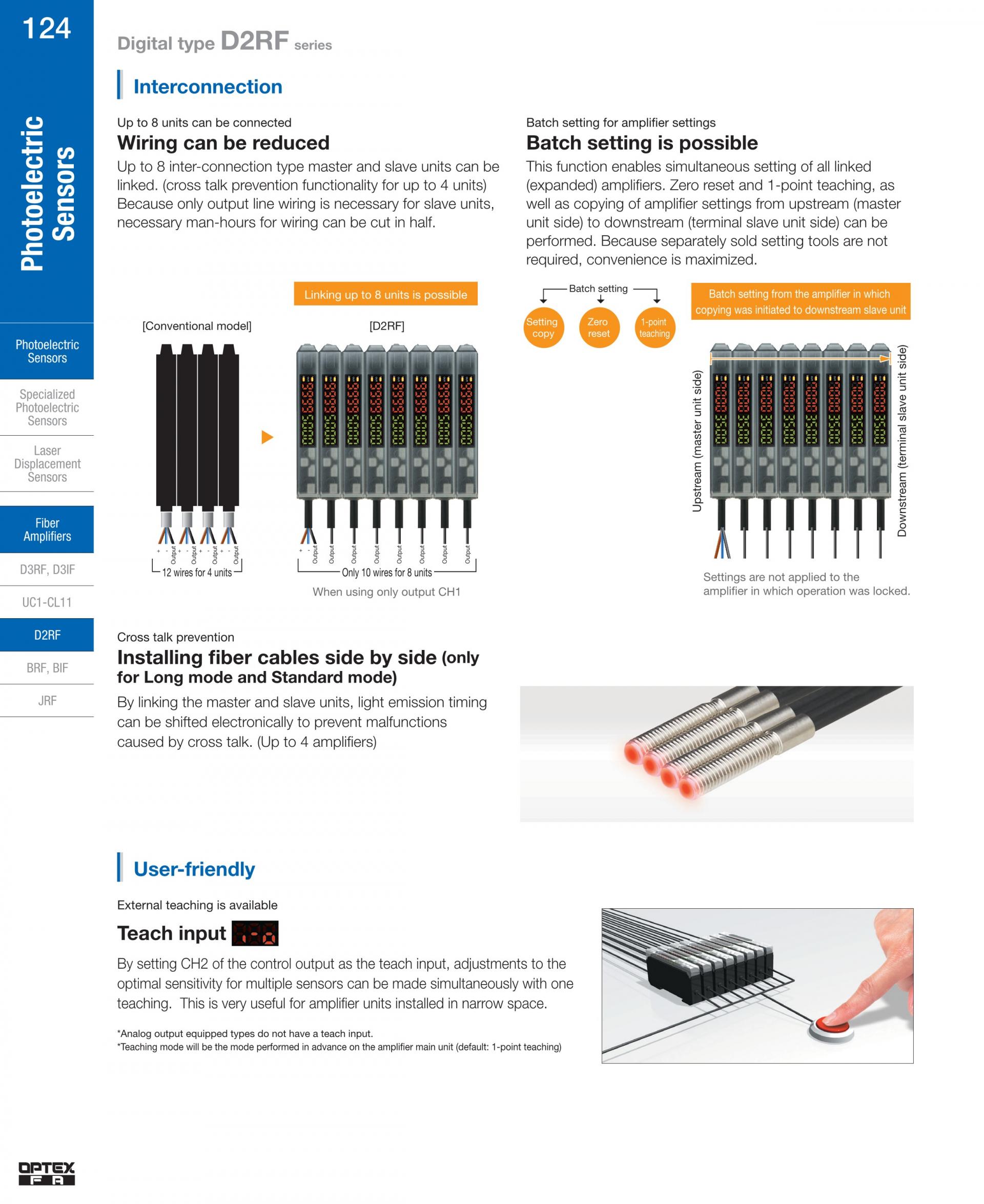

- Interconnection
Up to 8 units can be connected
- Wiring can be reduced
Up to 8 inter-connection type master and slave units can be linked. (cross talk prevention functionality for up to 4 units) Because only output line wiring is necessary for slave units, necessary man-hours for wiring can be cut in half.
- Batch setting is possible
This function enables simultaneous setting of all linked (expanded) amplifiers. Zero reset and 1-point teaching, as well as copying of amplifier settings from upstream (master unit side) to downstream (terminal slave unit side) can be performed. Because separately sold setting tools are not required, convenience is maximized.
- Installing fiber cables side by side (only for Long mode and Standard mode)
By linking the master and slave units, light emission timing can be shifted electronically to prevent malfunctions caused by cross talk. (Up to 4 amplifiers)
- User-friendly
External teaching is available
- Teach input
By setting CH2 of the control output as the teach input, adjustments to the optimal sensitivity for multiple sensors can be made simultaneously with one teaching. This is very useful for amplifier units installed in narrow space.
*Analog output equipped types do not have a teach input.
*Teaching mode will be the mode performed in advance on the amplifier main unit (default: 1-point teaching)
