OPTEX FA HEAT RESISTANT (130℃ or below) 내열성 센서
가격문의(상세정보 참조)
OPTEX FA HEAT RESISTANT (130℃ or below) 내열성 센서

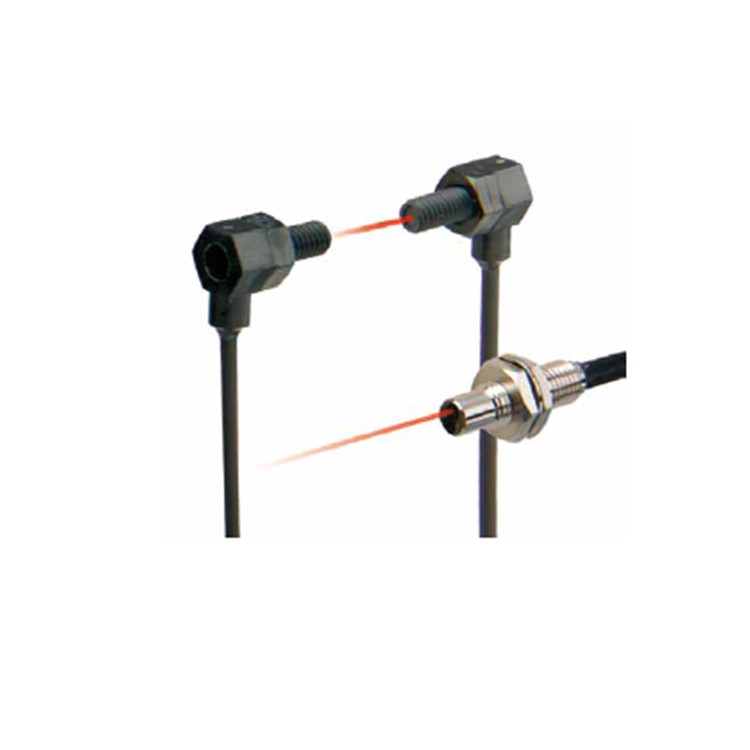

Fiber units for ambient temperatures of 130°C or below
- This heat resistant series offers most models in the industry at 26 models (according to in-house survey)
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
HEAT RESISTANT (130℃ or below)
내열성 센서

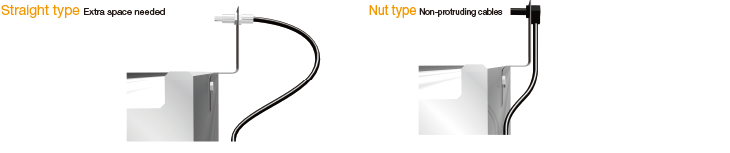

- Non-protruding cables

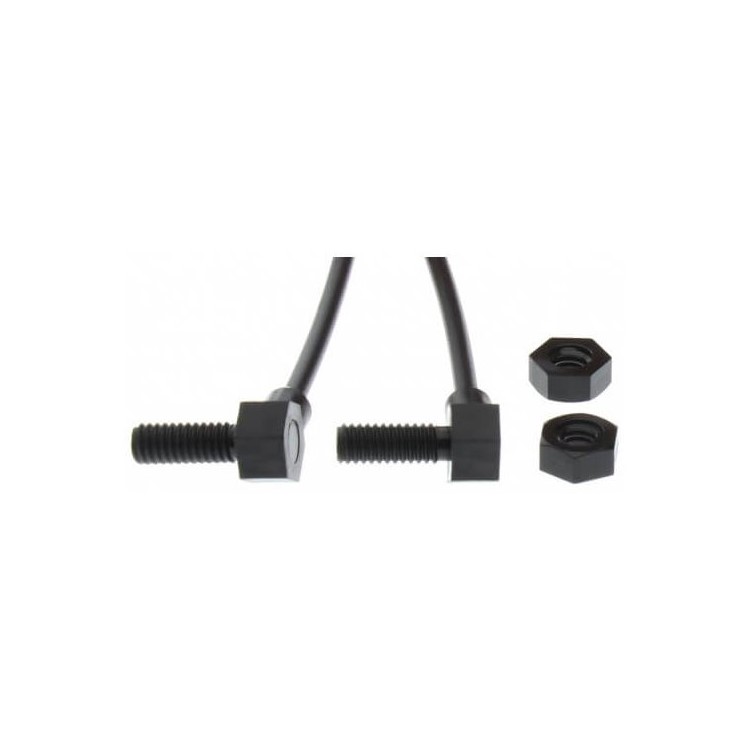

Because the cables of NF25-DH and NF25-TH heat resistant nut type fiber units do not protrude even when mounted to the conveyer side, no extra space is needed. Also, they eliminate worries regarding cable breakage caused by snagging on tools during work.

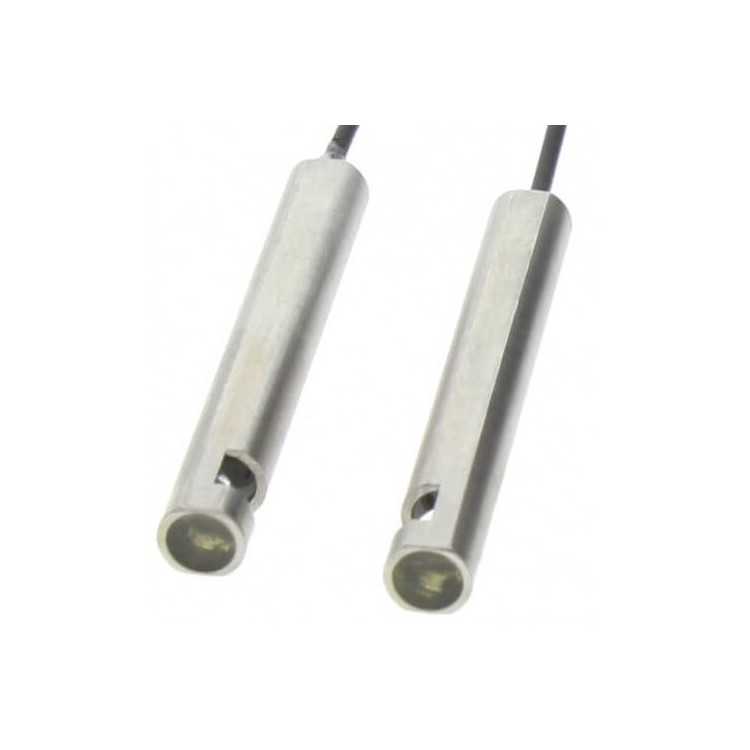

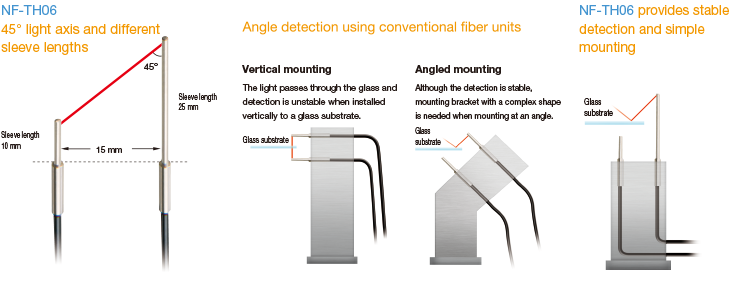

- Fiber units with 45° angle light axis and different sleeve lengths
An angled light axis is needed when mounting workpieces for detecting transparent glass substrates with through-beam type fibers. The light axis of the NF-TH06 is angled at 45° and the sleeve lengths for the emitting and receiving fibers differ, making it possible to simplify the mounting jig and installation.
NF25 TH NF TS22M NF TH06 NF TH01 NF25 DH FD 3SD1 FD 3SD1(100) NF DH02 NF25- TH NF- TS22M NF- TH06 NF- TH01 NF25- DH FD- 3SD1 FD- 3SD1(100) NF- DH02 HEAT RESISTANT 130 OPTEX FA HEAT RESISTANT 130 OPTEX HEAT RESISTANT 130 FASTUS HEAT RESISTANT 130 옵텍스 FA HEAT RESISTANT 130 옵텍스 HEAT RESISTANT 130 HEAT RESISTANT 130 OPTEX FA HEAT RESISTANT 130 OPTEX HEAT RESISTANT 130 FASTUS HEAT RESISTANT 130 옵텍스 FA HEAT RESISTANT 130 옵텍스
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
HEAT RESISTANT (130℃ or below)
내열성 센서
- Non-protruding cables
Because the cables of NF25-DH and NF25-TH heat resistant nut type fiber units do not protrude even when mounted to the conveyer side, no extra space is needed. Also, they eliminate worries regarding cable breakage caused by snagging on tools during work.
- Fiber units with 45° angle light axis and different sleeve lengths
An angled light axis is needed when mounting workpieces for detecting transparent glass substrates with through-beam type fibers. The light axis of the NF-TH06 is angled at 45° and the sleeve lengths for the emitting and receiving fibers differ, making it possible to simplify the mounting jig and installation.
NF25 TH NF TS22M NF TH06 NF TH01 NF25 DH FD 3SD1 FD 3SD1(100) NF DH02 NF25- TH NF- TS22M NF- TH06 NF- TH01 NF25- DH FD- 3SD1 FD- 3SD1(100) NF- DH02 HEAT RESISTANT 130 OPTEX FA HEAT RESISTANT 130 OPTEX HEAT RESISTANT 130 FASTUS HEAT RESISTANT 130 옵텍스 FA HEAT RESISTANT 130 옵텍스 HEAT RESISTANT 130 HEAT RESISTANT 130 OPTEX FA HEAT RESISTANT 130 OPTEX HEAT RESISTANT 130 FASTUS HEAT RESISTANT 130 옵텍스 FA HEAT RESISTANT 130 옵텍스
