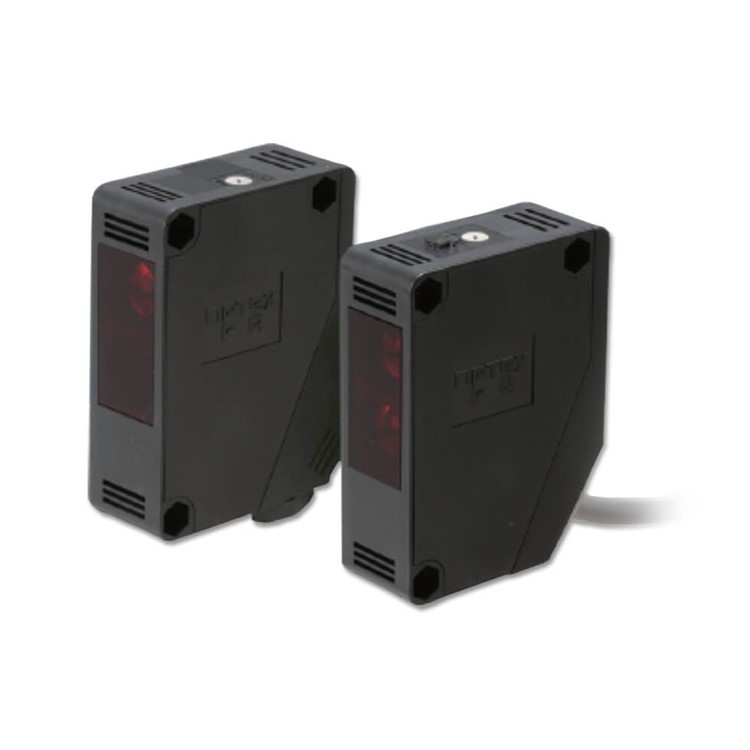

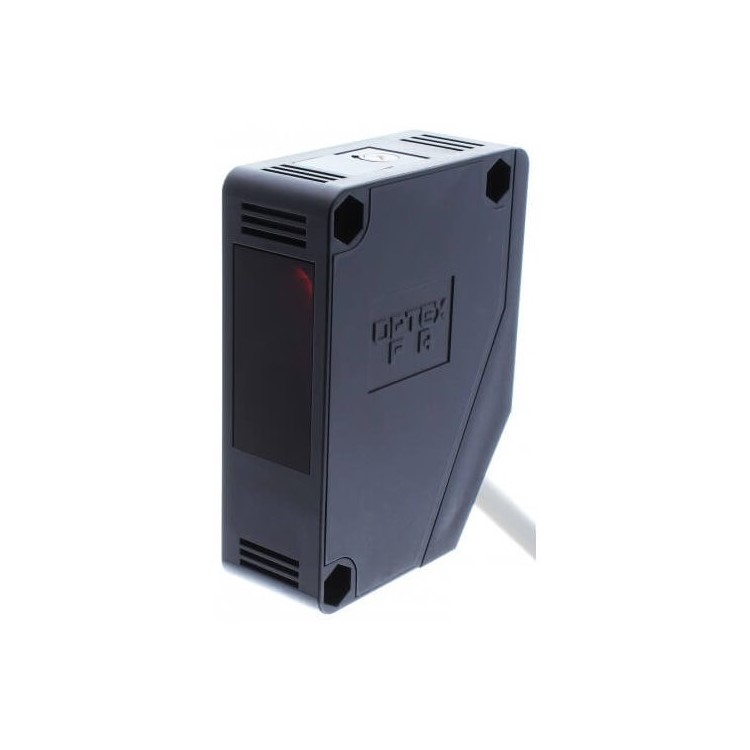

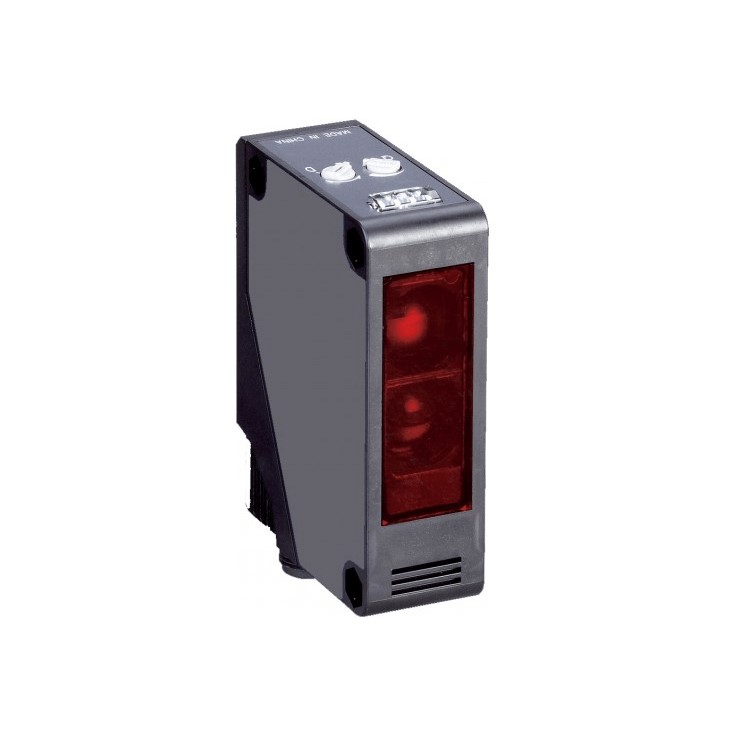

OPTEX FA V3/V4 SERIES 범용 전압센서
가격문의(상세정보 참조)
OPTEX FA V3/V4 SERIES 범용 전압센서
OPTEX FA V3/V4 SERIES Universal Voltage Sensors

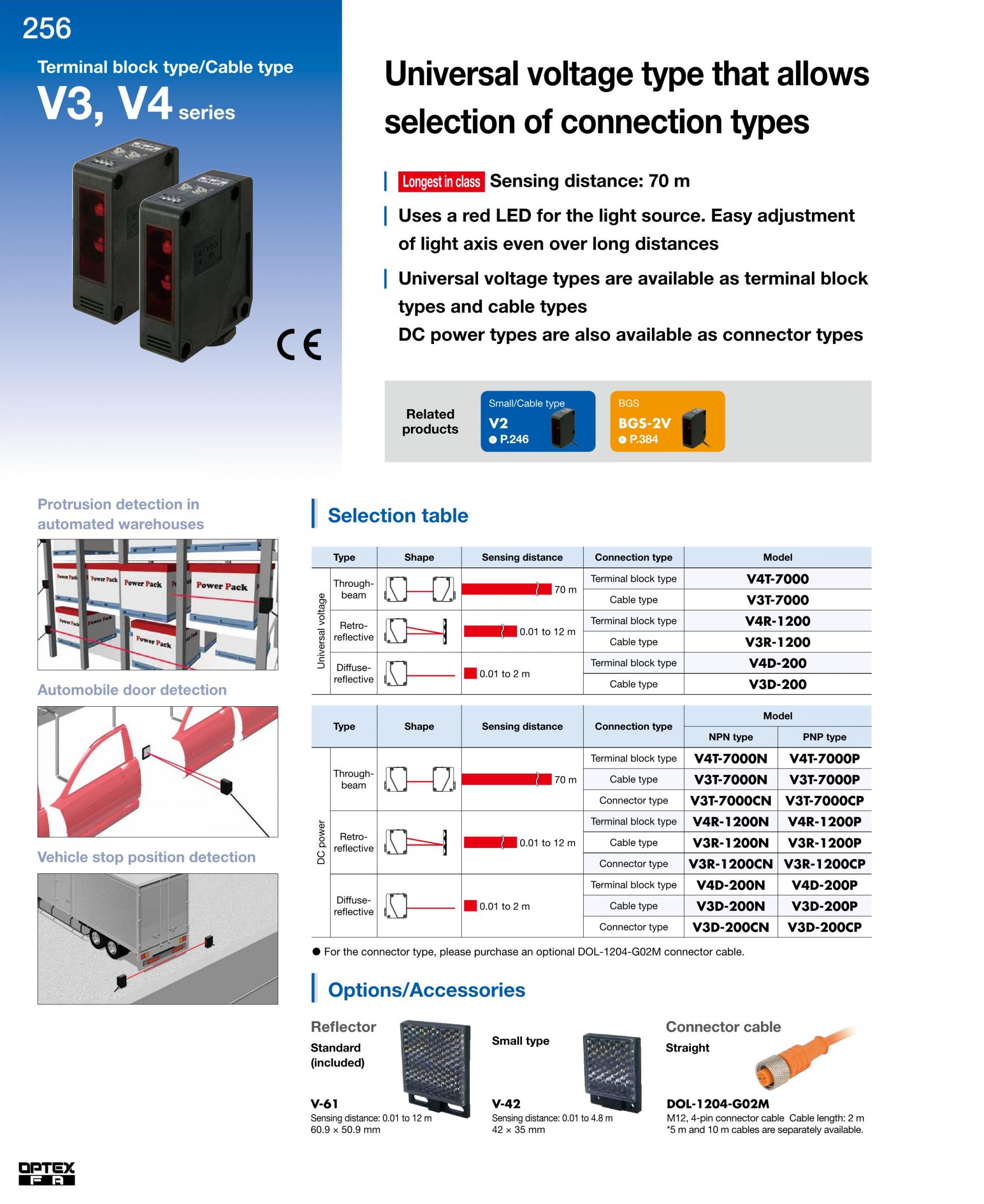

Universal voltage type that allows selection of connection types
- Sensing distance: 70 m (Longest in class)
- Uses a red LED for the light source.
- Easy adjustment of light axis even over long distances
- Universal voltage types are available as terminal block types and cable types
- DC power types are also available as connector types
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
V3/V4 SERIES
범용 전압센서
V3/V4 SERIES Universal Voltage Sensors

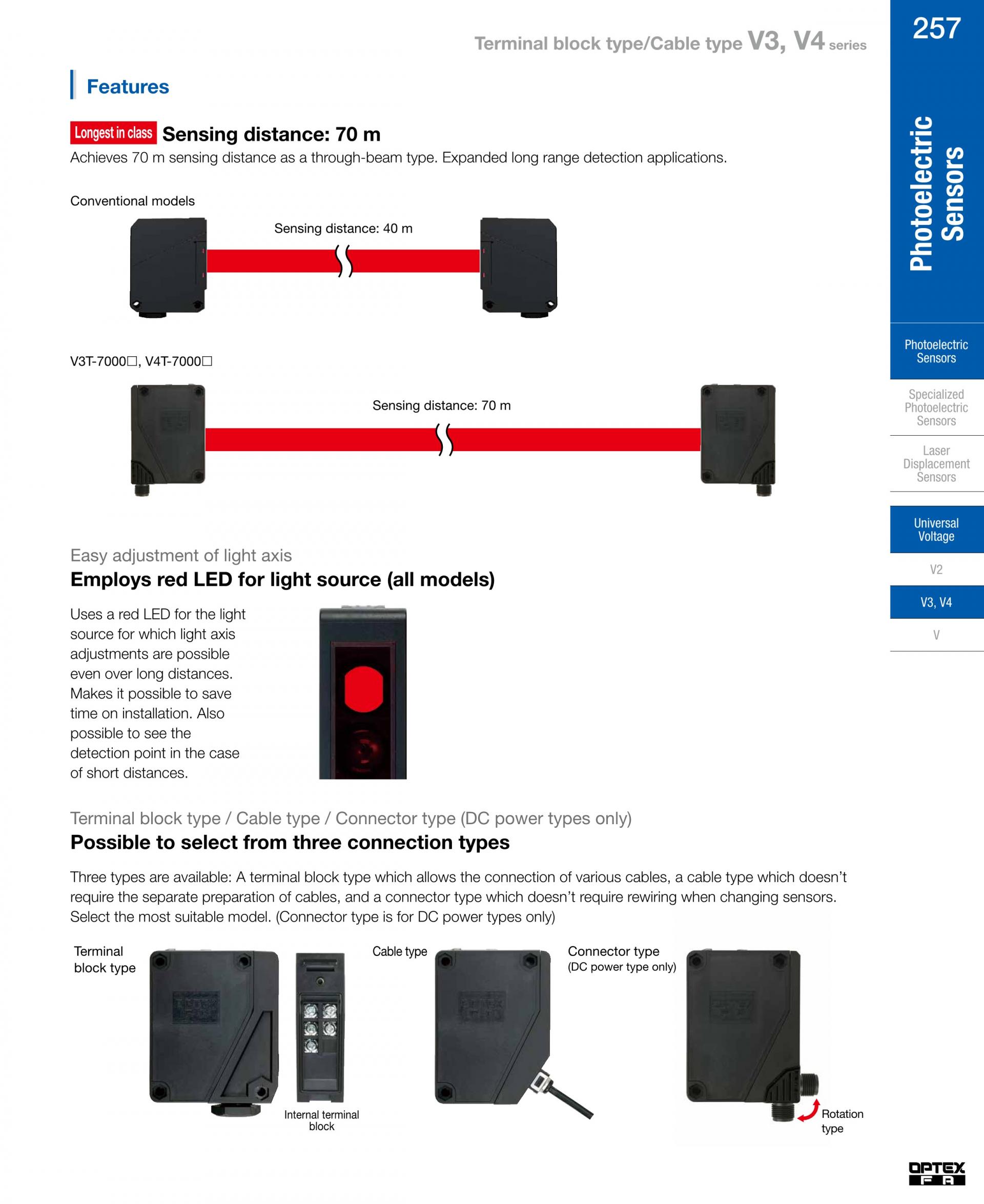

- Sensing distance: 70 m
Achieves 70 m sensing distance as a through-beam type. Expanded long range detection applications.
- Easy adjustment of light axis
Employs red LED for light source (all models)
Uses a red LED for the light source for which light axis adjustments are possible even over long distances. Makes it possible to save time on installation. Also possible to see the detection point in the case of short distances.
- Terminal block type / Cable type / Connector type (DC power types only)
Possible to select from three connection types
Three types are available: A terminal block type which allows the connection of various cables, a cable type which doesn’t require the separate preparation of cables, and a connector type which doesn’t require rewiring when changing sensors.
Select the most suitable model. (Connector type is for DC power types only)
- LINEUP

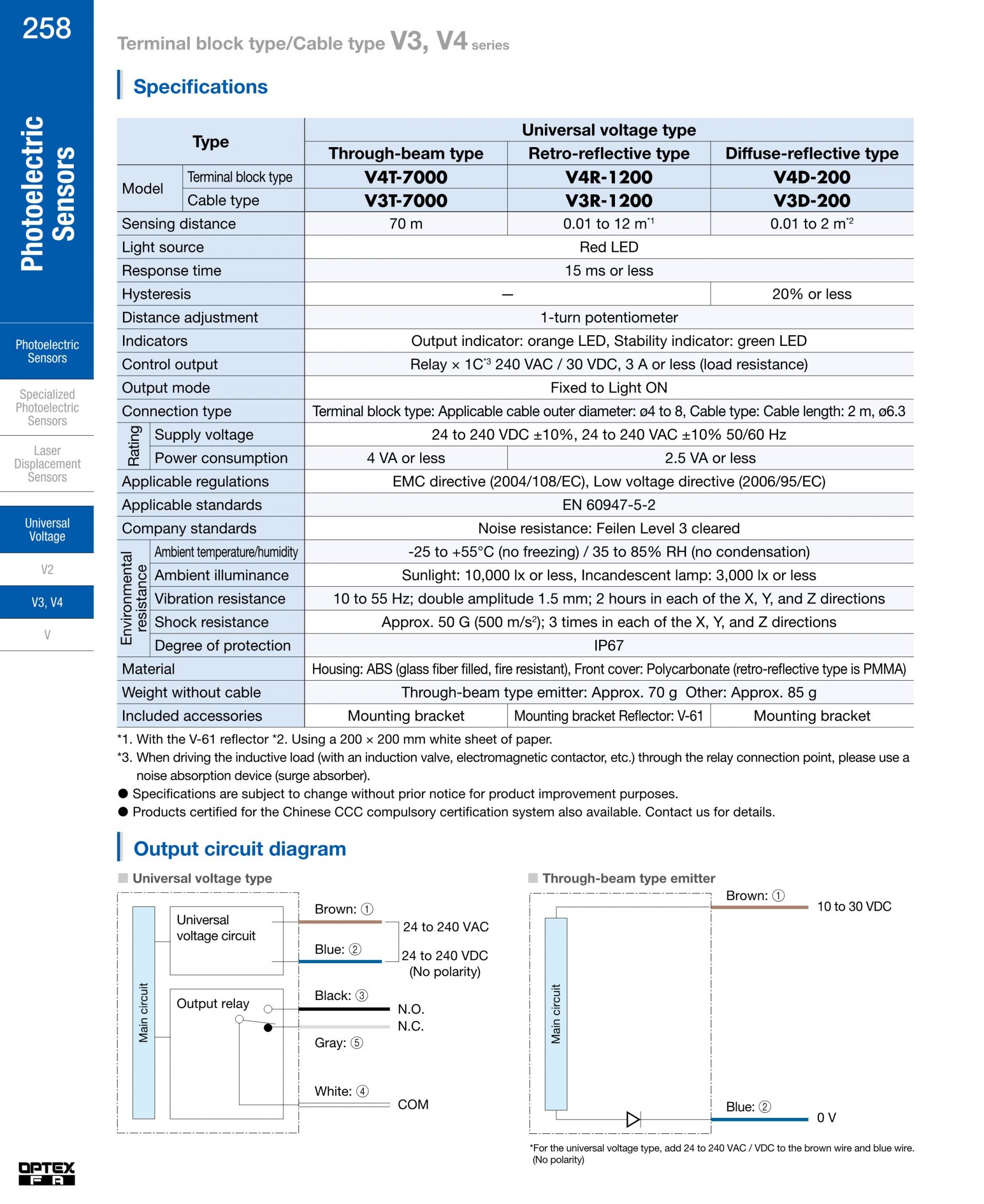

| Universal voltage | Through beam |  |  | Terminal block type | V4T-7000 |
| Cable type | V3T-7000 | ||||
| Retro refective |  |  | Terminal block type | V4R-1200 | |
| Cable type | V3R-1200 | ||||
| Diffuse reflective |  |  | Terminal block type | V4D-200 | |
| Cable type | V3D-200 |

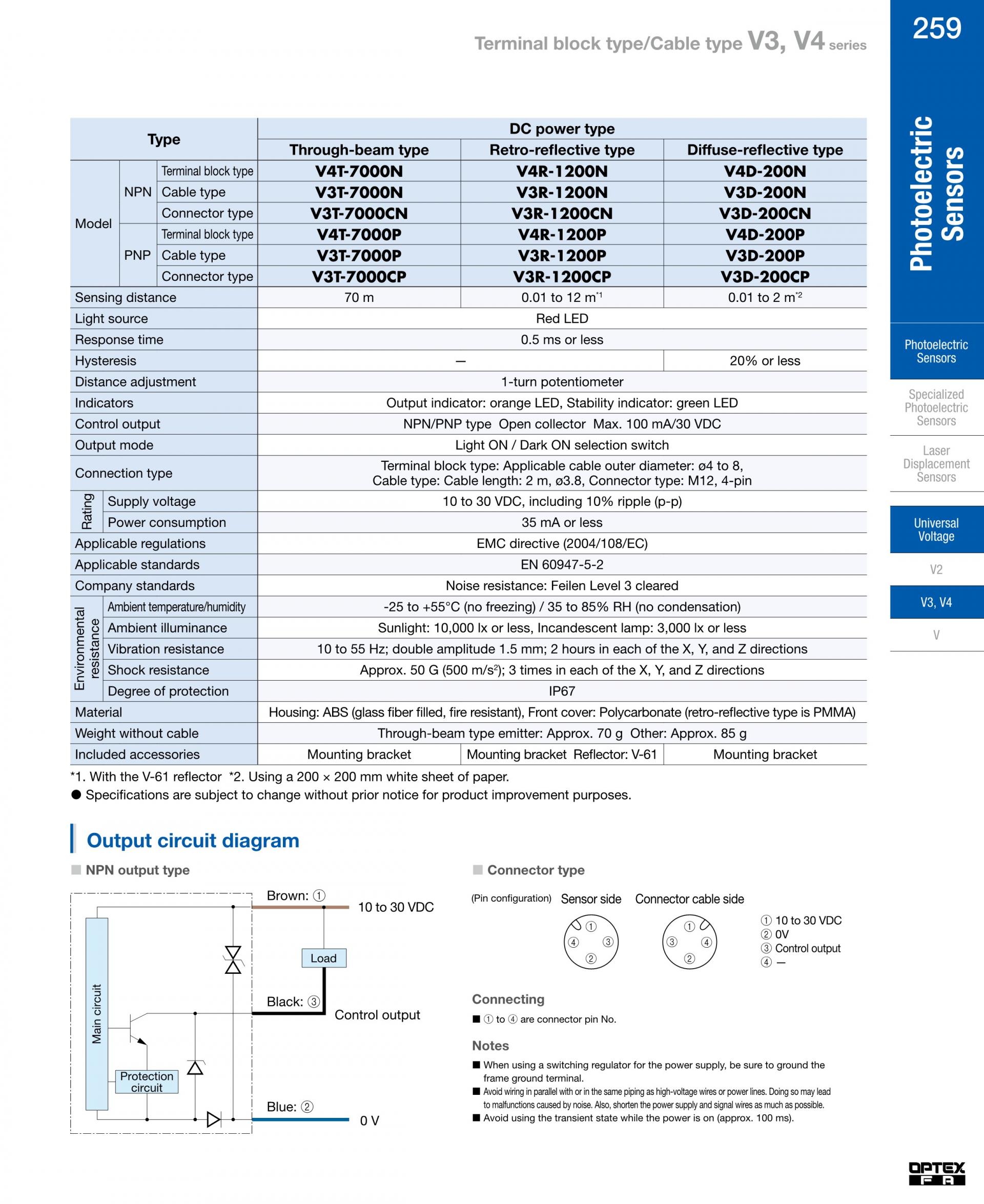

| DC power | Through beam |  |  | Terminal block type | V4T-7000N | V4T-7000P |
| Cable type | V3T-7000N | V3T-7000P | ||||
| Connector type | V3T-7000CN | V3T-7000CP | ||||
| Retro refective |  | Terminal block type | V4R-1200N | V4R-1200P | ||
| Cable type | V3R-1200N | V3R-1200P | ||||
| Connector type | V3R-1200CN | V3R-1200CP | ||||
| Diffuse reflective |  |  | Terminal block type | V4D-200N | V4D-200P | |
| Cable type | V3D-200N | V3D-200P | ||||
| Connector type | V3D-200CN | V3D-200CP |
•For the connector type, please purchase an optional YF2A14-020VB3XLEAX connector cable.
