GRAPHTEC B-530 습도센서
가격문의(상세정보 참조)
GRAPHTEC B-530 습도센서
GRAPHTEC B-530 Humidity sensor (3m)
클릭 하시면 이동합니다.
그라프텍 ・ GRAPHTEC
B-530
습도센서

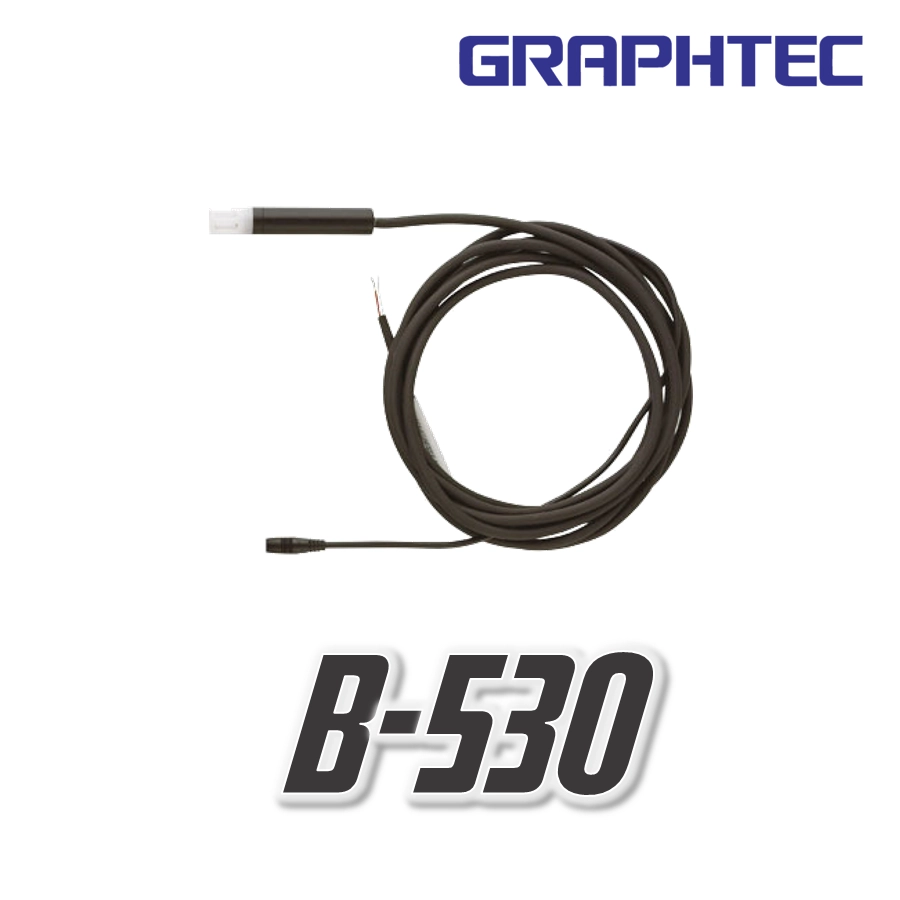

B-530 Humidity sensor (3m)
B-530 그라프텍 데이터로거 전용 정품 습도센서
Graphtec B-530 Humidity sensor 0 to 100% with 3 m long signal cable (with power plug)
사용 가능 모델 : GL840M, GL840-WV, GL240, GL980, GL2000, GL7000, GL820, GL220

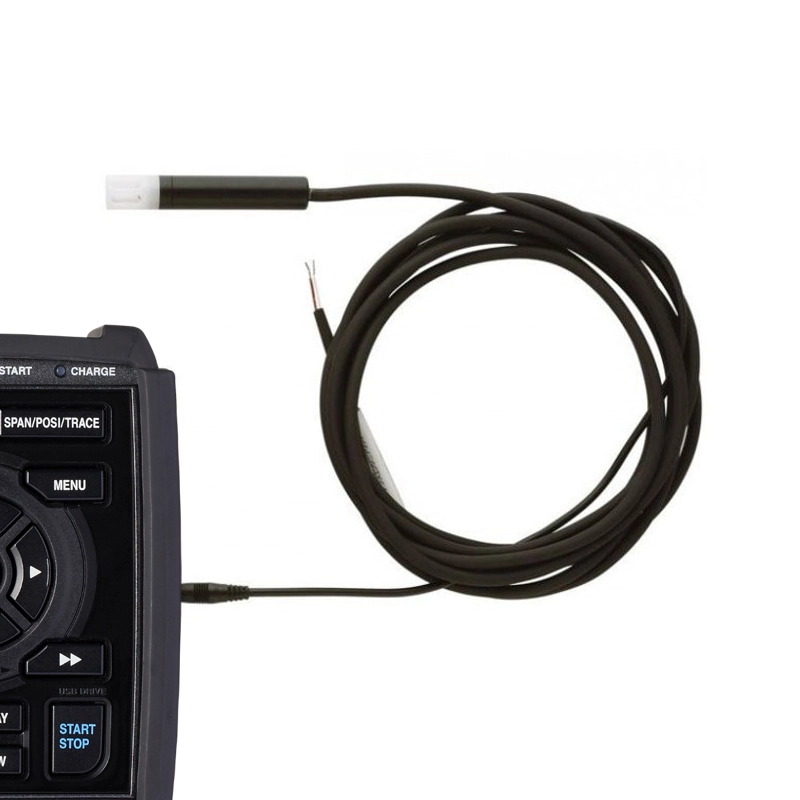

그라프텍 데이터로거 자체내에 전원을 받을 수 있는 어댑터 포트가 있기 때문에 본체 장착하여 전원을 받아 즉시 사용이 가능합니다.
길이 : 3m
B-530 습도센서
>> Measurement Range: 0 to 100% RH and -25°C to 80°C
>> 3% RH Accuracy
>> 15 Seconds Response Time to 90%
>> 0 to 1 Volt DC Output
>> Includes 3 Meter Cable Length
습도센서 상세 스펙
Product description
Connect the B-530 humidity sensor to any GL220, GL240, GL820, GL840, GL980, GL2000, GL7000, or MT100 for humidity measurements.
Measures 0 to 100% RH
Accuracy of ±3% RH at 25 °C
3 meter length
Power the B-530 via the data logger's 5V power supply
Connects to any available analog voltage channel on the data logger
Allowable temperature range: -25 to +80°C
Allowable humidity range: 0 to 100% RH
Relative humidity measurement accuracy: ±3% RH (5 to 98% RH at 25°C)
Method: Capacitance method
Relative humidity measurement accuracy: (5-98%)
Measurement Environment Measurement Accuracy:
0-10°C ±5% RH
10-20°C ±4% RH
20-30°C ±3% RH
30-40°C ±4% RH
40-50°C ±5% RH
50-60°C ±6% RH
60-70°C ±7% RH
70-80°C ±8% RH
Response time: 15 seconds (90% response with membrane filter installed)
Sensor output: 0 to 1 VDC
Sensor power: +5 to +16 VDC
Consumption current: Approx. 4mA
External dimensions: 14mm × 18mm (excluding cable)
Cable length: 3 meters
