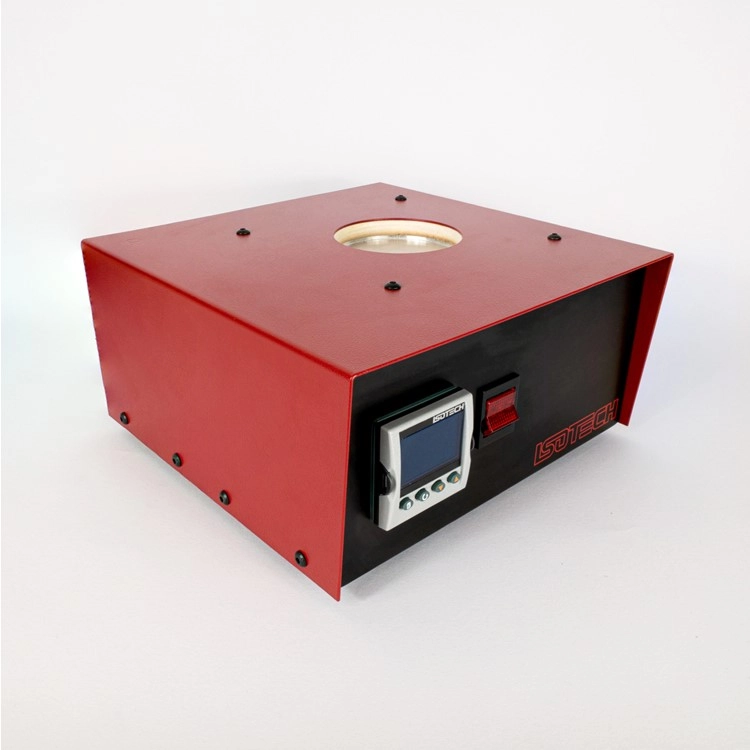

ISOTECH 983 SURFACE SENSOR CALIBRATOR - SMALL HOT PLATE
Surface Sensor Calibrator, 35°C to 350°C.
The Isotech Small Hotplate is a lightweight portable calibration system purpose designed for surface mounted sensors.
- Low Cost Portable Hot Plate
- PC Interface and Software
- Stable to ± 0.1°C
클릭 하시면 이동합니다.
아이소텍 ・ ISOTECH
983
SURFACE SENSOR CALIBRATOR - SMALL HOT PLATE
The Isotech Small Hotplate is a lightweight portable calibration system purpose designed for surface mounted sensors. The flat surface plate is made from precision-machined aluminum. The sensor to be tested is simply placed on the surface, for higher accuracy a calibrated surface sensor can be placed alongside and the two compared.
Good thermal contact is ensured by the flat disk that is recessed to allow the optional use of a heat transfer paste or fluid. Uniform heat distribution is achieved with a flat spiral heater clamped to an integrating block below the surface of the plate. The typical accuracy that can be achieved 1°C but this will be influenced by the type of sensor to be calibrated.
The internal control sensor is located immediately below the plate’s surface.
A protective cover that can fit over the block is included along with a comprehensive handbook.
The temperature range is from 35°C to 350°C, which is set by an advanced, but easy to use temperature controller.
The controller has 0.01 resolution below 100°C (0.1° above 100°). A PC interface is included as standard along with an RS232 converter lead and Windows software.
- SPECIFICATION
Model | 983 Small Hot Plate |
Temperature Range | 35°C to 350°C |
Stabilisation Time | 10 minutes |
Cools from | 350°C to 100°C in 125 minutes |
Heats from | 50°C to 350°C in 20 minutes |
Uncertainties | Dependent on sensors and method of use 1°C typical |
Calibration Volume | Flat Plate 71mm diameter |
Display Resolution | 0.01 to 99.99, 0.1 100 to 350.0 PC can display 0.01 across whole range with the software included |
Units | °C, °F, K |
Power | 100 to 115V (50/60Hz) or 200 to 230V (50/60 Hz) 200 Watts |
Dimensions | Height 115mm Width 230mm Depth 225mm |
Weight | 3.9kg |
How to order | 983 Small Hot Plate: Please specify voltage required. |
