아이소텍 ・ ISOTECH
1600
표준 온도센서(써모커플)
1600 Standard Thermocouple
메이커 | ISOTECH |
제품명 | STANDARD THERMOCOUPLE MODEL 1600 |
제품설명 | STANDARD THERMOCOUPLE MODEL 1600 Platinum Thermocouple, 0°C to 1600°C |
주요특징 | • 온도범위 : 0°C to 1600°C (R or S) • TYPE R: Platinum v Platinum 13% Rhodium • TYPE S: Platinum v Platinum 10% Rhodium • Cold Junction : 250mm long x 4.5 diameter • 프루브 길이 : 300, 600mm 타입별 2가지 • Heating Time : 45minutes |
제품소개 | 제품 특징 참조 |

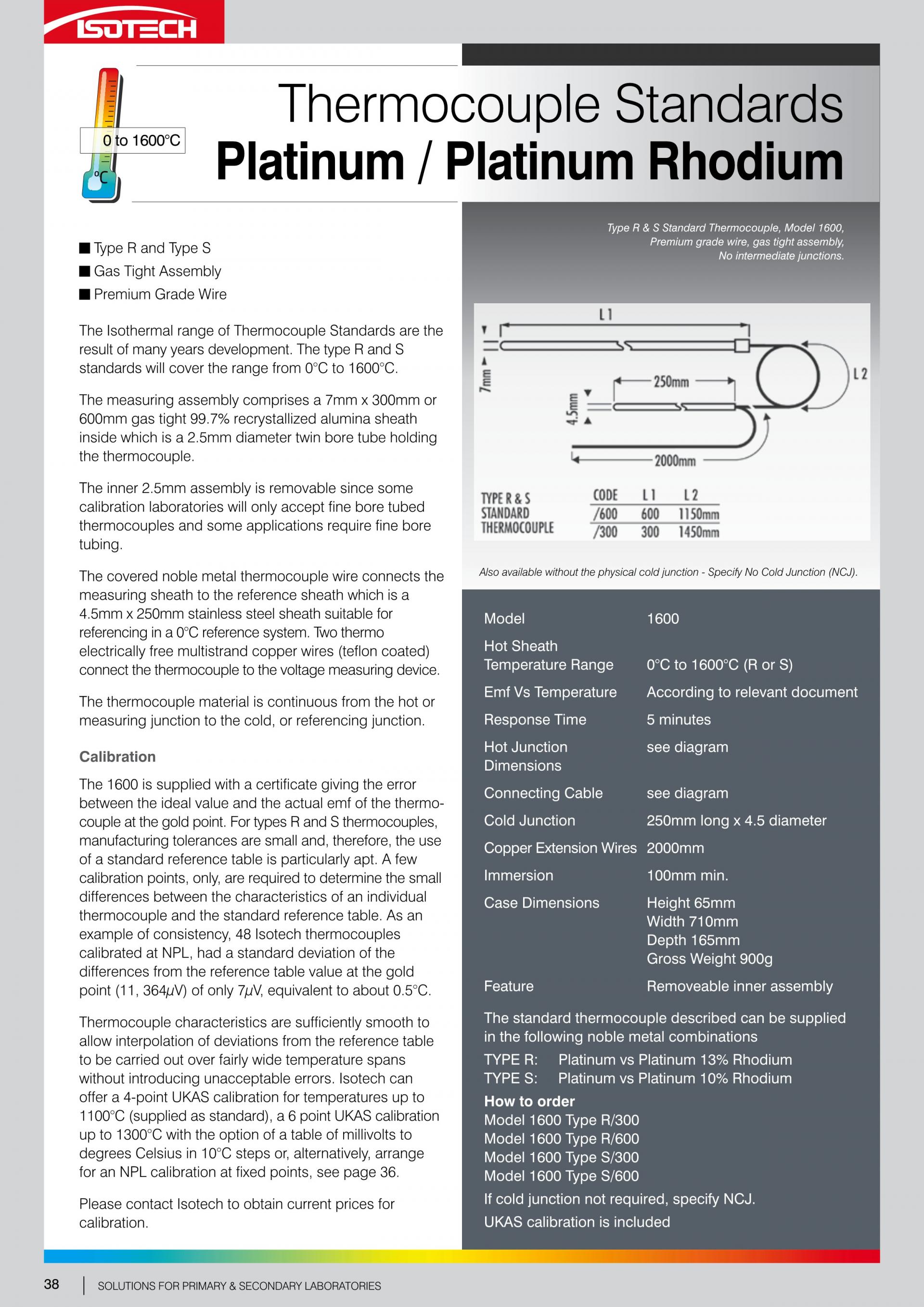

제품특징 | Thermocouple Standards의 등온선 범위는 수년간 개발의 결과물로 R, S타입으로 제공되고 있으며, 0°C에서 1600°C의 온도범위를 커버합니다. 측정 어셈블리는 7mm x 300mm 또는 600mm의 99.7% 가스가 새지 않는 (gas tight) recrystallized alumina sheath를 포함하며, 내부는 thermocouple을 고정하는 2.5mm 직경의 트윈 보어 튜브가 있습니다. 일부 교정 실험실 및 응용 분야에서는 미세 보어 튜브가 필요하기 때문에 내부의 2.5mm 어셈블리는 제거 가능합니다. 피복의 귀금속 thermocouple 와이어는 측정 피복을 0°C 기준 시스템에서 참조하기에 적합한 4.5mm x 250mm stainless steel sheath의 기준 피복에 연결합니다. 2개의 thermo electrically free multistrand copper wires (taflon coated)는 thermocouple을 전압 측정 장치에 연결합니다. Thermocouple material은 고온 또는 측정 접점에서 저온, 또는 기준 접점으로 연속적입니다. The Isothermal range of Thermocouple Standards are the result of many years development. The type R and S standards will cover the range from 0°C to 1600°C. The measuring assembly comprises a 7mm x 300mm or 600mm gas tight 99.7% recrystallized alumina sheath inside which is a 2.5mm diameter twin bore tube holding the thermocouple. The inner 2.5mm assembly is removable since some calibration laboratories will only accept fine bore tubed thermocouples and some applications require fine bore tubing. The covered noble metal thermocouple wire connects the measuring sheath to the reference sheath which is a 4.5mm x 250mm stainless steel sheath suitable for referencing in a 0°C reference system. Two thermo electrically free multistrand copper wires (teflon coated) connect the thermocouple to the voltage measuring device. The thermocouple material is continuous from the hot or measuring junction to the cold, or referencing junction.. |
기타 |
Technical Feature | Value |
Model | 1600 |
Hot Sheath Temperature Range 온도범위 | 0°C to 1600°C (R or S) |
Emf vs Temperature | According to relevant document |
Response Time | 5 minutes |

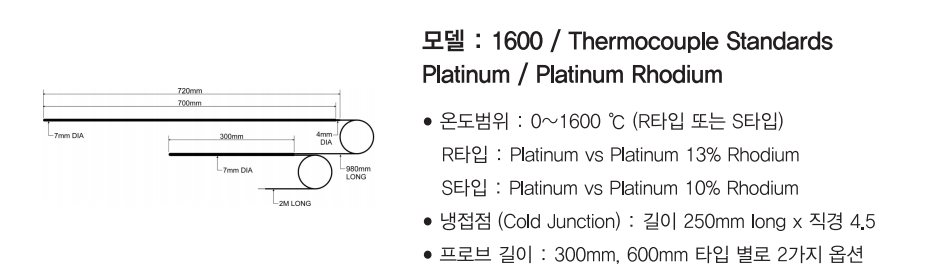

Hot Junction Dimensions | see diagram |
Connecting Cable | See diagram |
Cold Junction | 250.0mm long x 4.5 diameter |
Copper Extension Wires | 2000mm |
Immersion | 100mm min. |

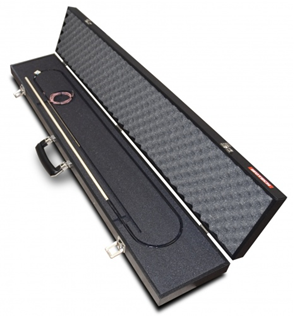

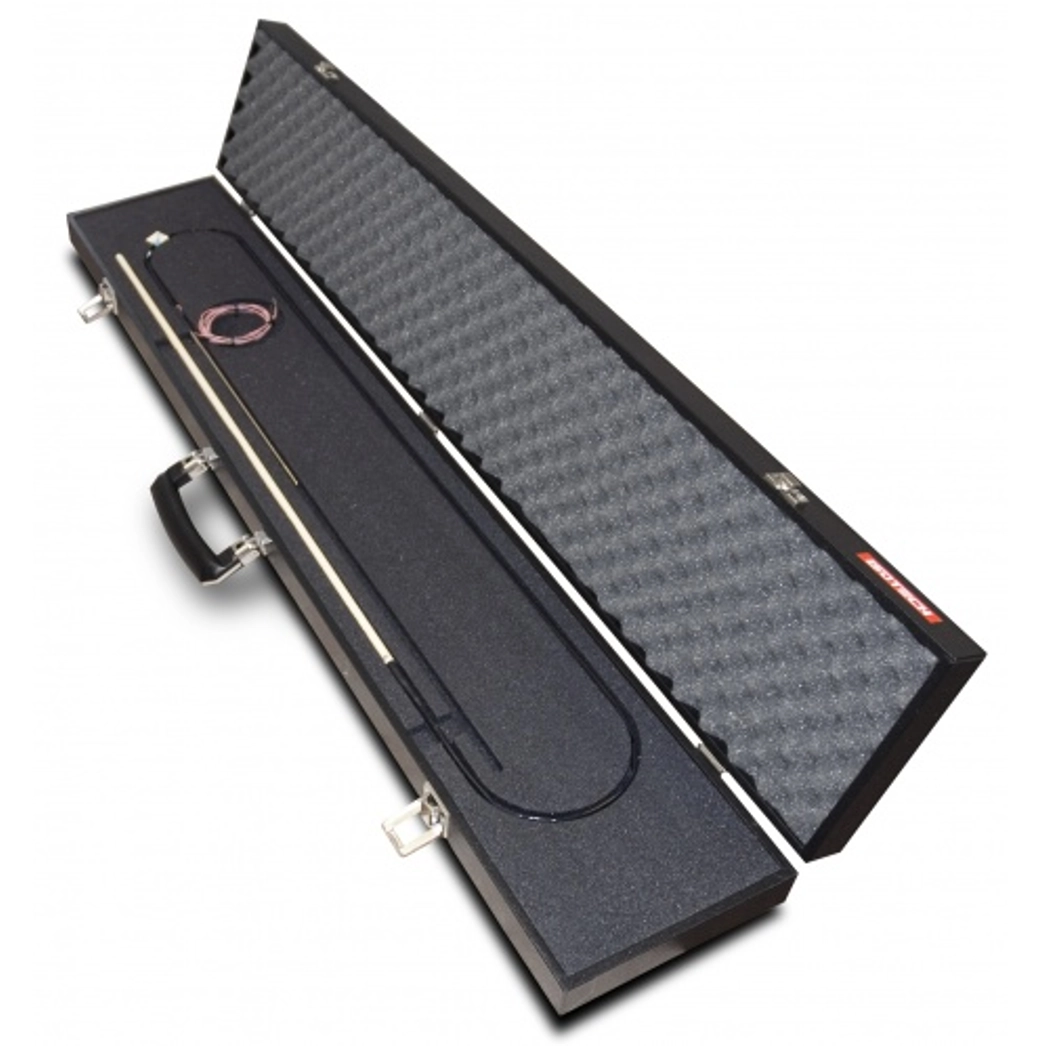

Case Dimensions | Height 65mm, Width 710mm, Depth 165mm, Gross Weight 900g |
Feature | Removeable inner assembly |
The standard thermocouple described can be supplied in the following noble metal combinations: | Type R: Platinum v Platinum 13% Rhodium or Type S: Platinum v Platinum 10% Rhodium |
How to order | Model 1600 type R/300, Model 1600 type R/600, Model 1600 type S/300, Model 1600 type S/600. If cold junction not required, specify NCJ. UKAS Calibration included. |
상세 정보 더 보기 (블로그) : https://blog.naver.com/geniuss7179/222220898901
