999 Medusa R
중온용 기준 흑체로

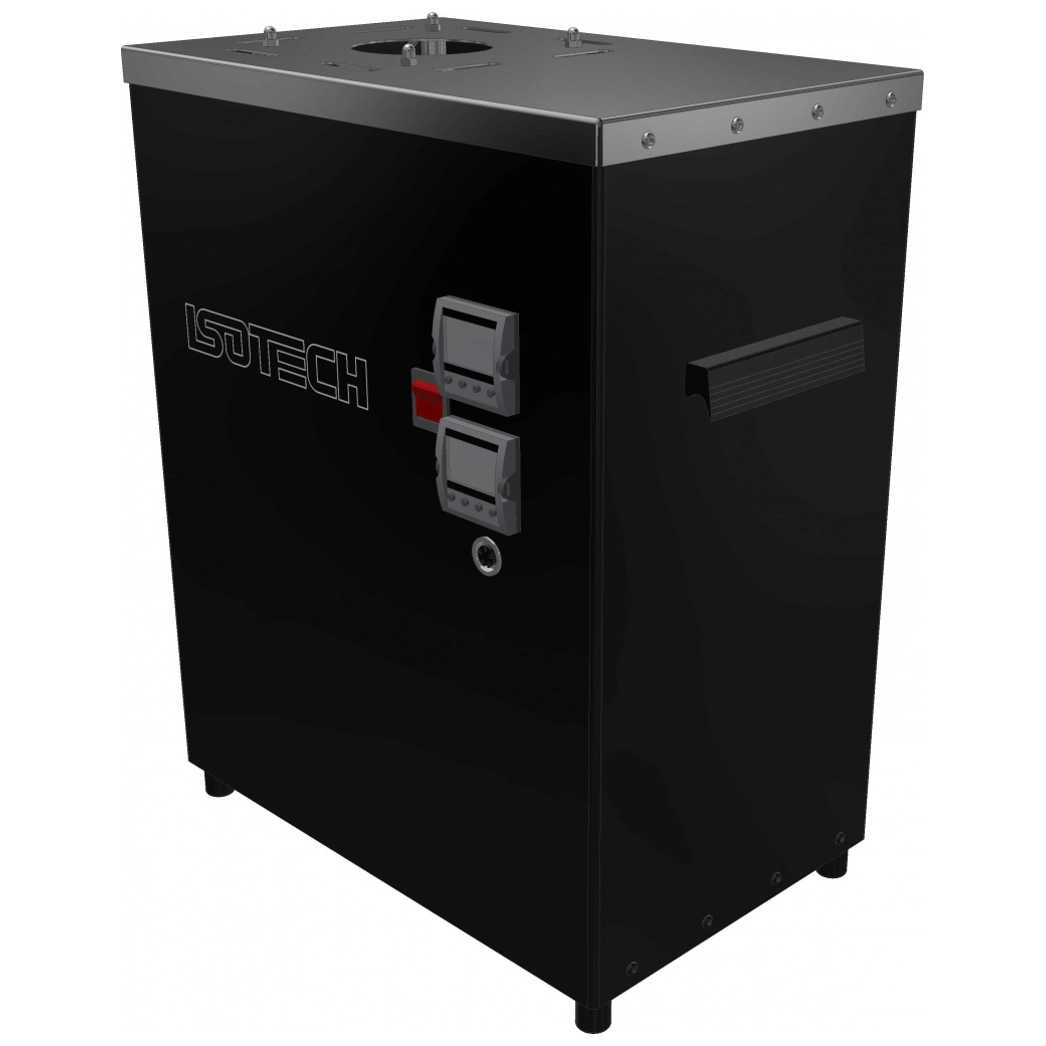

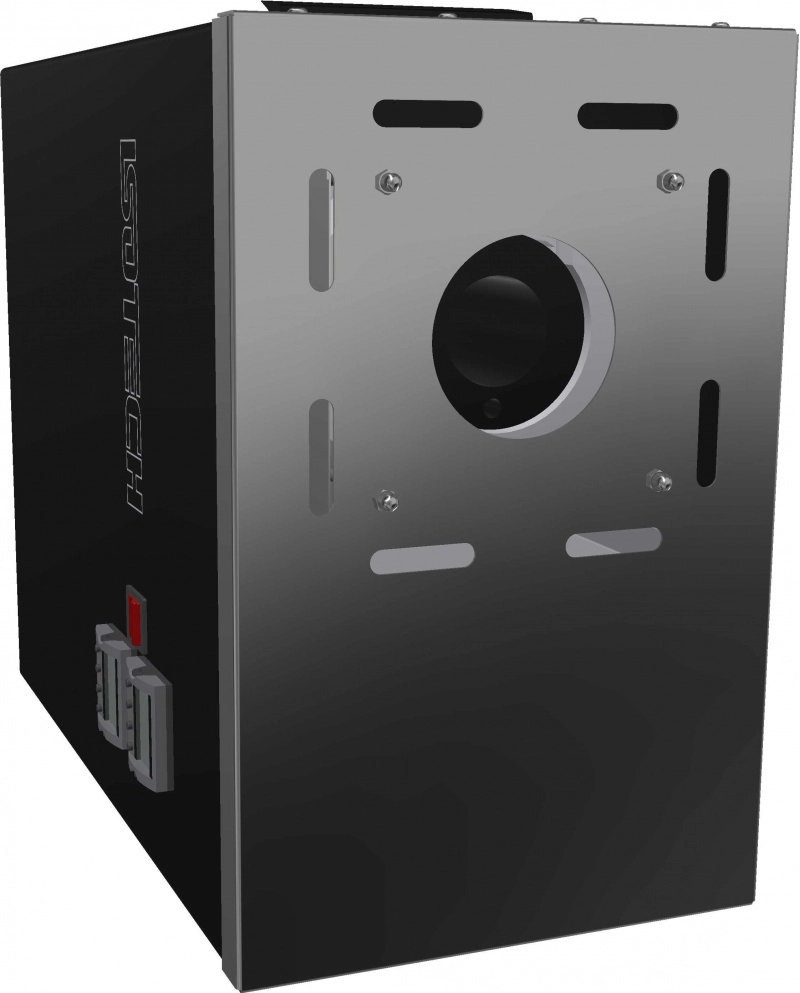

999 Medusa R Blackbody Source
TECHNICAL FEATUREVALUE
| Model | 999 |
| Temperature Range | 30°C to 550.0°C |
| Emissivity | Greater than 0.995 |
| Stability | ±0.1°C |
| Display Resolution | 0.01°C to 99.99; 0.1°C from 100 to 550 |
| Heating Time | 45 minutes |
| Aperture Diameter | 45mm |
| Cavity Depth | 285mm |
| PC Interface | Included |
| Power | 1000 Watts typical |
| Voltage | 100-130 or 208-240 Vac 50/60Hz |
| Dimensions | Height 480mm Width 425mm Depth 260mm |
| Weight | 17kg |
| Options | Fixed Point Cells: Indium Large Primary Cell – 998-06-00A. Tin Hockey Large Primary Cell – 998-06-00B. Zinc Large Primary Cell 998-06-00C |
| How to order | Model 999 Medusa R – State supply voltage. Please state any special calibration requirement. |
