GOOD WILL INSTEK

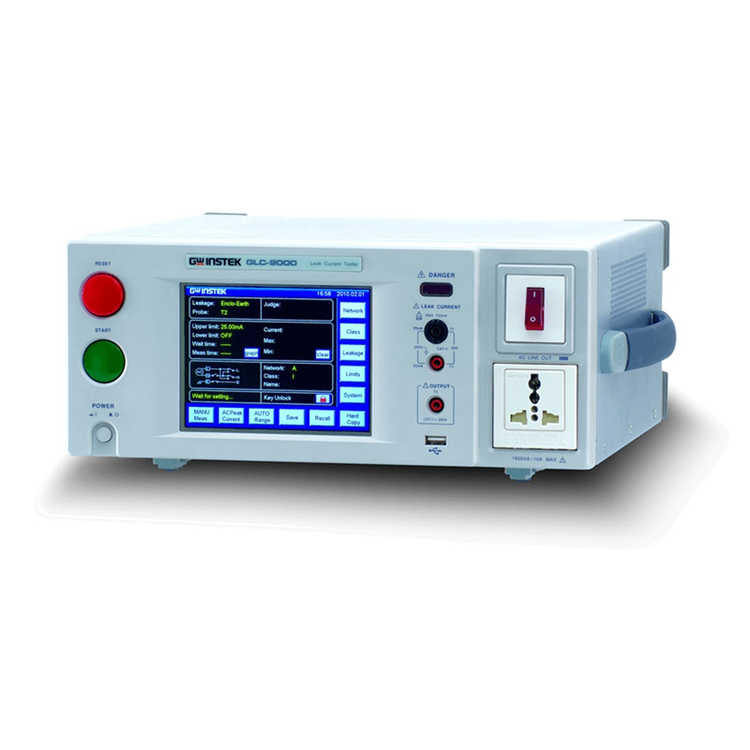

GLC-9000 — Leakage Current Tester
• GLC-9000
특징
- 컬러 LCD 디스플레이가 있는 터치 패널
- 인체의 저항을 시뮬레이션하는 9가지 측정 네트워크
- 8가지 다른 유형의 누설 전류
- 다양한 누설 전류 측정 모드 : DC/AC/AC+DC/AC 피크
- PASS/FAIL 판정의 상한 및 하한
- SELV/CONV 기능이 있는 미터 모드
- 50개의 사전 설정 테스트 조건은 IEC 60990을 준수합니다. 30 고객 정의에 대한 추억을 설정
- 다양한 표준 인터페이스: RS232/GPIB/USB 호스트 및 장치/EXT I/O
Features
- Touch Panel with Color LCD Display
- 9 Different Measurement Network to Simulate the Resistance of Human Body
- 8 Different Types of Leakage current
- Various Leakage Current Measuring Mode:DC/AC/AC+DC/AC Peak
- Upper & Lower Limitation for PASS/FAIL Judgment
- Meter Mode with SELV/CONV Function
- 50 Preset Test Conditions Conform to IEC 60990; 30 Sets Memories for Customer Defined
- Various Standard Interfaces:RS232/GPIB/USB Host & Device/EXT I/O
설명
테스트가 간단합니다
누설전류 테스터 GLC-9000은 범용 전기(IEC 60990) 장비에 대한 누설전류(또는 터치전류라 함) 테스트를 수행하는 데 사용됩니다. 이 테스터는 9개의 측정 네트워크(또는 측정 장치라고 함)와 결합하여 인체 시뮬레이션을 제공하는 반면 EUT(테스트 중인 장비)는 IEC, UL, JIS 등과 같은 특정 표준 또는 규정에 따라 누설 전류 테스트를 수행합니다.
GLC-9000은 간단한 조작 환경을 제공하기 위해 대형 TFT LCD 터치 패널을 탑재하여 시스템을 구성함과 동시에 측정 설정 정보와 결과를 동시에 제공합니다. 또한 일반 전기 장비에 대해 IEC60990 및 기타 표준을 준수하는 50개의 사전 설정 테스트 조건을 불러와 설정 시간을 단축할 수 있습니다. 또한 사용자 정의 설정을 위해 30세트의 빈 메모리를 사용할 수 있습니다.
GLC-9000에서도 Meter 모드가 가능하며, 측정 단자(T1/T2)를 사용하여 일반 전압계와 동일한 방식으로 전압을 측정합니다. 전압 측정 시 SELV 기능(안전 초저전압)을 적용하여 측정 지점 간의 전압 값이 SELV 설정을 초과하는지 여부를 감지합니다.
- 간단하고 직관적인 시스템
- 다양한 측정 네트워크
- 사전 설정 테스트 조건
- 다양한 표준 인터페이스
- 측정 네트워크(MD)
Description
Testing is Just a Fingertip Away
The GLC-9000, leakage current tester, is used to perform leakage current (or called touch current) tests on general purpose electric (IEC 60990) equipment. This tester engages with nine measurement networks (or called Measuring Device) to provide the simulation of human body while the EUT (equipment under test) is taking a leakage current testing in compliance with the specific standards or regulations such as IEC, UL, JIS...etc..
In order to provide a simple operation environment, the GLC-9000 equips with large TFT LCD touch panel to configure system as well as to present the measurement settings information and result simultaneously. Besides, there are 50 preset testing conditions, which conform to IEC60990 and other standards, for general electric equipment can be recalled to reduce the setting time. In addition, 30 sets empty memory are available for user defined setting.
A Meter mode is also available for the GLC-9000, it uses the measurement terminal (T1/T2) to measure voltage as the same way of ordinary voltmeter. During the voltage measurement, the SELV function (safety extra low voltage) is applicable to detect whether the voltage value between measuring points exceed the SELV setting.
- Simple and Intuitive System
- Various Measurement Network
- Preset Test Conditions
- Various Standard Interfaces
- Measurement Network (MD)
