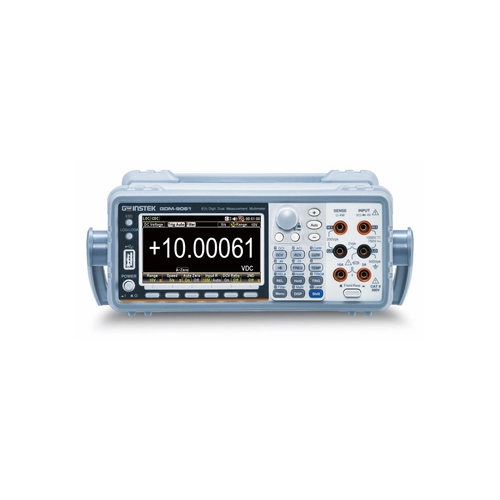

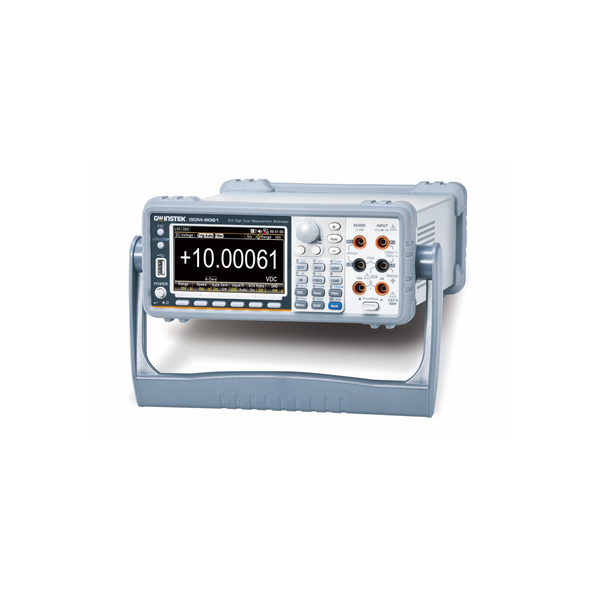

GW INSTEK GDM-906x 시리즈 6 ½ 디지트 듀얼 측정 멀티미터
GW INSTEK GDM-906x 시리즈 6 ½ 디지트 듀얼 측정 멀티미터

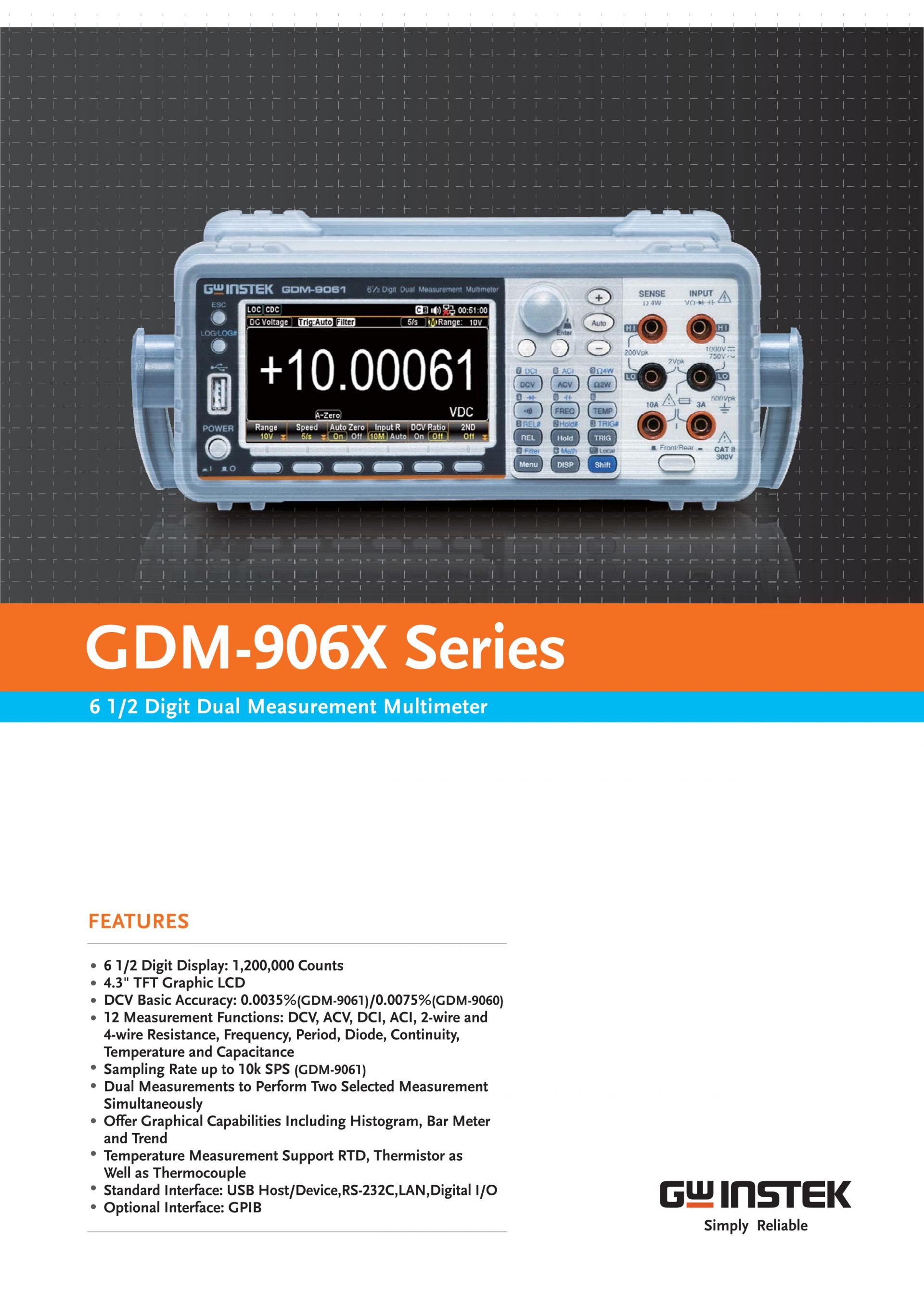

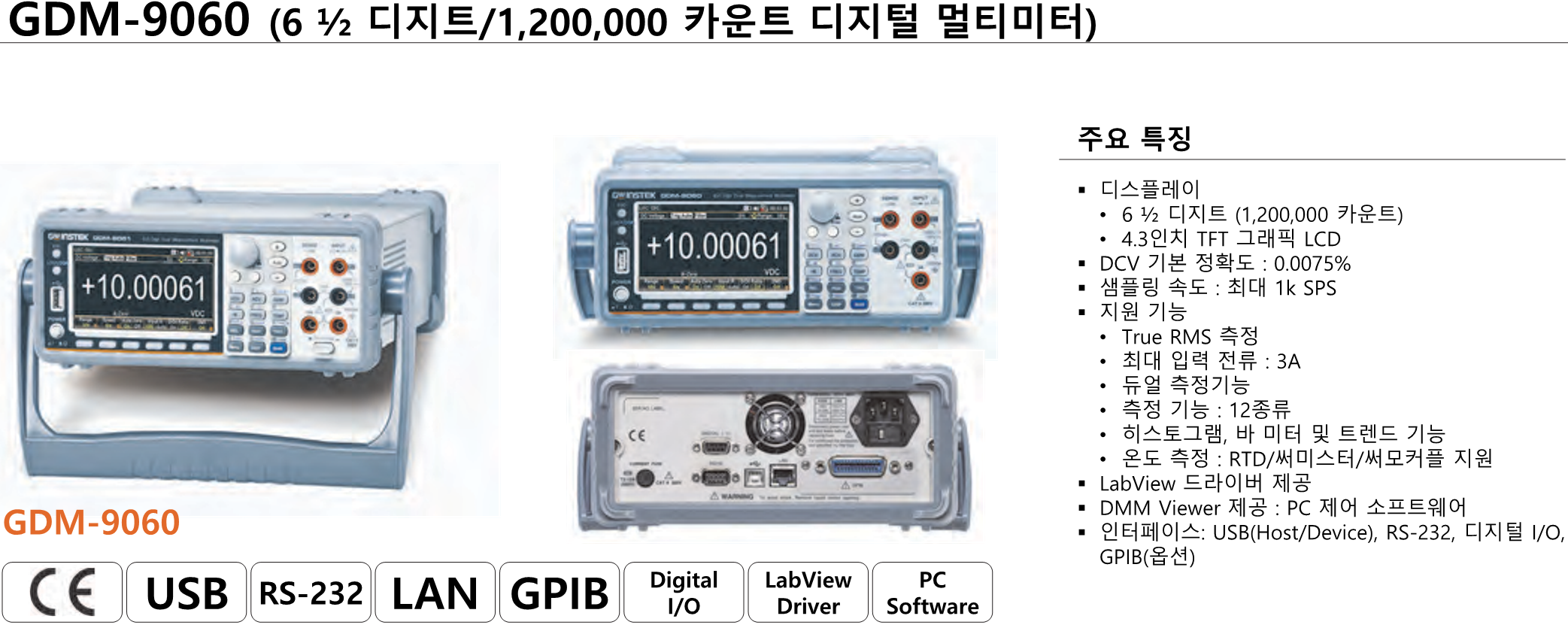

GW INSTEK GDM-906x Series 6 ½ Digit Dual Measurement Multimeter

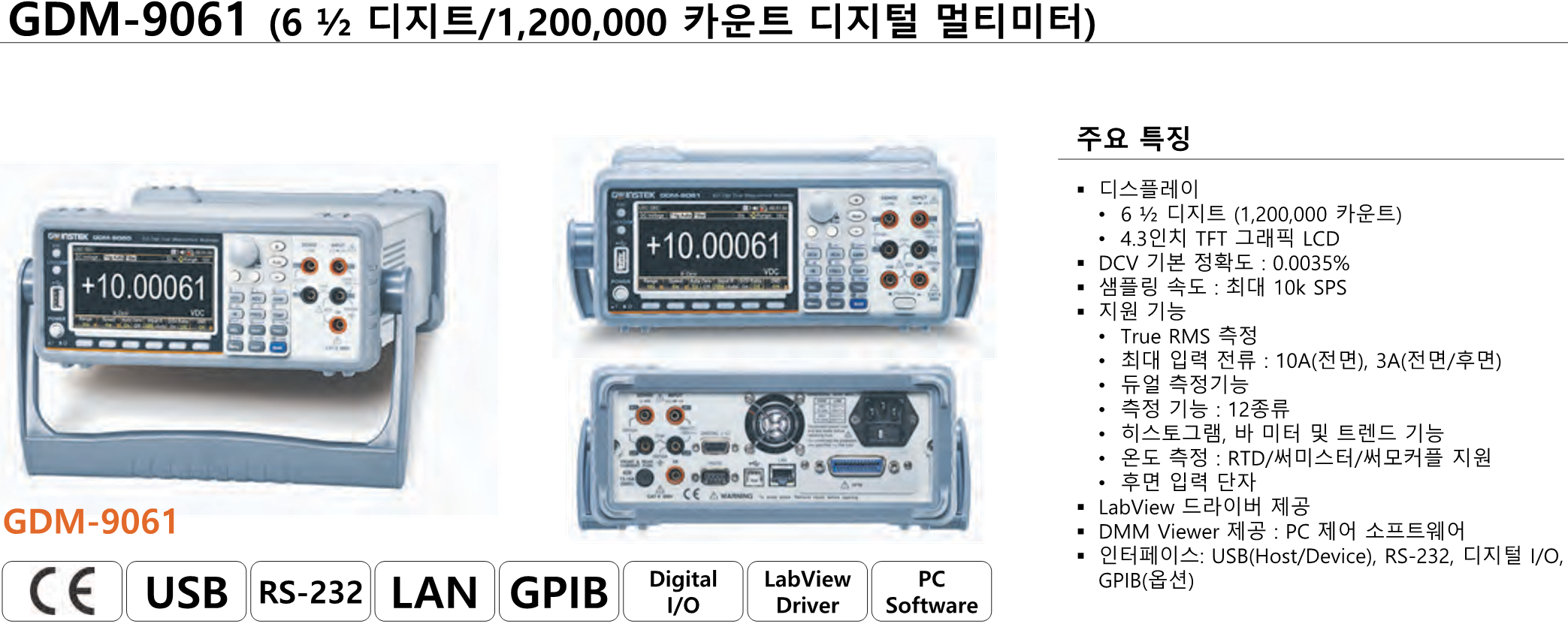

- 6 1/2 디지트 듀얼 측정 멀티미터, GDM-9061/9060
- 디스플레이: 4.3 TFT LCD (1,200,000 카운트)
- DCV 기본 정확도: 0.0035%(9061)/0.0075%(9060)
- 인터페이스 : RS-232C/USB/LAN/Digital IO, GPIB(옵션)
클릭 하시면 이동합니다.
굿윌인스텍 ・ GW INSTEK
GDM-906x 시리즈
6 ½ 디지트 듀얼 측정 멀티미터
GDM-906x Series 6 ½ Digit Dual Measurement Multimeter


• GDM-906X Series
GDM-9060 ・ GPM-9061
특징
- 6 1/2 자리 표시: 1,200,000 카운트
- 4.3 TFT 그래픽 LCD
- DCV 기본 정확도: 0.0035%(GDM-9061)/0.0075%(GDM-9060)
- 12가지 측정 기능: DCV, ACV, DCI, ACI, 2와이어 및 4와이어 저항, 주파수, 주기, 다이오드, 연속성, 온도 및 커패시턴스
- 최대 10k SPS의 샘플링 속도(GDM-9061)
- 2개의 선택된 측정을 동시에 제공하는 이중 측정 기능
- 히스토그램, 막대 측정기 및 추세를 포함한 그래픽 기능 제공
- 온도 측정 지원 RTD, 써미스터 및 열전대
- 표준 인터페이스: USB 호스트/장치, RS-232C, LAN, 디지털 I/O
- 옵션 인터페이스: GPIB
Features
- 6 1/2 Digit Display:1,200,000 Counts
- 4.3 TFT Graphic LCD
- DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)
- 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance
- Sampling Rate up to 10k SPS (GDM-9061)
- Dual Measurement Function to Providing Two Selected Measurement Simultaneously
- Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend
- Temperature Measurement Support RTD, Thermistor as Well as Thermocouple
- Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
- Optional Interface: GPIB
설명
GW Instek, 고정밀 DC 전압 정확도, 빠른 샘플링 속도, 12가지 측정 기능(DC 전압/전류, AC 전압/전류 , 2-와이어/4-와이어 저항, 주파수, 주기, 다이오드, 연속성 신호음, 온도, 커패시턴스), 6가지 수학 함수(dB/dBm/Compare/MX+B/Percent 및 1/X) 및 다양한 포괄적인 측정 기능, 더 빠른 속도 및 정확도를 제공하는 통신 인터페이스(USB 장치/호스트, RS-232C, LAN, 디지털 I/O 및 옵션 GPIB).
이상적인 벤치탑 파트너
GDM-906X 시리즈는 전압, 전류, 저항, 다이오드 및 연속성 신호음, 주파수, 온도 및 정전용량을 포함하여 엔지니어가 전자 회로 또는 제품을 설계, 개발 및 테스트하는 데 필요한 모든 기본 측정 기능을 제공합니다. 또한 이 시리즈에는 수학 함수(dB, dBm, 비교, MX+B, 1/X 및 백분율), 통계 함수(최소/최대/평균/PP/STDEV) 및 다양한 표준 통신 인터페이스가 있습니다. 특정 측정 요구 사항 및 복잡한 측정 응용 프로그램을 벤치탑 작동 또는 시스템에 설치할 수 있습니다.
다양한 디스플레이 모드
표준 수치 표시 모드 외에도 막대 미터, 추세 차트 및 히스토그램과 같은 다양한 그래픽 기능을 제공하여 측정 결과가 더 이상 일련의 숫자가 아니라 파노라마 측정에 대한 신속한 통찰력을 제공합니다.
이중 측정 및 이중 추세선
이중 측정 기능은 항상 GW Instek 디지털 멀티미터의 고유한 기능으로 두 가지 측정 기능을 동시에 수행하고 테스트 결과를 별도로 표시하여 다기능 측정 작업의 테스트 속도를 크게 향상시켰습니다.
높은 측정 분해능 및 높은 샘플링 속도
GDM-906X 시리즈는 전압 측정을 위한 0.1μV, 전류 측정을 위한 100pA, 저항 측정을 위한 100μΩ의 고해상도를 제공하여 특정 애플리케이션의 정밀 측정에 필요한 요구 사항을 충족합니다. 또한 GDM-9061은 4½ 디지트의 디스플레이 분해능으로 초당 10k 판독값을 달성할 수 있는 반면 GDM-9060은 5½ 디지트의 디스플레이 해상도로 초당 1k 측정 판독값을 달성할 수 있습니다. 이러한 빠른 샘플링 속도는 전류 측정 요구 사항에 충분합니다.
온도 측정
GDM-906X 시리즈는 온도 측정을 수행하며 서미스터, RTD 및 열전대와 같은 다양한 온도 센서에 이상적입니다. GDM-906X의 온도 측정은 일반적으로 사용되는 열전대 유형(예: J / T / K... 등)을 지원하며 전압 측정 단자를 열전대 입력으로 사용하고 전압 변동을 기반으로 온도를 계산합니다. 이 기능은 내부 메모리 용량 및 추세 차트 기능과 함께 배치된 경우 온도 기록기로 사용할 수 있습니다.
다양한 통신 인터페이스와 빠른 전송 속도
시스템 통합 애플리케이션을 위해 GDM-906X 시리즈에는 표준 통신 인터페이스로 RS232, USB 및 LAN이 장착되어 있으며 GPIB는 다양한 시스템 통합 요구 사항을 충족하기 위한 옵션(고객이 설치할 수 있음)입니다. 데이터 전송 속도는 USB/LAN/GPIB 인터페이스를 통해 초당 최대 10,000회 판독(GDM-9061) 또는 초당 1,000회(GDM-9060)입니다.
편리한 PC 소프트웨어
FPC 소프트웨어 DMM-Viewer2는 장기 데이터 수집을 위해 GDM-906X 시리즈에서 제공하는 모든 컴퓨터 통신 인터페이스(RS232C/LAN/USB/GPIB)에 적합합니다. 소프트웨어는 사용자가 GDM-906X 시리즈의 설정을 제어할 수 있을 뿐만 아니라 캡처된 데이터에 대한 관찰 모드 또는 기록 모드를 제공합니다. 관찰 모드의 경우 측정 결과가 트랜드 차트 또는 히스토그램의 결과로 직접 제시되며 결과는 저장되지 않습니다. 기록 모드의 경우 측정 결과가 직접 로그 파일에 저장되지만, 그 과정에서 현재 디스플레이만 표시됩니다. 측정 데이터 및 트렌드 차트는 기록 모드가 중지된 후에 볼 수 있습니다. 또한 GDM-906X 시리즈는 시스템 통합의 소프트웨어 어플리케이션 요구 사항을 충족하기 위해 LabVIEW 드라이버도 제공합니다.
Description

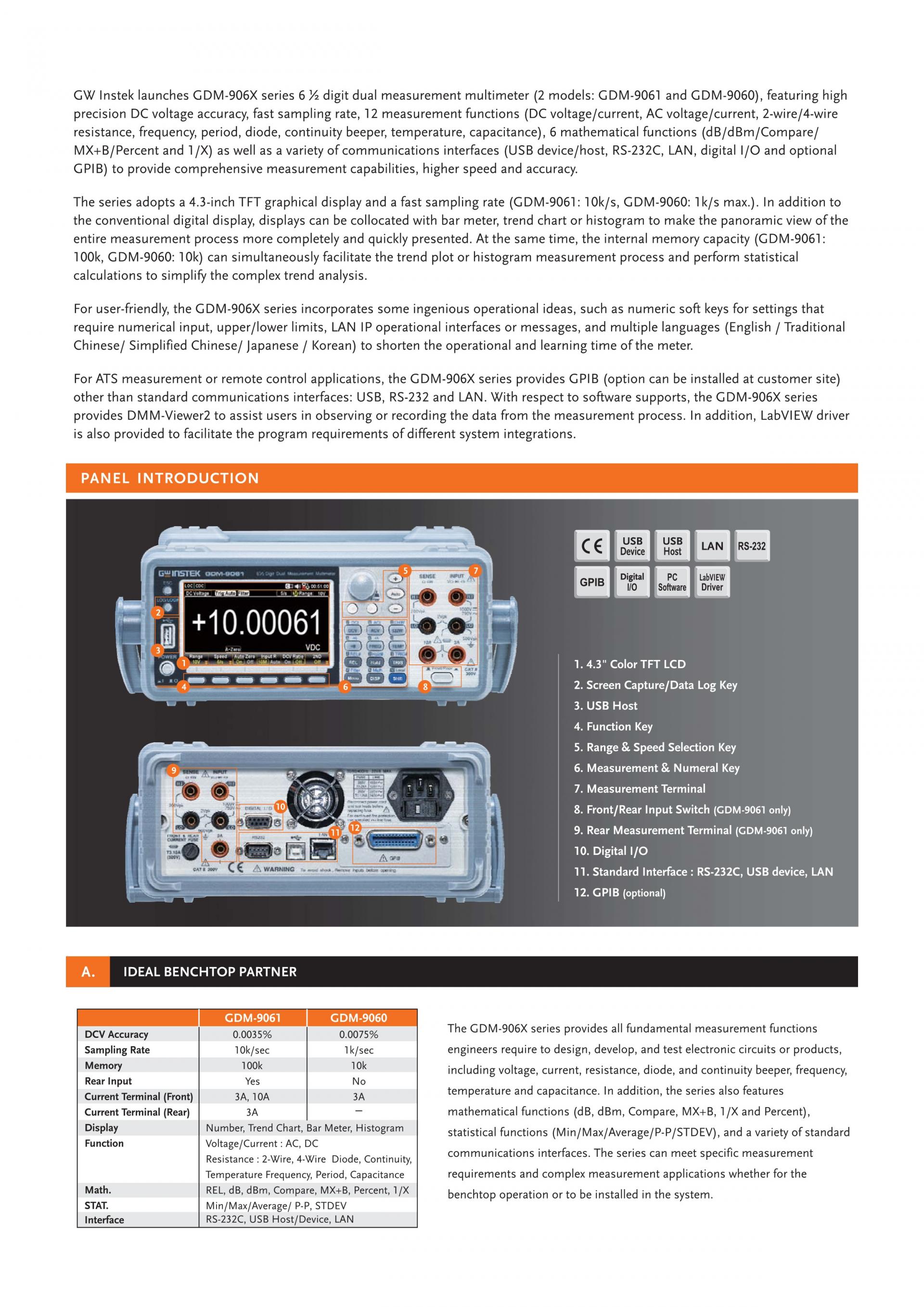

GW Instek launches GDM-906X series 6 ½ digit dual measurement multimeter (2 models: GDM-9061 and GDM-9060), featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy.
Ideal benchtop partner
The GDM-906X series provides all fundamental measurement functions engineers require to design, develop, and test electronic circuits or products, including voltage, current, resistance, diode, and continuity beeper, frequency, temperature and capacitance. In addition, the series also features mathematical functions (dB, dBm, Compare, MX+B, 1/X and Percent), statistical functions (Min/Max/Average/P-P/STDEV), and a variety of standard communications interfaces.Theseries can meet specific measurementrequirementsandcomplexmeasurementapplicationswhether for the benchtop operation or to be installed in the system.

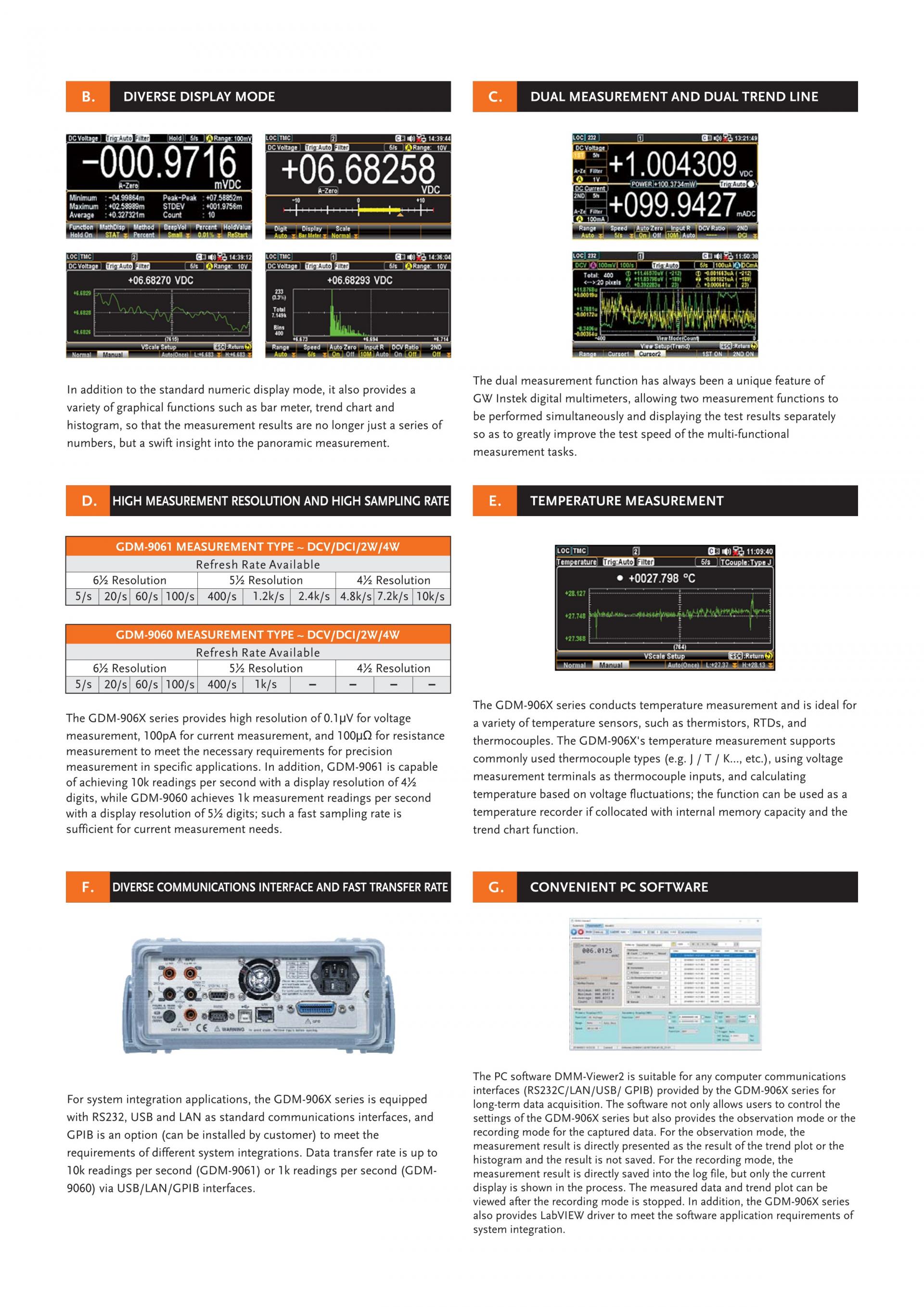

Diverse display mode
In addition to the standard numeric display mode, it also provides a variety of graphical functions such as bar meter, trend chart and histogram, so that the measurement results are no longer just a series of numbers, but a swift insight into the panoramic measurement.
Dual measurements and dual trend lines
IThe dual measurement function has always been a unique feature of GW Instek digital multimeters, allowing two measurement functions to be performed simultaneously and displaying the test results separately so as to greatly improve the test speed of the multi-functional measurement tasks.
High measurement resolution and high sampling rate
The GDM-906X series provides high resolution of 0.1μV for voltage measurement, 100pA for current measurement, and 100μΩ for resistance measurement to meet the necessary requirements for precision measurement in specific applications. In addition, GDM-9061 is capable of achieving 10k readings per second with a display resolution of 4½ digits, while GDM-9060 achieves 1k measurement readings per second with a display resolution of 5½ digits;such a fastsampling rate is sufficientforcurrent measurementneeds.
Temperature measurement
The GDM-906X series conducts temperature measurement and is ideal for a variety of temperature sensors, such as thermistors, RTDs, and thermocouples. The GDM-906X's temperature measurement supports commonly used thermocouple types (e.g. J / T / K..., etc.), using voltage measurement terminals as thermocouple inputs, and calculating temperature based on voltage fluctuations; the function can be used as a temperature recorder if collocated with internalmemory capacityand the trend chart function.
Diverse communications interface and fast transfer rate
For system integration applications, the GDM-906X series is equipped with RS232, USB and LAN as standard communications interfaces, and GPIB is an option (can be installed by customer) to meet the requirements of different system integrations. Data transfer rate is up to 10k readings per second (GDM-9061) or 1k readings per second (GDM-9060) via USB/LAN/GPIB interfaces.
Convenient PC software
FThe PC software DMM-Viewer2 is suitable for any computer communications interfaces (RS232C/LAN/USB/GPIB) provided by the GDM-906X series for long-term data acquisition. The software not only allows users to control the settings of the GDM-906X series but also provides the observation mode or the recording mode for the captured data. For the observation mode, the measurement result is directly presented as the result of the trend chart or the histogramand the resultis not saved. For the recordingmode, themeasurement result is directly saved into the log file, but only the current display is shown in the process. The measured data and trend chart can be viewed after the recording mode is stopped. In addition, the GDM-906X series also provides LabVIEW driver to meet the software application requirements of system integration.
