다기능 4 in 1 핸드펌프 (미압 / 공압40bar / 유압700bar / 진공95%)
- Hydraulic pressures to 10,000 psi
- Pneumatic pressures to 600 psi
- Vacuum to 28.5 inHg
- Low-pressure fine control
- Unique vacuum priming function removes trapped air during hydraulic operation
- High-pressure generation is accomplished with the volume adjuster, eliminating the physical effort associated with conventional hand pumps
- Pressure/Vacuum selector valve also provides exceptional fine control pressure relief in both pneumatic and hydraulic modes
- Tamper-proof adjustable overpressure protection valve which can be set to relieve pressures from 300 to 10,000 psi
- Removable hydraulic reservoir which can be disconnected from the pump without draining the fluid
- Reservoir safety feature with spring-loaded top cover vents if inadvertently pressurized above 8 psi
- Hydraulic mode designed to operate with distilled water and/or high viscosity mineral oil
- Highly sensitive volume adjuster is used for hydraulic, pneumatic, vacuum, and low-pressure operation
- Built-in stroke adjuster controls the pressure/vacuum generated per stroke
- 240° swivel head for optimum viewing of reference indicators • Internal moving parts are PTFE anodized for reduced friction and wear
- Ergonomic, rugged, and light
클릭 하시면 이동합니다.
메이커 | DRUCK |
제품명 | PV411 |
제품설명 | 공/유압용 핸드펌프 Four-in-One Hand Pump |
주요특징 | - 다기능 “4 In 1” 수동 펌프 - 최대 600 psi (40 bar)의 공압, 최대 10,000 psi (700 bar)의 유압 - 최대 -28.5 inHg의 진공 발생 - 유압 시스템의 진공 프라이밍 - 뛰어난 저압 제어 조절 - 가능한 초과 압력 보호 |
제품소개 | PV411A는 압력·진공 모두 발생이 가능한 공압/유압 핸드펌프 입니다. PV411A는 2개의 출력 포트를 가지고 있어 기준 압력 지시계 (DPI104)를 부착하여 압력 교정기로도 사용할 수 있습니다. |
제품특징 | 1. 4 in 1 멀티기능 - 공압 : 40 bar (600 psi)까지 발생 - 유압 : 700 bar (10,000 psi)까지 발생 - 진공 : -950 mbar (-28.5 inHg)까지 발생 - Vacuum priming for hydraulic systems - 우수한 저압 제어 기능 - Adjustable overpressure protection (can be set from 300 to 10,000 psi) - DPI104 게이지와 외장 압력 센서 사용 2. PV411 Specifications 압력범위 : 공압 0 to 600 psi, 유압 0 to 10,000 psi, 진공 0 to 13.9 psi 유압용 매질 : 증류수 (no alcohol), 공업용 오일(점도 40wt) (권장사항 : 공압과 유압을 같이 사용시 증류수 사용 권장) Pressure connections (2x) : 1/4 BSP female Reservoir connection : 1/4 BSP female 오일통 용량 : 100cc 사이즈 : 10.2 in x 5.3 in x 3.7 in PV411A-HA Hand Pump Kit - 하드 케이스 (내부 insert foam) - 고압 호스 (Maximum : 689 bar, 길이 : 1m) - 2 pieces1/4 in NPT male adapters - 1 piece 1/4 in NPT female adapter - 1 piece 1/8 in NPT male adapter - 1 piece 1/8 in NPT female adapter - 1 piece 1/4 in Male to 1/8 in Female adapter |
기타 | PV411 Hand Pump를 이용한 압력, 진공 발생 영상 |
핸드펌프 블로그에서 더 보기 : https://blog.naver.com/geniuss7179/222145646940
PV411A - hand pump only

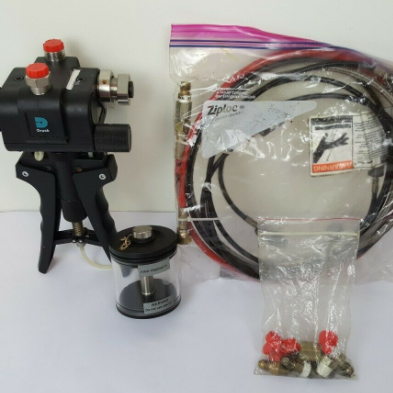

PV411A-HA - hand pump with accessory kit
The PV411A is a high-quality field proven pressure and vacuum hand pump providing functionality, which has never been seen before in a handheld pressure source. This remarkable product replaces four conventional hand pumps and offers the following additional features:
- Hydraulic pressures to 10,000 psi
- Pneumatic pressures to 600 psi
- Vacuum to 28.5 inHg
- Low-pressure fine control
- Unique vacuum priming function removes trapped air during hydraulic operation
- High-pressure generation is accomplished with the volume adjuster, eliminating the physical effort associated with conventional hand pumps
- Pressure/Vacuum selector valve also provides exceptional fine control pressure relief in both pneumatic and hydraulic modes
- Tamper-proof adjustable overpressure protection valve which can be set to relieve pressures from 300 to 10,000 psi
- Removable hydraulic reservoir which can be disconnected from the pump without draining the fluid
- Reservoir safety feature with spring-loaded top cover vents if inadvertently pressurized above 8 psi
- Hydraulic mode designed to operate with distilled water and/or high viscosity mineral oil
- Highly sensitive volume adjuster is used for hydraulic, pneumatic, vacuum, and low-pressure operation
- Built-in stroke adjuster controls the pressure/vacuum generated per stroke
- 240° swivel head for optimum viewing of reference indicators • Internal moving parts are PTFE anodized for reduced friction and wear
- Ergonomic, rugged, and light
가격이 궁금하신가요?
더 많은 자료는?
메이커 | DRUCK |
제품명 | PV411 |
제품설명 | 공/유압용 핸드펌프 Four-in-One Hand Pump |
주요특징 | - 다기능 “4 In 1” 수동 펌프 - 최대 600 psi (40 bar)의 공압, 최대 10,000 psi (700 bar)의 유압 - 최대 -28.5 inHg의 진공 발생 - 유압 시스템의 진공 프라이밍 - 뛰어난 저압 제어 조절 - 가능한 초과 압력 보호 |
제품소개 | PV411A는 압력·진공 모두 발생이 가능한 공압/유압 핸드펌프 입니다. PV411A는 2개의 출력 포트를 가지고 있어 기준 압력 지시계 (DPI104)를 부착하여 압력 교정기로도 사용할 수 있습니다. |
제품특징 | 1. 4 in 1 멀티기능 - 공압 : 40 bar (600 psi)까지 발생 - 유압 : 700 bar (10,000 psi)까지 발생 - 진공 : -950 mbar (-28.5 inHg)까지 발생 - Vacuum priming for hydraulic systems - 우수한 저압 제어 기능 - Adjustable overpressure protection (can be set from 300 to 10,000 psi) - DPI104 게이지와 외장 압력 센서 사용 2. PV411 Specifications 압력범위 : 공압 0 to 600 psi, 유압 0 to 10,000 psi, 진공 0 to 13.9 psi 유압용 매질 : 증류수 (no alcohol), 공업용 오일(점도 40wt) (권장사항 : 공압과 유압을 같이 사용시 증류수 사용 권장) Pressure connections (2x) : 1/4 BSP female Reservoir connection : 1/4 BSP female 오일통 용량 : 100cc 사이즈 : 10.2 in x 5.3 in x 3.7 in PV411A-HA Hand Pump Kit - 하드 케이스 (내부 insert foam) - 고압 호스 (Maximum : 689 bar, 길이 : 1m) - 2 pieces1/4 in NPT male adapters - 1 piece 1/4 in NPT female adapter - 1 piece 1/8 in NPT male adapter - 1 piece 1/8 in NPT female adapter - 1 piece 1/4 in Male to 1/8 in Female adapter |
기타 | PV411 Hand Pump를 이용한 압력, 진공 발생 영상 |
핸드펌프 블로그에서 더 보기 : https://blog.naver.com/geniuss7179/222145646940
PV411A - hand pump only
PV411A-HA - hand pump with accessory kit
The PV411A is a high-quality field proven pressure and vacuum hand pump providing functionality, which has never been seen before in a handheld pressure source. This remarkable product replaces four conventional hand pumps and offers the following additional features:
- Hydraulic pressures to 10,000 psi
- Pneumatic pressures to 600 psi
- Vacuum to 28.5 inHg
- Low-pressure fine control
- Unique vacuum priming function removes trapped air during hydraulic operation
- High-pressure generation is accomplished with the volume adjuster, eliminating the physical effort associated with conventional hand pumps
- Pressure/Vacuum selector valve also provides exceptional fine control pressure relief in both pneumatic and hydraulic modes
- Tamper-proof adjustable overpressure protection valve which can be set to relieve pressures from 300 to 10,000 psi
- Removable hydraulic reservoir which can be disconnected from the pump without draining the fluid
- Reservoir safety feature with spring-loaded top cover vents if inadvertently pressurized above 8 psi
- Hydraulic mode designed to operate with distilled water and/or high viscosity mineral oil
- Highly sensitive volume adjuster is used for hydraulic, pneumatic, vacuum, and low-pressure operation
- Built-in stroke adjuster controls the pressure/vacuum generated per stroke
- 240° swivel head for optimum viewing of reference indicators • Internal moving parts are PTFE anodized for reduced friction and wear
- Ergonomic, rugged, and light
