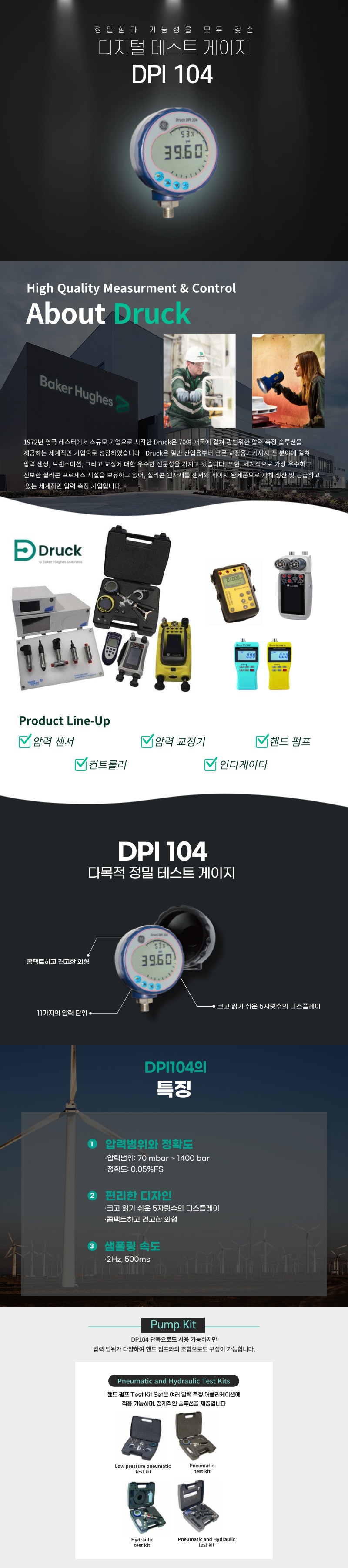

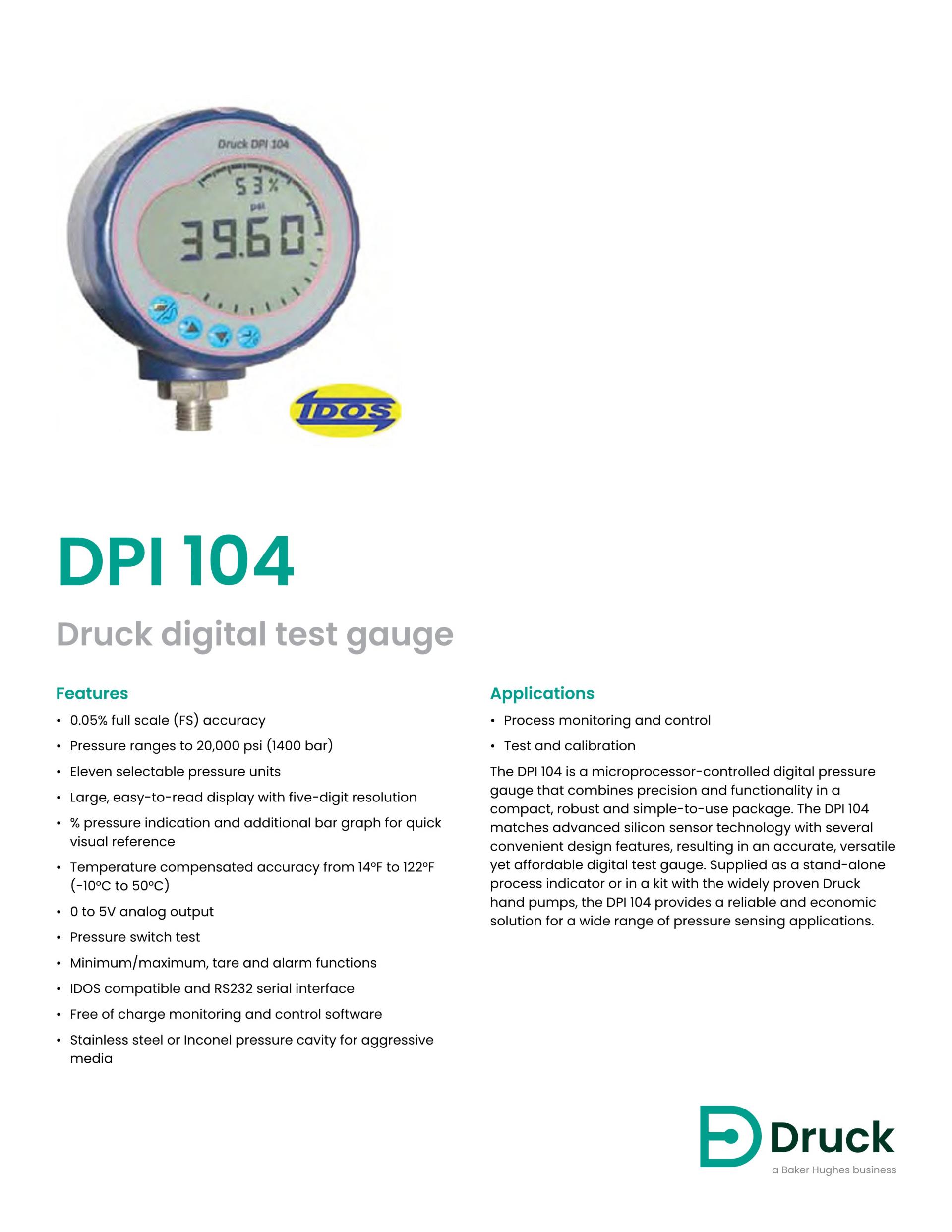

DRUCK DPI104 디지털 압력게이지 (0.05%)
DRUCK DPI104 Digital test gauge
- 0.05% 풀 스케일(FS) 정확도
- 최대 20,000 psi (1,400 bar)의 압력 범위
- 11개의 선택 가능한 압력 단위
- 큰 다섯 자리 해상도의 읽기 쉬운 디스플레이
- 빠른 시각적 참조를 위한 % 압력 표시 및 추가 바 그래프
- 14°F에서 122°F(-10°C에서 50°C)까지 온도 보상 정확도
- 0에서 5V 아날로그 출력
- 압력 스위치 테스트
- 최소/최대, 테어, 알람 기능
- IDOS 호환 및 RS232 시리얼 인터페이스
- 무료 모니터링 및 제어 소프트웨어
- 공격적인 매체를 위한 스테인리스 스틸 또는 인코넬 압력 캐비티
클릭 하시면 이동합니다.
드럭 ・ DRUCK
DPI104
디지털 압력게이지 (0.05%)
DPI104 Digital test gauge
메이커 | DRUCK |
제품명 | DPI104 |
제품설명 | 디지털 압력계 Digital Test Gauge |
주요특징 | - 압력범위 : 700 mbar to 1,400 bar (10 psi to 20,000 psi) - 정확도 : 0.05%FS Temperature compensated from -10 to 50°C - 11가지 압력단위 선택 가능 - 5 자릿수의 디스플레이 - Stainless & Inconel wetted parts for aggressive media - 압력 스위치 테스트, Min/Max, Tare 및 알람 기능 - Handpump kit 사용 가능 - 소형의 견고한 장비 외관 |

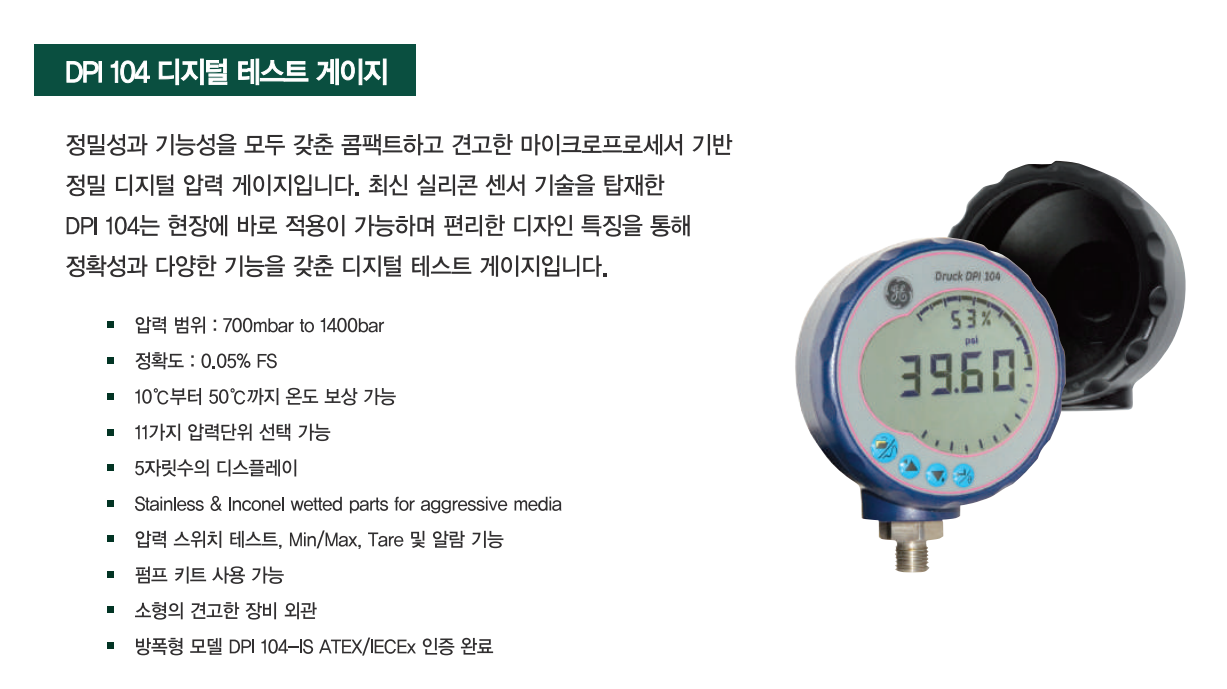

제품소개 | DPI104는 작고 단단하며, 기능성과 정밀도가 뛰어난 Druck사의 silicon sensor 기술력이 바탕이 된 다목적 정밀 디지털 게이지 입니다. |

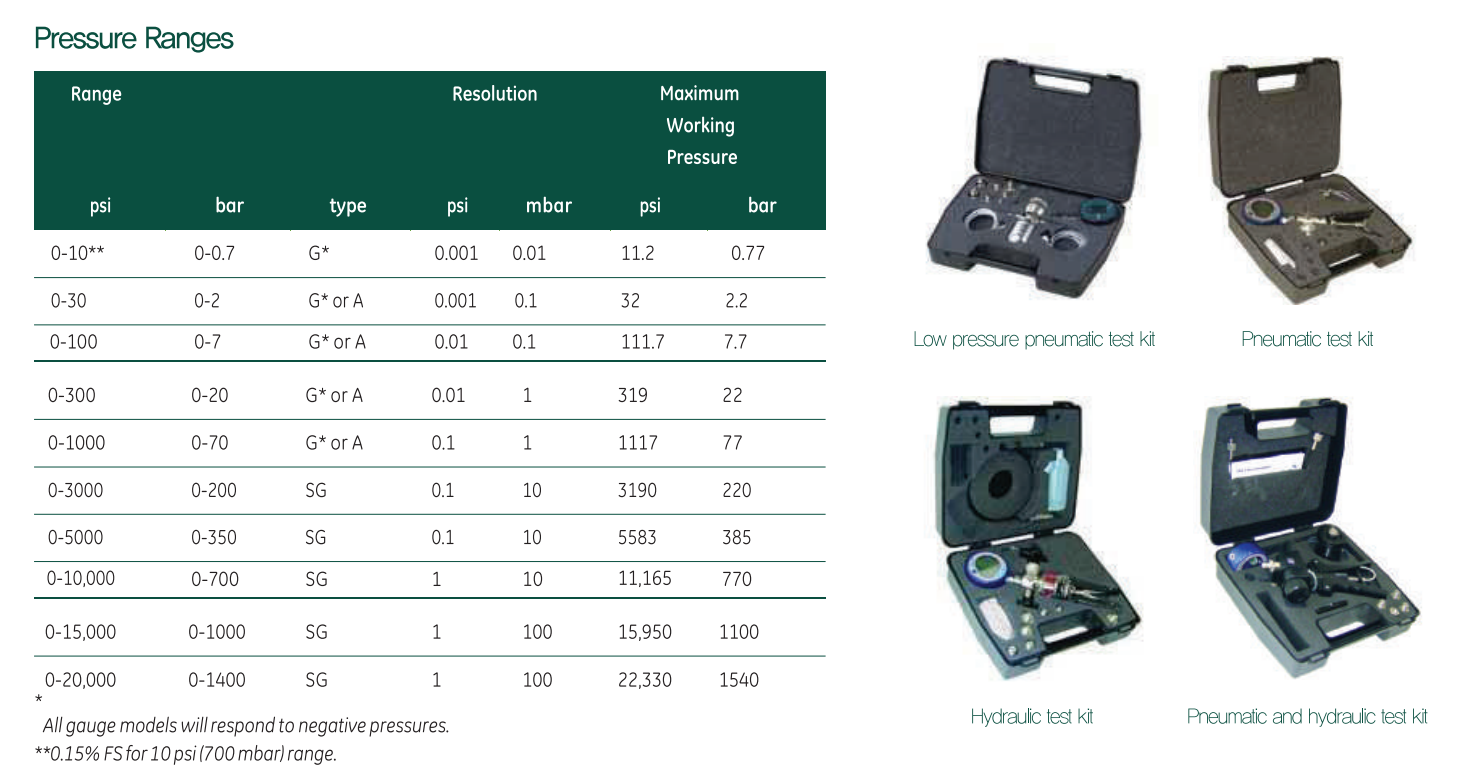

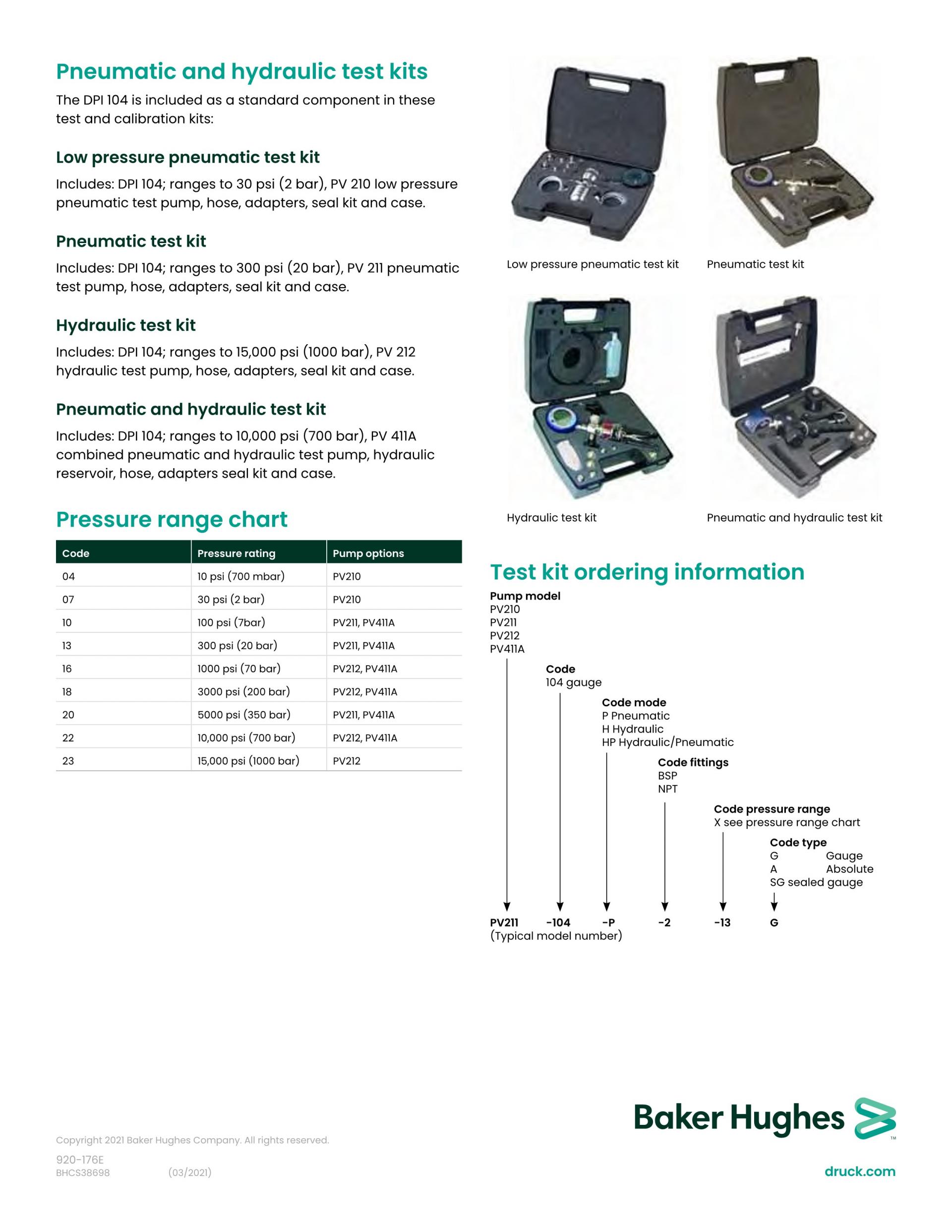

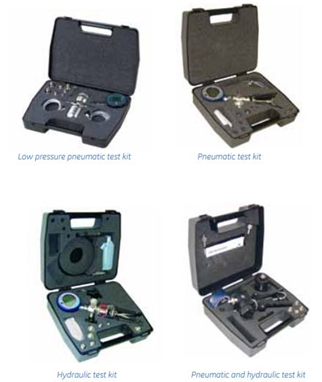

제품특징 | 1. 압력 범위 2. 압력 단위 kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg 3. 샘플링 속도 2 Hz, 500 ms, 초당 2번 . 4. Pneumatic and Hydraulic Test Kits 단독으로 공급이 가능하지만, 압력 범위가 다양하여 핸드드펌프와의 조합으로 test kit set로 구성이 가능하며 여러 압력 측정 어플리케이션에 경제적인 솔루션을 제공합니다. |
기타 | 상세 정보 블로그에서 더 보기 : https://blog.naver.com/geniuss7179/222142316912 |

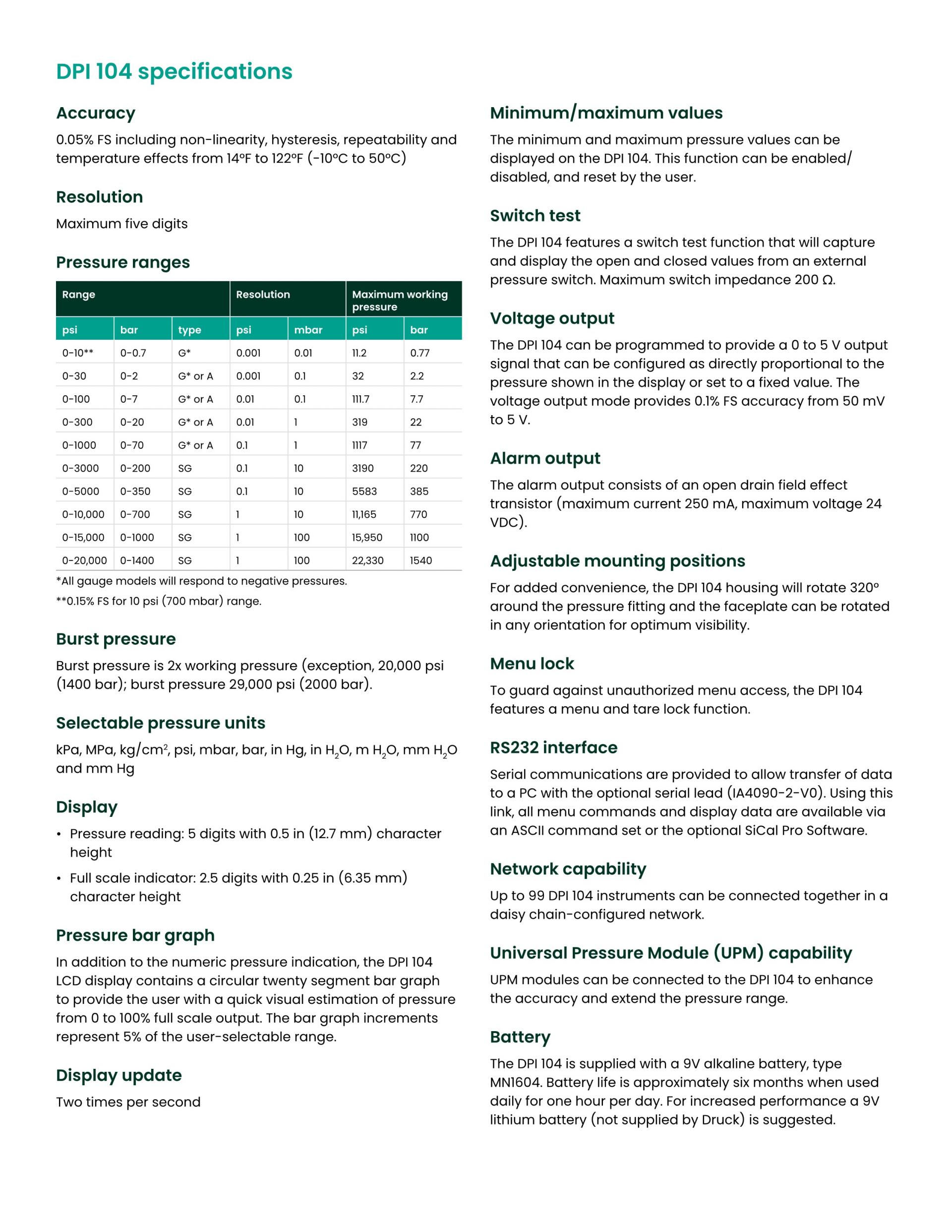

Accuracy
0.05% FS including non-linearity, hysteresis, repeatability, and temperature effects from 14°F to 122°F (-10°C to 50°C)
Burst Pressure
Burst pressure is 2x working pressure (exception, 20,000 psi (1,400 bar); burst pressure 29,000 psi (2,000 bar).
Selectable Pressure Units
kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg
Display
Pressure reading: 5 digits with 0.5 in (12.7 mm character height
Full-scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height.
Pressure Bar Graph
In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular twenty segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100% full-scale output. The bar graph increments represent 5% of the user-selectable range.
Minimum/Maximum Values
The minimum and maximum pressure values can be displayed on the DPI 104. This function can be enabled/disabled, and reset by the user.
Switch Test
The DPI 104 features a switch test function that will capture and display the open and closed values from an external pressure switch. Maximum switch impedance 200 Ω.
Voltage Output
The DPI 104 can be programmed to provide a 0 to 5 V output signal that can be configured as directly proportional to the pressure shown in the display or set to a fixed value. The voltage output mode provides 0.1% FS accuracy from 50 mV to 5 V.
Alarm Output
The alarm output consists of an open drain field-effect transistor (maximum current 250 mA, maximum voltage 24 VDC)
Adjustable Mounting Positions
For added convenience, the DPI 104 housing will rotate 320° around the pressure fitting and the faceplate can be rotated in any orientation for optimum visibility.
Menu Lock
To guard against unauthorized menu access, the DPI 104 features a menu and tare lock function
가격이 궁금하신가요?
더 많은 자료는?
드럭 ・ DRUCK
DPI104
디지털 압력게이지 (0.05%)
DPI104 Digital test gauge
메이커 | DRUCK |
제품명 | DPI104 |
제품설명 | 디지털 압력계 Digital Test Gauge |
주요특징 | - 압력범위 : 700 mbar to 1,400 bar (10 psi to 20,000 psi) - 정확도 : 0.05%FS Temperature compensated from -10 to 50°C - 11가지 압력단위 선택 가능 - 5 자릿수의 디스플레이 - Stainless & Inconel wetted parts for aggressive media - 압력 스위치 테스트, Min/Max, Tare 및 알람 기능 - Handpump kit 사용 가능 - 소형의 견고한 장비 외관 |
제품소개 | DPI104는 작고 단단하며, 기능성과 정밀도가 뛰어난 Druck사의 silicon sensor 기술력이 바탕이 된 다목적 정밀 디지털 게이지 입니다. |
제품특징 | 1. 압력 범위 2. 압력 단위 kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg 3. 샘플링 속도 2 Hz, 500 ms, 초당 2번 . 4. Pneumatic and Hydraulic Test Kits 단독으로 공급이 가능하지만, 압력 범위가 다양하여 핸드드펌프와의 조합으로 test kit set로 구성이 가능하며 여러 압력 측정 어플리케이션에 경제적인 솔루션을 제공합니다. |
기타 | 상세 정보 블로그에서 더 보기 : https://blog.naver.com/geniuss7179/222142316912 |
Accuracy
0.05% FS including non-linearity, hysteresis, repeatability, and temperature effects from 14°F to 122°F (-10°C to 50°C)
Burst Pressure
Burst pressure is 2x working pressure (exception, 20,000 psi (1,400 bar); burst pressure 29,000 psi (2,000 bar).
Selectable Pressure Units
kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg
Display
Pressure reading: 5 digits with 0.5 in (12.7 mm character height
Full-scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height.
Pressure Bar Graph
In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular twenty segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100% full-scale output. The bar graph increments represent 5% of the user-selectable range.
Minimum/Maximum Values
The minimum and maximum pressure values can be displayed on the DPI 104. This function can be enabled/disabled, and reset by the user.
Switch Test
The DPI 104 features a switch test function that will capture and display the open and closed values from an external pressure switch. Maximum switch impedance 200 Ω.
Voltage Output
The DPI 104 can be programmed to provide a 0 to 5 V output signal that can be configured as directly proportional to the pressure shown in the display or set to a fixed value. The voltage output mode provides 0.1% FS accuracy from 50 mV to 5 V.
Alarm Output
The alarm output consists of an open drain field-effect transistor (maximum current 250 mA, maximum voltage 24 VDC)
Adjustable Mounting Positions
For added convenience, the DPI 104 housing will rotate 320° around the pressure fitting and the faceplate can be rotated in any orientation for optimum visibility.
Menu Lock
To guard against unauthorized menu access, the DPI 104 features a menu and tare lock function
