■ 소개

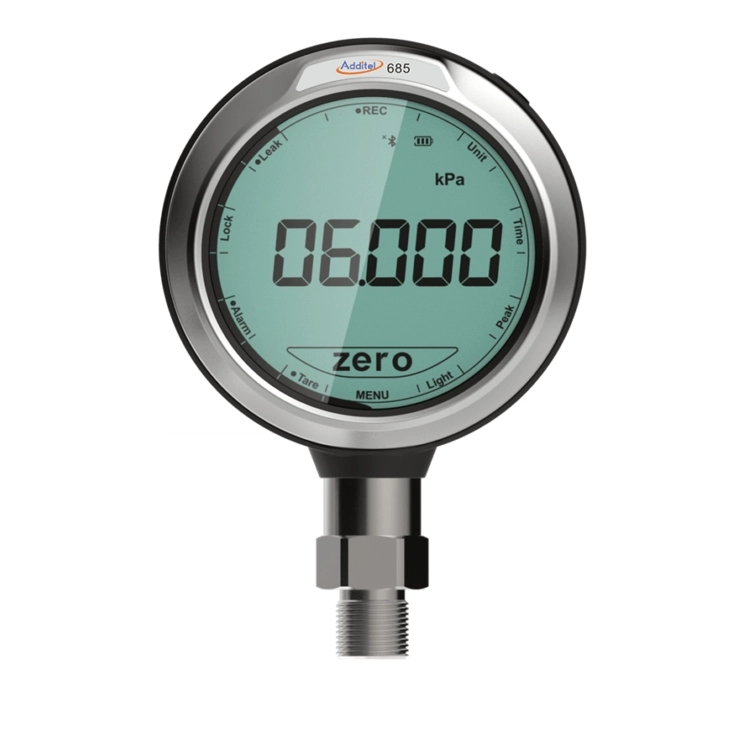

높은 신뢰성과 내구성, 고급형 디지털 압력 게이지
Additel Link 모바일 앱으로 원격 모니터링 및 제어
■ 사양
- 100% 진공~60,000psi (4,200bar)
- 0.02%, 0.05%, 0.1%, 0.2%FS, 0.1%RD
- 기압계 내장 (정확도 50Pa)
- 게이지압-절대압 간 전환 용이
- 온도보상 능력
- 흑백 터치스크린
- 11개의 압력 단위 (카탈로그 참조)
- 5 디지트 디스플레이
- 초과 압력시 디스플레이 경고 (<120%)
- IP67 방진, 방수등급 적용
■ 통신
블루투스, USB (C 타입)
■ 옵션
데이터 로깅
(압력, 온도, 날짜 기록 데이터 10,000,000건 저장)
RS-232
[ADT685 전용 옵션]
4-20mA 아날로그 출력
RS-485
■ ADT685Ex 방폭 인증모델
ATEX Intrinsically Safe 방폭 인증
최고 위험지역 Zone 0에서도 안전 보호
■ 품질 보증기간
1년
Specifications
Model | ADT685 | ADT685Ex |
Description | Digital Pressure Gauge | Intrinsically Safe Digital Pressure Gauge |
Intrinsic Safety & European Compliance | CE | CE marked, ATEX certified intrinsically safe, II 1G EX ia IIC T4 Ga |
Accuracy (For detailed accuracy, please see pressure range table) | 685(Ex)-02 : 0.02% of full span | |
685(Ex)-05 : 0.05% of full span | ||
685(Ex)-RD: 0% to 20% of Range: 0.02% of full span, 20% to 110% of Range: 0.1% of reading, Vacuum: 0.25% of full span [1][2] | ||
Barometric Accuracy (Built-in barometer) | 55Pa | |
Gauge Types | Gauge pressure, compound pressure, absolute pressure, differential pressure and barometric pressure | |
Display | Touch screen (3.4'' FSTN segment capacitive) - 5 1/2 full digits | |
Screen protector: tempered glass film (replaceable) | ||
Display rate: 3 readings per second (default setting). Adjustable from 10 readings per second to 1 reading every 20 seconds | ||
Pressure Units | Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O, mmH2O, inHg, mmHg and 3 customized unit | |
Environmental | Compensated Temperature: 14°F to 122°F (-10°C to 50°C) | |
Operating Temperature: 14°F to 122°F (-10°C to 50°C) | ||
Storage Temperature: -4°F to 158°F (-20°C to 70°C) | ||
Humidity: 0 - 95%, Non-condensing | ||
Pressure Port | ≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male | |
>15,000 psi: 1/4HP female or 1/4HP male, *1/4HP female: Autoclave F-250-C, 9/16" - 18 UNF-2B, *1/4HP male: Autoclave M-250-C, 9/16" - 18 UNF-2A | ||
Differential Pressure: Barb fitting | ||
Other connections available per request | ||
Power [5] | Battery: Three AA alkaline batteries (included) | |
Battery life: 1500 hours typical | ||
Power auto-off: user selectable | ||
External power: 110/220 V adapter (5 VDC) (optional, excl ADT685Ex) | ||
Enclosure | Case material: 304 SS | |
Wetted parts: 316 SS[3] | ||
Dimensions: 4.65" (118mm) width X 1.77" (42mm) depth X 7.01" (178mm) height | ||
Weight: 1.50 lbs. (0.68 kg) | ||
Compliance | Protection Level: IP67 | |
Vibration: 5 g (10-500 Hz) | ||
Shock Resistance: 8 g/11 ms | ||
CE | ||
Data Logging (Available on with data logging tion ADT685-...-DL) | Data storage: 10,000,000 records | |
Rate: user selectable from 0.1 to 9999.9 second intervals | ||
Communication | USB Type-C and Bluetooth included RS-232 or RS-485 [4] (optional) | |
4 - 20 mA Output[4] | 3.2 μA | |
Warranty | 1 year | |
[1] FS = -14.5 psi | ||
[2] Applicable ADT685-RD-CPX | ||
[3] Wetted parts material types may vary by pressure range. Please refer to manual or contact Additel for more information. | ||
[4] 4-20mA output and RS-485 not available in ADT685Ex models. | ||
[5] External power required when using the 4-20mA option |
Gauge Pressure [1]
P/N | Pressure Range | Media [2] | Accuracy | Burst Pressure | ||
(psi) | (bar) | %FS | %RD | |||
V15 | -15 | -1 | G | 0.02 (0.05) | N/A | 3× |
GP2 | 2 | 0.16 | G, L | 0.05 | N/A | 3× |
GP5 | 5 | 0.35 | G, L | 0.05 | 0.1 | 3× |
GP10 | 10 | 0.7 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP15 | 15 | 1 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP30 | 30 | 2 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP50 | 50 | 3.5 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP100 | 100 | 7 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP150 | 150 | 10 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP300 | 300 | 20 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP500 | 500 | 35 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP600 | 600 | 40 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP1K | 1000 | 70 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP1.5K | 1500 | 100 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP2K | 2000 | 140 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP3K | 3000 | 200 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP5K | 5000 | 350 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP10K | 10000 | 700 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP15K | 15000 | 1000 | G, L | 0.05 (0.1) | 0.1 | 1.5× |
GP20K | 20000 | 1400 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP25K | 25000 | 1600 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP30K | 30000 | 2000 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP36K | 36000 | 2500 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP40K | 40000 | 2800 | G, L | 0.05 (0.1) | N/A | 1.35× |
GP50K | 50000 | 3500 | G, L | 0.1 (0.2) | N/A | 1.2× |
GP60K | 60000 | 4200 | G, L | 0.1 (0.2) | N/A | 1.1× |
[1] Sealed gauge pressure for above 1,000 psi | ||||||
[2] G=Gas, L=Liquid | ||||||
[3] 0.02% FS for gas media only |
Barometric Pressure
P/N | Pressure Range | Media | Accuracy | Burst Pressure | |
Low | High | ||||
BP | 60 kPa | 110 kPa | G | 40 Pa | 3× |
Absolute Pressure
P/N | Pressure Range | Media [1] | Accuracy (%FS) | Burst Pressure | |
(psi) | (bar) | ||||
AP5 | 5 | 0.35 | G, L | 0.1 | 3× |
AP10 | 10 | 0.7 | G, L | 0.1 | 3× |
AP15 | 15 | 1 | G, L | 0.1 | 3× |
AP30 | 30 | 2 | G, L | 0.1 | 3× |
AP50 | 50 | 3.5 | G, L | 0.1 | 3× |
AP100 | 100 | 7 | G, L | 0.05 (0.1) | 3× |
AP300 | 300 | 20 | G, L | 0.05 (0.1) | 3× |
AP500 | 500 | 35 | G, L | 0.05 (0.1) | 3× |
AP1K | 1000 | 70 | G, L | 0.05 (0.1) | 3× |
AP3K | 3000 | 200 | G, L | 0.05 (0.1) | 3× |
AP5K | 5000 | 350 | G, L | 0.05 (0.1) | 3× |
[1] G=Gas, L=Liquid |
Differential Pressure
P/N | Pressure Range | Media | Accuracy (%FS) [1] | Burst Pressure | Static Pressure Range | |
(inH2O) | (mbar) | |||||
DP1 | ±1 | ±2.5 | G | 0.05[2] | 100× | ±10 psi |
DP2 | ±2 | ±5.0 | G | 0.05[2] | 100× | ±10 psi |
DP5 | ±5 | ±10 | G | 0.05[2] | 50× | ±10 psi |
DP10 | ±10 | ±25 | G | 0.05[2] | 20× | ±10 psi |
DP20 | ±20 | ±50 | G | 0.05 | 20× | ±10 psi |
DP30 | ±30 | ±75 | G | 0.05 | 20× | ±10 psi |
DP50 | ±50 | ±125 | G | 0.05 | 3× | ±10 psi |
DP100 | ±100 | ±250 | G | 0.02 | 3× | ±15 psi |
DP150 | ±150 | ±350 | G | 0.02 | 3× | 50 psi |
DP300 | ±300 | ±700 | G | 0.02 | 3× | 50 psi |
Compound Pressure
P/N | Pressure Range | Media [1] | Accuracy | Burst Pressure | ||
(psi) | (bar) | %FS[2] | %RD | |||
CP2 | ±2 | ±0.16 | G | 0.05 | N/A | 3× |
CP5 | ±5 | ±0.35 | G | 0.02 (0.05) | 0.1 | 3× |
CP10 | ±10 | ±0.7 | G | 0.02 (0.05) | 0.1 | 3× |
CP15 | ±15 | ±1 | G | 0.02 (0.05) | 0.1 | 3× |
CP30 | -15 to 30 | -1 to 2 | G | 0.02 (0.05) | 0.1 | 3× |
CP100 | -15 to 100 | -1 to 7 | G, L | 0.02 (0.05) | 0.1 | 3× |
CP300 | -15 to 300 | -1 to 20 | G, L | 0.02 (0.05) | 0.1 | 3× |
CP500 | -15 to 500 | -1 to 35 | G, L | 0.02 (0.05) | 0.1 | 3× |
CP600 | -15 to 600 | -1 to 40 | G, L | 0.02 (0.05) | 0.1 | 3× |
CP1K | -15 to 1000 | -1 to 70 | G, L | 0.02 (0.05) | 0.1 | 3× |
[1] G=Gas, L=Liquid | ||||||
[2] FS specification applies to the span of the range |
Communication Types Supported
Communication Type | ADT685 | ADT685Ex | ADT686 | ADT673 |
RS232 | ○ | ○ | ○ | ○ |
RS485 | ○ | ○ | ||
Wifi | ○ | ○ | ||
USB | ● | ● | ● | ● |
Bluetooth (BLE) | ● | ● | ● | ● |
● Included ○ Optional |
Additel Software Compatability Matrix
Communication Type | ADT685/ADT685Ex | ADT686/ADT673 | ||||||
ACal | LogII | Land | Link | ACal | LogII | Land | Link | |
RS232 | ● | ● | ● | ● | ● | ● | ||
RS485 only for ADT685 | ◐ [2] | ◐ [2] | ◐ [2] | |||||
Wifi | ● | ● | ● | ● [1] | ||||
USB | ● | ● | ● | ● | ● | ● | ||
Bluetooth (BLE) | ● | ● | ||||||
● Supported ◐ Non Ex models only | ||||||||
[1] This configuration requires that the device be connected to ACloud via Wi-Fi to utilize the Additel Link app. | ||||||||
[2] 4-20 mA output and RS-485 not available in ADT685Ex models. |
Accessories Included |
Rubber boot |
AA alkaline battery (3 pcs) |
USB cable type-C |
Hanging strap |
RS-485 Adapter (for RS-485 models only) |
4-20mA cable (for 20MA models only) |
RS-232 Ex adapter (for EX RS-232 models only) |
Silicone tube – 1 meter each (2 pcs for DP models only) |
Manual |
ISO 17025 Accredited Calibration Certificate |
Optional Accessories
Model Number | Description |
9903 | Carrying Case for one digital pressure gauge |
9810 | 110V/220V external power adapter (DC 5V) |
9502 | Additel/Log II real time data logging and graphical software for ADT 685 and ADT 685Ex |
9530-BASIC | Additel/Acal Automated calibration software with asset management, basic version |
9530-NET | Additel/Acal Automated calibration software with asset management, network version, Includes server installation and 1 user license |
9050 | USB to RS232 (DB9/M) Adapter |
9050-EXT | RS 232 (DB9/M) extension cable, 9 feet |
1220610724 | Screen protector kit |
Note: For oil-free applications contact Additel. |

가격이 궁금하신가요?
더 많은 자료는?
■ 소개
높은 신뢰성과 내구성, 고급형 디지털 압력 게이지
Additel Link 모바일 앱으로 원격 모니터링 및 제어
■ 사양
- 100% 진공~60,000psi (4,200bar)
- 0.02%, 0.05%, 0.1%, 0.2%FS, 0.1%RD
- 기압계 내장 (정확도 50Pa)
- 게이지압-절대압 간 전환 용이
- 온도보상 능력
- 흑백 터치스크린
- 11개의 압력 단위 (카탈로그 참조)
- 5 디지트 디스플레이
- 초과 압력시 디스플레이 경고 (<120%)
- IP67 방진, 방수등급 적용
■ 통신
블루투스, USB (C 타입)
■ 옵션
데이터 로깅
(압력, 온도, 날짜 기록 데이터 10,000,000건 저장)
RS-232
[ADT685 전용 옵션]
4-20mA 아날로그 출력
RS-485
■ ADT685Ex 방폭 인증모델
ATEX Intrinsically Safe 방폭 인증
최고 위험지역 Zone 0에서도 안전 보호
■ 품질 보증기간
1년
Specifications
Model | ADT685 | ADT685Ex |
Description | Digital Pressure Gauge | Intrinsically Safe Digital Pressure Gauge |
Intrinsic Safety & European Compliance | CE | CE marked, ATEX certified intrinsically safe, II 1G EX ia IIC T4 Ga |
Accuracy (For detailed accuracy, please see pressure range table) | 685(Ex)-02 : 0.02% of full span | |
685(Ex)-05 : 0.05% of full span | ||
685(Ex)-RD: 0% to 20% of Range: 0.02% of full span, 20% to 110% of Range: 0.1% of reading, Vacuum: 0.25% of full span [1][2] | ||
Barometric Accuracy (Built-in barometer) | 55Pa | |
Gauge Types | Gauge pressure, compound pressure, absolute pressure, differential pressure and barometric pressure | |
Display | Touch screen (3.4'' FSTN segment capacitive) - 5 1/2 full digits | |
Screen protector: tempered glass film (replaceable) | ||
Display rate: 3 readings per second (default setting). Adjustable from 10 readings per second to 1 reading every 20 seconds | ||
Pressure Units | Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O, mmH2O, inHg, mmHg and 3 customized unit | |
Environmental | Compensated Temperature: 14°F to 122°F (-10°C to 50°C) | |
Operating Temperature: 14°F to 122°F (-10°C to 50°C) | ||
Storage Temperature: -4°F to 158°F (-20°C to 70°C) | ||
Humidity: 0 - 95%, Non-condensing | ||
Pressure Port | ≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male | |
>15,000 psi: 1/4HP female or 1/4HP male, *1/4HP female: Autoclave F-250-C, 9/16" - 18 UNF-2B, *1/4HP male: Autoclave M-250-C, 9/16" - 18 UNF-2A | ||
Differential Pressure: Barb fitting | ||
Other connections available per request | ||
Power [5] | Battery: Three AA alkaline batteries (included) | |
Battery life: 1500 hours typical | ||
Power auto-off: user selectable | ||
External power: 110/220 V adapter (5 VDC) (optional, excl ADT685Ex) | ||
Enclosure | Case material: 304 SS | |
Wetted parts: 316 SS[3] | ||
Dimensions: 4.65" (118mm) width X 1.77" (42mm) depth X 7.01" (178mm) height | ||
Weight: 1.50 lbs. (0.68 kg) | ||
Compliance | Protection Level: IP67 | |
Vibration: 5 g (10-500 Hz) | ||
Shock Resistance: 8 g/11 ms | ||
CE | ||
Data Logging (Available on with data logging tion ADT685-...-DL) | Data storage: 10,000,000 records | |
Rate: user selectable from 0.1 to 9999.9 second intervals | ||
Communication | USB Type-C and Bluetooth included RS-232 or RS-485 [4] (optional) | |
4 - 20 mA Output[4] | 3.2 μA | |
Warranty | 1 year | |
[1] FS = -14.5 psi | ||
[2] Applicable ADT685-RD-CPX | ||
[3] Wetted parts material types may vary by pressure range. Please refer to manual or contact Additel for more information. | ||
[4] 4-20mA output and RS-485 not available in ADT685Ex models. | ||
[5] External power required when using the 4-20mA option |
Gauge Pressure [1]
P/N | Pressure Range | Media [2] | Accuracy | Burst Pressure | ||
(psi) | (bar) | %FS | %RD | |||
V15 | -15 | -1 | G | 0.02 (0.05) | N/A | 3× |
GP2 | 2 | 0.16 | G, L | 0.05 | N/A | 3× |
GP5 | 5 | 0.35 | G, L | 0.05 | 0.1 | 3× |
GP10 | 10 | 0.7 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP15 | 15 | 1 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP30 | 30 | 2 | G, L[3] | 0.02 (0.05) | 0.1 | 3× |
GP50 | 50 | 3.5 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP100 | 100 | 7 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP150 | 150 | 10 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP300 | 300 | 20 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP500 | 500 | 35 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP600 | 600 | 40 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP1K | 1000 | 70 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP1.5K | 1500 | 100 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP2K | 2000 | 140 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP3K | 3000 | 200 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP5K | 5000 | 350 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP10K | 10000 | 700 | G, L | 0.02 (0.05) | 0.1 | 3× |
GP15K | 15000 | 1000 | G, L | 0.05 (0.1) | 0.1 | 1.5× |
GP20K | 20000 | 1400 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP25K | 25000 | 1600 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP30K | 30000 | 2000 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP36K | 36000 | 2500 | G, L | 0.05 (0.1) | N/A | 1.5× |
GP40K | 40000 | 2800 | G, L | 0.05 (0.1) | N/A | 1.35× |
GP50K | 50000 | 3500 | G, L | 0.1 (0.2) | N/A | 1.2× |
GP60K | 60000 | 4200 | G, L | 0.1 (0.2) | N/A | 1.1× |
[1] Sealed gauge pressure for above 1,000 psi | ||||||
[2] G=Gas, L=Liquid | ||||||
[3] 0.02% FS for gas media only |
Barometric Pressure
P/N | Pressure Range | Media | Accuracy | Burst Pressure | |
Low | High | ||||
BP | 60 kPa | 110 kPa | G | 40 Pa | 3× |
Absolute Pressure
P/N | Pressure Range | Media [1] | Accuracy (%FS) | Burst Pressure | |
(psi) | (bar) | ||||
AP5 | 5 | 0.35 | G, L | 0.1 | 3× |
AP10 | 10 | 0.7 | G, L | 0.1 | 3× |
AP15 | 15 | 1 | G, L | 0.1 | 3× |
AP30 | 30 | 2 | G, L | 0.1 | 3× |
AP50 | 50 | 3.5 | G, L | 0.1 | 3× |
AP100 | 100 | 7 | G, L | 0.05 (0.1) | 3× |
