YOKOGAWA 2011 ~ 2053 휴대용 지시계
가격문의(상세정보 참조)
| Model code | Alternative model |
| 205103, 205105, 205106, 205114, 205118, 205119, 205120, 205202, 205203, 205204, 205205, 205206, 205207, 205301, 205302 | TY520 |
| 205104, 205115, 205116, 205303 | WT310EH |
| 205101, 205102, 205112, 205201 | N/A |

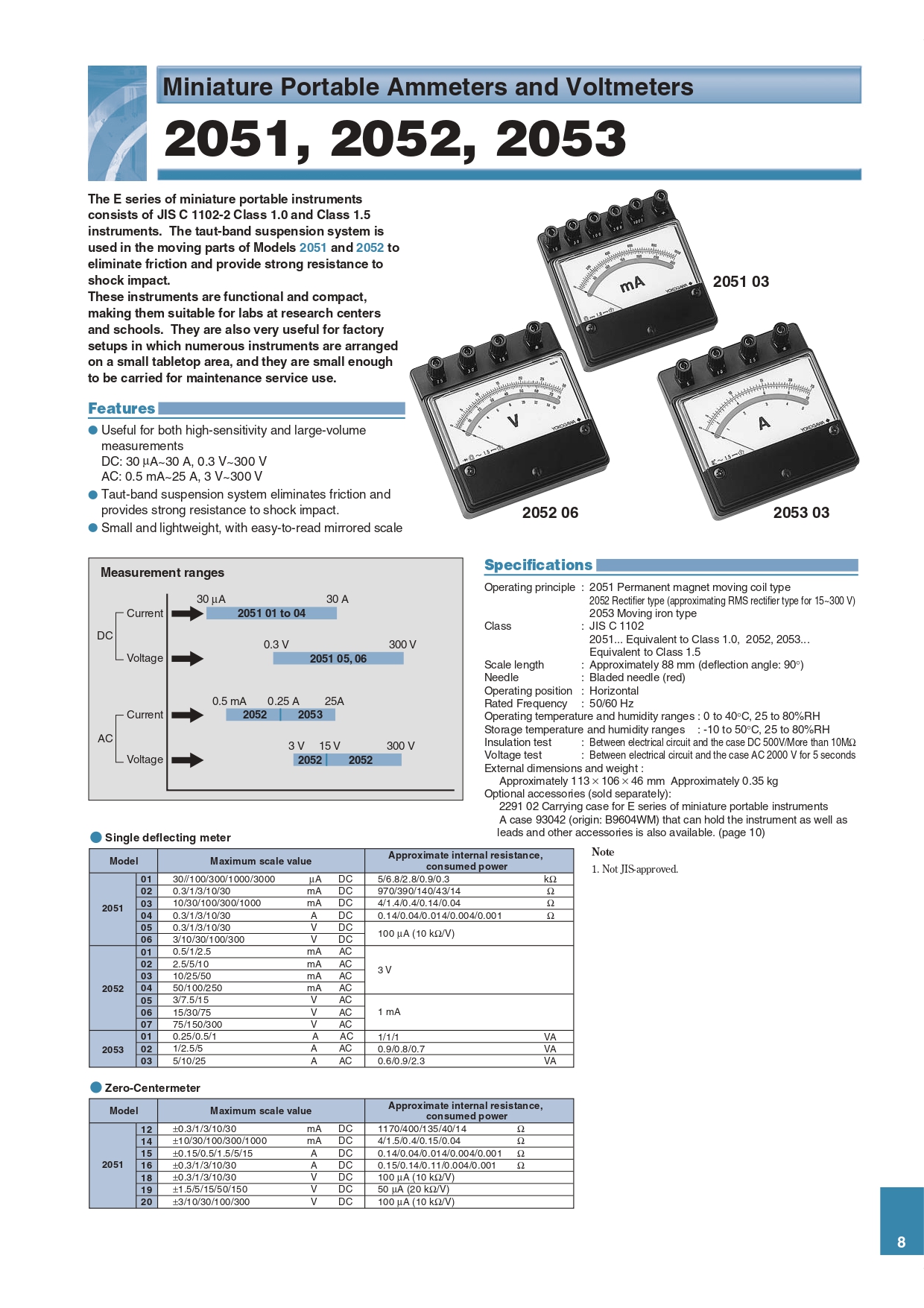

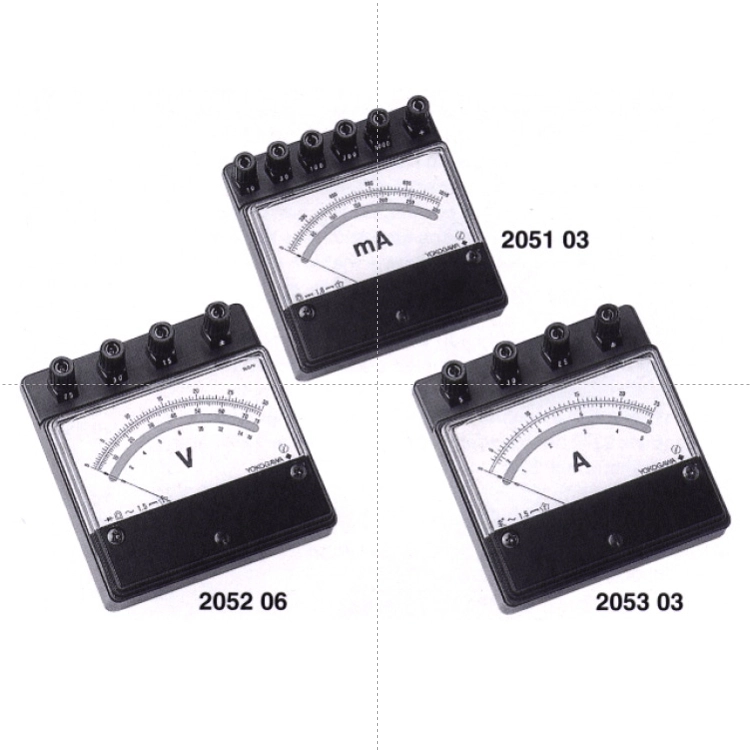

The E series of miniature portable ammeters & voltmeters consist of JIS C 1102-2 Class 1.0 and Class 1.5 instruments. The taut-band suspension system is used in the moving parts of models 2051 and 2052 to eliminate friction and provide strong resistance to shock impact.
These instruments are functional and compact, making them suitable for labs at research centers and schools. They are also very useful for factory setups in which numerous instruments are arranged on a small tabletop area, and they are small enough to be carried for maintenance service use.
클릭 하시면 이동합니다.

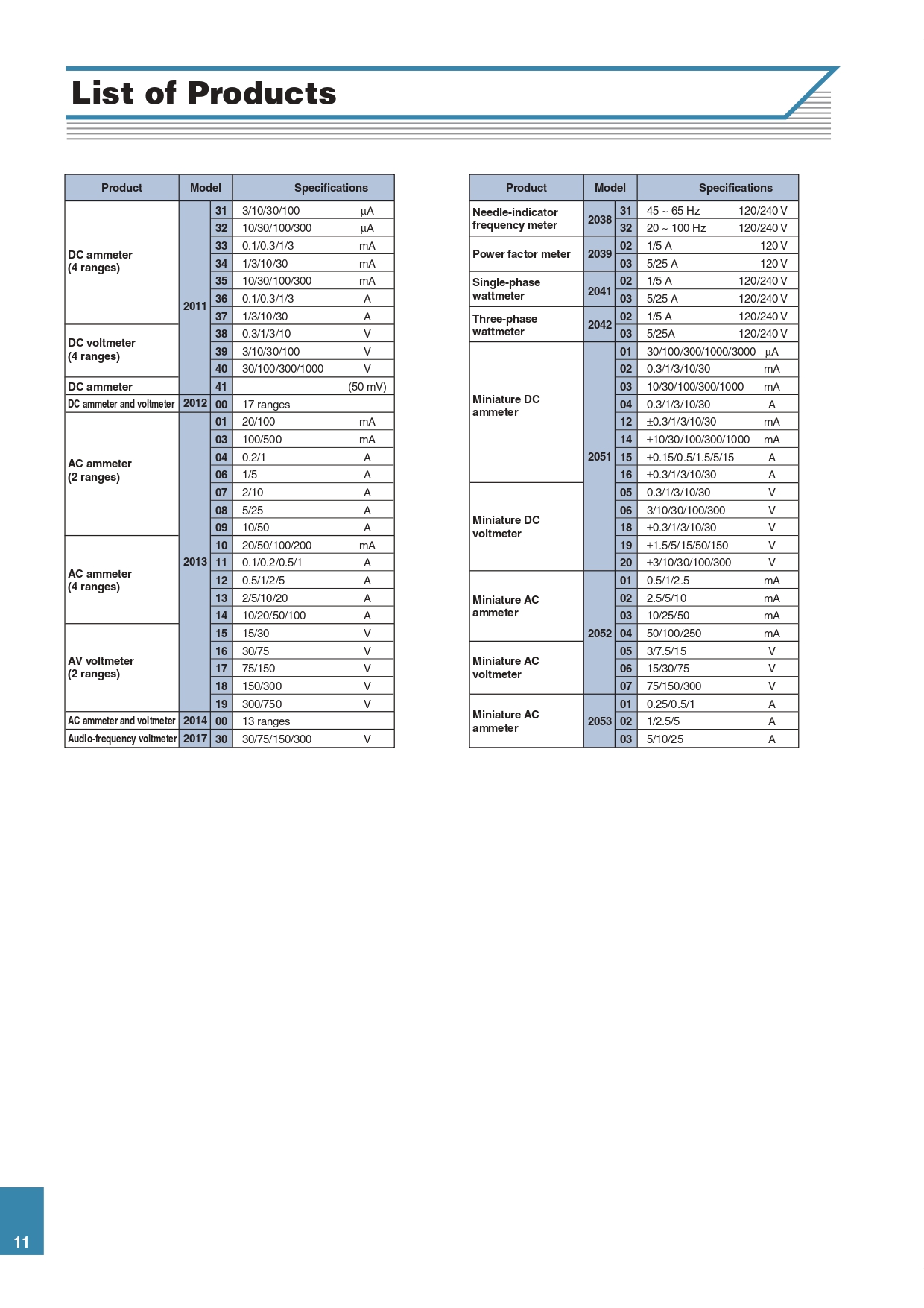

Model Numbers
| Model | Model | Model |
| 2011 31 | 2013 03 | 2013 17 |
| 2011 32 | 2013 04 | 2013 18 |
| 2011 33 | 2013 06 | 2013 19 |
| 2011 34 | 2013 07 | 2014 00 |
| 2011 35 | 2013 08 | 2017 30 |
| 2011 36 | 2013 09 | 2038 31 |
| 2011 37 | 2013 10 | 2038 32 |
| 2011 38 | 2013 11 | 2039 02 |
| 2011 39 | 2013 12 | 2039 03 |
| 2011 40 | 2013 13 | 2041 02 |
| 2011 41 | 2013 14 | 2041 03 |
| 2021 00 | 2013 15 | 2042 02 |
| 2013 01 | 2013 16 | 2042 03 |
| Model | Description |
| 2051 11 | 0.15/0.5/1.5/5/15 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 15 | 0.15/0.5/1.5/5/15 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 03 | 10/30/100/300/1000 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 20 | 3/10/30/100/300 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2053 03 | 5/10/25 A, Moving iron type, JIS C 1102 : 1997 Class 1.5 |
| 2051 13 | 5/15/50/150/500 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 14 | 10/30/100/300/1000 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 12 | 0.3/1/3/10/30 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 16 | 0.3/1/3/10/30 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2052 07 | 75/150/300 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2053 01 | 0.25/0.5/1 A AC, Moving iron type, JIS C 1102 : 1997 Class 1.5 |
| 2053 02 | 1/2 5/5 A AC, Moving iron type, JIS C 1102 : 1997 Class 1.5 |
| 2052 02 | 2.5/5/10 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 01 | 0.5/1/2.5 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 06 | 15/30/75 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 04 | 50/100/250 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2051 04 | 0.3/1/3/10/30 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 02 | 0.3/1/3/10/30 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 05 | 0.3/1/3/10/30 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 06 | 3/10/30/100/300 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 17 | 0.15/0.5/1.5/5/15 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2052 03 | 10/25/50 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 05 | 3/7.5/15 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2051 01 | 30/100/300/1000/3000 V A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 18 | 0.3/1/3/10/30 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 19 | 1.5/5/15/50/150 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
Specifications - Model 2051 01
Max. Scale Value | 30/100/300/1000/3000 µA DC |
| Approximate Internal Resistance and Consumed Power | 5/6.8/2.8/0.9/0.3 kΩ |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 02
Max. Scale Value | 0.3/1/3/10/30 mA DC |
| Approximate Internal Resistance and Consumed Power | 970/390/140/43/14 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 03
Max. Scale Value | 10/30/100/300/1000 mA DC |
| Approximate Internal Resistance and Consumed Power | 4/1.4/0.4/0.14/0.04 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 04
Max. Scale Value | 0.3/1/3/10/30 A DC |
| Approximate Internal Resistance and Consumed Power | 0.14/0.04/0.014/0.004/0.001 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 05
Max. Scale Value | 0.3/1/3/10/30 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 06
Max. Scale Value | 3/10/30/100/300 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 11
Max. Scale Value | ± 0.15/0.5/1.5/5/15 mA DC |
| Approximate Internal Resistance and Consumed Power | 970/390/140/43/14 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 12
Max. Scale Value | ± 0.3/1/3/10/30 mA DC |
| Approximate Internal Resistance and Consumed Power | 1170/400/135/40/14 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 13
Max. Scale Value | ± 5/15/50/150/500 mA DC |
| Approximate Internal Resistance and Consumed Power | 4/1.4/0.4/0.14/0.04 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 14
Max. Scale Value | ± 10/30/100/300/1000 mA DC |
| Approximate Internal Resistance and Consumed Power | 4/1.5/0.4/0.15/0.04 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 15
Max. Scale Value | ± 0.15/0.5/1.5/5/15 A DC |
| Approximate Internal Resistance and Consumed Power | 0.14/0.04/0.014/0.004/0.001 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 16
Max. Scale Value | ± 0.3/1/3/10/30 A DC |
| Approximate Internal Resistance and Consumed Power | 0.15/0.14/0.11/0.004/0.001 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 17
Max. Scale Value | ± 0.15/0.5/1.5/5/15 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(20kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Specifications - Model 2051 18
Max. Scale Value | ± 0.3/1/3/10/30 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 19
Max. Scale Value | ± 1.5/5/15/50/150 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(20kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 20
Max. Scale Value | ± 3/10/30/100/300 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 01
Max. Scale Value | 0.5/1/2.5 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 02
Max. Scale Value | 2.5/5/10 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 03
Max. Scale Value | 10/25/50 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 04
Max. Scale Value | 50/100/250 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 05
Max. Scale Value | 3/7.5/15 V AC |
| Approximate Internal Resistance and Consumed Power | 1 mA |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 06
Max. Scale Value | 15/30/75 V AC |
| Approximate Internal Resistance and Consumed Power | 1 mA |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 07
Max. Scale Value | 75/150/300 V AC |
| Approximate Internal Resistance and Consumed Power | 1 mA |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2053 01
Max. Scale Value | 0.25/0.5/1 A AC |
| Approximate Internal Resistance and Consumed Power | 1/1/1 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2053 02
Max. Scale Value | 1/2 5/5 A AC |
| Approximate Internal Resistance and Consumed Power | 0.9/0.8/0.7 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2053 03
Max. Scale Value | 5/10/25 A |
| Approximate Internal Resistance and Consumed Power | 0.6/0.9/2.3 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
Model Numbers
| Model | Model | Model |
| 2011 31 | 2013 03 | 2013 17 |
| 2011 32 | 2013 04 | 2013 18 |
| 2011 33 | 2013 06 | 2013 19 |
| 2011 34 | 2013 07 | 2014 00 |
| 2011 35 | 2013 08 | 2017 30 |
| 2011 36 | 2013 09 | 2038 31 |
| 2011 37 | 2013 10 | 2038 32 |
| 2011 38 | 2013 11 | 2039 02 |
| 2011 39 | 2013 12 | 2039 03 |
| 2011 40 | 2013 13 | 2041 02 |
| 2011 41 | 2013 14 | 2041 03 |
| 2021 00 | 2013 15 | 2042 02 |
| 2013 01 | 2013 16 | 2042 03 |
| Model | Description |
| 2051 11 | 0.15/0.5/1.5/5/15 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 15 | 0.15/0.5/1.5/5/15 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 03 | 10/30/100/300/1000 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 20 | 3/10/30/100/300 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2053 03 | 5/10/25 A, Moving iron type, JIS C 1102 : 1997 Class 1.5 |
| 2051 13 | 5/15/50/150/500 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 14 | 10/30/100/300/1000 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 12 | 0.3/1/3/10/30 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 16 | 0.3/1/3/10/30 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2052 07 | 75/150/300 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2053 01 | 0.25/0.5/1 A AC, Moving iron type, JIS C 1102 : 1997 Class 1.5 |
| 2053 02 | 1/2 5/5 A AC, Moving iron type, JIS C 1102 : 1997 Class 1.5 |
| 2052 02 | 2.5/5/10 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 01 | 0.5/1/2.5 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 06 | 15/30/75 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 04 | 50/100/250 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2051 04 | 0.3/1/3/10/30 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 02 | 0.3/1/3/10/30 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 05 | 0.3/1/3/10/30 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 06 | 3/10/30/100/300 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 17 | 0.15/0.5/1.5/5/15 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2052 03 | 10/25/50 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2052 05 | 3/7.5/15 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5 |
| 2051 01 | 30/100/300/1000/3000 V A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 18 | 0.3/1/3/10/30 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
| 2051 19 | 1.5/5/15/50/150 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0 |
Specifications - Model 2051 01
Max. Scale Value | 30/100/300/1000/3000 µA DC |
| Approximate Internal Resistance and Consumed Power | 5/6.8/2.8/0.9/0.3 kΩ |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 02
Max. Scale Value | 0.3/1/3/10/30 mA DC |
| Approximate Internal Resistance and Consumed Power | 970/390/140/43/14 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 03
Max. Scale Value | 10/30/100/300/1000 mA DC |
| Approximate Internal Resistance and Consumed Power | 4/1.4/0.4/0.14/0.04 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 04
Max. Scale Value | 0.3/1/3/10/30 A DC |
| Approximate Internal Resistance and Consumed Power | 0.14/0.04/0.014/0.004/0.001 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 05
Max. Scale Value | 0.3/1/3/10/30 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 06
Max. Scale Value | 3/10/30/100/300 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 11
Max. Scale Value | ± 0.15/0.5/1.5/5/15 mA DC |
| Approximate Internal Resistance and Consumed Power | 970/390/140/43/14 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 12
Max. Scale Value | ± 0.3/1/3/10/30 mA DC |
| Approximate Internal Resistance and Consumed Power | 1170/400/135/40/14 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 13
Max. Scale Value | ± 5/15/50/150/500 mA DC |
| Approximate Internal Resistance and Consumed Power | 4/1.4/0.4/0.14/0.04 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 14
Max. Scale Value | ± 10/30/100/300/1000 mA DC |
| Approximate Internal Resistance and Consumed Power | 4/1.5/0.4/0.15/0.04 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 15
Max. Scale Value | ± 0.15/0.5/1.5/5/15 A DC |
| Approximate Internal Resistance and Consumed Power | 0.14/0.04/0.014/0.004/0.001 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 16
Max. Scale Value | ± 0.3/1/3/10/30 A DC |
| Approximate Internal Resistance and Consumed Power | 0.15/0.14/0.11/0.004/0.001 Ω |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 17
Max. Scale Value | ± 0.15/0.5/1.5/5/15 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(20kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Specifications - Model 2051 18
Max. Scale Value | ± 0.3/1/3/10/30 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 19
Max. Scale Value | ± 1.5/5/15/50/150 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(20kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2051 20
Max. Scale Value | ± 3/10/30/100/300 V DC |
| Approximate Internal Resistance and Consumed Power | 100µA(10kΩ/V) |
| Operating Principle | Permanent magnet moving coil type |
| Class | JIS C 1102: 1997 Class 1.0 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 01
Max. Scale Value | 0.5/1/2.5 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 02
Max. Scale Value | 2.5/5/10 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 03
Max. Scale Value | 10/25/50 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 04
Max. Scale Value | 50/100/250 mA AC |
| Approximate Internal Resistance and Consumed Power | 3 V |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 05
Max. Scale Value | 3/7.5/15 V AC |
| Approximate Internal Resistance and Consumed Power | 1 mA |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 06
Max. Scale Value | 15/30/75 V AC |
| Approximate Internal Resistance and Consumed Power | 1 mA |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2052 07
Max. Scale Value | 75/150/300 V AC |
| Approximate Internal Resistance and Consumed Power | 1 mA |
| Operating Principle | Rectifier type (approximating RMS rectifier type for 15~300V) |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2053 01
Max. Scale Value | 0.25/0.5/1 A AC |
| Approximate Internal Resistance and Consumed Power | 1/1/1 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2053 02
Max. Scale Value | 1/2 5/5 A AC |
| Approximate Internal Resistance and Consumed Power | 0.9/0.8/0.7 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications - Model 2053 03
Max. Scale Value | 5/10/25 A |
| Approximate Internal Resistance and Consumed Power | 0.6/0.9/2.3 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 1.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 90°) |
| Needle | Bladed Needle (red) |
| Linemax | 250V (Ammeters only) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 113 x 106 x 46 mm |
| Approx. External Weight | 0.35 kg |
| Optional Accessories | 2291 02 Carrying case for E series of miniature portable instruments |
| A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available |
Features
- Useful for both high-sensitivity and large-volume measurements
DC: 30µA~30A, 0.3V~300V
AC: 500 µA~25 A, 3V~300V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
