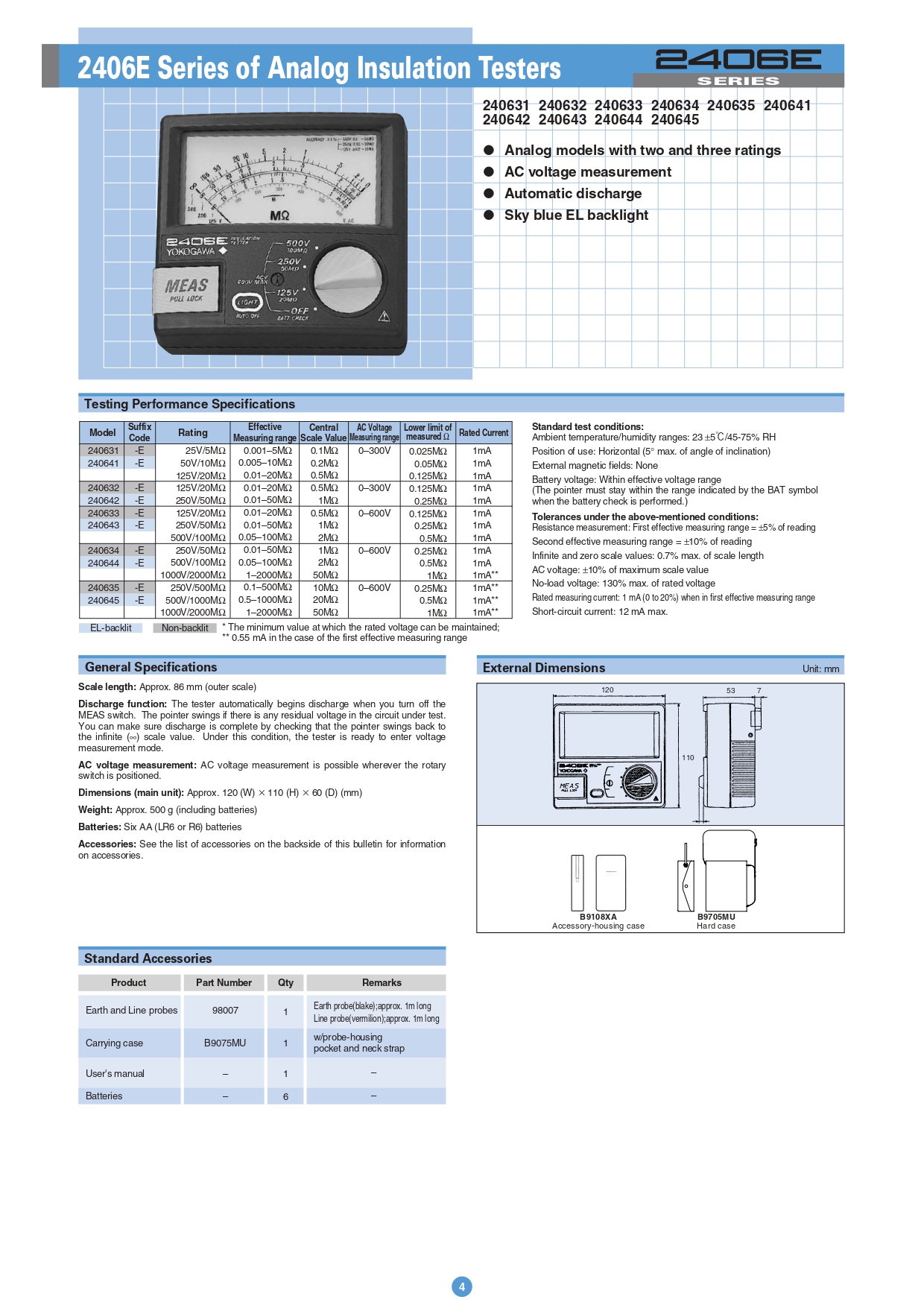

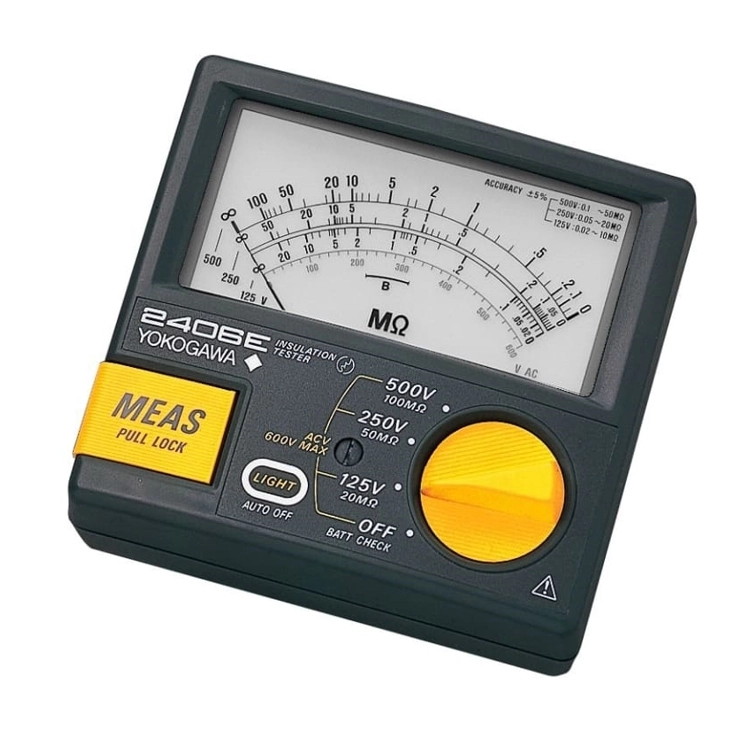

YOKOGAWA 2406E 시리즈 아날로그 절연저항계
가격문의(상세정보 참조)
- Analog models with two and three rating
- AC voltage measurement
- Automatic discharge
- Sky blue EL backlight
- Increased safety (covered battery charger)
상품
원산지 JAPAN
제조사 YOKOGAWA
브랜드 YOKOGAWA
배송
택배 · 기본 무료
클릭 하시면 이동합니다.

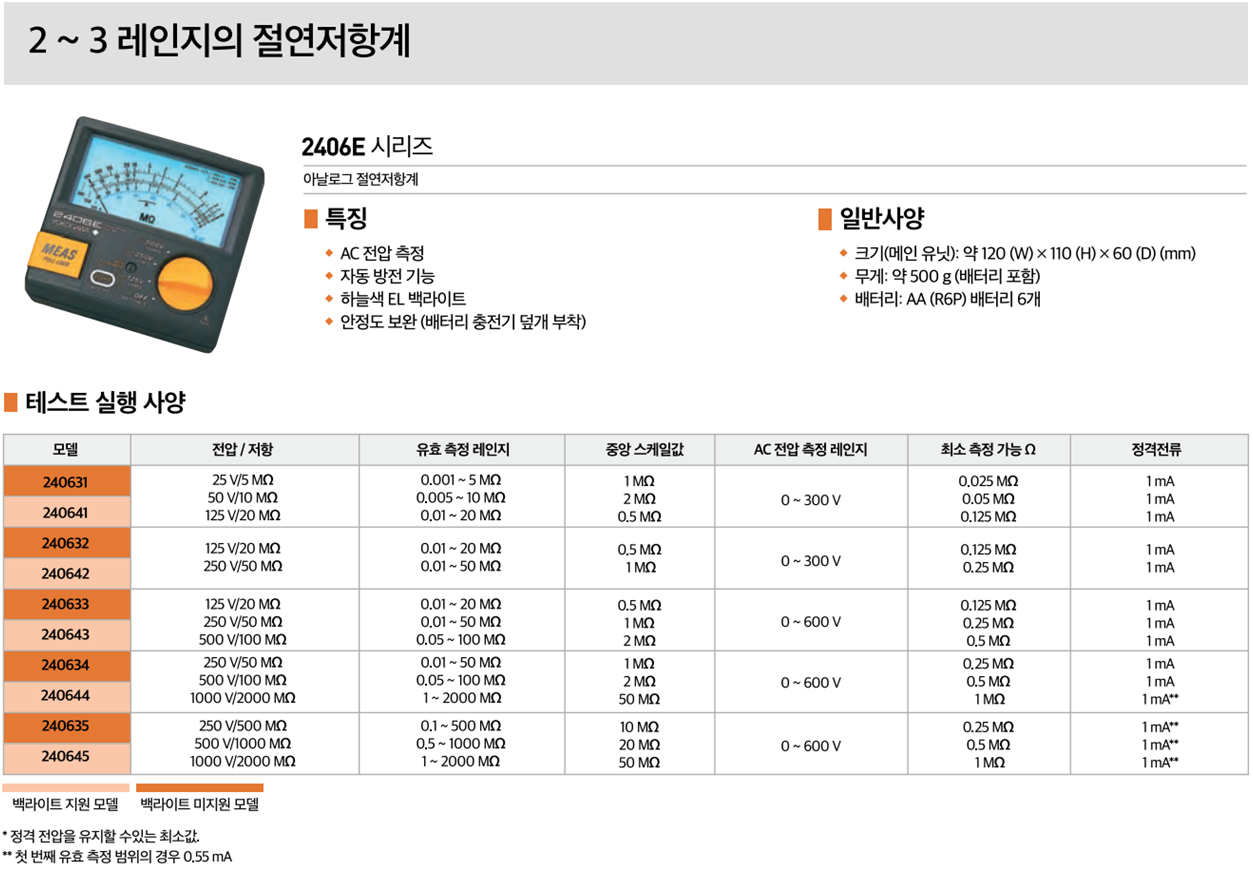

모델번호
| Model | Rating | Effective | Central | AC Voltage | Lower limit of | Rated Current |
| Measuring range | Scale Value | Measuring range | measured Ω*1 | |||
| 240631 | 25 V/5 MΩ | 0.001 to 5 MΩ | 0.1 MΩ | 0 to 300 V | 0.025 MΩ | 1 mA |
| 50 V/10 MΩ | 0.005 to 10 MΩ | 0.2 MΩ | 0.05 MΩ | 1 mA | ||
| 240641 | 125 V/20 MΩ | 0.01 to 20 MΩ | 0.5 MΩ | 0.125 MΩ | 1 mA | |
| 240632 | 125 V/20 MΩ | 0.01 to 20 MΩ | 0.5 MΩ | 0 to 300 V | 0.125 MΩ | 1 mA |
| 240642 | 250 V/50 MΩ | 0.01 to 50 MΩ | 1 MΩ | 0.25 MΩ | 1 mA | |
| 240633 | 125 V/20 MΩ | 0.01 to 20 MΩ | 0.5 MΩ | 0 to 600 V | 0.125 MΩ | 1 mA |
| 250 V/50 MΩ | 0.01 to 50 MΩ | 1 MΩ | 0.25 MΩ | 1 mA | ||
| 240643 | 500 V/100 MΩ | 0.05 to 100 MΩ | 2 MΩ | 0.5 MΩ | 1 mA | |
| 240634 | 250 V/50 MΩ | 0.01 to 50 MΩ | 1 MΩ | 0 to 600 V | 0.25 MΩ | 1 mA |
| 500 V/100 MΩ | 0.05 to 100 MΩ | 2 MΩ | 0.5 MΩ | 1 mA | ||
| 240644 | 1000 V/2000 MΩ | 1 to 2000 MΩ | 50 MΩ | 1 MΩ | 1 mA*2 | |
| 240635 | 250 V/500 MΩ | 0.1 to 500 MΩ | 10 MΩ | 0 to 600 V | 0.25 MΩ | 1 mA*2 |
| 500 V/1000 MΩ | 0.5 to 1000 MΩ | 20 MΩ | 0.5 MΩ | 1 mA*2 | ||
| 240645 | 1000 V/2000 MΩ | 1 to 2000 MΩ | 50 MΩ | 1 MΩ | 1 mA*2 |
| Non-Back-Light | *1 The minimum value at which the rated voltage can be maintained; | |||
| *2 0.55 mA in the case of the first effective measuring range | ||||
Specifications - Model 240631
Rating | 125V/20M~ |
| 25V/5M~ | |
| 50V/10M~ | |
| Effective Measuring Range | 0.001-5M~ |
| 0.005-10M~ | |
| 0.01-20M~ | |
| Central Scale Value | 0.1M~ |
| 0.2M~ | |
| 0.5M~ | |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.025M~ |
| 0.05M~ | |
| 0.125~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |

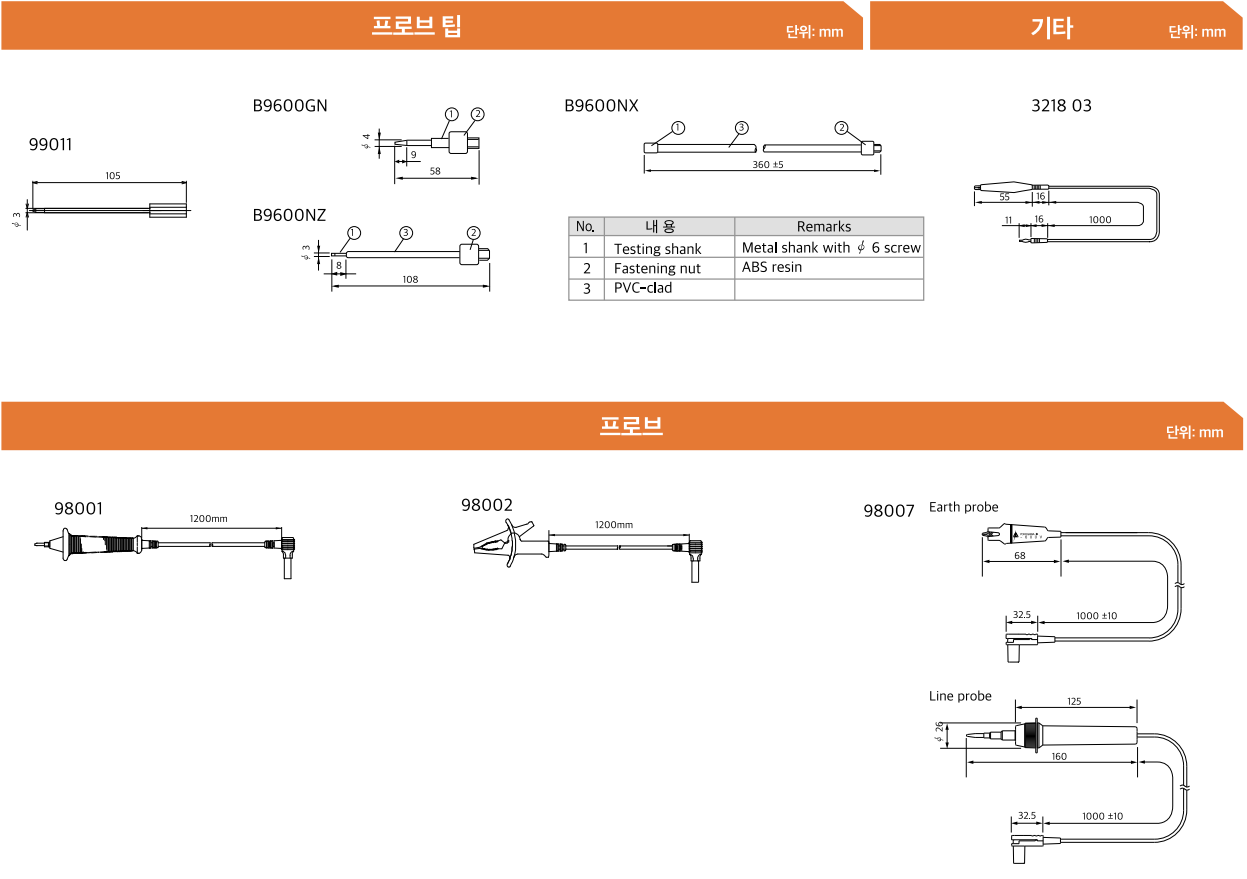

| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240631
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240641
Rating | 125V/20M~ |
| 25V/5M~ | |
| 50V/10M~ | |
| Effective Measuring Range | 0.001-5M~ |
| 0.005-10M~ | |
| 0.01-20M~ | |
| Central Scale Value | 0.1M~ |
| 0.2M~ | |
| 0.5M~ | |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.025M~ |
| 0.05M~ | |
| 0.125~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240641
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240632
Rating | 125V/20M~ |
| Effective Measuring Range | 0.01-20M~ |
| Central Scale Value | 0.5M~ |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.125~ |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Condtions - Model 240632
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240642
Rating | 250V/50M~ |
| Effective Measuring Range | 0.01-50M~ |
| Central Scale Value | 1M~ |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.25~ |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strapㅗ |
Standard Test Conditions - Model 240642
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240633
Rating | 125V/20M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-20M~ |
| 0.01-50M~ | |
| 0.05-100M~ | |
| Central Scale Value | 0.5M~ |
| 1M~ | |
| 2M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.125M~ |
| 0.25M~ | |
| 0.5~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240633
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240343
Rating | 125V/20M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-20M~ |
| 0.01-50M~ | |
| 0.05-100M~ | |
| Central Scale Value | 0.5M~ |
| 1M~ | |
| 2M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.125M~ |
| 0.25M~ | |
| 0.5~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240643
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240634
Rating | 1000V/2000M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-50M~ |
| 0.05-100M~ | |
| 1-2000M~ | |
| Central Scale Value | 1M~ |
| 2M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Condtions - Model 240634
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - 240644
Rating | 1000V/2000M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-50M~ |
| 0.05-100M~ | |
| 1-2000M~ | |
| Central Scale Value | 1M~ |
| 2M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240644
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240635
Rating | 1000V/2000M~ |
| 250V/500M~ | |
| 500V/1000M~ | |
| Effective Measuring Range | 0.1-500M~ |
| 0.5-1000M~ | |
| 1-2000M~ | |
| Central Scale Value | 10M~ |
| 20M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240635
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240645
Rating | 1000V/2000M~ |
| 250V/500M~ | |
| 500V/1000M~ | |
| Effective Measuring Range | 0.1-500M~ |
| 0.5-1000M~ | |
| 1-2000M~ | |
| Central Scale Value | 10M~ |
| 20M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240645
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
가격이 궁금하신가요?
더 많은 자료는?
(주)지니어스허브가 만든 플랫폼 '지니어스인더스트리'는 사업자 간 거래(B2B) 목적의 산업·연구용 계측장비/시스템 유통 플랫폼입니다.
모든 제품은 주문 제작 또는 해외/본사 주문을 통해 공급되고 있으며 실제 현장/시험 환경에서 사용되는 특성상, 장비 개봉, 전원 인가, 설치/시운전, 교정(캘리브레이션) 진행 등으로 제품의 신뢰도와 가치가 달라지기 때문에 일반 소비재와 달리 단순 변심 사유의 반품·환불이 어렵습니다. 다만 초기 제품 하자(동일 모델 대비 명백한 불량, 운송 중 파손, 사양 상이 등)가 확인되는 경우에는 수령 후 [7일 이내] 연락 주시면 점검 후 조치 또는 A/S 절차를 안내해 드리고 있습니다.
단순 변심, 사양 선택 착오, 내부 사정(예: 예산/프로젝트 변경 등)과 같은 구매자 사유로 반품을 요청하시는 경우에는 반품이 제한되며, 예외적으로 협의가 진행될 경우에도 왕복 운송비, 검수 비용, 감가 비용 및 재 입고 수수료 등이 청구될 수 있습니다. 구체적인 거래 조건(납기, A/S 범위, 교환 가능 여부 등)은 발행된 견적서, 발주서 확인 메일, 납품서 등에 명시된 내용을 우선합니다. 기타 도움이 필요한 경우 견적서에 명시된 지니어스 영업부 담당자에게 문의해 주시기 바랍니다.
클릭 하시면 이동합니다.
모델번호
| Model | Rating | Effective | Central | AC Voltage | Lower limit of | Rated Current |
| Measuring range | Scale Value | Measuring range | measured Ω*1 | |||
| 240631 | 25 V/5 MΩ | 0.001 to 5 MΩ | 0.1 MΩ | 0 to 300 V | 0.025 MΩ | 1 mA |
| 50 V/10 MΩ | 0.005 to 10 MΩ | 0.2 MΩ | 0.05 MΩ | 1 mA | ||
| 240641 | 125 V/20 MΩ | 0.01 to 20 MΩ | 0.5 MΩ | 0.125 MΩ | 1 mA | |
| 240632 | 125 V/20 MΩ | 0.01 to 20 MΩ | 0.5 MΩ | 0 to 300 V | 0.125 MΩ | 1 mA |
| 240642 | 250 V/50 MΩ | 0.01 to 50 MΩ | 1 MΩ | 0.25 MΩ | 1 mA | |
| 240633 | 125 V/20 MΩ | 0.01 to 20 MΩ | 0.5 MΩ | 0 to 600 V | 0.125 MΩ | 1 mA |
| 250 V/50 MΩ | 0.01 to 50 MΩ | 1 MΩ | 0.25 MΩ | 1 mA | ||
| 240643 | 500 V/100 MΩ | 0.05 to 100 MΩ | 2 MΩ | 0.5 MΩ | 1 mA | |
| 240634 | 250 V/50 MΩ | 0.01 to 50 MΩ | 1 MΩ | 0 to 600 V | 0.25 MΩ | 1 mA |
| 500 V/100 MΩ | 0.05 to 100 MΩ | 2 MΩ | 0.5 MΩ | 1 mA | ||
| 240644 | 1000 V/2000 MΩ | 1 to 2000 MΩ | 50 MΩ | 1 MΩ | 1 mA*2 | |
| 240635 | 250 V/500 MΩ | 0.1 to 500 MΩ | 10 MΩ | 0 to 600 V | 0.25 MΩ | 1 mA*2 |
| 500 V/1000 MΩ | 0.5 to 1000 MΩ | 20 MΩ | 0.5 MΩ | 1 mA*2 | ||
| 240645 | 1000 V/2000 MΩ | 1 to 2000 MΩ | 50 MΩ | 1 MΩ | 1 mA*2 |
| Non-Back-Light | *1 The minimum value at which the rated voltage can be maintained; | |||
| *2 0.55 mA in the case of the first effective measuring range | ||||
Specifications - Model 240631
Rating | 125V/20M~ |
| 25V/5M~ | |
| 50V/10M~ | |
| Effective Measuring Range | 0.001-5M~ |
| 0.005-10M~ | |
| 0.01-20M~ | |
| Central Scale Value | 0.1M~ |
| 0.2M~ | |
| 0.5M~ | |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.025M~ |
| 0.05M~ | |
| 0.125~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240631
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240641
Rating | 125V/20M~ |
| 25V/5M~ | |
| 50V/10M~ | |
| Effective Measuring Range | 0.001-5M~ |
| 0.005-10M~ | |
| 0.01-20M~ | |
| Central Scale Value | 0.1M~ |
| 0.2M~ | |
| 0.5M~ | |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.025M~ |
| 0.05M~ | |
| 0.125~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240641
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240632
Rating | 125V/20M~ |
| Effective Measuring Range | 0.01-20M~ |
| Central Scale Value | 0.5M~ |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.125~ |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Condtions - Model 240632
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240642
Rating | 250V/50M~ |
| Effective Measuring Range | 0.01-50M~ |
| Central Scale Value | 1M~ |
| AC Voltage Measurement | 0 to 300 V |
| Lower Limit | 0.25~ |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strapㅗ |
Standard Test Conditions - Model 240642
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240633
Rating | 125V/20M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-20M~ |
| 0.01-50M~ | |
| 0.05-100M~ | |
| Central Scale Value | 0.5M~ |
| 1M~ | |
| 2M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.125M~ |
| 0.25M~ | |
| 0.5~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240633
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240343
Rating | 125V/20M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-20M~ |
| 0.01-50M~ | |
| 0.05-100M~ | |
| Central Scale Value | 0.5M~ |
| 1M~ | |
| 2M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.125M~ |
| 0.25M~ | |
| 0.5~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240643
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240634
Rating | 1000V/2000M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-50M~ |
| 0.05-100M~ | |
| 1-2000M~ | |
| Central Scale Value | 1M~ |
| 2M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Condtions - Model 240634
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - 240644
Rating | 1000V/2000M~ |
| 250V/50M~ | |
| 500V/100M~ | |
| Effective Measuring Range | 0.01-50M~ |
| 0.05-100M~ | |
| 1-2000M~ | |
| Central Scale Value | 1M~ |
| 2M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240644
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240635
Rating | 1000V/2000M~ |
| 250V/500M~ | |
| 500V/1000M~ | |
| Effective Measuring Range | 0.1-500M~ |
| 0.5-1000M~ | |
| 1-2000M~ | |
| Central Scale Value | 10M~ |
| 20M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240635
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading | |
| Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
Specifications - Model 240645
Rating | 1000V/2000M~ |
| 250V/500M~ | |
| 500V/1000M~ | |
| Effective Measuring Range | 0.1-500M~ |
| 0.5-1000M~ | |
| 1-2000M~ | |
| Central Scale Value | 10M~ |
| 20M~ | |
| 50M~ | |
| AC Voltage Measurement | 0 to 600 V |
| Lower Limit | 0.25M~ |
| 0.5M~ | |
| 1~ | |
| Rated Current | 1 mA |
| Approx. Outer Scale Length | 88 mm |
| Discharge Function | The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (& |
| Approx. Width | 120 mm |
| Approx. Height | 110 mm |
| Approx. Depth | 60 mm |
| Approx. Weight | 500 g |
| Batteries | Six AA (R6P) batteries |
| Standard Accessories | Batteries (Qty- 6) |
| Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long | |
| Earth probes and Line Probes (98007) (Qty - 1) | |
| User's Manual (Qty - 1)- With probe-housing pocket and neck strap |
Standard Test Conditions - Model 240645
Ambient Temperature/Humidity Ranges | 23 ±5 /45-75% RH |
| Position of Use | Horizontal (5º max. of angle of inclination) |
| External Magnetic Fields | None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.) |
| Tolerance Mentioned Conditions | Resistance measurement: First effective measuring range = ±5% of reading |
| Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length | |
| AC voltage: ±10% of maximum scale value | |
| No-load voltage: 130% max. of rated voltage | |
| Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range | |
| Short-circuit current: 12 mA max. |
가격이 궁금하신가요?
더 많은 자료는?
(주)지니어스허브가 만든 플랫폼 '지니어스인더스트리'는 사업자 간 거래(B2B) 목적의 산업·연구용 계측장비/시스템 유통 플랫폼입니다.
모든 제품은 주문 제작 또는 해외/본사 주문을 통해 공급되고 있으며 실제 현장/시험 환경에서 사용되는 특성상, 장비 개봉, 전원 인가, 설치/시운전, 교정(캘리브레이션) 진행 등으로 제품의 신뢰도와 가치가 달라지기 때문에 일반 소비재와 달리 단순 변심 사유의 반품·환불이 어렵습니다. 다만 초기 제품 하자(동일 모델 대비 명백한 불량, 운송 중 파손, 사양 상이 등)가 확인되는 경우에는 수령 후 [7일 이내] 연락 주시면 점검 후 조치 또는 A/S 절차를 안내해 드리고 있습니다.
단순 변심, 사양 선택 착오, 내부 사정(예: 예산/프로젝트 변경 등)과 같은 구매자 사유로 반품을 요청하시는 경우에는 반품이 제한되며, 예외적으로 협의가 진행될 경우에도 왕복 운송비, 검수 비용, 감가 비용 및 재 입고 수수료 등이 청구될 수 있습니다. 구체적인 거래 조건(납기, A/S 범위, 교환 가능 여부 등)은 발행된 견적서, 발주서 확인 메일, 납품서 등에 명시된 내용을 우선합니다. 기타 도움이 필요한 경우 견적서에 명시된 지니어스 영업부 담당자에게 문의해 주시기 바랍니다.
