Features
- Ideal for OEM Applications
- In both Tension & Compression
- Single Point Construction
- Strain Gauge Based
- 1000 Ohm high resistance bridge
- Available in both Aluminum and Stainless Steel
- Weight: 1.8 oz
클릭 하시면 이동합니다.

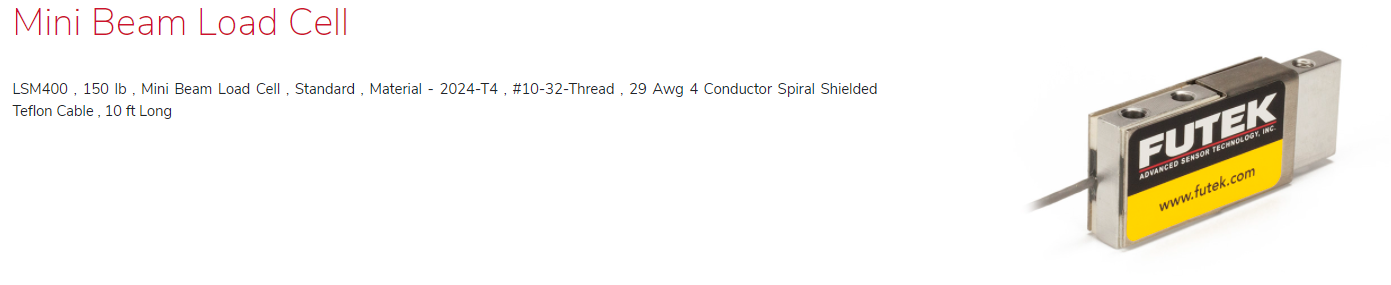

LSM400 , 150 lb , Mini Beam Load Cell , Standard , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
FSH00985
Description
Single Point Load Cell

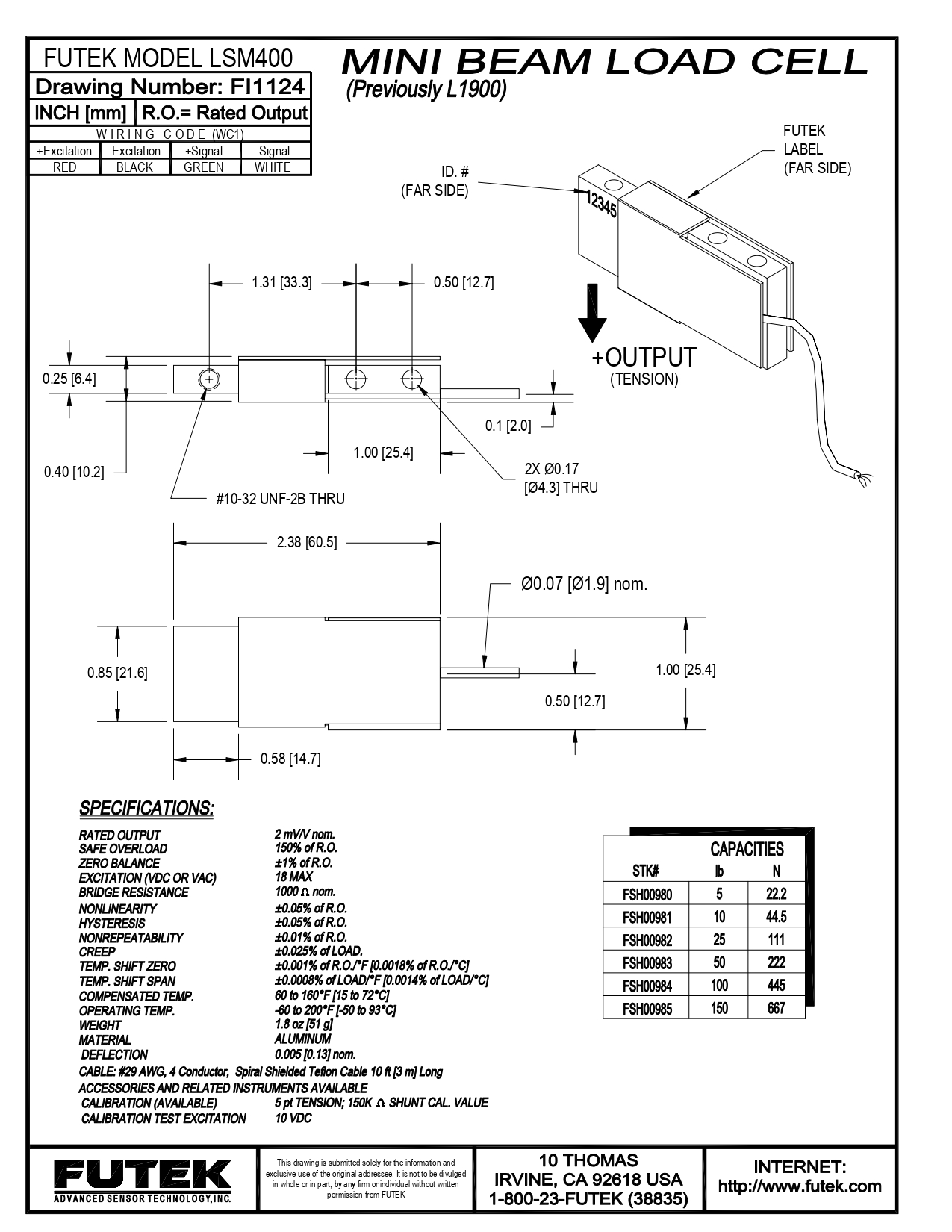

The LSM400 Single Point Load Cell (mini beam) offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression, the Mini Beam Load Cell has a length of 2.38”, width of 0.40” and with a height of 1.00” it is well suited for any tight spaces. The LSM400 Single Point Mini Beam Load Cell is offered in 2024 aluminum (5 – 150 lbs) and it has a 29 AWG 4 conductor shielded Teflon cable (10 ft). Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.
Product Highlights:
- Ideal for OEM Applications
- In both Tension & Compression
- Single Point Construction
- Strain Gauge Based
- 1000 Ohm high resistance bridge
- Available in both Aluminum and Stainless Steel
- Weight: 1.8 oz
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK LSM Series is also available with TEDS / IEEE1451.4 option.
Features
- Ideal for OEM Applications
- In both Tension & Compression
- Single Point Construction
- Strain Gauge Based
- 1000 Ohm high resistance bridge
- Available in both Aluminum and Stainless Steel
- Weight: 1.8 oz

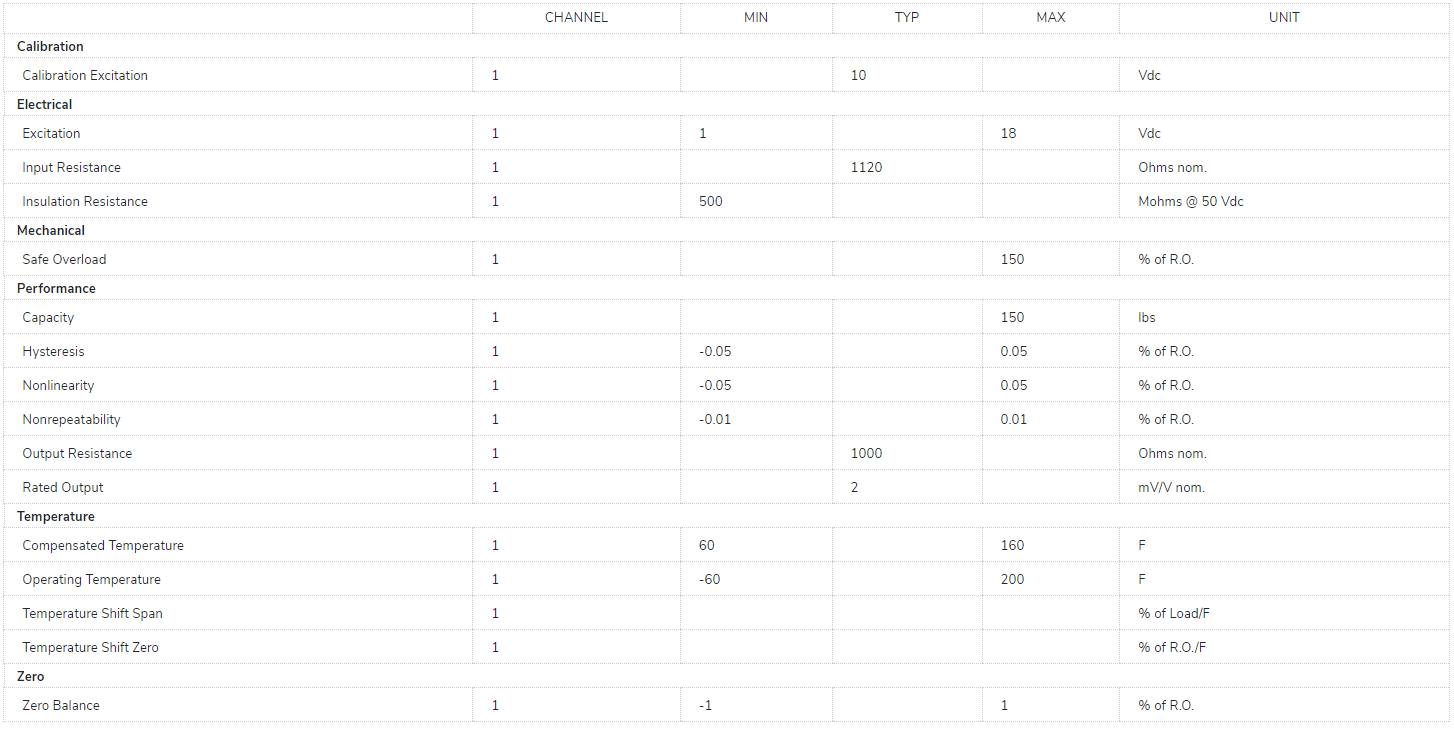

Specifications
가격이 궁금하신가요?
더 많은 자료는?
LSM400 , 150 lb , Mini Beam Load Cell , Standard , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
FSH00985
Description
Single Point Load Cell
The LSM400 Single Point Load Cell (mini beam) offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression, the Mini Beam Load Cell has a length of 2.38”, width of 0.40” and with a height of 1.00” it is well suited for any tight spaces. The LSM400 Single Point Mini Beam Load Cell is offered in 2024 aluminum (5 – 150 lbs) and it has a 29 AWG 4 conductor shielded Teflon cable (10 ft). Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.
Product Highlights:
- Ideal for OEM Applications
- In both Tension & Compression
- Single Point Construction
- Strain Gauge Based
- 1000 Ohm high resistance bridge
- Available in both Aluminum and Stainless Steel
- Weight: 1.8 oz
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK LSM Series is also available with TEDS / IEEE1451.4 option.
Features
- Ideal for OEM Applications
- In both Tension & Compression
- Single Point Construction
- Strain Gauge Based
- 1000 Ohm high resistance bridge
- Available in both Aluminum and Stainless Steel
- Weight: 1.8 oz
Specifications
