그라프텍 ・ GRAPHTEC

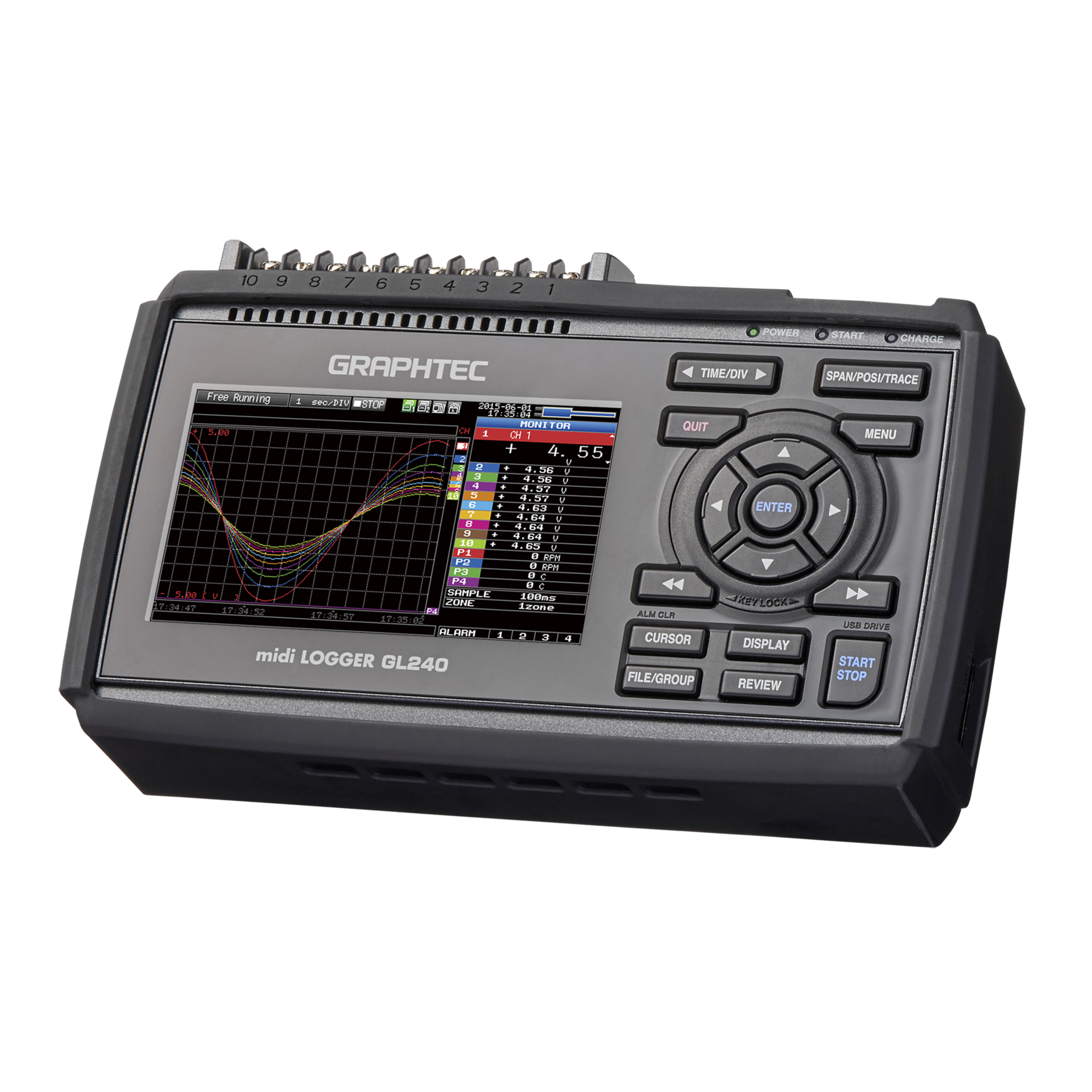

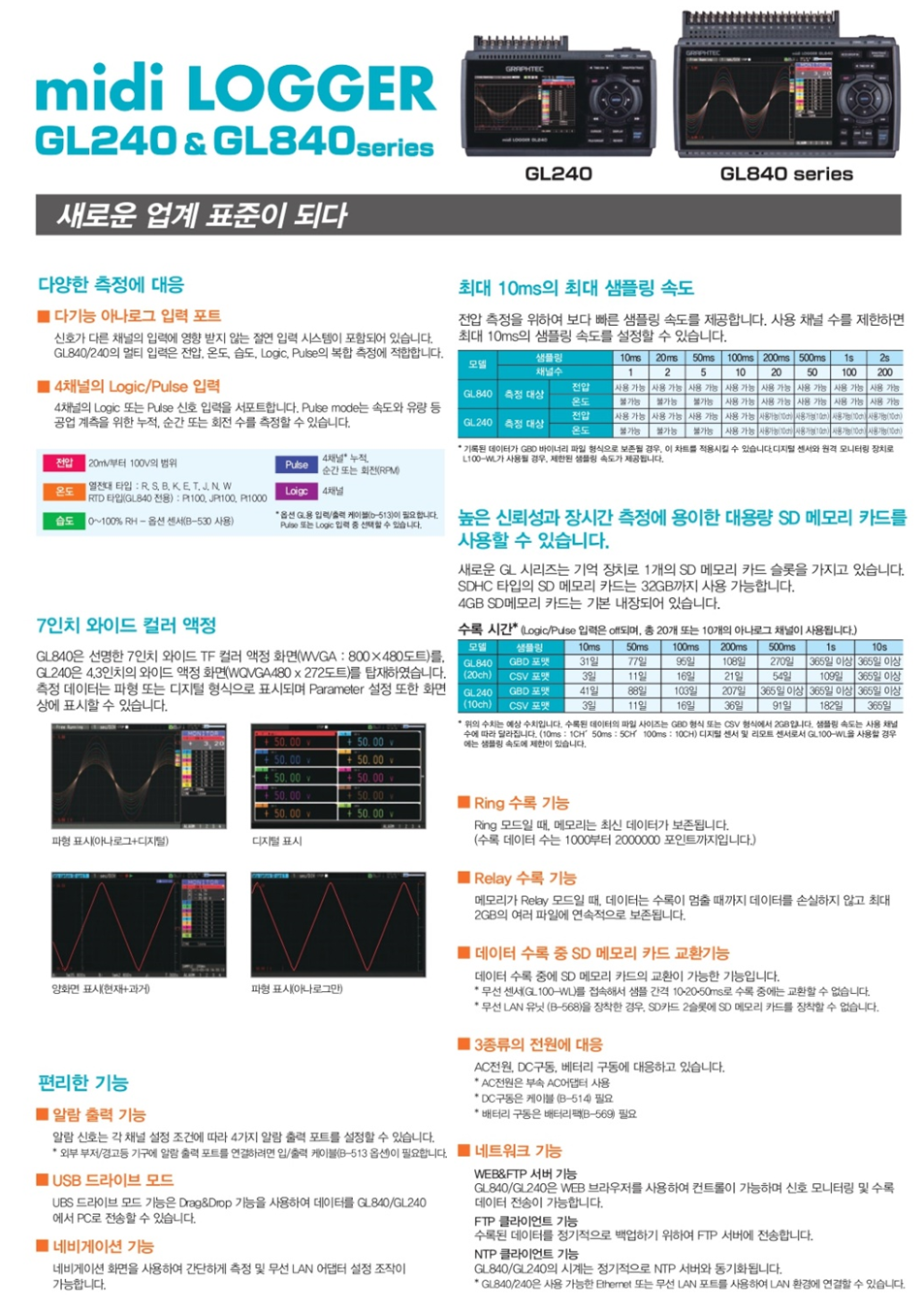

GL240
데이터로거(10ch)
GL240 Data Logger(10ch)

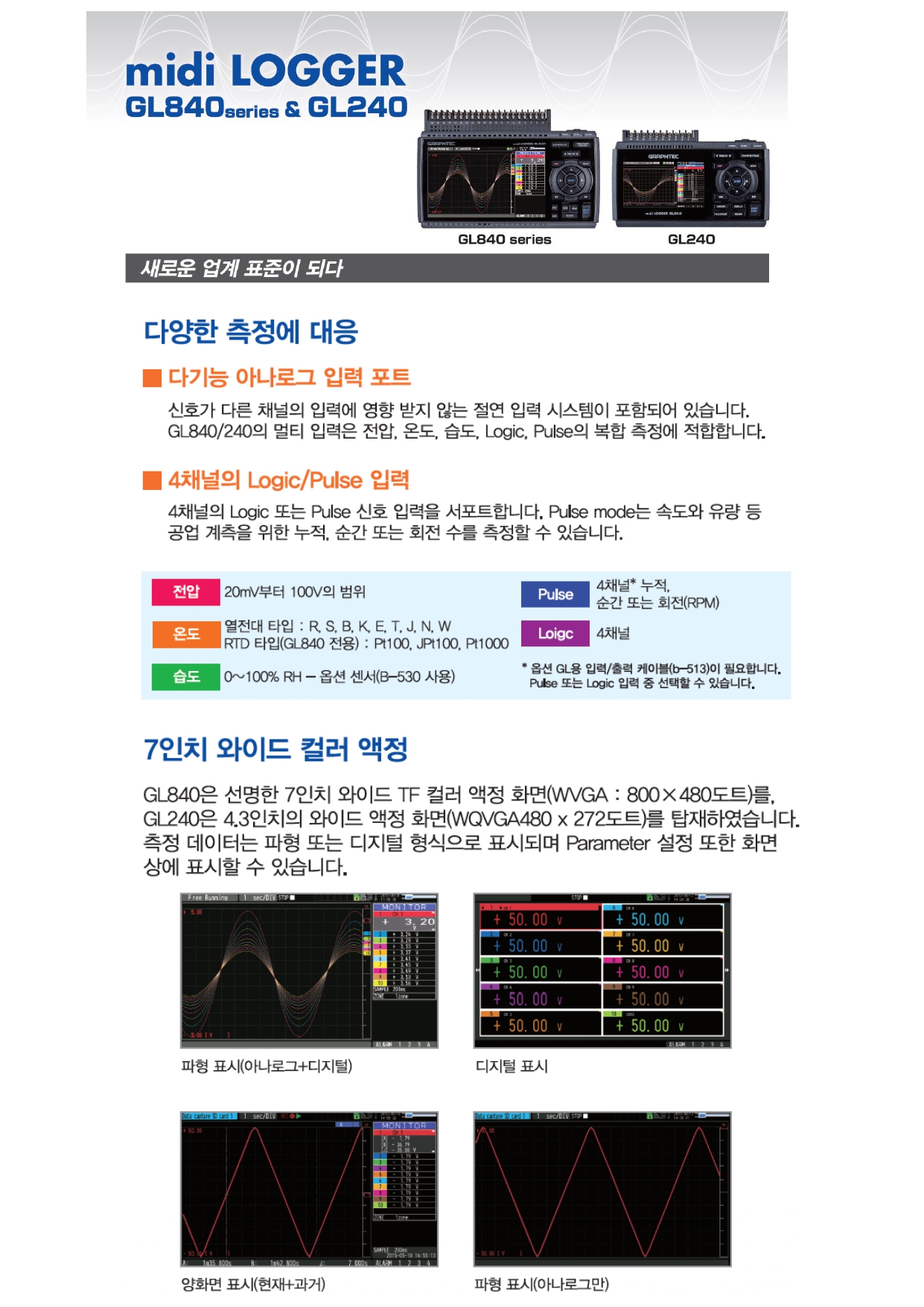

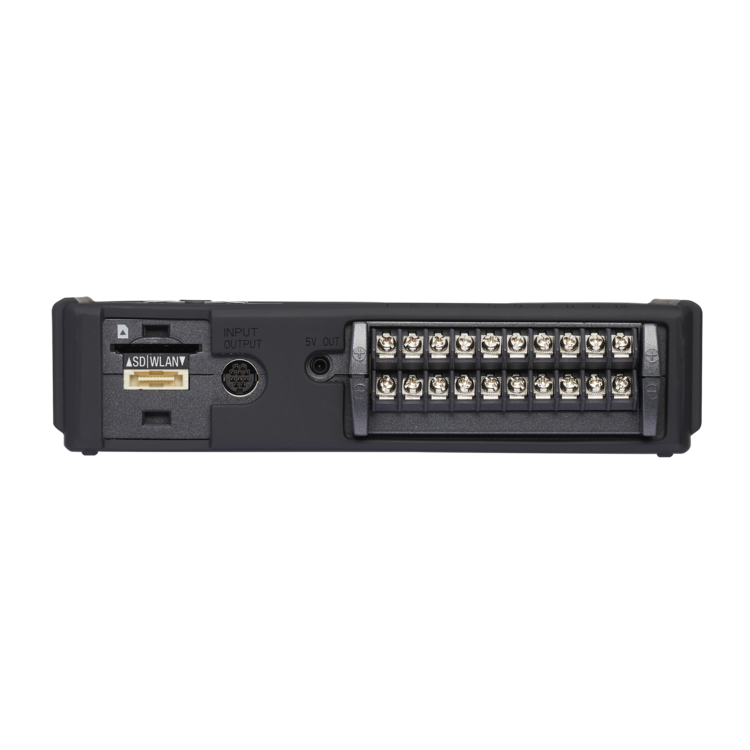

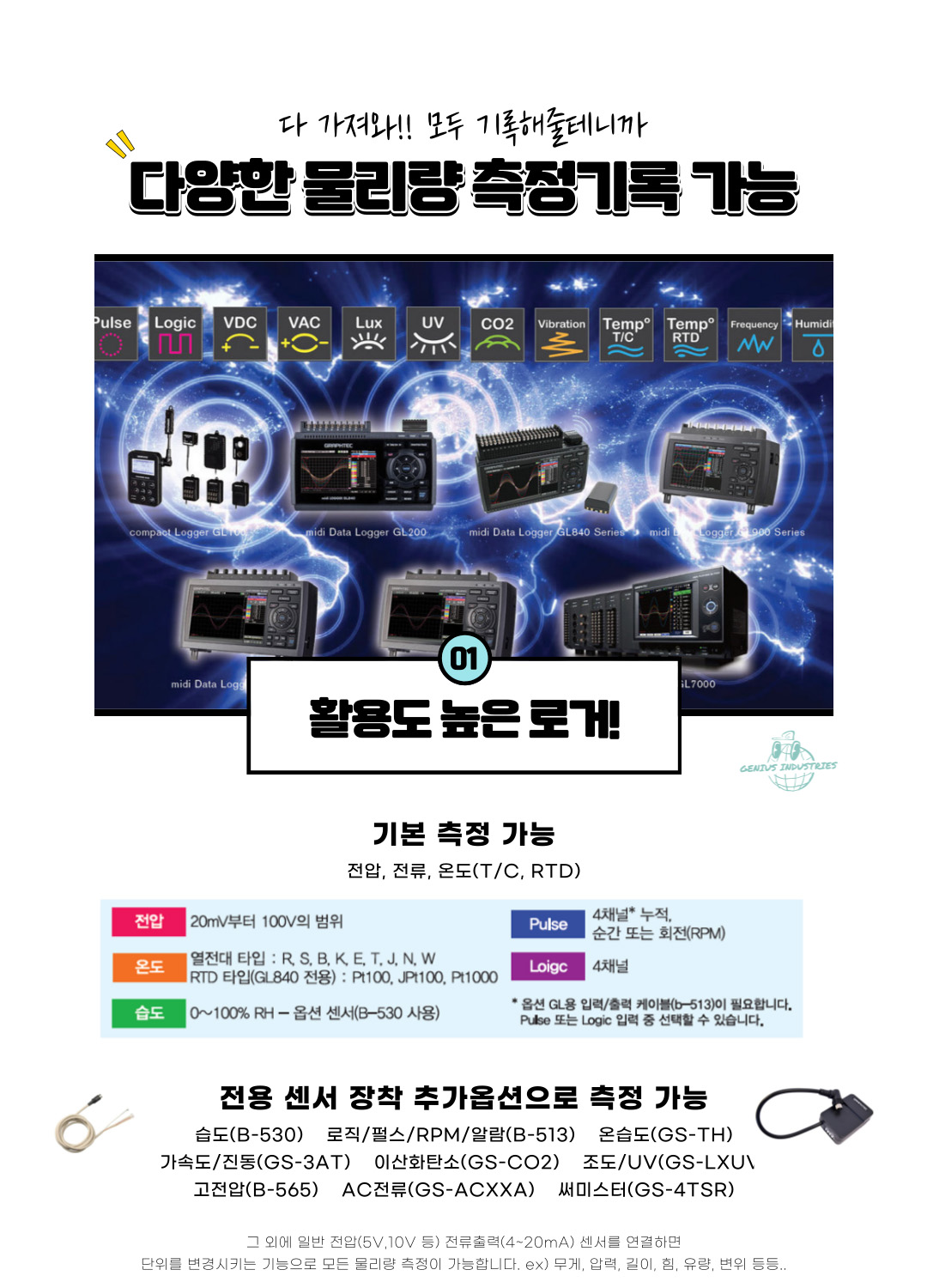

절연 Multi-Function 입력
전 채널 절연 입력 방식을 채용하여, 배선에 신경 쓸 필요가 없습니다.
또한 Multi-Function 입력에 대응하여 다양한 현상을 측정할 수 있습니다.
전압 | 20mV~100V, 1-5V/F.S. |
온도 | 열전대 : R, S, B, K, E, T, J, N, W (WRe5-26) |
습도 | 0~100% (옵션 B-530 필요) |
Pulse | 4ch |
Logic | 4ch |

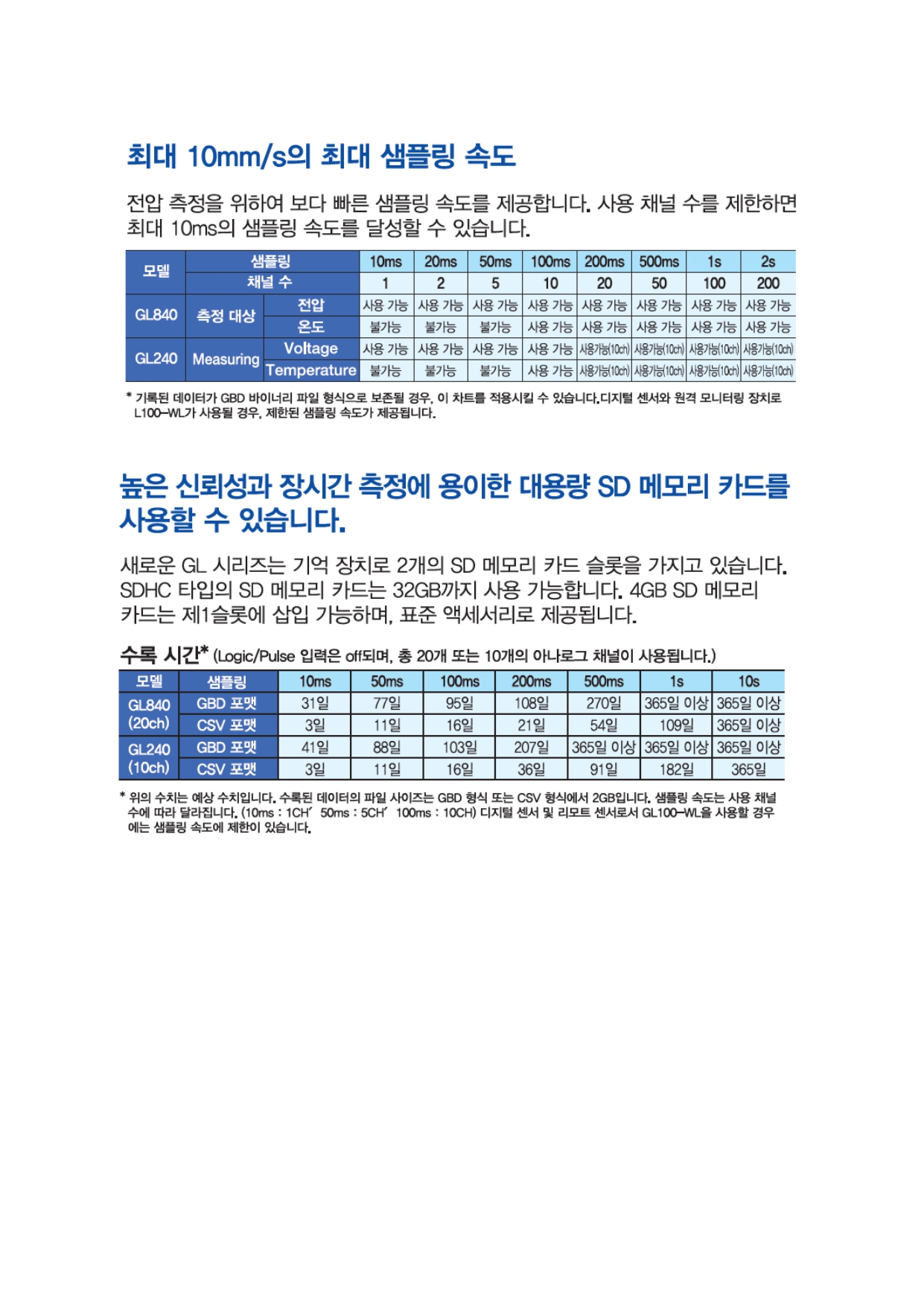

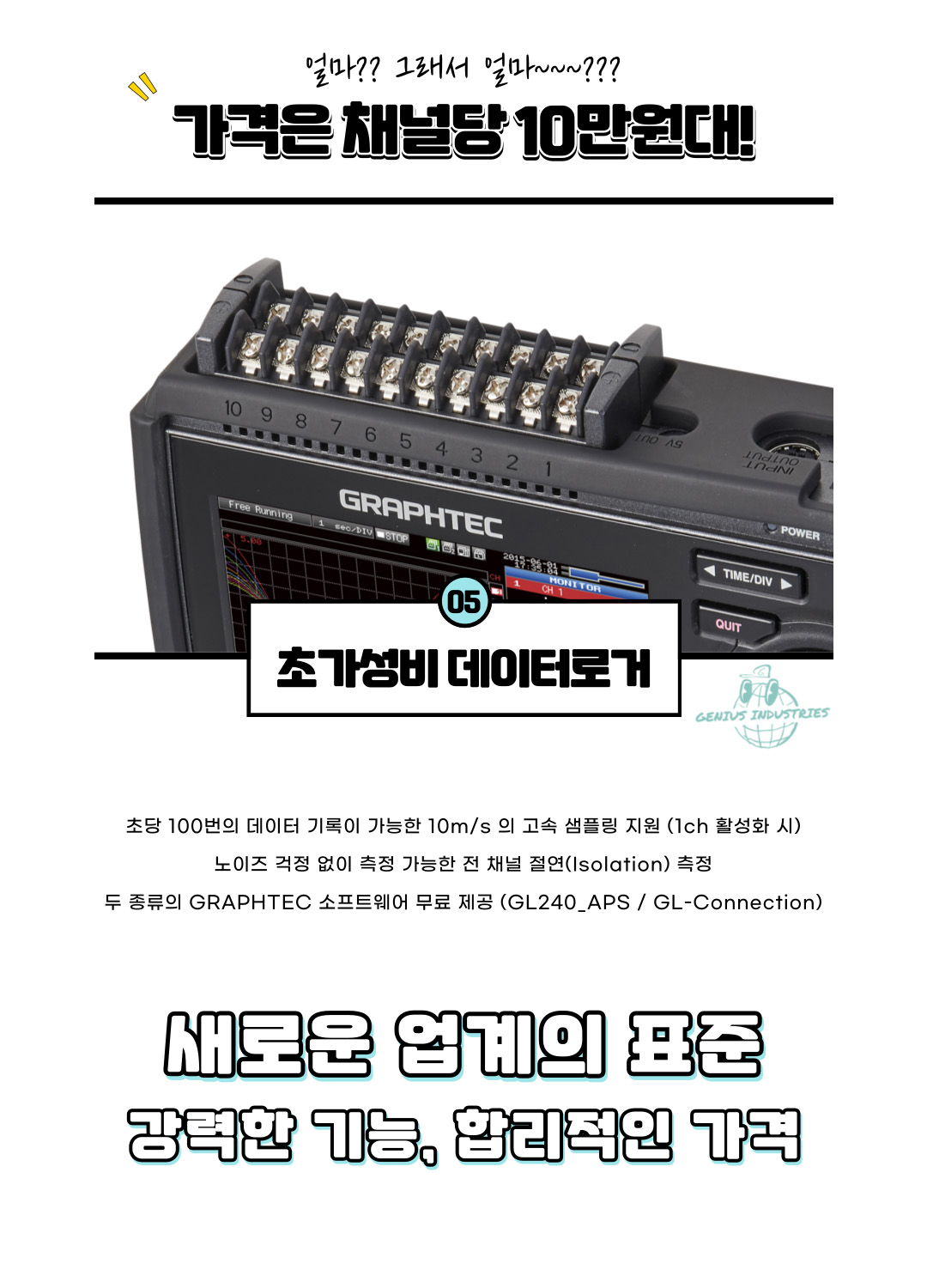

최고 10ms 샘플링 속도에 대응
샘플링 속도 | 10ms | 20ms | 50ms | 100ms | |
사용 가능 ch 수 | 1 | 2 | 5 | 10 | |
측정 대상 | 전압 | ● | ● | ● | ● |
온도 | - | - | - | ● |
4GB 메모리로 장시간 수록 가능
표준 부속품으로 4GB 플래시 메모리가 탑재되어 있습니다. 수록 데이터는 GBD 형식이나 CSV 형식으로 보존 가능합니다.
수록 시간 예 (아날로그 10ch만 사용 시, 2GB 수록 시)
샘플링 속도 | 10ms | 50ms | 100ms | 200ms | 500ms | 1s | 10s |
GBD 형식 | 41일 | 88일 | 103일 | 207일 | 365일 이상 | 365일 이상 | 365일 이상 |
CSV 형식 | 3일 | 11일 | 16일 | 36일 | 91일 | 182일 | 365일 이상 |
* 수록 시간은 대략적으로 계산한 것입니다. 샘플링 속도에 따라서는 ch 수에 제한이 있습니다. 10ms : 1ch, 50ms : 5ch, 100ms : 10ch
Ring 수록 기능
설정한 수록점 수를 넘어가면 오래된 데이터를 삭제하고 새로운 데이터를 기록합니다.
설정 가능 점 수 : 1000점 ~ 2,000,000점
Relay 수록 기능
GL240의 1회 데이터 수록 용량은 2GB입니다.
위 기능을 사용하여 데이터를 제거하지 않고 2GB 단위로 파일을 잘라 연속 수록이 가능합니다.
수록 중 SD 카드 교환 기능
데이터 수록 중에 SD 카드의 교환이 가능합니다.

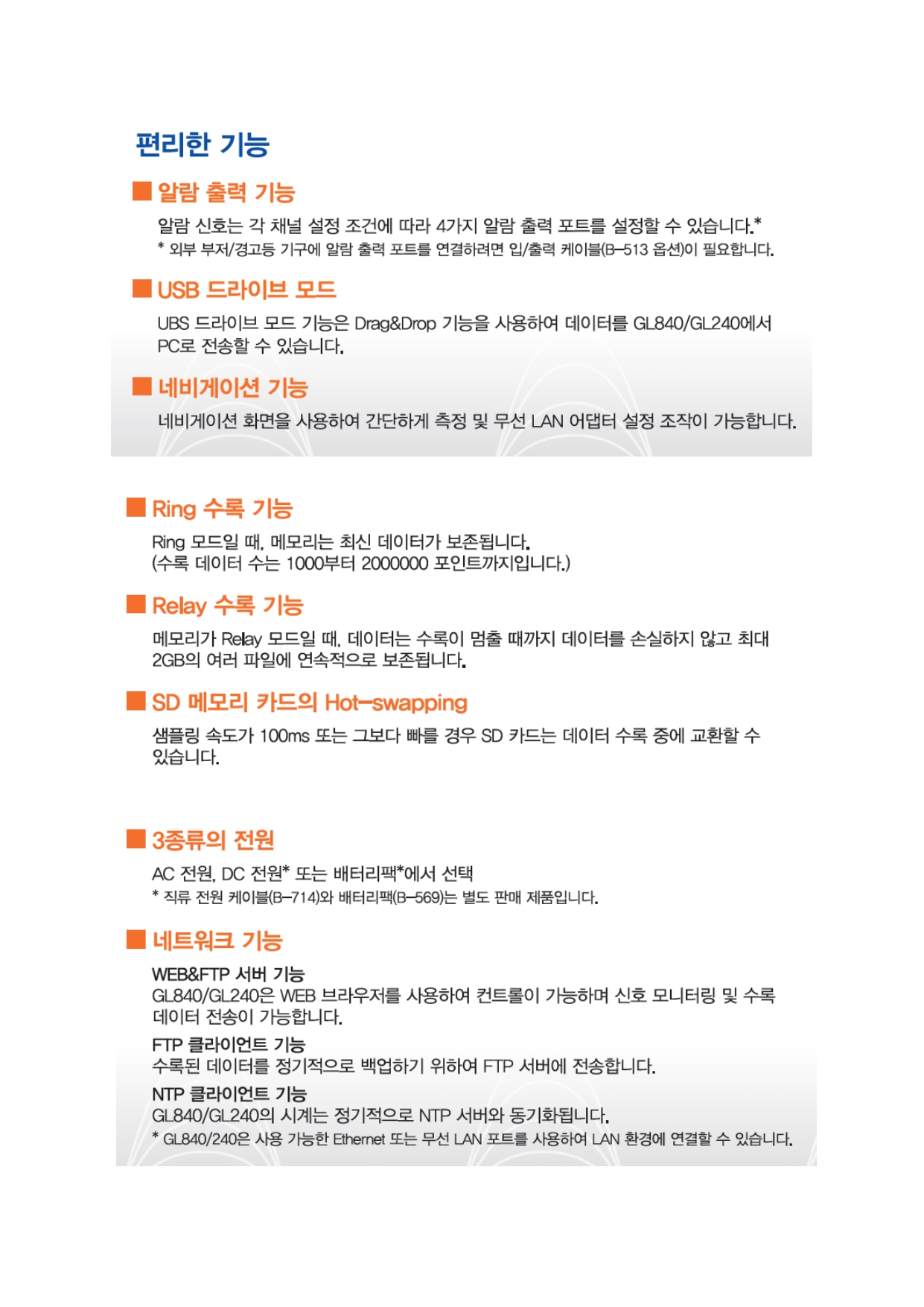

편리한 기능
알람 출력 기능
이상 신호 발생시, 알람 신호를 출력합니다.
각 채널에서 조건 설정이 가능합니다.
출력은 4출력이 가능합니다.
USB 드라이브 모드
GL240과 PC를 USB 케이블로 연결하여 USB 드라이브 모드를 기동하면
GL240이 PC 드라이브의 하나로 인식되어 GL240 내의 측정 파일을 Drag&Drop으로 PC로 옮길 수 있습니다.

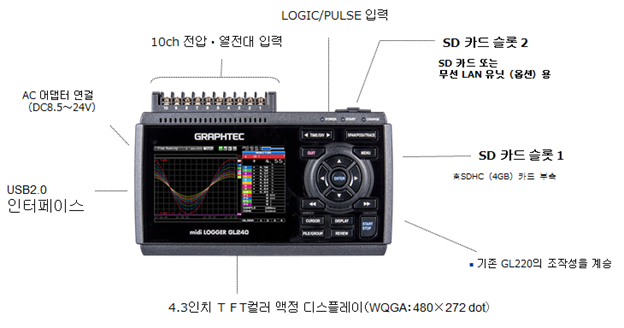

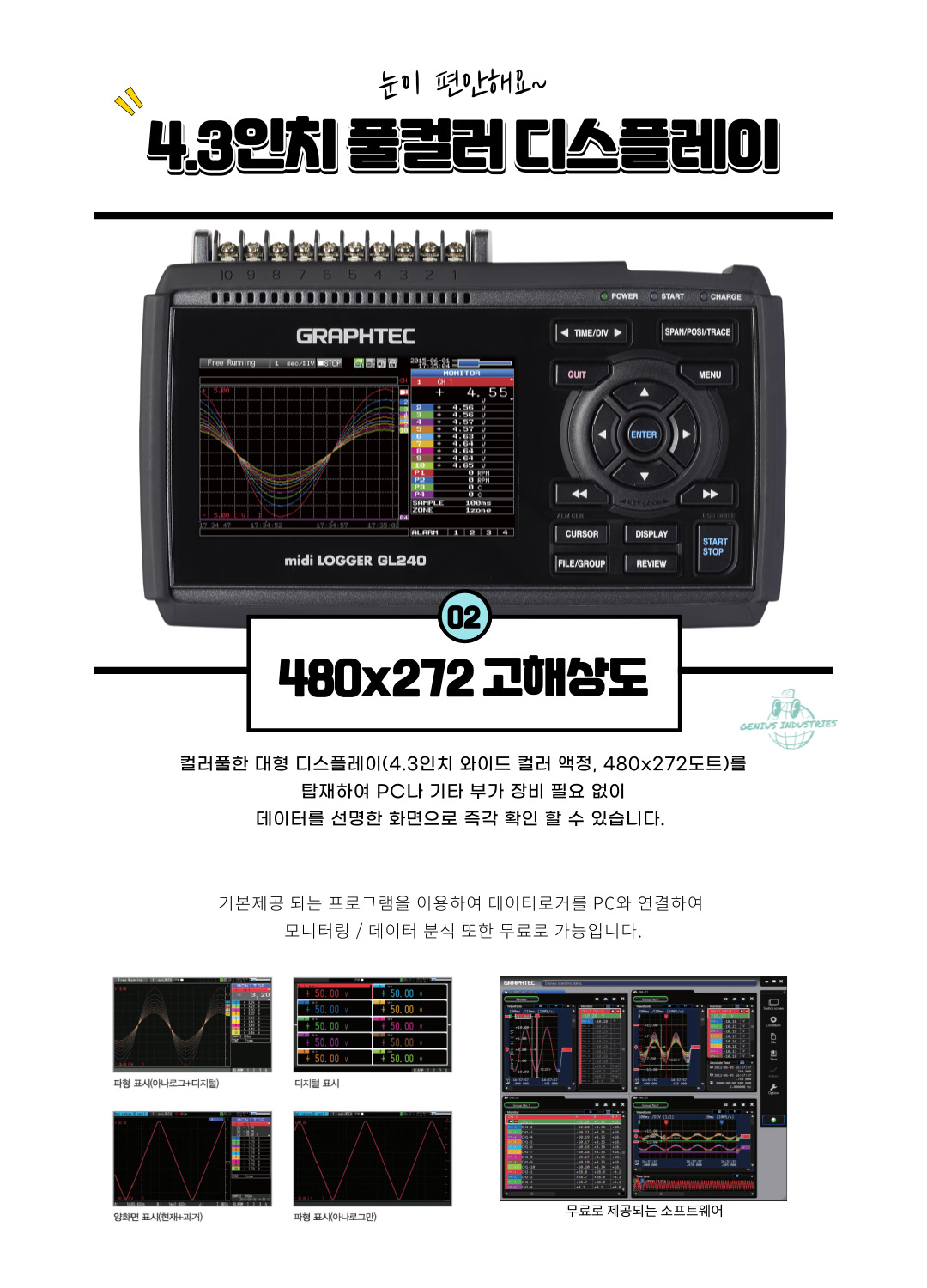

4.3인지 TFT 액정
보기 쉽고 조작성이 좋은 4.3인치 TFT 액정을 사용하였습니다.

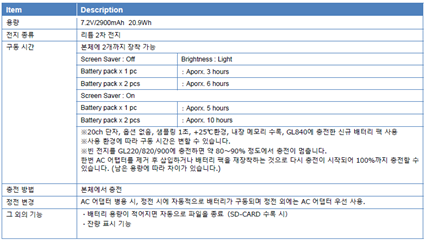

3WAY 전원
GL240 전원은 AC 전원, DC, 배터리의 3가지 전원을 사용할 수 있습니다.

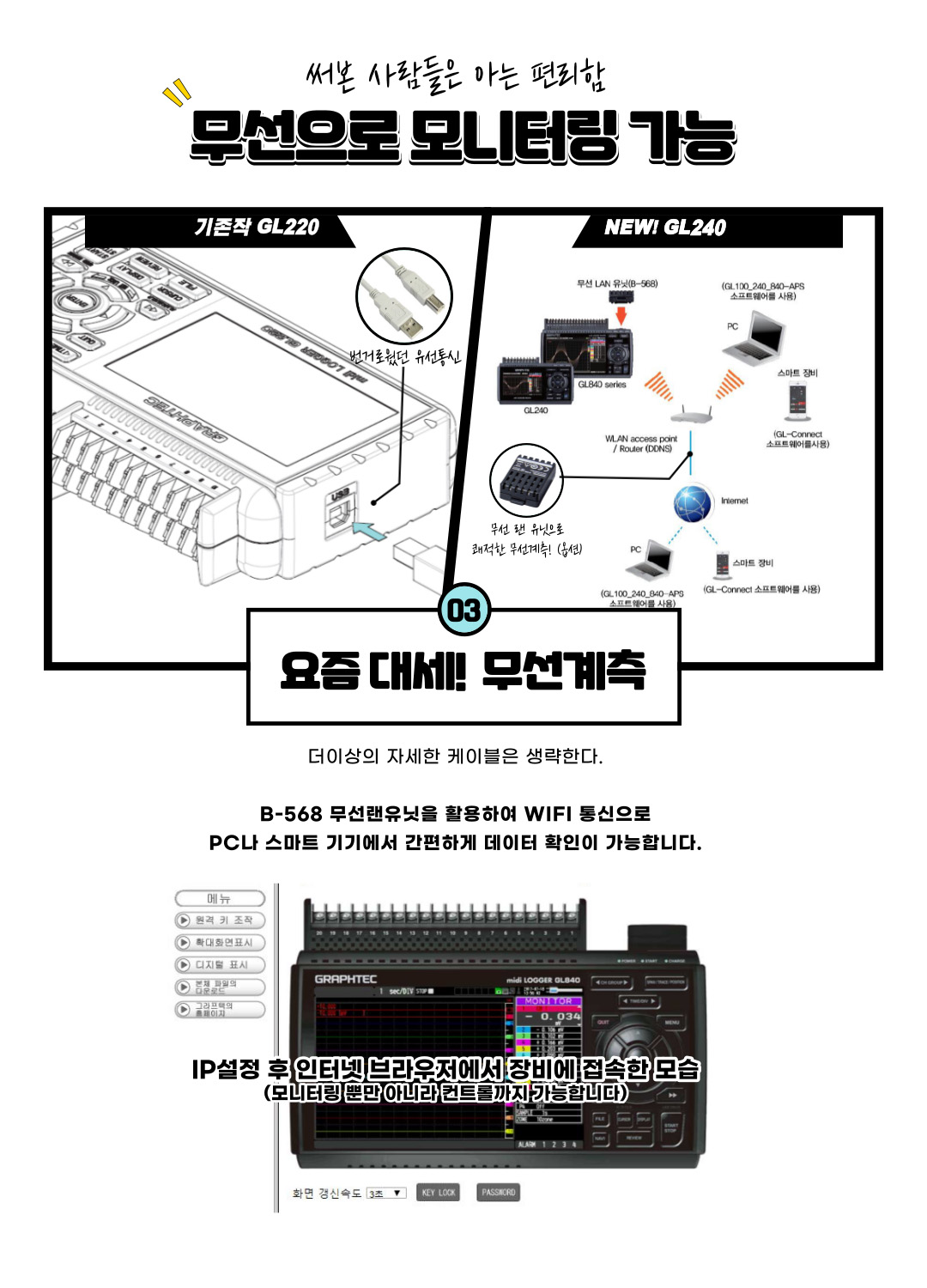

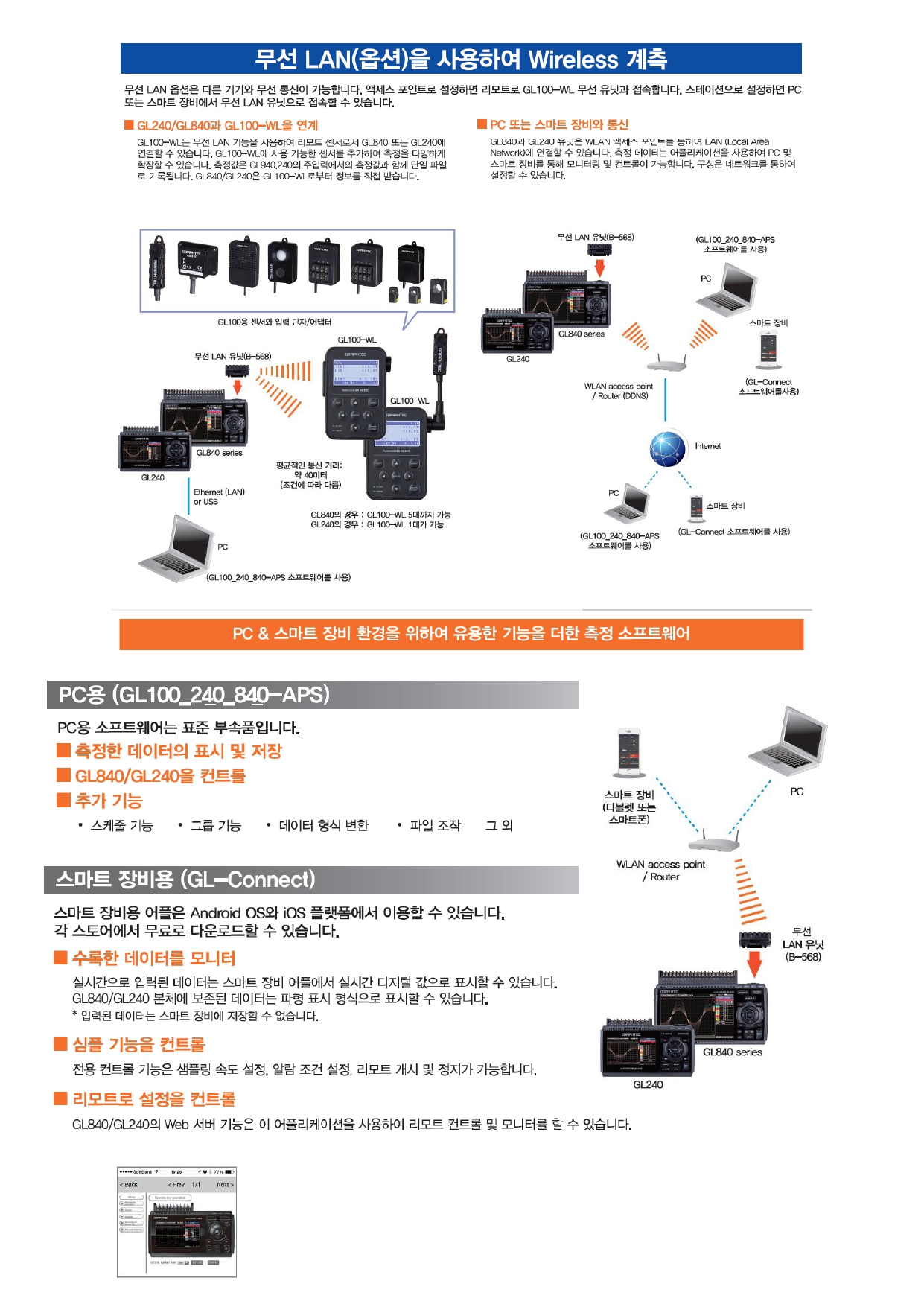

네트워크 기능
네트워크를 이용하여 데이터를 주고 받을 수 있습니다.
WEB 브라우저 기능 / FTP 서버 기능
FTP 클라이언트 기능 / NTP 클라이언트 기능
* 옵션 GL 무선 LAN 유닛(B-568)이 필요합니다.
소프트웨어 무료 다운로드 : http://graphteccorp.com/support/software/instruments.html
Model number | Description |
B-568 | GL Wireless LAN unit |
B-569 | 배터리팩 |
B-514 | DC 드라이브 케이블 |
B-513 | 로직/알람 케이블 |
B-530 | 습도센서 |

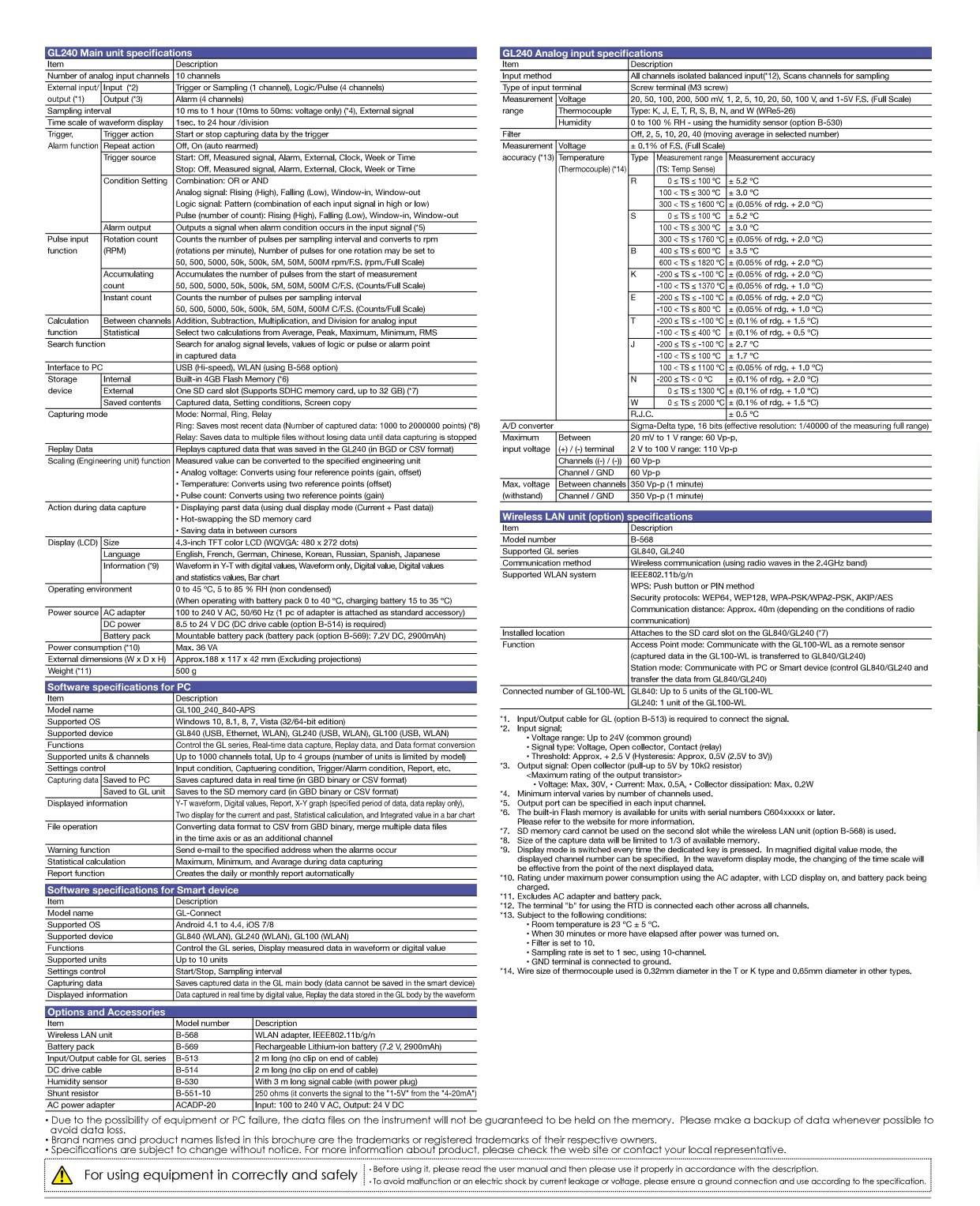

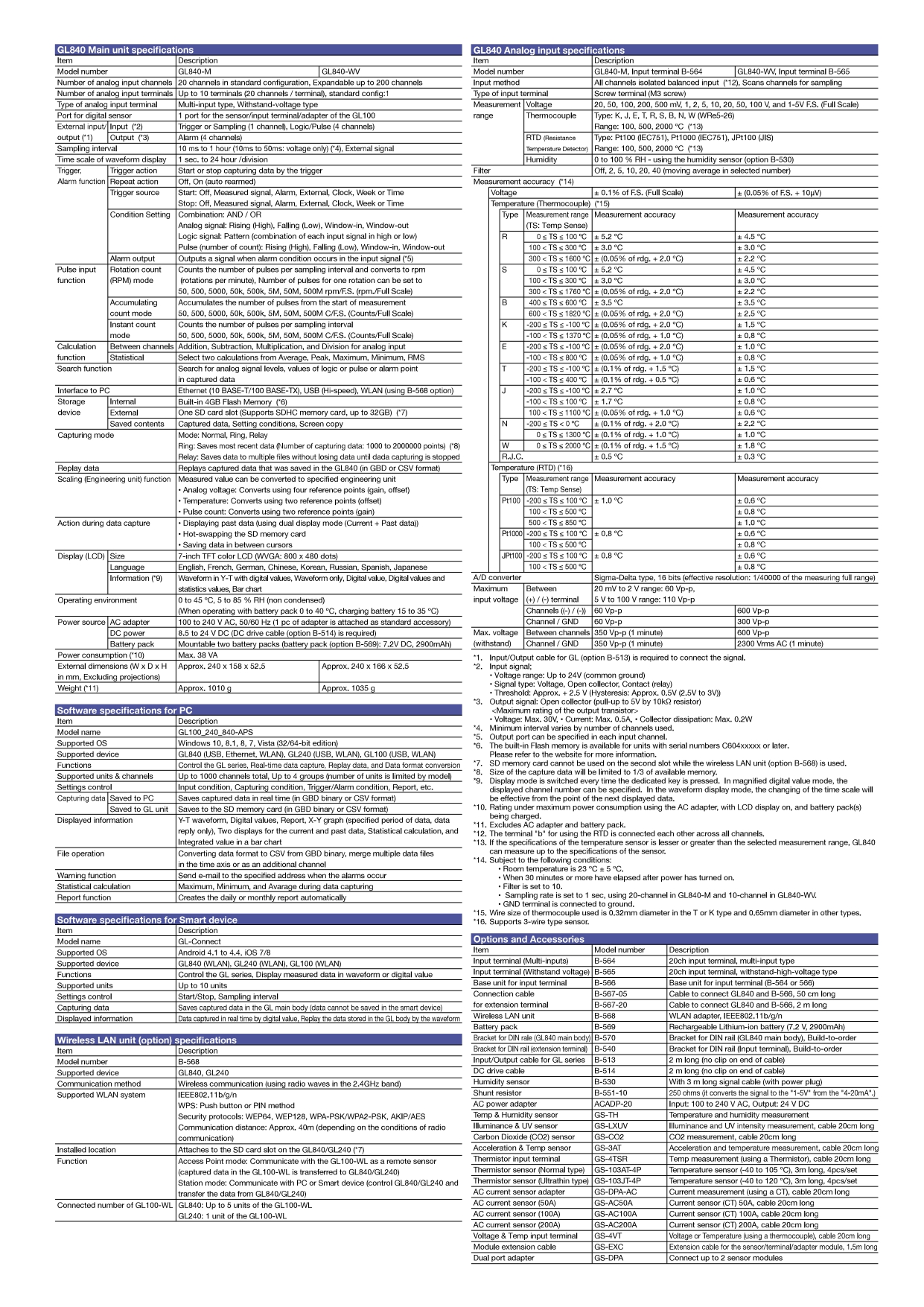

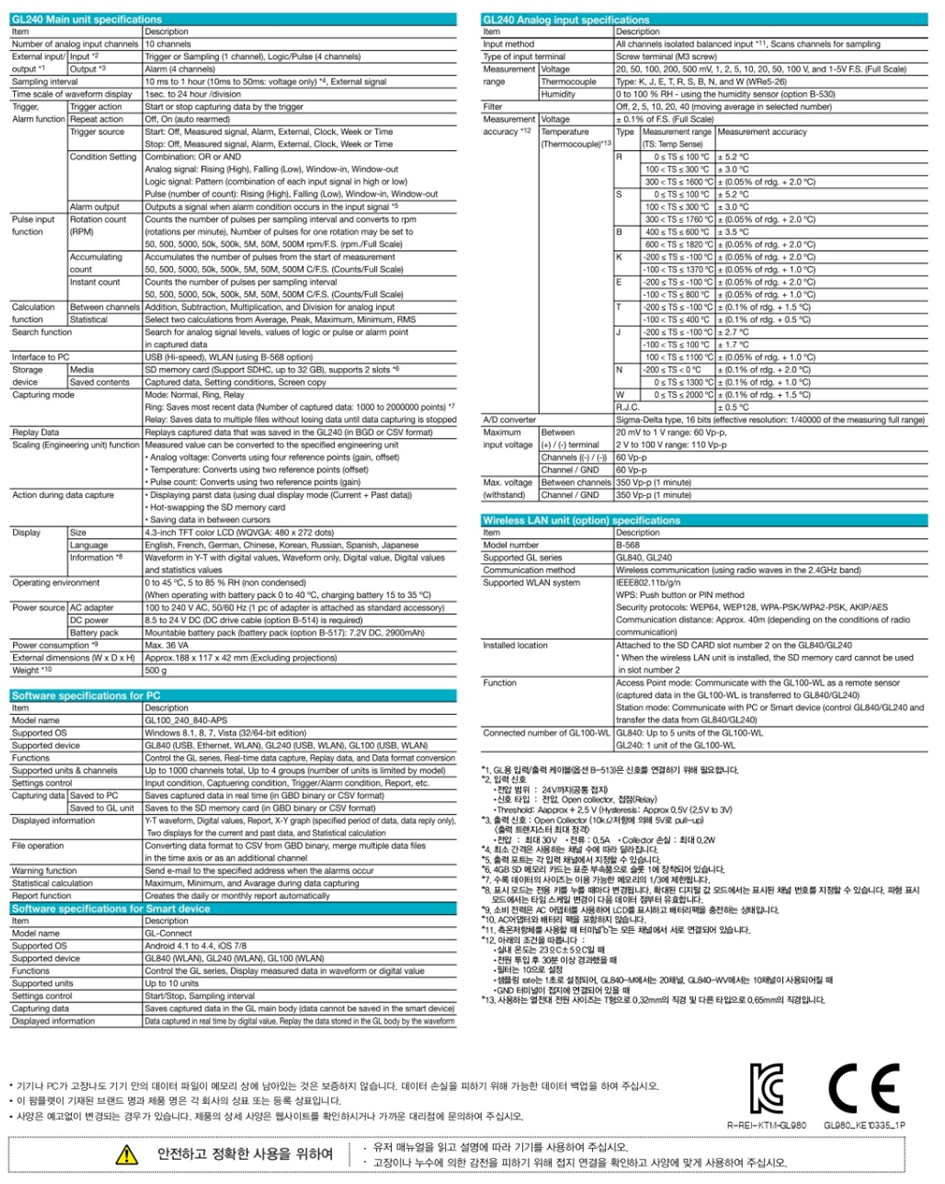

GL240 Main unit specifications
Item | Description | |
Number of analog input channels | 10 channels | |
External input/ | Input *2 | Trigger or Sampling (1 channel), Logic/Pulse (4 channels) |
Output *3 | Alarm (4 channels) | |
Sampling interval | 10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal | |
Time scale of waveform display | 1sec. to 24 hour /division | |
Trigger, | Trigger action | Start or stop capturing data by the trigger |
Repeat action | Off, On (auto rearmed) | |
Trigger source | Start: Off, Measured signal, Alarm, External, Clock, Week or Time | |
Condition Setting | Combination: OR or AND | |
Alarm output | Outputs a signal when alarm condition occurs in the input signal *5 | |
Pulse input | Rotation count | Counts the number of pulses per sampling interval and converts to rpm |
Accumulating | Accumulates the number of pulses from the start of measurement | |
Instant count | Counts the number of pulses per sampling interval | |
Calculation | Between channels | Addition, Subtraction, Multiplication, and Division for analog input |
Statistical | Select two calculations from Average, Peak, Maximum, Minimum, RMS | |
Search function | Search for analog signal levels, values of logic or pulse or alarm point | |
Interface to PC | USB (Hi-speed), WLAN (using B-568 option) | |
Storage | Media | SD memory card (Support SDHC, up to 32 GB), supports 2 slots *6 |
Saved contents | Captured data, Setting conditions, Screen copy | |
Capturing mode | Mode: Normal, Ring, Relay | |
Replay Data | Replays captured data that was saved in the GL240 (in BGD or CSV format) | |
Scaling (Engineering unit) function | Measured value can be converted to the specified engineering unit | |
Action during data capture | • Displaying parst data (using dual display mode (Current + Past data)) | |
Display | Size | 4.3-inch TFT color LCD (WQVGA: 480 x 272 dots) |
Language | English, French, German, Chinese, Korean, Russian, Spanish, Japanese | |
Information *8 | Waveform in Y-T with digital values, Waveform only, Digital value, Digital values | |
Operating environment | 0 to 45 ºC, 5 to 85 % RH (non condensed) | |
Power source | AC adapter | 100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory) |
DC power | 8.5 to 24 V DC (DC drive cable (option B-514) is required) | |
Battery pack | Mountable battery pack (battery pack (option B-517): 7.2V DC, 2900mAh) | |
Power consumption *9 | Max. 36 VA | |
External dimensions (W x D x H) | Approx.188 x 117 x 42 mm (Excluding projections) | |
Weight *10 | 500 g |
*1 nput/Output cable for GL (option B-513) is required to connect the signal.
*2 Input signal;
- Voltage range: Up to 24V (common ground)
- Signal type: Voltage, Open collector, Contact (relay)
- Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
*3 Output signal: Open collector (pull-up to 5V by 10kΩ resistor) <Maximum rating of the output transistor>
- Voltage: Max. 30V
- Current: Max. 0.5A
- Collector dissipation: Max. 0.2W
*4 Minimum interval varies by number of channels used.
*5 Output port can be specified in each input channel.
*6 4GB SD memory card is installed to slot 1 as standard accessory.
*7 Size of the capture data will be limited to 1/3 of available memory.
*8 Display mode is switched every time the dedicated key is pressed. In magnified digital value mode, the displayed channel number can be specified. In the waveform display mode, the changing of the time scale will be effective from the point of the next displayed data.
*9 Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack being
charged.
*10 Excludes AC adapter and battery pack.
블로그에서 더 자세히 보기 : https://blog.naver.com/geniuss7179/221846673938
