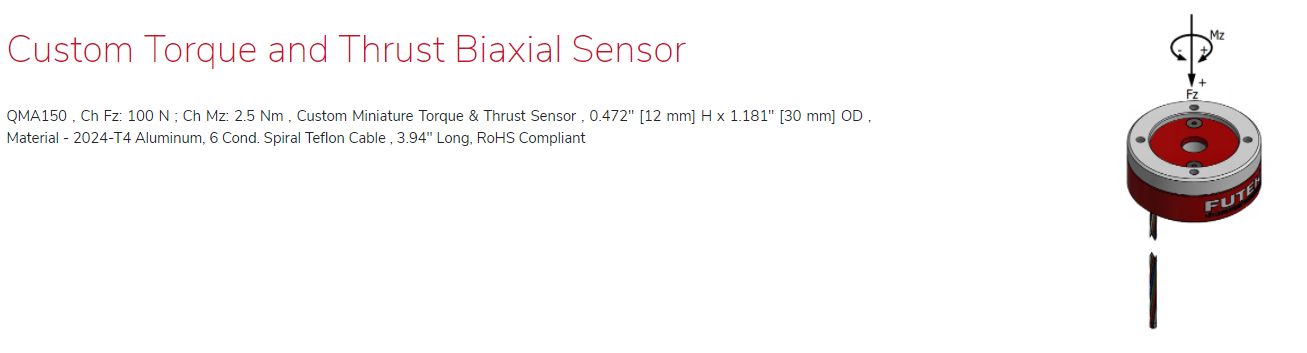

FUTEK QMA150 Custom Torque and Thrust Biaxial Sensor
가격문의(상세정보 참조)
Features
- Low 12 mm Height
- Miniature 30 mm Outer Diameter
- Light Weight Aluminum Construction
- Almost 15x Smaller Than a Traditional Dual Axis Load Cell
클릭 하시면 이동합니다.

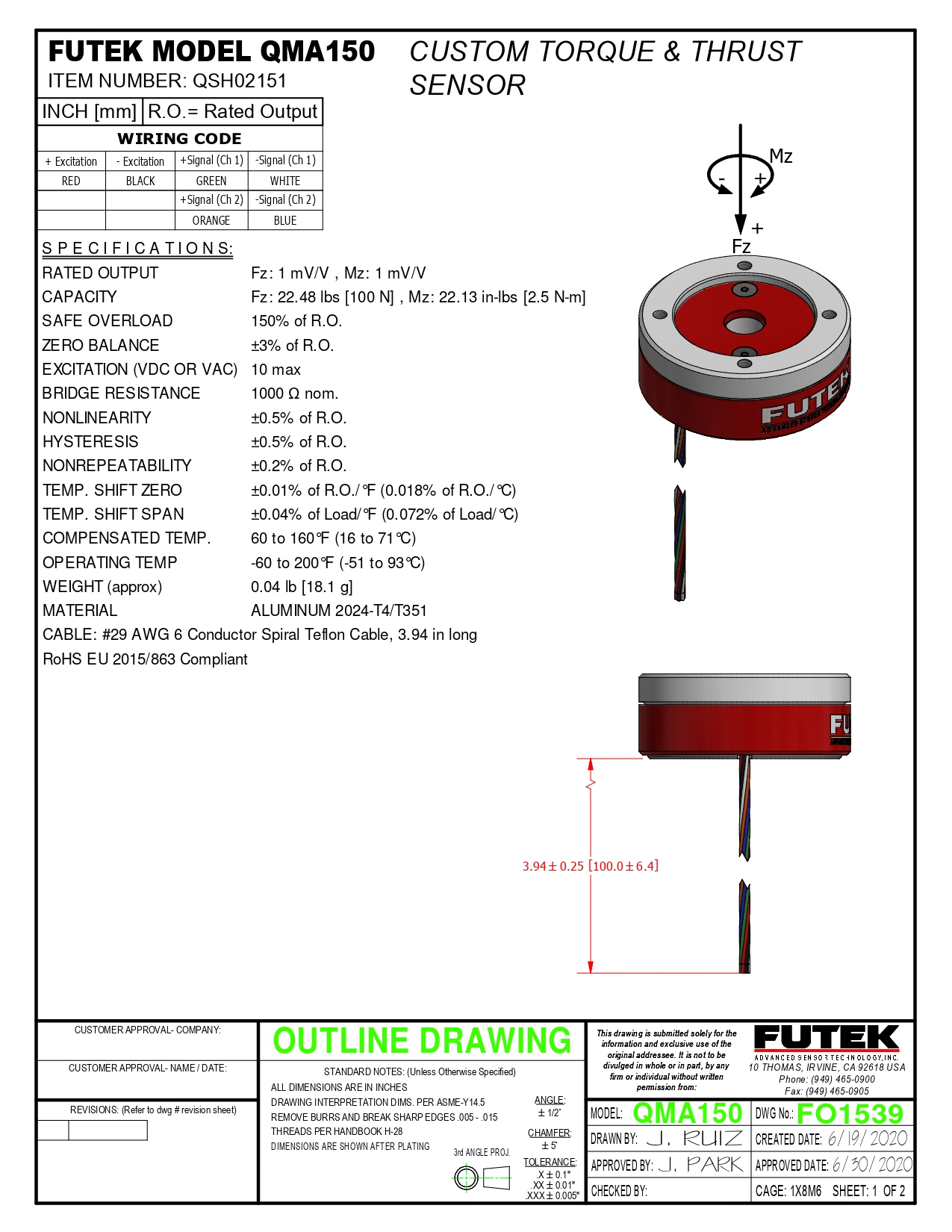

QMA150 , Ch Fz: 100 N ; Ch Mz: 2.5 Nm , Custom Miniature Torque & Thrust Sensor , 0.472" [12 mm] H x 1.181" [30 mm] OD , Material - 2024-T4 Aluminum, 6 Cond. Spiral Teflon Cable , 3.94" Long, RoHS Compliant
QSH02151
Description
Custom Miniature Torque and Thrust Sensor with 5.5 mm Thru Hole.
Drilling torque and thrust force measurement is a potential application for bi axial axis sensors. Based on the drilling measurement data, operators and manufacturing engineers can optimize the process, prevent process failures, predict power drill or drill bit maintenance or replacement, and investigate the drilling process parameters, including cutting speed, feed rate, drill bit geometry, and composition, on the output product quality.
Features
- Low 12 mm Height
- Miniature 30 mm Outer Diameter
- Light Weight Aluminum Construction
- Almost 15x Smaller Than a Traditional Dual Axis Load Cell

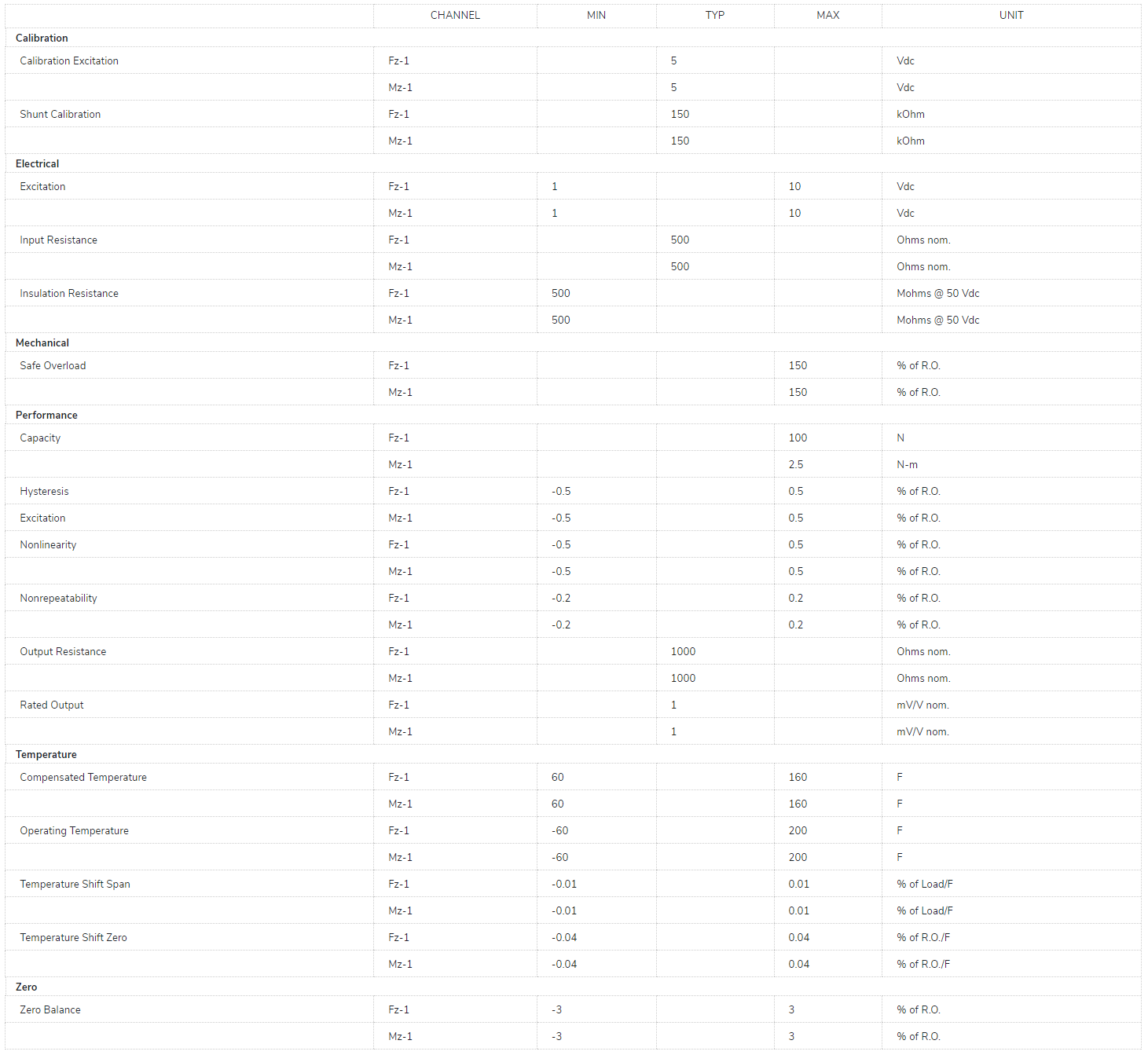

Specifications
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
QMA150 , Ch Fz: 100 N ; Ch Mz: 2.5 Nm , Custom Miniature Torque & Thrust Sensor , 0.472" [12 mm] H x 1.181" [30 mm] OD , Material - 2024-T4 Aluminum, 6 Cond. Spiral Teflon Cable , 3.94" Long, RoHS Compliant
QSH02151
Description
Custom Miniature Torque and Thrust Sensor with 5.5 mm Thru Hole.
Drilling torque and thrust force measurement is a potential application for bi axial axis sensors. Based on the drilling measurement data, operators and manufacturing engineers can optimize the process, prevent process failures, predict power drill or drill bit maintenance or replacement, and investigate the drilling process parameters, including cutting speed, feed rate, drill bit geometry, and composition, on the output product quality.
Features
- Low 12 mm Height
- Miniature 30 mm Outer Diameter
- Light Weight Aluminum Construction
- Almost 15x Smaller Than a Traditional Dual Axis Load Cell
Specifications
