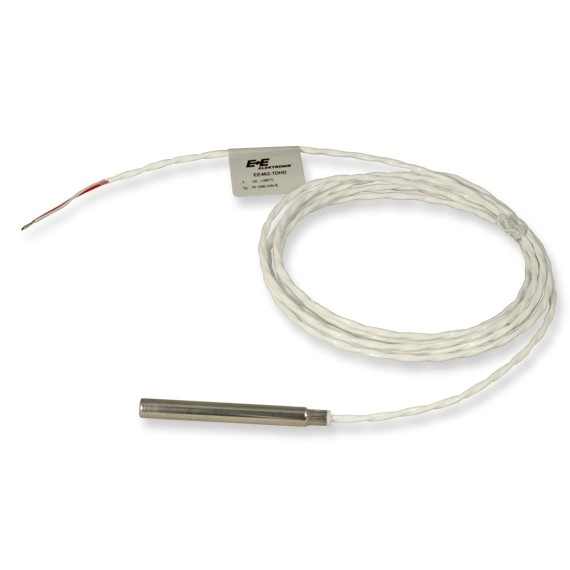

E+E EE462 Cable Temperature Sensor
가격문의(상세정보 참조)
주요기능
- High protection class
- Cable labeling
- Various sensing elements and cable lengths
- 2 or 4 wire connection
클릭 하시면 이동합니다.
Cable Temperature Sensors
Cable sensors for temperature measurement are used inheating, ventilation and air conditioning systems as well asfor process control.
Several types of sensing elements such as Pt100, Pt1000, NTC or Ni1000 are available. The an innovative star pressing of the sensor sleeve provides a high protection class IP67 / NEMA 4. All product-specific information is printed all along the cable.
Products
- EE461 - Cable Temperature Sensor
- EE462 - Cable High-Temperature Sensor
- EE432 - Cable Temperature Sensor with Flange
Typical Applications
- Building automation
- Process and climate control
EXTEND YOUR WARRANTY FOR THE EE432 AND THE EE461
UP TO 5 YEARS WITH THE NEW E+E CALIBRATION SERVICE PACKAGES
Our calibration service packages ensure that you are on the safe side when it comes to the accuracy and vailability of your measuring devices. Choose the right service package for your E+E product and benefit rom professional device service, calculable costs and excellent measuring accuracy in the long-term
주요기능
- High protection class
- Cable labeling
- Various sensing elements and cable lengths
- 2 or 4 wire connection
기술자료
OPERATING TEMPERATURE - EE461 / EE432
-30...105 °C (-22...221 °F)
OPERATING TEMPERATURE - EE462 - GLASS FIBER
0...350 °C (32...662 °F)
OPERATING TEMPERATURE - EE462 - PTFE
-20...260 °C (-4...500 °F)
OPERATING TEMPERATURE - EE462 - SILICONE
-60...180 °C (-76...356 °F)
PROTECTION CLASS
IP67 / NEMA 4
INSULATION RESISTANCE
typ. > 100 MΩ at 20 °C (68 °F)
