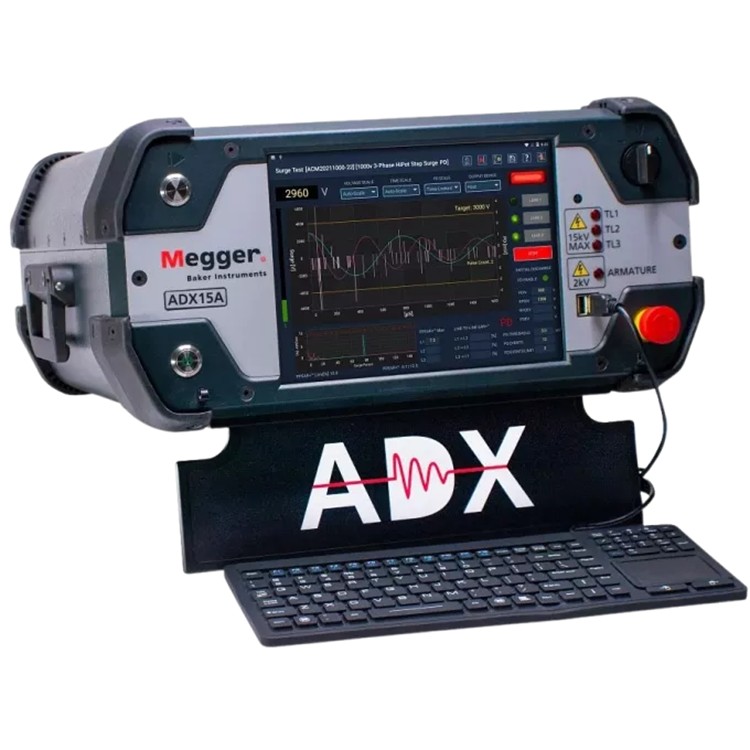

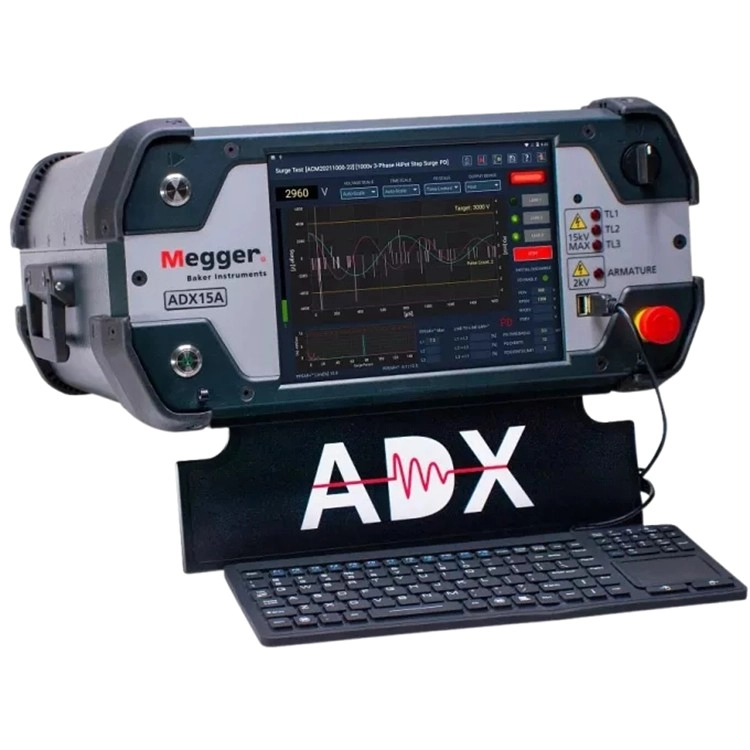

MEGGER ADX 자동 진단 정적 모터 테스터
MEGGER ADX 자동 진단 정적 모터 테스터
MEGGER ADX Automated diagnostic static motor tester
ADX는 모터 건강 상태를 파악하고, 추세를 분석하고, 결함을 찾아내는 데 필요한 모든 필수 테스트를 제공합니다.
The ADX offers the complete range of essential tests to determine motor health, analyse trends, and find faults.
원산지 GERMANY
제조사 MEGGER
브랜드 MEGGER
무게 1kg
택배 · 기본 무료
클릭 하시면 이동합니다.
메거 ・ MEGGER
ADX
자동 진단 정적 모터 테스터
ADX Automated diagnostic static motor tester
- 운동 기능 상태를 파악하기 위해 다양한 검사를 실시하십시오.
ADX 시리즈 모델은 최대 15kV의 전압에서 테스트를 수행하도록 설계되었으며, 파워팩을 추가하여 테스트 전압을 최대 40kV까지 높일 수 있습니다. 이러한 유연성을 통해 모든 모터, 발전기, 코일 및 기타 장치에 대한 AC 및 DC 모터 부분 방전 및 저임피던스 테스트를 수행할 수 있습니다.
- 간소화된 워크플로로 생산성을 높이세요
ADX는 수동 및 자동 테스트, 순서 기반 테스트 절차, 경로 기반 테스트, 즉각적인 테스트 관련 도움말, 사용자 정의 가능한 폴더 구조를 결합하여 생산성을 향상시키도록 설계되었습니다. ADX는 비용과 시간을 절약하는 가장 스마트한 방법입니다.
인터넷에 연결하면 ADX를 통한 자산 관리 기능이 더욱 강화됩니다. 클라우드 기반 애플리케이션인 PowerDB 대시보드와 연동하여 경로, 자산, 테스트 구성 및 설치를 생성하고 편집할 수 있습니다. 이러한 정보는 Realm 서버에 자동으로 업로드되며 ADX 또는 다른 팀 구성원과 동기화할 수 있습니다.
- 모든 환경에서 간편한 작동

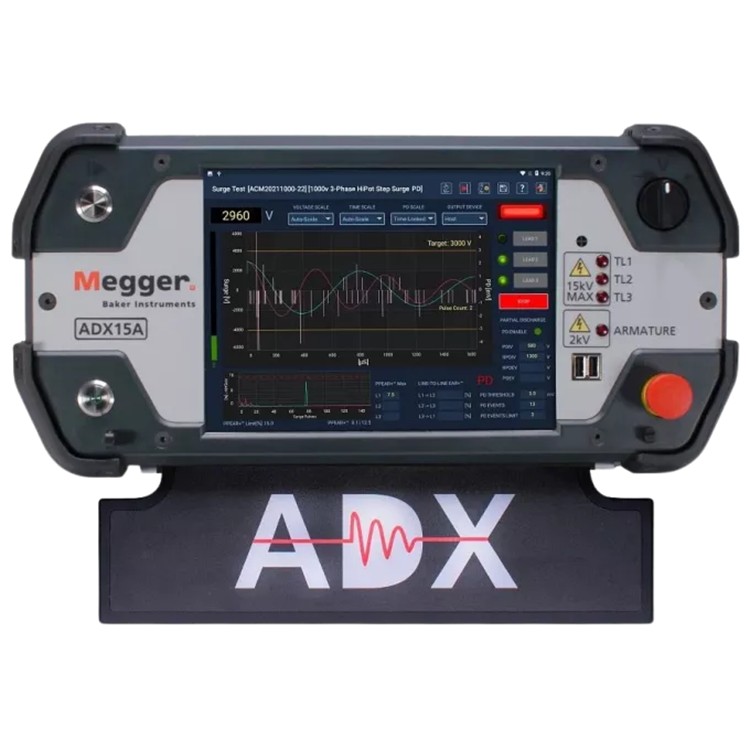

ADX는 다양한 환경에서 사용하기 쉽도록 설계되었습니다. 이 제품은 산업용 등급의 주간에도 선명하게 볼 수 있는 컬러 디스플레이를 갖춘 대형 10.4인치 터치스크린을 탑재하여 실내외 어디에서든 깨끗한 화면을 제공합니다.

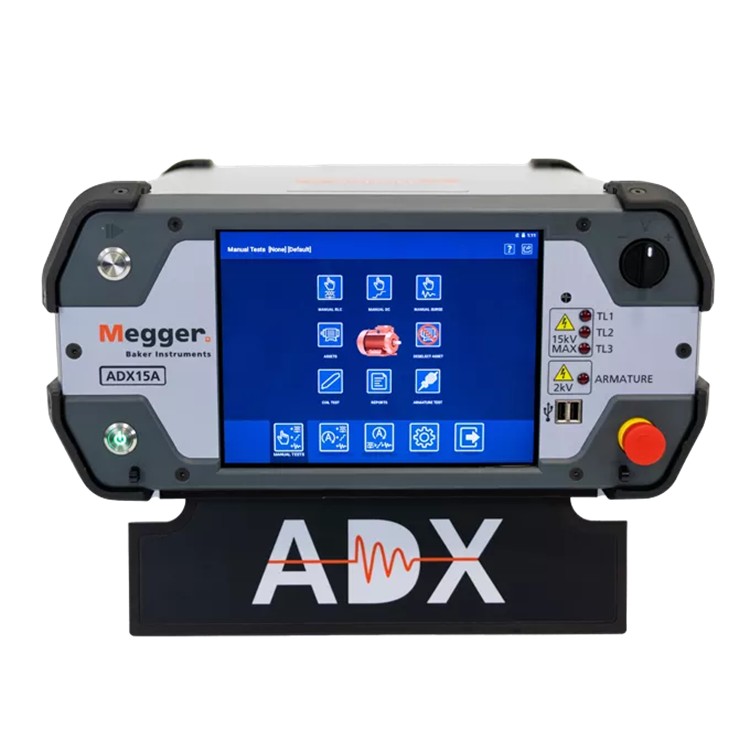

사용자 인터페이스는 크고 직관적인 아이콘을 사용하여 작업자가 절연 전기 장갑을 착용한 상태에서도 손쉽게 터치 조작이 가능합니다. 완전한 QWERTY 형식의 산업용 방수 IP68 키보드와 통합 마우스패드가 결합되어 작업자는 열악한 작업 환경에서도 데이터를 입력하고 인터페이스를 탐색할 수 있습니다.
- 간소화된 테스트와 탁월한 정밀도
옵션 사양인 내장형 ADX 전기자 테스트 하드웨어는 유지보수 및 수리 엔지니어에게 탁월한 편의성과 정확성을 제공하여 혁신적인 변화를 가져다줍니다. 전기자 변압기가 장치에 통합되어 있어 부피가 크고 값비싼 외부 액세서리나 분리형 테스트 리드가 필요 없으므로 작업 흐름을 간소화하고 불필요한 연결을 제거할 수 있습니다.
제품 소개
메거 베이커 ADX 자동 정적 모터 분석기는 오늘날 까다로운 작업 환경에서 모터 테스트를 위한 혁신적이고 획기적인 도약입니다. 이 장비는 전기 모터의 상태를 평가하고, 모터 상태의 추세를 모니터링 및 분석하며, 고장 위치를 파악하는 데 필요한 포괄적인 테스트 세트를 제공합니다.
운동 건강 평가를 위한 포괄적인 검사 범위
휴대용 ADX 분석기는 모델에 따라 서지, 권선 간 부분 방전, 절연 저항, 분극 지수, DC 고전압 시험 및 단계 전압 시험을 위한 고전압 테스트는 물론 권선 저항, 인덕턴스 및 커패시턴스 시험을 위한 저전압 테스트를 제공합니다. 플러그인 방식의 고전압 켈빈 테스트 리드 한 세트를 사용하기 때문에 테스트 간에 리드를 교체할 필요가 없습니다. 모든 ADX 분석기는 수동, 자동 또는 순차 테스트 중에서 선택할 수 있습니다.
통합 자산 관리 및 데이터 동기화
ADX는 다양한 자산 관리 도구를 통합하고 있습니다. 테스트 결과는 통합된 10.4인치 주간용 터치스크린에 표시되며 장비 내부에 로컬로 저장됩니다. 또한 인터넷 연결이 가능한 경우, 결과는 클라우드 기반 PowerDB 대시보드 애플리케이션과 자동으로 동기화되어 분석, 보고 및 아카이빙을 위한 추가 기능을 제공합니다.
다양한 모델과 기능
메거 베이커 ADX 정적 모터 분석기는 최대 4kV, 6kV, 12kV 또는 15kV의 고전압 테스트를 지원하는 다양한 버전으로 제공됩니다. 모든 모델은 DC 절연 저항, 분극 지수, DC 고전압 내압 및 서지 테스트만 제공하는 기본 구성 또는 저전압 저항, 인덕턴스 및 커패시턴스 테스트, 부분 방전 테스트 기능을 포함한 추가 옵션 구성으로 제공됩니다. DC 전기자용 바-투-바 서지 테스트 기능이 통합된 15kV 모델도 제공됩니다.
선택 사양으로 내장형 전기자 테스트 하드웨어 제공
전기자 변압기를 장치에 직접 통합함으로써 크고 값비싼 외부 부품이나 분리 가능한 테스트 리드에 대한 의존성을 없애 효율성을 높이고 추가 연결을 최소화할 수 있습니다.
향상된 측정 회로를 탑재하여 전기자 임펄스 테스트 시에도 탁월한 정밀도와 안정성을 보장합니다. 30kV 및 40kV 전원 팩 모두와 완벽하게 호환되도록 설계된 이 하드웨어는 테스트 경험을 향상시켜 더욱 효율적인 작업과 일관된 결과를 제공합니다.
- Perform a full range of tests to determine motor health
The ADX series of models are designed to perform tests at up to 15kV and can be coupled with power packs to increase test voltages up to 40 kV. This flexibility allows you to conduct AC and DC motor partial discharge and low impedance testing on all motors, generators, coils, and other devices.
- Increase your productivity with simplified workflows
The ADX is designed to increase your productivity thanks to its combined manual and automatic testing, sequence-based test procedures, route-based testing, instant test-related help and customisable folder structures. The ADX is the smartest way to save you money and time.
When connected to the internet, asset management with the ADX amplifies. Combined with the PowerDB dashboard (a cloud-based application) you can create and edit routes, assets, test configurations, and installations. These are automatically uploaded to the Realm server and can be synchronised with the ADX or other team members.
- Easy operation in all environments
The ADX is designed for ease of use in a range of environments. The unit has a large, 10.4-inch touch screen with an industrial-grade, daylight-viewable colour display for a clear picture indoors or outdoors.
The user interface features large, intuitive icons for easy touch operation— even when an operator is wearing insulated electrical gloves. Combined with a full QWERTY industrial waterproof IP68 keyboard and integrated mousepad, operators can easily input data and navigate the interface even in harsh work environments.
- Simplified testing with superior precision
The optional built-in ADX Armature test hardware is a game-changer for maintenance and repair engineers, delivering unmatched convenience and accuracy during tests. With the armature transformer integrated into the unit, there's no need for bulky, expensive external accessories or detachable test leads, streamlining your workflow and eliminating unnecessary connections.
About the product
The Megger Baker ADX automated static motor analyser is an innovative and transformational leap forward for motor testing in today’s demanding workplaces. It offers a comprehensive set of tests for assessing the health of electric motors, for monitoring and analysing trends in motor condition, and for locating faults.
A comprehensive range of tests for motor health assessment
The portable ADX analysers provide, depending on the model, high voltage tests for surge, turn-to-turn partial discharge, insulation resistance, polarisation index, DC hi-pot and step voltage tests, as well as low voltage tests for winding resistance, inductance, and capacitance. A single set of plug-in high voltage Kelvin test leads means there is no need to change leads between tests. All ADX analysers offer a choice of manual, automatic or sequenced testing.
Integrated asset management and data synchronization
The ADX incorporates a full range of asset management tools. Test results are displayed on an integrated 10.4-inch daylight viewable touch screen and are stored locally within the instrument. In addition, when an internet connection is available, the results are automatically synchronised with the cloud-based PowerDB Dashboard application which provides additional facilities for analysis, reporting, and archiving.
Wide range of models and features
Megger Baker ADX static motor analysers are available in versions that support high voltage testing up to 4 kV, 6 kV, 12 kV, or 15 kV. All can be supplied in a basic configuration that offers DC insulation resistance, polarisation index, DC hi-pot and surge tests only, or in configurations with additional options that include low voltage resistance, inductance, and capacitance test, and facilities for partial discharge testing. A 15 kV unit with integral bar-to-bar surge test capability for DC armatures is also available.
Optional built-in armature test hardware
By incorporating the armature transformer directly into the device, the reliance on large, costly external components or removable test leads is eliminated, enhancing efficiency and minimizing extra connections.
Engineered with improved measurement circuits, it ensures exceptional precision and stability, even when performing critical impulse tests on armatures. Designed for seamless compatibility with both 30 kV and 40 kV power packs, this hardware enhances the testing experience, enabling you to work smarter and achieve consistent results every time.




| ADX MEGGER MEGGER ADX ADX 메거 메거 ADX |
