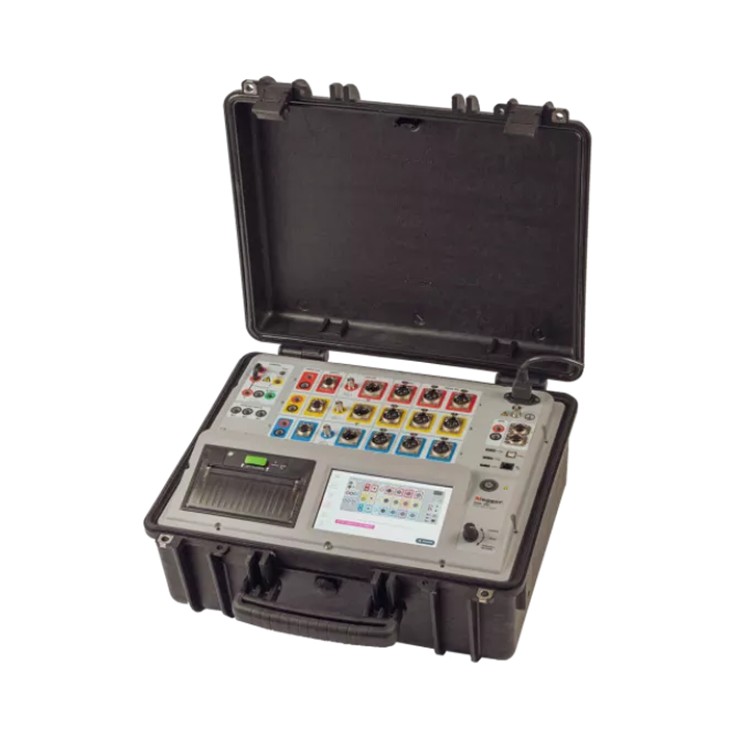

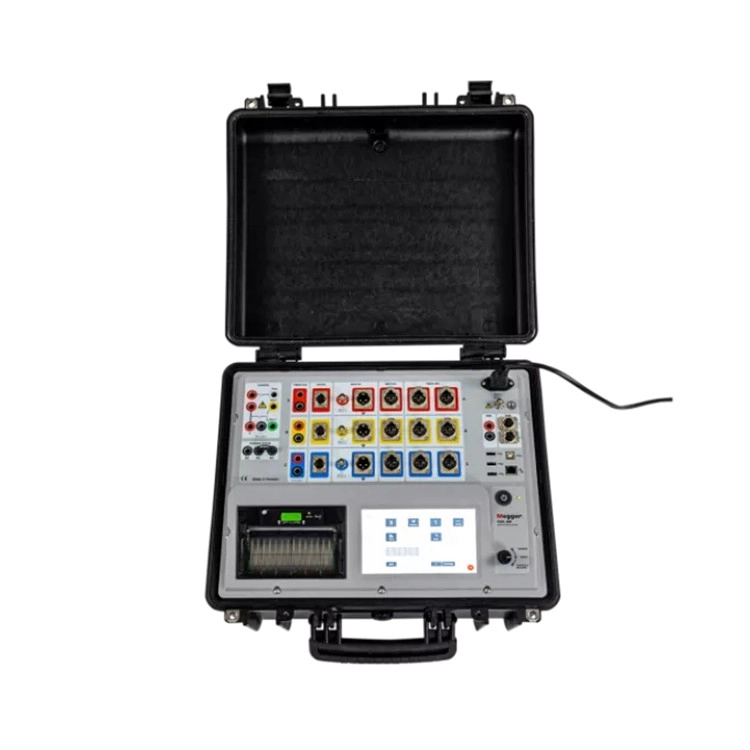

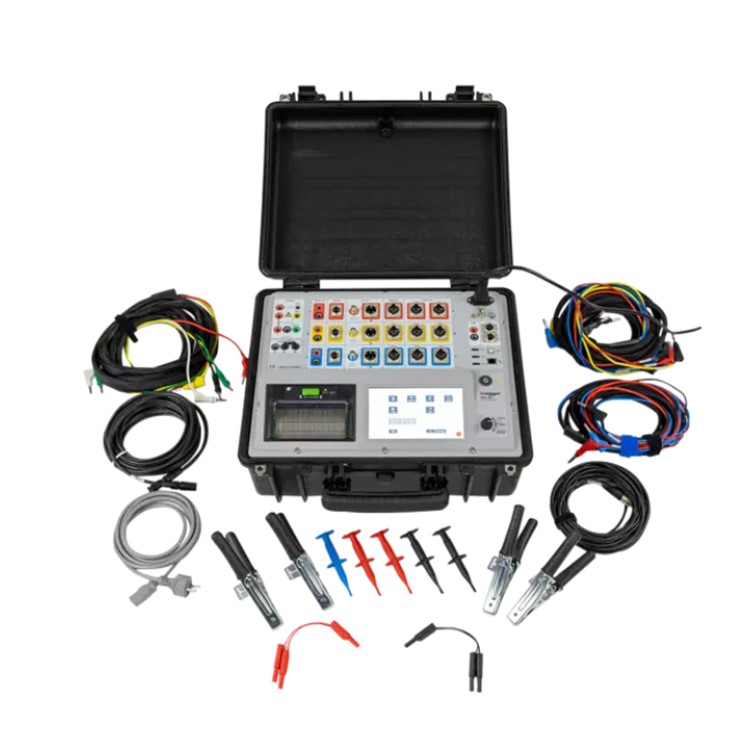

MEGGER EGIL200 회로 차단기 분석기
MEGGER EGIL200 회로 차단기 분석기
MEGGER EGIL200 circuit breaker analyser
DualGround™ 테스트 기능을 갖춘 회로 차단기 시간 및 이동 거리 분석기
EGIL200은 중전압 및 고전압 변전소와 기타 산업 현장에서 회로 차단기 분석을 간편하게 해줍니다.
Circuit breaker time and travel analyser with DualGround™ testing
The EGIL200 makes circuit breaker analysis easy in medium and high voltage substations and in other industrial applications.
원산지 GERMANY
제조사 MEGGER
브랜드 MEGGER
무게 1kg
택배 · 기본 무료
클릭 하시면 이동합니다.
메거 ・ MEGGER

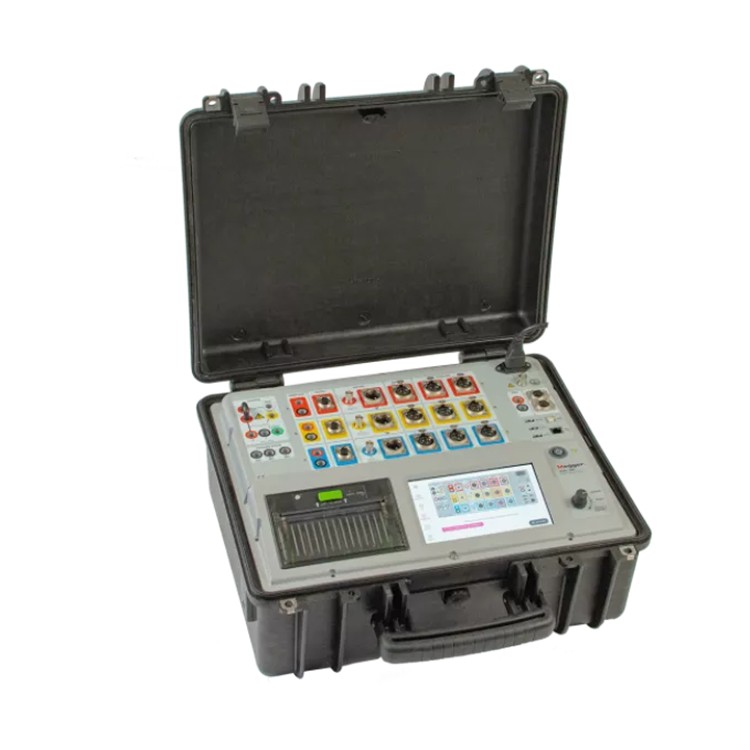

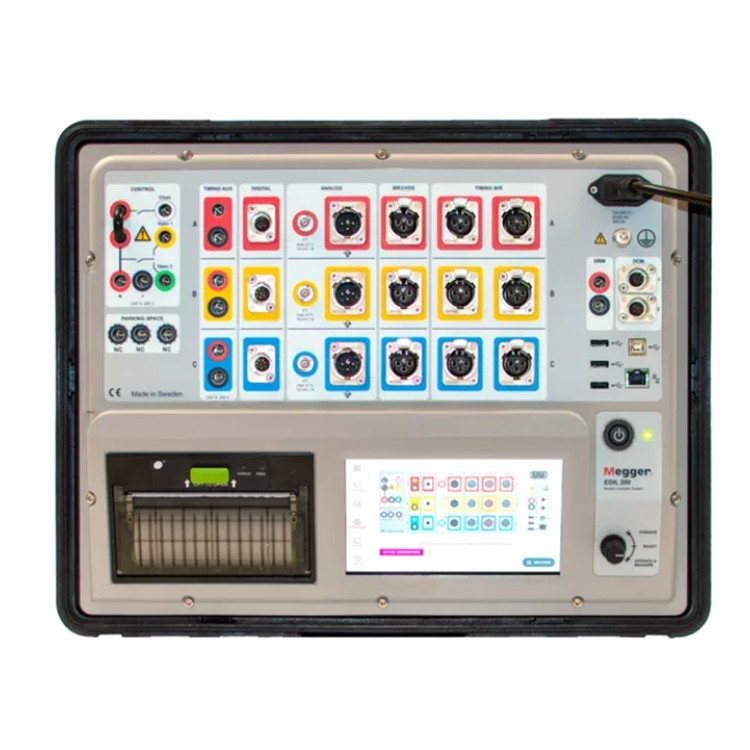

EGIL200
회로 차단기 분석기
EGIL200 circuit breaker analyser
- 직관적이고 사용자 친화적인 작동
EGIL의 간편한 작동이라는 전통을 계승한 EGIL200은 빠르고 간편한 사용자 인터페이스를 제공하여 사용자의 조작이 거의 필요하지 않습니다. 전원을 켜고, 회로 차단기의 기본 설정을 선택하고, 모든 테스트를 한 화면에서 시작할 수 있습니다. 테스트 계획을 설정하기 위해 여러 탭이나 설정을 전환할 필요가 없습니다. 동일한 유형의 차단기를 여러 개 연속으로 테스트하는 경우에도 모든 테스트 매개변수가 이미 설정된 상태에서 전원을 켜고 바로 테스트를 시작할 수 있습니다.
- 원클릭 보고
테스트가 완료되면 보고서 아이콘을 클릭하여 PDF 파일을 USB 드라이브에 다운로드하거나 (기기에 내장 프린터 옵션이 있는 경우) 종이 보고서를 인쇄하여 회로 차단기와 함께 보관할 수 있도록 빠르게 기록해 두십시오. 측정된 매개변수와 그래프가 간결하게 표시됩니다.

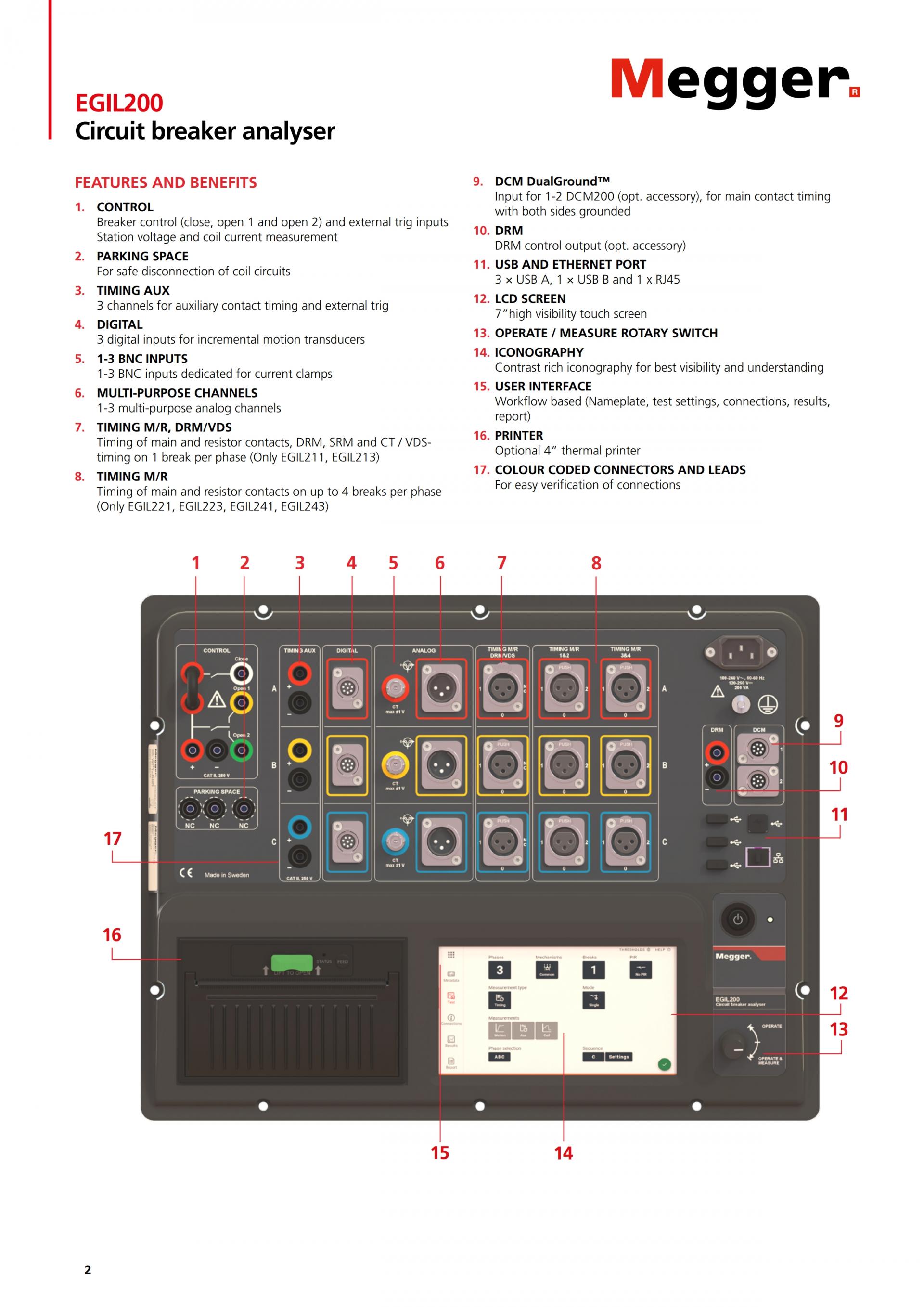

- 다기능 제어 채널
EGIL은 단 하나의 연결로 회로 차단기를 작동시키고 변전소 전압 및 코일 전류와 같은 중요한 작동 매개변수를 측정하여 회로 차단기의 상태에 대한 더 자세한 정보를 제공합니다.
- 특허받은 능동 간섭 억제 기술
EGIL200은 중전압(MV)부터 765kV의 초고전압(EHV)까지, 사전 삽입 저항 접점 타이밍 및 저항값을 포함한 타이밍 접점을 정확하게 측정합니다.
- 소프트웨어 및 액세서리를 통해 확장 가능

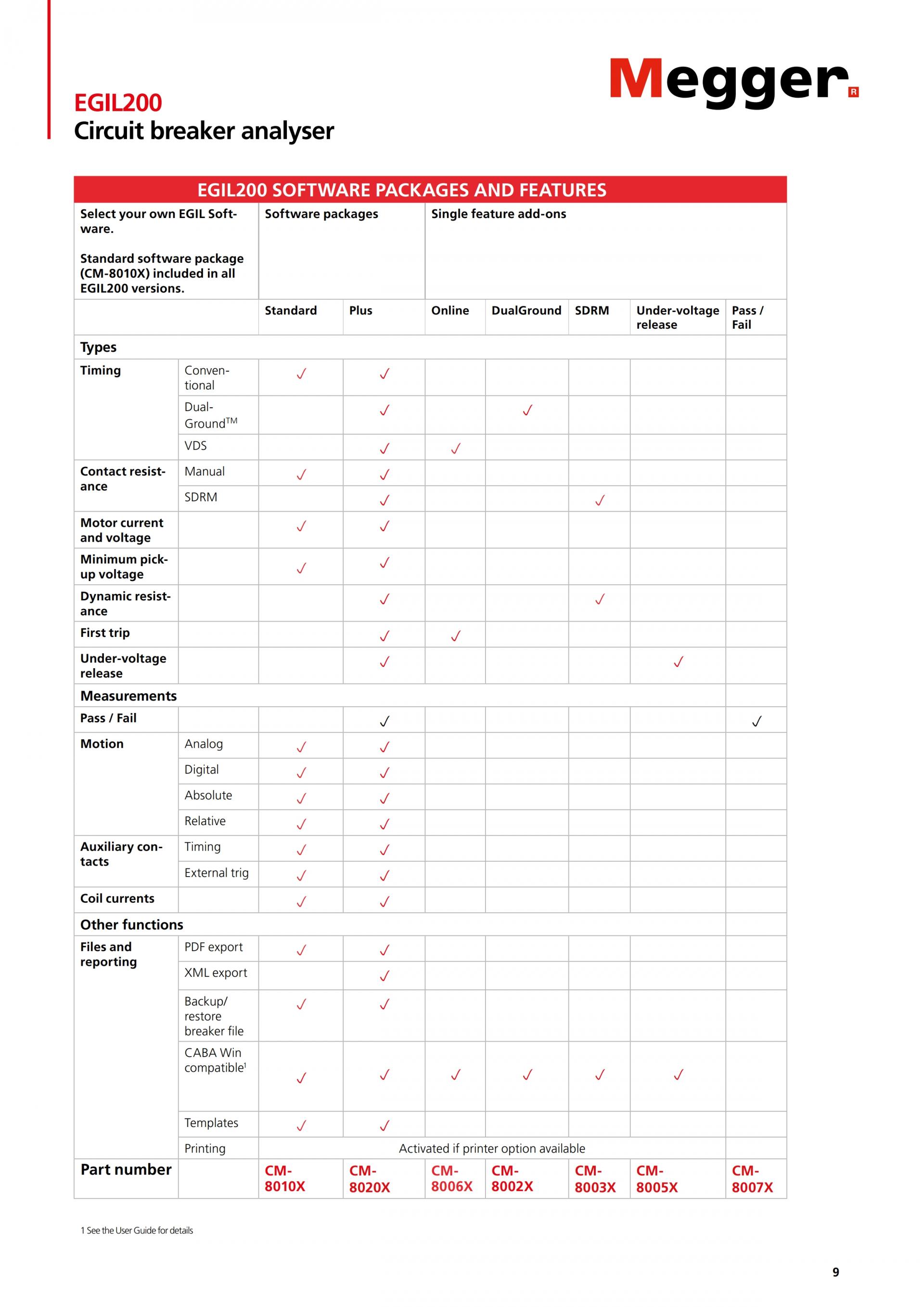

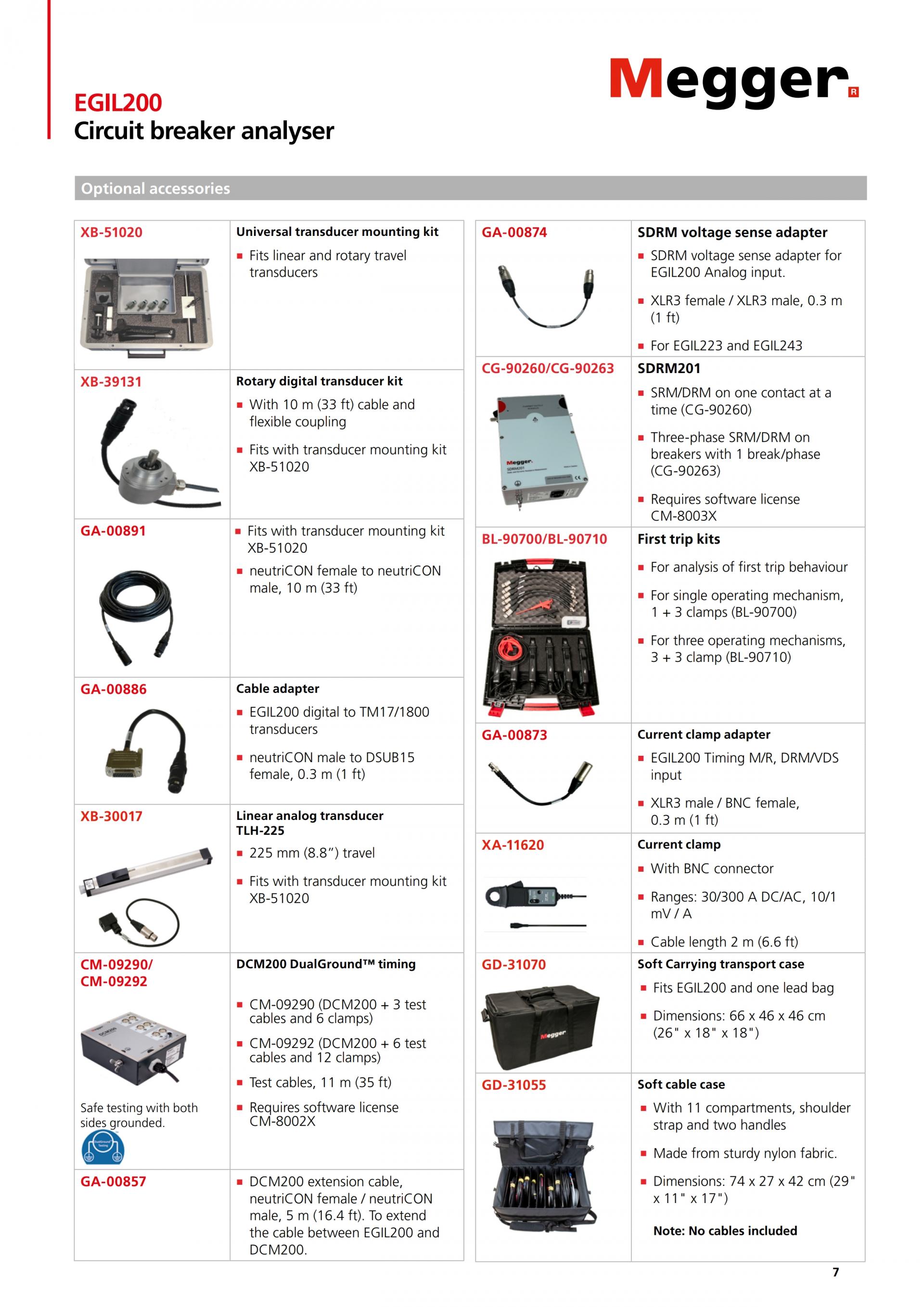

EGIL200의 기능은 소프트웨어 및 액세서리를 추가하여 손쉽게 확장할 수 있습니다. 대표적인 예로는 DualGround™, SDRM, First Trip 등이 있습니다. 'Plus' 소프트웨어 패키지를 사용하면 모든 기능을 활용할 수 있습니다.
제품 소개
EGIL200 회로 차단기 분석기는 빠르고 사용하기 쉬우면서도 합리적인 가격의 중급 회로 차단기 분석기에 대한 요구에 부응하여 개발되었습니다. EGIL200은 사용 편의성을 최우선으로 고려하여 개발되었으며, 측정 설정 시간을 최소화했습니다. 빠른 테스트 모드를 사용하면 모든 관련 설정이 한 화면에 표시되어 있어 선택 후 바로 테스트를 시작할 수 있습니다.
이 다목적 계측기는 변전소 및 산업 현장에서 고전압 및 중전압 차단기를 테스트하는 데 이상적이며, 다양한 기능을 제공합니다. IEEE C37 및 IEC 62271 표준에 명시된 모든 권장 측정 항목이 포함되어 있습니다.
EGIL200은 Megger의 시장 선도적인 EGIL 및 TM 시리즈 회로 차단기 분석기에 사용된 기술을 기반으로 하며, 사용 편의성과 함께 이 제품들의 인기를 높인 다양한 기능을 결합했습니다. 이러한 기능에는 능동 간섭 억제 기술 덕분에 소음이 심한 환경에서도 정확한 PIR 접점 타이밍 및 PIR 저항 측정이 포함됩니다.
EGIL200의 또 다른 주요 기능은 원클릭 보고서 생성 기능입니다. 결과를 PDF 파일로 업로드하거나 옵션으로 제공되는 통합 프린터로 직접 전송할 수 있습니다. EGIL200은 견고한 구조로 설계되어 가장 까다로운 현장 환경에서도 안정적으로 작동할 수 있습니다.
테스트 대상과의 연결 또한 간소화되어, 이후의 모든 측정 또는 작업을 수행하기 위해 테스트 리드를 한 번만 연결하면 됩니다.
- 주 접점 및 PIR 접점의 타이밍
- 닫힌 코일, 열린 코일 1 및 2의 코일 전류 분석
- 변전소 전압 측정
- 동작 측정
- 저항 측정, 정적 및 동적
- 모터 전류 측정
- 닫힘, 열림 1 및 열림 2에 대한 최소 픽업 전압 테스트
EGIL200은 중전압, 고전압 및 데드탱크 차단기 테스트와 같은 표준 애플리케이션에 맞게 사전 구성된 버전 또는 상당 최대 4개의 차단기와 3개의 아날로그 입력을 지원하는 완전 맞춤형 구성으로 제공될 수 있습니다.
- Intuitive and user-friendly operation
Maintaining the EGIL legacy of easy operation, the EGIL200 has a quick and simple user interface, requiring minimal to no input from you. You can turn the unit on, select the basics of your circuit breaker, and begin testing, all from one screen. Switching through multiple tabs or settings is unnecessary to set up a test plan. If testing several breakers of the same type in a row, just turn the unit on and begin testing with all your test parameters already in place.
- One-click reporting
After testing is performed, click on the report icon and download a pdf to a USB drive or print out a paper report (if the unit has the built-in printer option) for a quick record to leave with the circuit breaker. Measured parameters and graphs are displayed concisely.
- Multi-functional control channels
With one connection, the EGIL operates the circuit breaker and measures the valuable operational parameters of station voltage and coil current, providing more insight into the circuit breaker's health.
- Patented Active Interference Suppression technology
From medium voltages (MV) to extra high voltages (EHV) of 765 kV, the EGIL200 will accurately measure timing contacts, including pre-insertion resistor contact timing and resistance values.
- Scalable through software and accessories
The EGIL200 capabilities is easily increased by adding software and accessories. Popular examples are DualGround™, SDRM, and First Trip. The ‘Plus’ software package enables all available features.

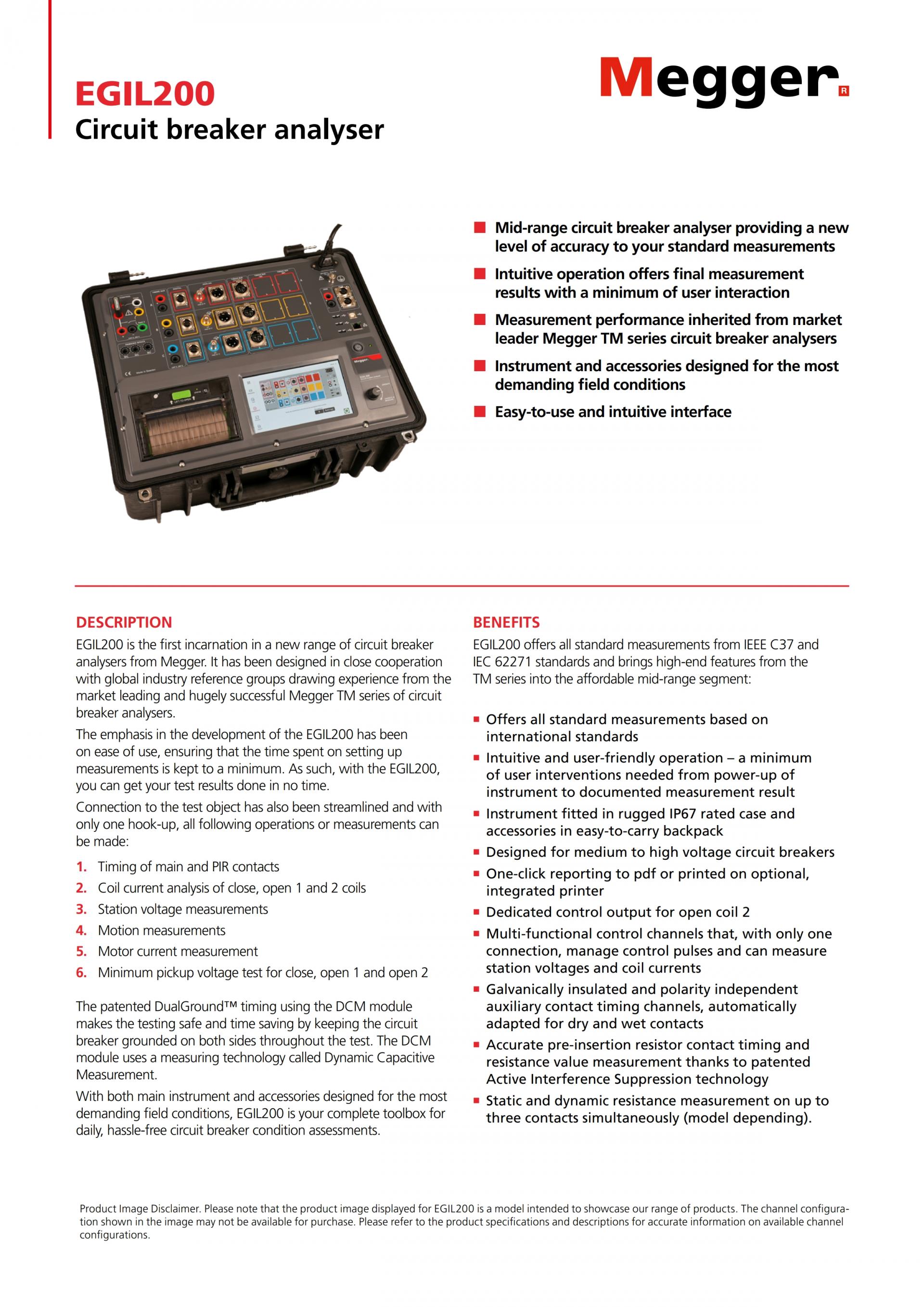

About the product
The EGIL200 circuit breaker analyser has been developed in response to demands for an affordable mid-range circuit breaker analyser that is fast and easy to use. The emphasis in the EGIL200’s development has been on ease of use, ensuring that the time spent setting up measurements is kept to a minimum. With the quick test mode, all relevant settings are on one screen, ready to select and begin testing.
Ideally suited for testing high and medium voltage circuit breakers in substation and industrial applications, this versatile instrument offers a wide range of functions. All recommended measurements specified in the IEEE C37 and IEC 62271 standards are included.
The EGIL200 is based on technology used in Megger’s market-leading EGIL and TM series of circuit breaker analysers, combining their ease of use with many other features that have made them so popular. These features include PIR contact timing and PIR resistance measurements, which are accurate even in noisy environments, thanks to their Active Interference Suppression technology.
Other key features of the EGIL200 include its one-click report generation ability. You can upload results to a PDF file or send them directly to an optional integrated printer. The EGIL200's robust construction makes it suitable for operation in even the most demanding on-site conditions.
Connection to the test object has also been streamlined, so you only need to connect the test leads once to perform all the following measurements or operations:
- Timing of main and PIR contacts
- Coil current analysis of close, open 1 and 2 coils
- Station voltage measurements
- Motion measurements
- Resistance measurements, static and dynamic
- Motor current measurement
- Minimum pickup voltage test for close, open 1, and open 2

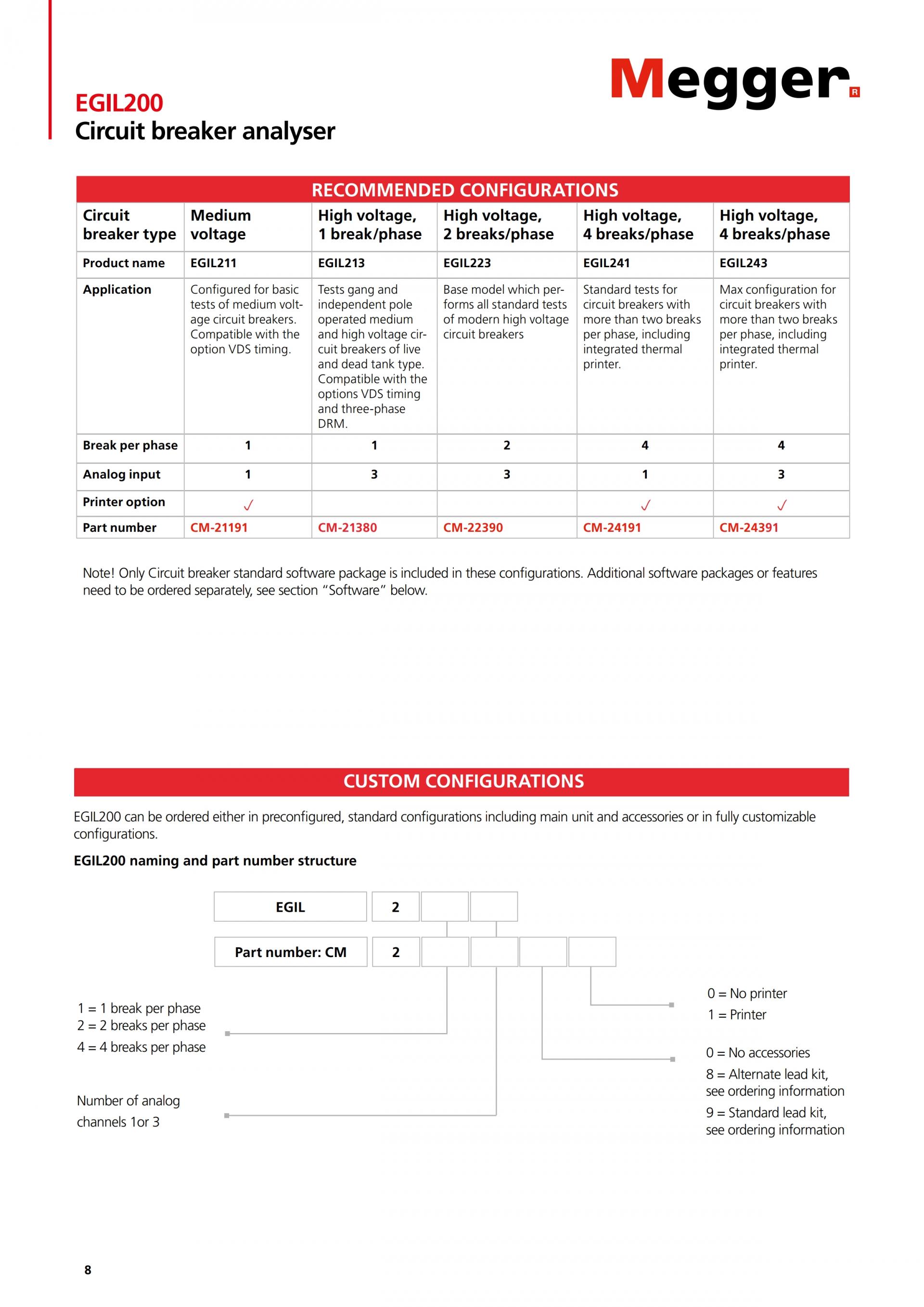

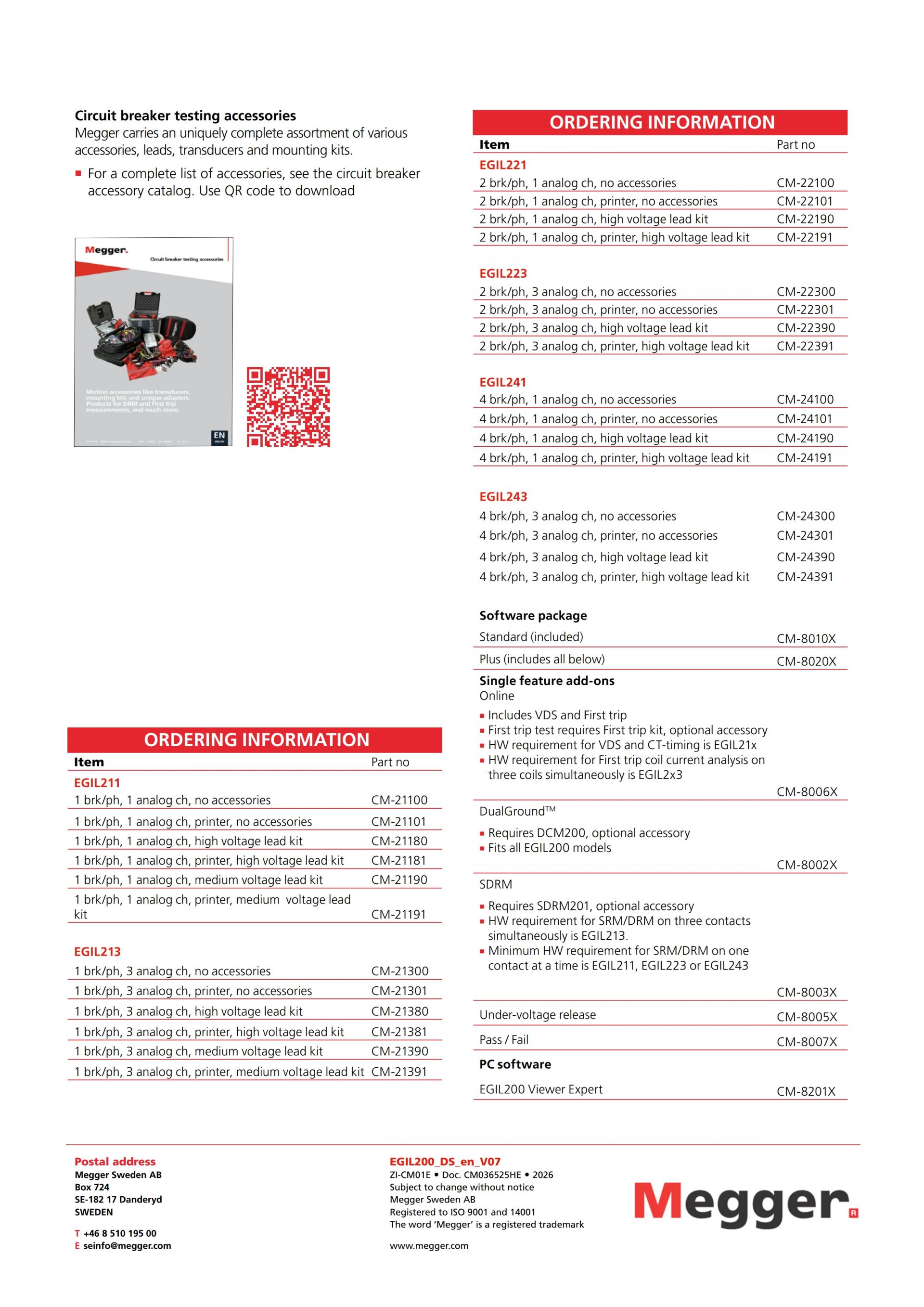

The EGIL200 can be supplied in versions that are pre-configured for standard applications, such as medium voltage, high voltage, and dead-tank breaker testing, or in a fully customisable configuration that supports up to four breaks per phase and three analogue inputs.
