MEGGER SPI4000 스마트 1차 주입 테스트 시스템
MEGGER SPI4000 스마트 1차 주입 테스트 시스템
MEGGER SPI4000 smart primary injection test system
보호 계전기 및 차단기용 1차 주입 테스트 세트
SPI4000은 최대 4000암페어의 회로 차단기 및 계전기용 고전류 1차 주입 테스터이며 NEMA AB-4 규격을 준수합니다.
Primary injection test set for protective relay equipment and circuit breakers
The SPI4000 is a high-current primary injection tester for circuit breakers and relays up to 4000 Amps - and it’s NEMA AB-4 compliant.
원산지 GERMANY
제조사 MEGGER
브랜드 MEGGER
무게 1kg
택배 · 기본 무료
클릭 하시면 이동합니다.
메거 ・ MEGGER
SPI4000
스마트 1차 주입 테스트 시스템
SPI4000 smart primary injection test system
- 좁은 공간에서도 테스트가 가능한 공간 효율적인 전력 공급
동급 최소형 1차 주입 테스트 시스템인 SPI4000은 컴팩트한 디자인에 강력한 성능을 자랑합니다. 협소한 테스트 환경에도 완벽하게 설치할 수 있을 뿐 아니라 일반적인 출입문도 통과할 수 있어 필요한 곳 어디에서든 테스트 성능을 제공합니다.
- 높은 전류 용량
최대 4000암페어의 프레임 크기를 갖춘 SPI4000은 회로 차단기 및 관련 장비의 정밀 테스트에 필요한 충분한 전류를 제공하여 산업 및 전기 분야의 요구 사항을 충족하는 데 탁월합니다.
- 탁월한 이동성으로 필요할 때 언제든 테스트 장비를 현장에 바로 투입할 수 있도록 보장합니다.
무게가 514파운드(약 238kg)에 불과한 SPI4000은 고전류 1차 주입 테스트 시스템치고는 놀라울 정도로 가볍습니다. 휴대성이 뛰어나 운송이 간편할 뿐만 아니라 배송비도 절감되므로 이동성과 간편한 재배치가 필요한 사용자에게 경제적인 선택입니다.
- 자동 영점 교차 기능으로 손쉽게 정밀한 측정이 가능합니다.
SPI4000의 고유한 특징 중 하나는 모든 부하에 대해 전류 영점 교차점에서 출력 점멸각을 자동으로 조정할 수 있다는 점입니다. 이는 모든 회로 차단기 유형에서 DC 오프셋을 제거하고 점멸각을 수동으로 조정할 필요성을 없애 테스트 프로세스를 간소화하고 다양한 부하 및 회로 차단기에서 정확성을 보장합니다.
제품 소개
SPI4000은 고전류 1차 주입 시험 시스템으로, 저전압 전력 차단기, 열 자기식 또는 전자식 트립 장치가 장착된 몰드형 회로 차단기, 과전류 계전기, 열 계전기 등 다양한 장치를 1차 주입 방식으로 시험할 수 있는 유연성을 제공합니다. 최대 4000암페어 프레임 크기의 정격 회로 차단기를 수용하도록 설계된 SPI4000은 NEMA AB-4 시험 지침을 완벽하게 준수합니다.
SPI 시스템은 미리 정해진 전류 진폭을 입력하면 테스트 샘플을 예열하지 않고도 고진폭 출력 전류 펄스를 통해 요청된 고전류를 생성 및 조절할 수 있는 최초의 고전류 테스트 시스템입니다. 또한 SPI 시스템은 출력 점호각을 자동으로 조정하여 모든 부하에 대해 전류 영점 교차점에서 항상 점등되는 고유한 기능을 갖추고 있습니다. 이는 모든 회로 차단기 유형에 대한 DC 오프셋을 제거하고, 다양한 부하 및 회로 차단기에 대한 점호각을 수동으로 결정하고 조정할 필요성을 없애줍니다.
- Space-efficient power for testing even in the tightest quarters
The SPI4000, the smallest primary injection test system in its class, packs a punch with its compact design. It not only fits seamlessly into tight testing environments but can also slip through standard door openings, ensuring testing power wherever you need it.
- High current capacity
With a maximum frame size of 4000 Amps, the SPI4000 excels in providing substantial current levels for precise testing of circuit breakers and related equipment, ensuring it meets the demands of industrial and electrical applications.
- Exceptional mobility, guaranteeing your testing equipment is ready and onsite when you require it
Weighing only 514 lbs, the SPI4000 is remarkably lightweight for a high current primary injection test system. Its portability not only simplifies transportation but also reduces shipping costs, making it an economical choice for users requiring mobility and ease of relocation
- Effortless precision with automatic zero crossing

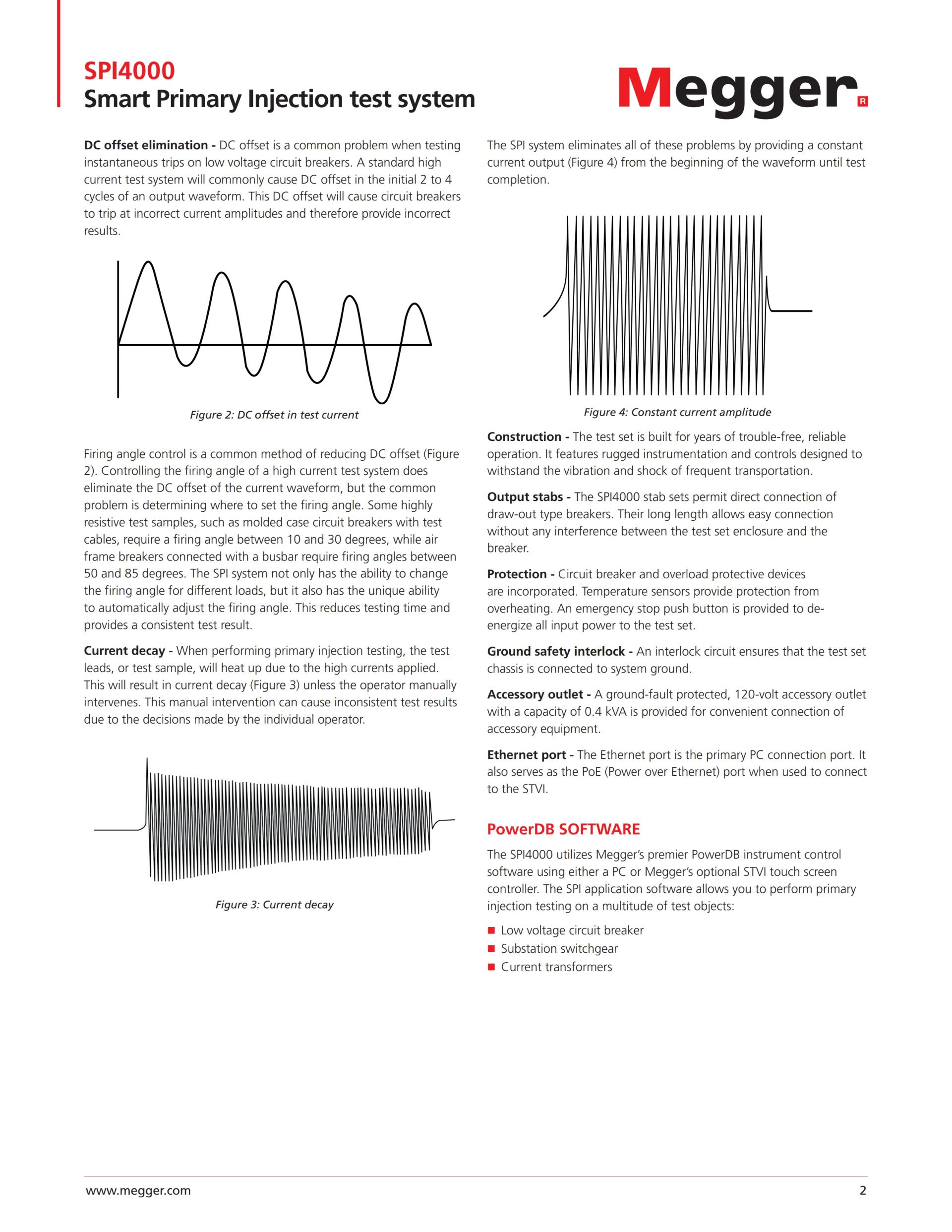

One of the unique features of the SPI4000 is the ability to automatically adjust the output firing angle at the current zero crossing for every load. This eliminates DC offset for all circuit breaker types and removes the need for manual adjustment of firing angles, streamlining the testing process and ensuring accuracy across different loads and circuit breakers.
About the product

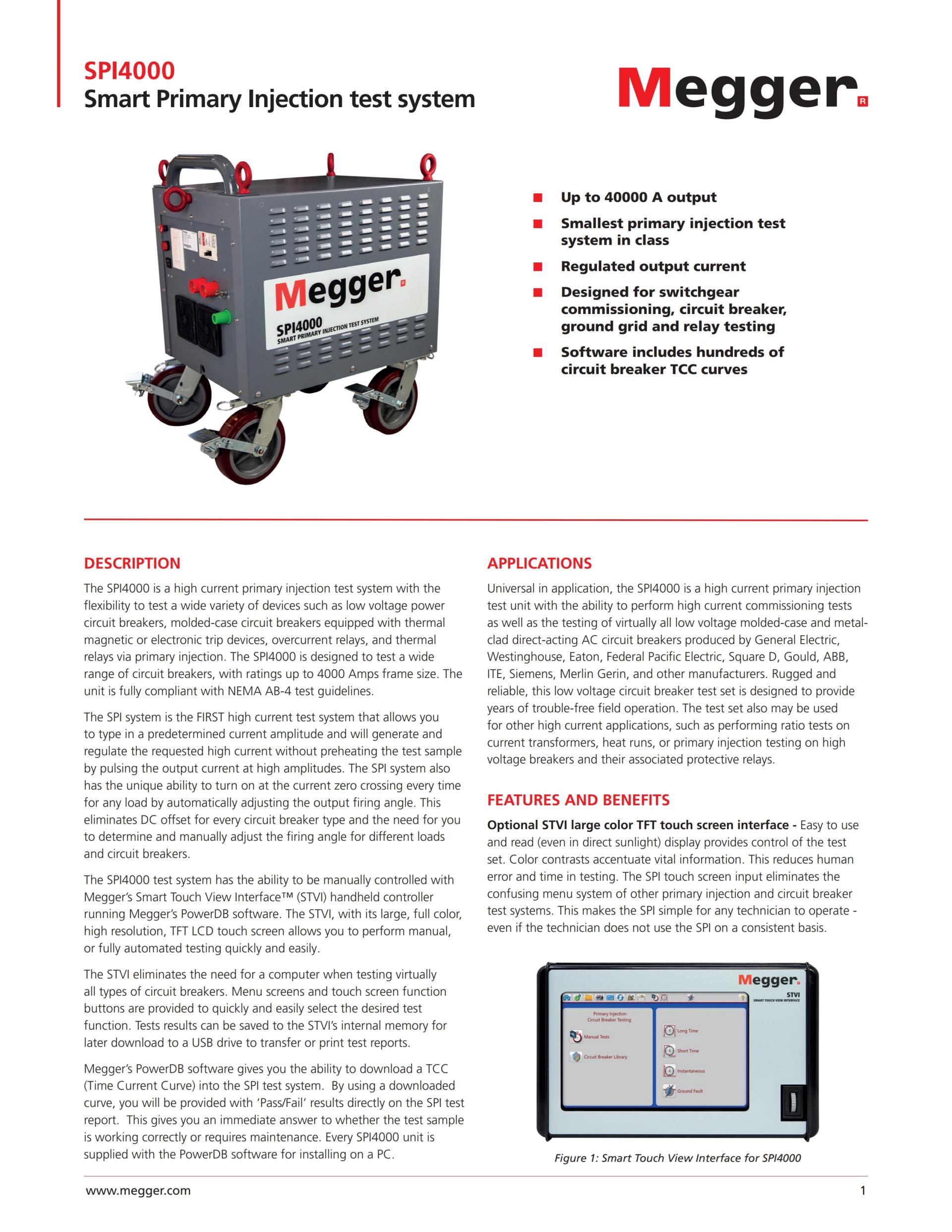

The SPI4000 is a high current primary injection test system with the flexibility to test, via primary injection, a wide variety of devices, including low voltage power circuit breakers, moulded-case circuit breakers equipped with thermal magnetic or electronic trip devices, overcurrent relays, and thermal relays. Designed to accommodate circuit breakers with ratings of up to 4000 Amps frame size, the SPI4000 fully complies with NEMA AB-4 test guidelines.
The SPI system is the first high current test system that allows you to type in a predetermined current amplitude and will then generate and regulate the requested high current without preheating the test sample by pulsing the output current at high amplitudes. Additionally, the SPI system has the unique ability to turn on at the current zero crossing every time for any load by automatically adjusting the output firing angle. This eliminates DC offset for all circuit breaker types and eliminates the need for you to determine and manually adjust the firing angle for various loads and circuit breakers.






| SPI4000 SPI4000 MEGGER MEGGER SPI4000 SPI4000 메거 메거 SPI4000 |
