FLUKE 500 SERIES 배터리분석기
FLUKE 500 SERIES 배터리분석기
FLUKE 500 SERIES Battery Analyzer
- 주요 측정 항목 – 배터리 내부 저항, 직류 및 교류 전압, 직류 및 교류 전류, 리플 전압, 주파수 및 온도.
- 순차 측정 모드 – 배터리 스트링의 자동 또는 수동 순차 테스트를 지원하며, 전압, 저항 및 온도(BTL21 지능형 테스트 프로브 사용 시)를 포함한 측정값을 자동으로 저장하여 매번 측정값을 저장할 필요가 없습니다.
- 종합적인 데이터 로깅 – 모든 측정값은 테스트 중에 자동으로 기록되며, 기기에서 바로 검토한 후 다운로드하여 이동 중에도 분석할 수 있습니다.
- Key measurements – Internal battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and temperature.
- Sequence measurement mode – Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe), eliminating the need to press a button each time a measurement needs to be saved.
- Comprehensive logging – All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis.
원산지 USA
제조사 FLUKE
브랜드 FLUKE
무게 1kg
택배 · 기본 무료
클릭 하시면 이동합니다.
플루크 ・ FLUKE
500 SERIES
배터리분석기
500 SERIES Battery Analyzer
테스트 복잡성 감소, 간소화된 워크플로 및 직관적인 사용자 인터페이스를 통해 배터리 테스트의 사용 편의성을 한 차원 높였습니다.
- 중요 배터리 백업 시스템에 사용되는 개별 고정형 배터리 및 배터리 뱅크의 유지보수, 문제 해결 및 성능 테스트에 이상적인 테스트 도구입니다.
- 직관적인 사용자 인터페이스, 컴팩트한 디자인 및 견고한 구조는 최적의 성능, 테스트 결과 및 신뢰성을 보장합니다.
- 이 시스템은 직류 전압 및 저항 테스트부터 자동 스트링 기능 테스트와 테스트 프로브에 통합된 적외선 온도 측정 시스템을 이용한 전체 상태 테스트에 이르기까지 광범위한 배터리 테스트 기능을 제공합니다.
- 모든 유형의 고정형 배터리 측정을 위해 설계되었습니다.
전압 및 저항 임계값
Fluke 배터리 분석기를 사용하면 측정값의 상한 및 하한 임계값 또는 허용 오차 범위를 빠르고 쉽게 정의할 수 있습니다. 테스트 과정에서 측정값은 미리 정의된 임계값과 자동으로 비교되어 각 측정 후 합격(PASS), 불합격(FAIL) 또는 경고(WARN) 표시가 나타납니다. 최대 10개의 임계값 세트를 저장할 수 있으며, 임계값 표시는 다음 기준에 따라 결정됩니다.
| 전압 | 저항 | |||
| 전압 낮춤 | 전압이 낮아짐 | < 참고 | > 참조 및 참조 x (1+경고 %) | > 참조 x (1+실패) |
| 통과하다 | 실패하다 | 통과하다 | 경고 | 실패하다 |
Fluke 배터리 관리 소프트웨어
Fluke Battery Management Software Easy를 사용하면 배터리 분석기에서 PC로 데이터를 빠르고 쉽게 가져올 수 있습니다. 측정 데이터와 배터리 프로파일 정보는 관리 소프트웨어에 저장 및 보관되며, 결과를 비교하고, 전도도와 저항 측정값 간 전환을 수행하고, 추세 분석을 할 수 있습니다. 모든 측정 데이터, 배터리 프로파일 및 분석 정보를 사용하여 간편하게 보고서를 생성할 수 있습니다.
- 저장된 측정값 빠르게 보기
- 프로필 관리
- 사용자가 정의한 임계값을 갖는 배터리 스트링의 히스토그램
- 배터리의 과거 추세 데이터
- 여러 차례의 방전 전압
- 빠른 보고서 생성
- Fluke 배터리 분석기 펌웨어 업그레이드
- 전도도와 저항 측정값 간의 전환 측정 결과를 비교해 보세요.
Fluke 배터리 분석기 모바일 앱
BT521은 전용 Fluke Battery Analyzer 모바일 앱을 통해 측정 중 데이터 다운로드 및 원격 표시를 위한 무선 통신 기능을 제공합니다(참고: Fluke BT521은 현재 Fluke Connect와 호환되지 않습니다). Fluke Battery Analyzer 모바일 앱을 사용하면 다음과 같은 작업을 수행할 수 있습니다.
- 프로필 보기
- 시퀀스 테스트 데이터를 검토하세요.
- 이메일 시퀀스 테스트 데이터
Fluke BT510 주요 기능:
- 배터리 전압 – 내부 저항 테스트 중에 Fluke 배터리 분석기는 테스트 대상 배터리의 전압도 측정합니다.
- 방전 전압 – 방전 모드는 방전 또는 부하 테스트 중에 사용자가 정의한 간격으로 각 배터리의 전압을 여러 번 측정합니다. 사용자는 배터리가 차단 전압까지 떨어지는 데 걸리는 시간을 계산하고, 이 시간을 이용하여 배터리 용량 손실을 파악할 수 있습니다.
- 리플 전압 테스트 – DC 충전 및 인버터 회로에서 정류된 전압의 원치 않는 잔류 AC 성분을 측정합니다. 사용자는 DC 충전 회로의 AC 성분을 테스트하고 배터리 열화의 근본 원인 중 하나를 찾아낼 수 있습니다.
- 미터 모드와 시퀀스 모드 – 미터 모드는 빠른 테스트 또는 문제 해결에 사용됩니다. 이 모드에서는 측정값을 시간 순서대로 저장하고 읽을 수 있습니다. 시퀀스 모드는 여러 전원 시스템 및 배터리 스트링을 사용하는 유지 관리 작업에 적합합니다. 작업 시작 전에 사용자는 데이터 관리 및 보고서 생성을 위한 작업 프로필을 구성할 수 있습니다.
- 임계값 및 경고 – 사용자는 최대 10개의 임계값을 설정할 수 있으며, 각 측정 후 통과/경고/실패 여부를 확인할 수 있습니다.
- 셀 간 연결 저항 테스트 및 데이터 관리 – 배터리 스트링 내 셀 간 연결 저항을 측정합니다.
- 자동 홀드(AutoHold) – 자동 홀드 기능이 켜져 있으면, 측정값이 1초 동안 안정적으로 유지될 때 해당 값이 기록됩니다. 새로운 측정이 시작되면 기록된 값은 해제됩니다.
- 자동 저장 – 자동 저장 기능이 켜져 있으면 자동 고정(AutoHold) 측정값이 캡처된 후 측정값이 내부 메모리에 자동으로 저장됩니다.
- Fluke 배터리 관리 소프트웨어 – 제품에서 PC로 데이터를 간편하게 가져올 수 있습니다. 측정 데이터와 배터리 프로파일 정보는 관리 소프트웨어에 저장 및 보관되며 비교 및 추세 분석에 사용할 수 있습니다. 모든 측정 데이터, 배터리 프로파일 및 분석 정보를 활용하여 손쉽게 보고서를 생성할 수 있습니다.
- 종합적인 데이터 로깅 – 모든 측정값은 테스트 중에 자동으로 기록되며, 기기에서 바로 검토한 후 다운로드하여 이동 중에도 분석할 수 있습니다.
- 최적화된 사용자 인터페이스 – 빠르고 간편한 설정으로 매번 정확한 데이터를 수집할 수 있습니다.
- 배터리 수명 – 7.4V 3000mAh 리튬 이온 배터리로 8시간 이상 연속 작동 가능.
- USB 포트 - 제공된 데이터 분석 및 보고서 관리 애플리케이션 소프트웨어로 데이터를 빠르게 다운로드하기 위한 포트입니다.
- 업계 최고 수준의 안전 등급 인 CAT III 600V, 최대 1000V DC를 획득하여 배터리 전원 공급 장비 주변의 모든 영역에서 안전한 측정을 보장합니다.
Fluke BT520 주요 특징:
(캐비닛 안이나 손이 닿기 어려운 곳에 있는 배터리의 크기를 측정하도록 설계되었습니다.)
- 위의 모든 것 외에도
- BTL20 지능형 테스트 프로브 세트는 긴 프로브와 짧은 프로브 연장기, 내장 LCD 디스플레이 및 스피커를 통해 시각 및 청각적 피드백을 제공합니다.
- BTL20ANG 지능형 테스트 프로브 세트, 긴 팁 및 짧은 팁 각도 연장 프로브 포함 (온도 센서 없음)
- 대형 소프트 휴대용 케이스
Fluke BT521 주요 특징:
(온도 측정 기능을 활용해야 하는 사용자를 위해 설계되었습니다.)
- 위의 모든 항목*에 더하여

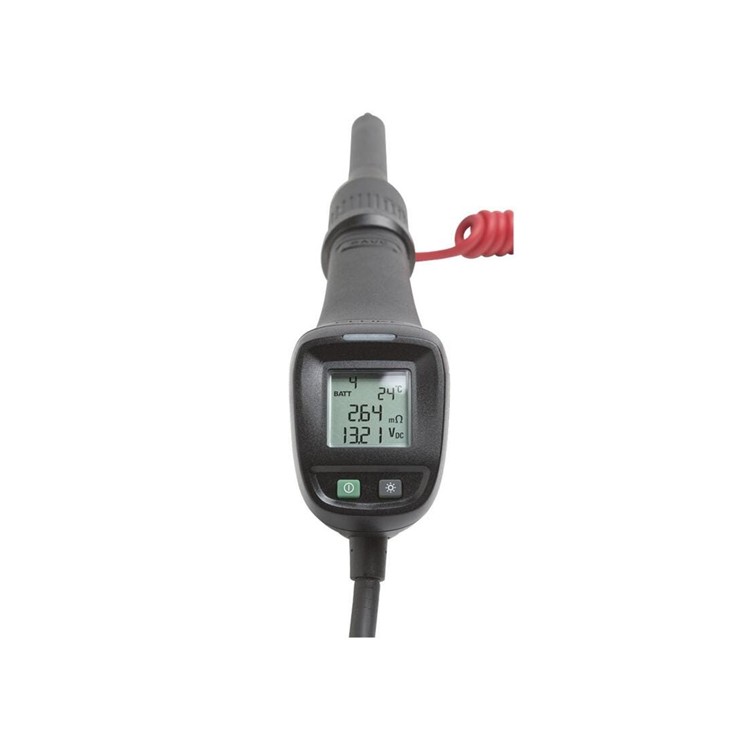

- BTL21 지능형 테스트 프로브는 긴 연장대와 짧은 연장대가 포함되어 있으며, 시각 및 청각 피드백을 위한 내장 LCD 디스플레이와 스피커, 그리고 매 테스트마다 배터리 음극 단자의 온도를 측정하는 통합 적외선 온도 센서를 갖추고 있습니다.
- BTL20ANG 지능형 테스트 프로브 세트, 긴 팁 및 짧은 팁 각도 연장 프로브 포함 (온도 센서 없음)
- 무선 기능은 Fluke Battery Analyze 모바일 앱(Fluke BA Mobile)*과 연동됩니다.
- 배터리 분석기에서 프로필 및 관련 테스트 결과를 확인하세요.
- 프로필 및 테스트 결과를 (.csv) 데이터 형식으로 이메일을 통해 전송합니다.
* BTL20은 Fluke BT-521에 포함되어 있지 않습니다.
* 현재 Fluke Connect® 앱과 호환되지 않습니다.
구성

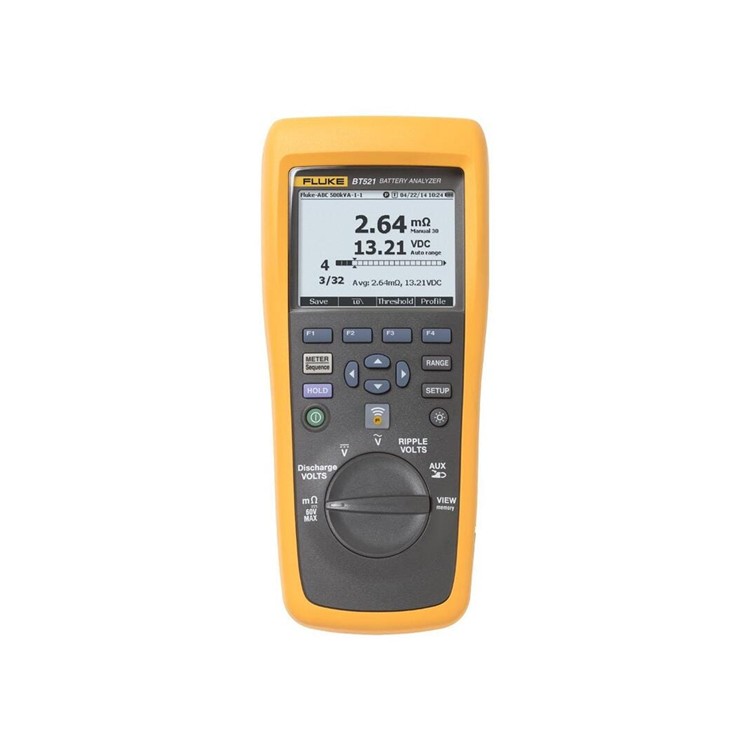

- 플루크 BT521 배터리 분석기
- 4선 테스트 핀(세트)
- BTL10 기본 테스트 리드(세트)
- TL175 TwistGuard™ 테스트 리드(어댑터 포함)

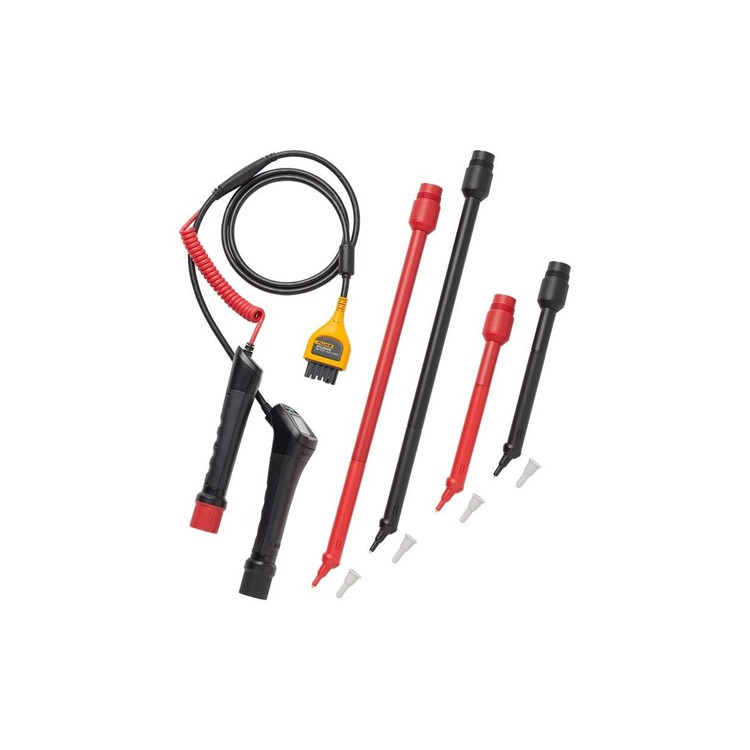

- BTL21 지능형 테스트 프로브 세트(확장 케이블 및 온도 센서 포함)
- i410 AC/DC 전류 클램프
- BP500 리튬 이온 배터리
- BC500 AC 충전기
- 미니 USB 케이블
- 어깨끈
- 벨트 스트랩
- 자석 걸이 스트랩
- FlukeView® 배터리 관리 소프트웨어
- 부드러운 휴대용 케이스
- 예비 퓨즈(2개)
- 배터리 태그
- 0옴 교정 저항

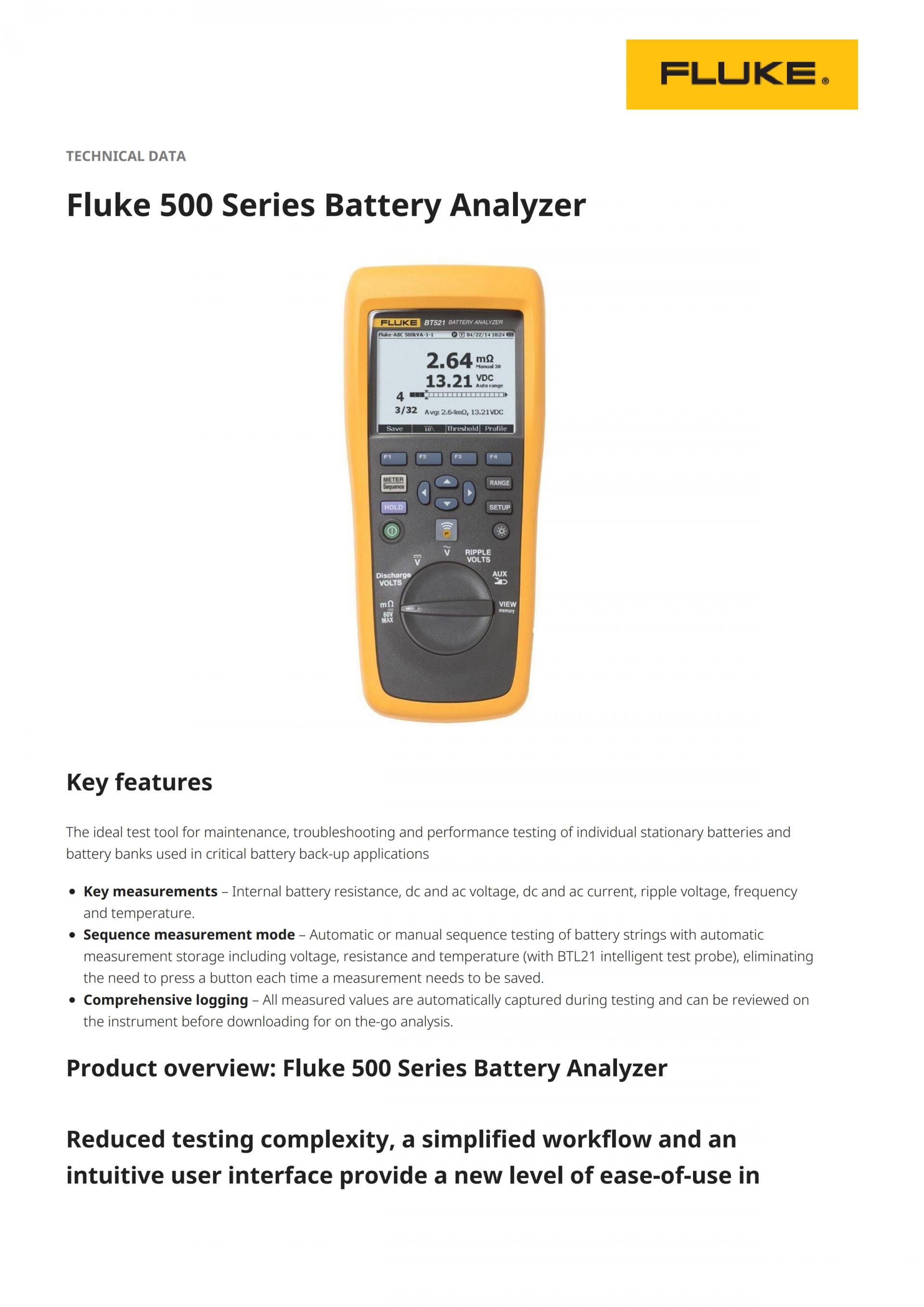

Product overview: Fluke 500 Series Battery Analyzer
Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.
The ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications
- The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability
- Covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using automated string function testing and the test probe integrated infra-red temperature measurement system
- Designed for measurements on stationary batteries of all types.

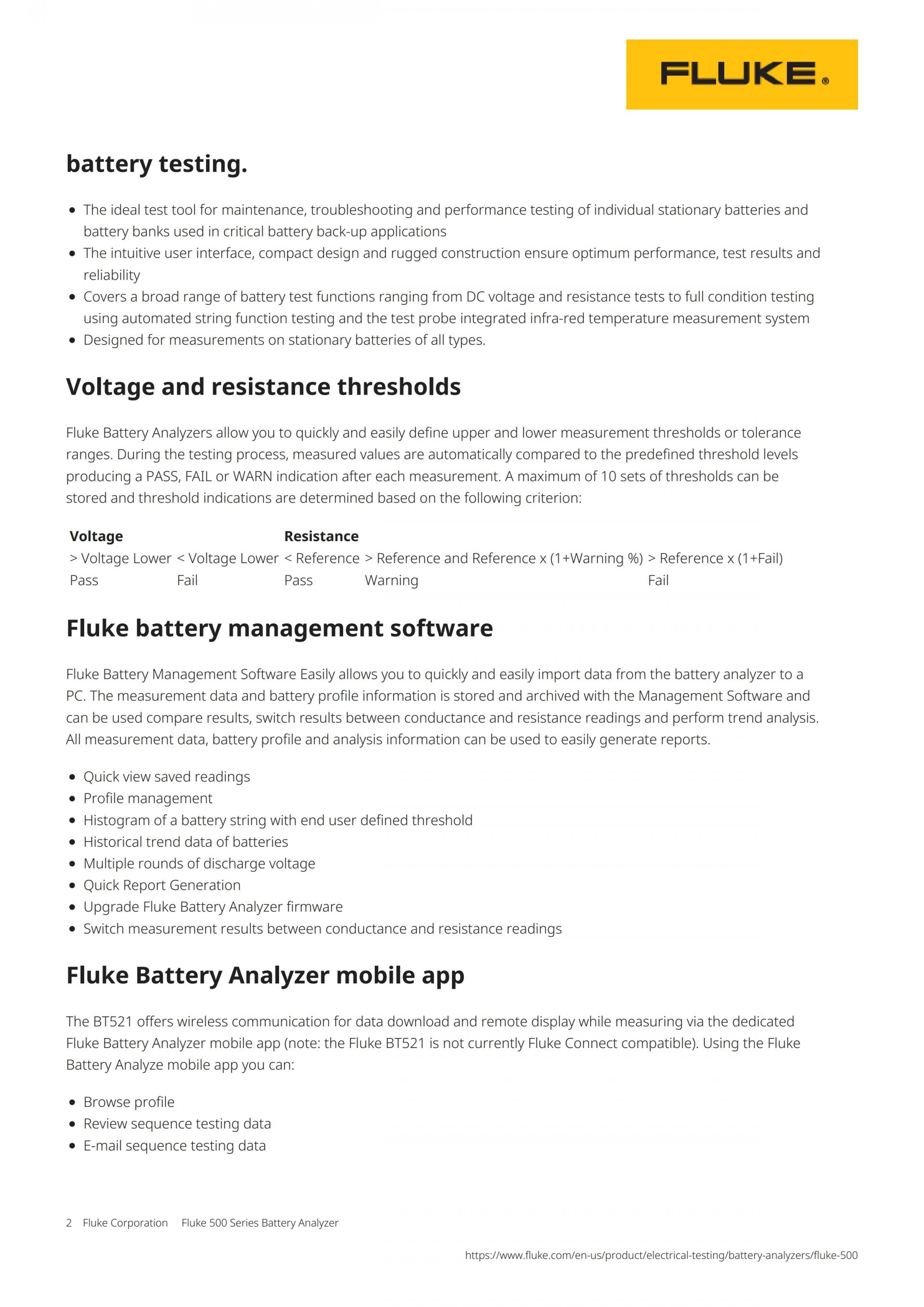

Voltage and resistance thresholds
Fluke Battery Analyzers allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement. A maximum of 10 sets of thresholds can be stored and threshold indications are determined based on the following criterion:
| Voltage | Resistance | |||
| > Voltage Lower | < Voltage Lower | < Reference | > Reference and Reference x (1+Warning %) | > Reference x (1+Fail) |
| Pass | Fail | Pass | Warning | Fail |
Fluke battery management software
Fluke Battery Management Software Easily allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.
- Quick view saved readings
- Profile management
- Histogram of a battery string with end user defined threshold
- Historical trend data of batteries
- Multiple rounds of discharge voltage
- Quick Report Generation
- Upgrade Fluke Battery Analyzer firmware
- Switch measurement results between conductance and resistance readings
Fluke Battery Analyzer mobile app
The BT521 offers wireless communication for data download and remote display while measuring via the dedicated Fluke Battery Analyzer mobile app (note: the Fluke BT521 is not currently Fluke Connect compatible). Using the Fluke Battery Analyze mobile app you can:
- Browse profile
- Review sequence testing data
- E-mail sequence testing data

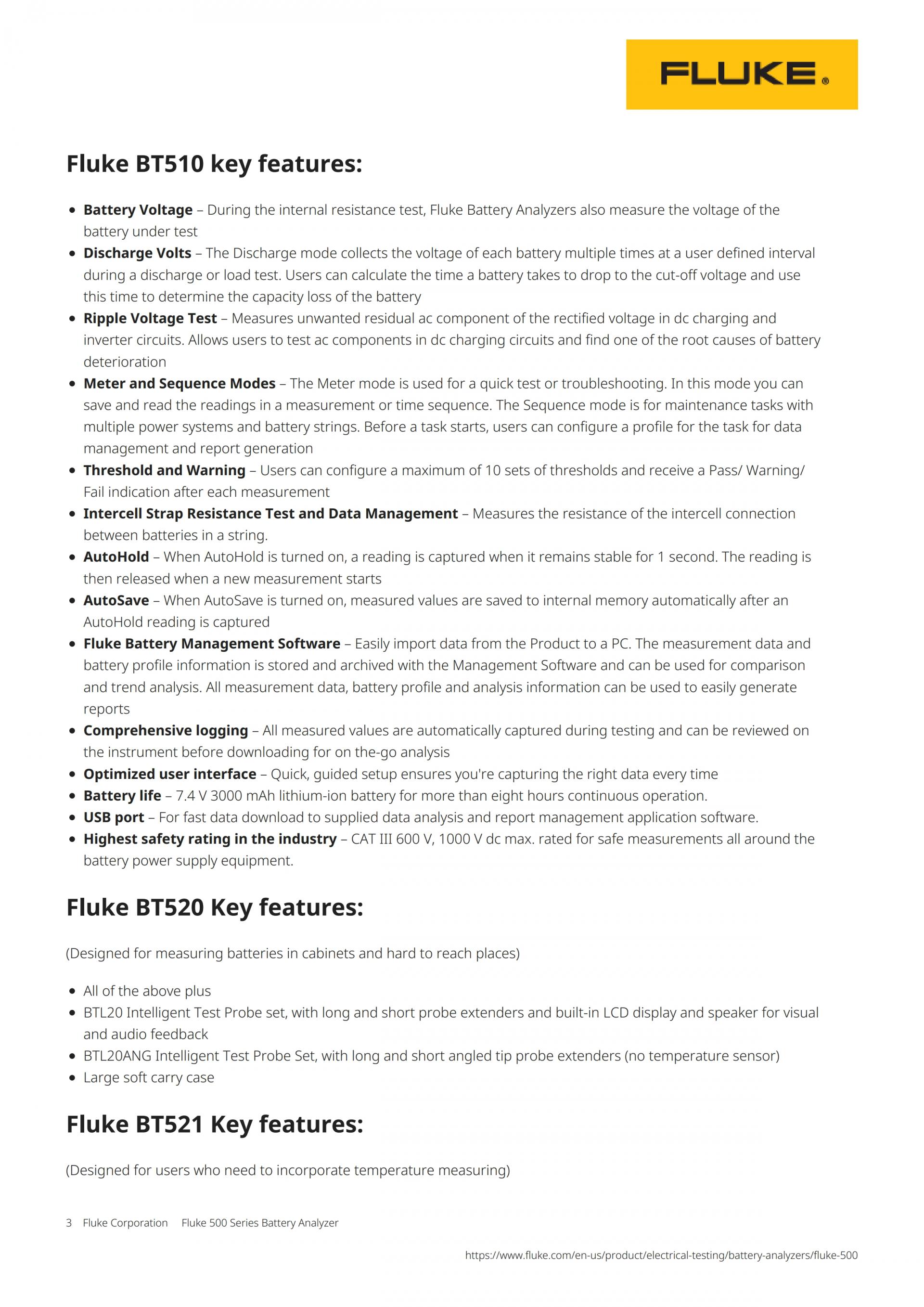

Fluke BT510 key features:
- Battery Voltage – During the internal resistance test, Fluke Battery Analyzers also measure the voltage of the battery under test
- Discharge Volts – The Discharge mode collects the voltage of each battery multiple times at a user defined interval during a discharge or load test. Users can calculate the time a battery takes to drop to the cut-off voltage and use this time to determine the capacity loss of the battery
- Ripple Voltage Test – Measures unwanted residual ac component of the rectified voltage in dc charging and inverter circuits. Allows users to test ac components in dc charging circuits and find one of the root causes of battery deterioration
- Meter and Sequence Modes – The Meter mode is used for a quick test or troubleshooting. In this mode you can save and read the readings in a measurement or time sequence. The Sequence mode is for maintenance tasks with multiple power systems and battery strings. Before a task starts, users can configure a profile for the task for data management and report generation
- Threshold and Warning – Users can configure a maximum of 10 sets of thresholds and receive a Pass/ Warning/ Fail indication after each measurement
- Intercell Strap Resistance Test and Data Management – Measures the resistance of the intercell connection between batteries in a string.
- AutoHold – When AutoHold is turned on, a reading is captured when it remains stable for 1 second. The reading is then released when a new measurement starts
- AutoSave – When AutoSave is turned on, measured values are saved to internal memory automatically after an AutoHold reading is captured
- Fluke Battery Management Software – Easily import data from the Product to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used for comparison and trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports
- Comprehensive logging – All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis
- Optimized user interface – Quick, guided setup ensures you're capturing the right data every time
- Battery life – 7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation.
- USB port – For fast data download to supplied data analysis and report management application software.
- Highest safety rating in the industry – CAT III 600 V, 1000 V dc max. rated for safe measurements all around the battery power supply equipment.
Fluke BT520 Key features:
(Designed for measuring batteries in cabinets and hard to reach places)
- All of the above plus
- BTL20 Intelligent Test Probe set, with long and short probe extenders and built-in LCD display and speaker for visual and audio feedback
- BTL20ANG Intelligent Test Probe Set, with long and short angled tip probe extenders (no temperature sensor)
- Large soft carry case
Fluke BT521 Key features:
(Designed for users who need to incorporate temperature measuring)
- All of the above* plus
- BTL21 Intelligent Test Probes with long and short extenders, built-in LCD display and speaker for visual and audio feedback and integrated infrared temperature sensor for taking temperature measurements on the negative battery post with every test
- BTL20ANG Intelligent Test Probe Set, with long and short angled tip probe extenders (no temperature sensor)
- Wireless capability works with Fluke Battery Analyze mobile app (Fluke BA Mobile)*
- View profile and associated test results from the Battery Analyzer
- Send out the profile and test results via Email with (.csv) data format
* BTL20 not included with the Fluke BT-521
* Not currently compatible with Fluke Connect® app

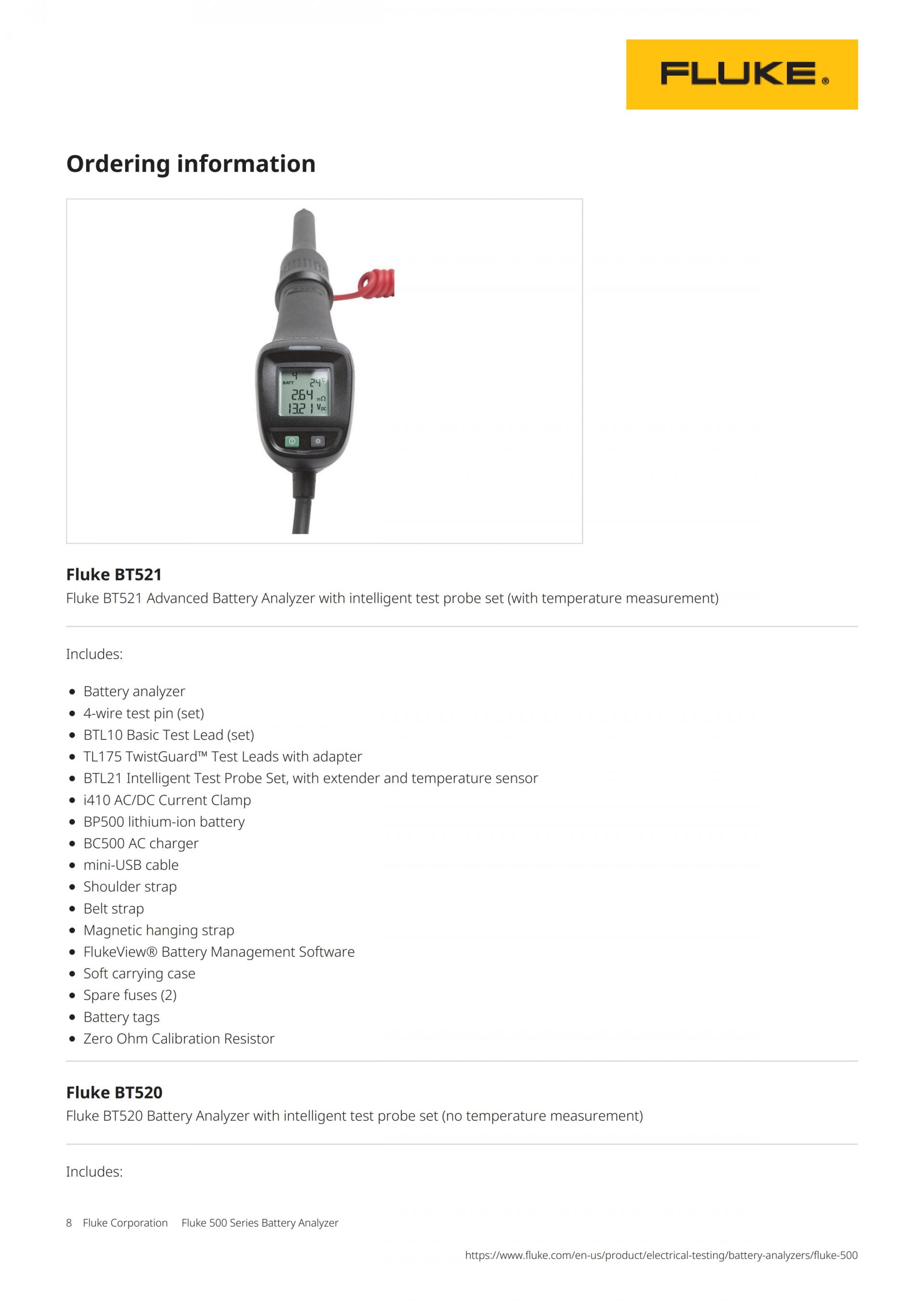

What's in the box:
- Fluke BT521 Battery analyzer
- 4-wire test pin (set)
- BTL10 Basic Test Lead (set)
- TL175 TwistGuard™ Test Leads with adapter
- BTL21 Intelligent Test Probe Set, with extender and temperature sensor
- i410 AC/DC Current Clamp
- BP500 lithium-ion battery
- BC500 AC charger
- mini-USB cable
- Shoulder strap
- Belt strap
- Magnetic hanging strap
- FlukeView® Battery Management Software
- Soft carrying case
- Spare fuses (2)
- Battery tags
- Zero Ohm Calibration Resistor











BT521ANG BT521ANG FLUKE FLUKE BT521ANG BT521ANG 플루크 플루크 BT521ANG BT521 BT521 FLUKE FLUKE BT521 BT521플루크 플루크 BT521 BT520ANG BT520ANG FLUKE FLUKE BT520ANG BT520ANG 플루크 플루크 BT520ANG BT520 BT520 FLUKE FLUKEBT520 BT520 플루크 플루크 BT520 BT510 BT510 FLUKE FLUKE BT510 BT510 플루크 플루크 BT510
가격이 궁금하신가요?
더 많은 자료는?



지니어스인더스트리가 취급하는 대부분의 제품은 사업자 간 거래(B2B) 목적의 산업·연구용 전문 계측 장비입니다.
모든 제품은 주문 제작 또는 해외/본사 주문을 통해 공급되고 있으며 실제 현장/시험 환경에서 사용되는 특성상, 장비 개봉, 전원 인가, 설치/시운전, 교정(캘리브레이션) 진행 등으로 제품의 신뢰도와 가치가 달라지기 때문에 일반 소비재와 달리 단순 변심 사유의 반품·환불이 어렵습니다. 다만 초기 제품 하자(동일 모델 대비 명백한 불량, 운송 중 파손, 사양 상이 등)가 확인되는 경우에는 수령 후 [7일 이내] 연락 주시면 점검 후 조치 또는 A/S 절차를 안내해 드리고 있습니다.
단순 변심, 사양 선택 착오, 내부 사정(예: 예산/프로젝트 변경 등)과 같은 구매자 사유로 반품을 요청하시는 경우에는 반품이 제한되며, 예외적으로 협의가 진행될 경우에도 왕복 운송비, 검수 비용, 감가 비용 및 재 입고 수수료 등이 청구될 수 있습니다. 구체적인 거래 조건(납기, A/S 범위, 교환 가능 여부 등)은 발행된 견적서, 발주서 확인 메일, 납품서 등에 명시된 내용을 우선합니다. 기타 도움이 필요한 경우 견적서에 명시된 지니어스 영업부 담당자에게 문의해 주시기 바랍니다.
플루크 ・ FLUKE
500 SERIES
배터리분석기
500 SERIES Battery Analyzer
테스트 복잡성 감소, 간소화된 워크플로 및 직관적인 사용자 인터페이스를 통해 배터리 테스트의 사용 편의성을 한 차원 높였습니다.
- 중요 배터리 백업 시스템에 사용되는 개별 고정형 배터리 및 배터리 뱅크의 유지보수, 문제 해결 및 성능 테스트에 이상적인 테스트 도구입니다.
- 직관적인 사용자 인터페이스, 컴팩트한 디자인 및 견고한 구조는 최적의 성능, 테스트 결과 및 신뢰성을 보장합니다.
- 이 시스템은 직류 전압 및 저항 테스트부터 자동 스트링 기능 테스트와 테스트 프로브에 통합된 적외선 온도 측정 시스템을 이용한 전체 상태 테스트에 이르기까지 광범위한 배터리 테스트 기능을 제공합니다.
- 모든 유형의 고정형 배터리 측정을 위해 설계되었습니다.
전압 및 저항 임계값
Fluke 배터리 분석기를 사용하면 측정값의 상한 및 하한 임계값 또는 허용 오차 범위를 빠르고 쉽게 정의할 수 있습니다. 테스트 과정에서 측정값은 미리 정의된 임계값과 자동으로 비교되어 각 측정 후 합격(PASS), 불합격(FAIL) 또는 경고(WARN) 표시가 나타납니다. 최대 10개의 임계값 세트를 저장할 수 있으며, 임계값 표시는 다음 기준에 따라 결정됩니다.
| 전압 | 저항 | |||
| 전압 낮춤 | 전압이 낮아짐 | < 참고 | > 참조 및 참조 x (1+경고 %) | > 참조 x (1+실패) |
| 통과하다 | 실패하다 | 통과하다 | 경고 | 실패하다 |
Fluke 배터리 관리 소프트웨어
Fluke Battery Management Software Easy를 사용하면 배터리 분석기에서 PC로 데이터를 빠르고 쉽게 가져올 수 있습니다. 측정 데이터와 배터리 프로파일 정보는 관리 소프트웨어에 저장 및 보관되며, 결과를 비교하고, 전도도와 저항 측정값 간 전환을 수행하고, 추세 분석을 할 수 있습니다. 모든 측정 데이터, 배터리 프로파일 및 분석 정보를 사용하여 간편하게 보고서를 생성할 수 있습니다.
- 저장된 측정값 빠르게 보기
- 프로필 관리
- 사용자가 정의한 임계값을 갖는 배터리 스트링의 히스토그램
- 배터리의 과거 추세 데이터
- 여러 차례의 방전 전압
- 빠른 보고서 생성
- Fluke 배터리 분석기 펌웨어 업그레이드
- 전도도와 저항 측정값 간의 전환 측정 결과를 비교해 보세요.
Fluke 배터리 분석기 모바일 앱
BT521은 전용 Fluke Battery Analyzer 모바일 앱을 통해 측정 중 데이터 다운로드 및 원격 표시를 위한 무선 통신 기능을 제공합니다(참고: Fluke BT521은 현재 Fluke Connect와 호환되지 않습니다). Fluke Battery Analyzer 모바일 앱을 사용하면 다음과 같은 작업을 수행할 수 있습니다.
- 프로필 보기
- 시퀀스 테스트 데이터를 검토하세요.
- 이메일 시퀀스 테스트 데이터
Fluke BT510 주요 기능:
- 배터리 전압 – 내부 저항 테스트 중에 Fluke 배터리 분석기는 테스트 대상 배터리의 전압도 측정합니다.
- 방전 전압 – 방전 모드는 방전 또는 부하 테스트 중에 사용자가 정의한 간격으로 각 배터리의 전압을 여러 번 측정합니다. 사용자는 배터리가 차단 전압까지 떨어지는 데 걸리는 시간을 계산하고, 이 시간을 이용하여 배터리 용량 손실을 파악할 수 있습니다.
- 리플 전압 테스트 – DC 충전 및 인버터 회로에서 정류된 전압의 원치 않는 잔류 AC 성분을 측정합니다. 사용자는 DC 충전 회로의 AC 성분을 테스트하고 배터리 열화의 근본 원인 중 하나를 찾아낼 수 있습니다.
- 미터 모드와 시퀀스 모드 – 미터 모드는 빠른 테스트 또는 문제 해결에 사용됩니다. 이 모드에서는 측정값을 시간 순서대로 저장하고 읽을 수 있습니다. 시퀀스 모드는 여러 전원 시스템 및 배터리 스트링을 사용하는 유지 관리 작업에 적합합니다. 작업 시작 전에 사용자는 데이터 관리 및 보고서 생성을 위한 작업 프로필을 구성할 수 있습니다.
- 임계값 및 경고 – 사용자는 최대 10개의 임계값을 설정할 수 있으며, 각 측정 후 통과/경고/실패 여부를 확인할 수 있습니다.
- 셀 간 연결 저항 테스트 및 데이터 관리 – 배터리 스트링 내 셀 간 연결 저항을 측정합니다.
- 자동 홀드(AutoHold) – 자동 홀드 기능이 켜져 있으면, 측정값이 1초 동안 안정적으로 유지될 때 해당 값이 기록됩니다. 새로운 측정이 시작되면 기록된 값은 해제됩니다.
- 자동 저장 – 자동 저장 기능이 켜져 있으면 자동 고정(AutoHold) 측정값이 캡처된 후 측정값이 내부 메모리에 자동으로 저장됩니다.
- Fluke 배터리 관리 소프트웨어 – 제품에서 PC로 데이터를 간편하게 가져올 수 있습니다. 측정 데이터와 배터리 프로파일 정보는 관리 소프트웨어에 저장 및 보관되며 비교 및 추세 분석에 사용할 수 있습니다. 모든 측정 데이터, 배터리 프로파일 및 분석 정보를 활용하여 손쉽게 보고서를 생성할 수 있습니다.
- 종합적인 데이터 로깅 – 모든 측정값은 테스트 중에 자동으로 기록되며, 기기에서 바로 검토한 후 다운로드하여 이동 중에도 분석할 수 있습니다.
- 최적화된 사용자 인터페이스 – 빠르고 간편한 설정으로 매번 정확한 데이터를 수집할 수 있습니다.
- 배터리 수명 – 7.4V 3000mAh 리튬 이온 배터리로 8시간 이상 연속 작동 가능.
- USB 포트 - 제공된 데이터 분석 및 보고서 관리 애플리케이션 소프트웨어로 데이터를 빠르게 다운로드하기 위한 포트입니다.
- 업계 최고 수준의 안전 등급 인 CAT III 600V, 최대 1000V DC를 획득하여 배터리 전원 공급 장비 주변의 모든 영역에서 안전한 측정을 보장합니다.
Fluke BT520 주요 특징:
(캐비닛 안이나 손이 닿기 어려운 곳에 있는 배터리의 크기를 측정하도록 설계되었습니다.)
- 위의 모든 것 외에도
- BTL20 지능형 테스트 프로브 세트는 긴 프로브와 짧은 프로브 연장기, 내장 LCD 디스플레이 및 스피커를 통해 시각 및 청각적 피드백을 제공합니다.
- BTL20ANG 지능형 테스트 프로브 세트, 긴 팁 및 짧은 팁 각도 연장 프로브 포함 (온도 센서 없음)
- 대형 소프트 휴대용 케이스
Fluke BT521 주요 특징:
(온도 측정 기능을 활용해야 하는 사용자를 위해 설계되었습니다.)
- 위의 모든 항목*에 더하여
- BTL21 지능형 테스트 프로브는 긴 연장대와 짧은 연장대가 포함되어 있으며, 시각 및 청각 피드백을 위한 내장 LCD 디스플레이와 스피커, 그리고 매 테스트마다 배터리 음극 단자의 온도를 측정하는 통합 적외선 온도 센서를 갖추고 있습니다.
- BTL20ANG 지능형 테스트 프로브 세트, 긴 팁 및 짧은 팁 각도 연장 프로브 포함 (온도 센서 없음)
- 무선 기능은 Fluke Battery Analyze 모바일 앱(Fluke BA Mobile)*과 연동됩니다.
- 배터리 분석기에서 프로필 및 관련 테스트 결과를 확인하세요.
- 프로필 및 테스트 결과를 (.csv) 데이터 형식으로 이메일을 통해 전송합니다.
* BTL20은 Fluke BT-521에 포함되어 있지 않습니다.
* 현재 Fluke Connect® 앱과 호환되지 않습니다.
구성
- 플루크 BT521 배터리 분석기
- 4선 테스트 핀(세트)
- BTL10 기본 테스트 리드(세트)
- TL175 TwistGuard™ 테스트 리드(어댑터 포함)
- BTL21 지능형 테스트 프로브 세트(확장 케이블 및 온도 센서 포함)
- i410 AC/DC 전류 클램프
- BP500 리튬 이온 배터리
- BC500 AC 충전기
- 미니 USB 케이블
- 어깨끈
- 벨트 스트랩
- 자석 걸이 스트랩
- FlukeView® 배터리 관리 소프트웨어
- 부드러운 휴대용 케이스
- 예비 퓨즈(2개)
- 배터리 태그
- 0옴 교정 저항
Product overview: Fluke 500 Series Battery Analyzer
Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.
The ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications
- The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability
- Covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using automated string function testing and the test probe integrated infra-red temperature measurement system
- Designed for measurements on stationary batteries of all types.
Voltage and resistance thresholds
Fluke Battery Analyzers allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement. A maximum of 10 sets of thresholds can be stored and threshold indications are determined based on the following criterion:
| Voltage | Resistance | |||
| > Voltage Lower | < Voltage Lower | < Reference | > Reference and Reference x (1+Warning %) | > Reference x (1+Fail) |
| Pass | Fail | Pass | Warning | Fail |
Fluke battery management software
Fluke Battery Management Software Easily allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.
- Quick view saved readings
- Profile management
- Histogram of a battery string with end user defined threshold
- Historical trend data of batteries
- Multiple rounds of discharge voltage
- Quick Report Generation
- Upgrade Fluke Battery Analyzer firmware
- Switch measurement results between conductance and resistance readings
Fluke Battery Analyzer mobile app
The BT521 offers wireless communication for data download and remote display while measuring via the dedicated Fluke Battery Analyzer mobile app (note: the Fluke BT521 is not currently Fluke Connect compatible). Using the Fluke Battery Analyze mobile app you can:
- Browse profile
- Review sequence testing data
- E-mail sequence testing data
Fluke BT510 key features:
- Battery Voltage – During the internal resistance test, Fluke Battery Analyzers also measure the voltage of the battery under test
- Discharge Volts – The Discharge mode collects the voltage of each battery multiple times at a user defined interval during a discharge or load test. Users can calculate the time a battery takes to drop to the cut-off voltage and use this time to determine the capacity loss of the battery
- Ripple Voltage Test – Measures unwanted residual ac component of the rectified voltage in dc charging and inverter circuits. Allows users to test ac components in dc charging circuits and find one of the root causes of battery deterioration
- Meter and Sequence Modes – The Meter mode is used for a quick test or troubleshooting. In this mode you can save and read the readings in a measurement or time sequence. The Sequence mode is for maintenance tasks with multiple power systems and battery strings. Before a task starts, users can configure a profile for the task for data management and report generation
- Threshold and Warning – Users can configure a maximum of 10 sets of thresholds and receive a Pass/ Warning/ Fail indication after each measurement
- Intercell Strap Resistance Test and Data Management – Measures the resistance of the intercell connection between batteries in a string.
- AutoHold – When AutoHold is turned on, a reading is captured when it remains stable for 1 second. The reading is then released when a new measurement starts
- AutoSave – When AutoSave is turned on, measured values are saved to internal memory automatically after an AutoHold reading is captured
- Fluke Battery Management Software – Easily import data from the Product to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used for comparison and trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports
- Comprehensive logging – All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis
- Optimized user interface – Quick, guided setup ensures you're capturing the right data every time
- Battery life – 7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation.
- USB port – For fast data download to supplied data analysis and report management application software.
- Highest safety rating in the industry – CAT III 600 V, 1000 V dc max. rated for safe measurements all around the battery power supply equipment.
Fluke BT520 Key features:
(Designed for measuring batteries in cabinets and hard to reach places)
- All of the above plus
- BTL20 Intelligent Test Probe set, with long and short probe extenders and built-in LCD display and speaker for visual and audio feedback
- BTL20ANG Intelligent Test Probe Set, with long and short angled tip probe extenders (no temperature sensor)
- Large soft carry case

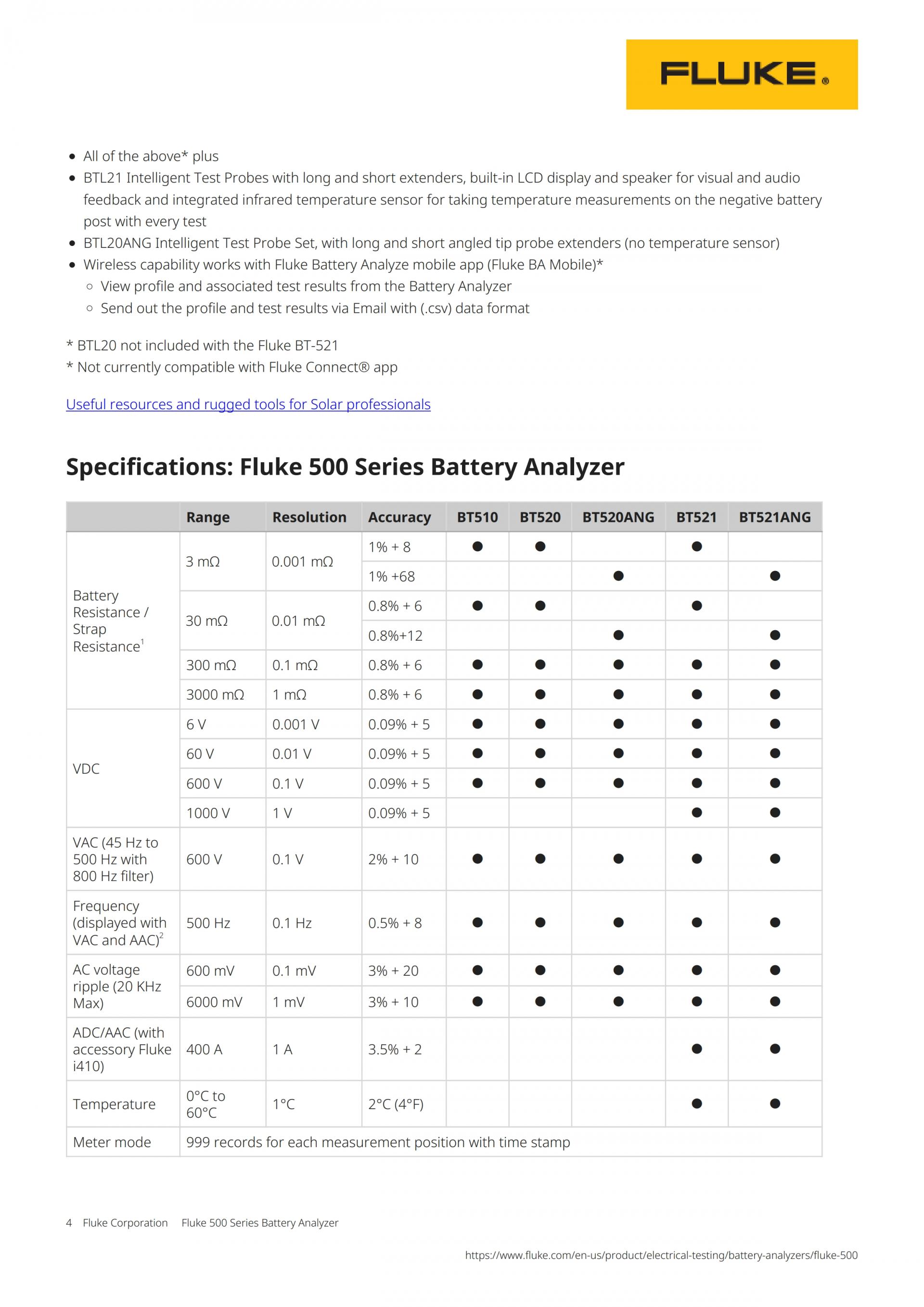

Fluke BT521 Key features:
(Designed for users who need to incorporate temperature measuring)
- All of the above* plus
- BTL21 Intelligent Test Probes with long and short extenders, built-in LCD display and speaker for visual and audio feedback and integrated infrared temperature sensor for taking temperature measurements on the negative battery post with every test
- BTL20ANG Intelligent Test Probe Set, with long and short angled tip probe extenders (no temperature sensor)
- Wireless capability works with Fluke Battery Analyze mobile app (Fluke BA Mobile)*
- View profile and associated test results from the Battery Analyzer
- Send out the profile and test results via Email with (.csv) data format
* BTL20 not included with the Fluke BT-521
* Not currently compatible with Fluke Connect® app
What's in the box:
- Fluke BT521 Battery analyzer
- 4-wire test pin (set)
- BTL10 Basic Test Lead (set)
- TL175 TwistGuard™ Test Leads with adapter
- BTL21 Intelligent Test Probe Set, with extender and temperature sensor
- i410 AC/DC Current Clamp
- BP500 lithium-ion battery
- BC500 AC charger
- mini-USB cable
- Shoulder strap
- Belt strap
- Magnetic hanging strap
- FlukeView® Battery Management Software
- Soft carrying case
- Spare fuses (2)
- Battery tags
- Zero Ohm Calibration Resistor











BT521ANG BT521ANG FLUKE FLUKE BT521ANG BT521ANG 플루크 플루크 BT521ANG BT521 BT521 FLUKE FLUKE BT521 BT521플루크 플루크 BT521 BT520ANG BT520ANG FLUKE FLUKE BT520ANG BT520ANG 플루크 플루크 BT520ANG BT520 BT520 FLUKE FLUKEBT520 BT520 플루크 플루크 BT520 BT510 BT510 FLUKE FLUKE BT510 BT510 플루크 플루크 BT510
가격이 궁금하신가요?
더 많은 자료는?



지니어스인더스트리가 취급하는 대부분의 제품은 사업자 간 거래(B2B) 목적의 산업·연구용 전문 계측 장비입니다.
모든 제품은 주문 제작 또는 해외/본사 주문을 통해 공급되고 있으며 실제 현장/시험 환경에서 사용되는 특성상, 장비 개봉, 전원 인가, 설치/시운전, 교정(캘리브레이션) 진행 등으로 제품의 신뢰도와 가치가 달라지기 때문에 일반 소비재와 달리 단순 변심 사유의 반품·환불이 어렵습니다. 다만 초기 제품 하자(동일 모델 대비 명백한 불량, 운송 중 파손, 사양 상이 등)가 확인되는 경우에는 수령 후 [7일 이내] 연락 주시면 점검 후 조치 또는 A/S 절차를 안내해 드리고 있습니다.
단순 변심, 사양 선택 착오, 내부 사정(예: 예산/프로젝트 변경 등)과 같은 구매자 사유로 반품을 요청하시는 경우에는 반품이 제한되며, 예외적으로 협의가 진행될 경우에도 왕복 운송비, 검수 비용, 감가 비용 및 재 입고 수수료 등이 청구될 수 있습니다. 구체적인 거래 조건(납기, A/S 범위, 교환 가능 여부 등)은 발행된 견적서, 발주서 확인 메일, 납품서 등에 명시된 내용을 우선합니다. 기타 도움이 필요한 경우 견적서에 명시된 지니어스 영업부 담당자에게 문의해 주시기 바랍니다.
연관상품
