FLUKE SV600 고정형 음향 이미저
가격문의(상세정보 참조)

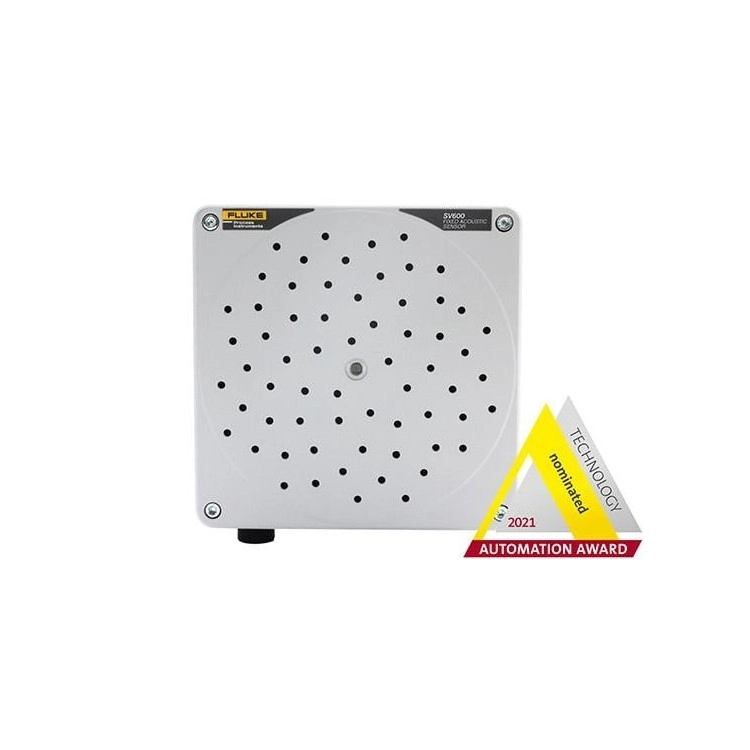

FLUKE SV600 고정형 음향 이미저
FLUKE SV600 Fixed Acoustic Imager
See what you’ve been missing
- Minimize operator intervention with a fully automated and integrated solution
- Capture data from inaccessible or dangerous areas to keep your team safe
- Monitor sound signature changes in real-time to prevent unscheduled maintenance
The SV600 Fixed Acoustic Imager enables users to continuously detect, locate and visualize air and gas leaks or changes in sound signatures before they become costly problems.
Discover the power of autonomous robotics and industrial maintenance working together. The SV600 can be mounted for various continuous acoustic imaging applications – including as a Boston Dynamics Spot® payload. And with the firmware 3.3 release for Spot®, the SV600 is fully integrated into the robotic system, making it the perfect partnership of convenience and functionality.
상품
원산지 USA
제조사 FLUKE
브랜드 FLUKE
배송
택배 · 기본 무료
클릭 하시면 이동합니다.
플루크 ・ FLUKE
SV600
고정형 음향 이미저
SV600 Fixed Acoustic Imager
By using an array of sophisticated sound sensors, the SV600 can be mounted close to any equipment or asset, to any area of the production line, or where human access is restricted or dangerous to ensure you can monitor the most important parts of your facility without interruption.
As a fixed, automated solution, the SV600 integrates with your process and eliminates the need for lengthy fault-finding processes such as soapy water tests, when used as part of your product leak testing process. By continuously monitoring your environment, you can quickly detect and fix air leaks – reducing your consumption of compressed air and energy to help save your facility money.
Key Features:
- High-end 24/7 acoustic monitoring
- 64-Digital MEMS microphones placed in a Sunflower Array
- Integrated visual light camera
- Powerful processor for onboard real time processing
- Sound classification
- Frequency filtering
- dB values and sound intensity mapping
- Event triggering
- Ethernet network communications interface with installed 8-wire M12 fieldbus or RJ45 connector
- Power over Ethernet (POE)
- Ingress Protection IP54
- Option for IO support through fieldbus coupler
SoundMap™ Technology
By using powerful SoundMap™ technology, the SV600 translates the sounds that it hears into a visual representation so that you can quickly locate and quantify problem areas. This provides facilities with further insights into product quality or safety concerns, as well as the ability to quickly detect changes across compressors, pumps, pipes, and more.
In addition to 24/7 remote monitoring, the SV600 integrates into factory systems seamlessly and user-defined alarms can be established to alert users when sound signatures have changed, even in the parts of your facility that are hard to reach.
By serving as an early warning system, facilities can continuously monitor equipment to optimize performance, perform preventative maintenance or detect anomalies well before a failure occurs to keep your processes up and running.

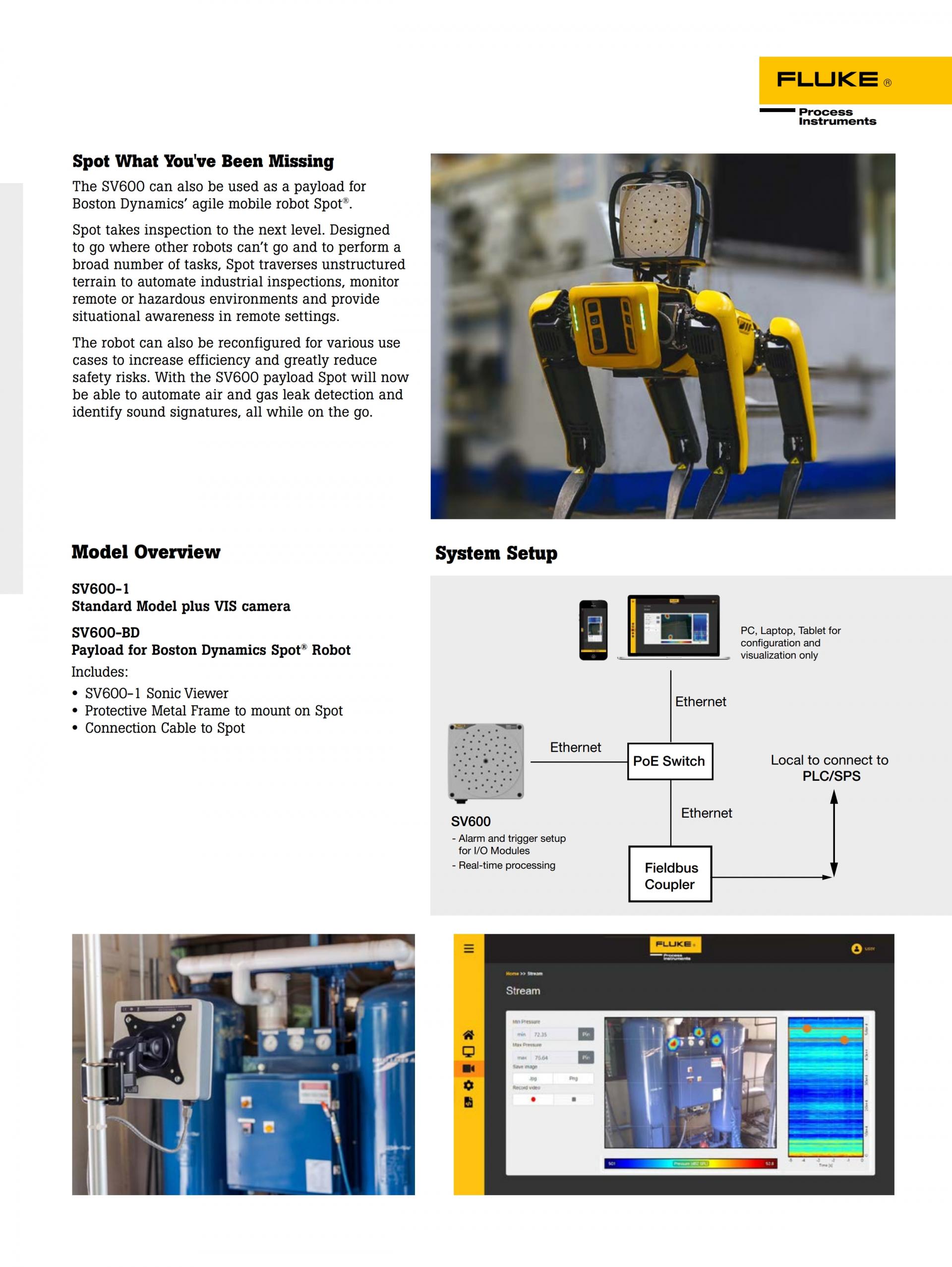

SV600 Payload for Spot® from Boston Dynamics
The SV600 Acoustic Imager can be used as a payload for Spot® from Boston Dynamics. Spot automates sensing and inspection, while the SV600 enables you to continuo Learnusly detect, locate and visualize the unheard and unseen.
Capture limitless data with Boston Dynamics' remote inspection software, Orbit. See the full potential of autonomous robotics for your industrial maintenance needs. Explore the future of maintenance with Fluke Process Instruments and Boston Dynamics.
SV600 SV600 FLUKE FLUKE SV600 SV600 플루크 플루크 SV600 FLUKE-SV600
