TENNEY C-EVO 정밀 항온항습챔버
가격문의(상세정보 참조)
TENNEY C-EVO 정밀 항온항습챔버
TENNEY C-EVO Temperature & Humidity Test Chambers
클릭 하시면 이동합니다.
테니 ・ TENNEY
C-EVO
정밀 항온항습챔버

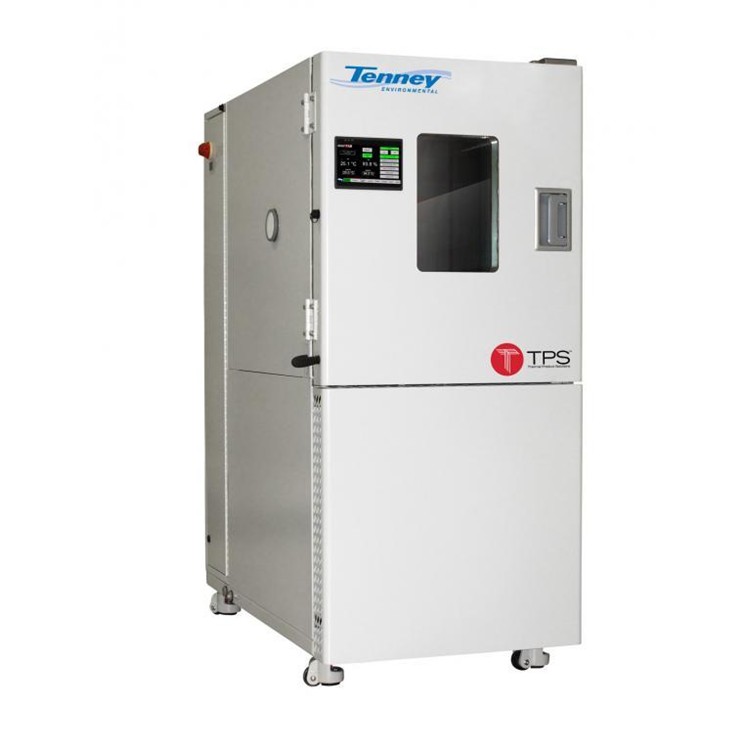

C-EVO Temperature & Humidity Test Chambers
Since 1932, Tenney has pioneered the design and manufacturing of environmental test chambers.
Designed for value, reliability and performance, the Tenney C-EVO Temperature / Humidity Test Chamber is a world class environmental cycling test chamber loaded with standard features and advanced technological upgrades:
- Largest temperature and humidity range in the industry
- Smallest equipment footprint in the industry
- Superior Heat Capacity (KW), Cooling Capacity (HP/BTU) and Air Flow Capacity (CFM) deliver the best temperature change rates and uniformity in the industry
- Redundant user and equipment safety features are standard
Benefits:
- Robust design delivers consistent, reliable, repeatable results that lead to higher productivity
- Improved serviceability and reduced maintenance cost
- Programmable controller - Smart 1.0TM - is very intuitive - easy to set up and user-friendly
- Constructed for long life and thermal integrity
Features:
- Smart 1.0 controller
- Heated viewing glass window
- Chamber light
- Two 3” cable ports
- Solid state humidity sensor
- Platinum RTD temperature sensor
- Heavy duty leveling casters
- Nichrome wire air heater
- Solid state pressure switches
- Thermal expansion valves
- FM approved safety OTP
- Backup safety thermal cutoff
- Main electrical disconnect LOTO
- Chamber vent port
- One shelf standard
Smart 1.0 Controller 7 Inch Screen
The main features of the 7” Windows based PLC Smart 1.0 are the high resolution graphical touch screen, Smart 1.0 graphical user interface, 32 bit RISC 400 MHz central processing unit, 4GB (SD Card) flash storage, capable of storing up to 100 profiles with 100 steps each. Test data retrieval and profile data transfer/sharing is accomplished through a local FTP server via Ethernet connection. Individual PID control loops allow for precise process control.
A 100-ohm platinum RTD is used for temperature measurement and a dry capacitance type sensor is used for humidity measurement (when applicable). Customer use event outputs events can be purchased as an option.
Other features included with Smart 1.0:
- Real-time and historical color graph displays for temperature and humidity as well as set point values
- System can run in Single set point or Programmed modes
- Alarm, Program, and Datalog files can be easily transferred to and from controller via Ethernet connection
- Built-in TCP/IP networking via Ethernet 10/100 communication port
- Ethernet communications are standard. RS485, RS232 and IEE GPIB are all available as options
- Optional Analog signal re-transmit out to peripheral devices such as optional chart recorders, etc.
- Remote access via Smartphone, iPad, etc. with internet connection and VNC phone App’s
- Chart Recorder
- Circular or strip type
- Records temperature versus time
- Some models include digital display
- J thermocouple for temperature measurement
- Dry Air Purge System
- removes unwanted moisture and process vapors from chamber
- a chamber valve prevents chamber from becoming pressurized
- self regenerating twin tower heatless dessicant type dryer
- activated by an event output from main controller
- GN2 Purge System
- provides and inert atmosphere inside the chamber
- minimizes moisture buildup
- prevents condensation
- prevents corrosion by eliminating oxygen in the chamber
AX. Boost Cooling System
- Increases the rate or limit of cooling beyond refrigeration means.
- Manual set flow adjustment valve
BMZ. Boost Cooling System
- Increases the rate of cooling beyond refrigeration means.
- Non-adjustable, carbon dioxide injecting port
TENNEY C-EVO ㅇ C-EVOTENNEY C-EVO테니 테니C-EVO TENNEY C10S TENNEY C10C TENNEY C10RS TENNEY C10RC TENNEY C20S TENNEY C20C TENNEY C20RS TENNEY C20RC TENNEY C30S TENNEY C30C TENNEY C30RS TENNEY C30RC TENNEY C40S TENNEY C40C TENNEY C40RS TENNEY C40RC TENNEY C64S TENNEY C64C TENNEY C64RS TENNEY C64RC
가격이 궁금하신가요?
더 많은 자료는?
지니어스인더스트리가 취급하는 대부분의 제품은 사업자 간 거래(B2B) 목적의 산업·연구용 전문 계측 장비입니다.
모든 제품은 주문 제작 또는 해외/본사 주문을 통해 공급되고 있으며 실제 현장/시험 환경에서 사용되는 특성상, 일반 소비재와 달리 단순 변심 사유의 반품·환불이 어렵습니다. 장비 개봉, 전원 인가, 설치/시운전, 교정(캘리브레이션) 진행 등으로 제품의 신뢰도와 가치가 달라질 수 있기 때문입니다.
다만 초기 제품 하자(동일 모델 대비 명백한 불량, 운송 중 파손, 사양 상이 등)가 확인되는 경우에는 수령 후 [7일 이내] 연락 주시면 점검 후 조치 또는 A/S 절차를 안내해 드립니다.
단순 변심, 사양 선택 착오, 내부 사정(예: 예산/프로젝트 변경 등)과 같은 구매자 사유로 반품을 요청하시는 경우에는 반품이 제한되며, 예외적으로 협의가 진행될 경우에도 왕복 운송비, 검수 비용, 감가 비용 및 재입고 수수료 등이 청구될 수 있습니다.
구체적인 거래 조건(납기, A/S 범위, 교환 가능 여부 등)은 발행된 견적서, 발주서 확인 메일, 납품서 등에 명시된 내용을 우선합니다.
도움이 필요한 경우 견적서에 명시된 담당자에게 문의해 주세요.
클릭 하시면 이동합니다.
테니 ・ TENNEY
C-EVO
정밀 항온항습챔버
C-EVO Temperature & Humidity Test Chambers
Since 1932, Tenney has pioneered the design and manufacturing of environmental test chambers.
Designed for value, reliability and performance, the Tenney C-EVO Temperature / Humidity Test Chamber is a world class environmental cycling test chamber loaded with standard features and advanced technological upgrades:
- Largest temperature and humidity range in the industry
- Smallest equipment footprint in the industry
- Superior Heat Capacity (KW), Cooling Capacity (HP/BTU) and Air Flow Capacity (CFM) deliver the best temperature change rates and uniformity in the industry
- Redundant user and equipment safety features are standard
Benefits:
- Robust design delivers consistent, reliable, repeatable results that lead to higher productivity
- Improved serviceability and reduced maintenance cost
- Programmable controller - Smart 1.0TM - is very intuitive - easy to set up and user-friendly
- Constructed for long life and thermal integrity
Features:
- Smart 1.0 controller
- Heated viewing glass window
- Chamber light
- Two 3” cable ports
- Solid state humidity sensor
- Platinum RTD temperature sensor
- Heavy duty leveling casters
- Nichrome wire air heater
- Solid state pressure switches
- Thermal expansion valves
- FM approved safety OTP
- Backup safety thermal cutoff
- Main electrical disconnect LOTO
- Chamber vent port
- One shelf standard
Smart 1.0 Controller 7 Inch Screen
The main features of the 7” Windows based PLC Smart 1.0 are the high resolution graphical touch screen, Smart 1.0 graphical user interface, 32 bit RISC 400 MHz central processing unit, 4GB (SD Card) flash storage, capable of storing up to 100 profiles with 100 steps each. Test data retrieval and profile data transfer/sharing is accomplished through a local FTP server via Ethernet connection. Individual PID control loops allow for precise process control.
A 100-ohm platinum RTD is used for temperature measurement and a dry capacitance type sensor is used for humidity measurement (when applicable). Customer use event outputs events can be purchased as an option.
Other features included with Smart 1.0:
- Real-time and historical color graph displays for temperature and humidity as well as set point values
- System can run in Single set point or Programmed modes
- Alarm, Program, and Datalog files can be easily transferred to and from controller via Ethernet connection
- Built-in TCP/IP networking via Ethernet 10/100 communication port
- Ethernet communications are standard. RS485, RS232 and IEE GPIB are all available as options
- Optional Analog signal re-transmit out to peripheral devices such as optional chart recorders, etc.
- Remote access via Smartphone, iPad, etc. with internet connection and VNC phone App’s
- Chart Recorder
- Circular or strip type
- Records temperature versus time
- Some models include digital display
- J thermocouple for temperature measurement
- Dry Air Purge System
- removes unwanted moisture and process vapors from chamber
- a chamber valve prevents chamber from becoming pressurized
- self regenerating twin tower heatless dessicant type dryer
- activated by an event output from main controller
- GN2 Purge System
- provides and inert atmosphere inside the chamber
- minimizes moisture buildup
- prevents condensation
- prevents corrosion by eliminating oxygen in the chamber
AX. Boost Cooling System
- Increases the rate or limit of cooling beyond refrigeration means.
- Manual set flow adjustment valve
BMZ. Boost Cooling System
- Increases the rate of cooling beyond refrigeration means.
- Non-adjustable, carbon dioxide injecting port
