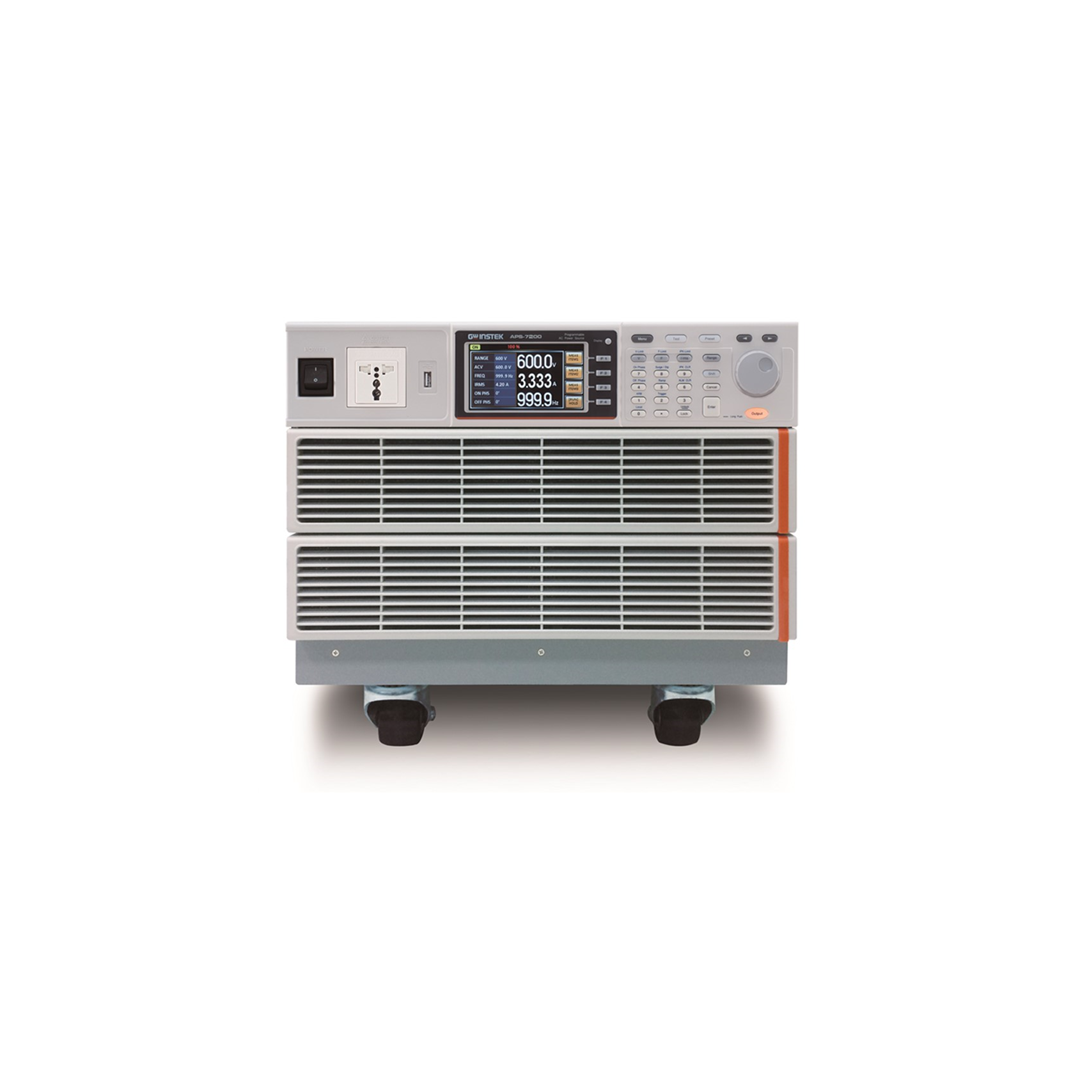

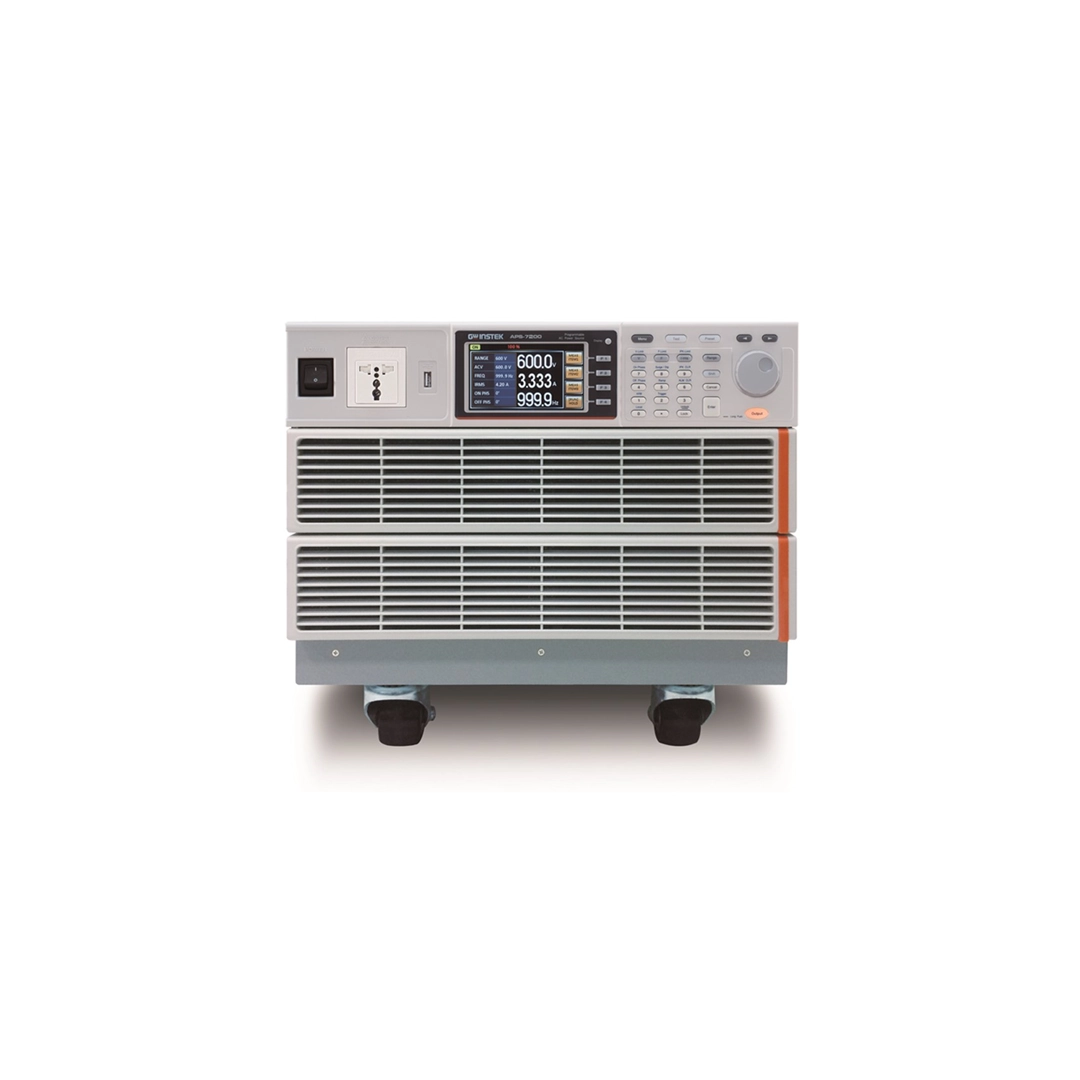

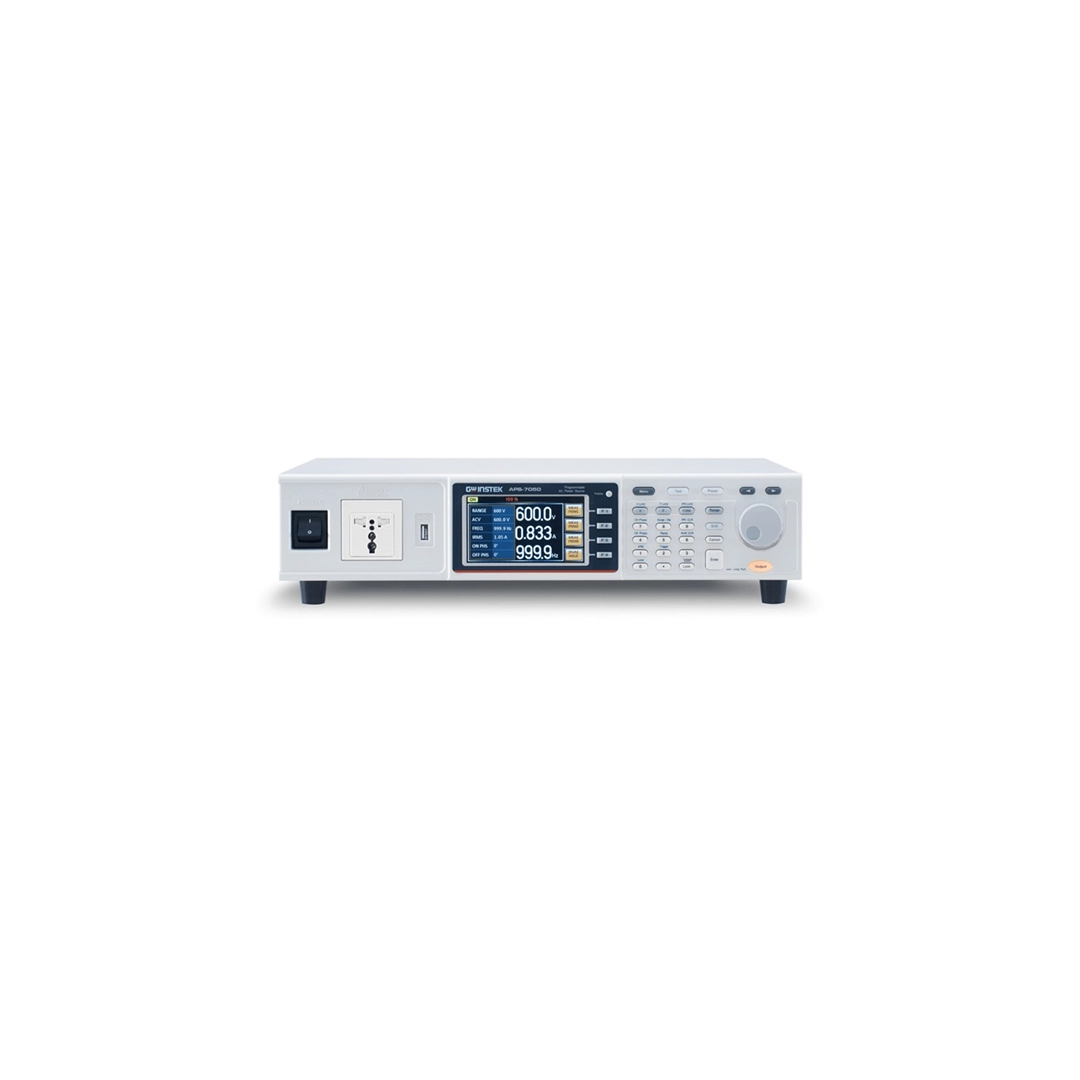

GW INSTEK APS-7200 프로그래머블 리니어 AC 전원공급기(2KVA)
GW INSTEK APS-7200 Programmable Linear AC Power Sources
- AC 출력 전압 : 0~155Vrms/310Vrms/600Vrms(옵션)
- AC 전력 : 500VA/1kVA/2kVA/3kVA
- 인터페이스 : USB(Host)/LAN, GPIB(옵션), RS232/USB CDC(옵션)
클릭 하시면 이동합니다.
굿윌인스텍 ・ GW INSTEK
APS-7200
프로그래머블 리니어 AC 전원공급기(2kVA)
APS-7200 Programmable Linear AC Power Sources

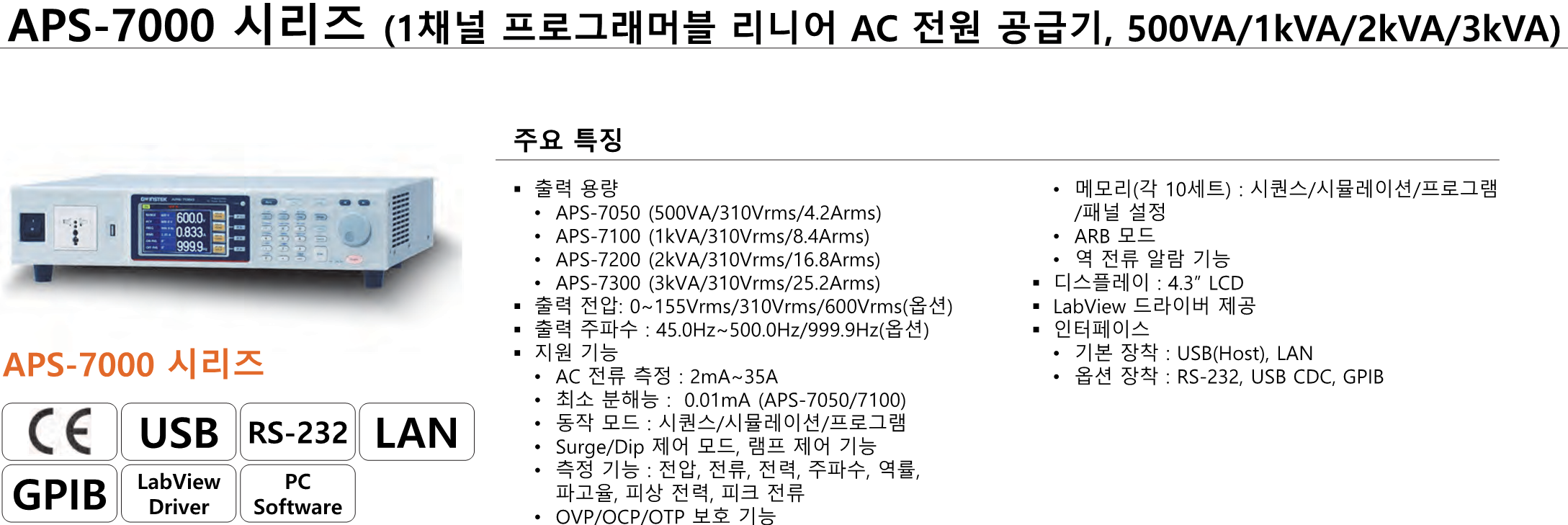

• APS-7000 Series

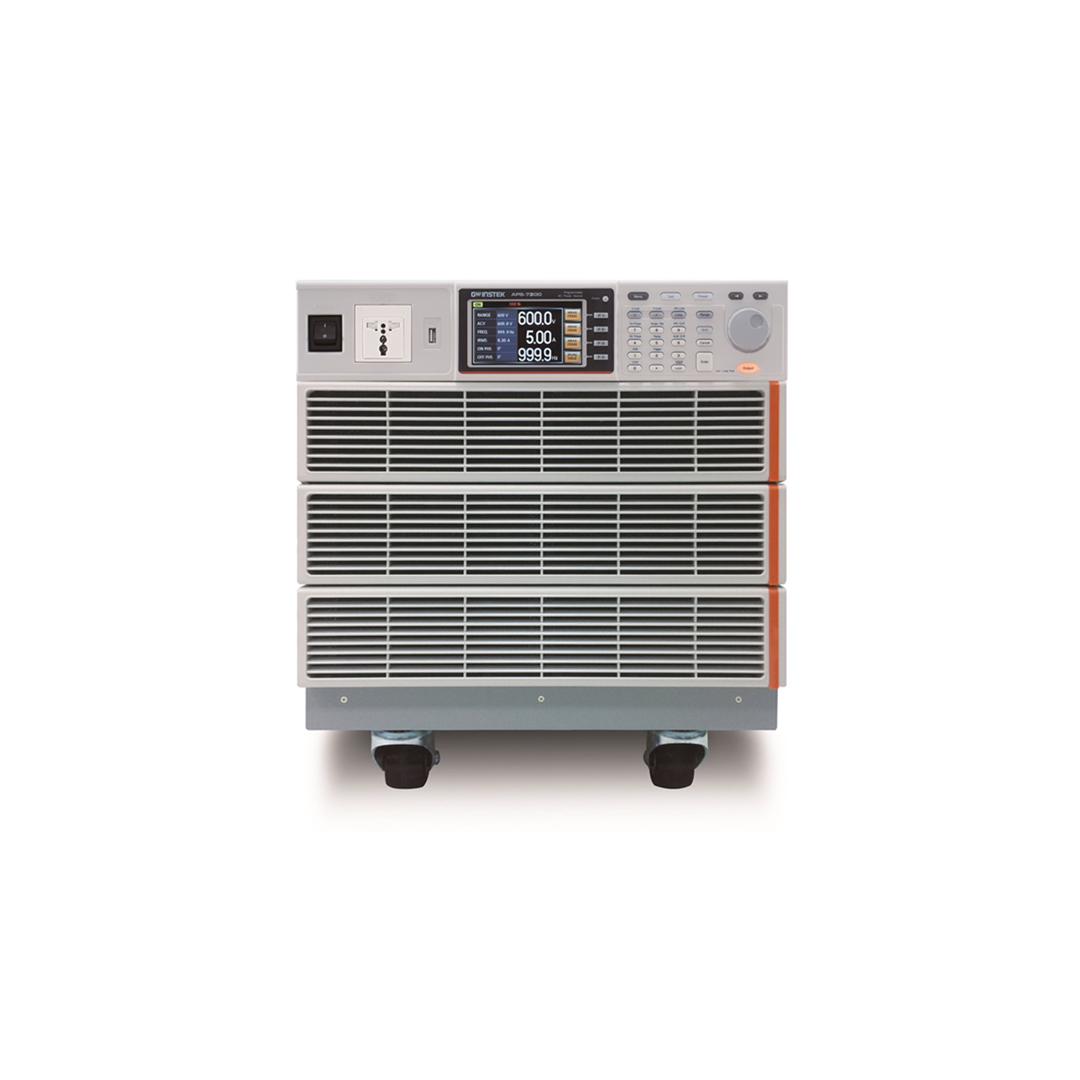

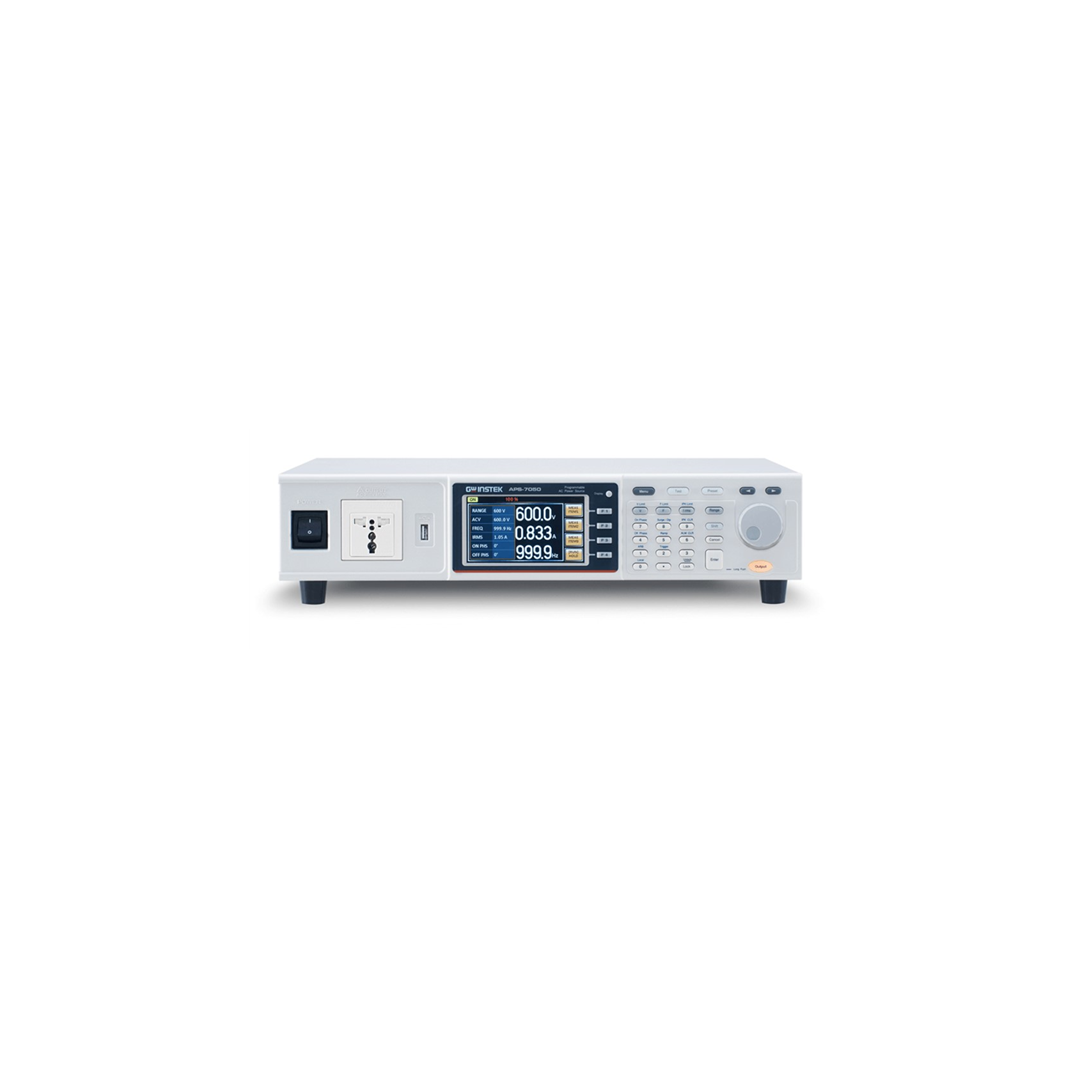

APS-7050 ・ APS-7100 ・ APS-7200 ・ APS-7300
APS-7051 ・ APS-7101
특징
- 4.3인치 TFT-LCD
- 출력 용량 : APS-7050(500VA, 310Vrms, 4.2Arms), APS-7100(1000VA, 310Vrms, 8.4Arms), APS-7200(2000VA, 310Vrms, 16.8Arms), APS-7300, 250Vrms, 30 ;옵션에 의한 출력 증대(0~600Vrms/45~999.9Hz)
- 낮은 리플 및 노이즈
- 측정 및 테스트 기능에는 VOLT, CURR, PWR, SVA, IPK, IPKH, FREQ, PF, CF가 포함됩니다.
- 작은 AC 전류 측정 지원 2mA ~ 35A, Min. 분해능 0.01mA(APS-7050& APS-7100)
- 역전류 경보 기능
- 출력 파형을 편집하기 위한 시퀀스 기능 10세트/ 과도 전원 공급 장치를 빠르게 시뮬레이션하기 위한 시뮬레이션 모드 10세트/ 측정 시퀀스를 정의하기 위한 프로그램 모드 10세트/패널 메모리 기능 10세트
- 전원이 켜져 있을 때 시퀀스 자동 실행、시뮬레이트、프로그램 모드 및 출력 기능
- 표준 인터페이스: LAN, USB 호스트, USB 장치(APS-7200 및 APS-7300 모델만 해당)
- 옵션 인터페이스: GPIB(APS-001), RS-232/USB CDC(APS-7050 및 APS-7100 전용 APS-002), RS-232(APS-7200 및 APS-7300 전용 APS-007)
Features
- 4.3-inch TFT-LCD
- Output capacity : APS-7050(500VA、310Vrms、4.2Arms);APS-7100 (1000VA、310Vrms、8.4Arms);APS-7200(2000VA、310Vrms、16.8Arms);APS-7300 (3000VA、310Vrms、25.2Arms);Output augmentation by options (0~600Vrms/45~999.9Hz)
- Low Ripple & Noise
- Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF
- Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)
- Reverse Current Alarm Function
- 10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode to Define Measurement Sequence/ 10 sets of Panel Memory Function
- Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on
- Standard Interfaces: LAN, USB Host, USB Device (APS-7200 and APS-7300 models only)
- Optional Interfaces: GPIB (APS-001);RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only);RS-232(APS-007 for APS-7200& APS-7300 only)
설명
GWInstek은 500VA APS-7050, 1000VA APS-7100, 2000VA APS-7200, 3000VA APS-7300으로 구성된 APS-7000 시리즈 프로그래머블 AC 전원을 소개합니다. APS-7000 시리즈는 저잡음, 저 THD, 고안정된 전원 출력을 포함하는 선형 구조 설계로 저잡음 요구 사항 또는 스테레오, 비디오 및 오디오 장치 응용 프로그램 등의 제품 개발 및 입력 전원 검증에 이상적인 전원 특성을 갖추고 있습니다. 최대 정격 전압은 0~310Vrms, 25.2Arms, 100.8A 피크 전류이며 출력 주파수 범위는 45~500.0Hz입니다. 사용자는 GW Instek에 장비를 다시 보내지 않고도 옵션을 구매하여 출력 전압을 0Vrms에서 600Vrms로, 출력 주파수를 45Hz에서 999.9Hz로 편리하게 늘릴 수 있습니다.
시장에서 인기 있는 대체 에너지 솔루션 중 하나는 인버터를 활용하여 DC를 AC로 변환한 다음 변환된 AC를 전력망으로 보내거나 제품에 전기가 필요한 것입니다. 예를 들어, PV 인버터에서 생산된 AC는 전력망으로 보내지거나 장비에 전기가 필요합니다. 인버터가 전력망에 연결되어 있는지 확인하기 위해 전력망을 시뮬레이션하는 동안 일반 AC 전원은 DUT의 피드백 에너지를 견딜 수 없으므로 AC 전원이 손상되는 것을 방지하기 위해 추가 전력 소비 저항이 필요합니다. 이에 반해 APS-7000 시리즈의 입력 단자는 시뮬레이션된 AC 전력망 출력 단자와 분리되도록 설계되었으므로, APS-7000 시리즈는 역전류를 흡수하는 특성이 있어 별도의 소비전력 저항이 필요하지 않다.
APS-7000 시리즈는 전력망 시뮬레이션 및 동기 위상 및 주파수를 포함한 인버터 출력 특성 테스트 수행에 적합합니다. APS-7000 시리즈에서 감지된 역전류 및 전력은 사용자의 테스트 관찰을 용이하게 하기 위해 빨간색 판독값으로 표시됩니다. APS-7000 시리즈는 Simulate 모드와 Sequence 모드를 사용하여 단일 단계 또는 연속적인 전원 변경을 제공합니다. 전력망의 전압 이상 테스트 및 주파수 이상 테스트를 시뮬레이션합니다.
Description
GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.
One of the popular alternative energy solutions in the market is to utilize inverter to convert DC to AC and the converted AC is then sent to power grid or products require electricity. For instance, AC produced by PV inverter is sent to power grid or equipment requires electricity. While simulating power grid to verify inverter connecting with power grid, general AC power sources cannot withstand DUT's feedback energy, hence, additional power consumption resistors are needed to prevent AC power source from being damaged. On the contrary, APS-7000 series has the characteristic of absorbing reverse current so that additional power consumption resistors are not required. The input terminal of APS-7000 series is designed to isolate from the simulated AC power grid output terminal, therefore, users do not need an additional isolation device to protect DUT.
APS-7000 series is suitable for simulating power grid and conducting inverter output characteristic tests, including synchronized phase and frequency. Reverse current and power detected by APS-7000 series will be displayed in red readings to facilitate user's test observation. APS-7000 series utilizes Simulate mode and Sequence mode to provide a single step or consecutive power changes; and to simulate power grid's Voltage Abnormality Test and Frequency Abnormality Test.
