굿윌인스텍 ・ GW INSTEK

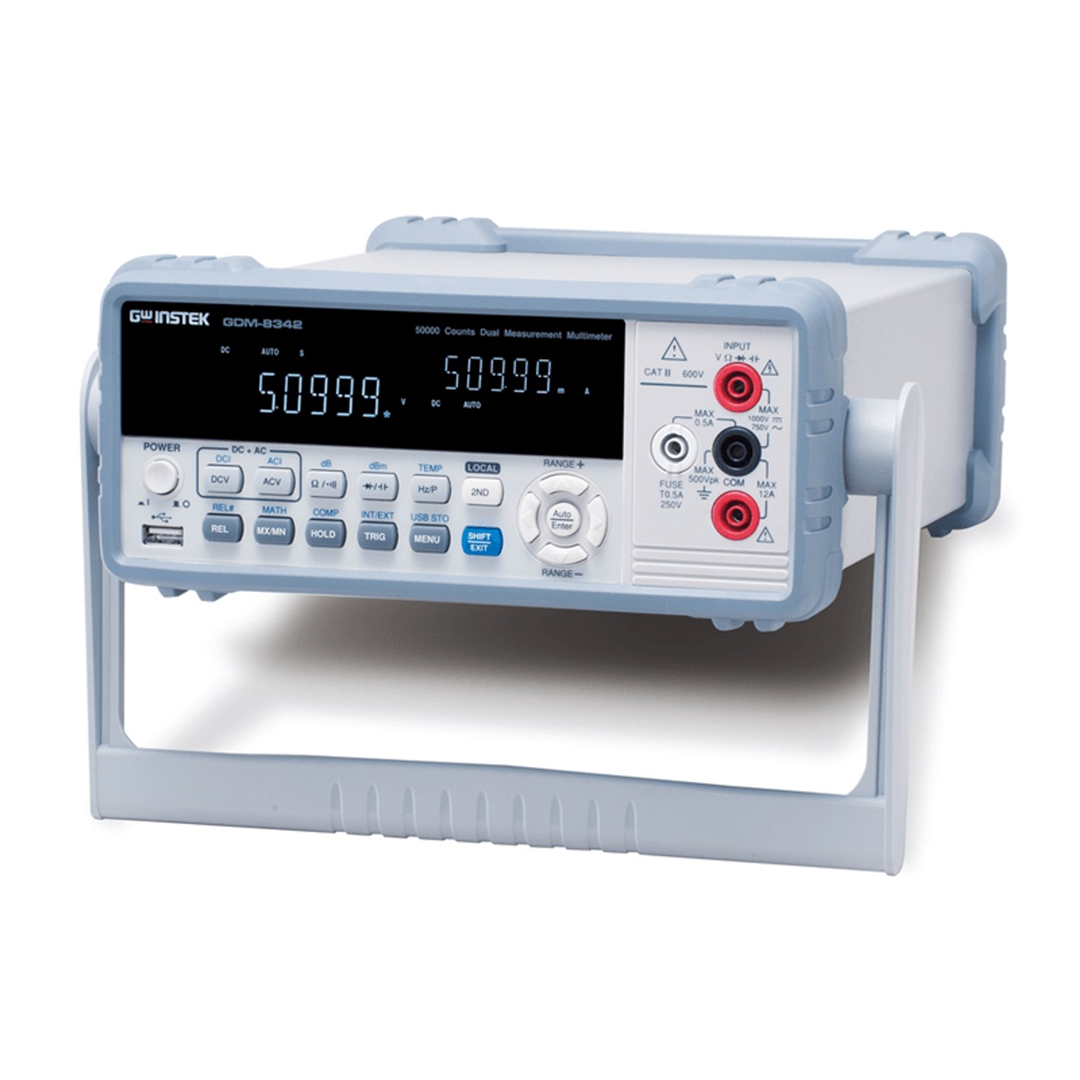

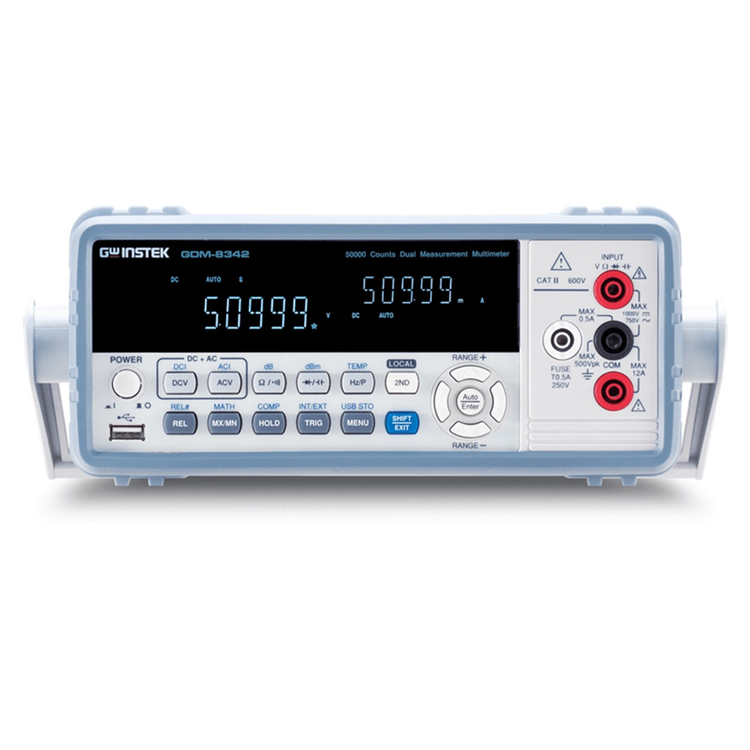

GDM-8342
4 ¾ 디지트 듀얼 측정 멀티미터
GDM-8342 4 ¾ Digit Dual Measurement Multimeter

• GDM-834x Series
GDM-8341 ・ GDM-8342
특징
- 50,000 카운트, VFD 디스플레이
- 이중 측정/이중 디스플레이
- 선택 가능한 측정 속도, 최대: DCV의 경우 40 Readings/s
- DC 전압의 기본 정밀도: 0.02%
- 자동/수동 범위
- True RMS(AC, AC+DC) 측정
- 11가지 측정 기능
- 최대/최소, REL, MX+B, 1/X, Ref%, 비교, 유지, dB, dBm
- 컴퓨터와 연결하기 위한 표준 USB 장치 인터페이스
- 온도 측정 기능(GDM-8342만 해당)
- 데이터 수집을 위한 USB 저장소(GDM-8342만 해당)
Features
- 50,000 counts, VFD display
- Dual measurement/Dual display
- Selectable measurement speeds, the maximum: 40 Readings/s for DCV
- The basic precision of DC voltage: 0.02%
- Auto/manual Ranging
- True RMS (AC,AC+DC) measurements
- 11 different measurement functions
- Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
- Standard USB device interface to connect with a computer
- Temperature measurement function (GDM-8342 only)
- USB storage for Data collection (GDM-8342 only)
설명
무제한 저장 및 연결
— 데이터 저장은 더 이상 전송선에 의해 제한되지 않습니다.
GW INSTEK은 GDM-8341 및 GDM 8342의 두 가지 모델이 있는 차세대 이중 측정 멀티미터인 GDM-834x 시리즈를 출시합니다. 이 제품의 탁월한 기능에는 50,000 카운트, VFD 이중 디스플레이, 0.02% 기본 DC 전압 정확도 및 사용자에게 측정 정밀도, 명확한 데이터 관찰 및 PC와의 연결 편의성을 제공하는 USB 프로토콜 커넥터.
GDM-834x 시리즈는 일반 멀티미터가 제공하는 기본적인 측정항목을 지원할 뿐만 아니라 정전용량 및 온도 측정 기능을 갖추고 있습니다. 또한 GDM-834x 시리즈는 제조 공정 테스트, 교육 실험 및 테스트 시설에 대한 측정 요구 사항을 충족하기 위해 많은 보조 기능을 제공합니다.
데이터 저장 및 검색과 관련하여 GDM-834x 시리즈는 두 가지 방법을 제공합니다 : 첫째, USB 플래시 드라이브 저장 기능 — 컴퓨터에 연결하지 않고 단독으로 작동합니다 ; 둘째, 자동 측정 시스템 사용자가 데이터를 편리하게 저장하고 검색할 수 있도록 USB 인터페이스(가상 COM 포트) 및 옵션 GPIB 인터페이스(공장에서 설치해야 함).
- 편리한 USB 플래시 드라이브 저장 기능
- 선택 가능한 측정 속도
- 다양한 측정 항목 및 기능
- 이중 측정/이중 표시
- 명령 호환성 및 무료 소프트웨어 원격 제어 및 데이터 검색
Description

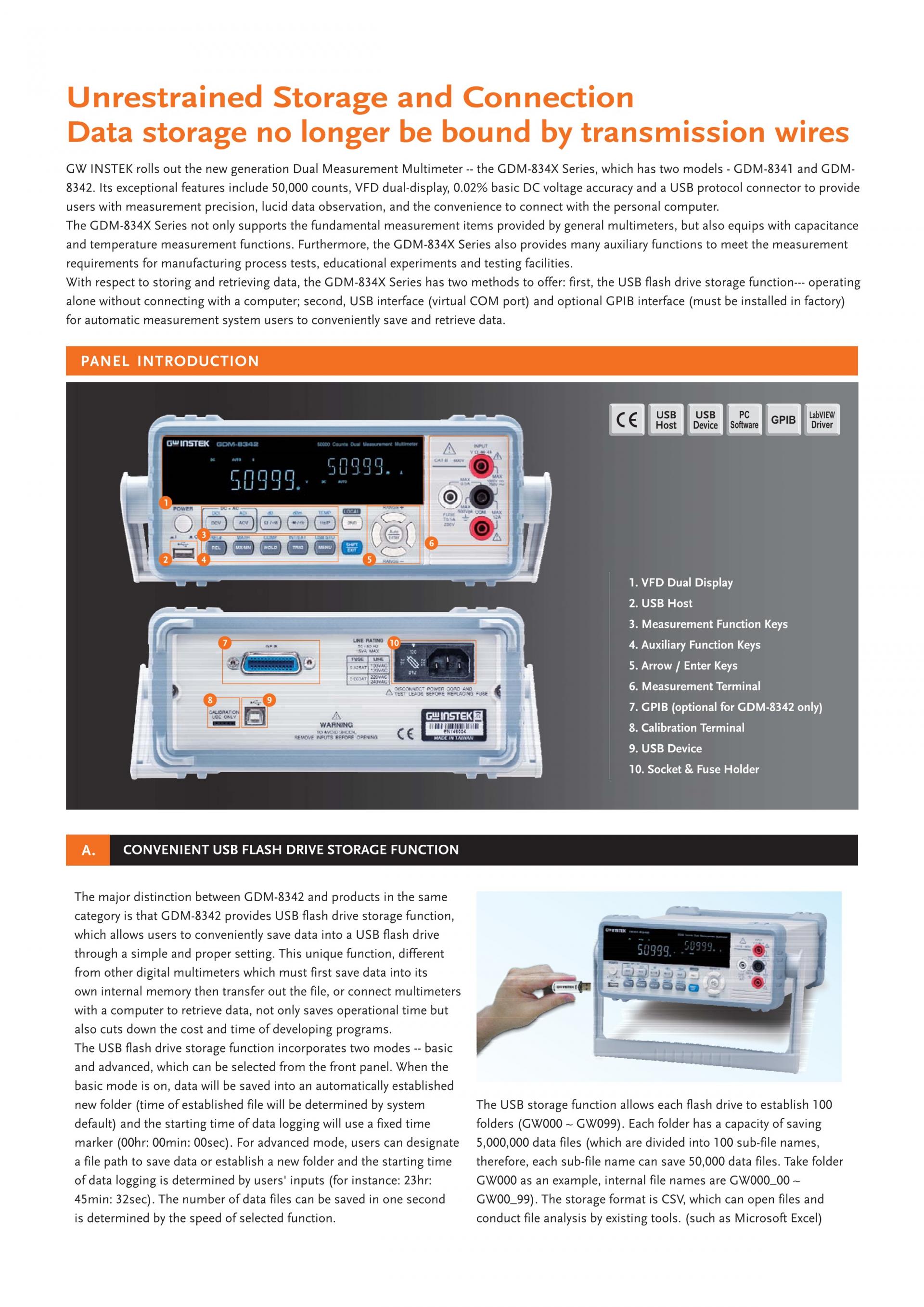

Unrestrained Storage and Connection
— Data storage no longer be bound by transmission wire
GW INSTEK rolls out the new generation Dual Measurement Multimeter : the GDM-834x series, which has two models : GDM-8341 and GDM 8342. Its exceptional features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation, and the convenience to connect with the personal computer.
The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. Furthermore, the GDM-834x series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.
With respect to storing and retrieving data, the GDM-834x series has two methods to offer: first, the USB flash drive storage function — operating alone without connecting with a computer; second, USB interface (virtual COM port) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.
- Convenient USB flash drive storage function
- Selectable measurement speeds
- Various measurement items and functionalities
- Dual measurement/dual display
- Command compatibility & Free software-remote control and data retrieving
