AMETEK CTS SERIES 3.2 고조파 및 플리커 테스트 시스템
가격문의(상세정보 참조)
AMETEK CTS SERIES 3.2 고조파 및 플리커 테스트 시스템
AMETEK CTS SERIES 3.2 Harmonics and Flicker Test Systems
- Model: CTS Series 3.2
- Voltage: 0 - 300 VAC / 0-400VDC
- Current: 0 - 16 Arms
- Power: 5000 - 15000VA
- Overview: IEC Compliance Test Systems; 5000-15000VA Programmable AC & DC Immunity Compliance Testing
상품
원산지 USA
제조사 AMETEK
브랜드 AMETEK
배송
택배 · 기본 무료
클릭 하시면 이동합니다.
아메텍 ・ AMETEK
CTS SERIES 3.2
고조파 및 플리커 테스트 시스템
CTS SERIES 3.2 Harmonics and Flicker Test Systems

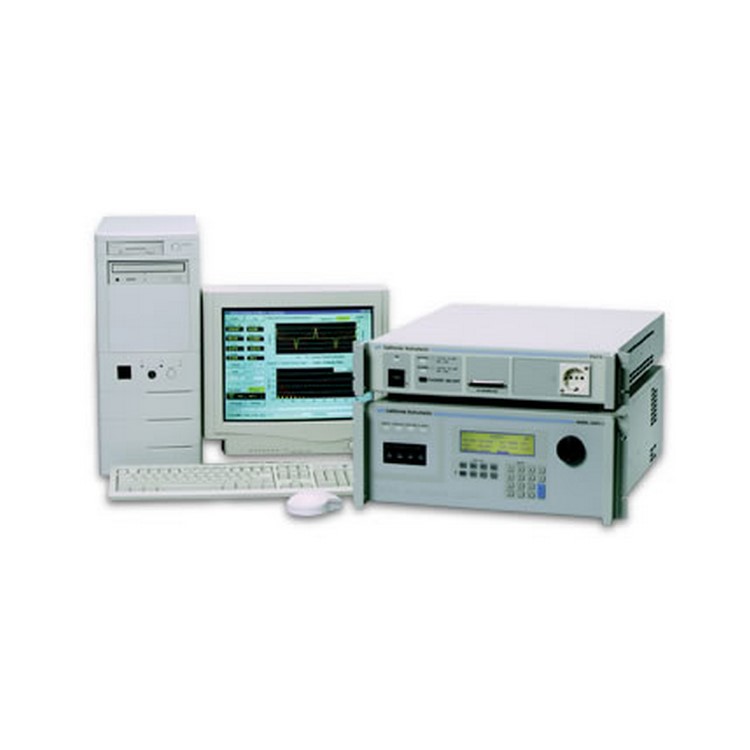

The CTS Series is a complete, turn-key compliance test system for EN IEC 61000-3-2 (Harmonics), EN IEC 61000-3-3 (Flicker), and various EN IEC 61000-4 AC immunity tests. Consisting of an AC power source, a power analysis conditioning system (PACS), and a PC-based data acquisition system, the IEC 61000-4-7 compliant CTS Series provides a comprehensive solution for IEC testing. The Windows™ based CTS software performs the IEC tests and generates detailed test reports. Detailed test data files are stored on disk to allow post-test analysis.
The IEC Compliance Test Systems - CTS Series implements several EMC-conducted emissions and immunity standards and provides a software-only upgrade path for future standard changes.
A European-style AC outlet is provided on the front panel or rear panel for easy connection of single-phase loads. Three-phase loads are connected using rear terminal blocks.
- Covered EN IEC Standards
The following tests can be performed using an iX Series-based IEC Compliance Test System:
- EN 61000-3-2 Harmonics, Edition 5.1
- EN 61000-3-3 Flicker, Edition 3.2
- EN 61000-4-11 Voltage Dips and Interruptions (EOS Option - Edition 3.0)
- EN 61000-4-13 Harmonics and Inter-harmonics (requires option -413), Edition 1.2
- EN 61000-4-14 Voltage Fluctuations, Edition 1.2
- EN 6100-4-17 DC Ripple, Edition 1.2
- EN 61000-4-28 Frequency Variations, Edition 1.2
- EN 61000-4-29 DC Dips and Interruptions (Pre-compliance), Edition 1.0
- EN 61000-3-2 Harmonics
Full compliance testing for single-phase and three-phase current harmonics emissions of class A, B, C, and D products is supported. Supports IEC 61000-3-2:2018 + AMD1:2020 CSV.
- EN 61000-3-3 Flicker
Flicker PST & PLT results are displayed in real-time during the entire test. No need to wait until the entire test is completed to know if the EUT passed or failed. Both programmable and lumped reference impedance methods are available for flicker testing. Supports IEC 61000-3-3:2013/AMD2:2021 CSV.
- EN 61000-4-11 Voltage Dips, Interruptions, and Variations
Pre-compliance Voltage Dips and Interruptions are available on most CTS systems. For full compliance solutions, the Electronic Output Switch (option -EOS1 or -EOS3) may be added to any iX-based IEC Compliance Test Systems. Supports IEC 61000-4-11:2004-03.
- EN 61000-4-13 Harmonics and Interharmonics
Testing to the EN 61000-4-13 Interharmonics standard is supported on all iX Series-based CTS systems by adding the -413 option. Supports IEC 61000-4-13:2009-05.
- Other EN 61000-4 Immunity Tests
Additional immunity test standards are supported on all iX-based IEC Compliance Test Systems
- Configurations
- The CTS system is available in both single-phase and three-phase configurations. Single-phase configurations range in power from 3000 VA to 5000 VA.
- Three-phase configurations offer 15 k VA or 18.5 A per phase at 230 V. Single-phase 5001iX-CTS systems can be upgraded to three-phase systems if needed.
- Measurement-only CTS system versions (100-CTS and 300-CTS) can be added to an existing California Instruments power source.
Key Features
- Complete Test Solutions
Complete test solutions for emissions and immunity compliance testing of AC and DC power products
- Single & Three Phase Operation
Offers flexibility
- Direct PC Bus Access
Provides high sampling rate and resolution for accurate measurements and high-speed data transfers
- PC-Based Harmonic & Flicker Testing
Provides real-time full-color data display updates and continuous PASS/FAIL monitoring
- Supports Global Standards
Supports European and Japanese standards
- Easy To Use Interface
Provides IEC test setup, data analysis, display, MS Word test reports, and data files generated in MS Excel format
- High Resolution
Data storage to disk for post-acquisition analysis and reporting
- Single Step
Single Step and Fast Forward replay of recorded test data at 200 mSec
