IKONIX EAC 프로그래밍 1상 / 3상 AC 파워소스
가격문의(상세정보 참조)

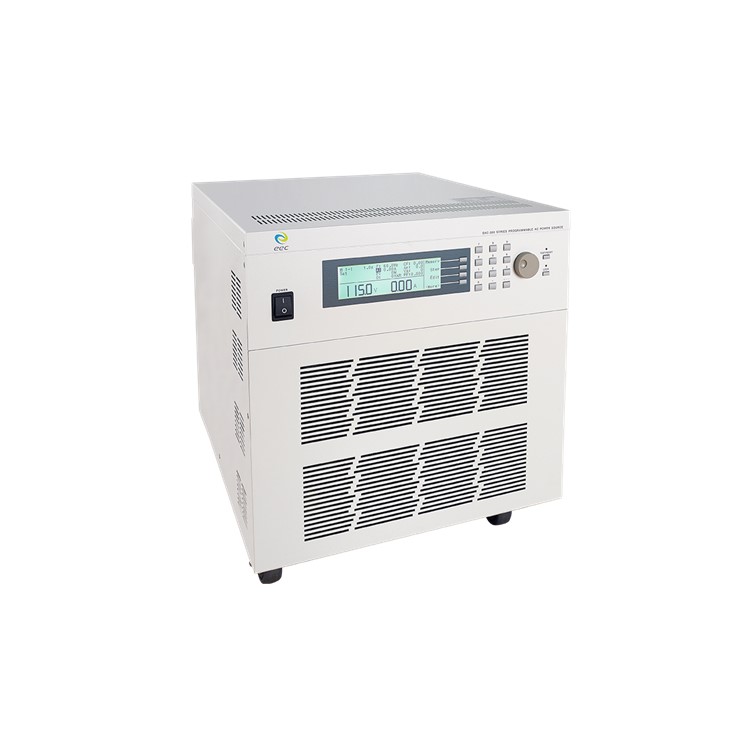

IKONIX EAC 프로그래밍 1상 / 3상 AC 파워소스
IKONIX EAC Programmable 1 Phase / 3 Phase AC Power Source
- 용량 3-6kVA
- 전압 0-300V
- 전류 4.6-55.2A
- 기타 단상/삼상 Programmable AC Power Source
클릭 하시면 이동합니다.
아이코닉스 ・ IKONIX
EAC
프로그래밍 1상 / 3상 AC 파워소스
EAC Programmable 1 Phase / 3 Phase AC Power Source
- Programmable 1 Phase and three phase output
- Built-in input active Power Factor Correction circuit (PF > 0.97)
- Adjustable AC output voltage 0 - 300V / frequency 40 - 1000HZ
- Large 240 X 64 Graphic LCD display
- Waveform distortion less than 1% on resistance load
- Enhanced crest factor. The rate is up to 3 : 1 at rating current output
- Fast recovering time, 0.4 milliseconds
- Line and load regulation maintains the output voltage within 1% of setting
- Programmable 50 memories and 9 steps per memory, for interconnection between each step to simulate different test conditions of the DUT
- Auto loop cycle, up to 999900 cycles
- For Aging or Life test on DUT, the user able to change the timer either in second, minute or hour
- Unique regulation function in providing capability to turn on high inrush current loads such as motors and compressors
- Capable to withstand inrush current up to 4 times of rated current and able to maintain 1000ms without protection
- Over Current Fold Back Mode (Response time < 1400mSec)
- Built-in PLC remote interface
- Protections and alerts for over current, short circuit, over voltage, over power, over temperature and reverse current
- Capable to set the starting angle, voltage dips, short interruptions and voltage variations
- Adjust voltage / frequency setting via Rotary Knob when output is turn ON
- Standard RS232 & USB interface, optional GPIB, Ethernet interface
- AC and DC output selection to fulfill the test application needs in several power modes
- Comprehensive measurement of V, Irms, Ipk, W, VA, VAR, PF, CF of current etc.
- Memory and keypad lock functions with password setting
EAC SERIES EAC SERIES IKONIX IKONIX EAC SERIES EAC SERIES 아이코닉스 아이코닉스 EAC SERIES EAC SERIES 이코닉스 이코닉스 EAC SERIES EAC EAC IKONIX IKONIX EAC EAC 아이코닉스 아이코닉스 EAC EAC 이코닉스 이코닉스 EAC EAC-303 IKONIX EAC-303 IKONIX EAC 303 IKONIX EAC-306 IKONIX EAC 306 EAC-306
가격이 궁금하신가요?
더 많은 자료는?
클릭 하시면 이동합니다.
아이코닉스 ・ IKONIX
EAC
프로그래밍 1상 / 3상 AC 파워소스
EAC Programmable 1 Phase / 3 Phase AC Power Source
- Programmable 1 Phase and three phase output
- Built-in input active Power Factor Correction circuit (PF > 0.97)
- Adjustable AC output voltage 0 - 300V / frequency 40 - 1000HZ
- Large 240 X 64 Graphic LCD display
- Waveform distortion less than 1% on resistance load
- Enhanced crest factor. The rate is up to 3 : 1 at rating current output
- Fast recovering time, 0.4 milliseconds
- Line and load regulation maintains the output voltage within 1% of setting
- Programmable 50 memories and 9 steps per memory, for interconnection between each step to simulate different test conditions of the DUT
- Auto loop cycle, up to 999900 cycles
- For Aging or Life test on DUT, the user able to change the timer either in second, minute or hour
- Unique regulation function in providing capability to turn on high inrush current loads such as motors and compressors
- Capable to withstand inrush current up to 4 times of rated current and able to maintain 1000ms without protection
- Over Current Fold Back Mode (Response time < 1400mSec)
- Built-in PLC remote interface
- Protections and alerts for over current, short circuit, over voltage, over power, over temperature and reverse current
- Capable to set the starting angle, voltage dips, short interruptions and voltage variations
- Adjust voltage / frequency setting via Rotary Knob when output is turn ON
- Standard RS232 & USB interface, optional GPIB, Ethernet interface
- AC and DC output selection to fulfill the test application needs in several power modes
- Comprehensive measurement of V, Irms, Ipk, W, VA, VAR, PF, CF of current etc.
- Memory and keypad lock functions with password setting
EAC SERIES EAC SERIES IKONIX IKONIX EAC SERIES EAC SERIES 아이코닉스 아이코닉스 EAC SERIES EAC SERIES 이코닉스 이코닉스 EAC SERIES EAC EAC IKONIX IKONIX EAC EAC 아이코닉스 아이코닉스 EAC EAC 이코닉스 이코닉스 EAC EAC-303 IKONIX EAC-303 IKONIX EAC 303 IKONIX EAC-306 IKONIX EAC 306 EAC-306
