아이코닉스 ・ IKONIX
EAB SERIES
모듈러 프로그래밍 AC 파워소스

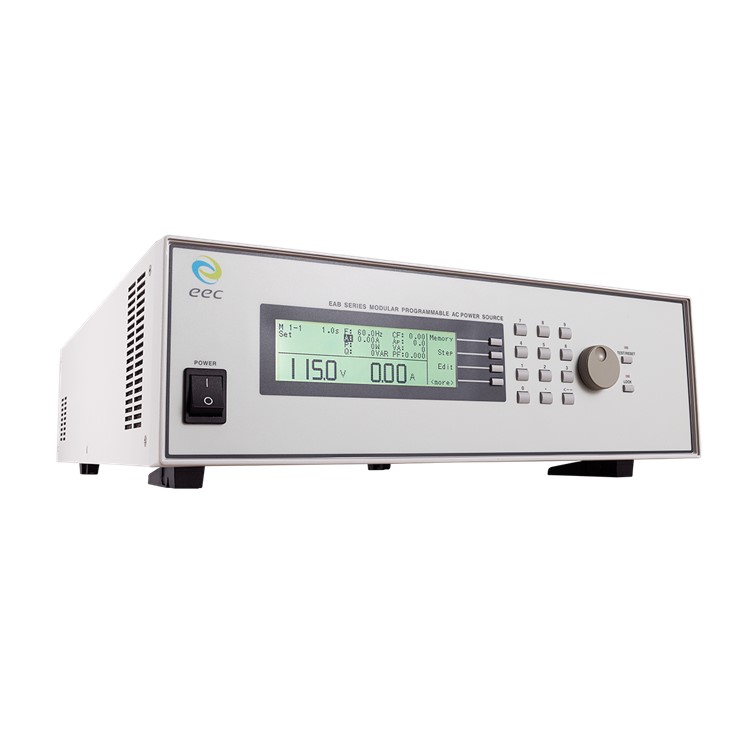

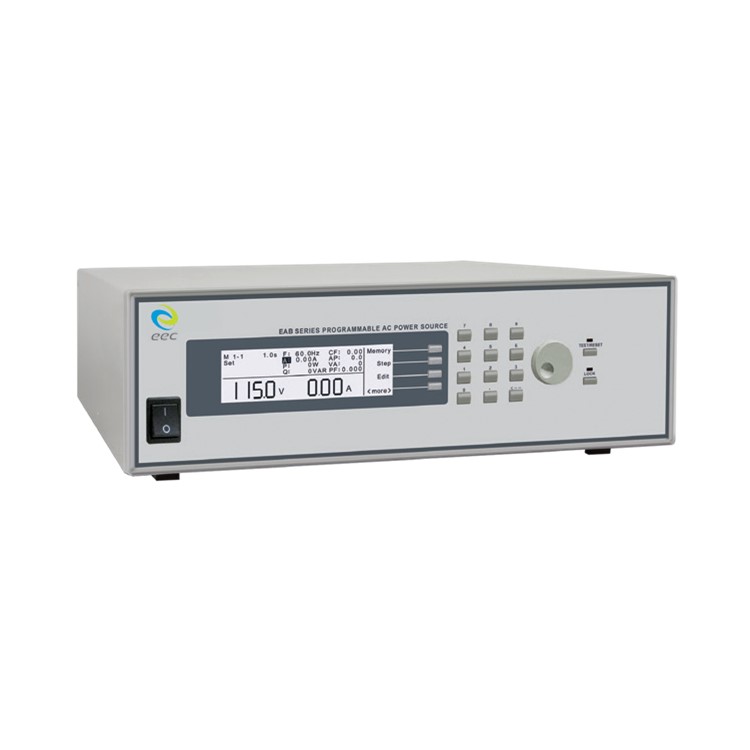

EAB SERIES Programmable AC Power Source
Capacity : 1KVA - 6KVA
- Built - in input active Power Factor Correction circuit (PF > 0.97), and be provided with large input voltage range 90 - 264V
- Enhanced ability to parallel or link with several units to expand capacity or form three phases output
- Adjustable AC output voltage 0 - 300V / frequency 40 - 1000HZ
- Large 240 X 64 Graphic LCD display
- Waveform distortion less than 1% on resistance load
- Enhanced crest factor. The rate is up to 3 : 1 at rating current output
- Fast recovering time, 0.4 milliseconds
- Line and load regulation maintains the output voltage within 0.5% of setting
- Programmable 50 memories and 9 steps per memory, for interconnection between each step to simulate different test conditions of the DUT
- Auto loop cycle, up to 999900 cycles
- For Aging or Life test on DUT, the user able to change the timer either in second, minute or hour
- Unique regulation function in providing capability to turn on high inrush current loads such as motors and compressors
- Capable to withstand inrush current up to 4 times of rated current and able to maintain 1000ms without protection
- Over Current Fold Back Mode (Response time < 1400mSec)
- Optional PLC remote interface control, including TEST / RESET and recall 7 memories quick output
- Built - in PLC remote output interface
- Protections and alerts for over current, short circuit, over voltage, over power, over temperature and reverse current
- Front panel software calibration
- Capable to set the starting angle, voltage dips, short interruptions and voltage variations to meet test application of IEC61000 - 4 - 11
- Adjust voltage / frequency setting via Rotary Knob when output is turn ON
- Optional GPIB, RS232 & USB interface
- AC and DC output selection to fulfill the test application needs in several power modes
- Comprehensive measurement of V, Irms, Ipk, W, VA, VAR, PF, CF of current etc.
- Memory and keypad lock functions with password setting
