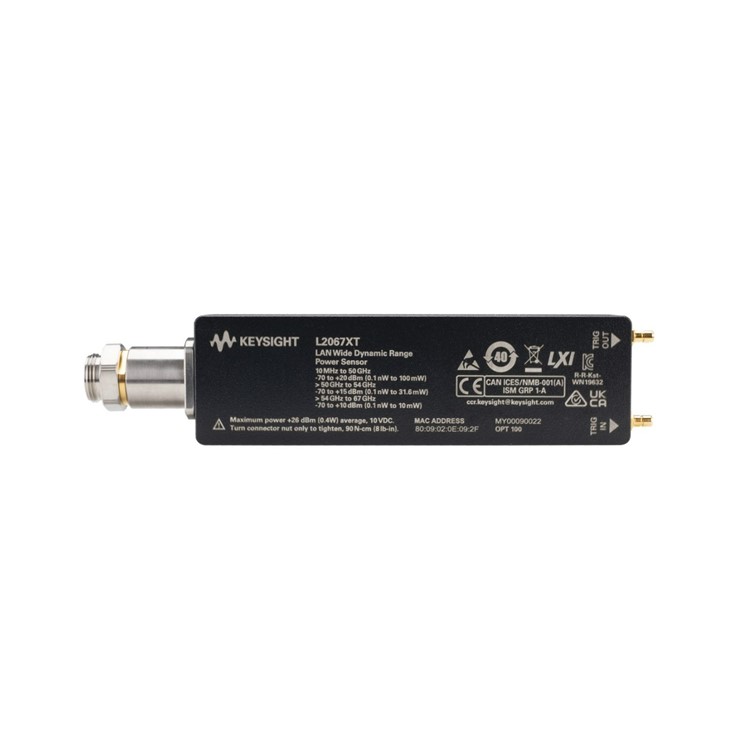

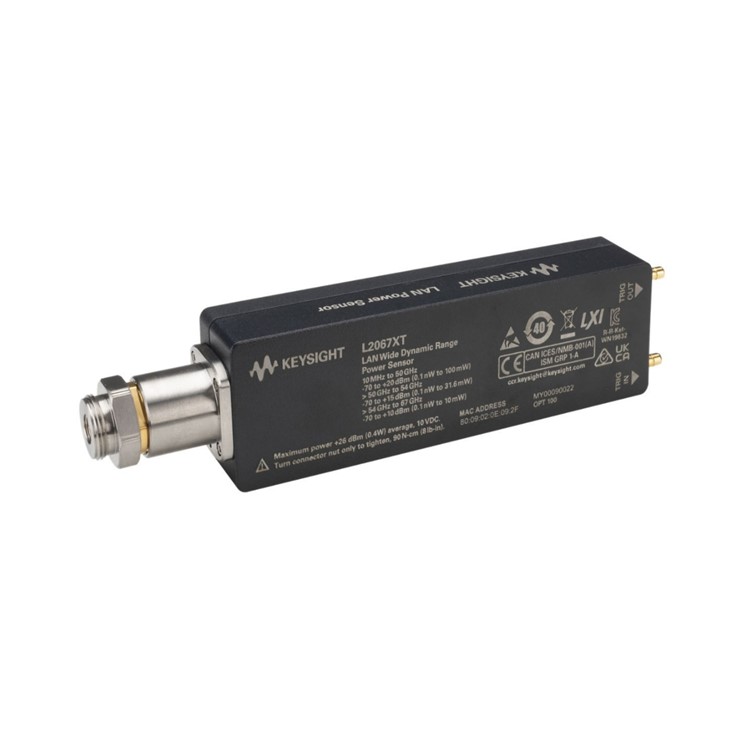

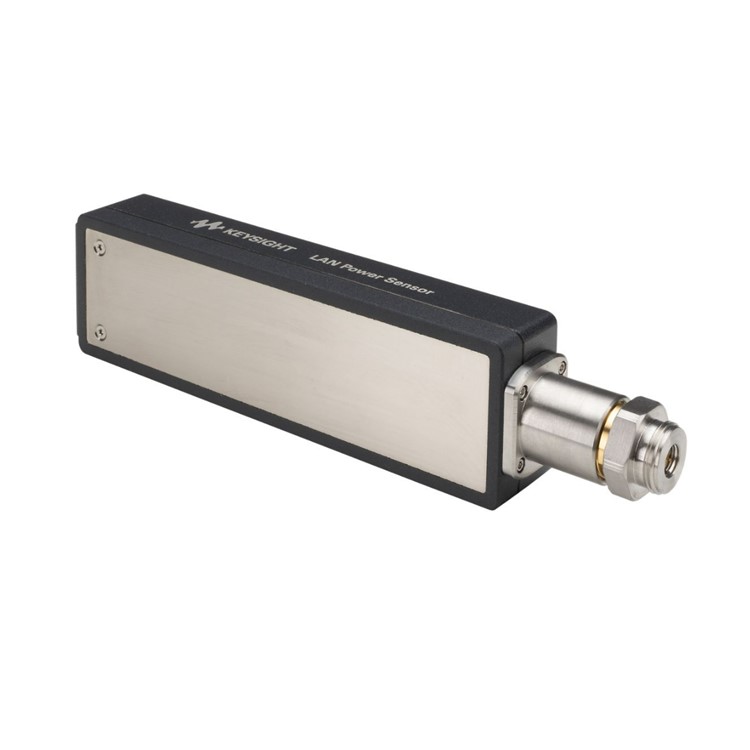

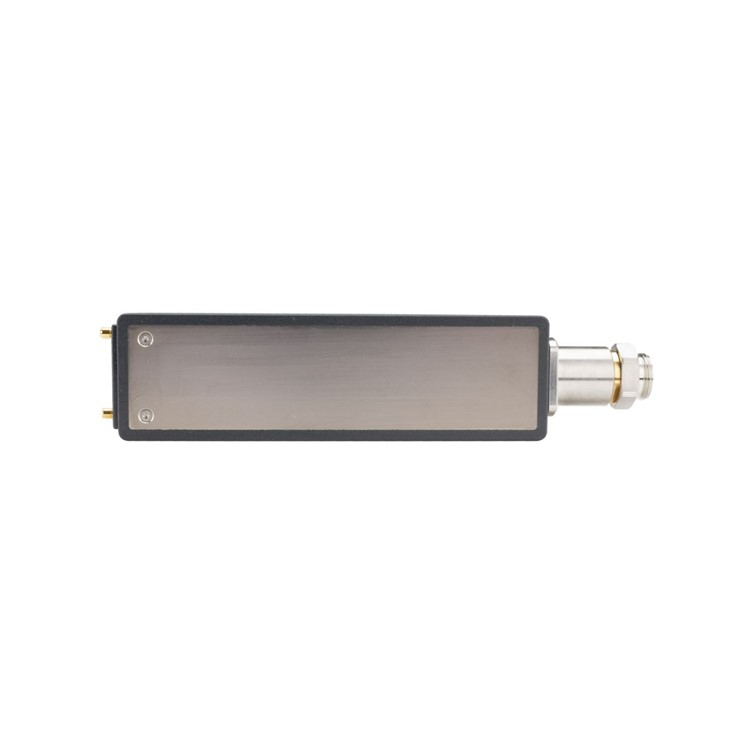

KEYSIGHT U2050X 시리즈 파워센서
가격문의(상세정보 참조)
KEYSIGHT U2050X 파워센서
KEYSIGHT U2050X Power Sensor
- 주파수 범위 10MHz ~ 67GHz
- 무선 칩셋 및 탑재체 테스트에서 소신호 측정을 위한 세계에서 가장 넓은 동적 범위(-70~+26dBm)를 제공하는 USB/LAN 연결
- 5MHz 비디오 대역폭 및 20M 샘플/초의 단일 샷 실시간 캡처
- 최대 1M 샘플/초의 가변 샘플링 속도 및 Long Memory 1M 샘플 데이터 저장
- 열 진공 규정을 준수하는 LAN 전원 센서
- 초고속 측정 속도(초당 50,000회 판독)로 제조 처리량 증가
- 모든 연속 펄스가 측정되도록 보장하기 위해 데드타임이 없는 실시간 측정
- 평균 모드 시간 선택성 기능을 통해 센서는 전체 96dB 범위에서 평균 및 시간 선택성 평균 전력 측정을 측정할 수 있습니다.
- BenchVue Power Meters/Sensors 앱(BV0007B) 라이선스가 이제 귀하의 계측기에 포함되어 있습니다. 이 앱을 사용하면 계측기를 연결하고 제어하고 테스트 시퀀스를 자동화하는 것이 간편해집니다.
클릭 하시면 이동합니다.
키사이트 ・ KEYSIGHT
U2050X 시리즈
파워센서
U2050X Series Power Sensor
Highlights
- Frequency range of 10 MHz – 67 GHz
- LAN connectivity with a wide dynamic range of -70 to +20 dBm (frequency 10 MHz to 50 GHz) / -70 to +15 dBm (frequency > 50 GHz to 54 GHz) / -70 to +10 dBm (frequency > 54 GHz to 67 GHz) for small signal measurements
- 5 MHz video bandwidth and single shot real-time capture at 20 Msample/sec per second
- Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage

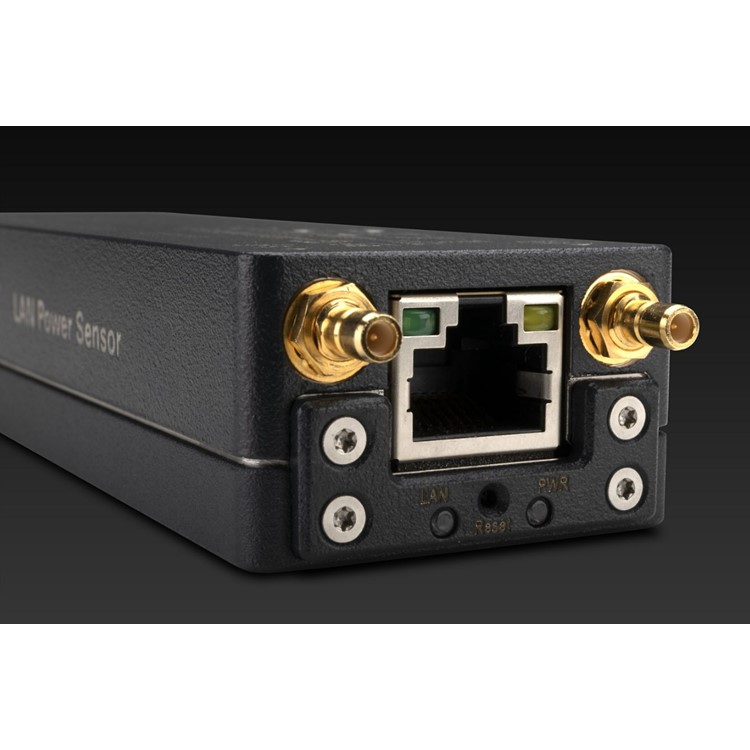

- LAN power sensor with thermal vacuum compliance
- Fast real-time measurement of 50,000 readings/sec
- Real-time measurement with zero dead time to ensure every single continuous pulse is measured
- Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
- Internal zero and automatic calibration saves time and reduces measurement uncertainty
- A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
Accurately measure any modulated signal with the Keysight Technologies, Inc. U/L2050/60 X-Series wide dynamic range power sensors. The USB/LAN connectivity models come with a wide dynamic range, covering -70 to +26 dBm. This sensor offers very accurate and repeatable power measurements for any modulated signal and comes with a super-fast measurement speed of 50,000 readings/sec, which enables higher manufacturing throughput. Users can also save time and reduce measurement uncertainty with the internal zero and calibration function. The U/L2050/60 X-Series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.
L2067XT L2067XT KEYSIGHT KEYSIGHT L2067XT L2067XT 키사이트 키사이트 L2067XT
