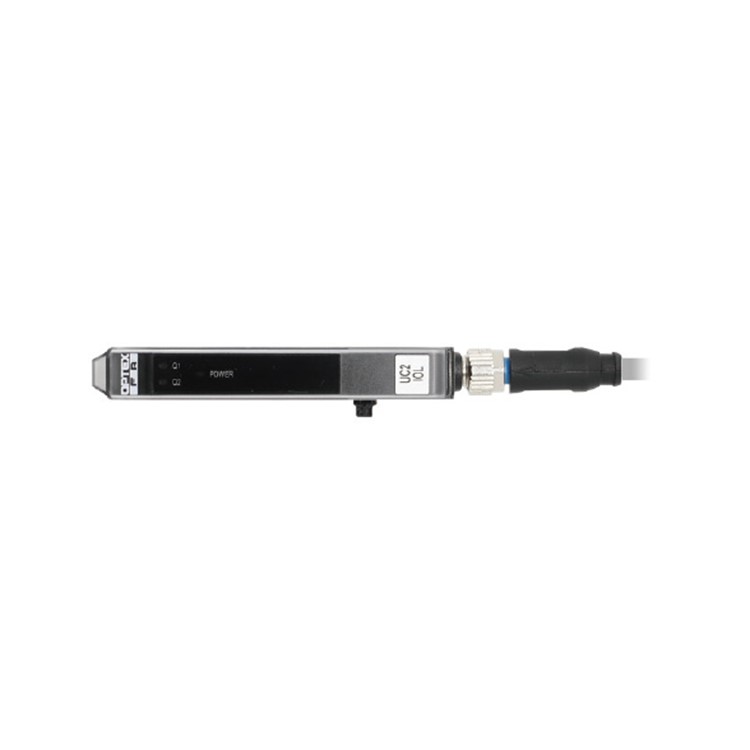

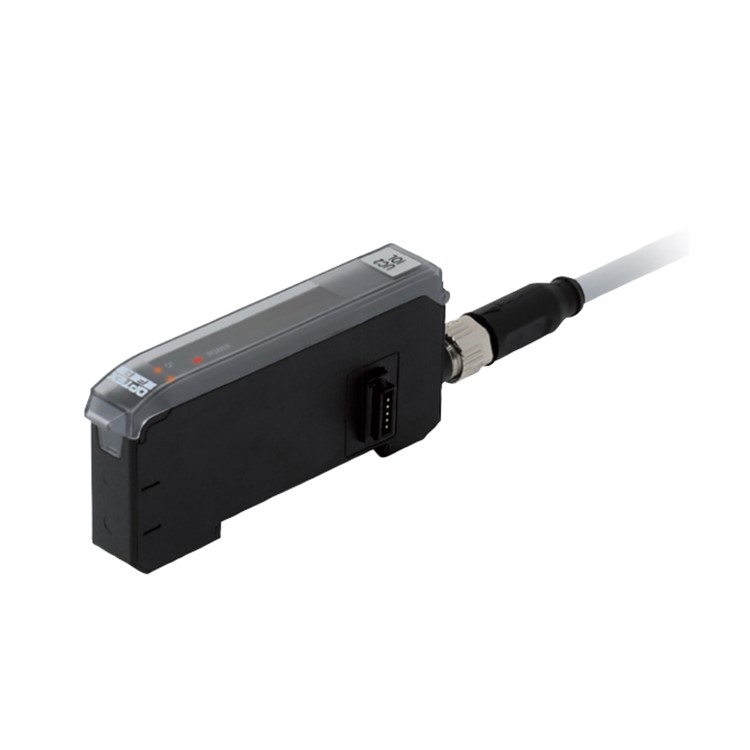

OPTEX FA UC2 SERIES IO-Link 게이트웨이
OPTEX FA UC2 SERIES IO-Link Gateway
Gateway unit to connect fiber sensors or
- displacement sensor amplifiers to IO-Link Master
- Max. 16 units of fiber sensor amplifier or 8 units of displacement sensor amplifier can be connected.
- Fiber sensor amplifiers or displacement sensor amplifiers can be mixed connected.
- Compact design, same size as fiber amplifier
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
UC2 SERIES
IO-링크 게이트웨이
UC2 SERIES IO-Link Gateway
- IO-Link Gateway
Some fiber sensors and displacement sensors have communication functions, but they cannot be connected to IO-Link as they are because of different communication standards and methods.
Using IO-Link gateway UC2-IOL, fiber and displacement sensors that cannot communicate via IO-Link can be connected to IO-Link Master.

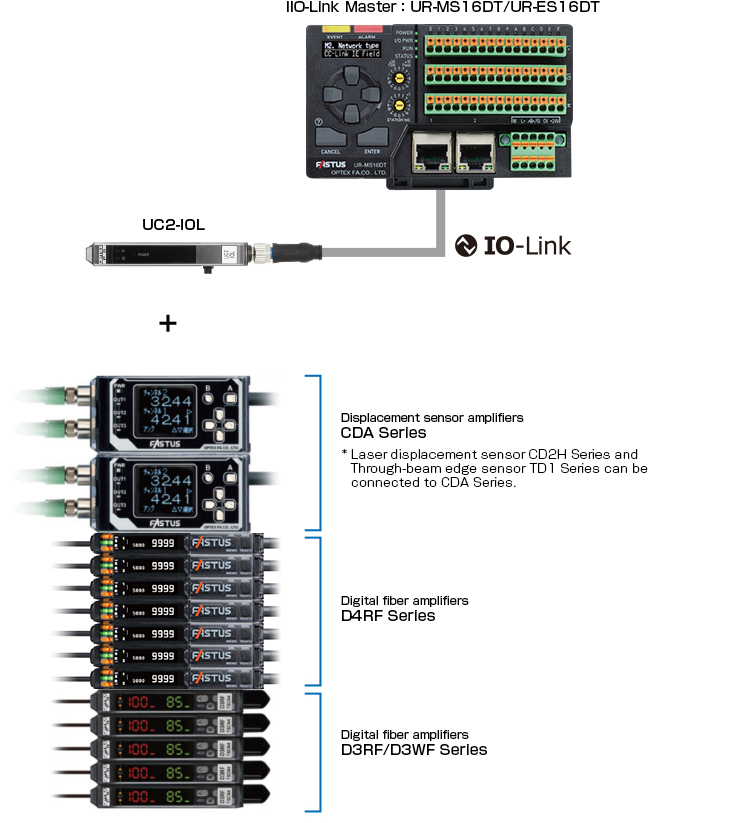

- Connecting UC2 to CDA Series and D3RF/D3WF/D4RF Series
When inter-connection the UC2 to displacement sensor amplifiers CDA Series and D3RF/D3WF/D4RF Series fiber amplifiers, connect CDA, D4RF, D3WF, and D3RF in this order from the side closer to the UC2.
(It is possible to connect D4RF, CDA, D3WF, and D3RF in that order as well.)
- Compact design, same size as fiber amplifier
Compact design: W10.5 x D68.9 x H33.2 mm
It can be installed in a control panel in a space-saving manner.
