OPTEX FA D3RF & D3IF SERIES 고속 디지털화이버센서
가격문의(상세정보 참조)
OPTEX FA D3RF & D3IF SERIES 고속 디지털화이버센서

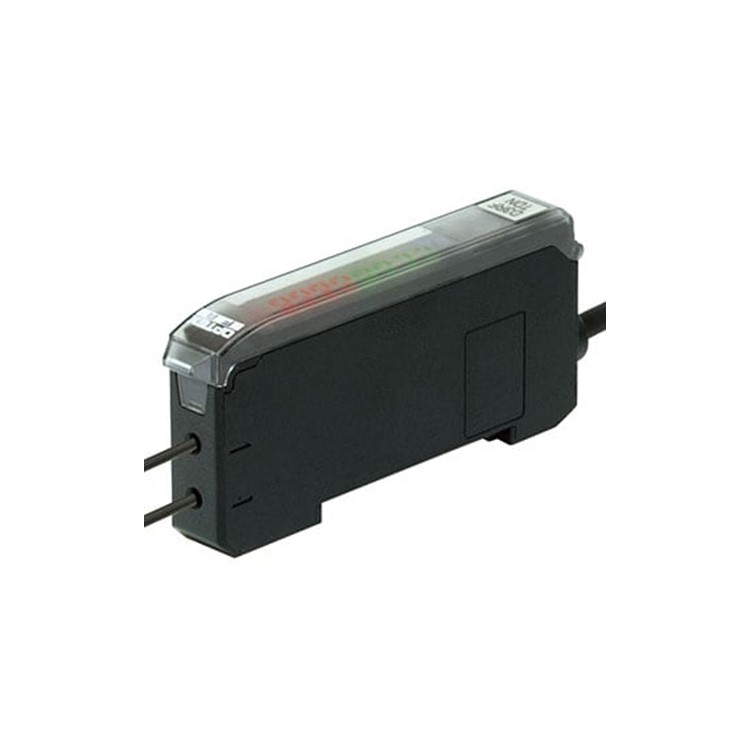

OPTEX FA D3RF & D3IF SERIES Digital Fiber Amplifiers

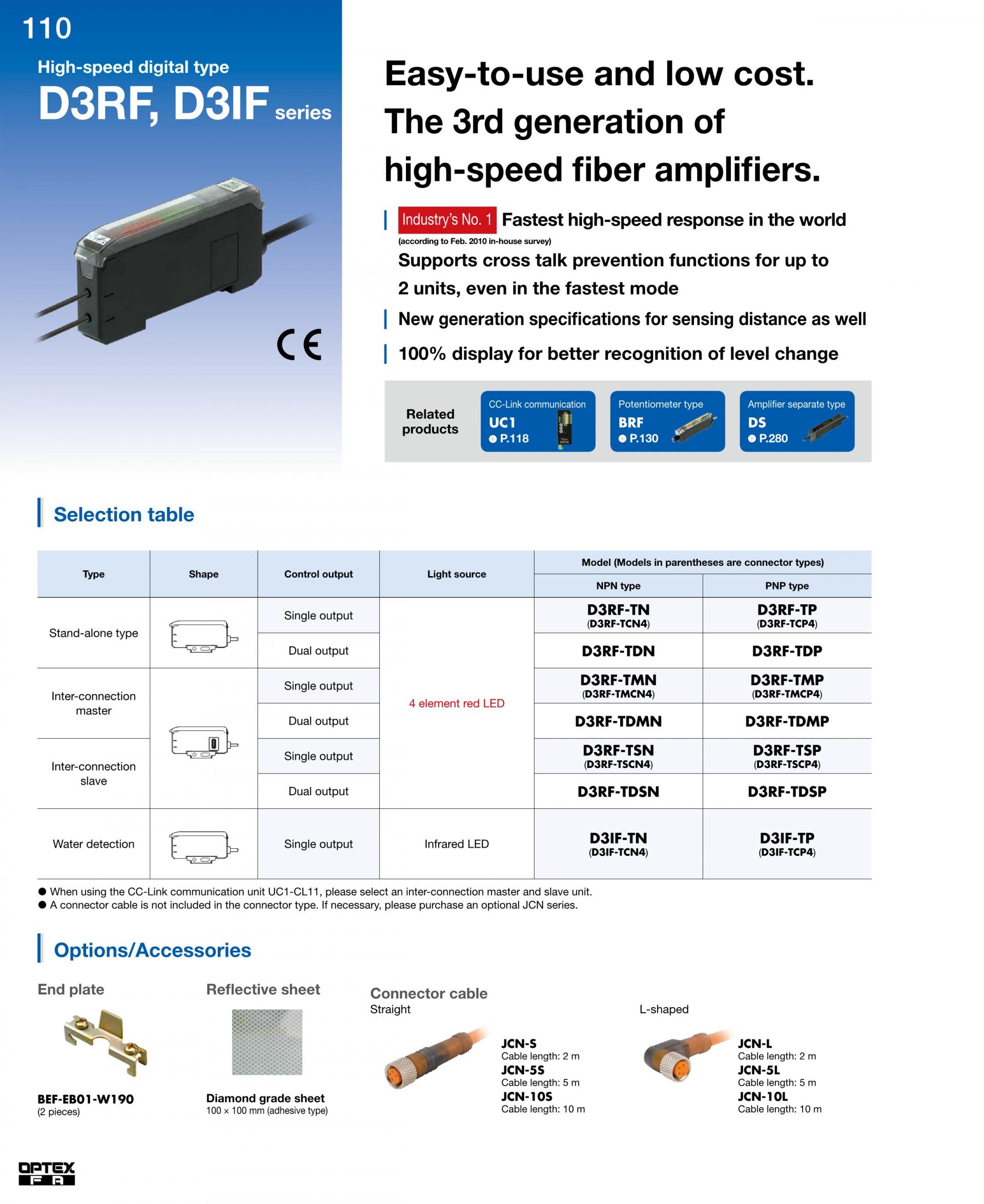

Easy-to-use fiber amplifiers
- Fastest high-speed response in the world
- Supports cross talk prevention functions for up to 2 units, even in the fastest mode
- New generation specifi cations for sensing distance as well

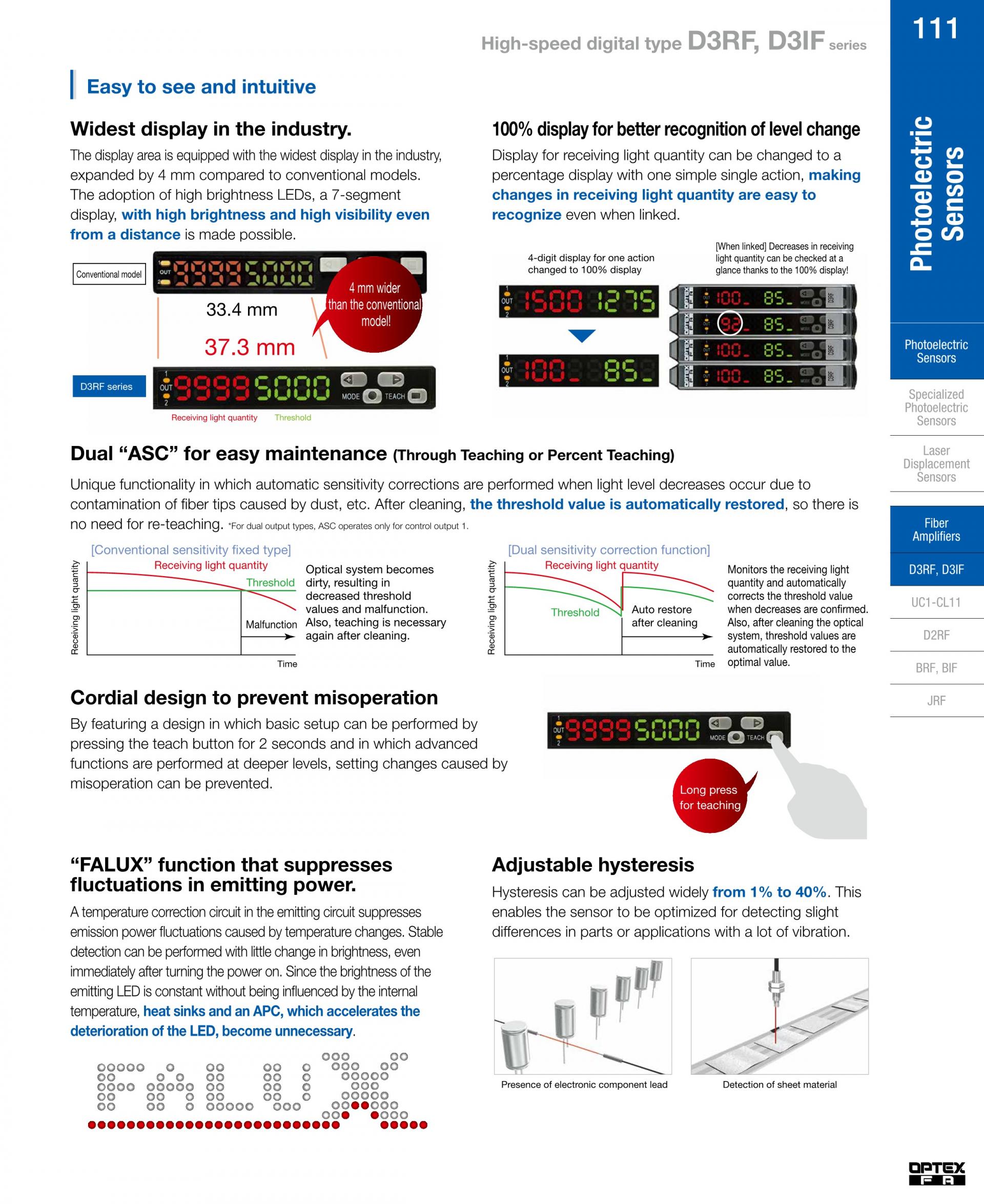

- 100% display for better recognition of level change
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
D3RF & D3IF SERIES
고속 디지털화이버센서
D3RF & D3IF SERIES Digital Fiber Amplifiers

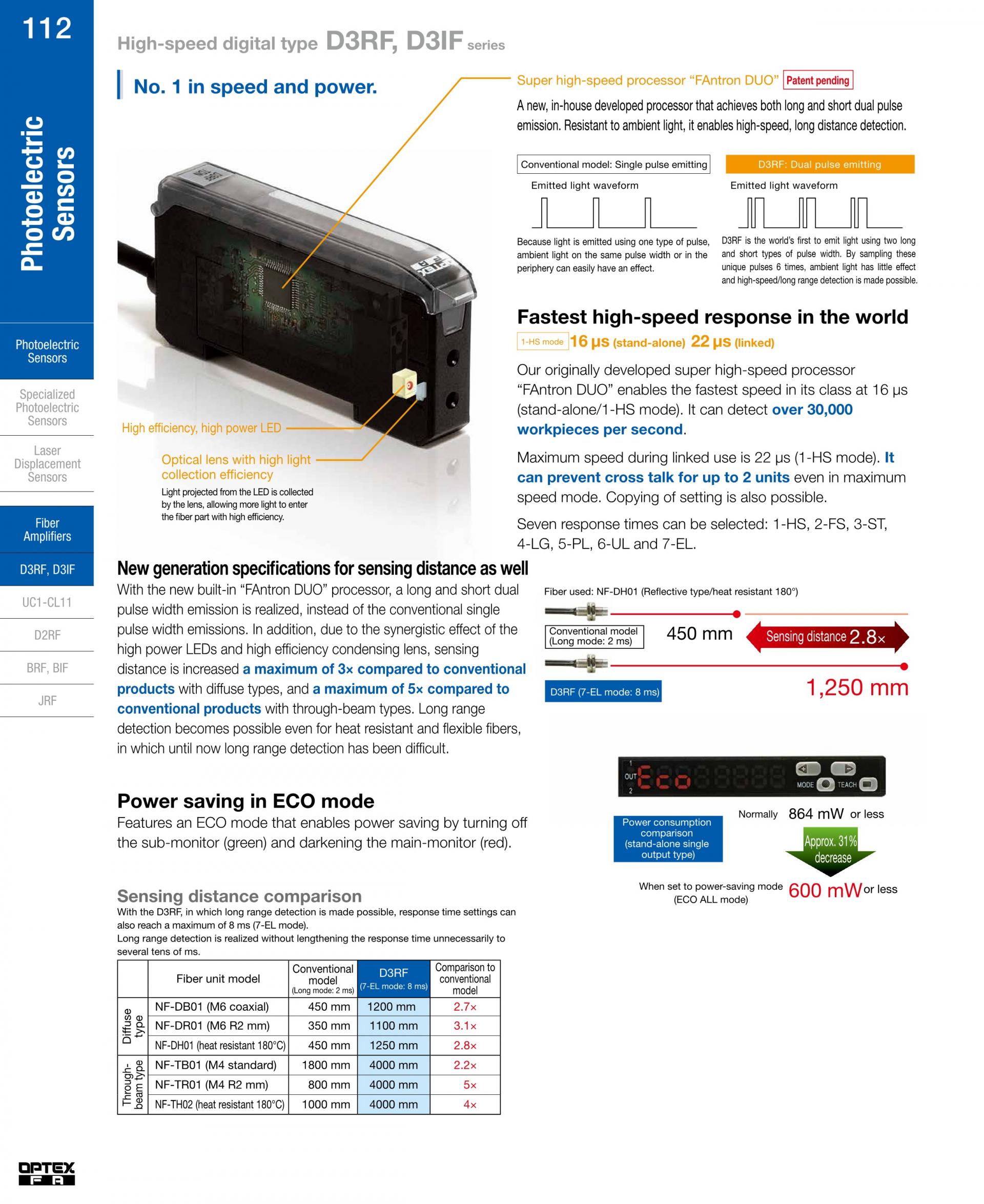

- No. 1 in speed and power.
- Fastest high-speed response in the world
Our originally developed super high-speed processor “FAntron DUO” enables the fastest speed in its class at 16 μs (stand-alone/1-HS mode). It can detect over 30,000 workpieces per second. Maximum speed during linked use is 22 μs (1-HS mode). It can prevent cross talk for up to 2 units even in maximum speed mode. Copying of setting is also possible. Seven response times can be selected: 1-HS, 2-FS, 3-ST, 4-LG, 5-PL, 6-UL and 7-EL.
- New generation specifications for sensing distance as well

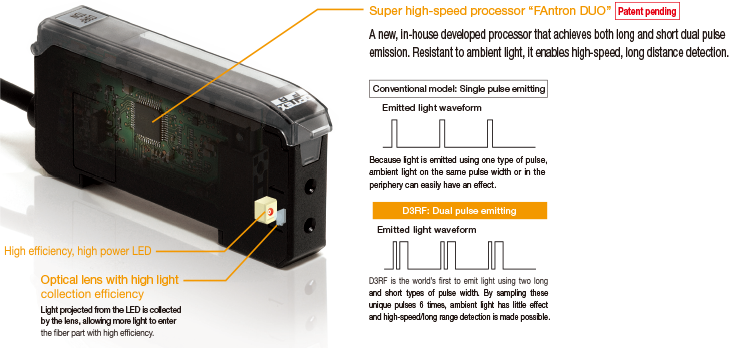

With the new built-in “FAntron DUO” processor, a long and short dual pulse width emission is realized, instead of the conventional single pulse width emissions. In addition, due to the synergistic effect of the high power LEDs and high efficiency condensing lens, sensing distance is increased a maximum of 3× compared to conventional products with diffuse types, and a maximum of 5× compared to conventional products with through-beam types. Long range detection becomes possible even for heat resistant and flexible fibers, in which until now long range detection has been difficult.
- Power saving in ECO mode

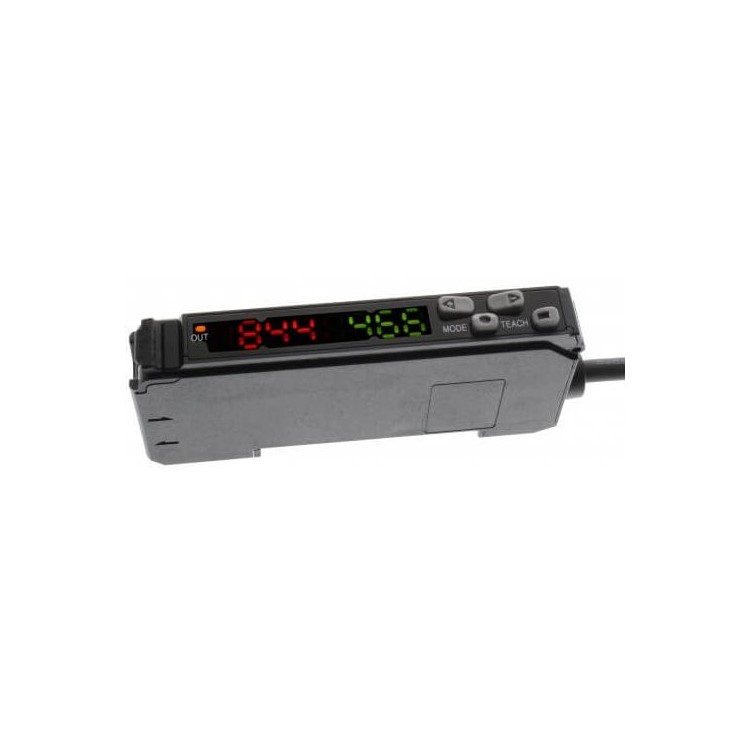

Features an ECO mode that enables power saving by turning off the sub-monitor (green) and darkening the main-monitor (red).
- More convenient, even when linked.

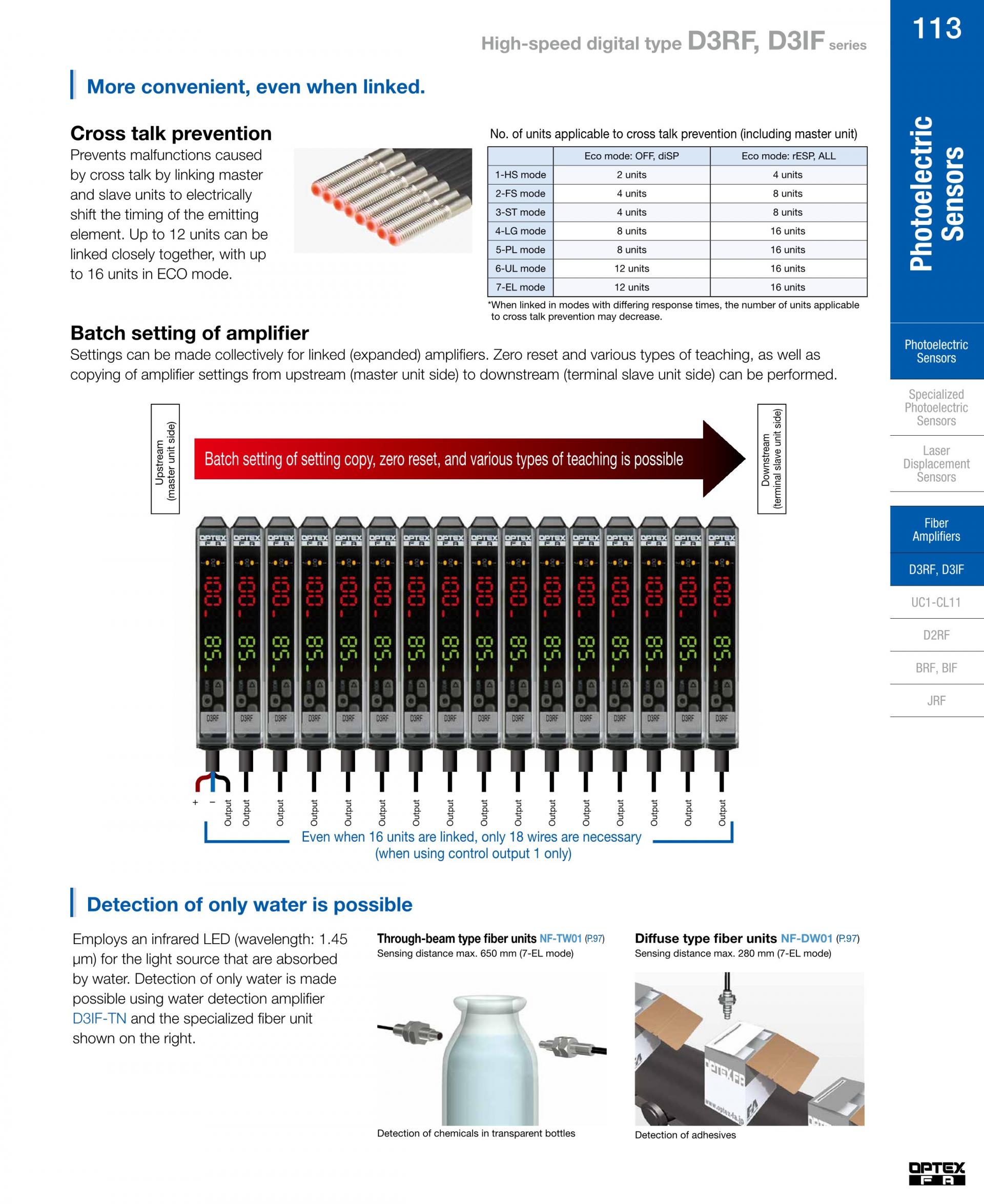

Cross talk prevention
Prevents malfunctions caused by cross talk by linking master and slave units to electrically shift the timing of the emitting element. Up to 12 units can be linked closely together, with up to 16 units in ECO mode.
Batch setting of amplifier
Settings can be made collectively for linked (expanded) amplifiers. Zero reset and various types of teaching, as well as copying of amplifier settings from upstream (master unit side) to downstream (terminal slave unit side) can be performed.
D3RF-TN D3RF-TCN4 D3RF-TP D3RF-TCP4 D3RF-TDN D3RF-TDP D3RF-TMN D3RF-TMCN4 D3RF-TMP D3RF-TMCP4 D3RF-TDMN D3RF-TDMP D3RF-TSN D3RF-TSCN4 D3RF-TSP D3RF-TSCP4 D3RF-TDSN D3RF-TDSP D3IF-TN D3IF-TCN4 D3IF-TP D3IF-TCP4 D3RF TN D3RF TCN4 D3RF TP D3RF TCP4 D3RF TDN D3RF TDP D3RF TMN D3RF TMCN4 D3RF TMP D3RF TMCP4 D3RF TDMN D3RF TDMP D3RF TSN D3RF TSCN4 D3RF TSP D3RF TSCP4 D3RF TDSN D3RF TDSP D3IF TN D3IF TCN4 D3IF TP D3IF TCP4
