OPTEX FA D4RF SERIES 초고속 디지털 화이버 앰플리파이어

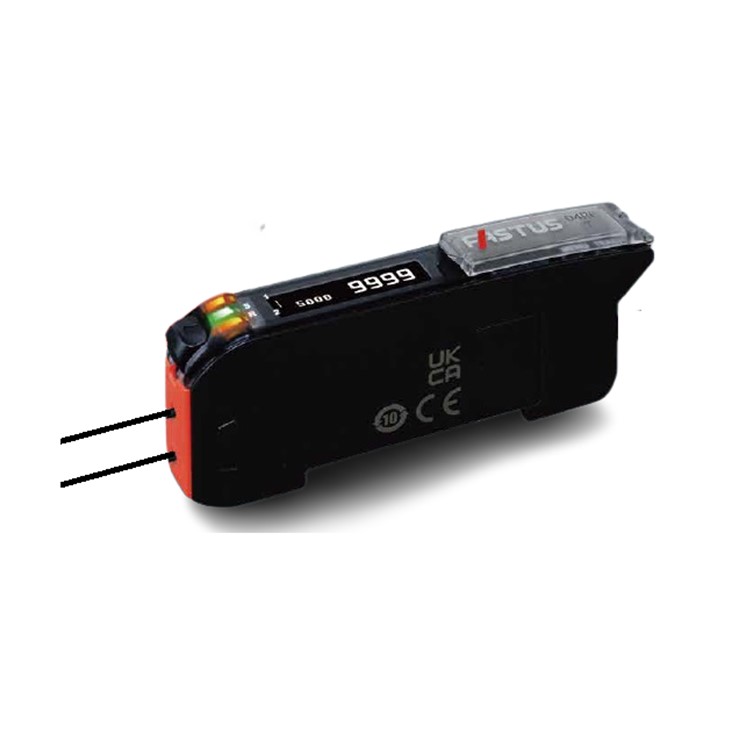

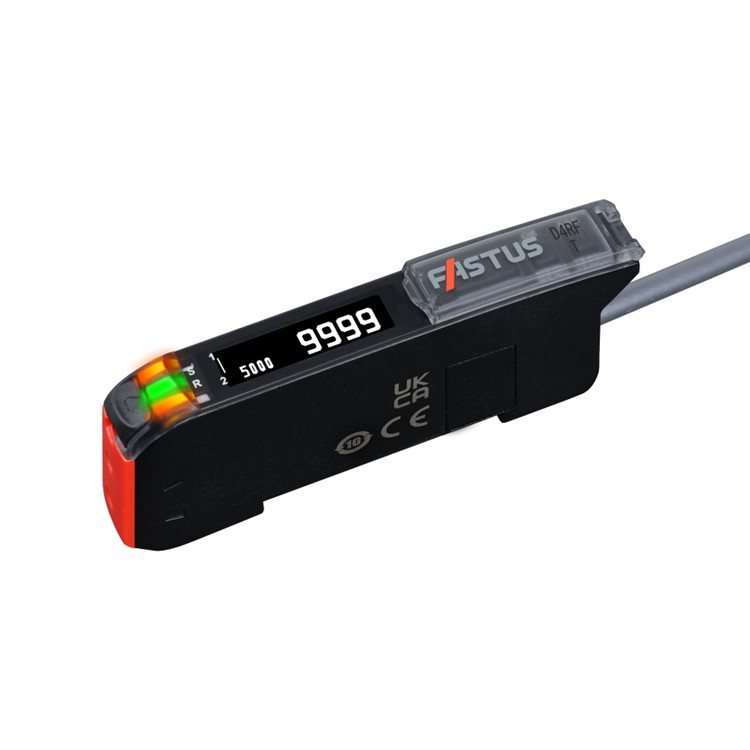

OPTEX FA D4RF SERIES Ultra-High-Speed Digital Fiber Amplifiers
Easy-to-Read, Easy-to-Use, Ultra-High-Speed
Fiber Sensor Amplifiers with IO-Link supported
- Easy-to-read OLED display
- Fiber insertion indicators for instant verification
- Large LED indicators for excellent visibility

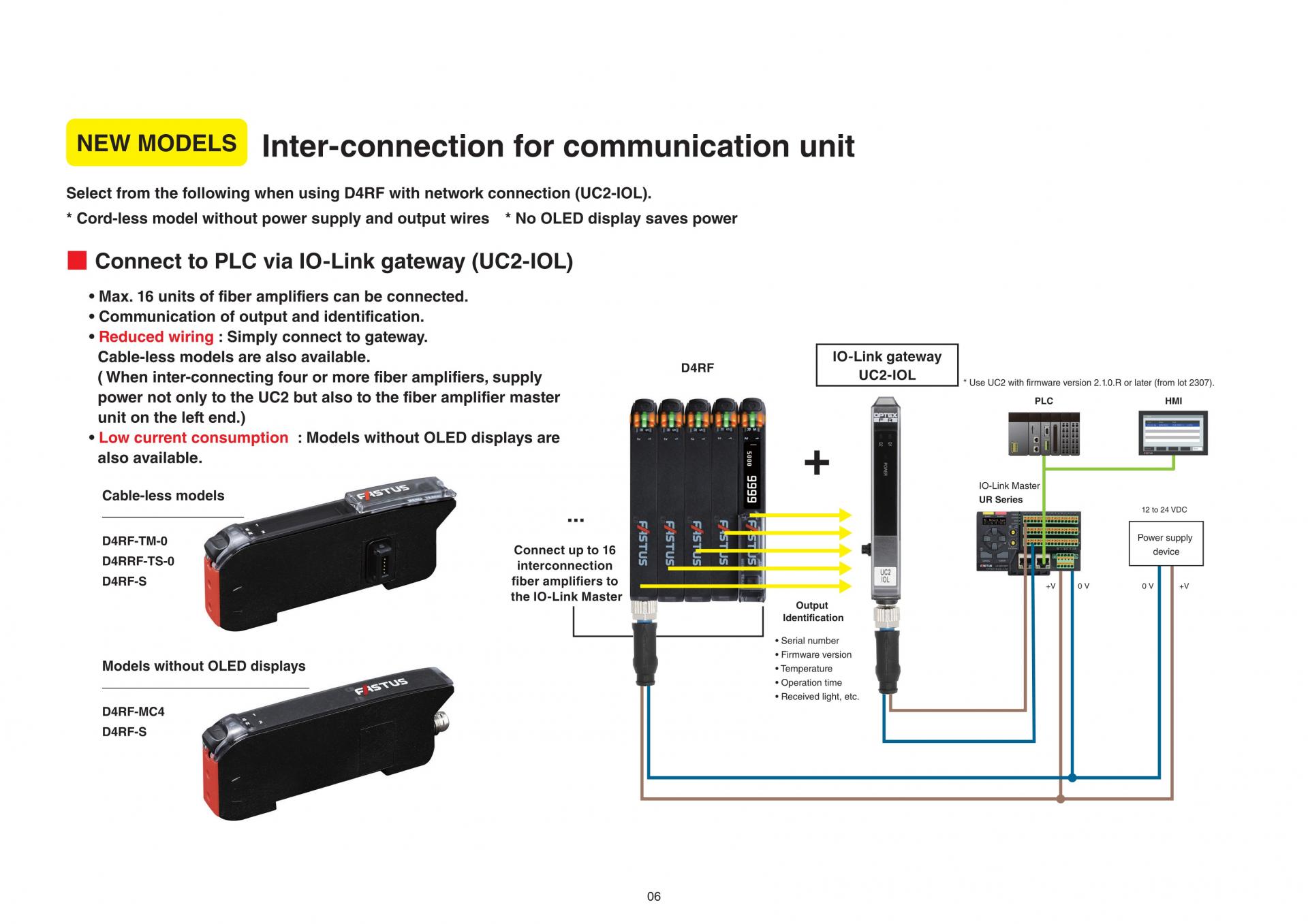

- Contributes to smart factories with IO-Link support

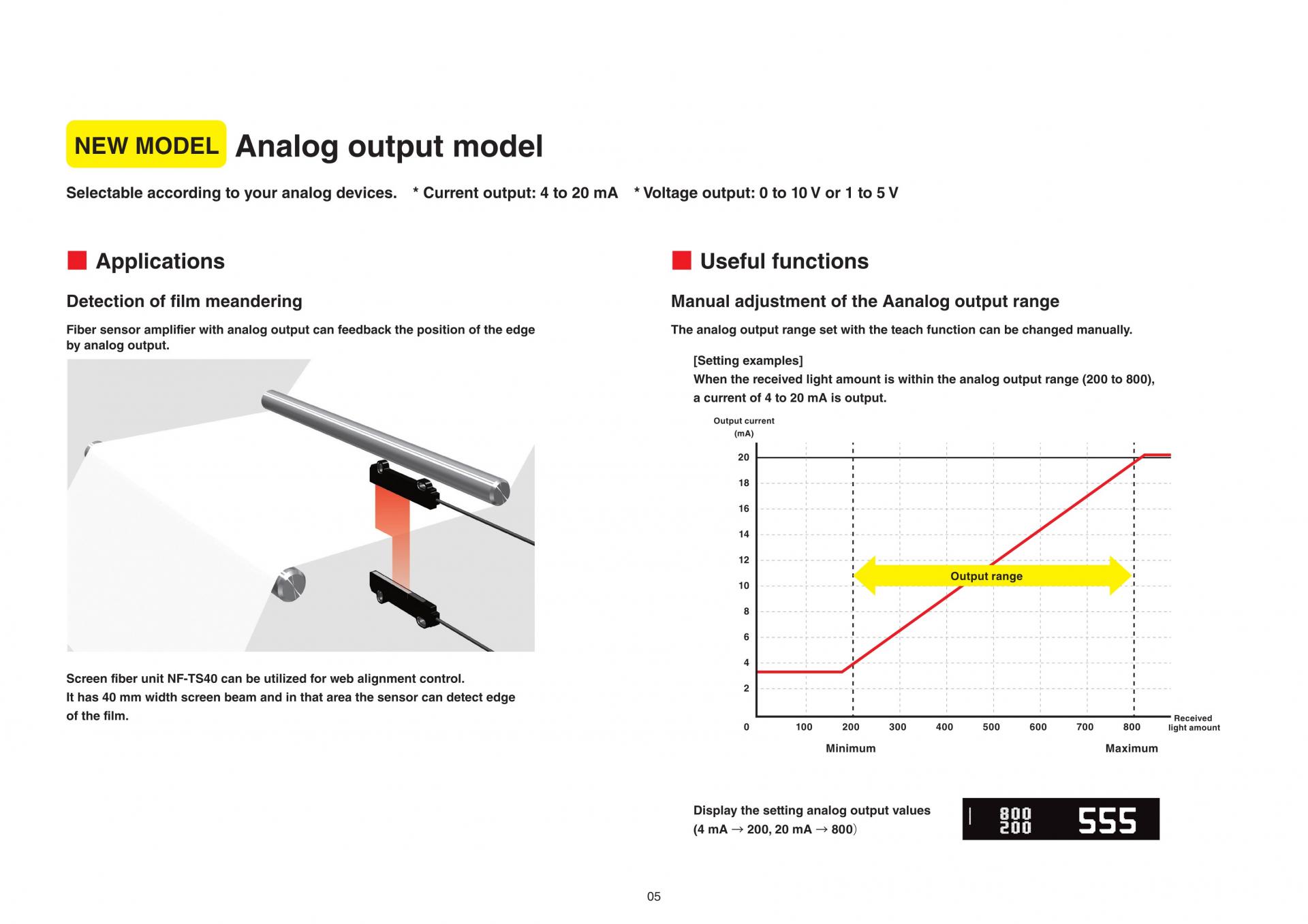

- Analog output model and cable-less type added to lineup
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
D4RF SERIES
초고속 디지털 화이버 앰플리파이어
D4RF SERIES Ultra-High-Speed Digital Fiber Amplifiers

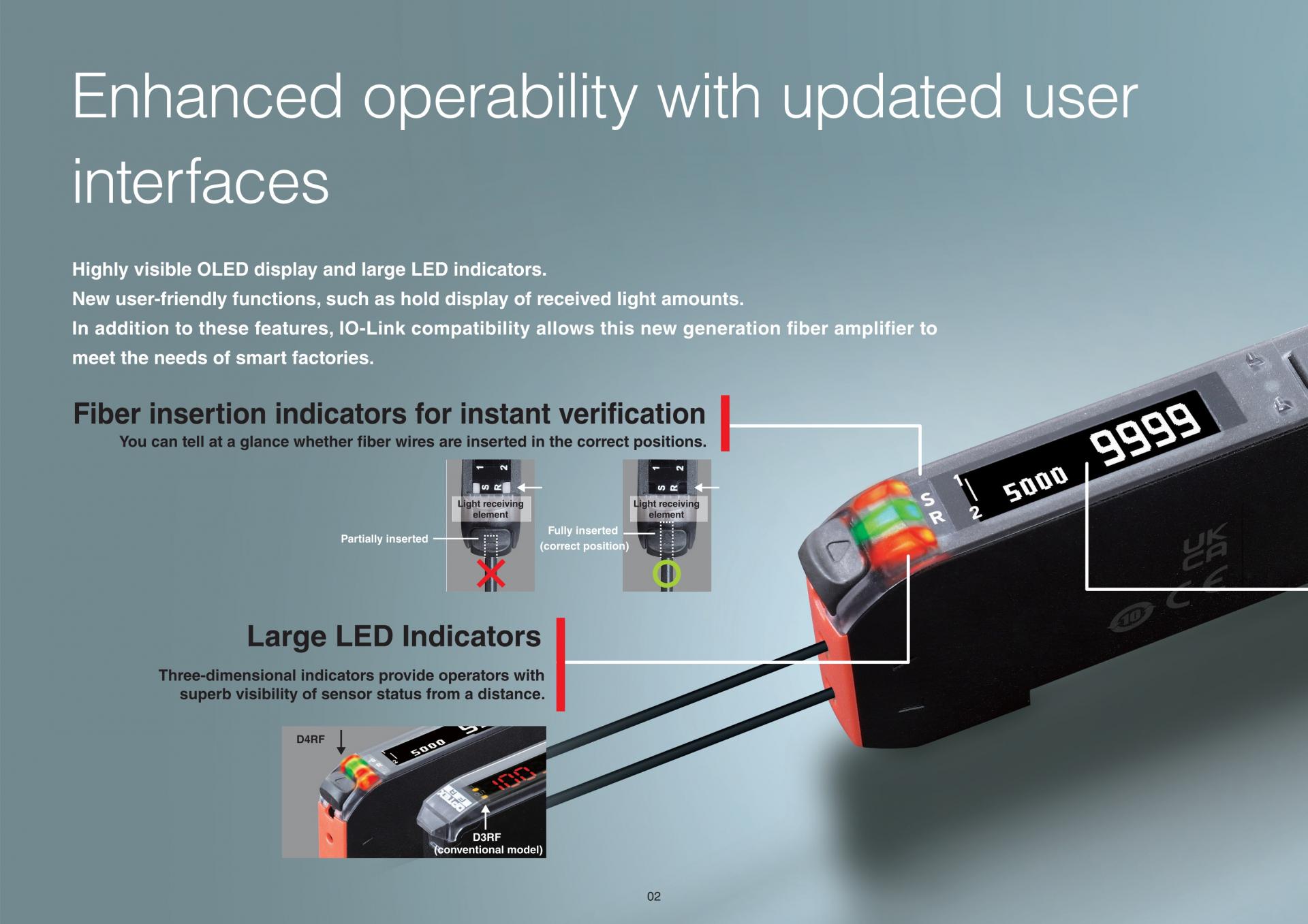

- Enhanced Operability with Updated User Interfaces
Not only hardware updates of highly visible OLED display and large LED indicators, but also new user-friendly functions, such as hold display of received light amounts and fiber insertion indicators have greatly improved operation of high functional fiber sensors.
In addition to these features, IO-Link compatibility allows this new generation fiber amplifier to meet the needs of smart factories.
- Fiber insertion indicators for
instant verificationYou can tell at a glance whether fiber wires are inserted in the correct positions.
- Large LED Indicators
Three-dimensional indicators provide operators with superb visibility of sensor status from a distance
- Larger Buttons for Secure Operation
Larger buttons with the tilted top shape help operators easy setting of parameters.

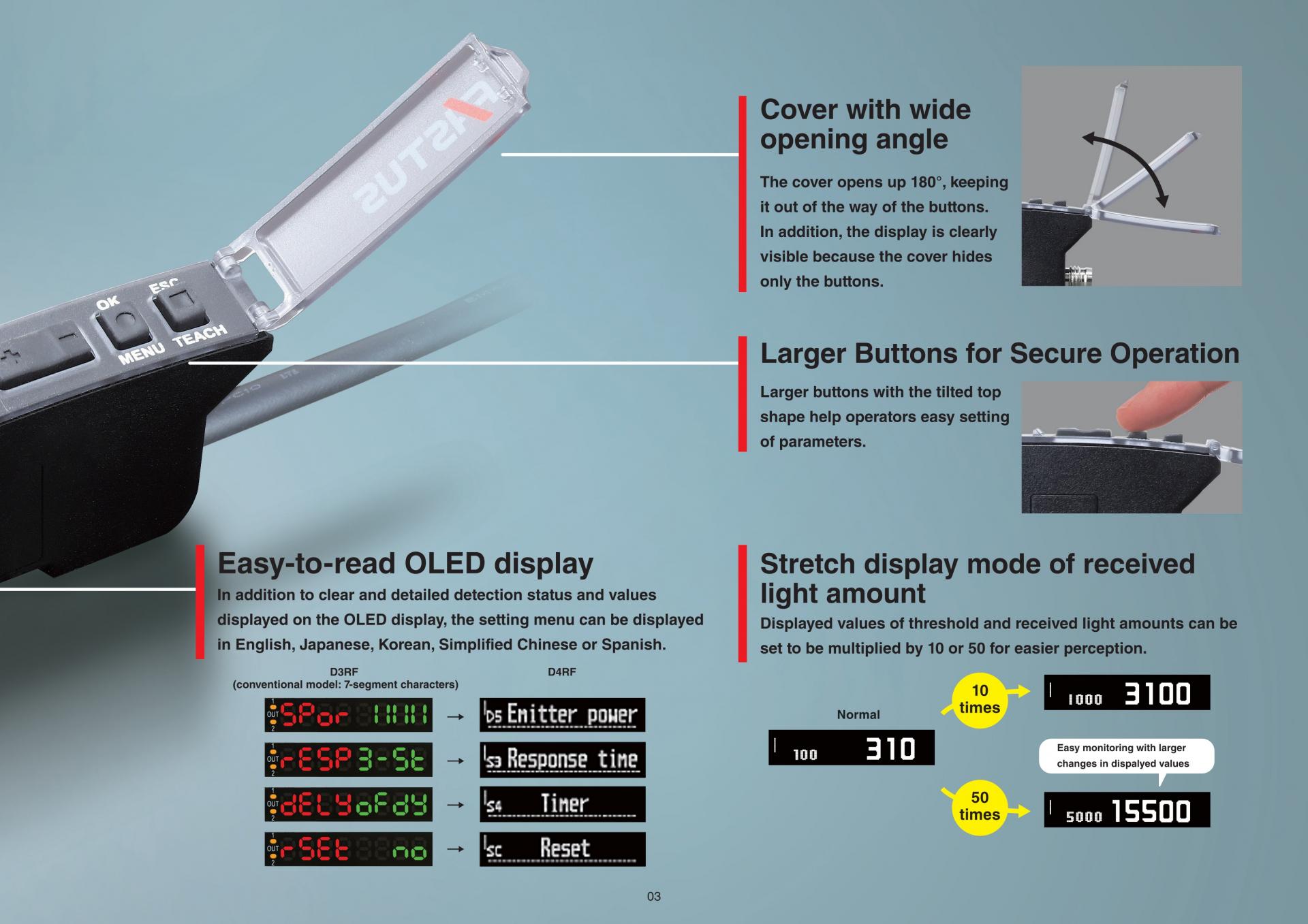

- Cover with wide opening angle
The cover opens up 180°, keeping it out of the way of the buttons.
In addition, the display is clearly visible because the cover hides only the buttons.

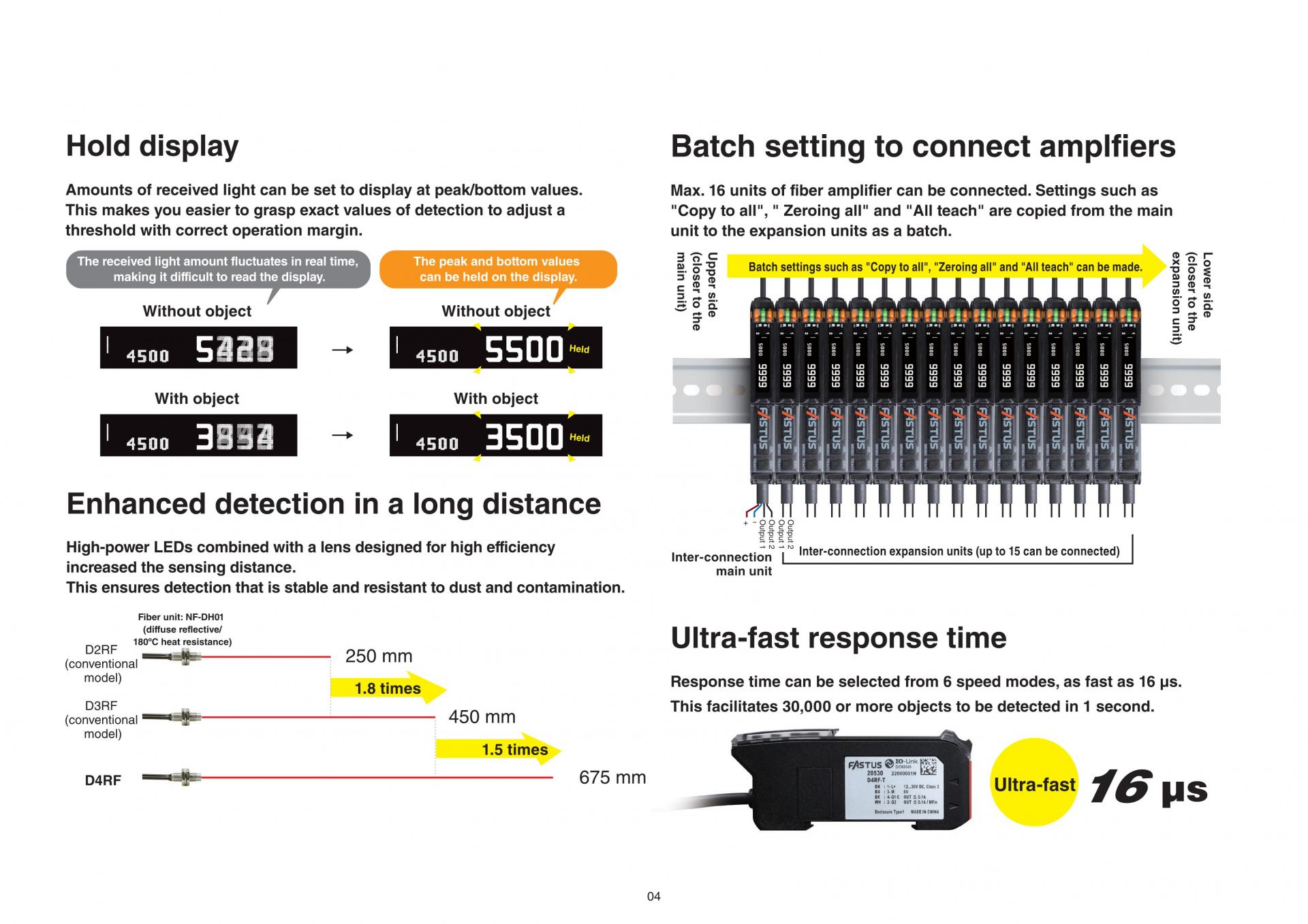

- Hold Display
Amounts of received light can be set to display at peak/bottom values.
This makes you easier to grasp exact values of detection to adjust a threshold with correct operation margin.
- Batch setting to connect amplfiers
Max. 16 units of fiber amplifier can be connected.
Settings such as "Copy to all", "Zeroing all" and "All teach" are copied from the main unit to the expansion units as a batch.
- Enhanced Detection in a Long Distance
High-power LEDs in combination with a lens designed for efficiency has increased the sensing distance.
This ensures detection that is stable and resistant to dust and contamination.
- Fast response time
Response time can be selected from 6 speed modes, as fast as 16 μs.

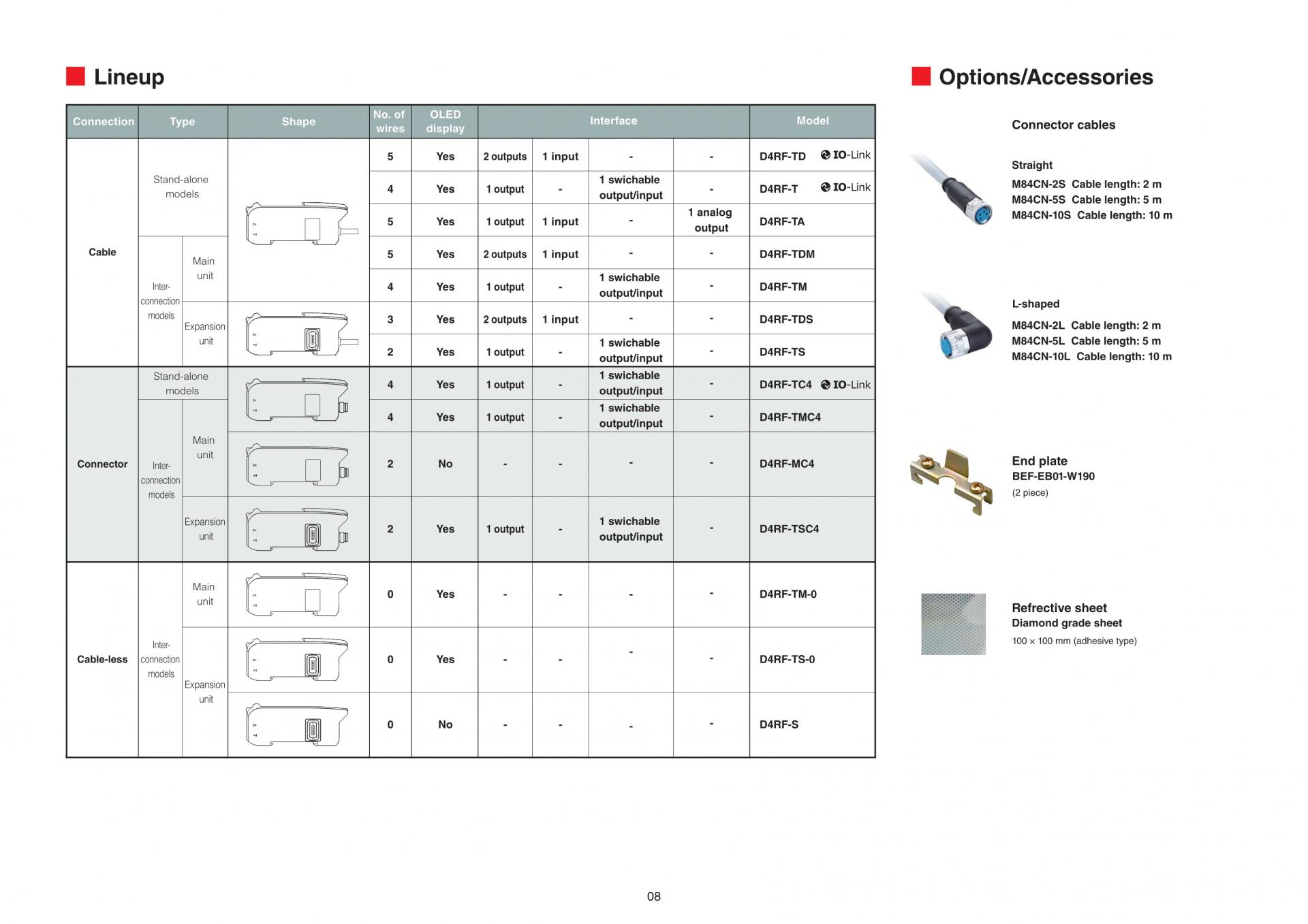

- LINEUP
| Cable | Stand-alone models |  | 5 | ● | 2 outputs | 1 input | ― | ― | D4RF-TD | |
| 4 | ● | 1 output | ― | 1 switchable output/input | ― | D4RF-T | ||||
| 5 | ● | 1 output | 1 input | ― | 1 analog output | D4RF-TA | ||||
| Inter-connection models | Main unit | 5 | ● | 2 outputs | 1 input | ― | ― | D4RF-TDM | ||
| 4 | ● | 1 output | ― | 1 switchable output/input | ― | D4RF-TM | ||||
| Expansion unit |  | 3 | ● | 2 outputs | 1 input | ― | ― | D4RF-TDS | ||
| 2 | ● | 1 output | ― | 1 switchable output/input | ― | D4RF-TS | ||||
| Connector | Stand-alone models |  | 4 | ● | 1 output | ― | 1 switchable output/input | ― | D4RF-TC4 | |
| Inter-connection models | Main unit | 4 | ● | 1 output | ― | 1 switchable output/input | ― | D4RF-TMC4 | ||
| 2 | × | ― | ― | ― | ― | D4RF-MC4 | ||||
| Expansion unit |  | 2 | ● | 1 output | ― | 1 switchable output/input | ― | D4RF-TSC4 | ||
| Cable-less | Inter-connection models | Main unit |  | 0 | ● | ― | ― | ― | ― | D4RF-TM-0 |
| Expansion unit |  | 0 | ● | ― | ― | ― | ― | D4RF-TS-0 | ||
 | 0 | × | ― | ― | ― | ― | D4RF-S | |||
