OPTEX FA SMALL OBJECT DETECTION 작은 물체 감지형

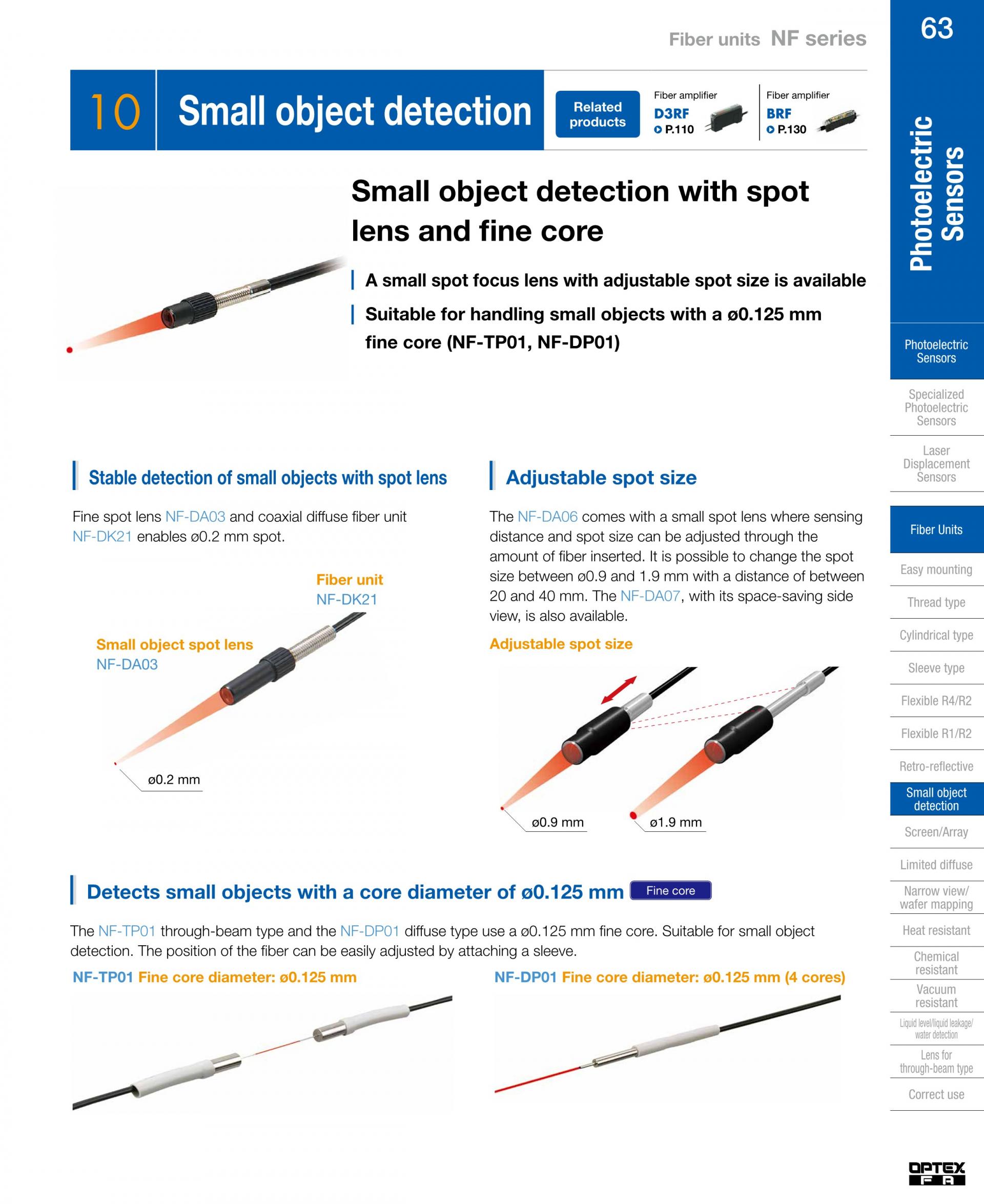

Small object detection with spot lens and fine core
- A small spot focus lens with adjustable spot size is available
- Suitable for handling small objects with a ø0.125 mm fine core (NF-DP01)
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
SMALL OBJECT DETECTION
작은 물체 감지형

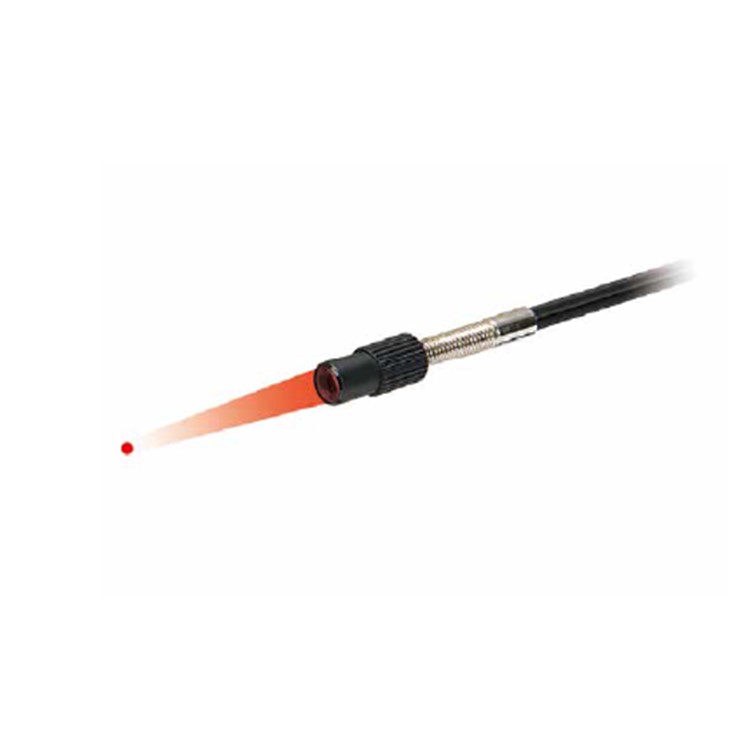

- Stable detection of small objects with spot lens

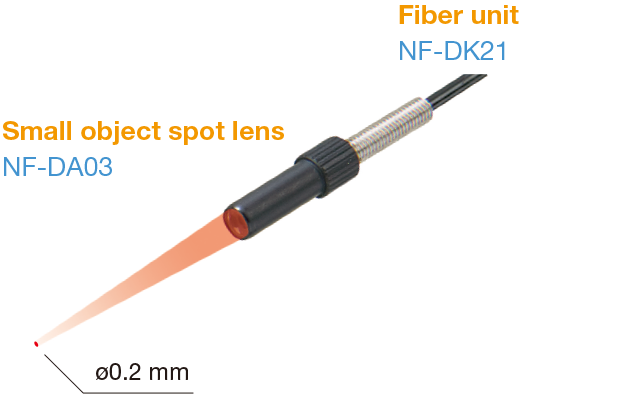

Fine spot lens NF-DA03 and coaxial diffuse fiber unit NF-DK21 enables ø0.2 mm spot.

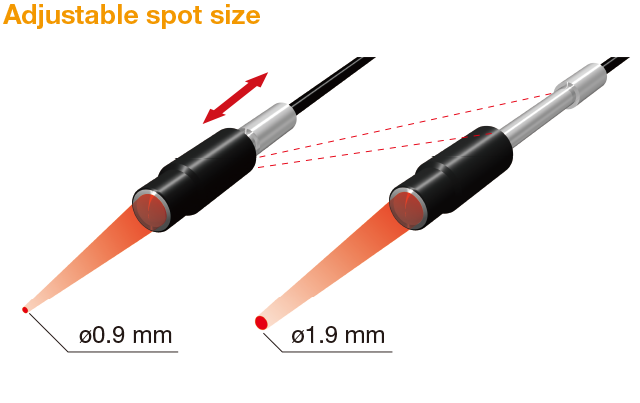

- Adjustable spot size

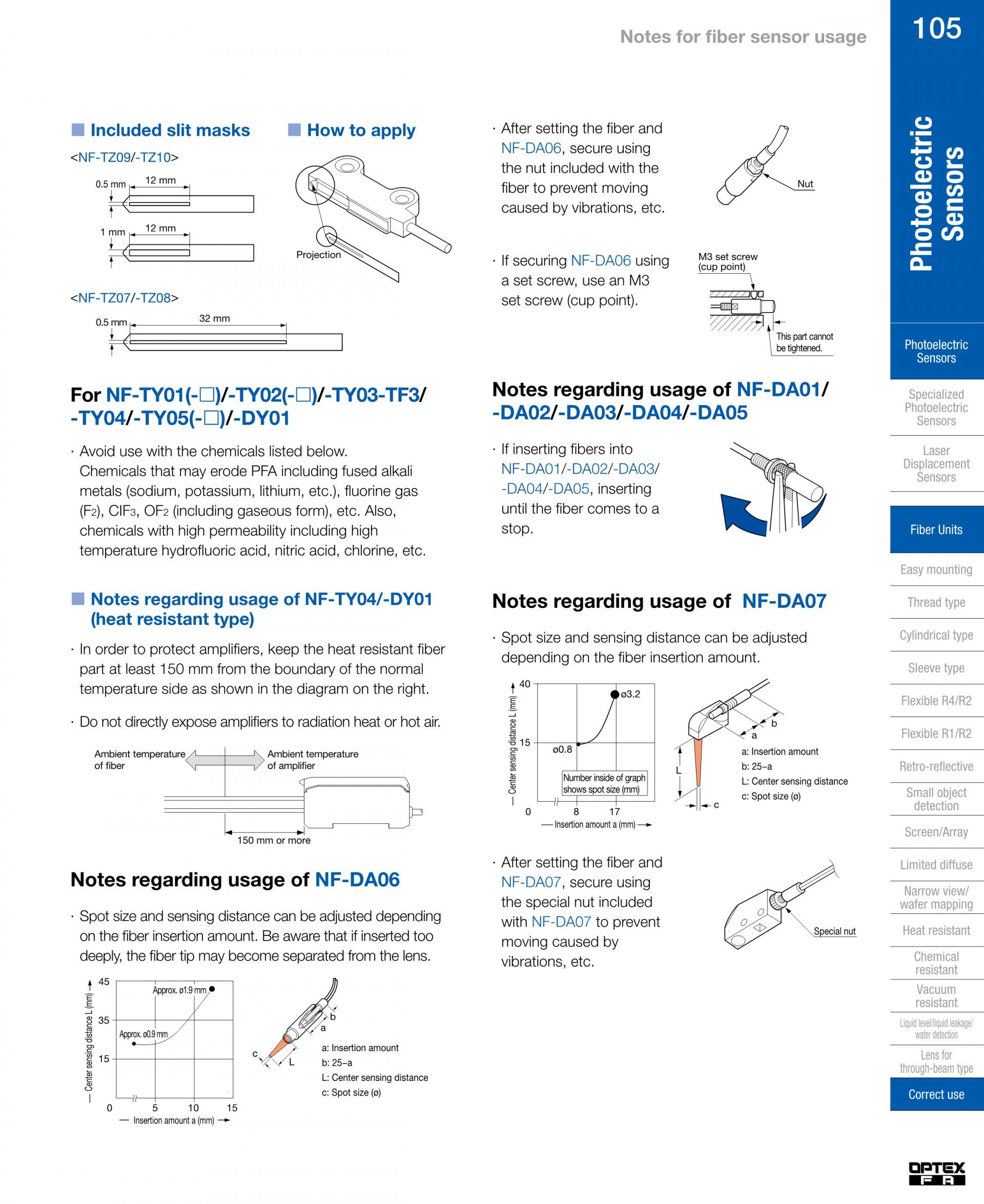

The NF-DA06 comes with a small spot lens where sensing distance and spot size can be adjusted through the amount of fiber inserted. It is possible to change the spot size between ø0.9 and 1.9 mm with a distance of between 20 and 40 mm. The NF-DA07, with its space-saving side view, is also available.

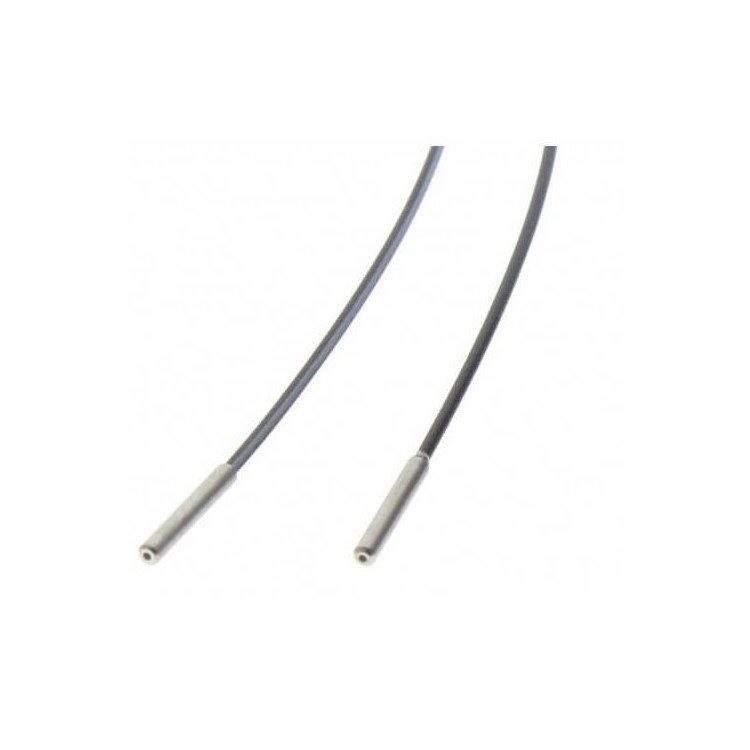

- Detects small objects with a core diameter of ø0.125 mm

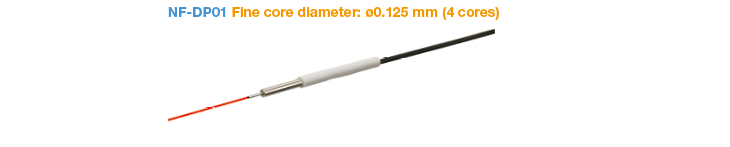

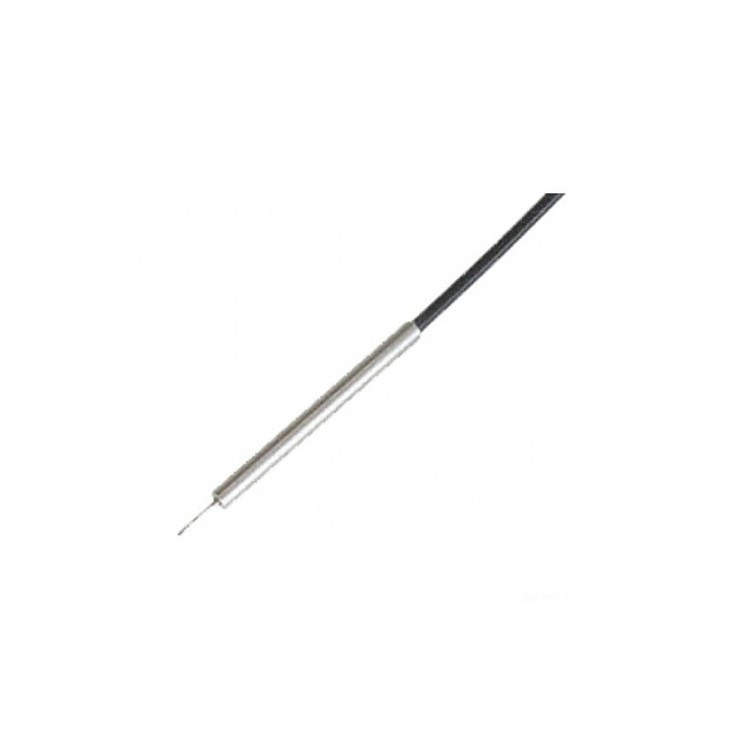

The NF-DP01 diffuse type use a ø0.125 mm fine core. Suitable for small object detection.
The position of the fiber can be easily adjusted by attaching a sleeve.
