BITWISE SSRPULSA STEPScopeTM Remote Pulser Accessory

BITWISE SSRPULSA STEPScopeTM Remote Pulser Accessory

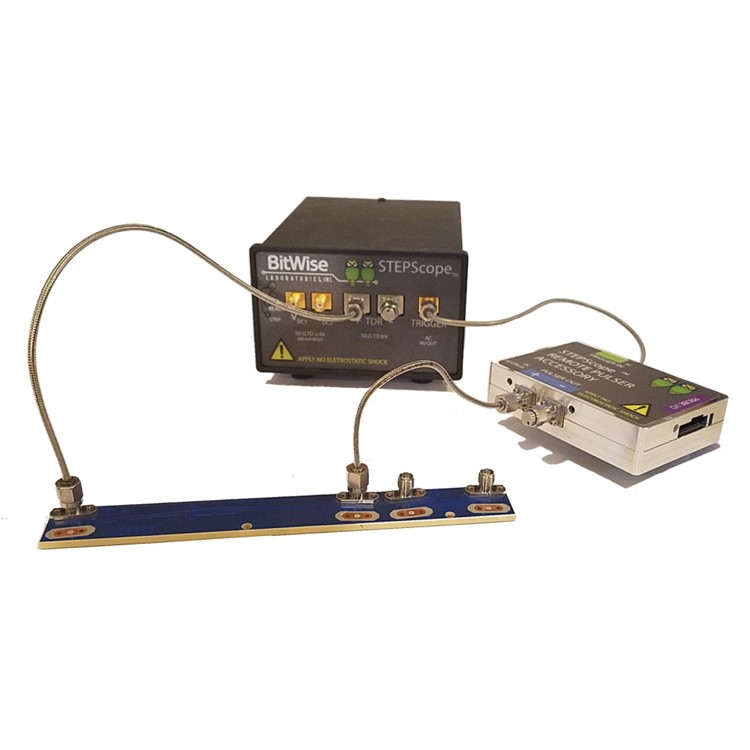

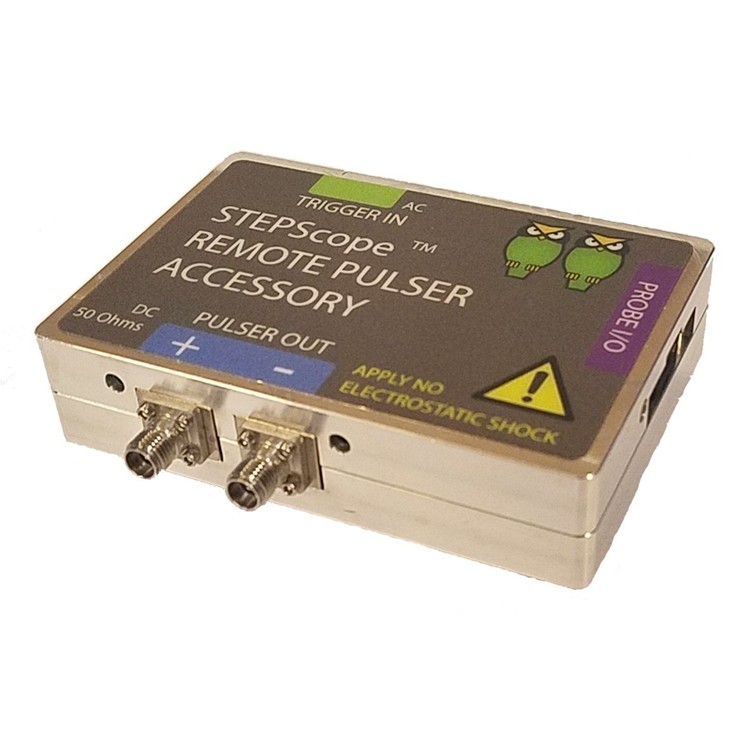

BitWise   Laboratories   STEPScopeTM   Remote Pulser   Accessory   operates   in   conjunction   with   the BitWise  Laboratories  STEPScopeTM    (STEPSCOPEA) analyzer.  It provides for measurements of Insertion Loss (S21) without the need for a second STEPScopeTM to act as  a  pulsing  source.    The  remote  form-factor  and compact size enables it to be placed close to the DUT to reduce the amount of cabling required.  Fast edges and large    amplitudes    mean    more    energy    content    at high-frequencies    which    translates    to    better    high frequency measurements.  Each output can be enabled separately   to   perform   single-ended   and   differential measurements.

The  Remote  Pulser  Accessory  receives  power and   control   over   its   ProbePowerTM   interface   by connecting  it  to  a  STEPScopeTM  analyzer  which  also provides a required pulse trigger signal.
