BITWISE DDR5SA STRESS ACCESSORY

BITWISE DDR5SA STRESS ACCESSORY

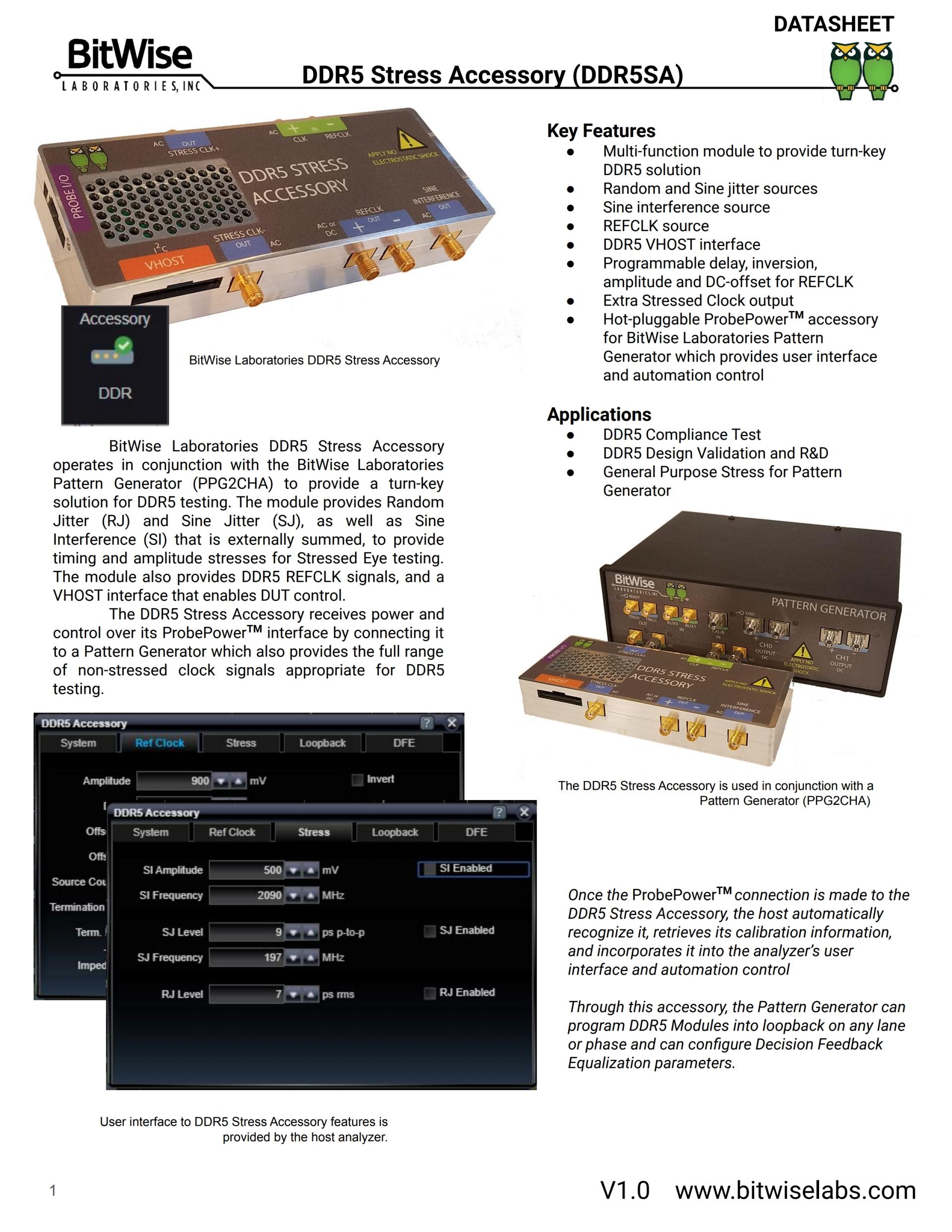

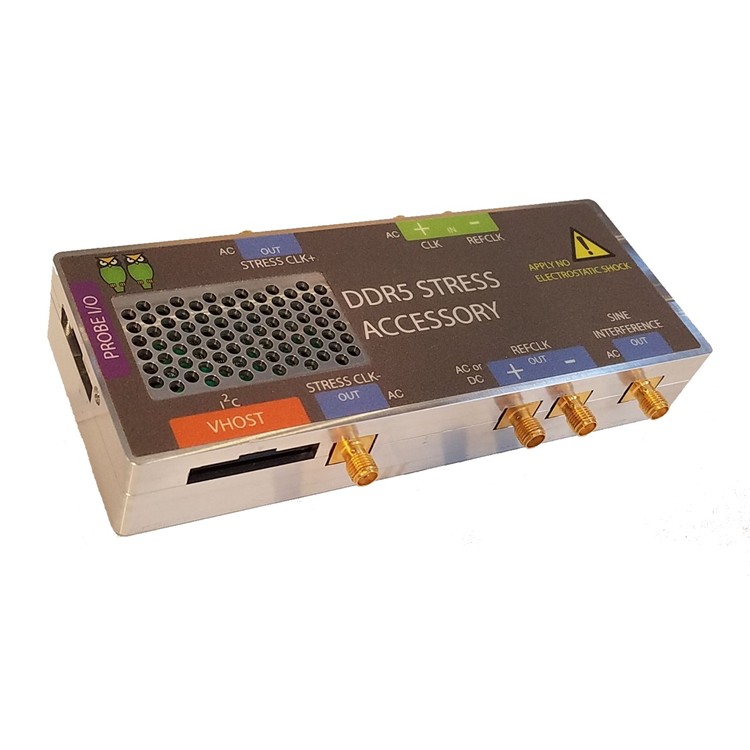

BitWise  Laboratories  DDR5  Stress  Accessory operates  in  conjunction  with  the  BitWise  Laboratories Pattern  Generator  (PPG2CHA)  to  provide  a  turn-key solution for DDR5 testing. The module provides Random Jitter   (RJ)   and   Sine   Jitter   (SJ),   as   well   as   Sine Interference (SI) that is externally summed, to provide timing and amplitude stresses for Stressed Eye testing. The module also provides DDR5 REFCLK signals, and a VHOST interface that enables DUT control.

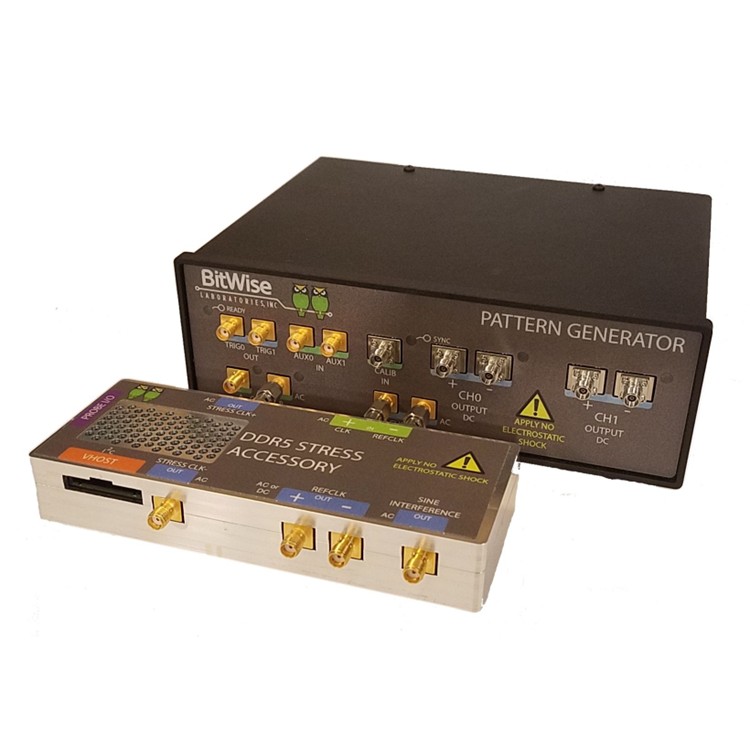

The DDR5 Stress Accessory receives power and control over its ProbePowerTM interface by connecting it to a Pattern Generator which also provides the full range of  non-stressed  clock  signals  appropriate  for  DDR5 testing.
