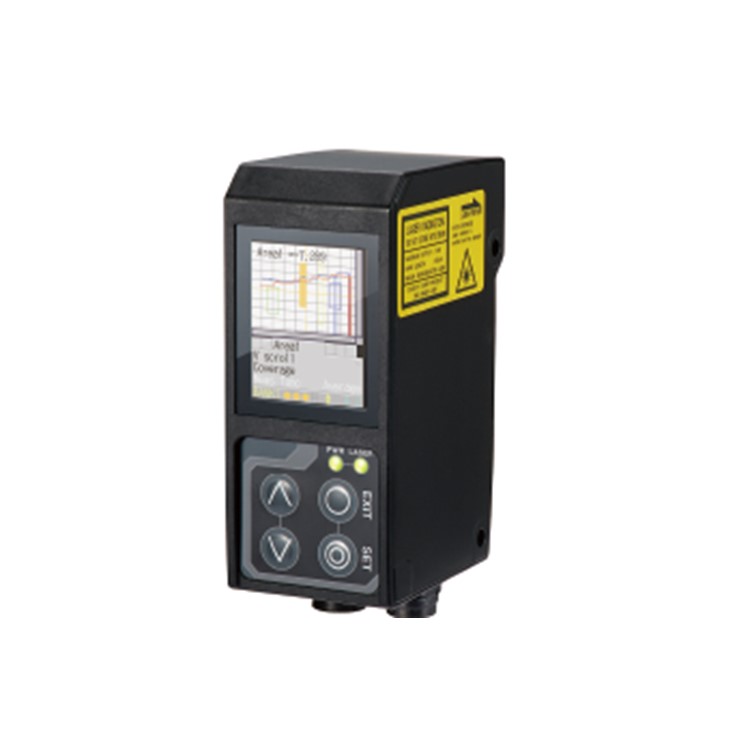

OPTEX FA LS SERIES 2차원 레이저 변위센서
가격문의(상세정보 참조)
OPTEX FA LS SERIES 2차원 레이저 변위센서
OPTEX FA LS SERIES 2-dimentional Laser Displacement Sensors

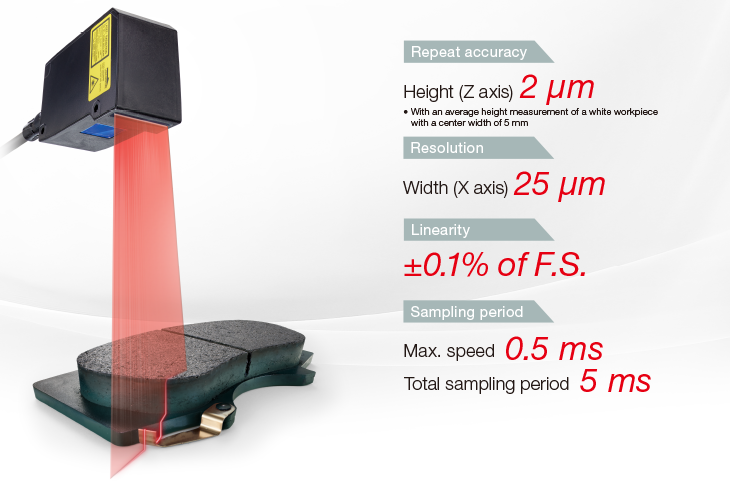

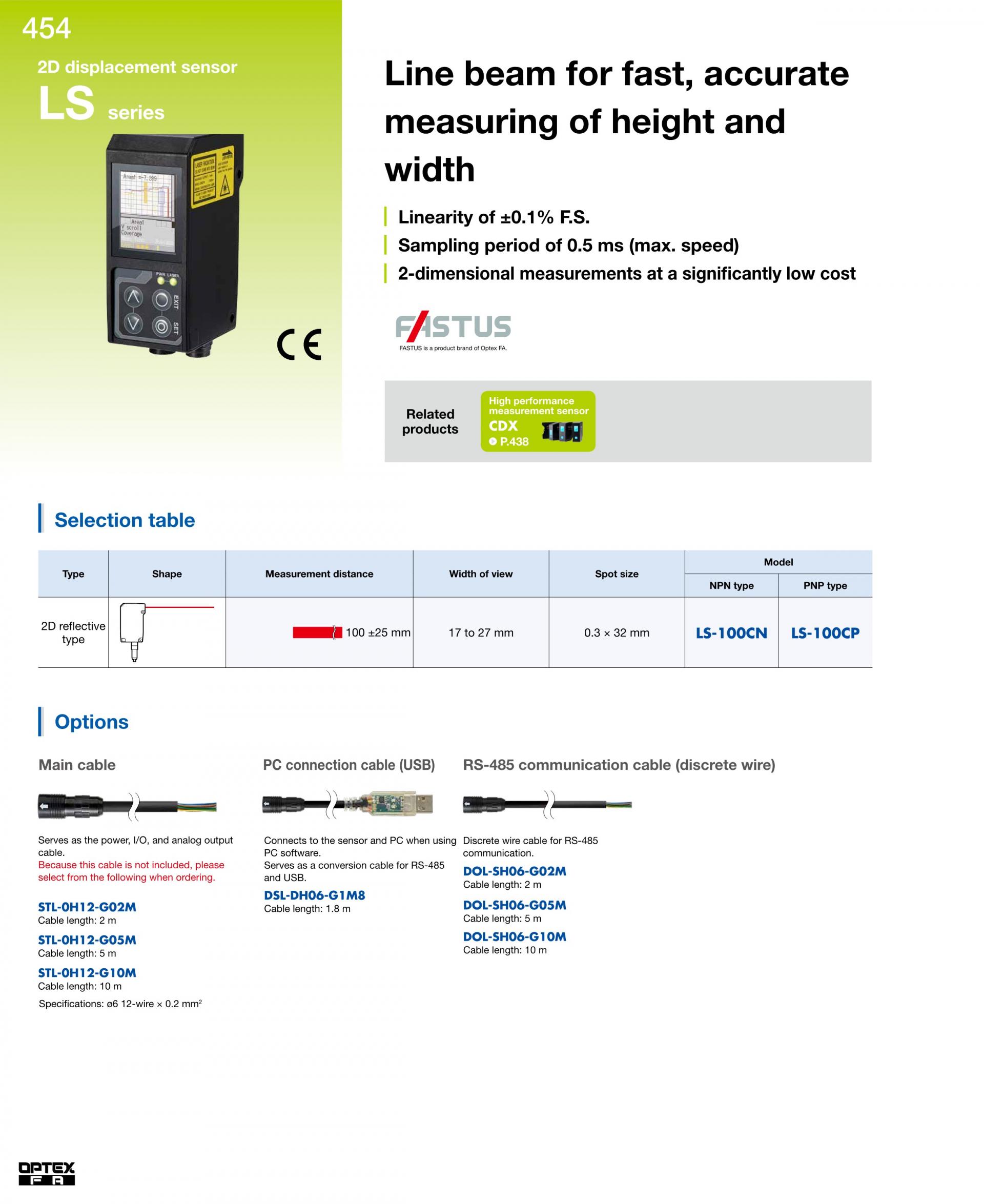

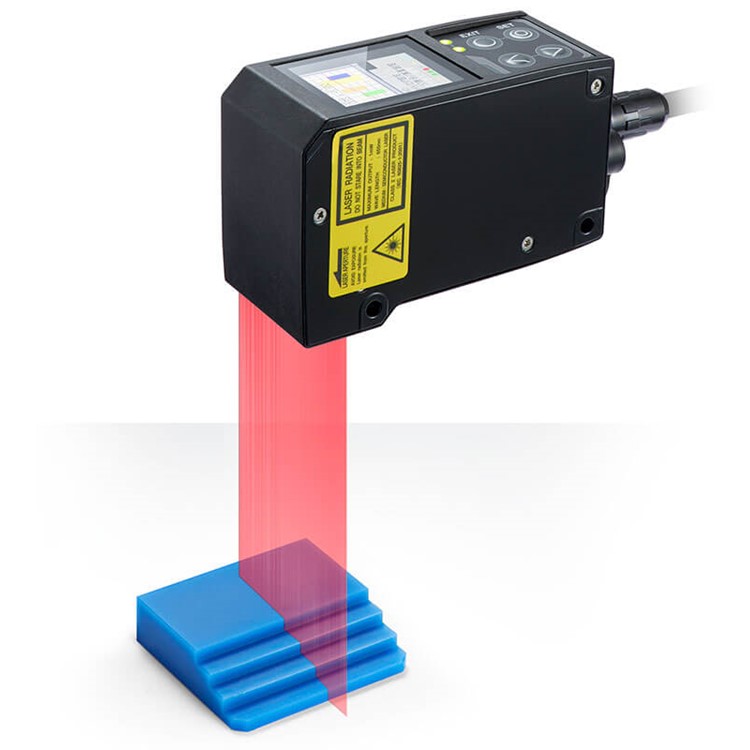

Line beam for fast, accurate measuring of height and width
- Linearity of ±0.1% F.S.
- Sampling period of 0.5 ms (max. speed)
- 2-dimensional measurements at a significantly low cost
클릭 하시면 이동합니다.
옵텍스 FA ・ OPTEX FA
LS SERIES
2차원 레이저 변위센서
LS SERIES 2-dimentional Laser Displacement Sensors

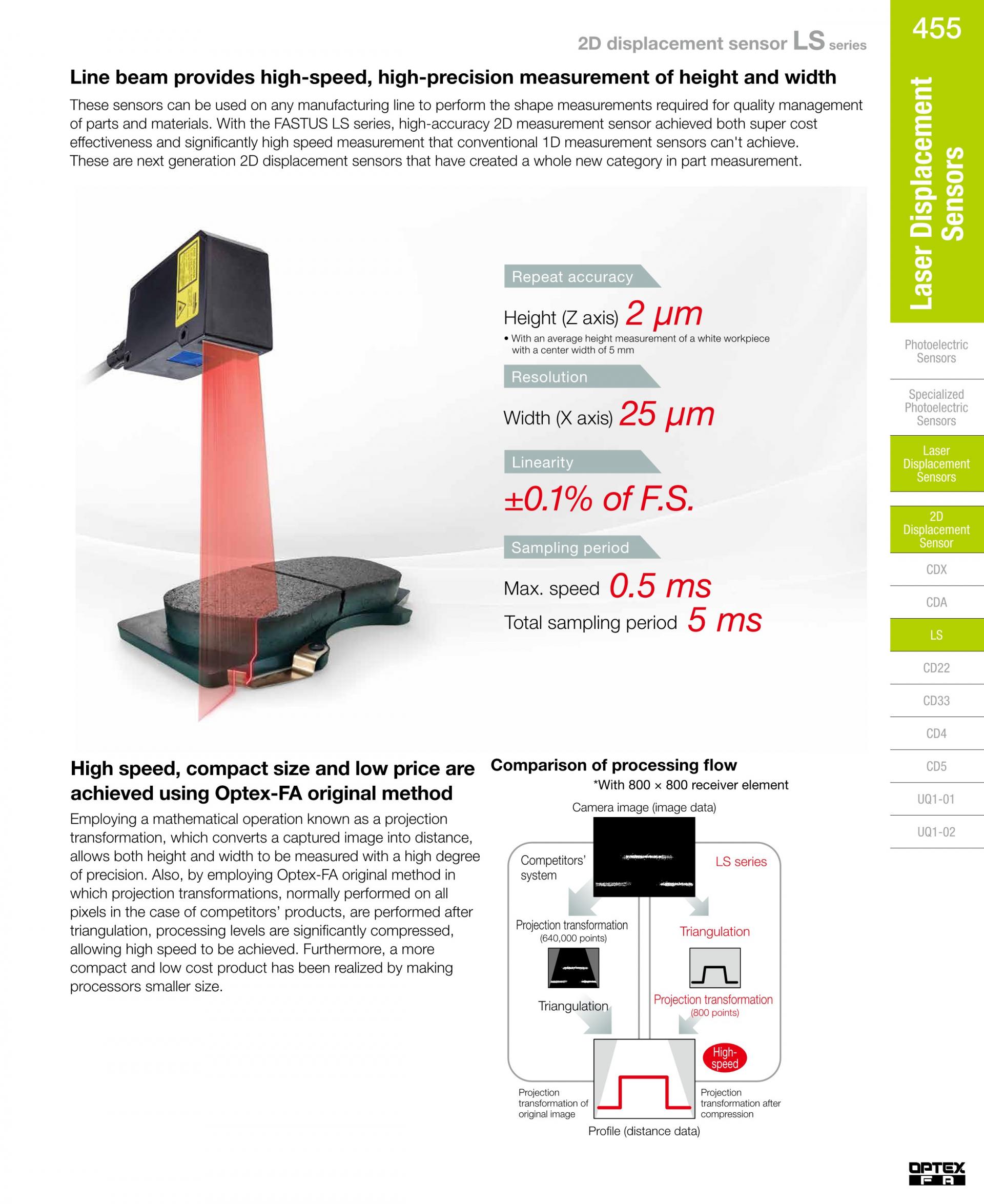

- Line beam provides high-speed, high-precision measurement of height and width

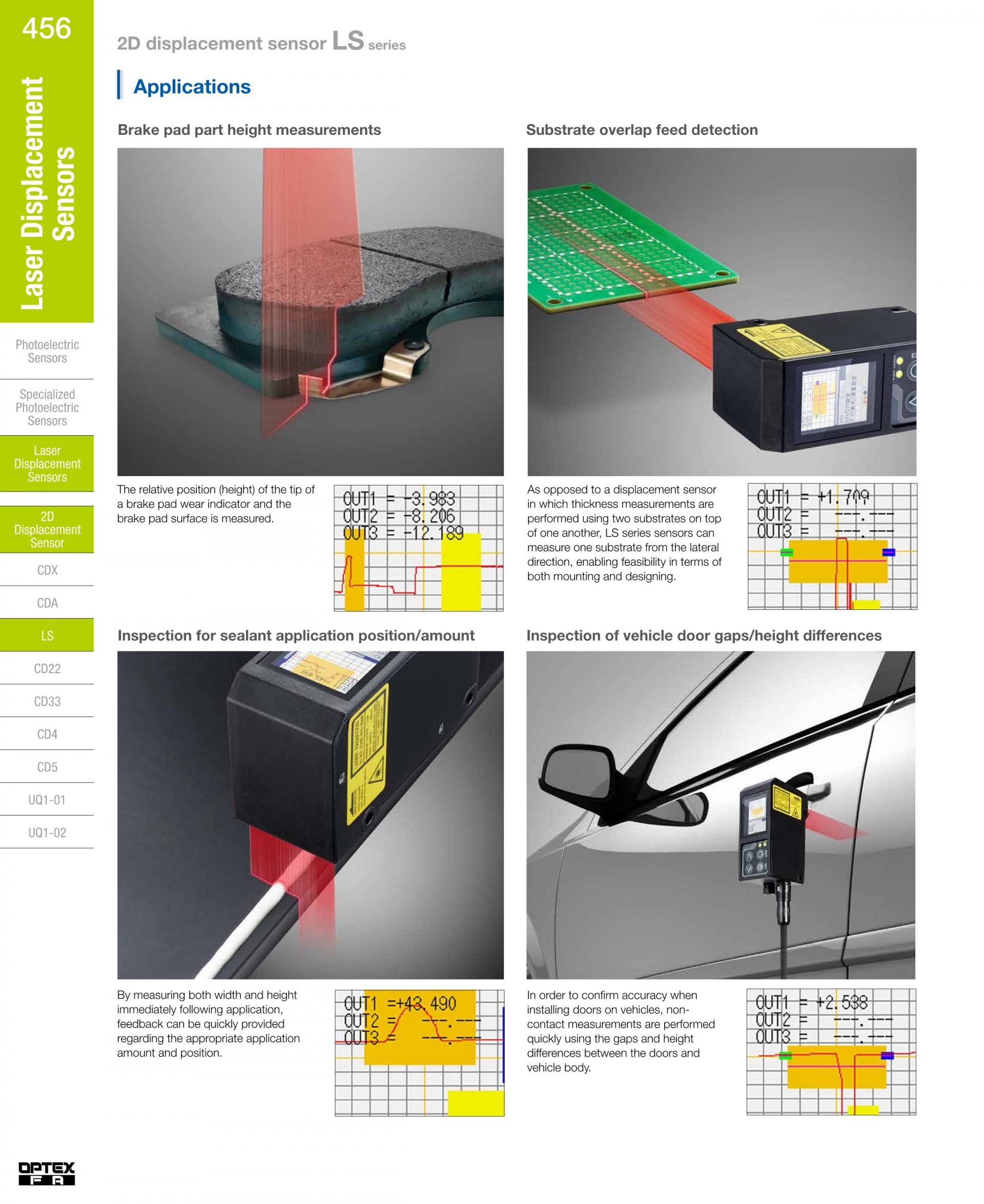

These sensors can be used on any manufacturing line to perform the shape measurements required for quality management of parts and materials. With the FASTUS LS series, high-accuracy 2D measurement sensor achieved both super cost effectiveness and significantly high speed measurement that conventional 1D measurement sensors can't achieve.
These are next generation 2D displacement sensors that have created a whole new category in part measurement.

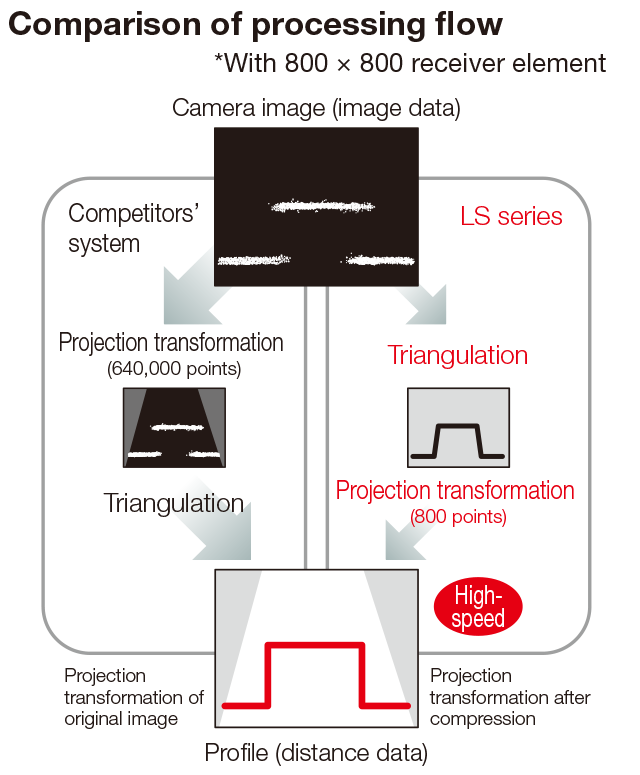

Employing a mathematical operation known as a projection transformation, which converts a captured image into distance, allows both height and width to be measured with a high degree of precision. Also, by employing Optex-FA original method in which projection transformations, normally performed on all pixels in the case of competitors’ products, are performed after triangulation, processing levels are significantly compressed, allowing high speed to be achieved. Furthermore, a more compact and low cost product has been realized by making processors smaller size. |  |
LS-100CN LS-100CP LS 100CN LS 100CP LS OPTEX FA LS OPTEX LS FASTUS LS 옵텍스 FA LS 옵텍스 LS LS OPTEX FA LS OPTEX LS FASTUS LS 옵텍스 FA LS 옵텍스
