DEWESOFT SIRIUS R8 고채널수 DAQ 시스템
가격문의(상세정보 참조)

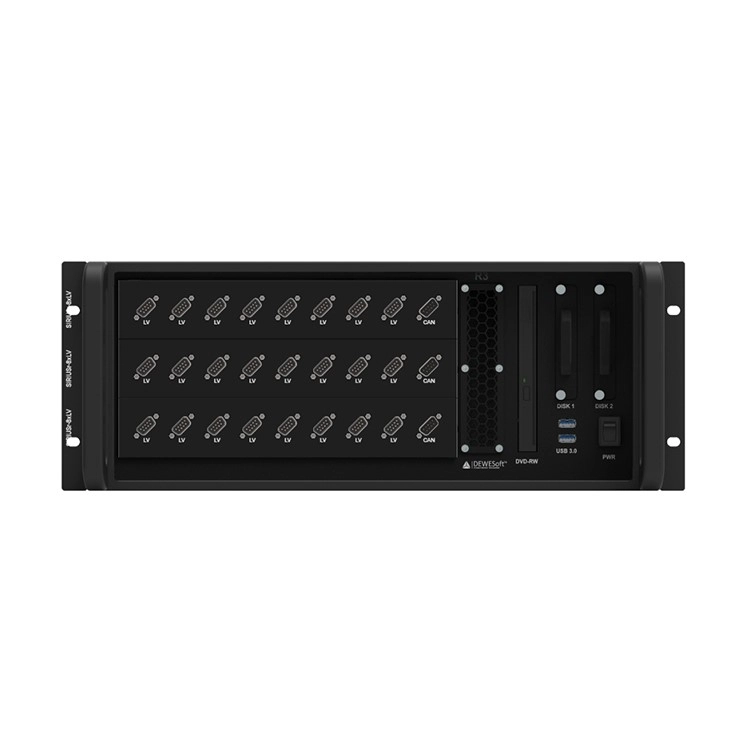

DEWESOFT SIRIUS R8 고채널수 DAQ 시스템
DEWESOFT SIRIUS R8 High-channel-count data acquisition (DAQ) system
SIRIUS® R8 is a high-channel-count data acquisition system with up to 128 analog input channels. It is equipped with high-end signal conditioning amplifiers for almost every sensor and signal. The system features a built-in powerful processing computer with reliable SSD storage and a myriad of modern connection interfaces.
Award-winning DewesoftX data acquisition software is included for free. The system comes with an industry-leading 7-year warranty.
클릭 하시면 이동합니다.
데베소프트 ・ DEWESOFT
SIRIUS R8
고채널수 DAQ 시스템
SIRIUS R8 High-channel-count data acquisition (DAQ) system
- High-End Signal Conditioning
This data acquisition system is built around SIRIUS DAQ technology and features the same versatile and powerful amplifiers for world-leading signal conditioning. See the SIRIUS product page for a detailed SIRIUS DAQ technology overview.
- All-In-One Instrument
R8 instruments are high channel count, standalone DAQ systems with built-in powerful data processing computer, SSD data logging capabilities, touch-screen LED display (R8D and R8DB), and internal Li-Ion batteries (R8B/R8DB) for maximum portability.
- 128 Analog Inputs
Systems can be configured with up 128 high-dynamic analog input channels. Select between various signal conditioning amplifiers for voltage, current, IEPE, charge, strain, LVDT, thermocouple, RTD, and resistance signals.
- 64 Counter Channels
Systems can be configured with up to 64 counter/encoder/tacho input channels or 192 digital input channels. All counter inputs are equipped with our patented SuperCounter® technology that enables the best resolution for angle and speed measurement.
- Up to 27 Isolated CAN Ports
SIRIUS R8DB system can be configured with up to 27 high-speed CAN 2.0b channels. CAN channels feature 1 Mbit/s data throughput with additional support for CCP, OBDII, J1939, and CAN output.
- Up to 64 Analog Outputs
R8/R8B can be configured with up to 64 analog outputs and can function as a multi-channel function generator, analog replay, or control device with the output voltage signal of ±10V.
- EtherCAT Expansion Port
DAQ system includes EtherCAT master port with built-in synchronization for easy connection and extension of any of our EtherCAT-based DAQ systems like KRYPTON, IOLITE, or SIRIUSe DAQ systems.
- Connectivity Interfaces
The built-in computer includes modern connectivity interfaces such as Wireless LAN (WiFi), dual gigabit LAN, USB 3.0, GPS/GNSS, HDMI, EtherCAT and synchronization are available.
- 100 Hz GPS With RTK
We can integrate an optional 10Hz or 100Hz GNSS receiver directly into the DAQ system. This enables precise GPS positioning for navigational testing applications. GNSS receivers offer optional RTK support which can improve the positioning accuracy down to 1 cm.
- Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
- Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
 |

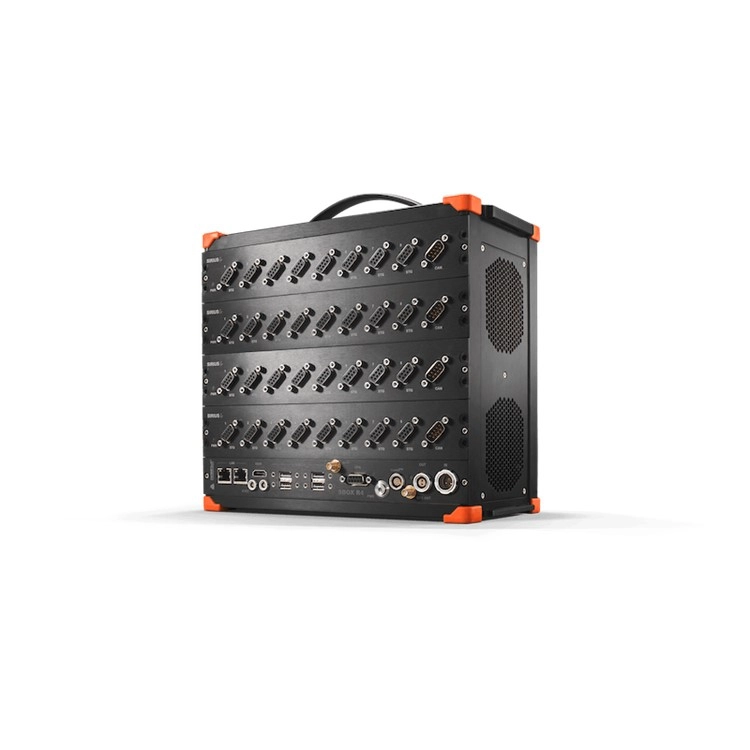

SIRIUS® R8 is a high-channel-count analog data acquisition system for the most demanding test and measurement applications. It features high-end signal conditioning amplifiers with the latest ADC technologies. SIRIUS® R8 systems can be configured with up to:
All channels can be configured in one compact and rugged main frame chassis. SIRIUS® R8 is one of the most compact data acquisition systems on the market with a high number of input channels. If that are not enough channels, multiple R8 DAQ systems can be connected and synchronized together to form larger DAQ systems with thousands of channels using Dewesoft NET technology. SIRIUS® R8 systems have been installed in test beds, rocket launch platforms, vehicles on proving grounds, ships, and just everywhere else. If you need a rugged, reliable, high-channel-count all-in-one DAQ system, SIRIUS® R8 instruments are the best option on the market. Period. |
SIRIUS® R8 data acquisition system is built inside an extremely rugged aluminum chassis. It is tested to work in all sorts of testing scenarios. If you need an even more rugged version we also provide an upgraded main-frame chassis called SIRIUS® R8R. It is designed to work in most shock and vibration testing environments. The SIRIUS® R8R chassis can withstand 3 gRMS random vibrations for 10 minutes in each direction, suitable for applications like rocket launch pad installation. |  |
 |

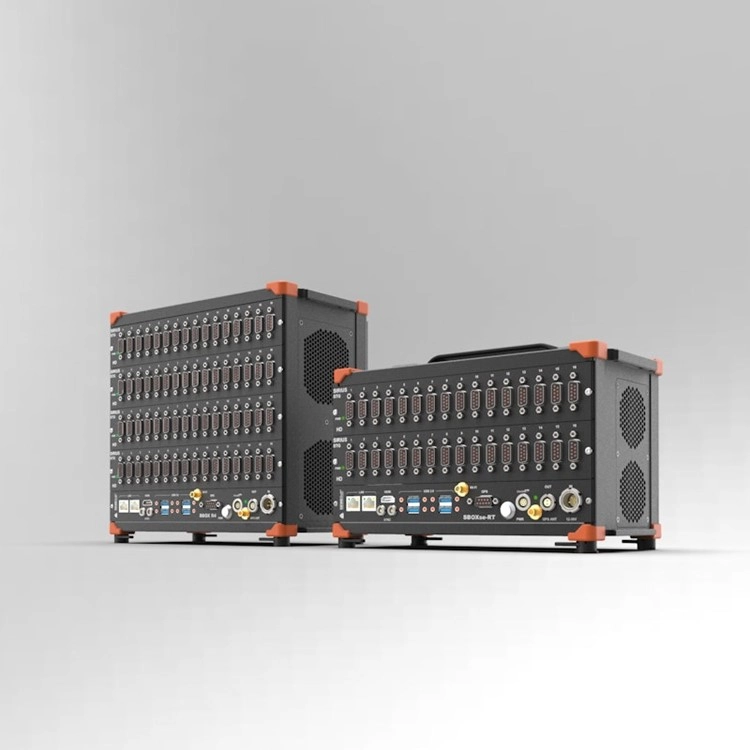

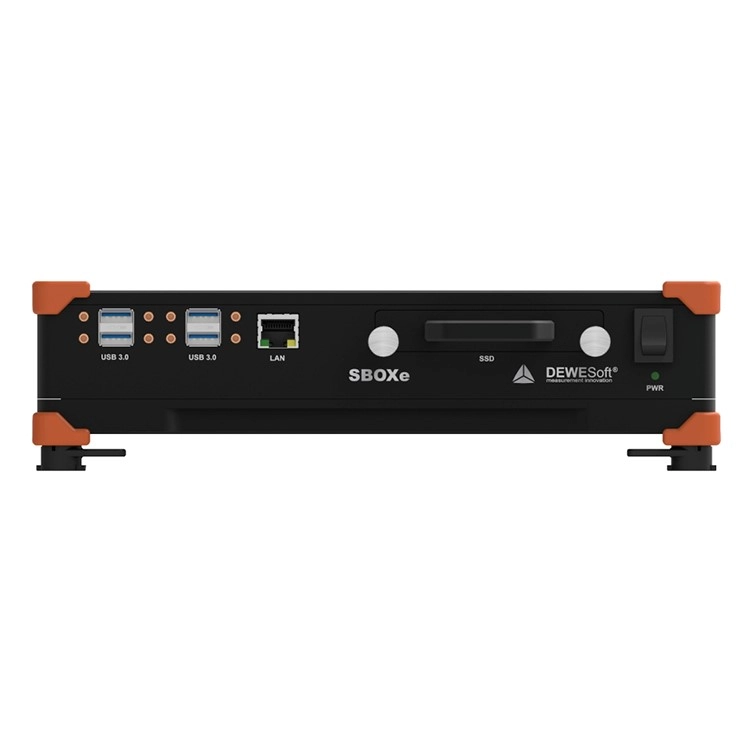

SIRIUS® R8 and R8R data acquisition systems are equipped with a powerful SBOXre computer. The computers are powered by the 13th gen. Intel® Core i5 CPU. The CPU is powerful enough even for the most demanding signal-processing tasks SBOX computer is equipped with 32 GB of memory and is optionally upgradeable to 48 GB. A fast internal SSD drive and removable SSD drive provide reliable storage for long-term and high-speed data recording. The SBOX computer is also equipped with modern connectivity interfaces:
SBOX is also equipped with an EtherCAT® slave port which can be used to expand and distribute additional analog channels by connecting any of our EtherCAT®-based data acquisition modules such as KRYPTON or SIRIUSe. EtherCAT® port includes a built-in hardware synchronization hub for synchronization of all the connected EtherCAT® devices with the internal analog channels. Only one cable is needed to daisy chain the units. The single cable is used for data, synchronization, and power to all extended EtherCAT® devices. |
Data acquisition systems are built around our world-class SIRIUS® signal conditioning technology and offer the same top-performing technologies:

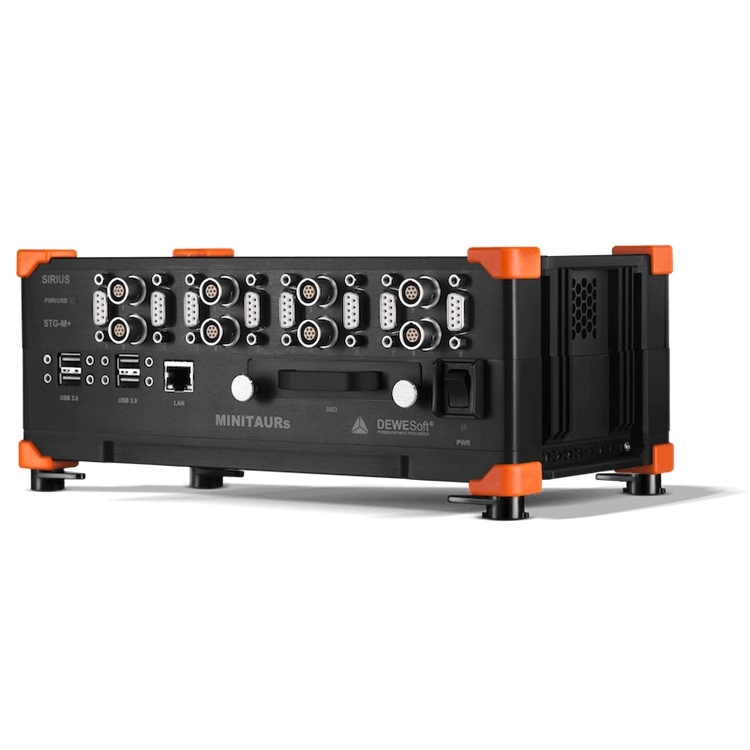

Note: galvanic isolation does not apply to SIRIUS mini and MINITAURs instruments. |  |
- Available signal amplifiers
SIRIUS® data acquisition systems offer different signal conditioning amplifiers grouped into three main amplifier families.
 |
 |
 |
These amplifiers feature dual 24-bit Delta-sigma ADC. Each channel amplifier has two A/D converters that measure the high and the low gain of the input signal in parallel. This results in the full possible measuring range of the sensor and prevents the signal from being clipped. With DualCoreADC technology, SIRIUS data acquisition systems achieve more than 130 dB signal-to-noise ratio and more than 160 dB in dynamic range. This is 20x better than 24-bit DAQ systems and 20x less noise. Each channel is capable of acquiring the input signal at a 200 kS/s sampling rate. |
High-density (HD) amplifiers are built with the same dual 24-bit Delta-sigma ADC with an anti-aliasing filter and 200 kS/s sampling rate per channel. The main difference to DualCoreADC® amplifiers is that HD amplifiers use each of the two Delta-sigma ADCs as separate input and thus double the number of input channels while still keeping great signal-to-noise and dynamic range specs. SIRIUS high-density signal conditioning cards thus offer double the input channels (16 analog channels) in the same chassis enclosure. These modules offer the best price-per-channel-to-performance ratio. |
SIRIUS® high-speed (HS) amplifiers are equipped with 16-bit SAR ADC. They offer high bandwidth and acquisition rates of up to 1 MS/s sample rate per channel. These amplifiers are suitable for recording fast transients and for applications where a high sampling rate is a must (such as power analysis). The SIRIUS® modules with high-speed (HS) signal conditioning amplifiers are available in 8 analog input channel configurations. |
*DSI = Dewesoft Sensor Interface.
The DualCoreADC® technology solves often-faced problems with signal measurement:
The input signal can be higher than expected by the signal conditioner (out-of-range) and therefore clipped by the ADC. This will result in an incorrect measurement and will require you to repeat the test all over again. DualCoreADC technology prevents these problems. Each channel amplifier has two A/D converters that measure the high and the low gain of the input signal in parallel. This results in the full possible measuring range of the sensor and prevents the signal from being clipped. With DualCoreADC technology, SIRIUS data acquisition systems achieve more than 130 dB signal-to-noise ratio and more than 160 dB in dynamic range. This is 20x better than 24-bit DAQ systems and 20x less noise. | |
SIRIUS DAQ devices offer high galvanic channel-to-channel and channel-to-ground isolation (±1000 V). The DAQ systems even offer isolated sensor excitation. With such isolation, we have no problem measuring high voltage potentials and no problem with common-mode voltages. We are also safe with measurements like vibrations, temperatures, or any other measurement where non-isolated sensors are placed next to the high voltage potential against the DAQ system ground. In such cases, a non-isolated DAQ system would burn or at least give faulty wrong results. With SIRIUS it is just one thing less to worry about. Digital isolation has another big advantage - preserving the frequency bandwidth of the amplifiers. SIRIUS provides "worry-free" measurements, less noise, no ground loops, and the best possible signal quality. For less demanding measurement and lower-cost applications, SIRIUS DAQs are also available in a differential version where only power supply isolation is offered. | |
Dewesoft data acquisition systems utilize a patented and registered trademark technology called SuperCounter®. Counter inputs can measure the RPM and angle of rotating machines. In comparison to standard counters, which only output integer numbers one sample later (e.g. 1, 1, 2, 2, 3, 4), the Dewesoft SuperCounter inputs are able to extract accurate values like 1.37, 1.87, 2.37, etc. fully synchronized for time and amplitude. This is done by measuring the exact time of the rising edge of the signal with an additional counter. Our SuperCounter inputs work on a 102.4 MHz time base, independent of the current analog sampling rate. Counter inputs are fully synchronized with analog, CAN bus, and other data sources to enable easy applications like balancing, order tracking, and torsional vibrations. | |
SIRIUS® R8 systems feature optional calibration reference input. External calibration reference can be connected via a single BNC connector on the rear side of the system. It can be switched in the software to all input channels at once to check the amplifier performance and accuracy. Please note: check your local sales office for information on which SIRIUS® amplifiers have the support for external cal reference. |  |
 |
SIRIUS® R8 system can be configured with up to 64 analog output channels. These output channels can function in any of the following modes:
To learn more visit the SIRIUS DAQ system page for a detailed description of individual modes. For the real-time low-latency output and control capability we offer SIRIUS R8rt data acquisition and control system. R8rt is a unique solution on the market. It has an additional real-time EtherCAT bus and can feed data to any 3rd party EtherCAT master controller for real-time control. Please visit the SIRIUS RT page to learn more. |
