DEWESOFT SIRIUS R2/R4 Compact medium to high channel count data acquisition (DAQ) systems

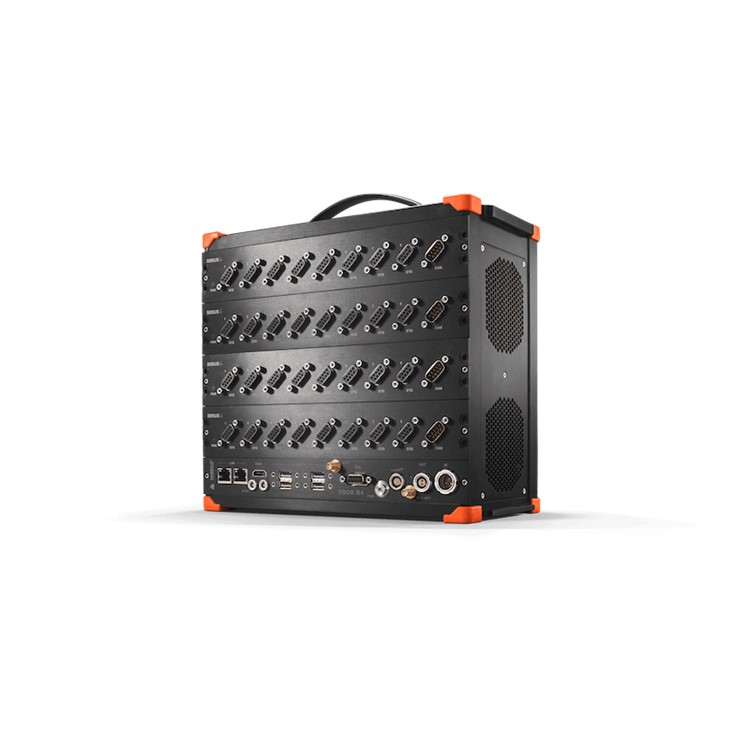

SIRIUS® R2 and R4 are compact data acquisition systems with a maximum of 64 analog inputs, 32 counter inputs, and 32 analog outputs. The DAQ systems feature a built-in high-performance, highly reliable data processing computer and SSD data logger which can optionally be replaced by a USB hub for a connection to an external PC.
The signal conditioning modules for any signal and sensor are available. The amplifiers feature the latest dual 24-bit ADCs achieving an astonishing 160 dB dynamic range and 130 dB signal-to-noise ratio (SNR).
클릭 하시면 이동합니다.
데베소프트 ・ DEWESOFT
SIRIUS R2/R4
컴팩트 중/고 채널수 DAQ시스템

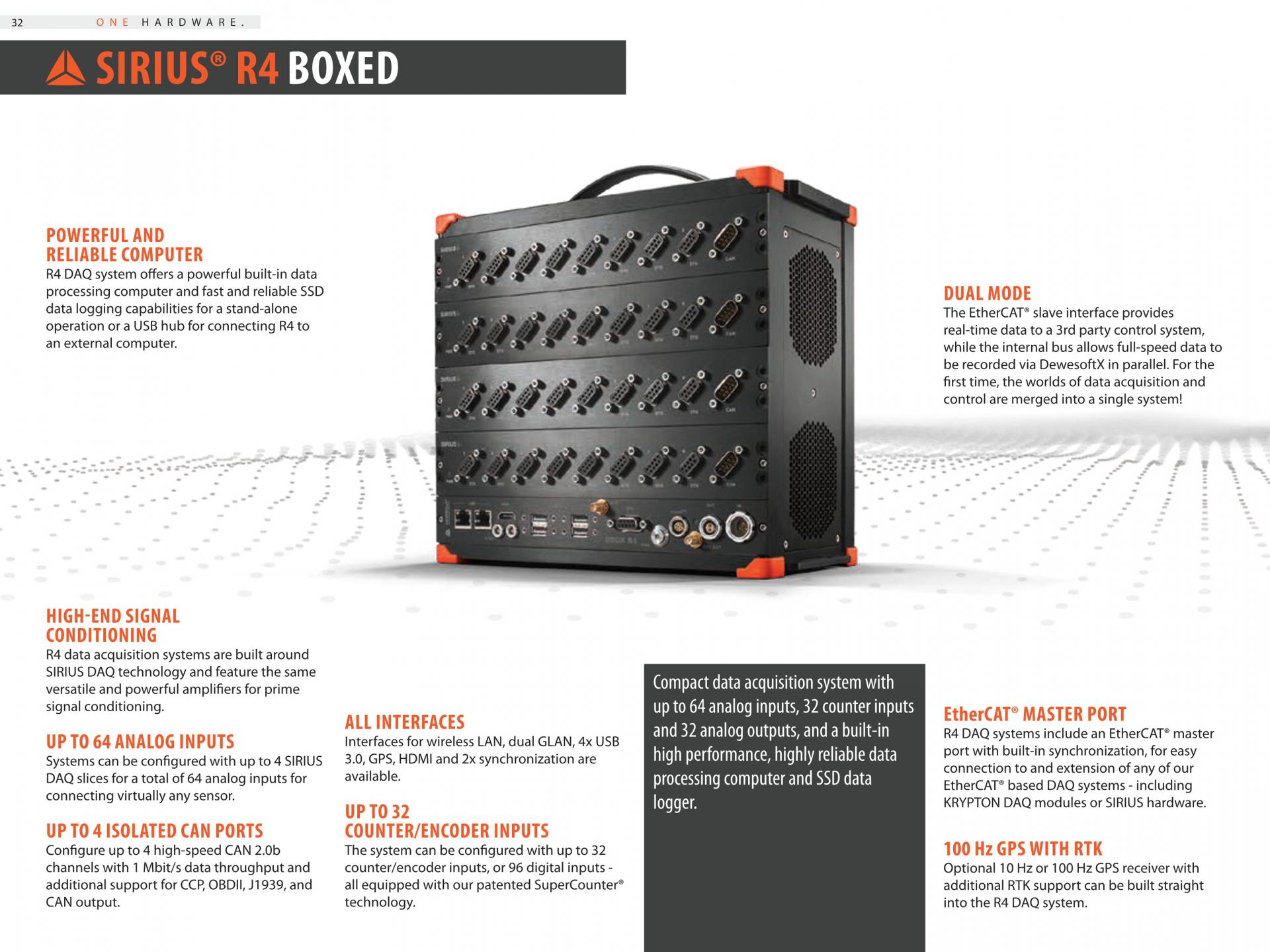

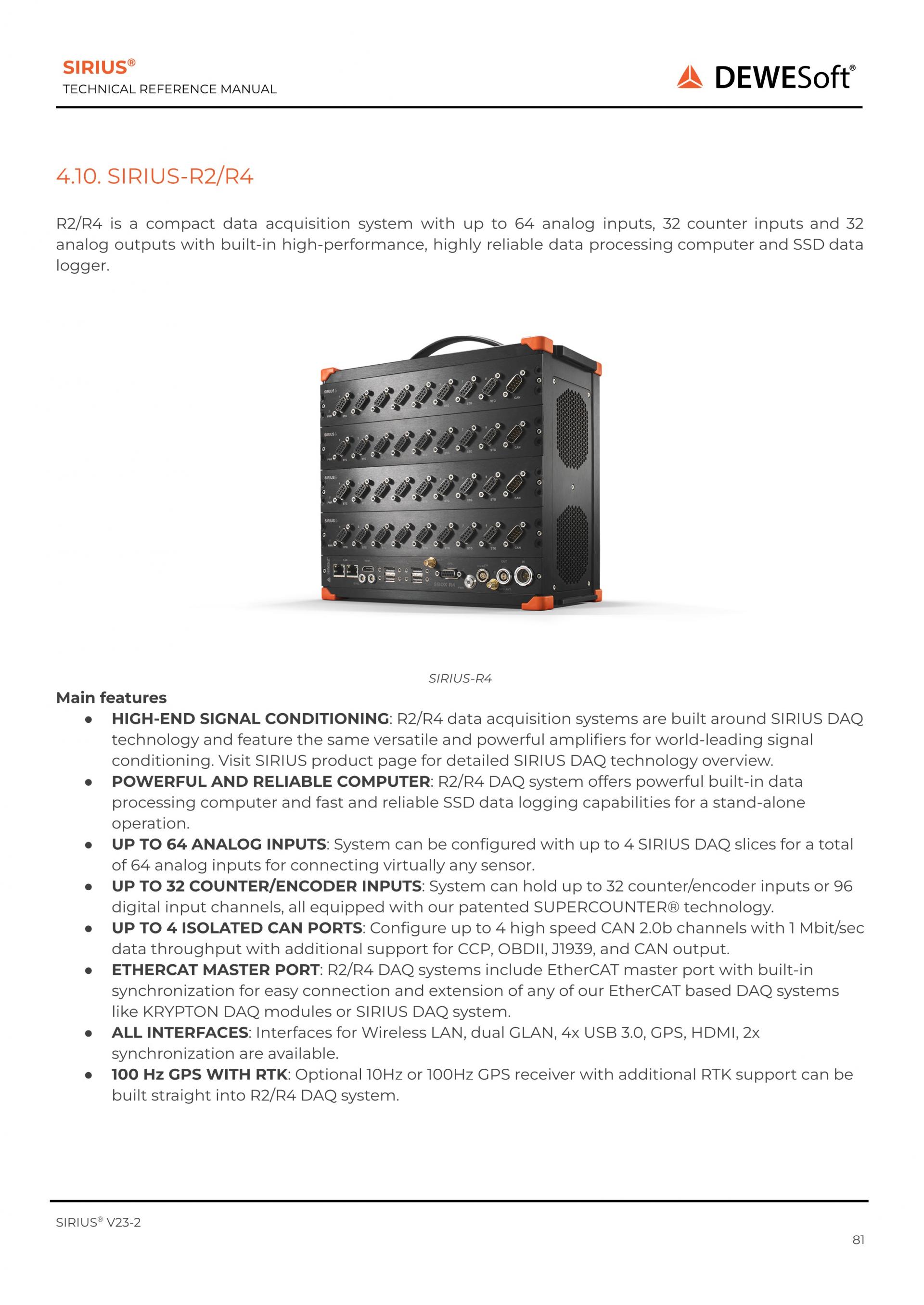

SIRIUS R2/R4 Compact medium to high channel count data acquisition (DAQ) systems
- High-End Signal Conditioning
This data acquisition system is built around SIRIUS DAQ technology and features the same versatile and powerful amplifiers for world-leading signal conditioning. See the SIRIUS product page for a detailed SIRIUS DAQ technology overview.
- Powerful and Reliable Computer
R4 DAQ system offers powerful built-in data processing computer and fast and reliable SSD data logging capabilities for a stand-alone operation.
- Up to 64 Analog Inputs
System can be configured with up to 4 SIRIUS DAQ slices for a total of 64 analog inputs for connecting virtually any sensor.
- Up to 32 Counter/Encoder Inputs
System can hold up to 32 counter/encoder inputs or 96 digital input channels, all equipped with our patented SUPERCOUNTER® technology.
- High-speed CAN ports

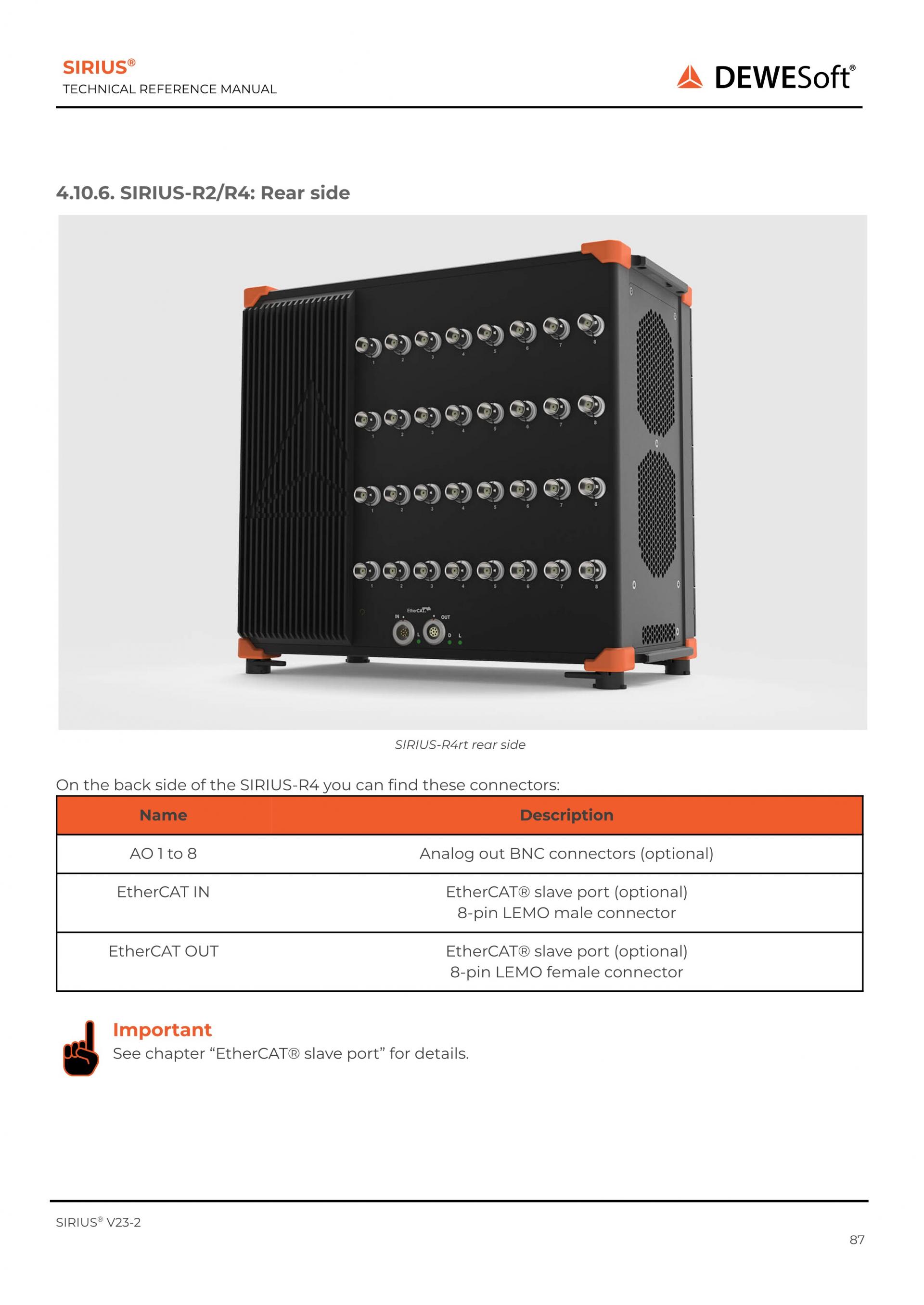

Systems can accommodate several high-speed CAN 2.0b channels with 1 Mbit/sec data throughput with additional support for CCP, OBDII, J1939, and CAN output.
- EtherCAT Expansion Port

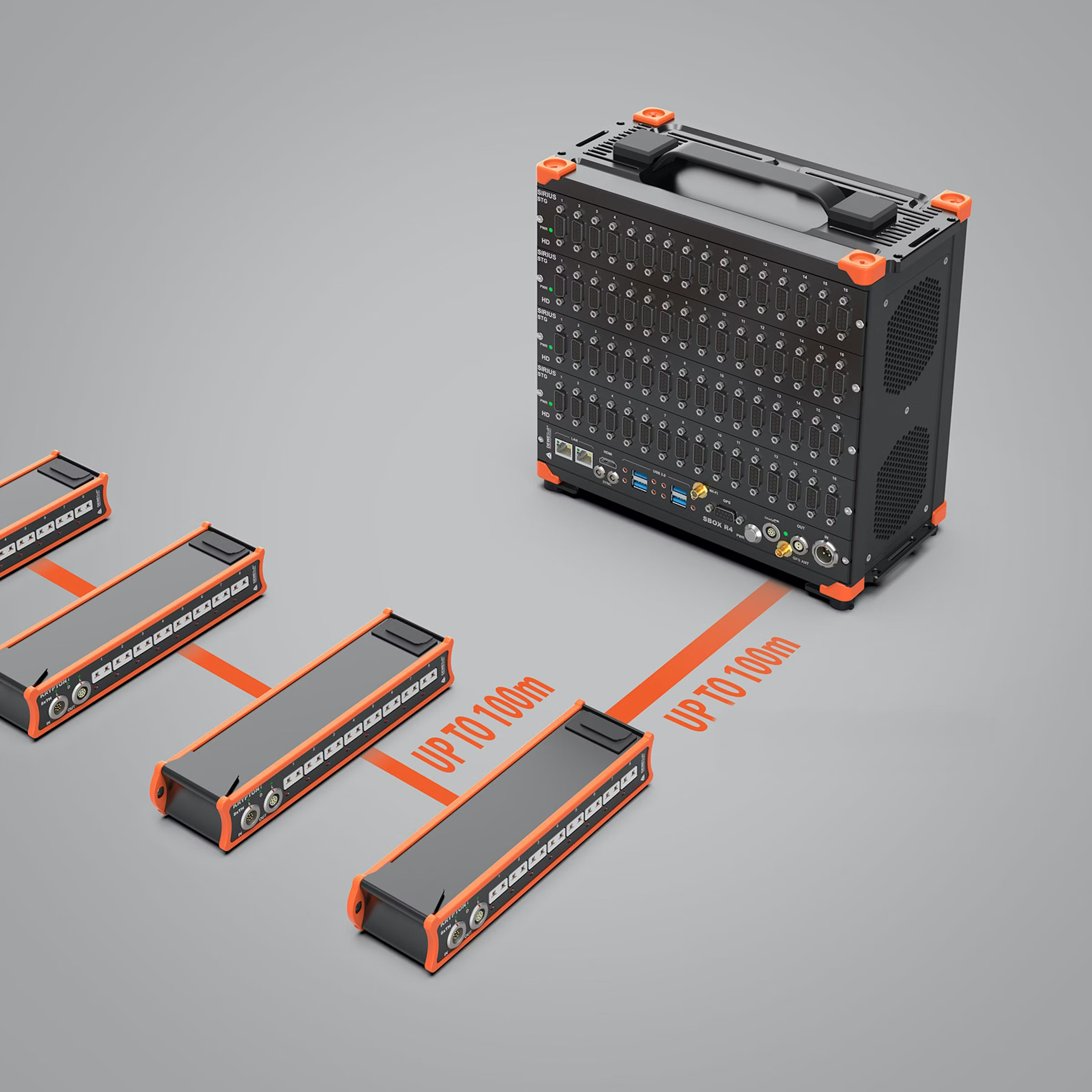

DAQ system includes EtherCAT master port with built-in synchronization for easy connection and extension of any of our EtherCAT-based DAQ systems like KRYPTON, IOLITE, or SIRIUSe DAQ systems.

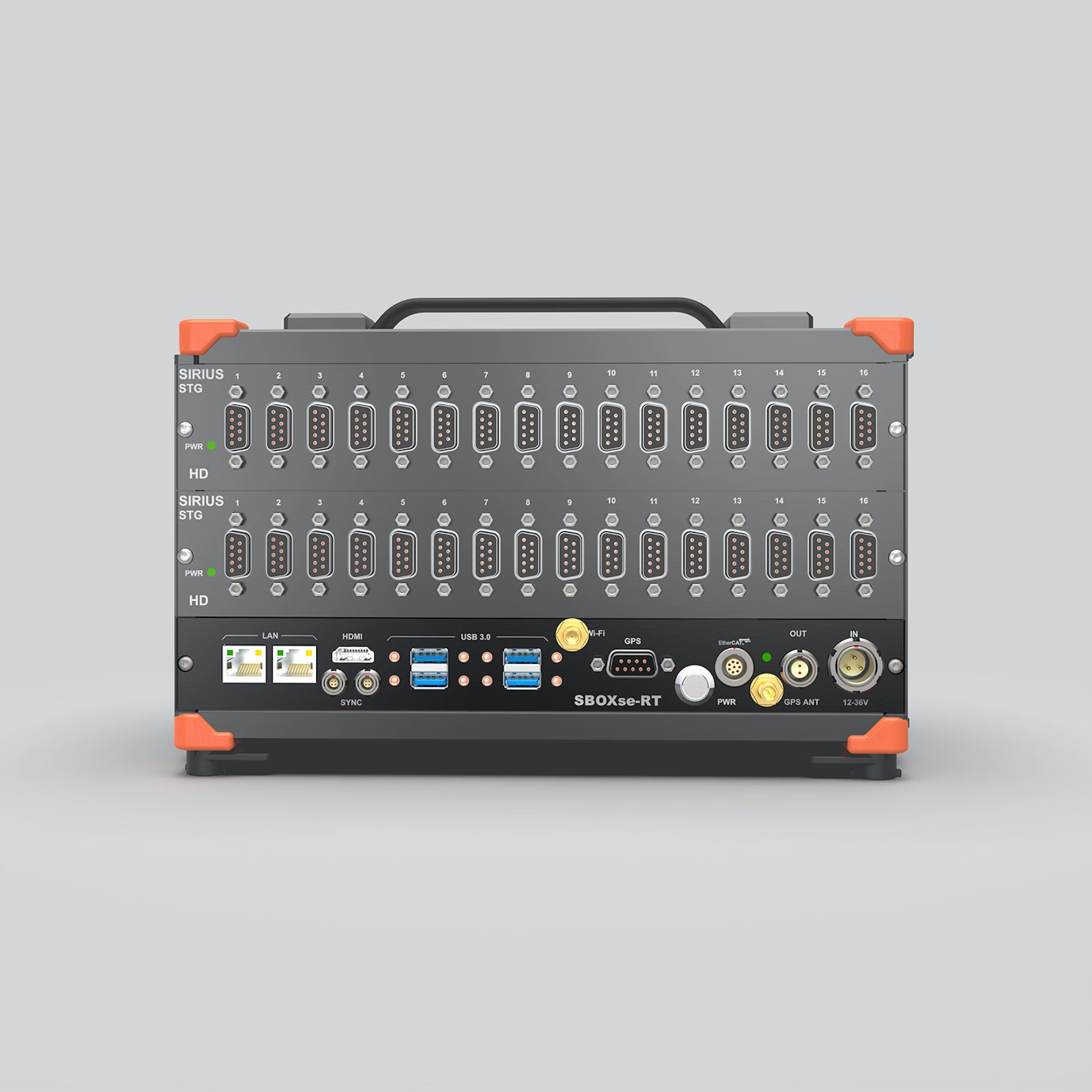

- Connectivity Interfaces

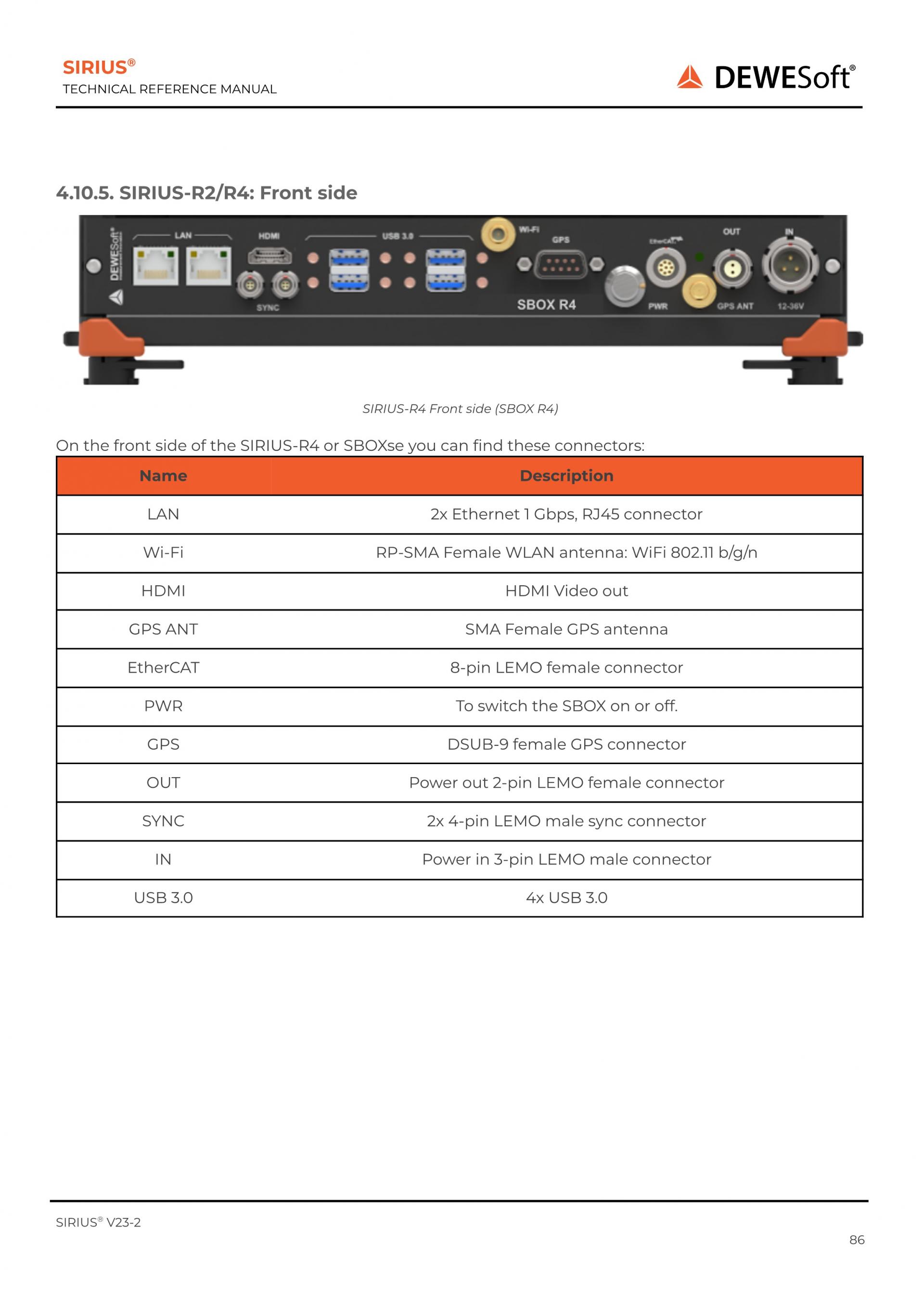

The built-in computer includes modern connectivity interfaces such as Wireless LAN (WiFi), dual gigabit LAN, USB 3.0, GPS/GNSS, HDMI, EtherCAT and synchronization are available.
- 100 Hz GPS With RTK
We can integrate an optional 10Hz or 100Hz GNSS receiver directly into the DAQ system. This enables precise GPS positioning for navigational testing applications. GNSS receivers offer optional RTK support which can improve the positioning accuracy down to 1 cm.
- Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
- Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
 |

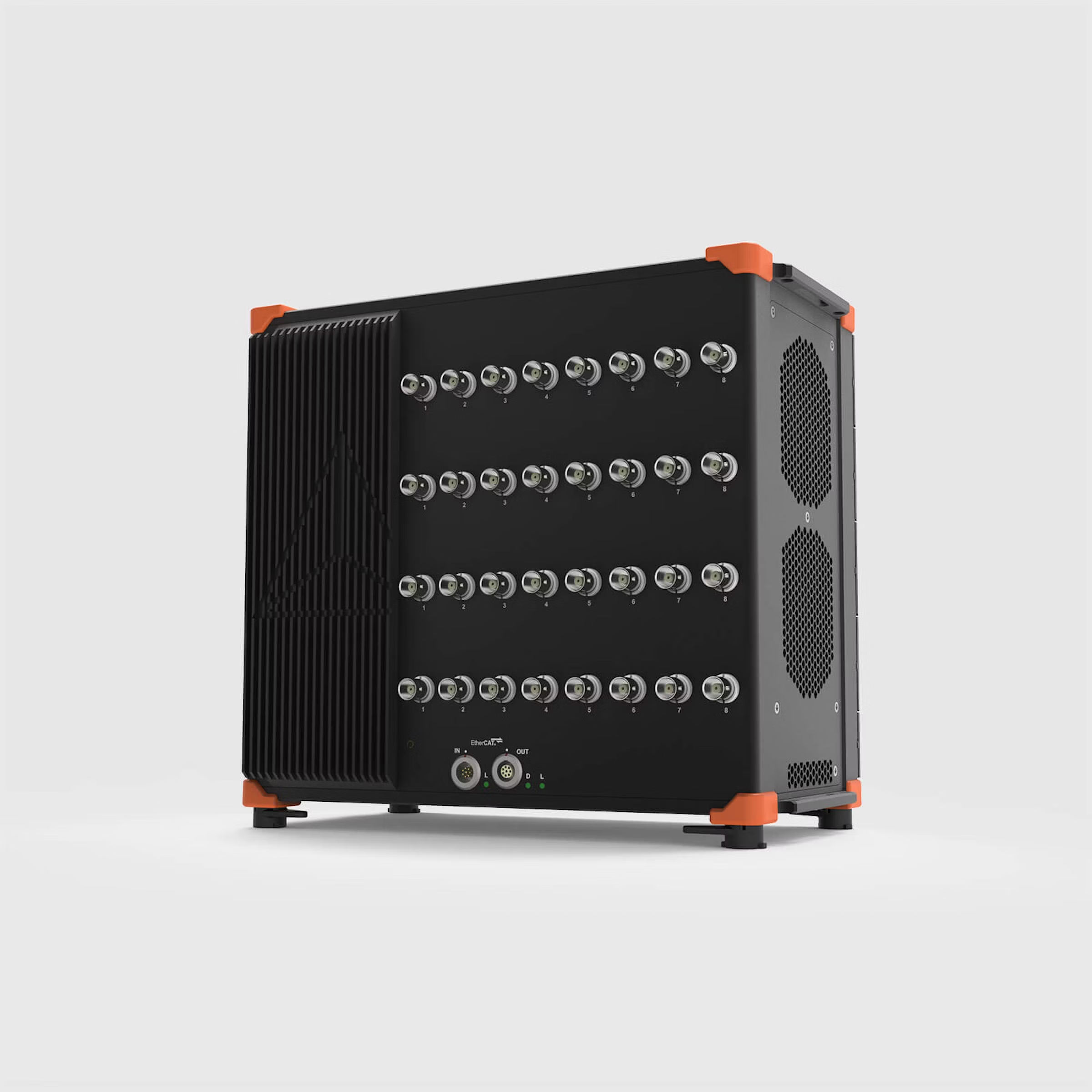

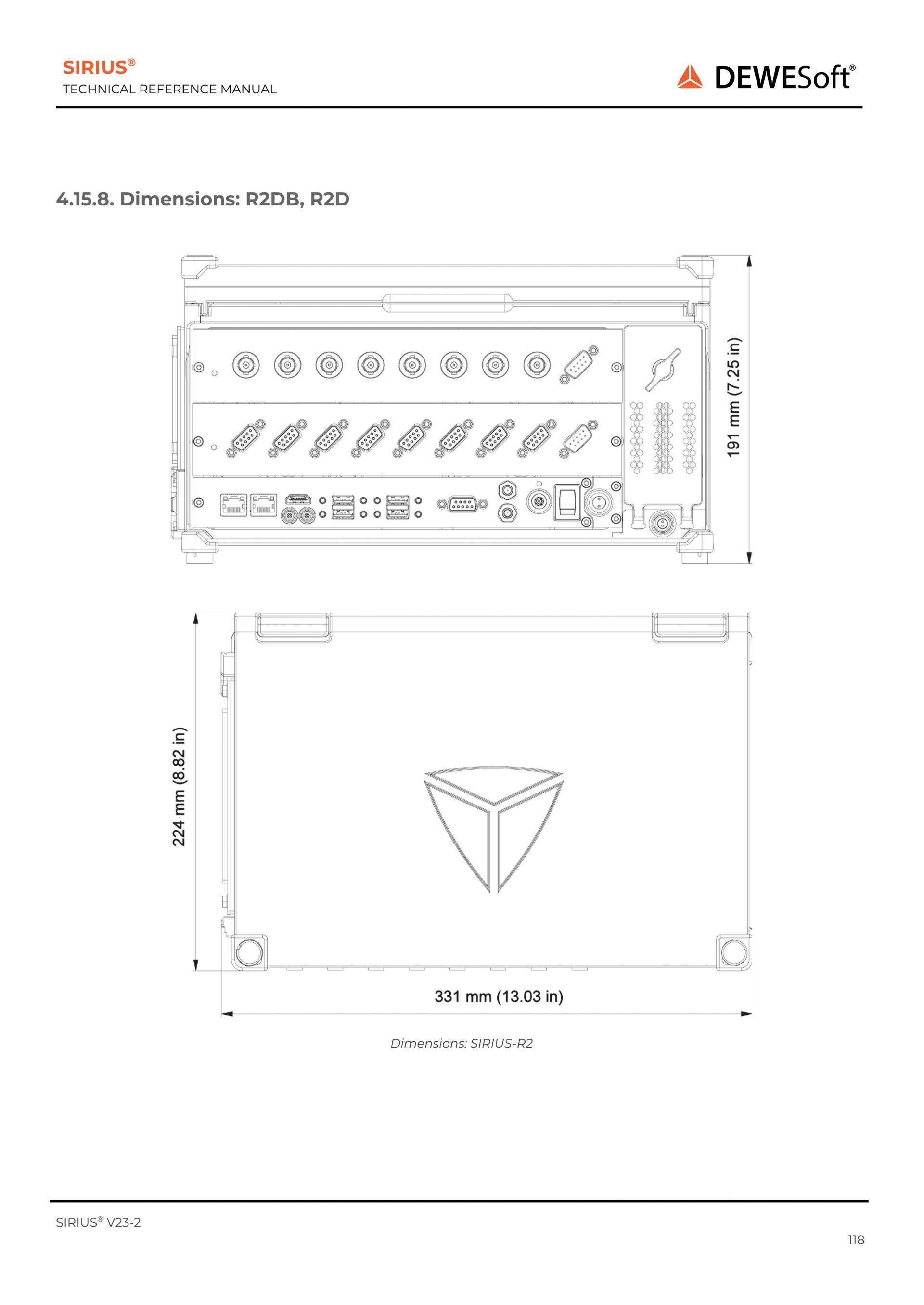

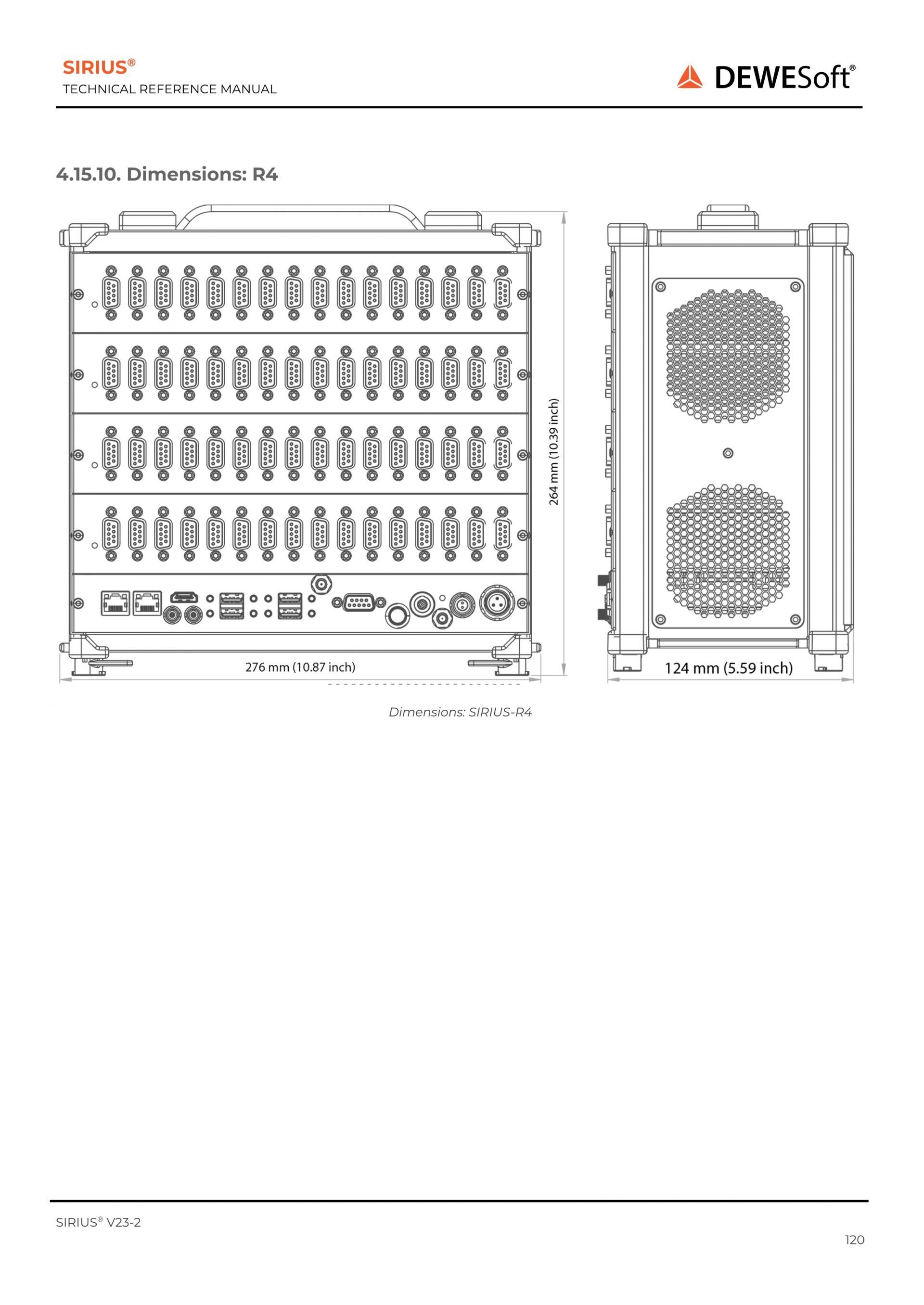

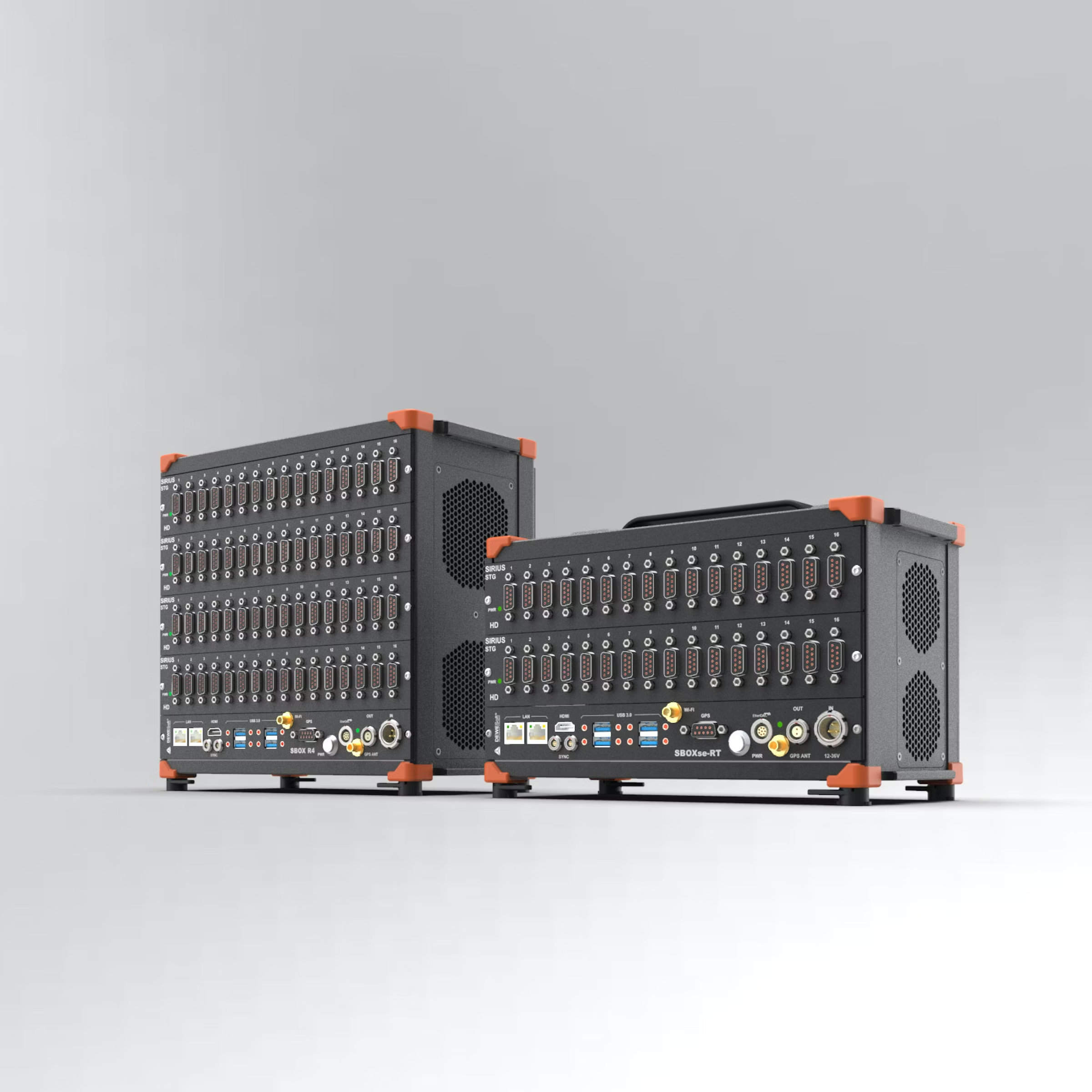

SIRIUS® R2 and R4 are compact medium to high-channel-count data acquisition systems. All channels are fitted inside a compact and rugged chassis design. Multiple SIRIUS® R2 and R4 data acquisition systems can furtherly be connected and synchronized together to extend the channel count, even to thousands of channels.

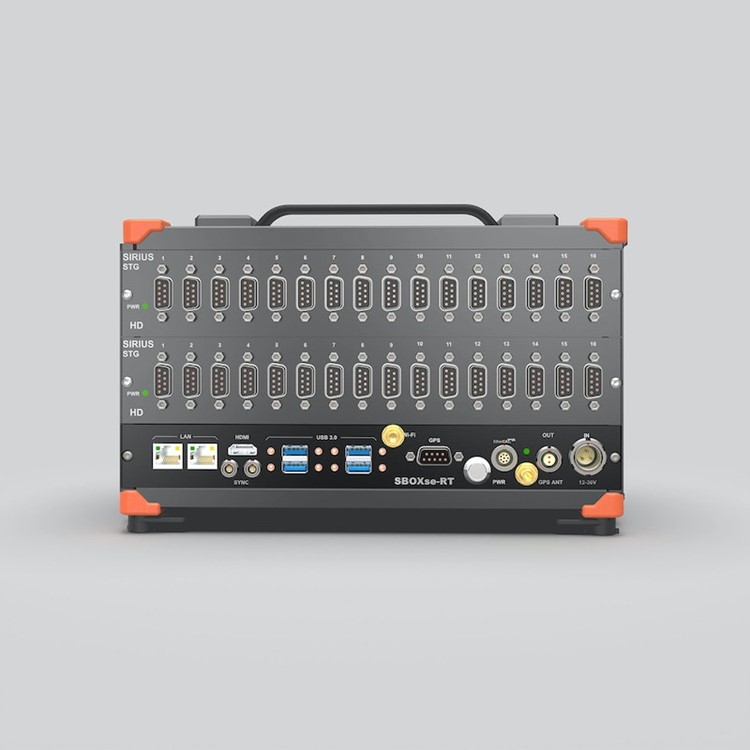

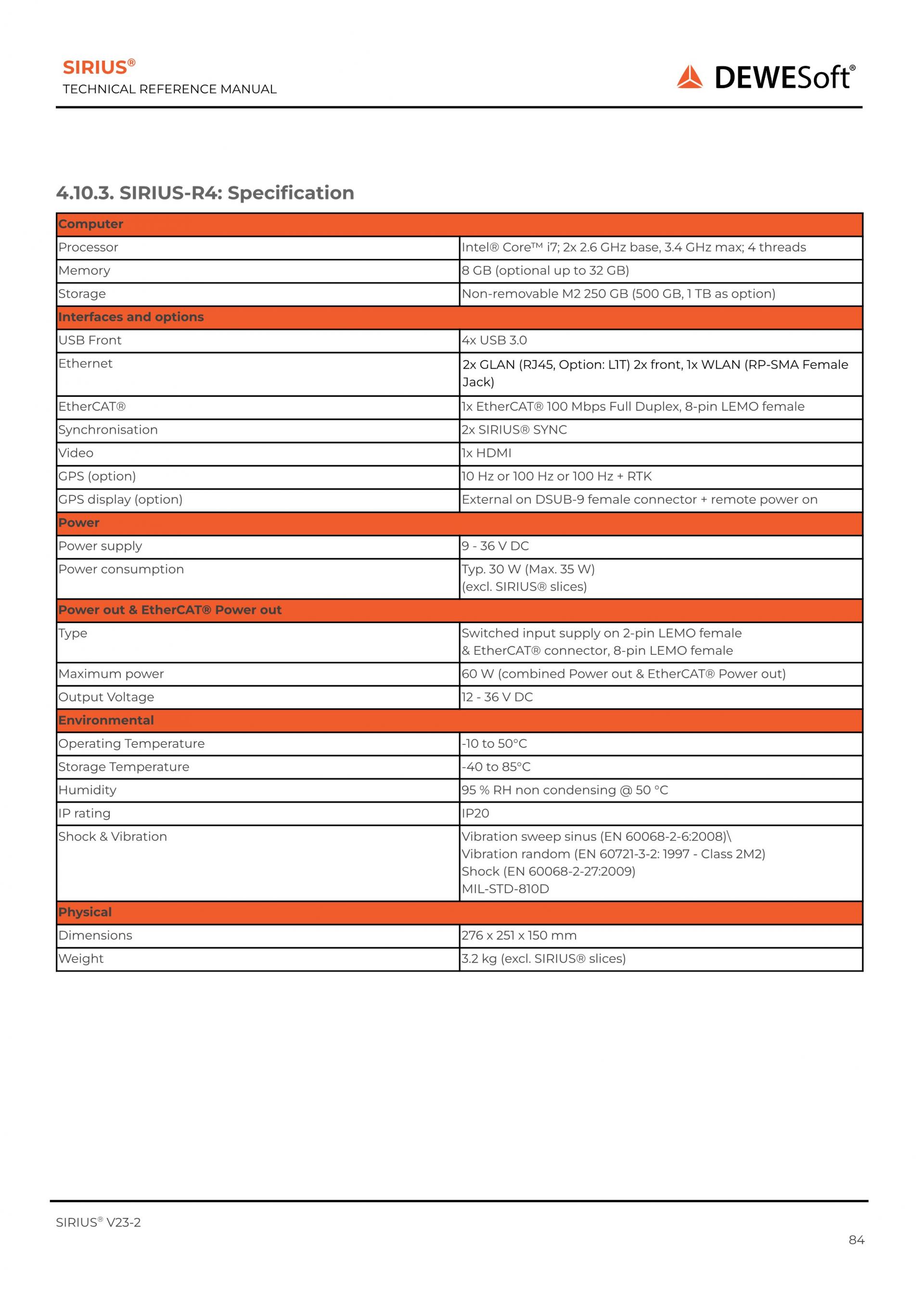

Both systems feature a built-in powerful SBOX data processing computer with all modern networking interfaces and reliable SSD storage. For more details see the SBOX section. |

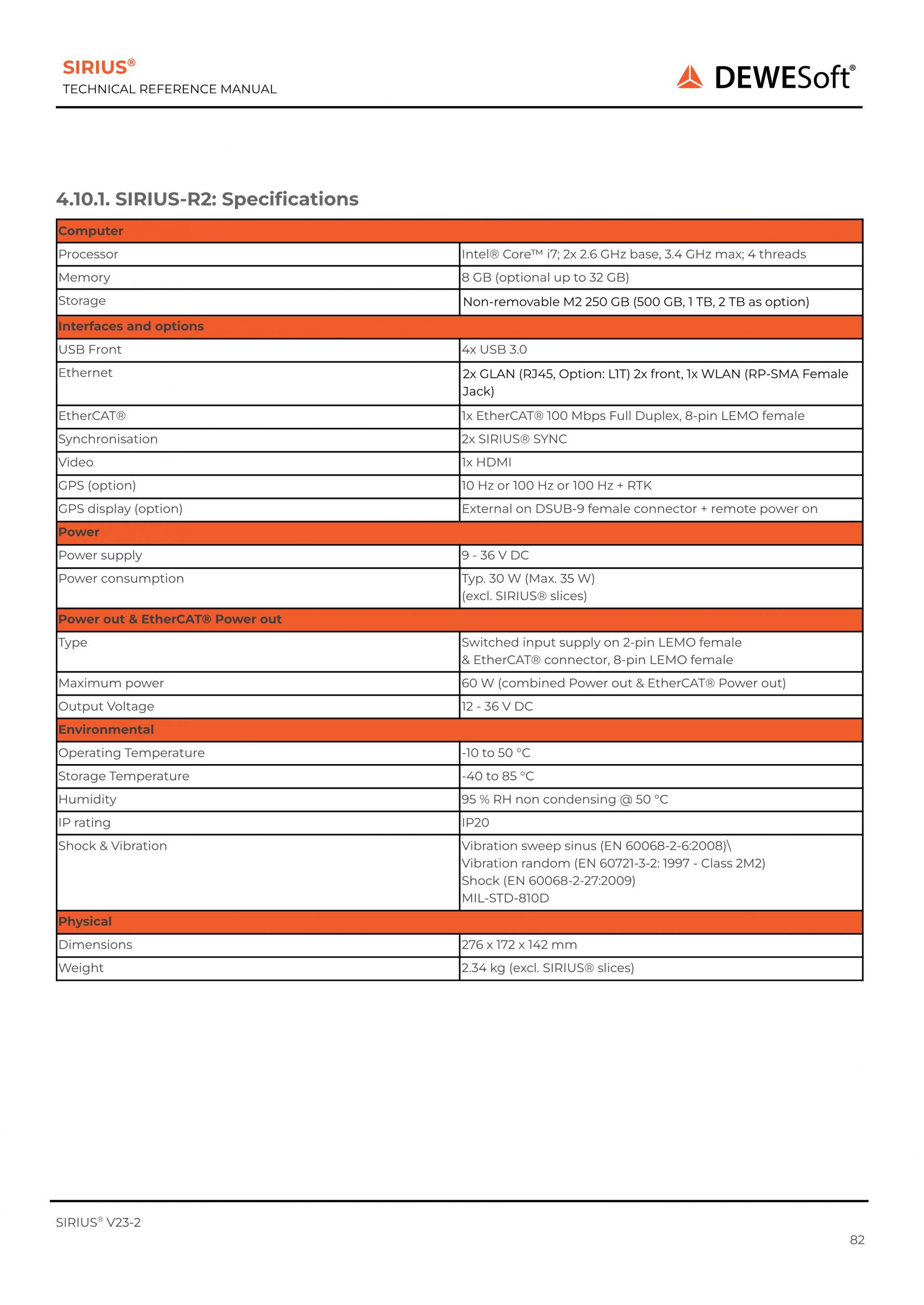

At the heart of the SIRIUS® R2 and R4 data acquisition systems is a powerful SBOXse computer. The computers are powered by an Intel® Core CPU, powerful enough even for the most demanding signal processing tasks:
SBOX computer is equipped with 8 GB of memory and is optionally upgradeable to 32 GB. A fast internal SSD drive provides reliable storage for long-term and high-speed data recording. The SBOX computer is also equipped with modern connectivity interfaces:
|  |
 |
SBOX is also equipped with an EtherCAT® slave port which can be used to expand and distribute additional analog channels by connecting any of our EtherCAT®-based data acquisition modules such as KRYPTON or SIRIUSe. EtherCAT® port includes a built-in hardware synchronization hub for synchronization of all the connected EtherCAT® devices with the internal analog channels. Only one cable is needed to daisy chain the units. The single cable is used for data, synchronization, and power to all extended EtherCAT® devices. |

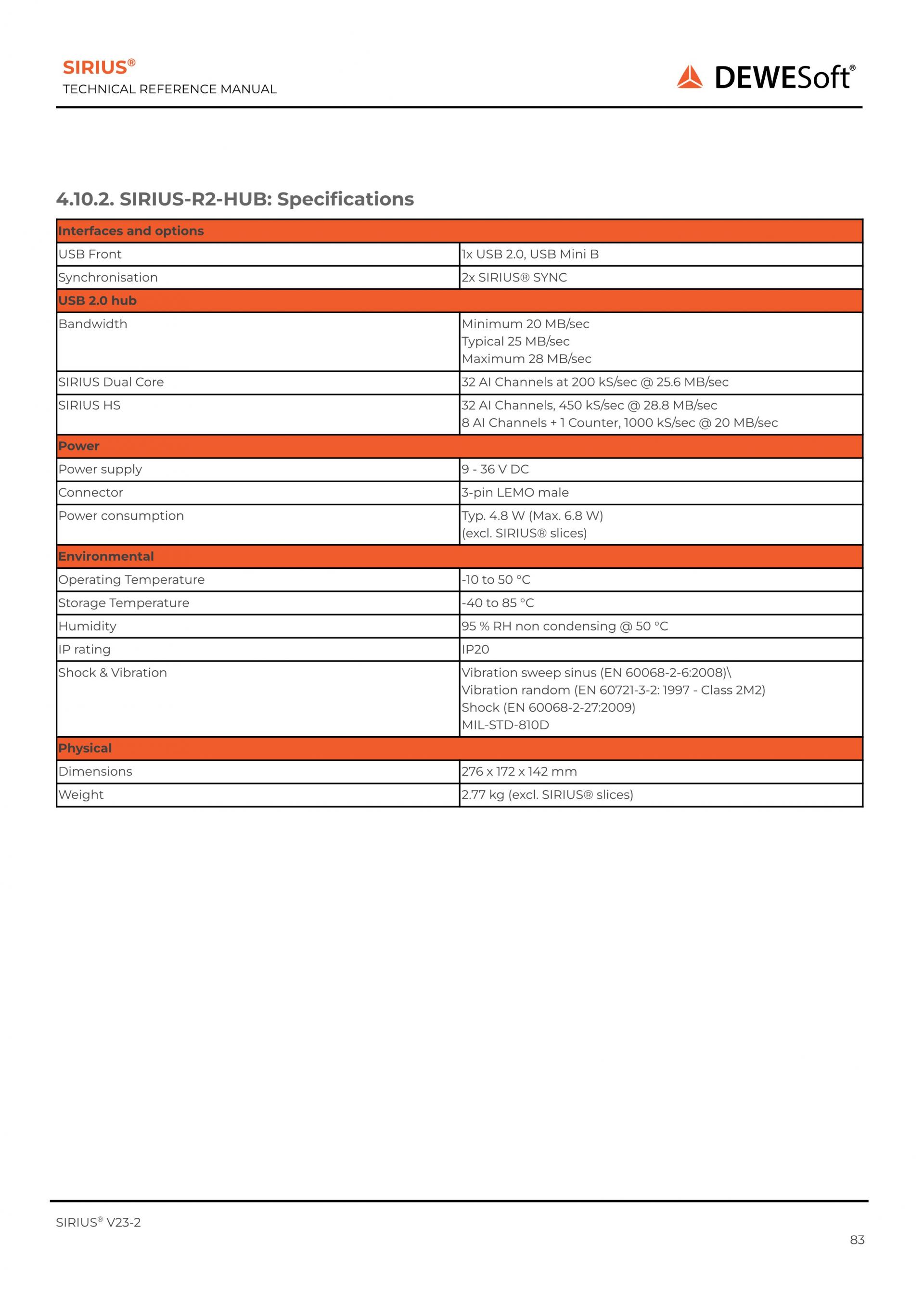

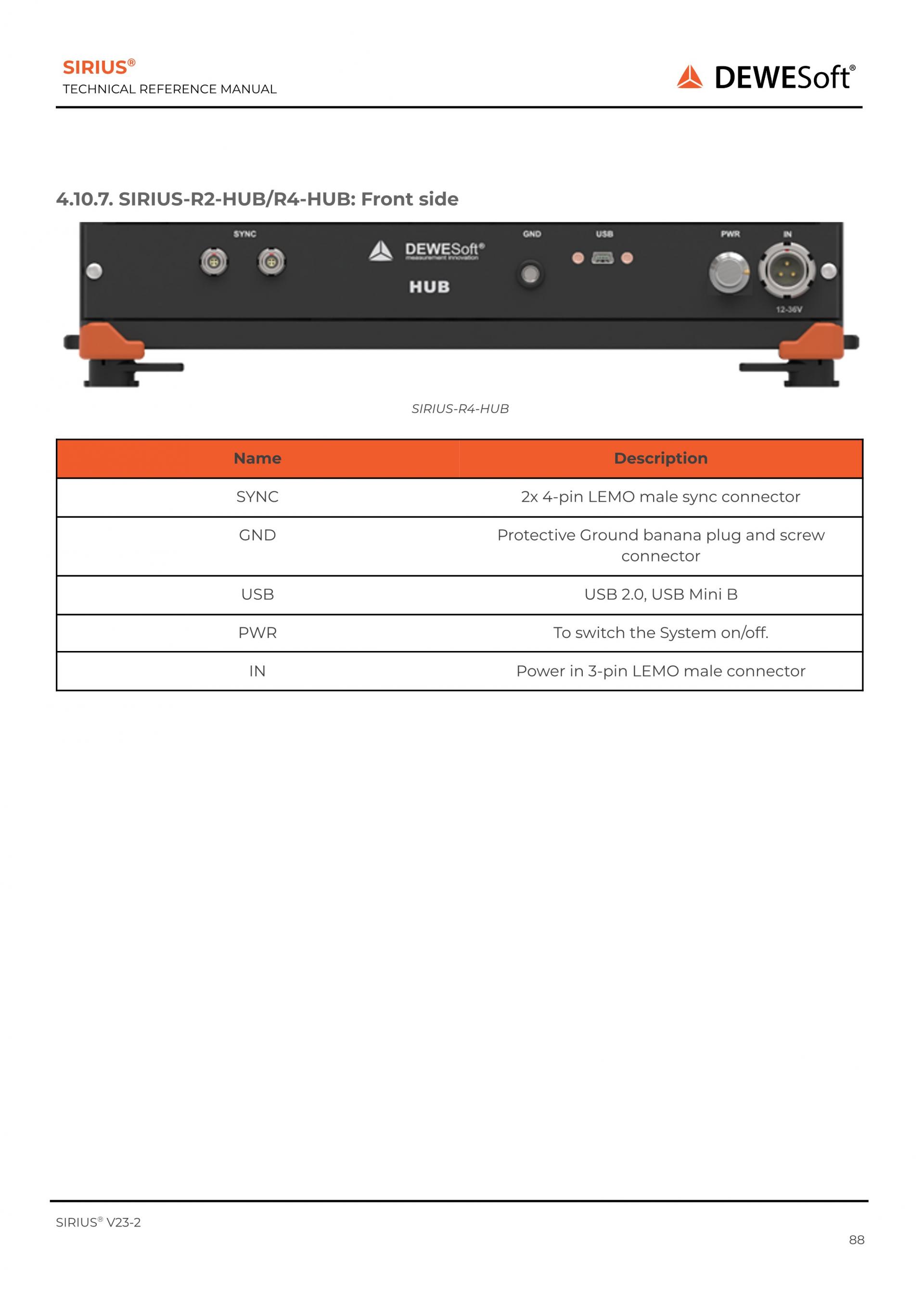

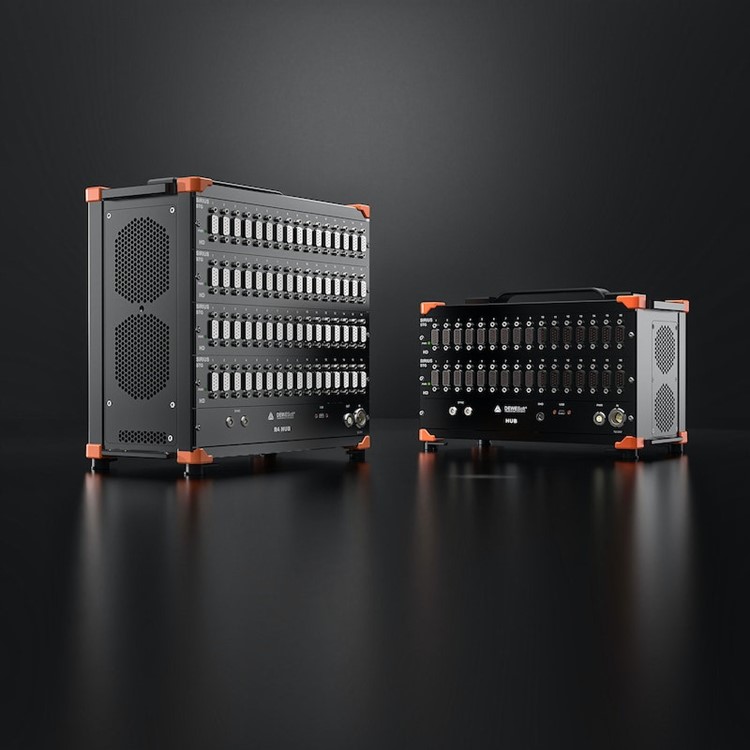

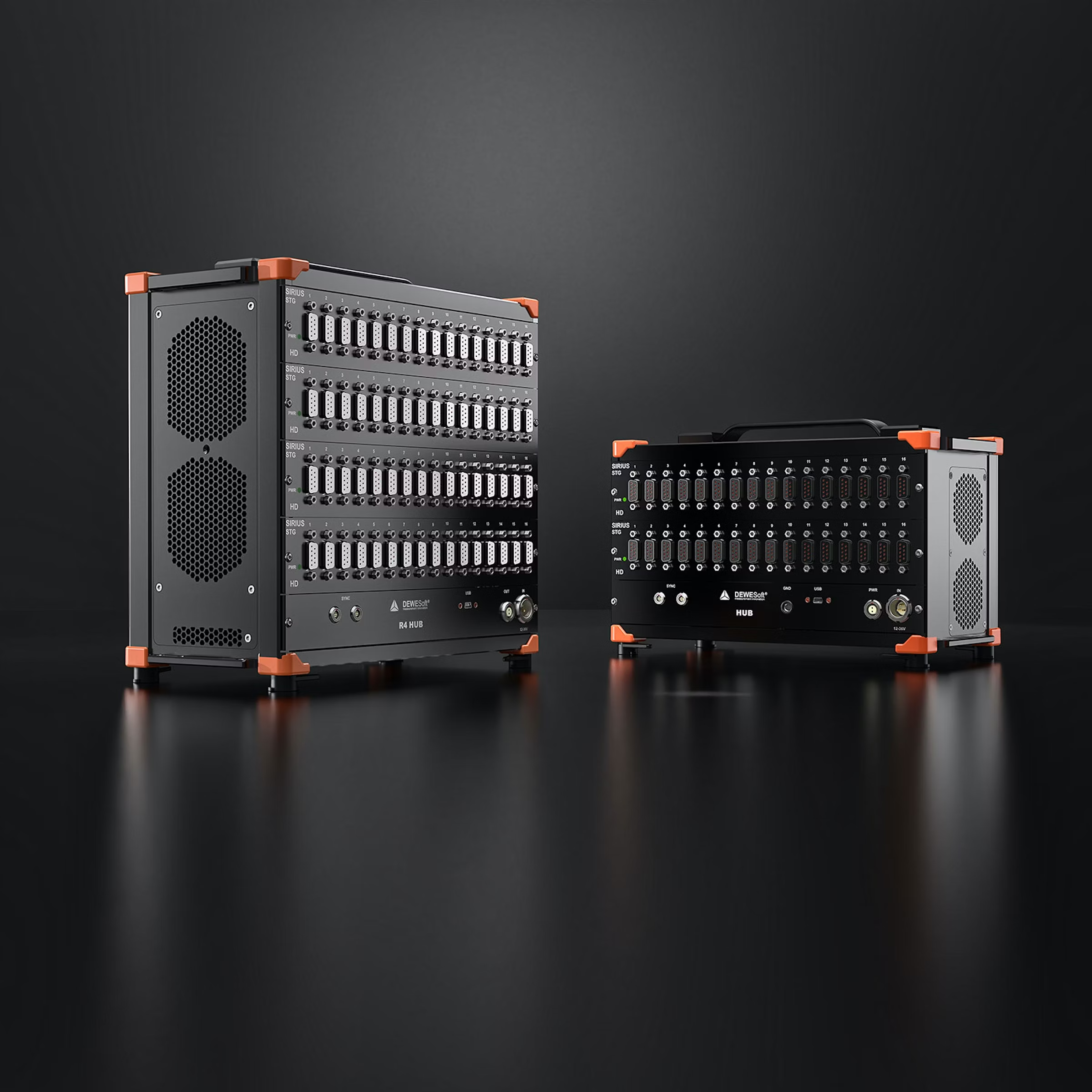

If you prefer to connect the SIRIUS® R2/R4 to an external PC then we offer SIRIUS® R2-HUB and R4-HUB data acquisition systems. They feature an integrated USB hub instead of an SBOX computer and stream data directly to an external PC via the USB 2.0 connection. Both SIRIUS® R2-HUB and R4-HUB data acquisition systems also include additional USB and synchronization extension ports. These ports allow systems to be easily extended by multiple SIRIUS® R2-HUB and/or R4-HUB data acquisition systems, or other Dewesoft additional data acquisition devices such as SIRIUS® modular or DEWE-43. |  |
 |

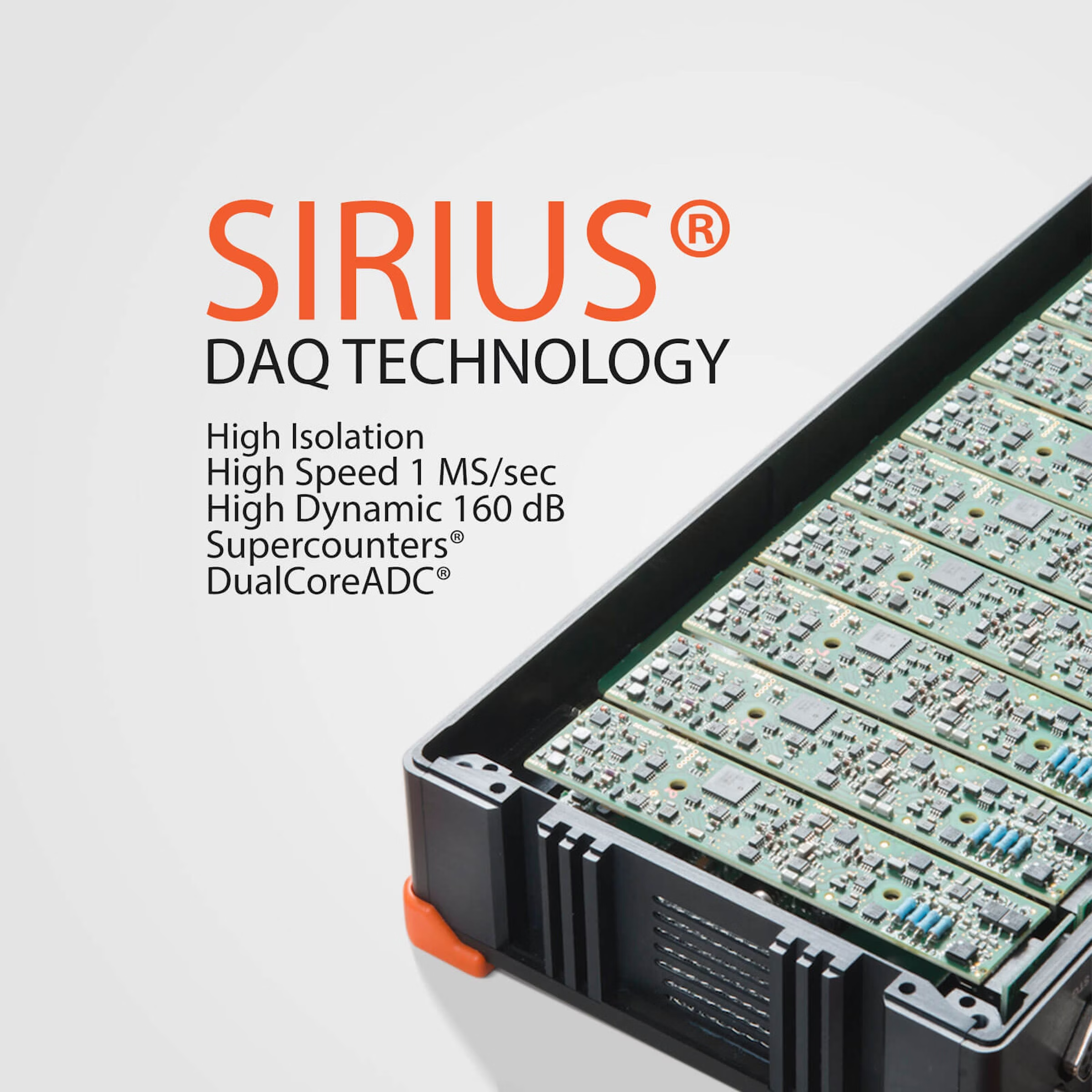

Data acquisition systems are built around our world-class SIRIUS® signal conditioning technology and offer the same top-performing technologies:
Note: galvanic isolation does not apply to SIRIUS mini and MINITAURs instruments. |
- Available signal amplifiers

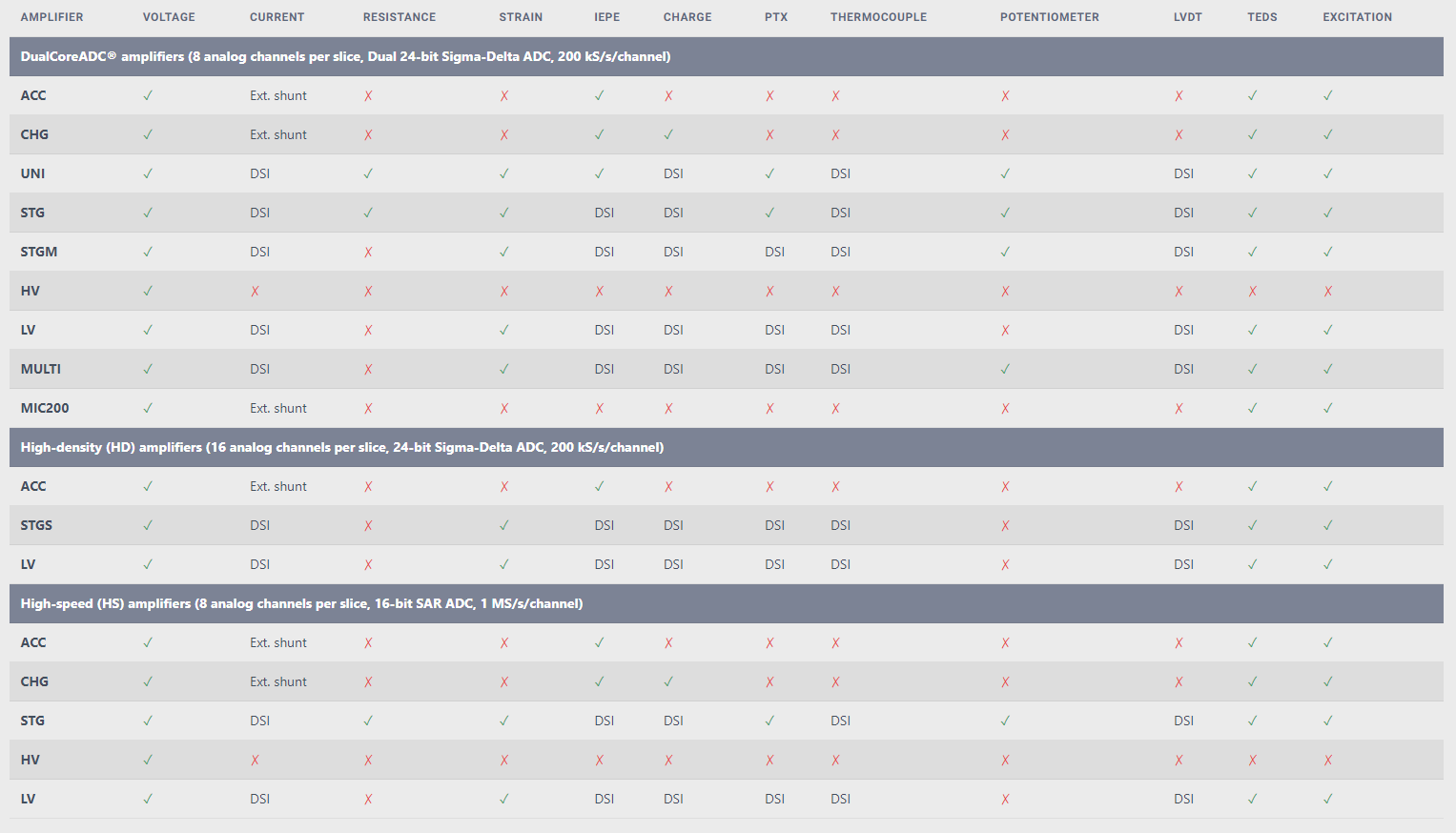

SIRIUS® data acquisition systems offer different signal conditioning amplifiers grouped into three main amplifier families.
 |
|
|
These amplifiers feature dual 24-bit Delta-sigma ADC. Each channel amplifier has two A/D converters that measure the high and the low gain of the input signal in parallel. This results in the full possible measuring range of the sensor and prevents the signal from being clipped. With DualCoreADC technology, SIRIUS data acquisition systems achieve more than 130 dB signal-to-noise ratio and more than 160 dB in dynamic range. This is 20x better than 24-bit DAQ systems and 20x less noise. Each channel is capable of acquiring the input signal at a 200 kS/s sampling rate. |
High-density (HD) amplifiers are built with the same dual 24-bit Delta-sigma ADC with an anti-aliasing filter and 200 kS/s sampling rate per channel. The main difference to DualCoreADC® amplifiers is that HD amplifiers use each of the two Delta-sigma ADCs as separate input and thus double the number of input channels while still keeping great signal-to-noise and dynamic range specs. SIRIUS high-density signal conditioning cards thus offer double the input channels (16 analog channels) in the same chassis enclosure. These modules offer the best price-per-channel-to-performance ratio. |
SIRIUS® high-speed (HS) amplifiers are equipped with 16-bit SAR ADC. They offer high bandwidth and acquisition rates of up to 1 MS/s sample rate per channel. These amplifiers are suitable for recording fast transients and for applications where a high sampling rate is a must (such as power analysis). The SIRIUS® modules with high-speed (HS) signal conditioning amplifiers are available in 8 analog input channel configurations. |
*DSI = Dewesoft Sensor Interface.

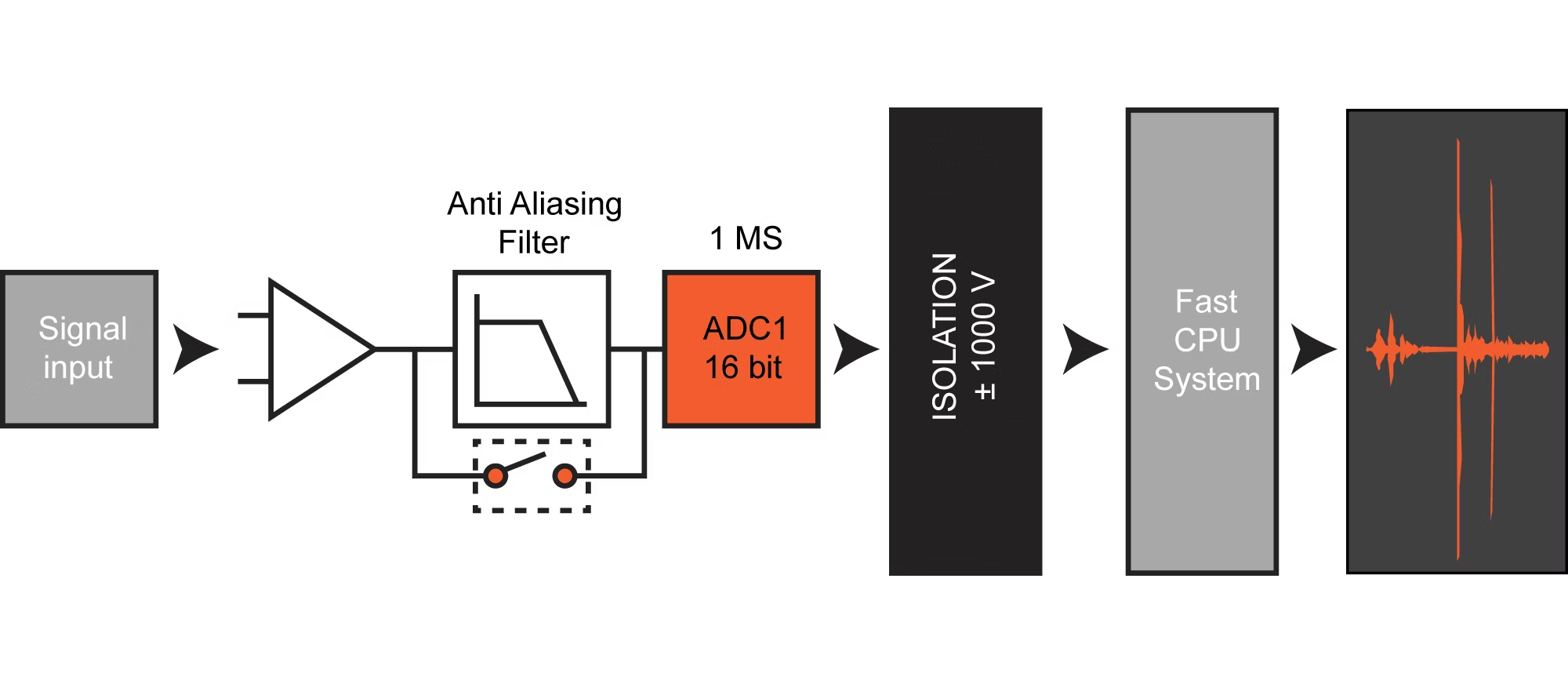

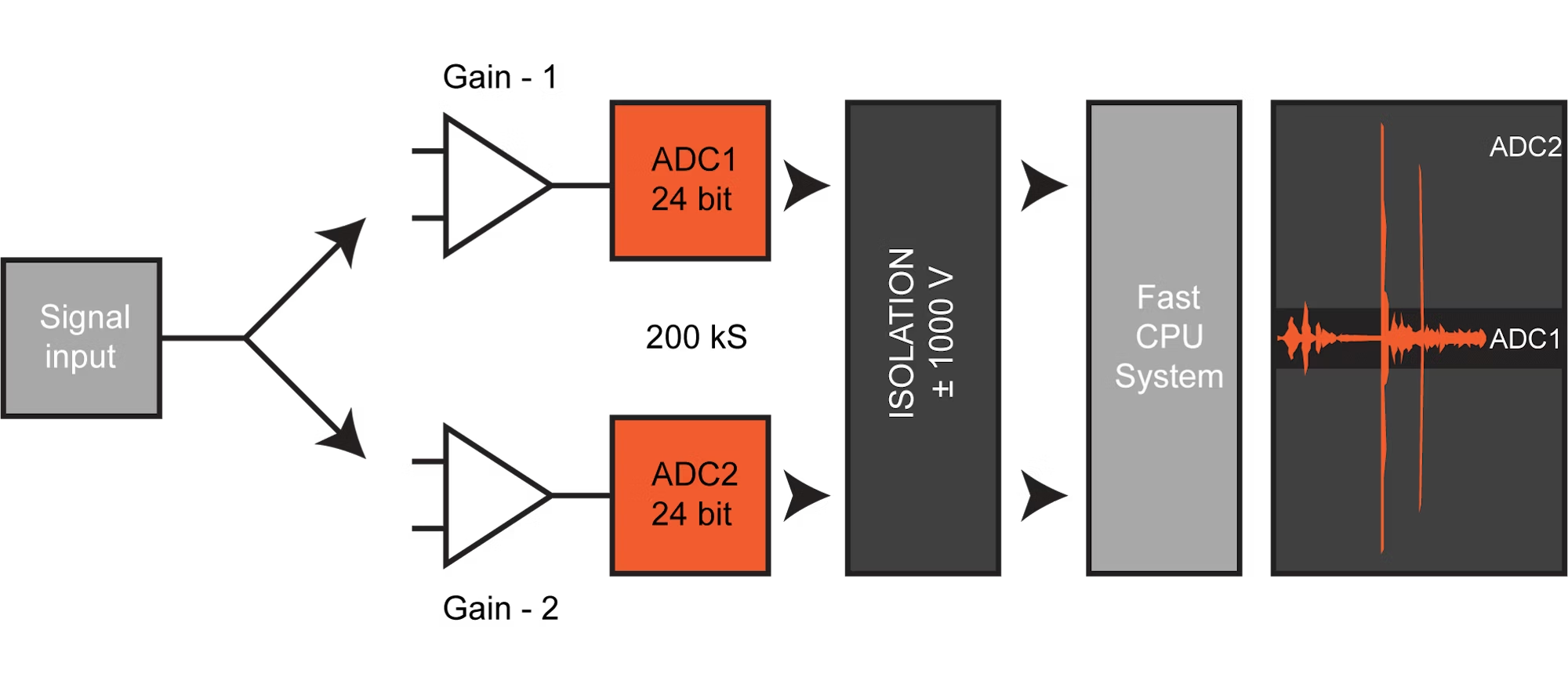

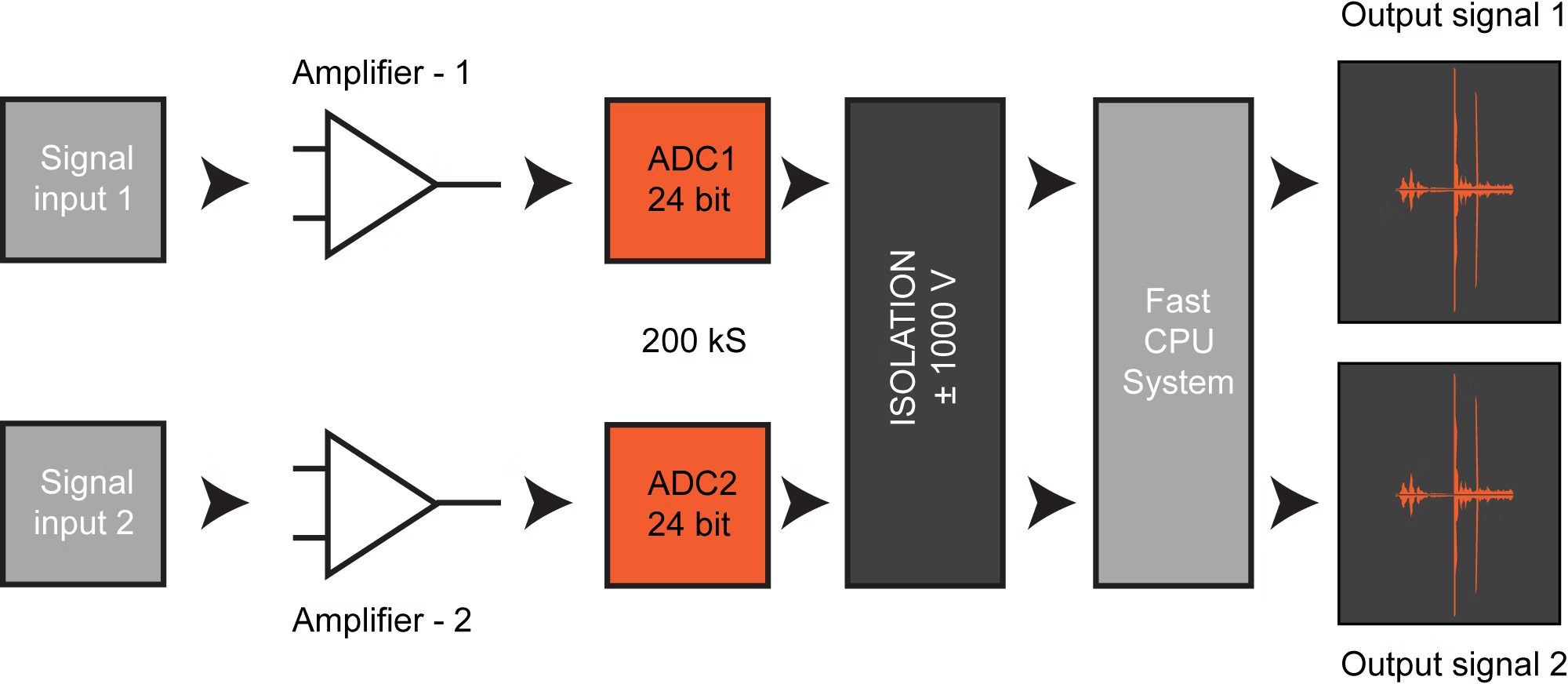

The DualCoreADC® technology solves often-faced problems with signal measurement:
The input signal can be higher than expected by the signal conditioner (out-of-range) and therefore clipped by the ADC. This will result in an incorrect measurement and will require you to repeat the test all over again. DualCoreADC technology prevents these problems. Each channel amplifier has two A/D converters that measure the high and the low gain of the input signal in parallel. This results in the full possible measuring range of the sensor and prevents the signal from being clipped. With DualCoreADC technology, SIRIUS data acquisition systems achieve more than 130 dB signal-to-noise ratio and more than 160 dB in dynamic range. This is 20x better than 24-bit DAQ systems and 20x less noise. | |
SIRIUS DAQ devices offer high galvanic channel-to-channel and channel-to-ground isolation (±1000 V). The DAQ systems even offer isolated sensor excitation. With such isolation, we have no problem measuring high voltage potentials and no problem with common-mode voltages. We are also safe with measurements like vibrations, temperatures, or any other measurement where non-isolated sensors are placed next to the high voltage potential against the DAQ system ground. In such cases, a non-isolated DAQ system would burn or at least give faulty wrong results. With SIRIUS it is just one thing less to worry about. Digital isolation has another big advantage - preserving the frequency bandwidth of the amplifiers. SIRIUS provides "worry-free" measurements, less noise, no ground loops, and the best possible signal quality. For less demanding measurement and lower-cost applications, SIRIUS DAQs are also available in a differential version where only power supply isolation is offered. | |
Dewesoft data acquisition systems utilize a patented and registered trademark technology called SuperCounter®. Counter inputs can measure the RPM and angle of rotating machines. In comparison to standard counters, which only output integer numbers one sample later (e.g. 1, 1, 2, 2, 3, 4), the Dewesoft SuperCounter inputs are able to extract accurate values like 1.37, 1.87, 2.37, etc. fully synchronized for time and amplitude. This is done by measuring the exact time of the rising edge of the signal with an additional counter. Our SuperCounter inputs work on a 102.4 MHz time base, independent of the current analog sampling rate. Counter inputs are fully synchronized with analog, CAN bus, and other data sources to enable easy applications like balancing, order tracking, and torsional vibrations. | |
 |
SIRIUS® R2 and R4 data acquisition systems can optionally be configured with analog output channels:
Analog output channels can function in any of the following modes:
|

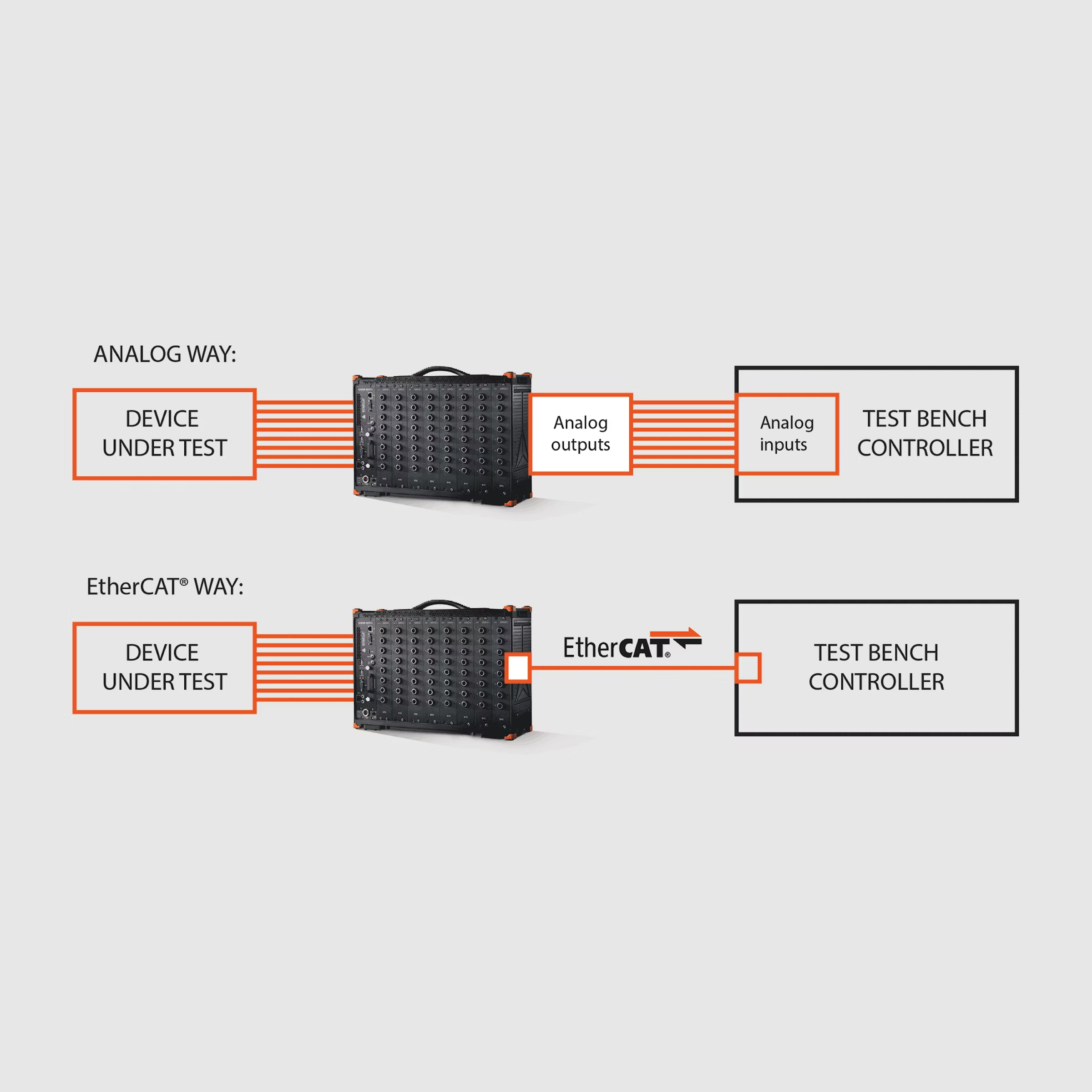

Real-time, low-latency data output We offer an "RT" (real-time) version of SIRIUS® data acquisition systems. These systems include a secondary EtherCAT® data bus on the back side of the instrument. This data bus can be used to output reduced rate data in parallel in real-time to any 3rd party EtherCAT® masters. The real-time EtherCAT® bus is available on the following SIRIUS systems: SIRIUS® modular EtherCAT® SIRIUS® R2, R2-HUB SIRIUS® R4, R4-HUB SIRIUS® R8 To learn more about SIRIUS® RT instruments and our unique dual-mode operation please visit the SIRIUS® RT systems product page. |  |
 |
SBOX computers can optionally be equipped with a 10 Hz or 100 Hz GNSS receiver for precise position measurement applications. GNSS receivers can optionally also be configured to support RTK correction (Real-Time Kinematics). GNSS receiver option will transform your data acquisition system and makes it ideal for precise position-based test and measurement applications. The RTK correction option will improve the positioning accuracy down to 1 cm. SBOX with GNSS receiver will transform the data acquisition system into a powerful automotive data logger for advanced position-based test and measurement applications such as:
|
