DEWESOFT SIRIUS SBOX 데이터 처리 컴퓨터 & SSD 데이터로거
가격문의(상세정보 참조)
DEWESOFT SIRIUS SBOX 데이터 처리 컴퓨터 & SSD 데이터로거

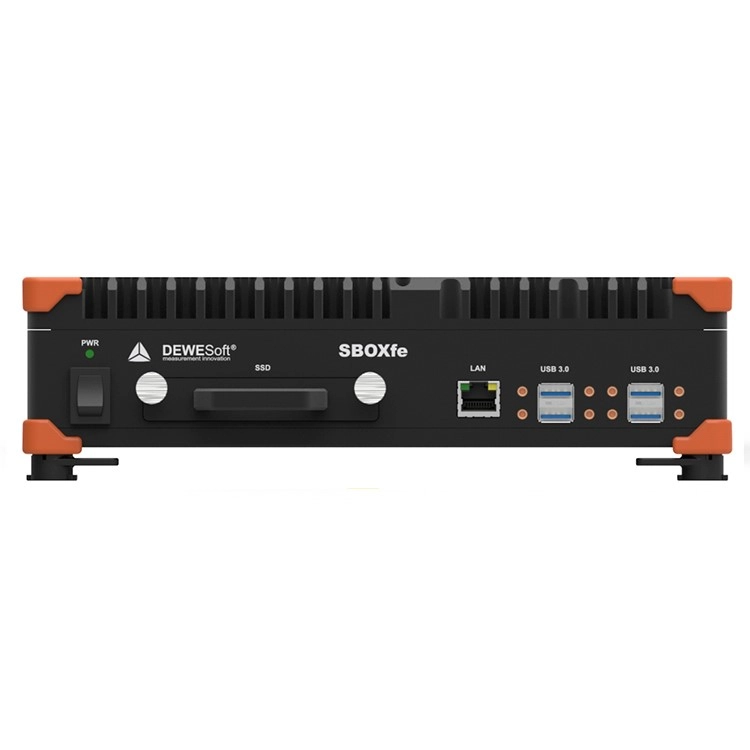

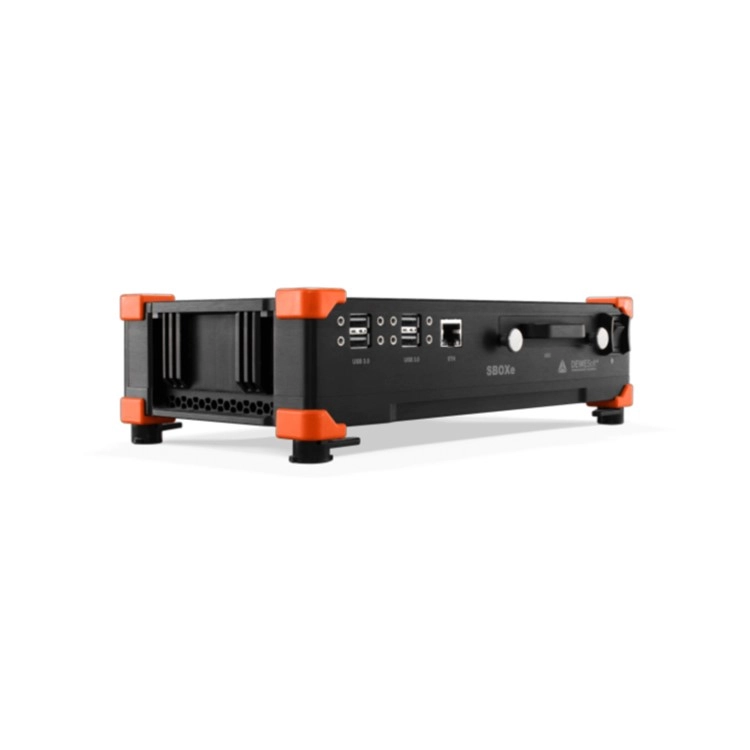

DEWESOFT SIRIUS SBOX Powerful Data Processing Computer and SSD Data Logger
Powerful data processing computer and highly reliable SSD data logger. SBOX is a perfect companion to the SIRIUS modular signal conditioning amplifiers which together form a portable, stand-alone data acquisition system for mobile and field test and measurement applications.
클릭 하시면 이동합니다.
데베소프트 ・ DEWESOFT
SBOX
데이터 처리 컴퓨터 & SSD 데이터로거

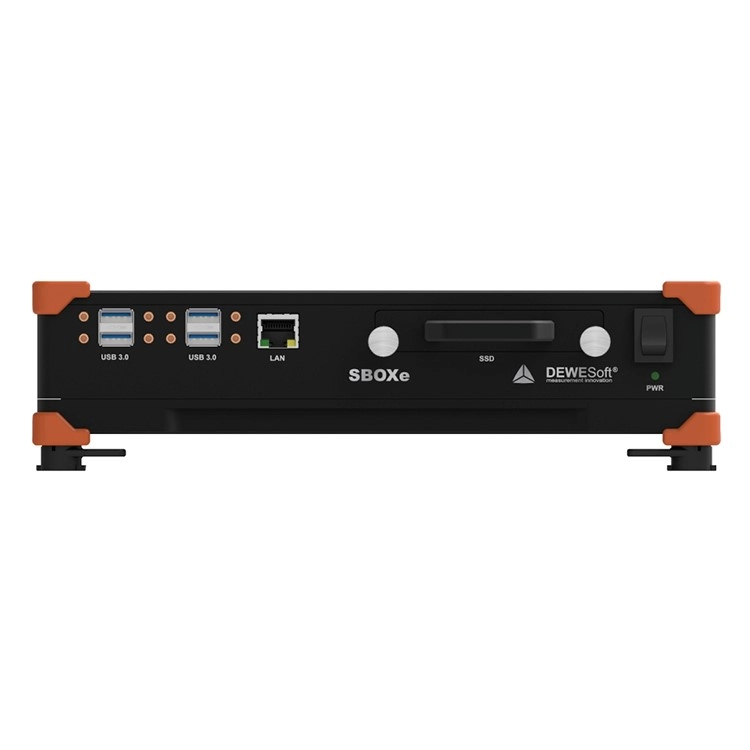

SBOX Powerful Data Processing Computer and SSD Data Logger
- Highly Reliable SSD Storage

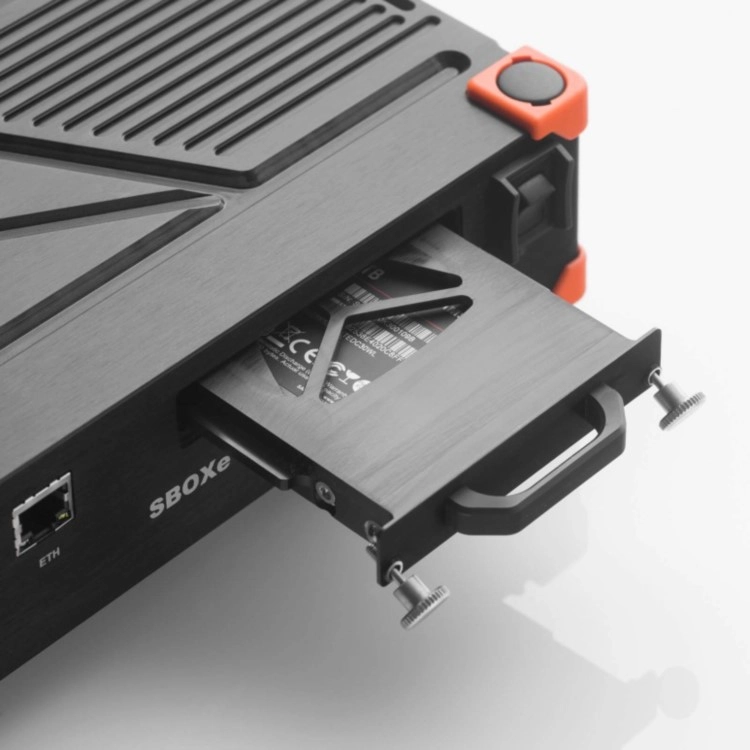

SBOX provides highly reliable data recording with typical 180 MB per second write speed straight into a built-in fast SSD drive. SSD drive is removable so you can swap and replace it quickly.
- High-Performance CPU
With a new 11th-generation, 8-thread Intel Core i5 CPU and 32 GB of memory, SBOX is also an extremely powerful computer for worry-free, real-time data processing.
- 6 USB Interfaces
SBOX includes four USB 3.0 ports and two USB 2.0 ports. All USB ports feature screw-lock connectors.
- 3 Network Interfaces
Two gigabit LAN ports and wireless WLAN interface with external antenna ensure maximum connectivity.
- EtherCAT Interface
Built-in EtherCAT slave interface port with synchronization for USB and EtherCAT DAQ devices like SIRIUS and KRYPTON.
- 100 Hz GPS With RTK
We can integrate an optional 10Hz or 100Hz GNSS receiver directly into the DAQ system. This enables precise GPS positioning for navigational testing applications. GNSS receivers offer optional RTK support which can improve the positioning accuracy down to 1 cm.
- Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
- Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
 |

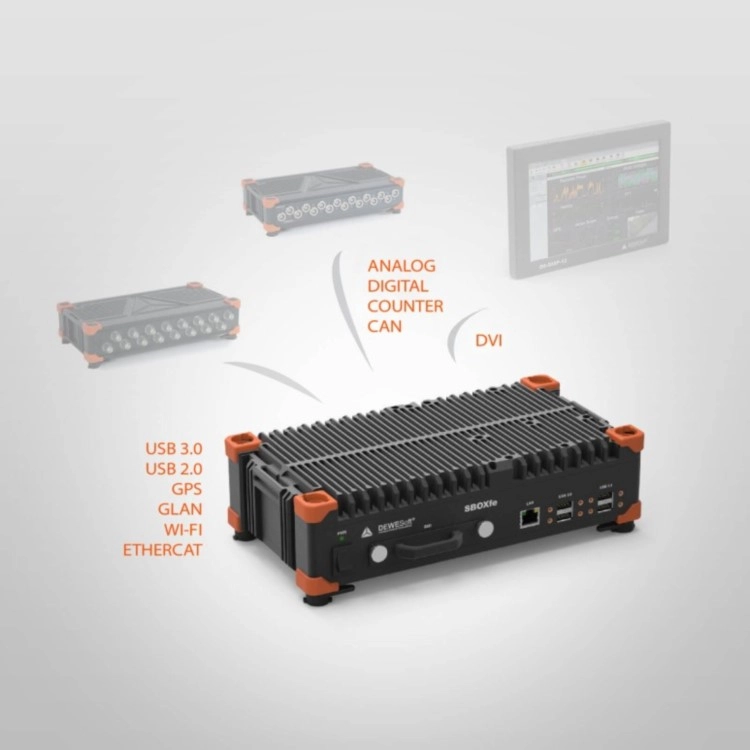

SBOX devices are highly reliable and rugged data processing computers and SSD-based data loggers. They can be used with our signal conditioning modules such as SIRIUS, IOLITE, or KRYPTON. SBOX together with a signal conditioning device will form a completely autonomous and standalone data acquisition system. SBOX computers have integrated highly reliable SSD storage. With a typical 180 MB/s write rate, there is enough capacity to store hundreds of channels at high speed including high-speed video. The main SSD storage is also removable, so you can easily remove the SSD and read the data externally. For safe and stable operation SBOX computers have an additional internal flash drive for the operating system. This separates the OS from measurement data storage and makes it run more stable in general. |
Fast 11th-generation and 8-thread Intel Core i5 processor with 8 GB memory (optionally up to 40 GB) provides more than enough processing power for the most complex mathematical computations. SBOX will allow fluent workflows and real-time data processing even if your measurement setup is configured with thousands of channels. Highly optimized DewesoftX software will take maximum advantage of the latest CPU technologies built into SBOX and allow visually rich and fluent graphics, smooth workflows, and real-time math changes on your live sampled data. |  |
 |

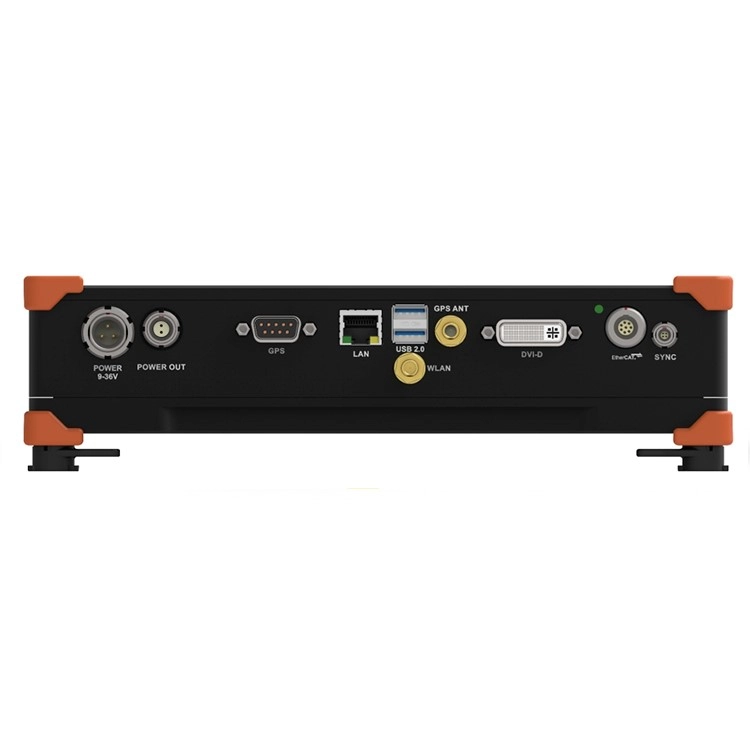

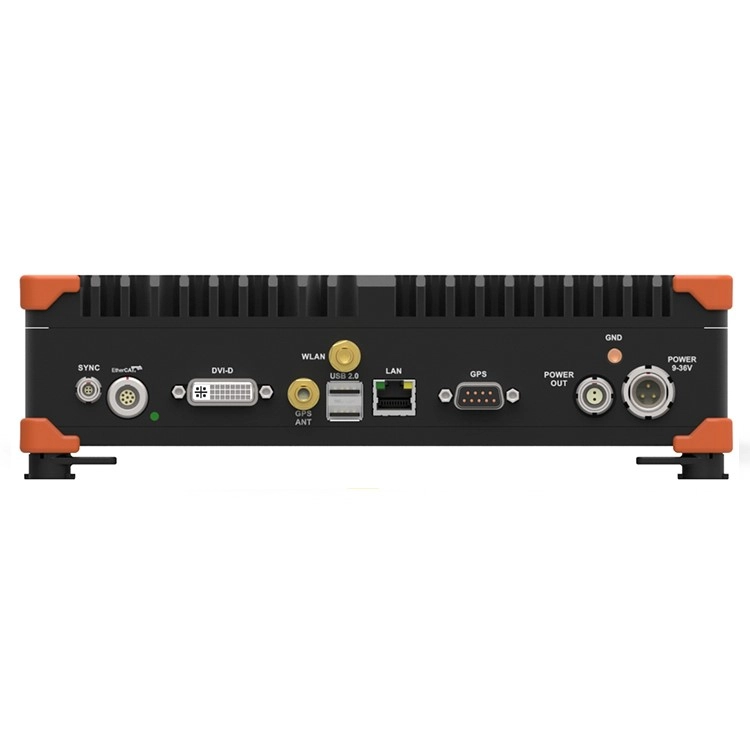

SBOX computers are equipped will all the standard interfaces for easy connectivity to the network, peripheral devices, displays, and of course the data acquisition modules. SBOX computers are equipped with the following interfaces:
|
SBOX computers include six USB ports as well as an EtherCAT master port for connecting any of our USB and EtherCAT-based signal conditioning modules such as the SIRIUS modular, KRYPTON, or IOLITE. If six available USB ports on SBOX computers are not enough, we provide an additional high-speed USB hub (DS-HUB7). The DS-HUB7 will add an additional seven USB ports. The SBOX and DS-HUB7 chassis can be clipped together using our smart click mechanism. |  |
 |

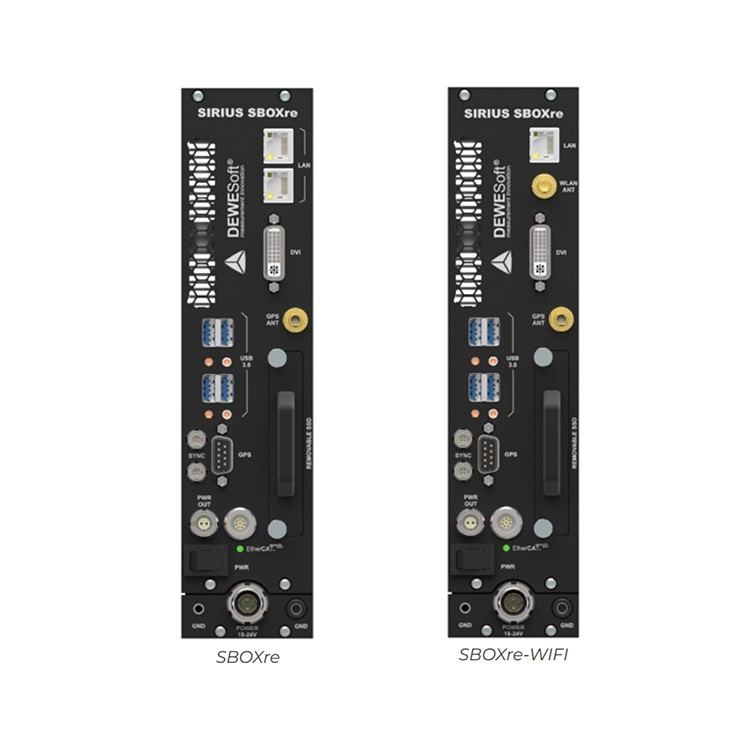

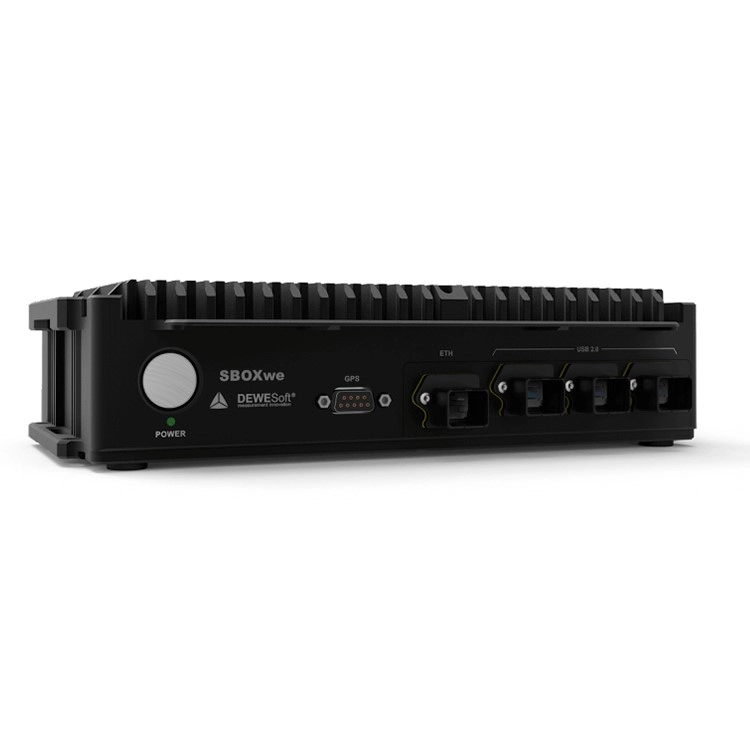

Next to standard SBOXe, we offer two SBOX versions that are designed for data recording in more harsh environments:
|
SBOX computers can optionally be equipped with a 10 Hz or 100 Hz GNSS receiver for precise position measurement applications. GNSS receivers can optionally also be configured to support RTK correction (Real-Time Kinematics). GNSS receiver option will transform your data acquisition system and makes it ideal for precise position-based test and measurement applications. The RTK correction option will improve the positioning accuracy down to 1 cm. SBOX with GNSS receiver will transform the data acquisition system into a powerful automotive data logger for advanced position-based test and measurement applications such as:
|  |
