DEWESOFT SIRIUS Modular 모듈식 데이터 수집시스템
가격문의(상세정보 참조)
DEWESOFT SIRIUS Modular 모듈식 데이터 수집시스템

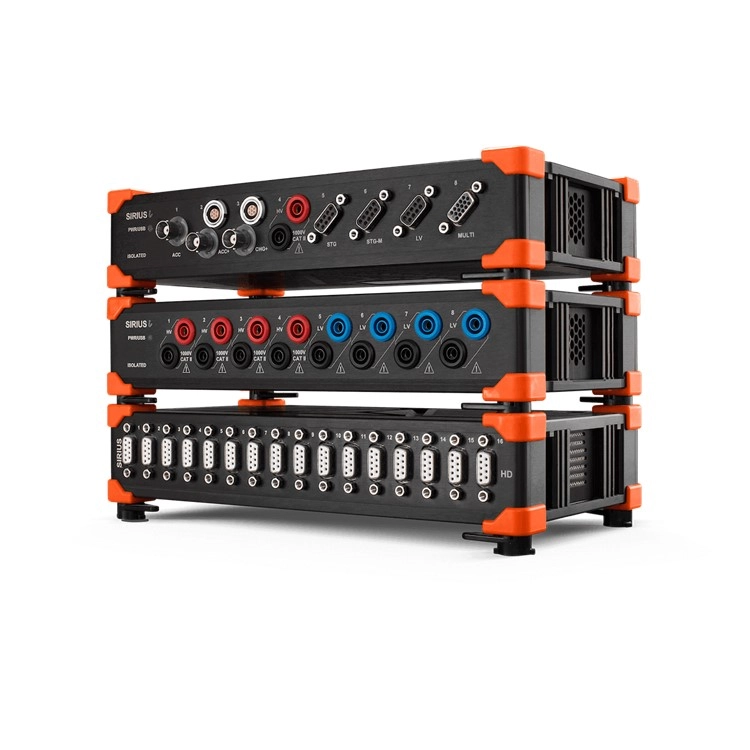

DEWESOFT SIRIUS Modular Modular Data Acquisition (DAQ) System
SIRIUS® modular is the world's most versatile and powerful data acquisition system. SIRIUS® provides high-end signal conditioning amplifiers for almost any signal and sensor. SIRIUS data acquisition systems are truly the latest in DAQ technology and offer high dynamic range (160 dB), galvanic isolation, etc. They are available in USB or EtherCAT® configurations.
All SIRIUS® instruments are bundled with award-winning data acquisition software and come with an industry-leading 7-year warranty.
상품
원산지 Slovene
제조사 DEWESOFT
브랜드 SIRIUS
배송
택배 · 기본 무료
클릭 하시면 이동합니다.
데베소프트 ・ DEWESOFT
SIRIUS Modular
모듈식 데이터 수집시스템
Modular Data Acquisition (DAQ) System
- USB/EtherCAT Interface
SIRIUS modular data acquisition systems can be connected via USB or EtherCAT® interface to any Windows-compatible PC or to one of our high-performance SBOX processing computers and data loggers running our award-winning DewesoftX software.
- Connect Any Sensor
Array of different amplifiers are available that can acquire data from virtually any sensor on the market. IEPE, voltage, high voltage, charge, full/half/quarter bridge, LVDT, RTD, thermocouples, current, resistance, counter, encoder, and digital inputs are available.
- Universal Analog Inputs
Truly universal analog inputs are available that can accept voltage, IEPE, full/half/quarter bridge, RTD, and resistance signals natively. Additional input modes such as charge, thermocouple, RTD, current, and LVDT signals are supported via our DSI adapters.
- 160 dB Dynamic Range
Our DualCoreADC® technology boosts dual 24-bit delta-sigma ADC's with an anti-aliasing filter on each analog channel, achieving an astonishing 160 dB dynamic range in time and frequency domain with 200 kHz sampling rate per channel.
- High Sampling Rate
SIRIUS signal amplifiers offer high acquisition speeds of up to 1 MS/s per channel. The sample rate is software-selectable per every input channel.
- High Galvanic Isolation
SIRIUS signal conditioners provide high ±1000 V channel-to-channel and channel-to-ground galvanic isolation. This prevents damage to the systems from excessive voltage and avoids ground loops.
- Flexible and Scalable
SIRIUS DAQ system can grow with your needs. You can start with a single channel and scale the system to thousands of channels at any time.
- Fully Synchronized
All SIRIUS input channels - analog, digital, or CAN - are fully synchronized with microsecond accuracy. Multiple SIRIUS devices can be daisy-chained and synchronized together with the same pin-point synchronization accuracy.
- Sensor Power Supply
Amplifiers provide channel-independent, programmable power supply for sensor excitation.
- SuperCounter® Inputs
Each counter channel input is capable of three digital inputs, one event counter, encoder, period, pulse-width, duty-cycle, and precise frequency and angle measurement using patented SuperCounter® technology.
- CAN and CAN FD Input
SIRIUS modular devices offer one high-speed CAN 2.0b and CAN FD interface with 1 Mbit/sec data throughput with additional support for XCP, CCP, OBDII, J1939, and CAN output.
- Analog Outputs With Function Generator
SIRIUS slice can be configured with 8 analog outputs which can also function as a multi-channel function generator (software option upgrade required), analog replay, or control device with the output voltage signal of ±10V.
- Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
- Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
SIRIUS MODULAR DEWESOFT SIRIUS MODULAR SIRIUS MODULAR DEWESOFT 데베소프트 SIRIUS MODULAR SIRIUS MODULAR 데베소프트 데베소프트 시리우스 모듈러 시리우스 모듈러 데베소프트 DEWESOFT 시리우스 모듈러 시리우스 모듈러 DEWESOFT
